Auto-Start-Stop System

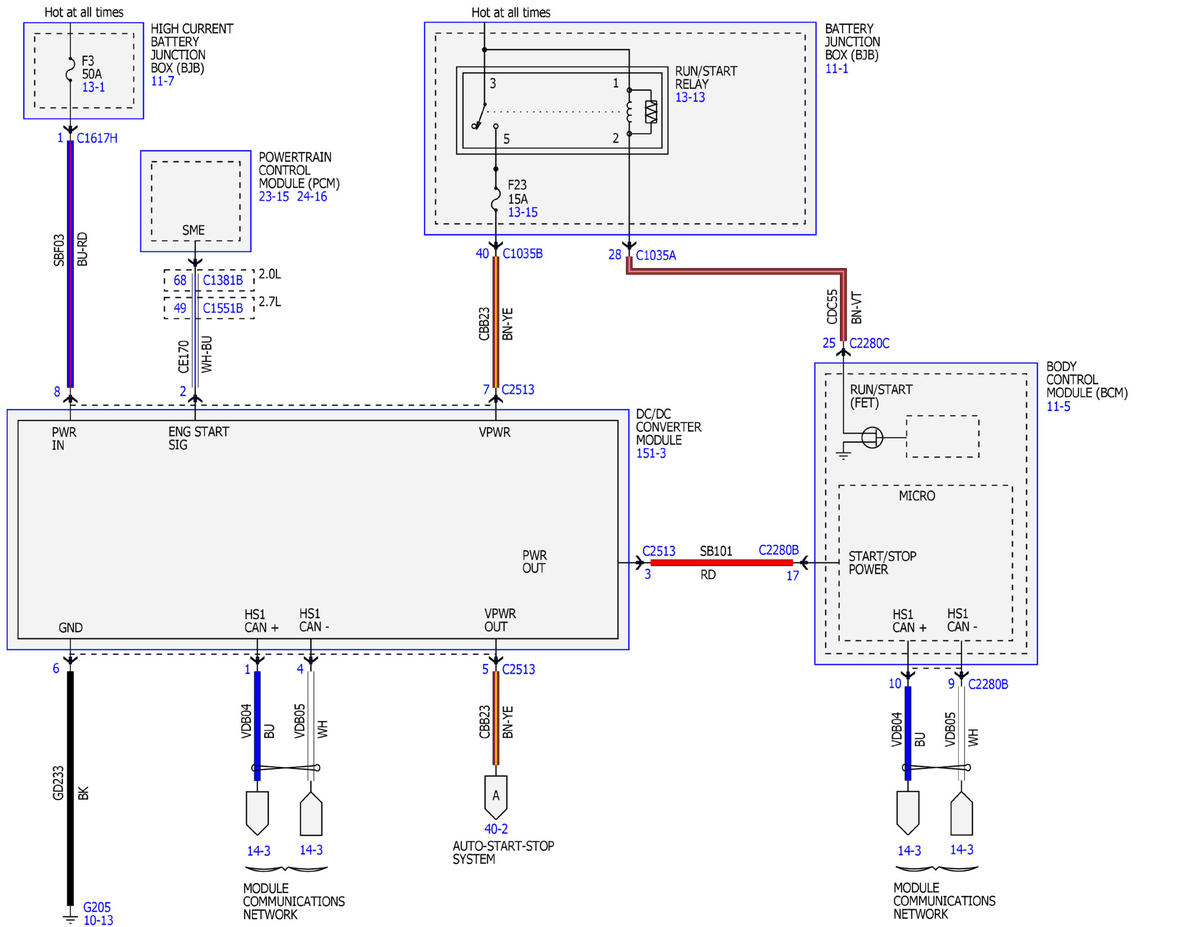

Fig 1: Auto-Start-Stop System Wiring Diagram (1 Of 3)
GFDWR163632Courtesy of FORD MOTOR COMPANY

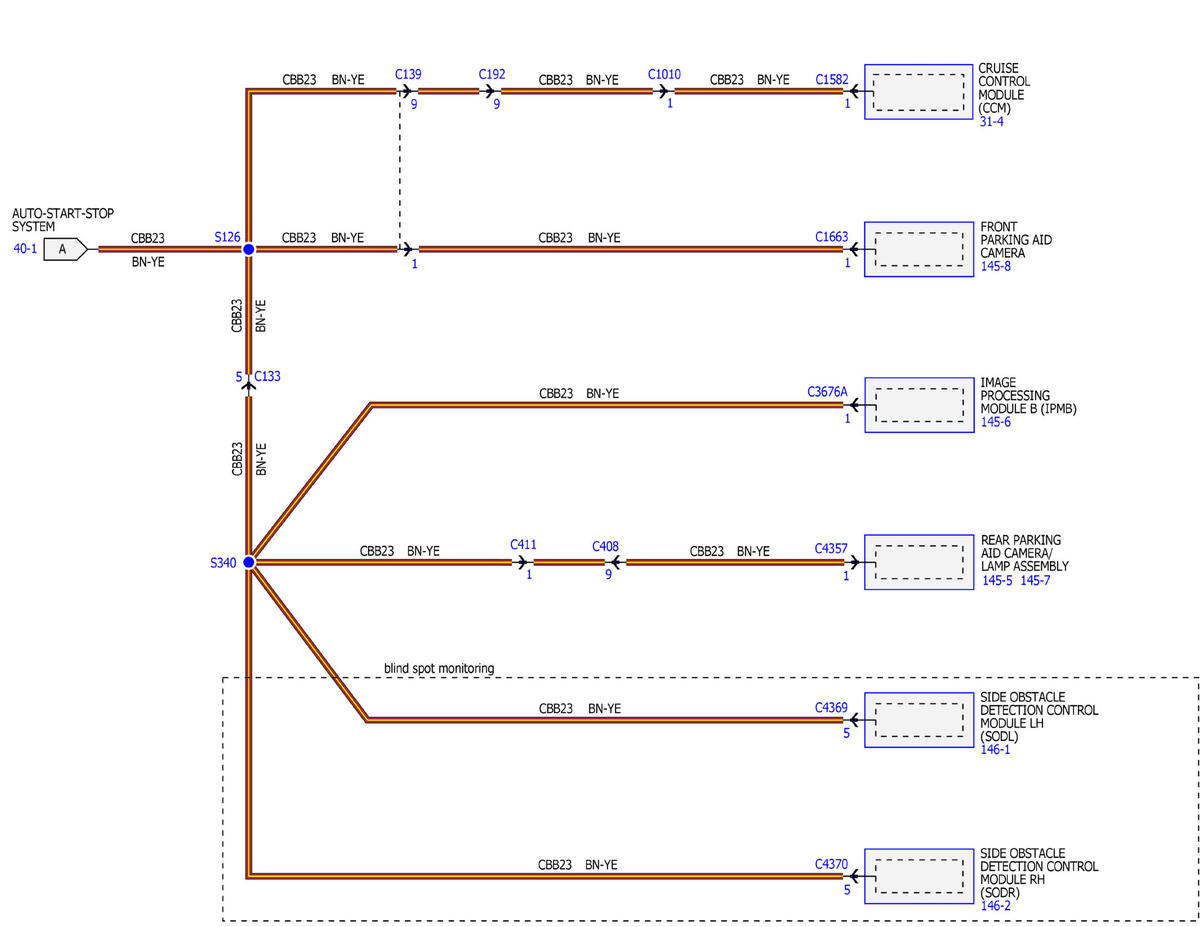

Fig 2: Auto-Start-Stop System Wiring Diagram (2 Of 3)
GFDWR163633Courtesy of FORD MOTOR COMPANY

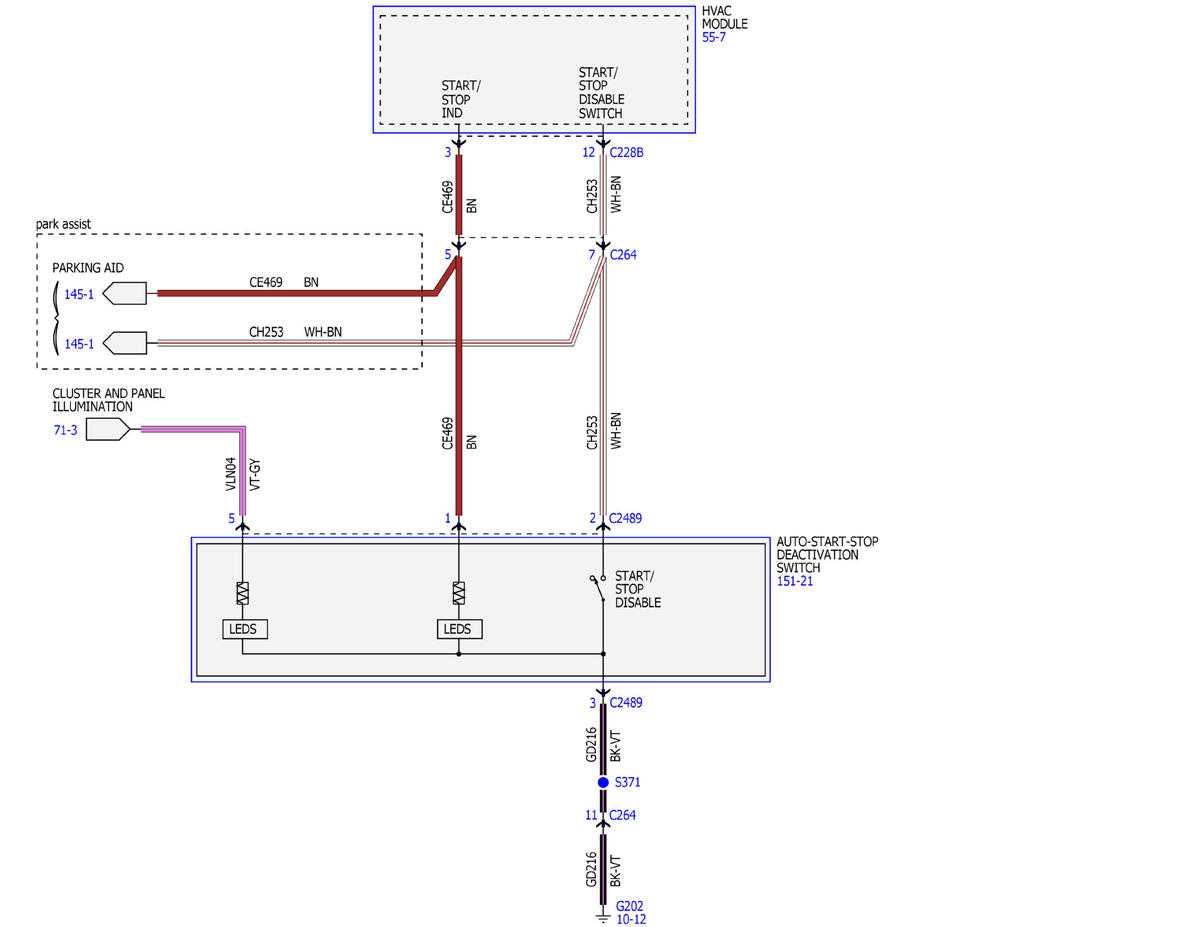

Fig 3: Auto-Start-Stop System Wiring Diagram (3 Of 3)
GFDWR163634Courtesy of FORD MOTOR COMPANY
