Power Windows

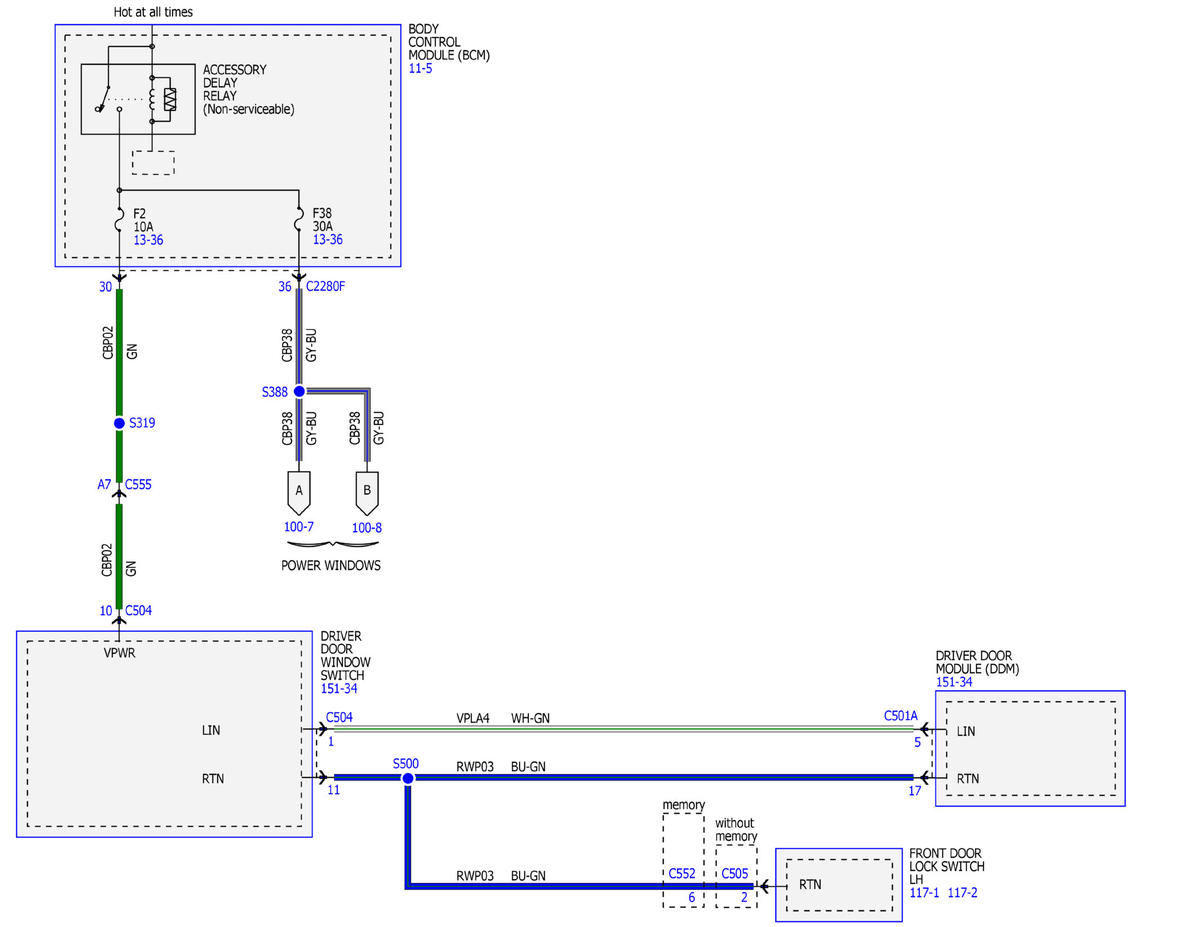

Fig 1: Power Windows Wiring Diagram (1 Of 8)

GFDWR163831

Courtesy of FORD MOTOR COMPANY

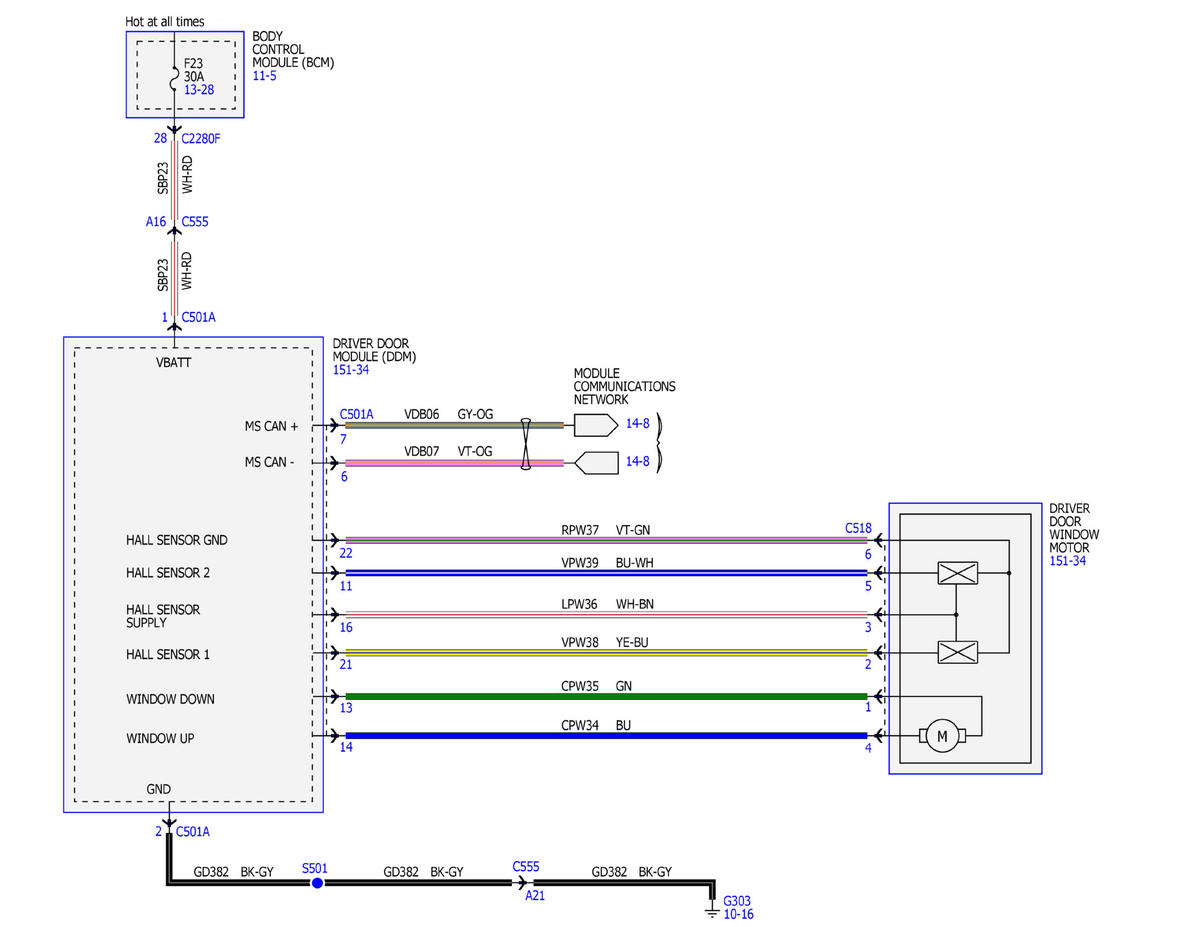

Fig 2: Power Windows Wiring Diagram (2 Of 8)

GFDWR163832

Courtesy of FORD MOTOR COMPANY

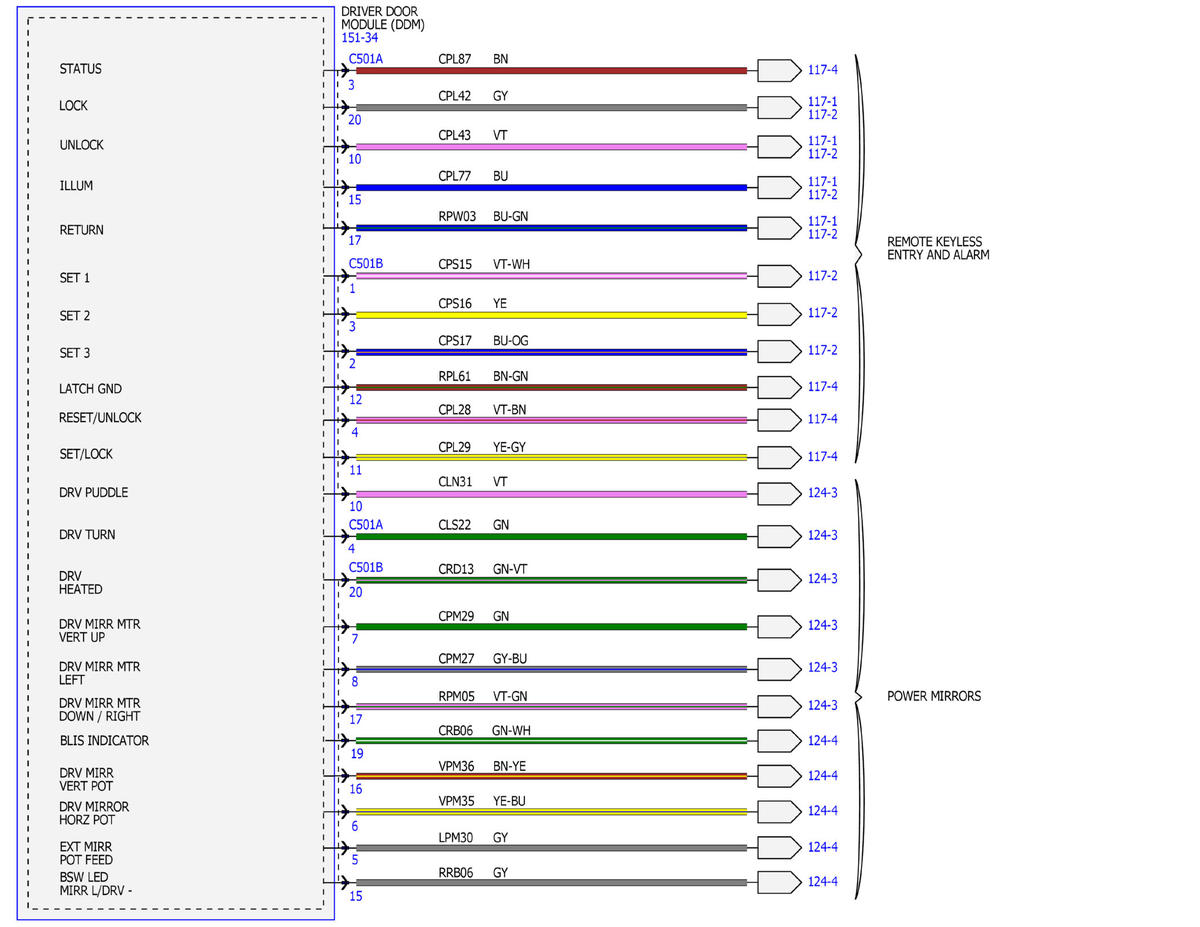

Fig 3: Power Windows Wiring Diagram (3 Of 8)

GFDWR163833

Courtesy of FORD MOTOR COMPANY

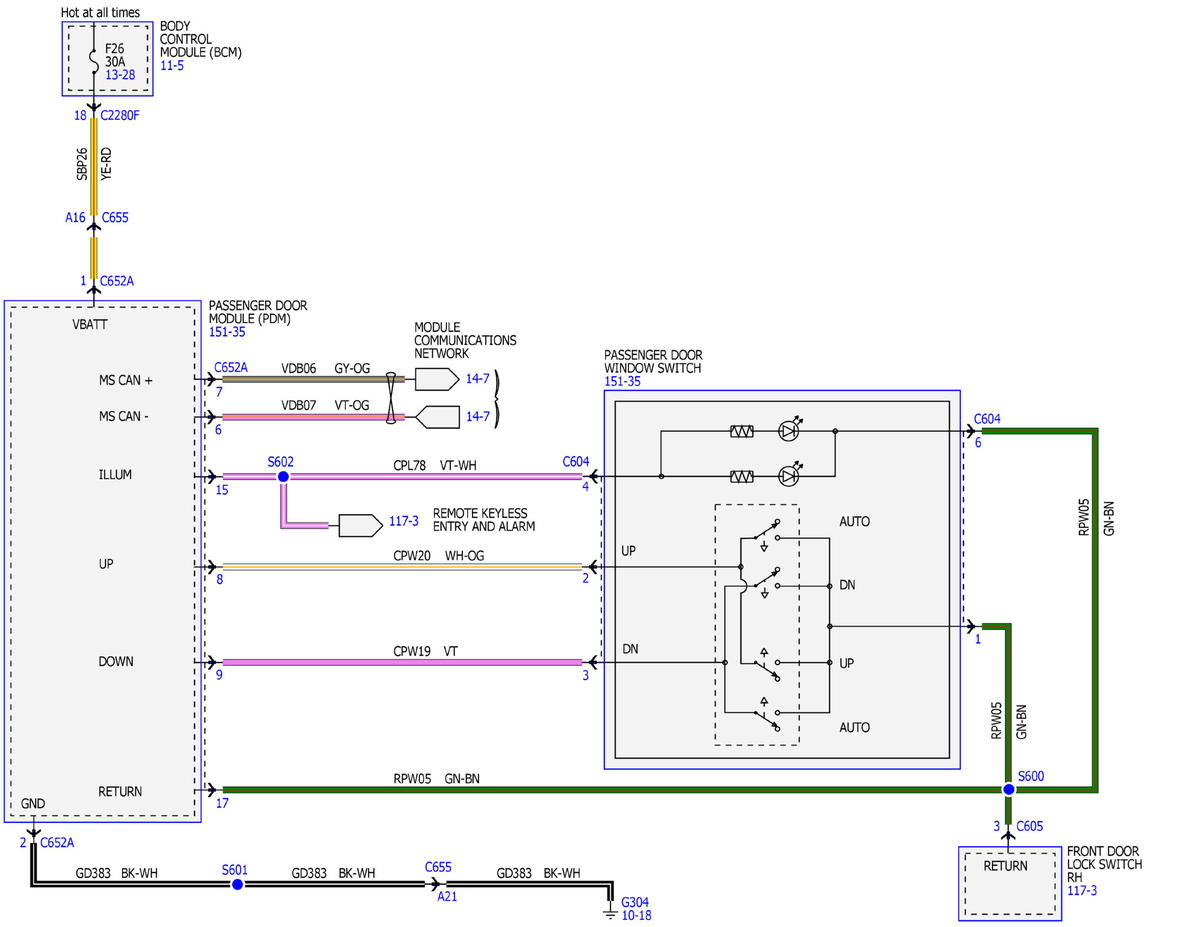

Fig 4: Power Windows Wiring Diagram (4 Of 8)

GFDWR163834

Courtesy of FORD MOTOR COMPANY

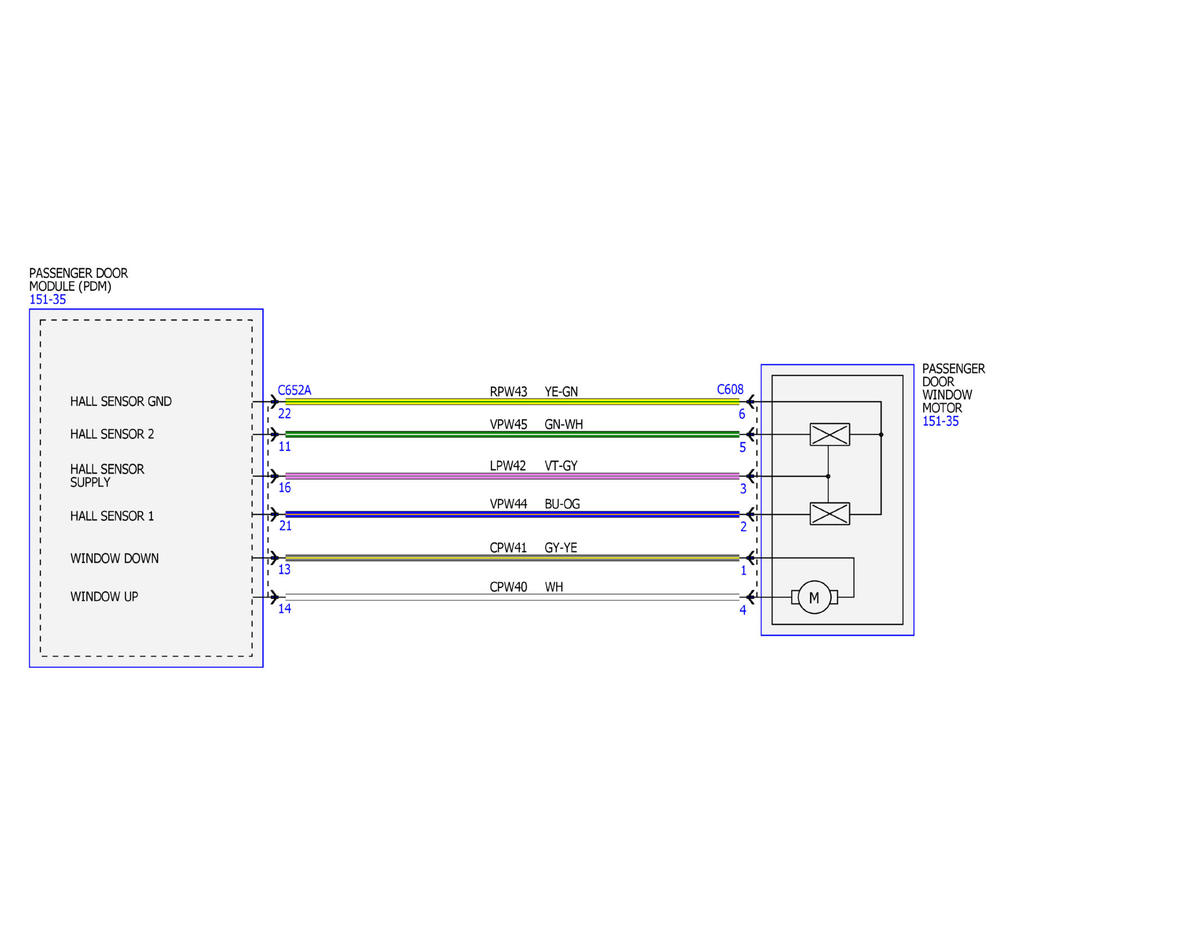

Fig 5: Power Windows Wiring Diagram (5 Of 8)

GFDWR163835

Courtesy of FORD MOTOR COMPANY

Fig 6: Power Windows Wiring Diagram (6 Of 8)

GFDWR163836

Courtesy of FORD MOTOR COMPANY

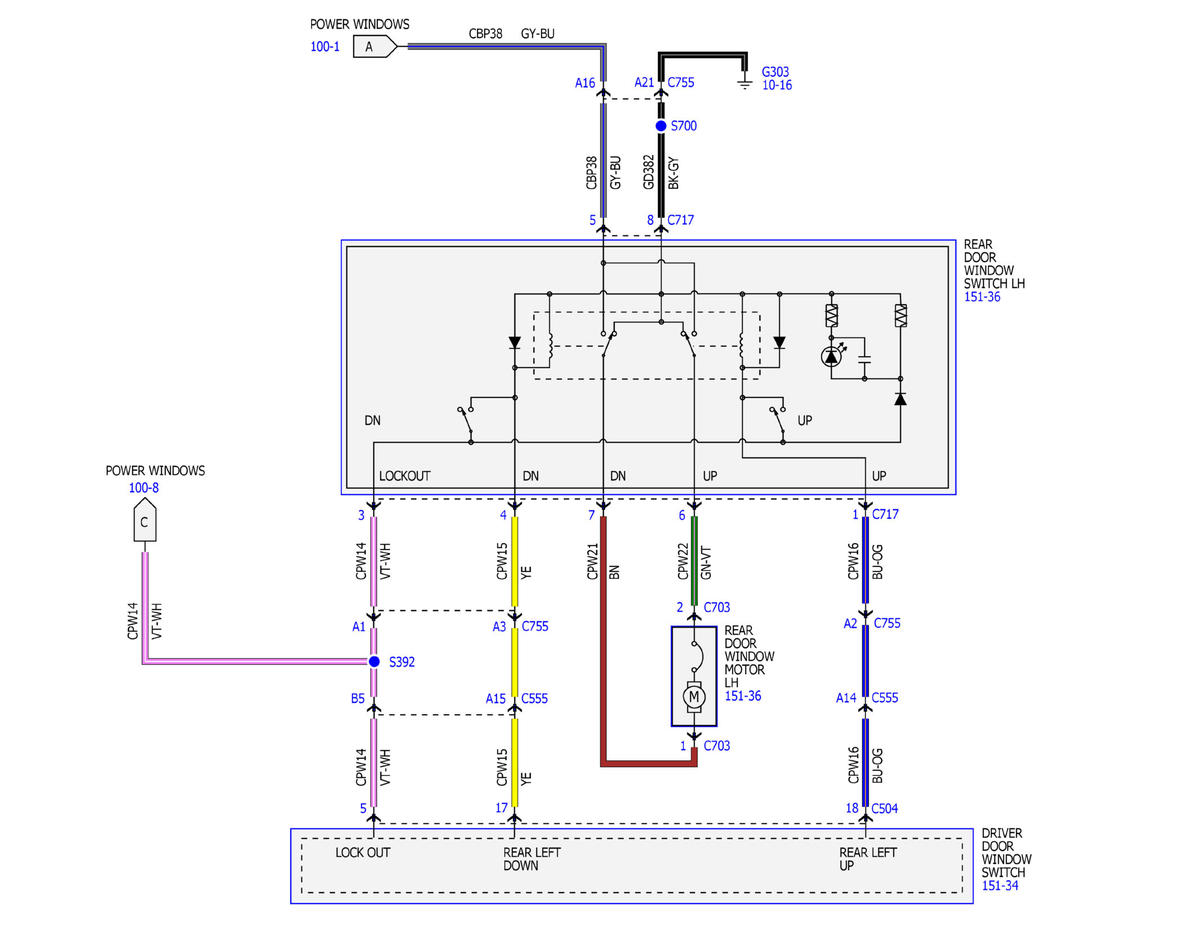

Fig 7: Power Windows Wiring Diagram (7 Of 8)

GFDWR163837

Courtesy of FORD MOTOR COMPANY

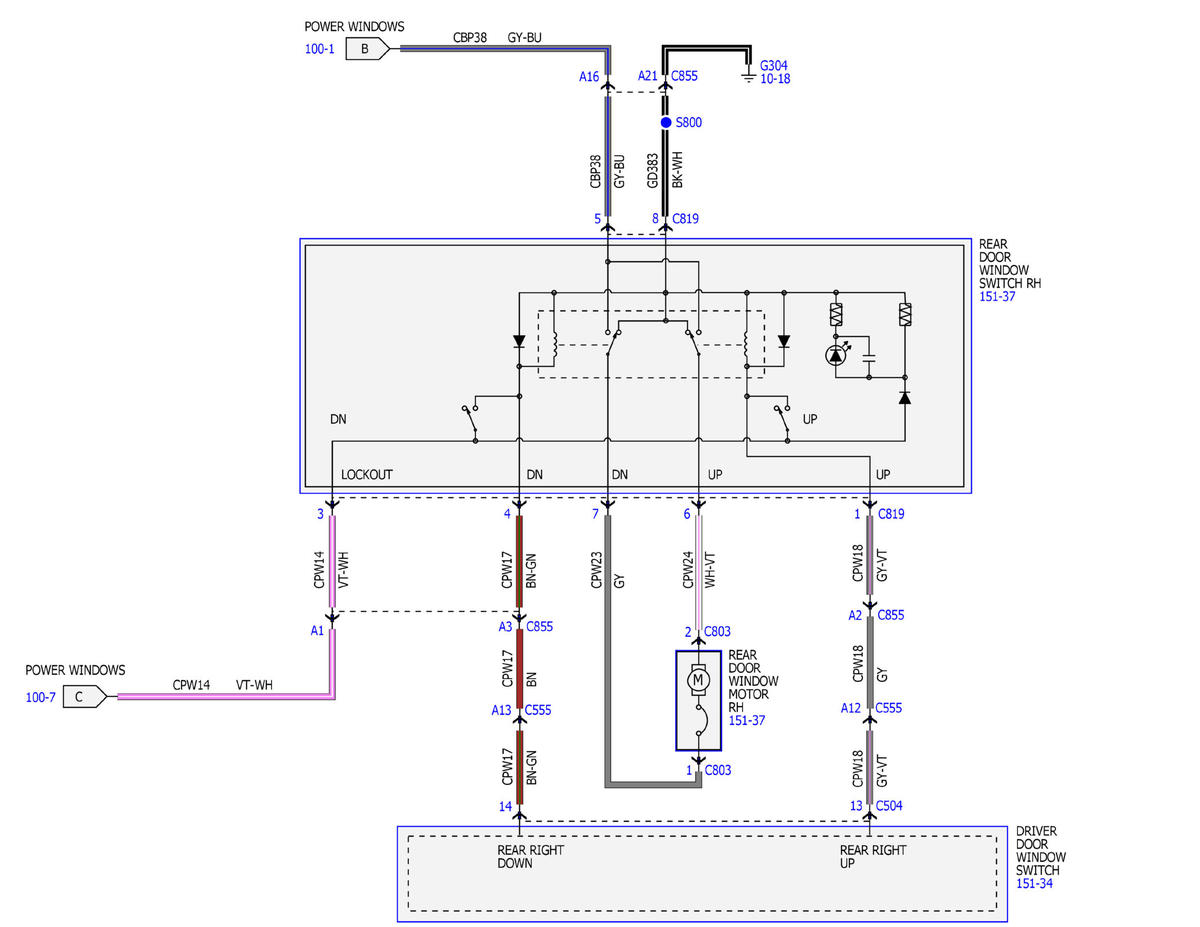

Fig 8: Power Windows Wiring Diagram (8 Of 8)

GFDWR163838

Courtesy of FORD MOTOR COMPANY
