Stability Assist Traction Control Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the floor console. Refer to: Floor Console .
2. Remove the center display screen. Refer to: Center Display Screen - Vehicles With: 12.3 Inch Screen . Refer to: Center Display Screen - Vehicles With: 15 Inch Screen .

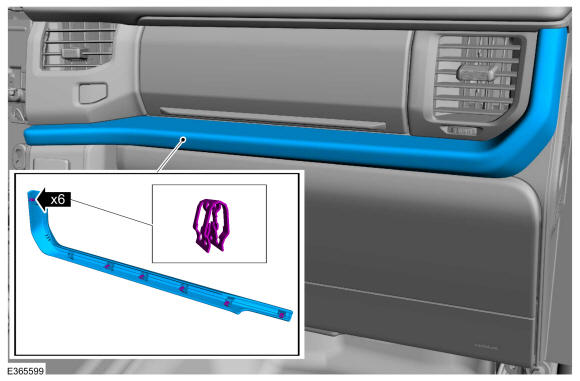

3. Detach the clips and remove the RH center finish panel.

   Courtesy of FORD MOTOR COMPANY

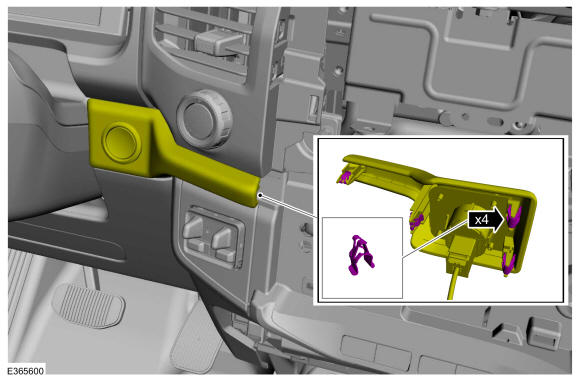

4. Detach the clips and position the LH center finish panel and ignition switch aside.

   Courtesy of FORD MOTOR COMPANY

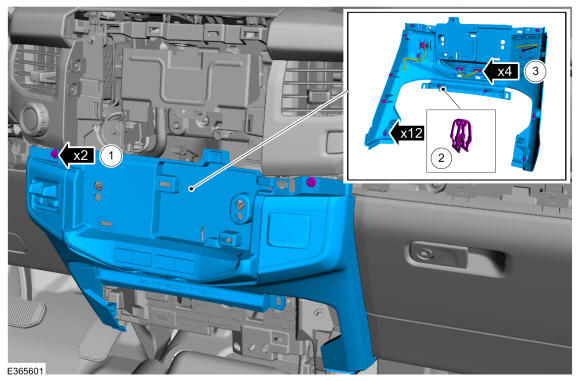

5. 1. Remove the screws.
   2. Detach the clips.
   3. Disconnect the electrical connectors and remove the instrument panel center finish panel.

   Courtesy of FORD MOTOR COMPANY

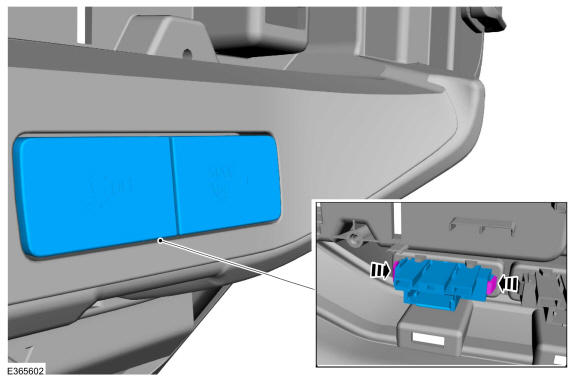

6. Push inward on the tabs and remove the stability assist/traction control switch.

Courtesy of FORD MOTOR COMPANY
