OEM Ground Distribution: Grounds

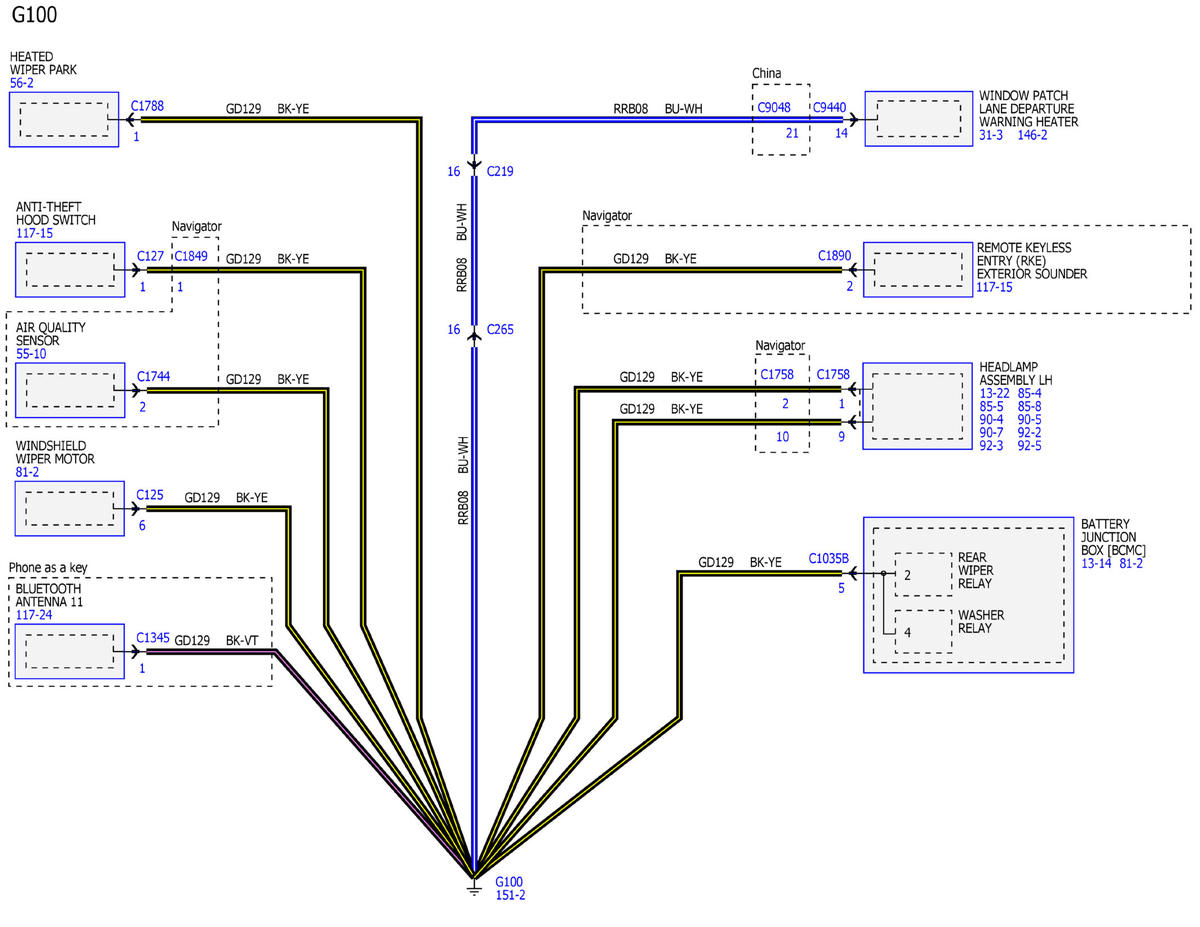

GFDWR181686Courtesy of FORD MOTOR COMPANY

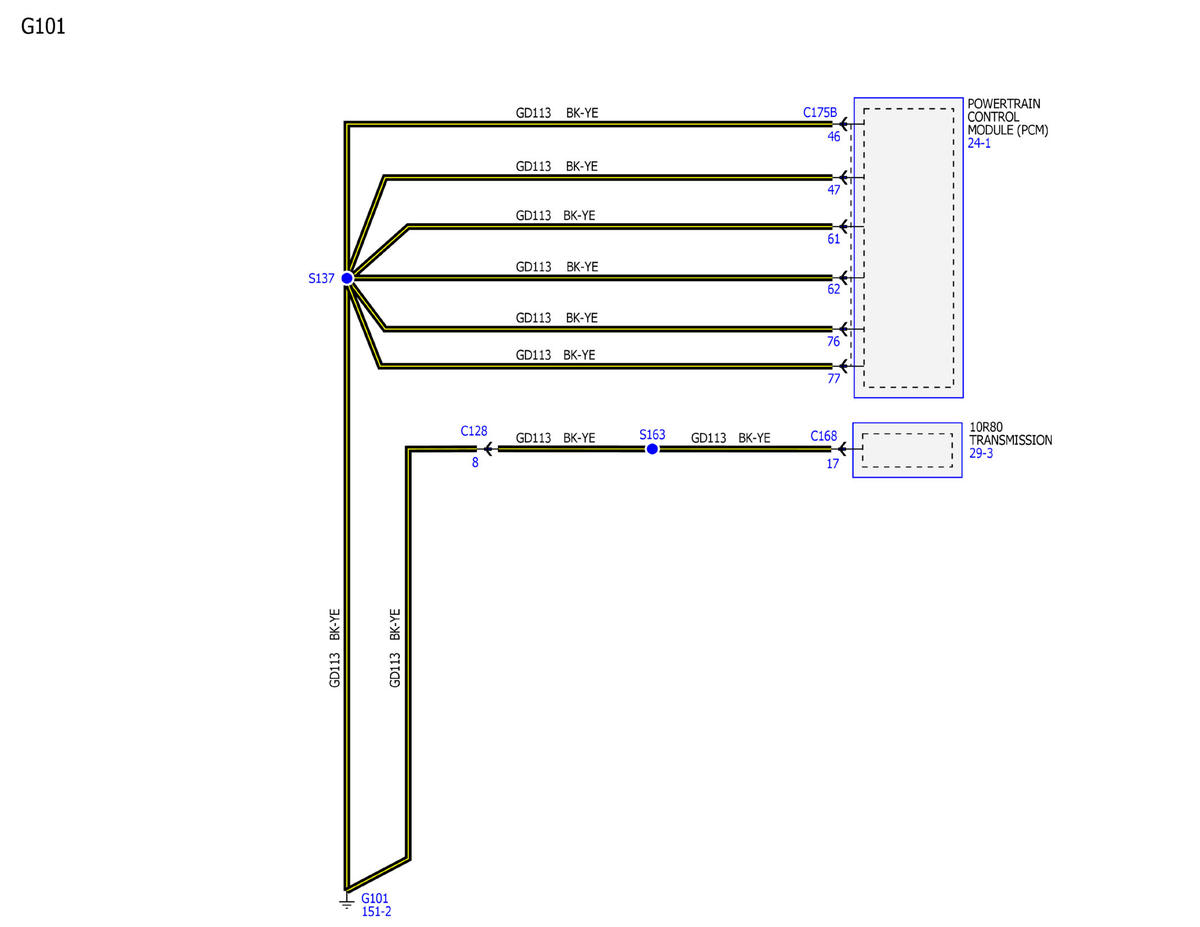

GFDWR181697Courtesy of FORD MOTOR COMPANY

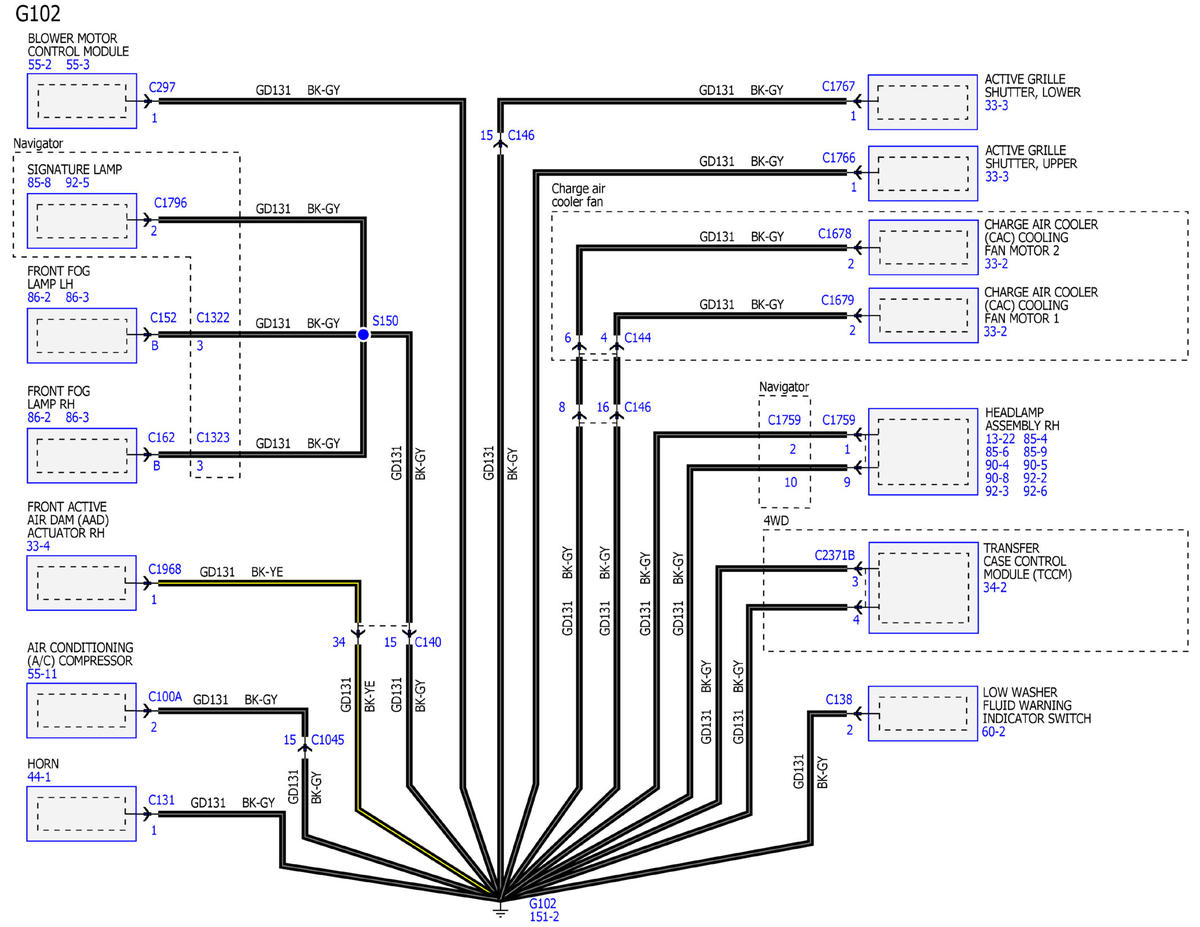

GFDWR181702Courtesy of FORD MOTOR COMPANY

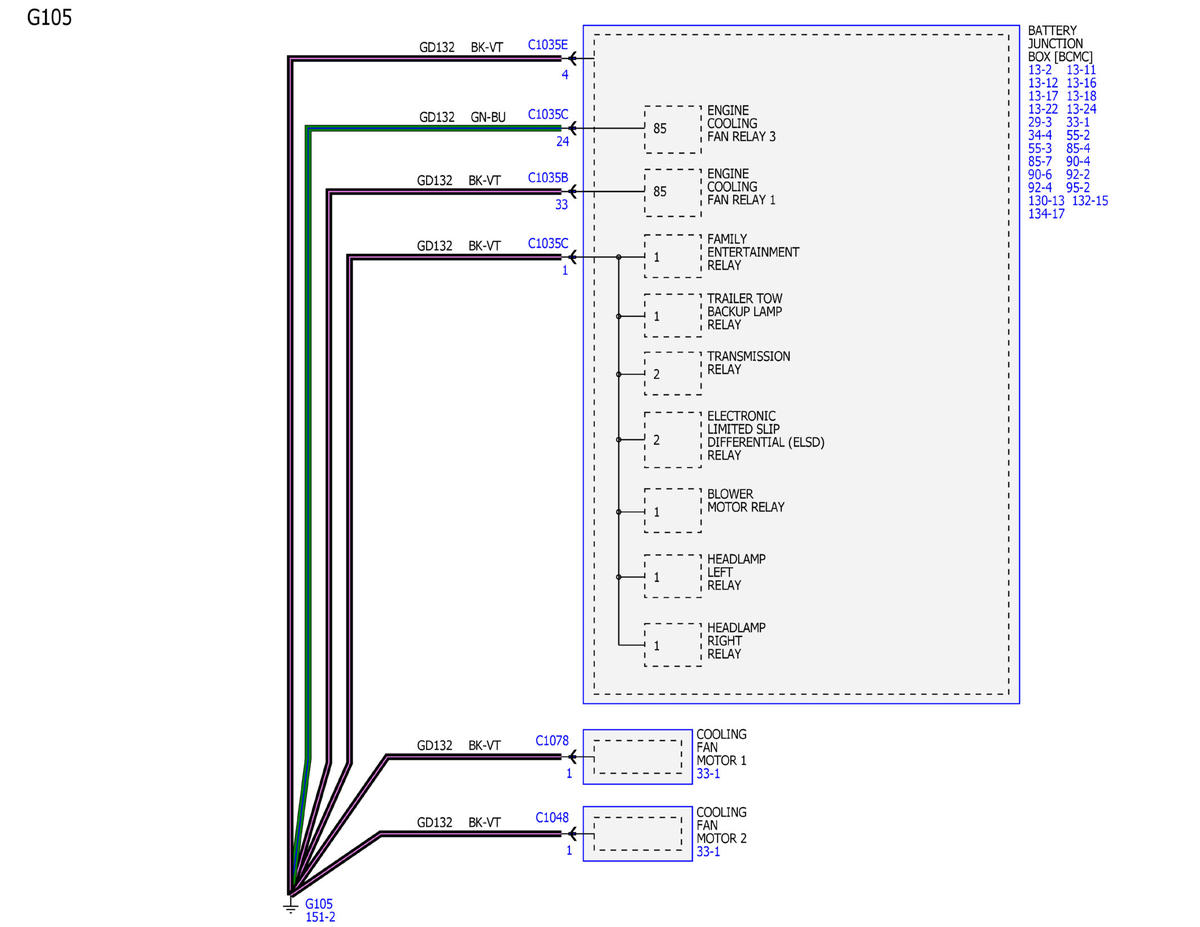

GFDWR181703Courtesy of FORD MOTOR COMPANY

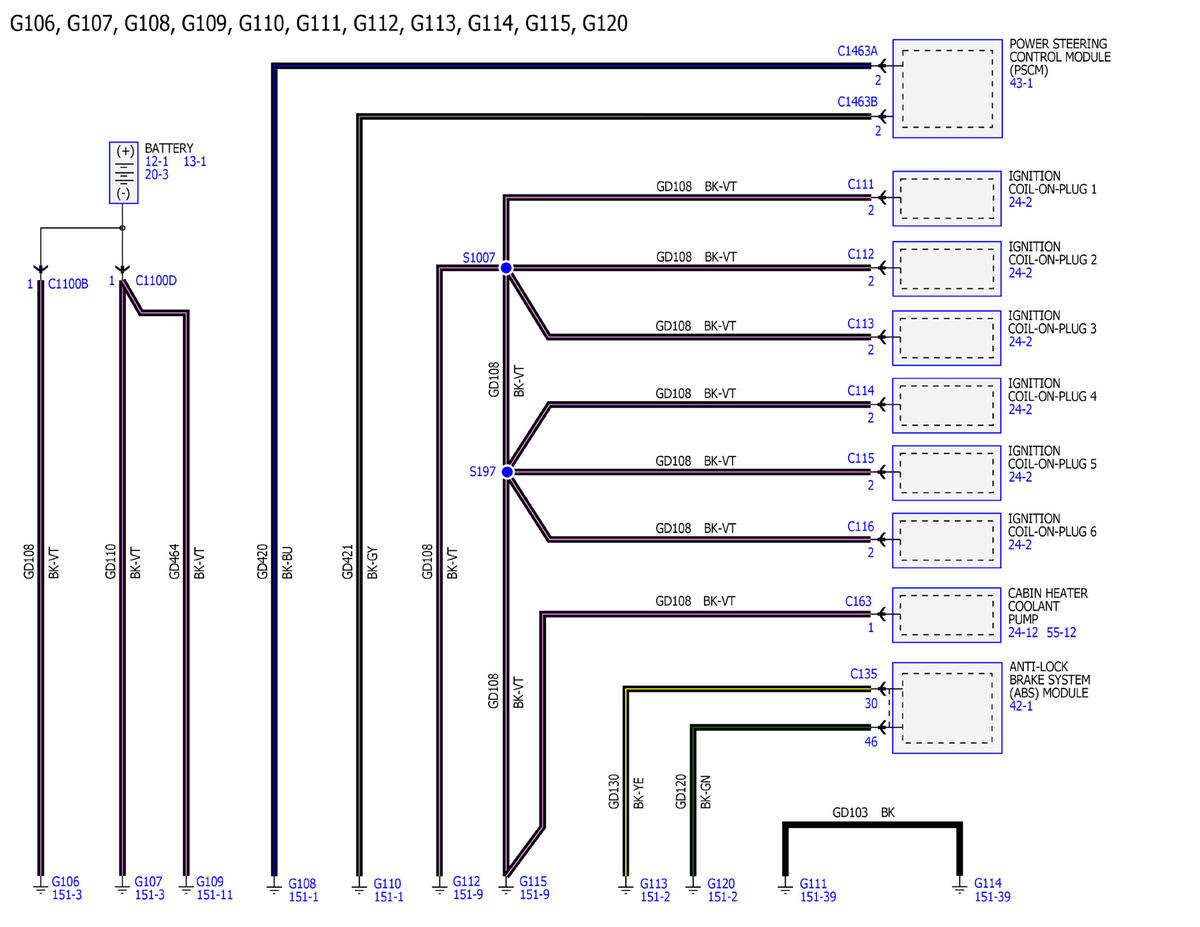

GFDWR181704Courtesy of FORD MOTOR COMPANY

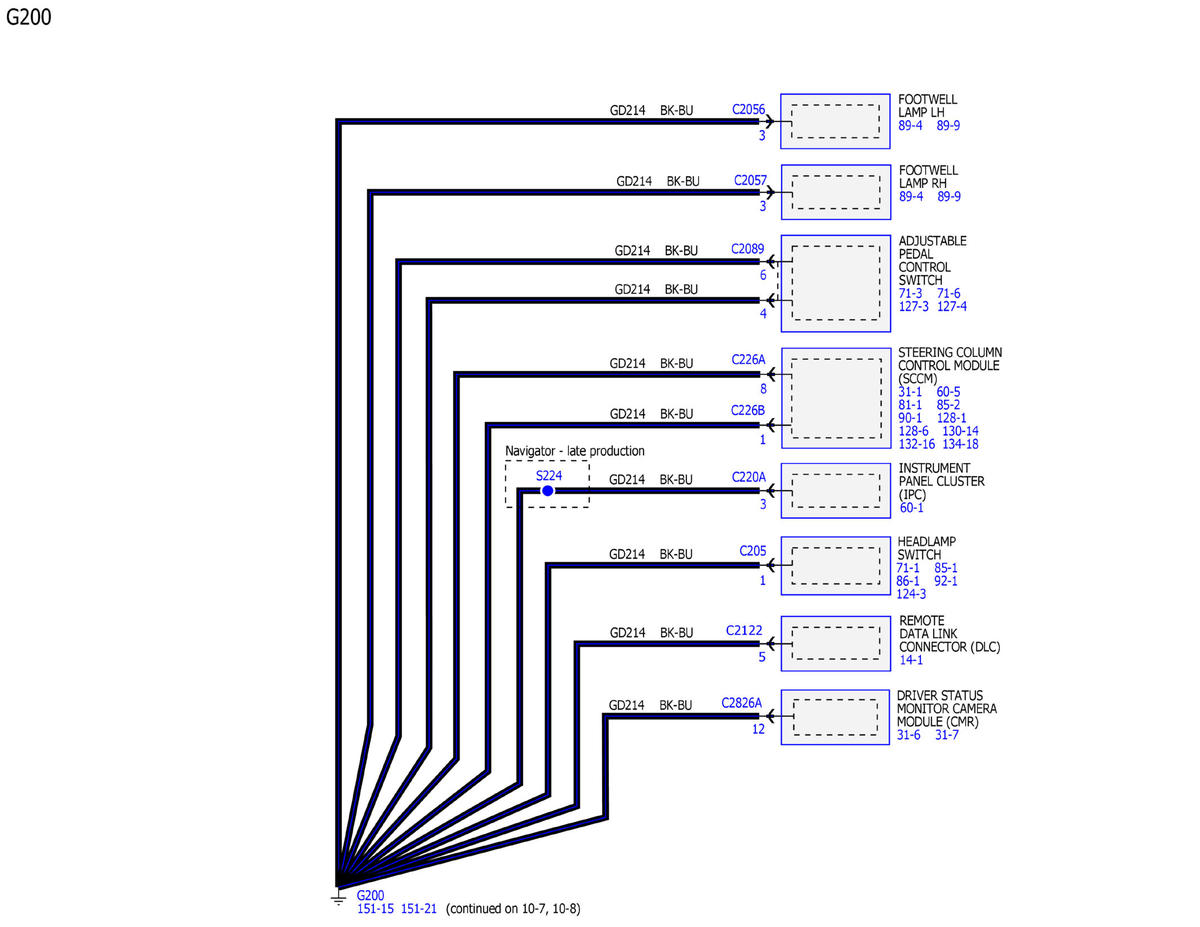

GFDWR181705Courtesy of FORD MOTOR COMPANY

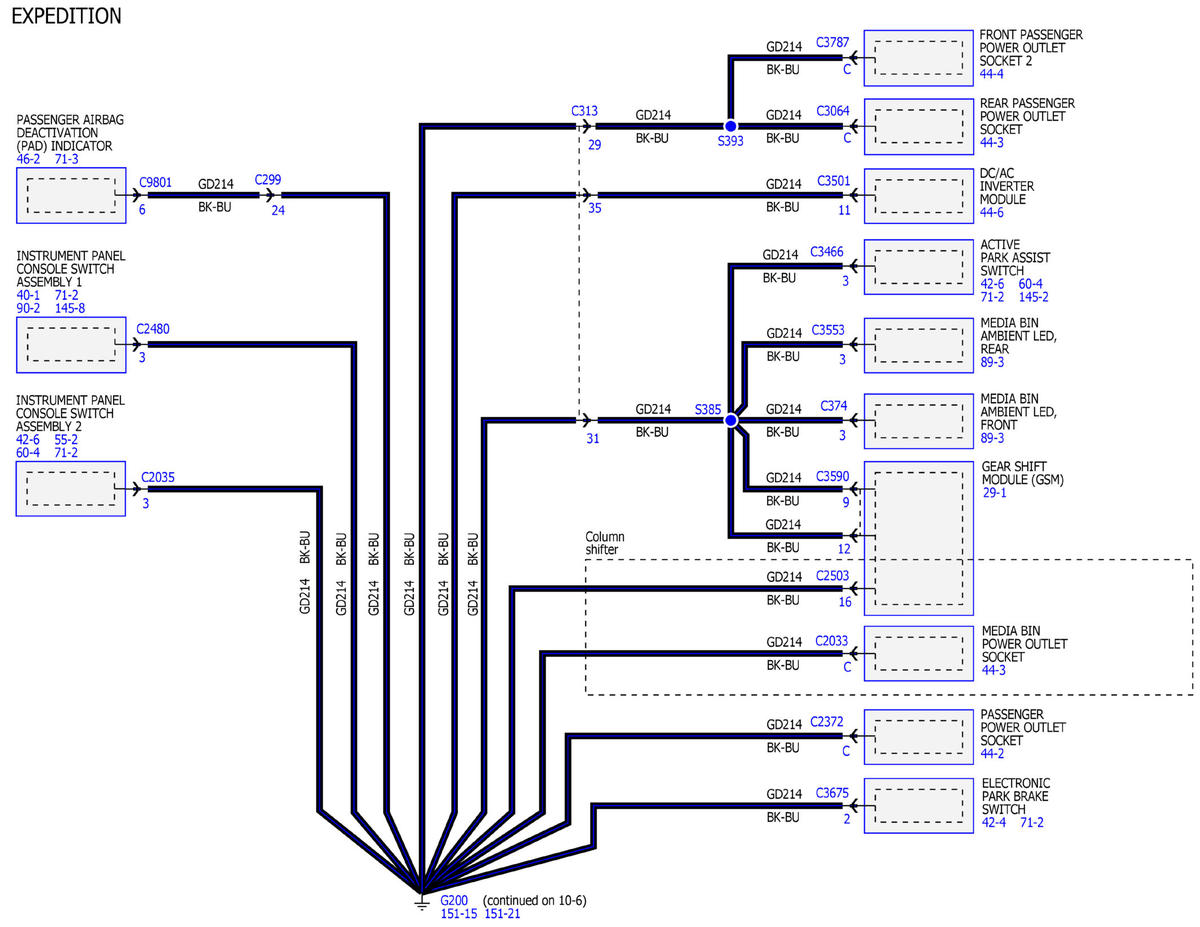

GFDWR181706Courtesy of FORD MOTOR COMPANY

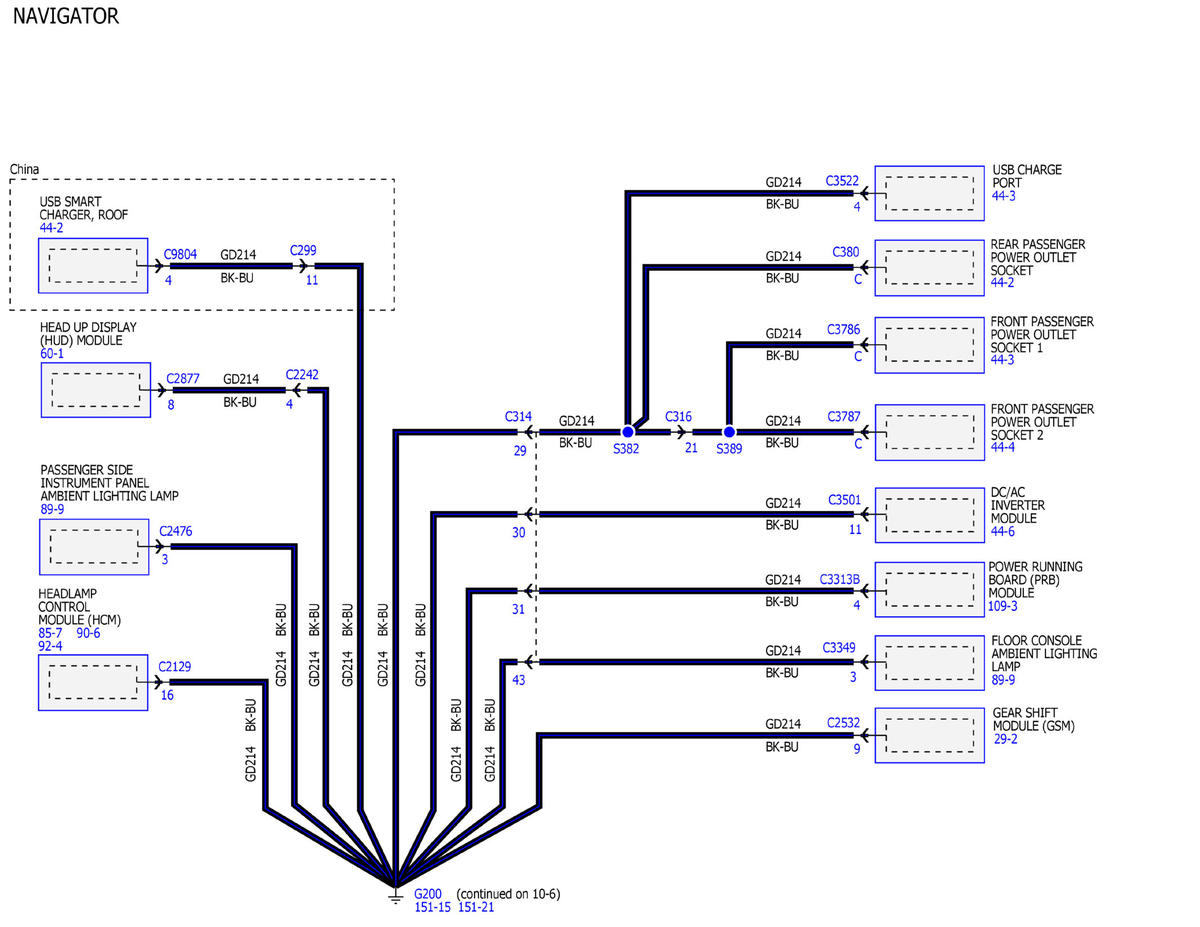

GFDWR181707Courtesy of FORD MOTOR COMPANY

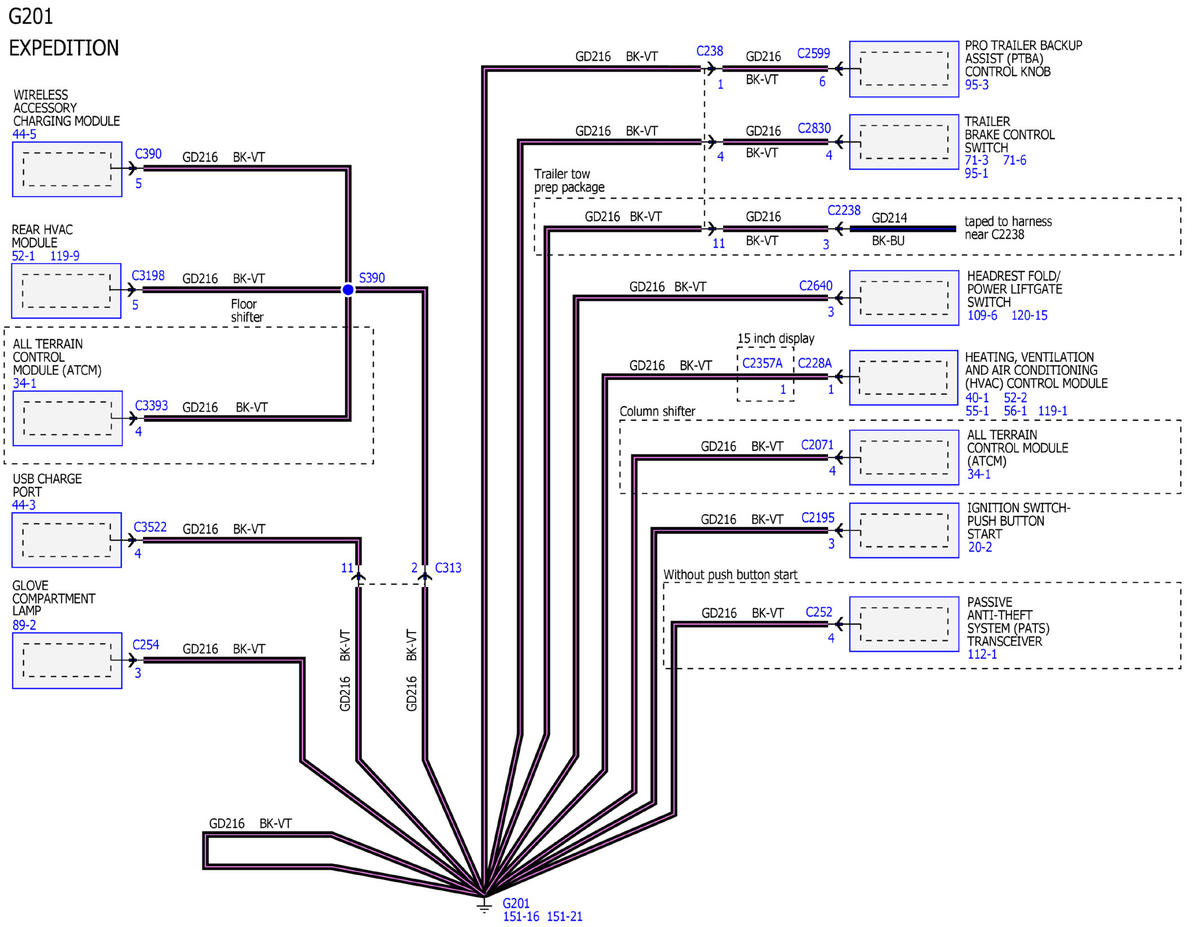

GFDWR181708Courtesy of FORD MOTOR COMPANY

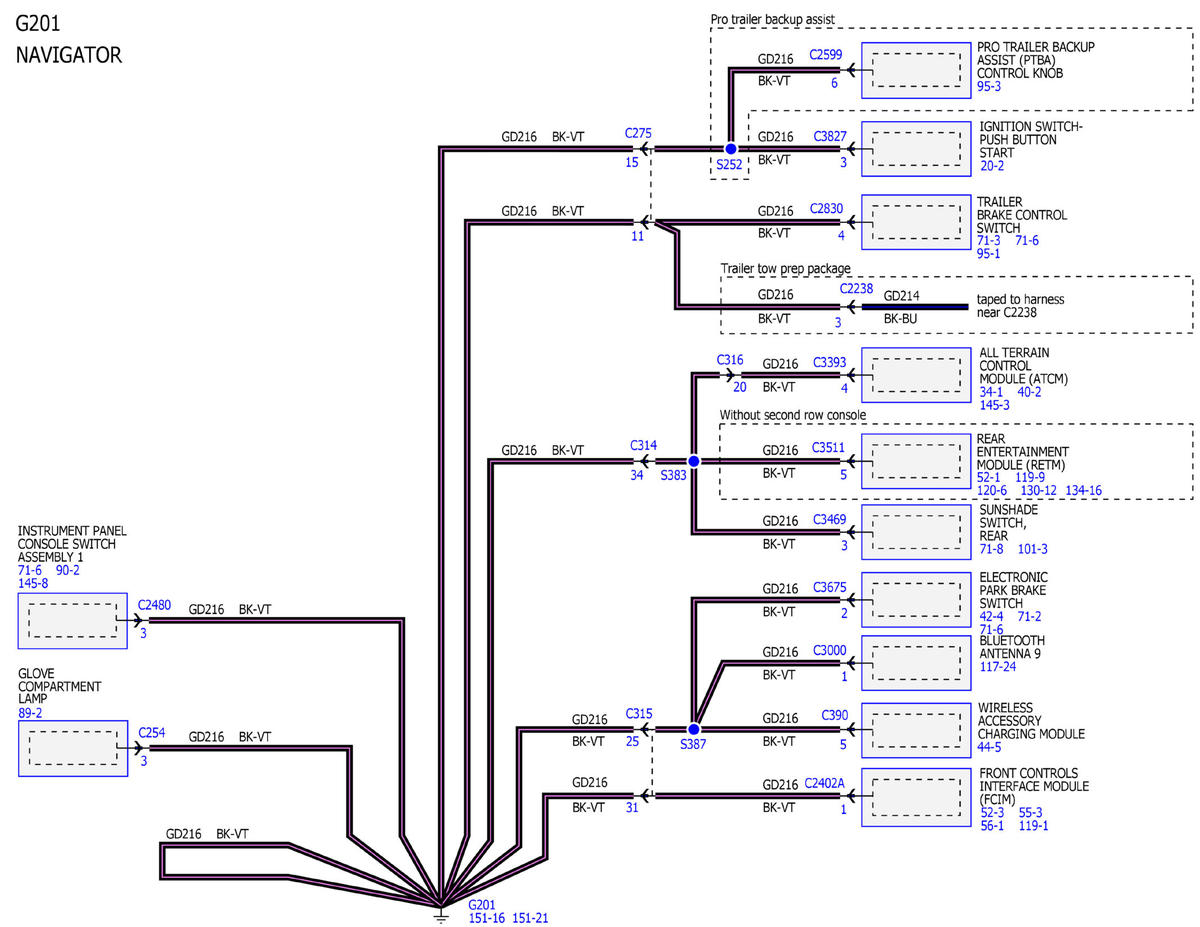

GFDWR181687Courtesy of FORD MOTOR COMPANY

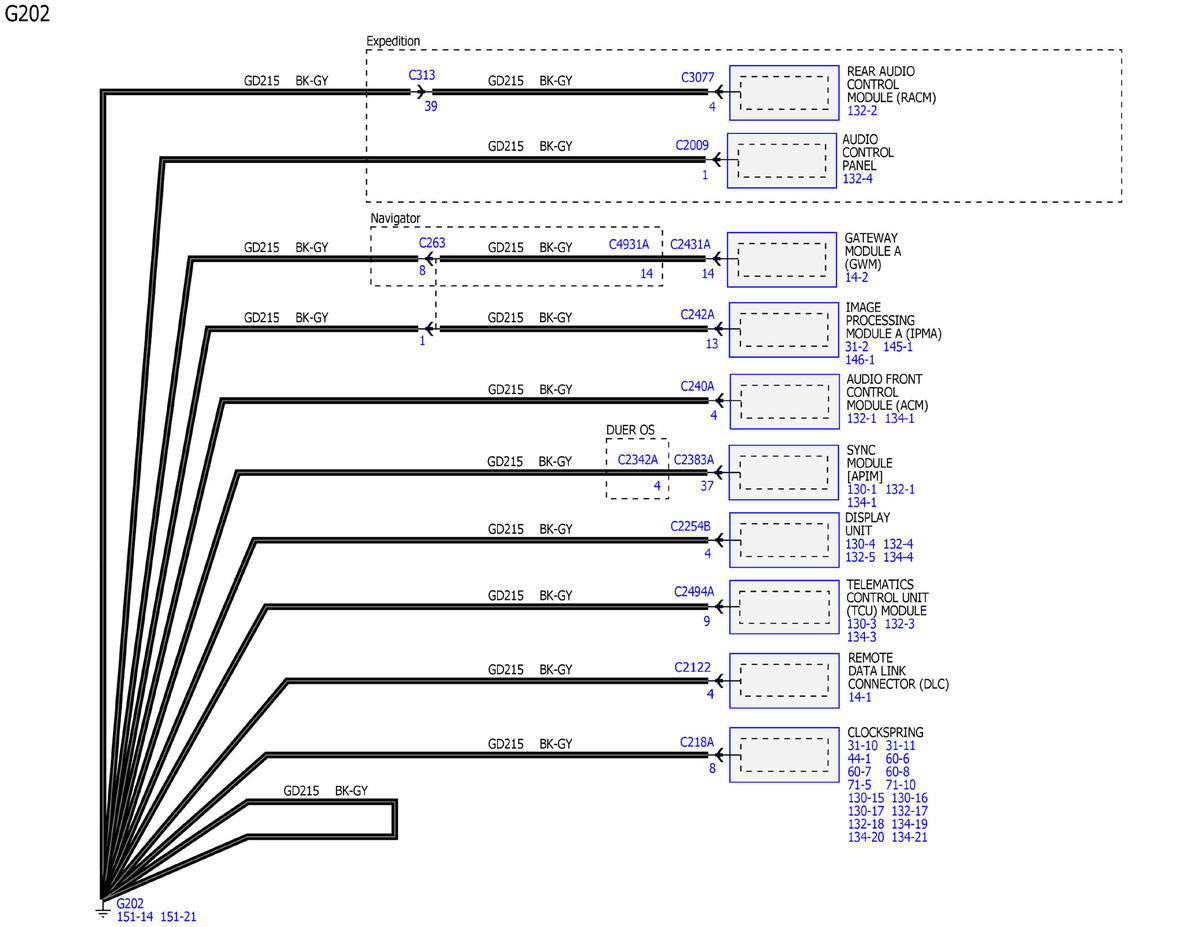

GFDWR181688Courtesy of FORD MOTOR COMPANY

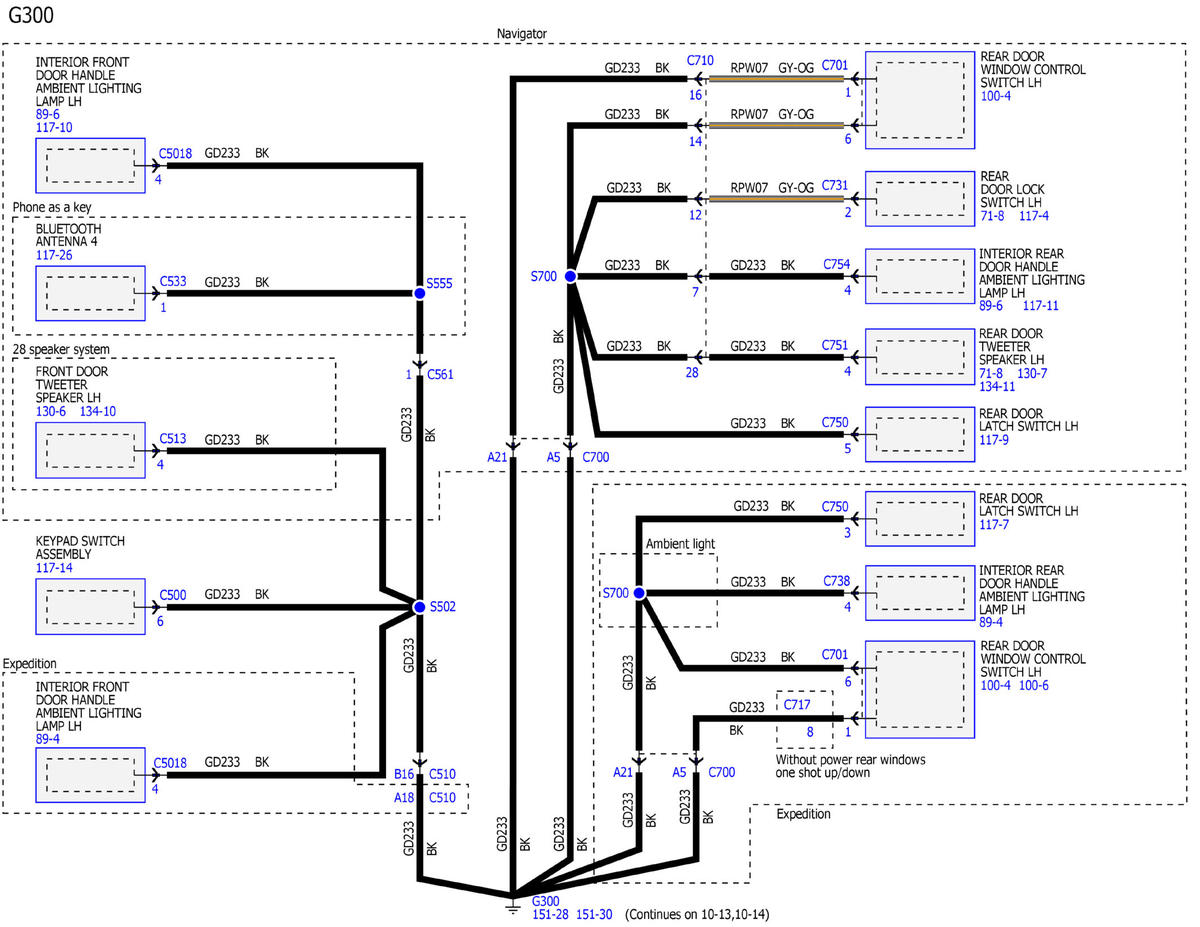

GFDWR181689Courtesy of FORD MOTOR COMPANY

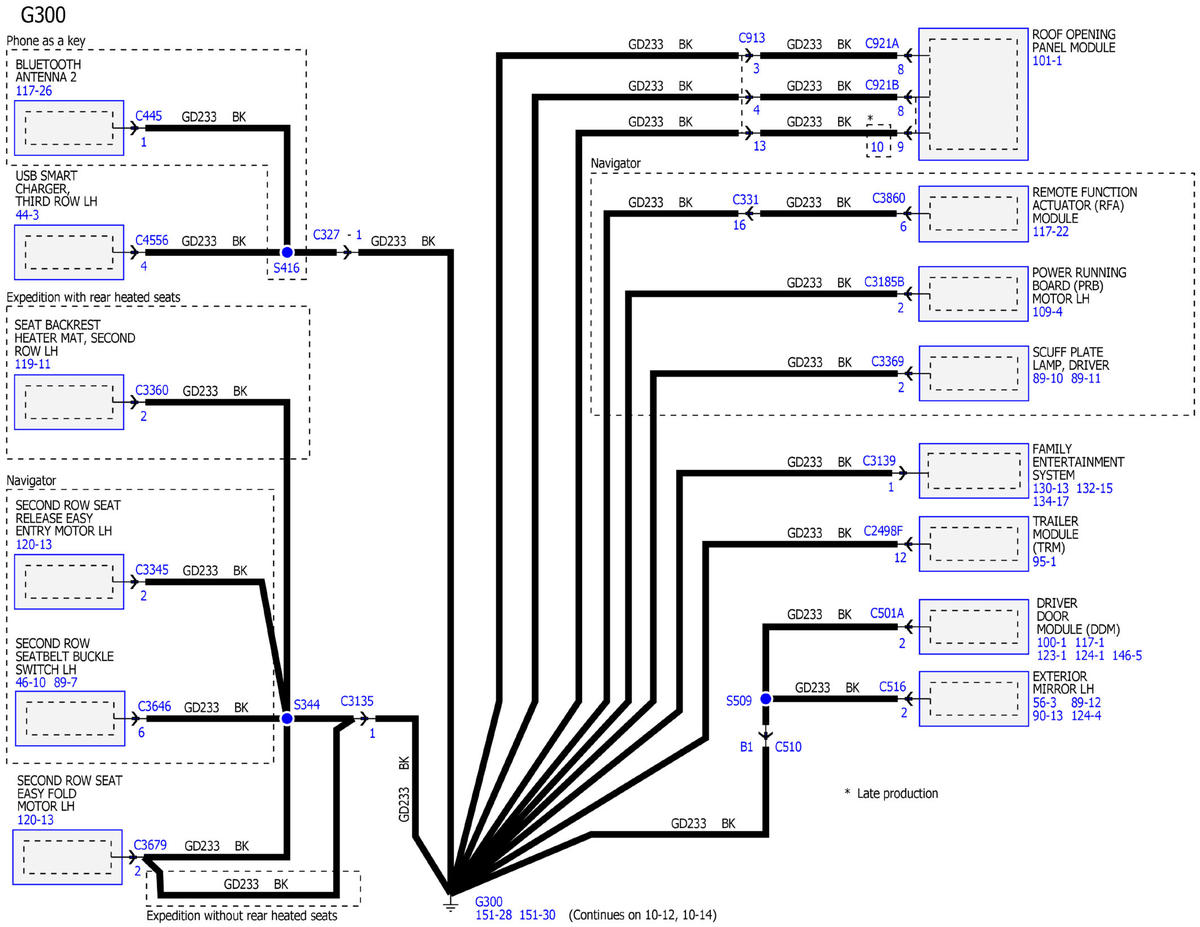

GFDWR181690Courtesy of FORD MOTOR COMPANY

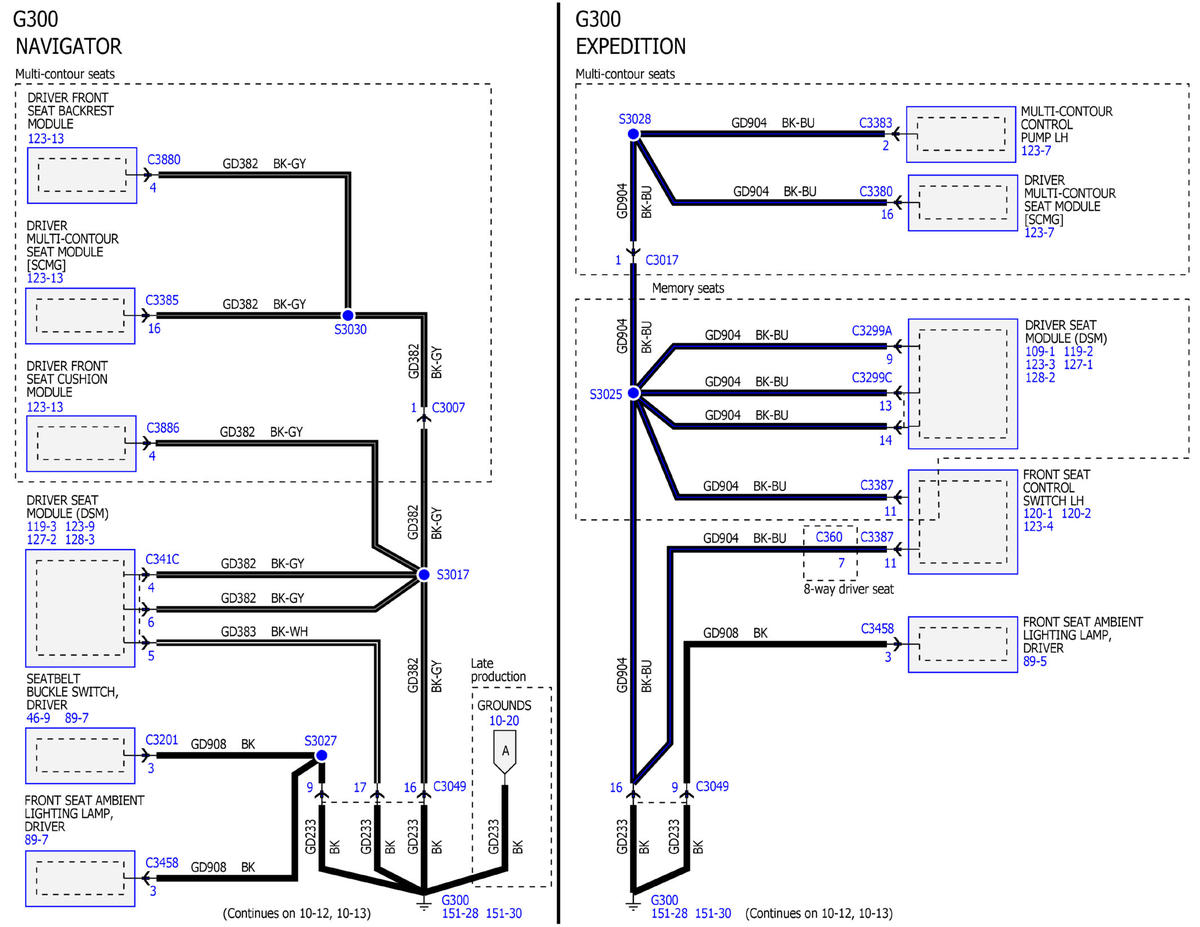

GFDWR181691Courtesy of FORD MOTOR COMPANY

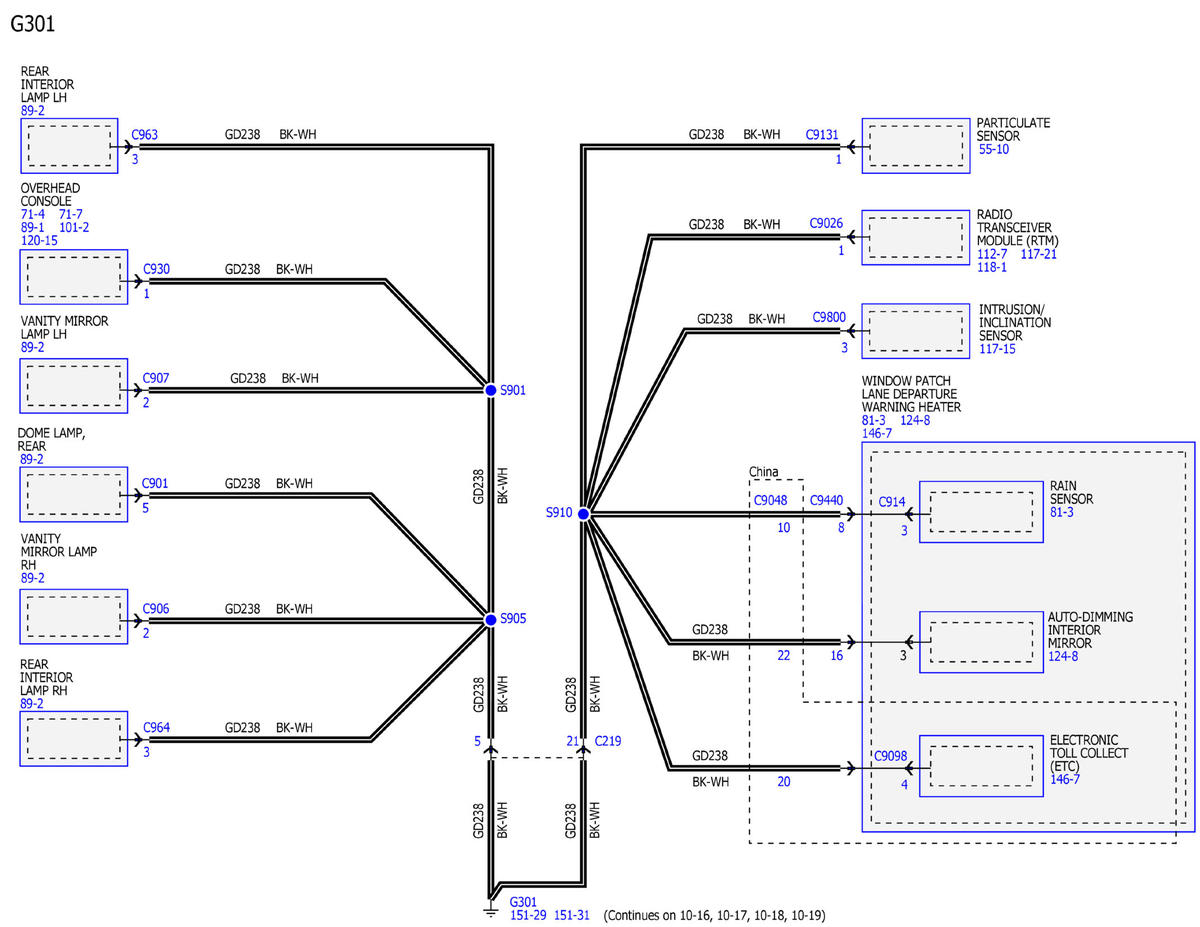

GFDWR181692Courtesy of FORD MOTOR COMPANY

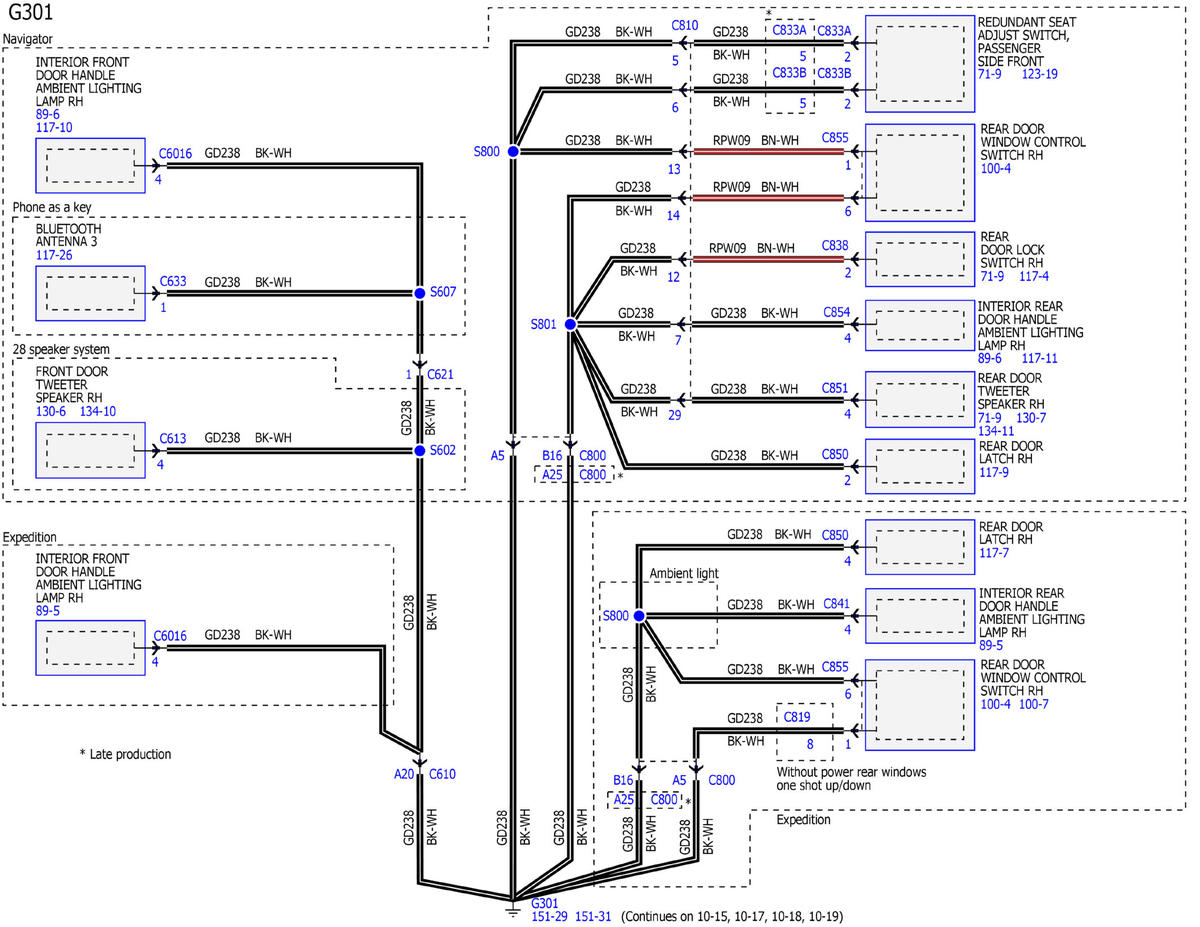

GFDWR181693Courtesy of FORD MOTOR COMPANY

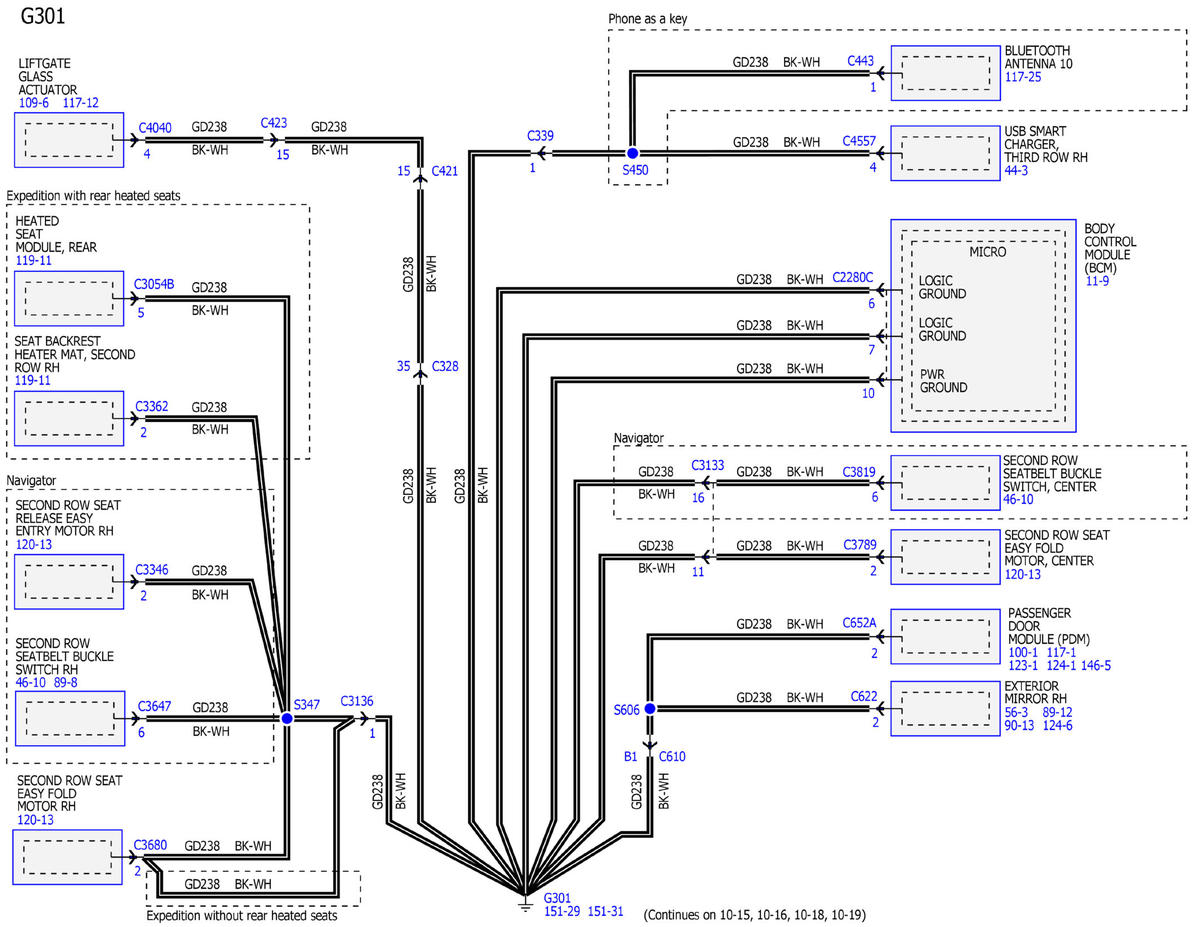

GFDWR181694Courtesy of FORD MOTOR COMPANY

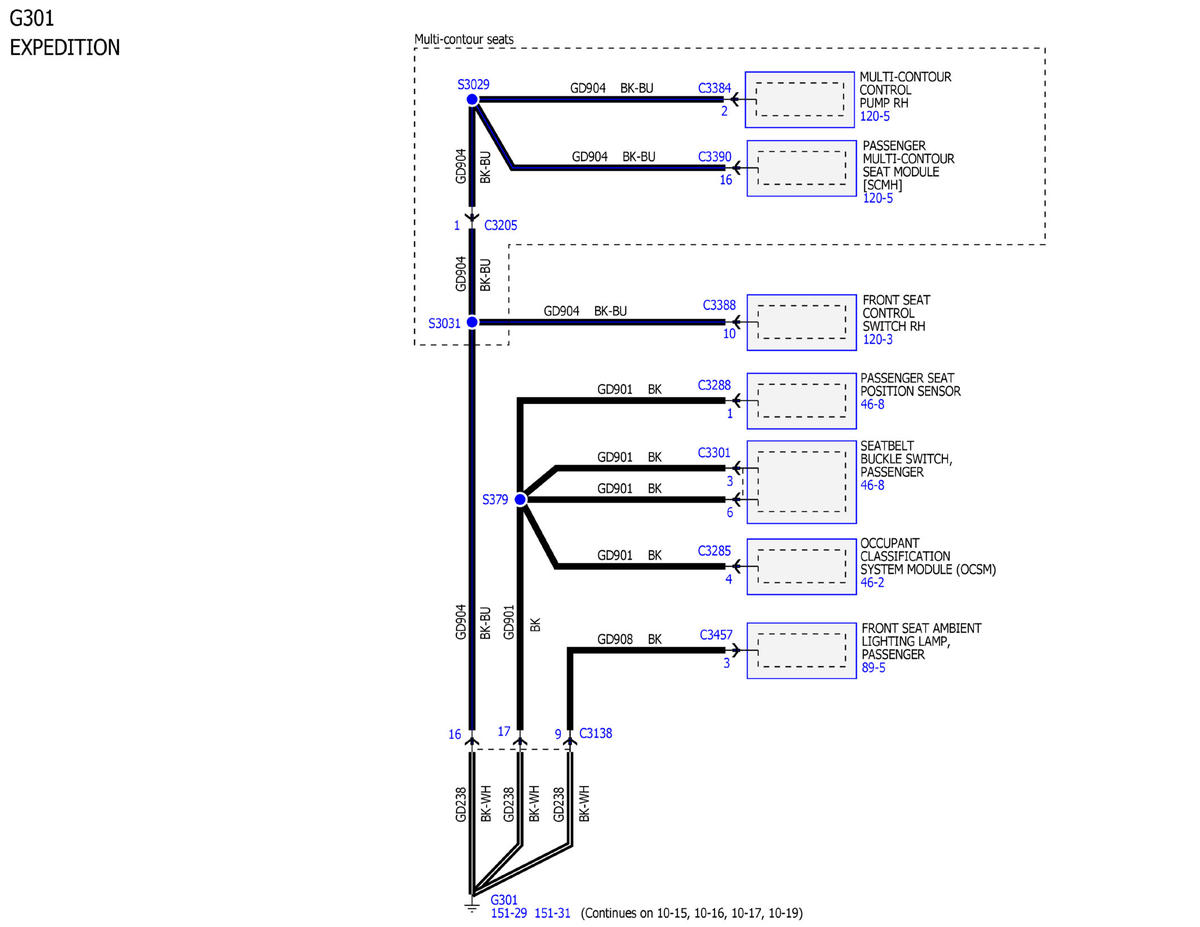

GFDWR181695Courtesy of FORD MOTOR COMPANY

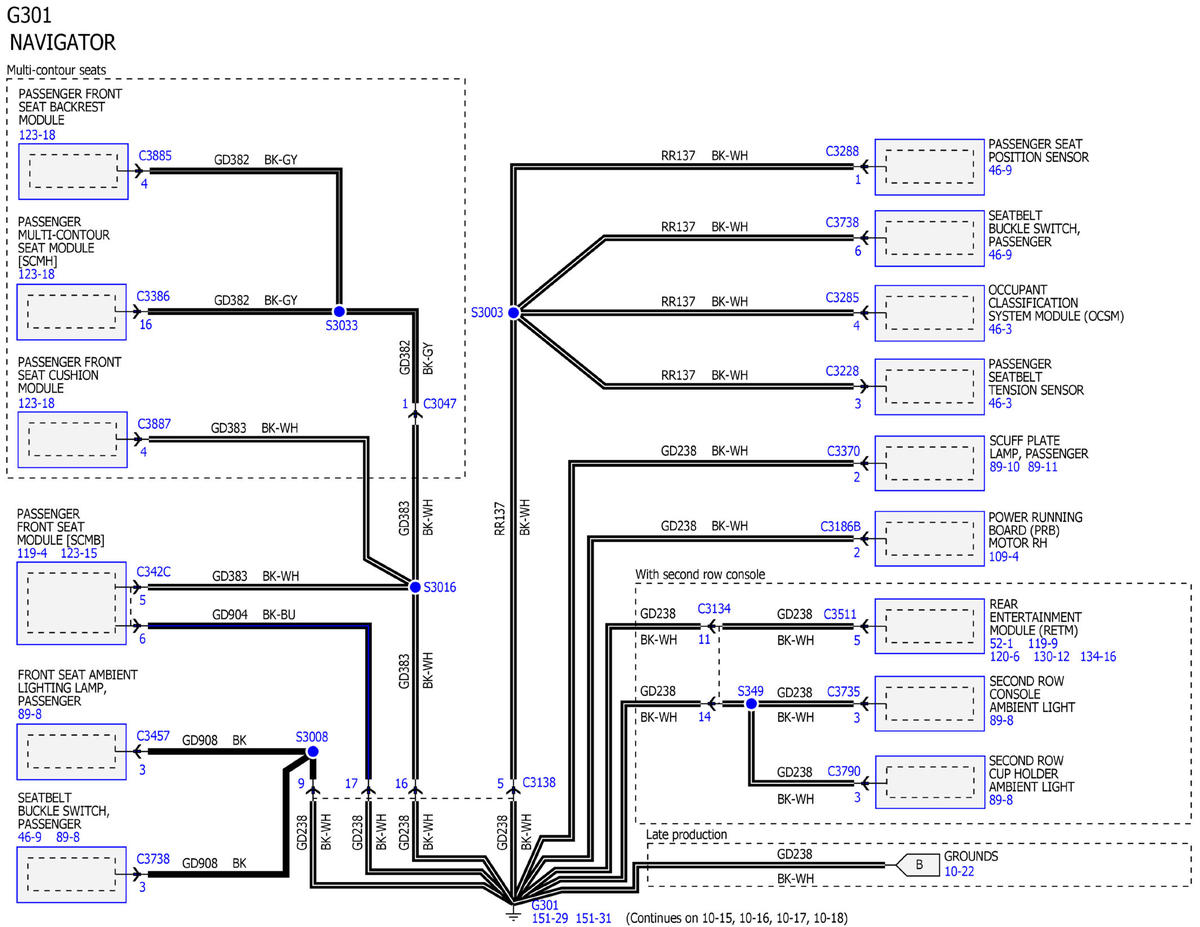

GFDWR181696Courtesy of FORD MOTOR COMPANY

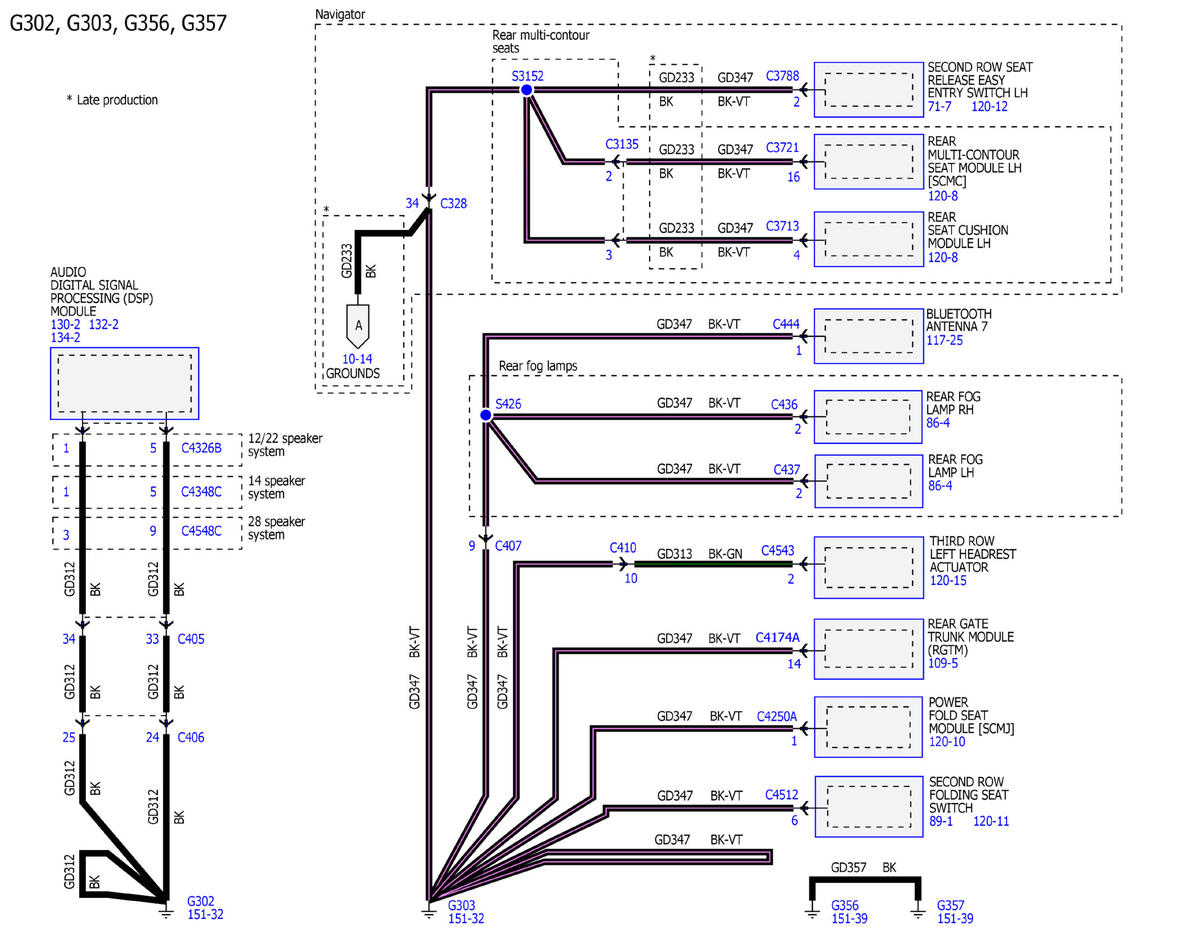

GFDWR181698Courtesy of FORD MOTOR COMPANY

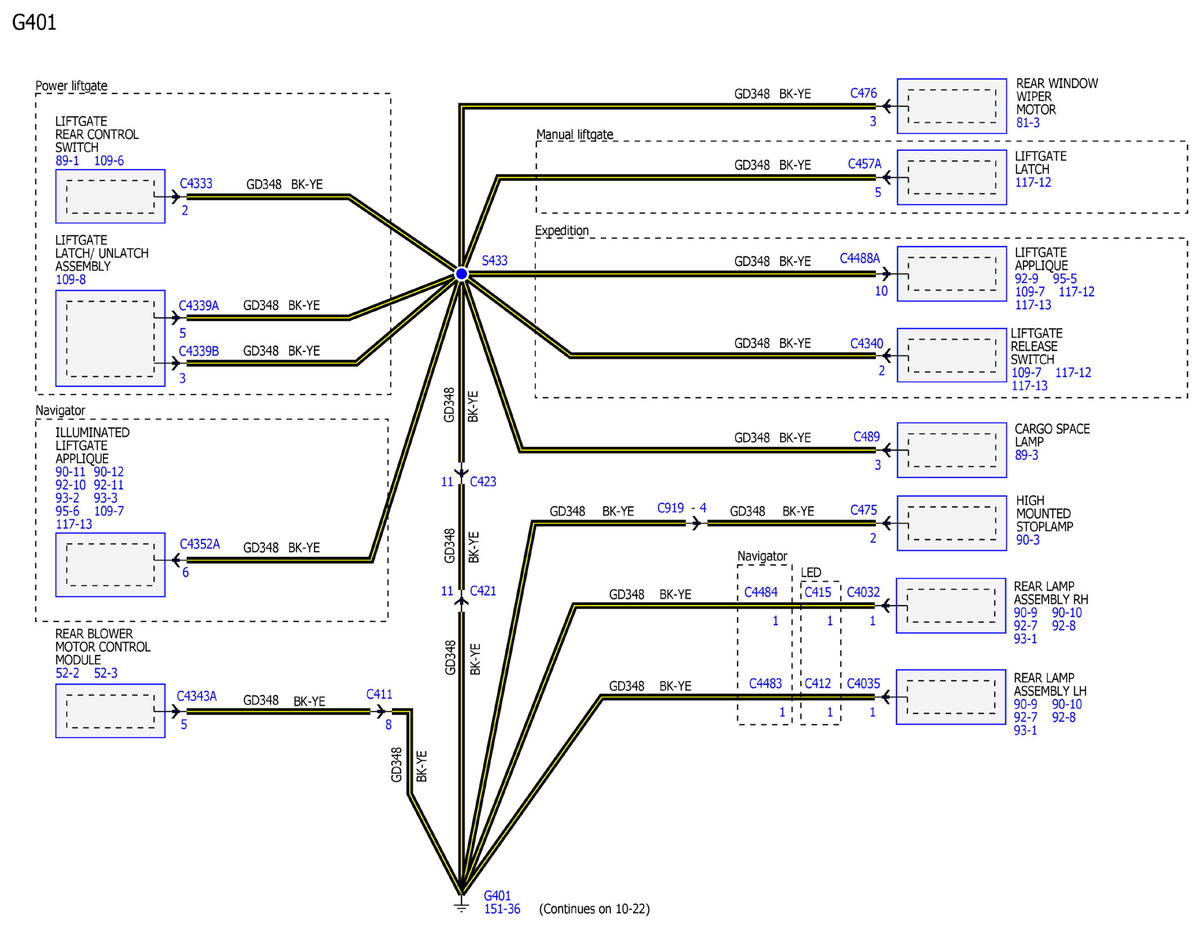

GFDWR181699Courtesy of FORD MOTOR COMPANY

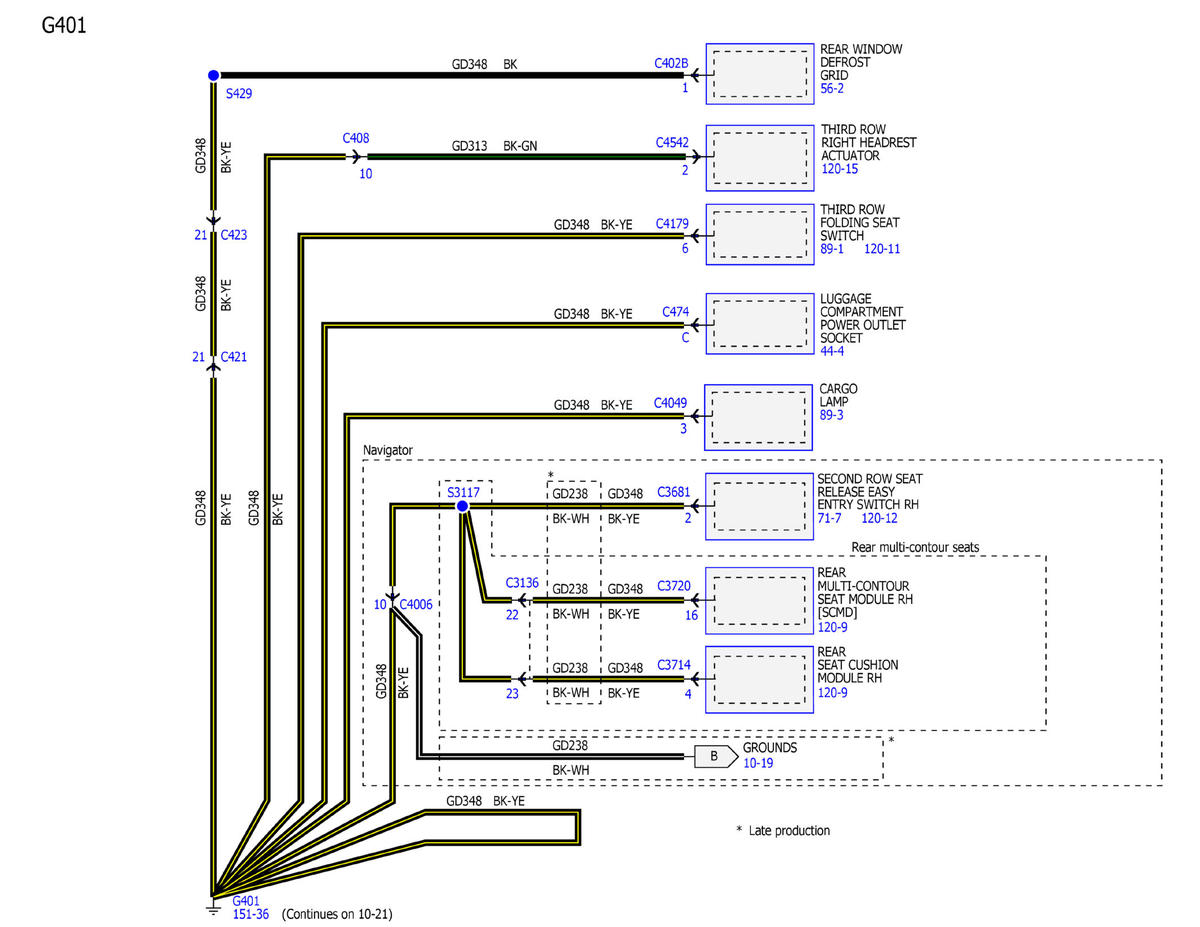

GFDWR181700Courtesy of FORD MOTOR COMPANY

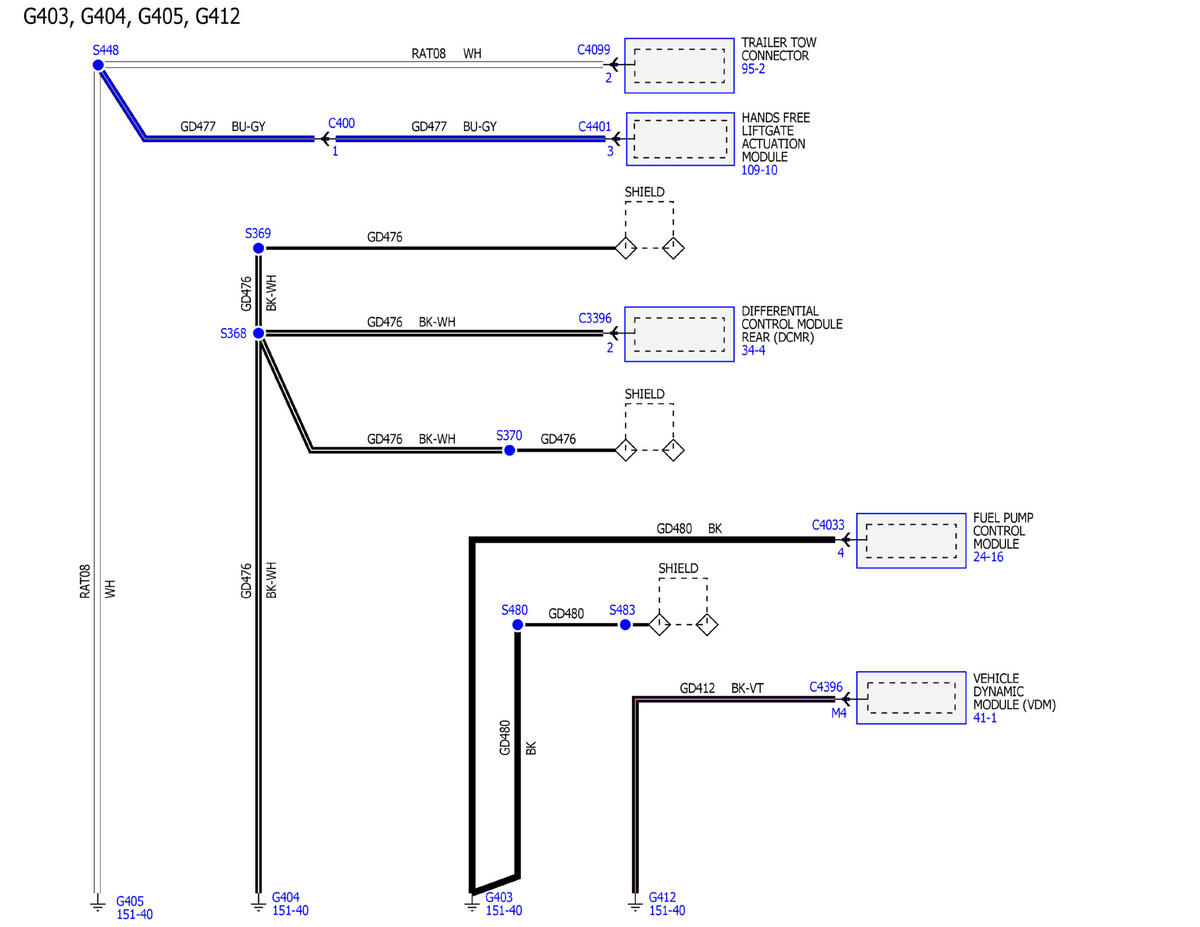

GFDWR181701Courtesy of FORD MOTOR COMPANY
