Transmission Fluid Level Check
For information on Ford Color Coded Illustrations refer to OEM Color Coding
Check
NOTE:
The vehicle should not be driven if the transmission fluid level is low. Internal failure could result.
NOTE:
If the vehicle has been operated for an extended period at high highway speeds, in city traffic, during hot weather or while pulling a trailer, the transmission fluid must cool down to obtain an accurate reading.
NOTE:
If a new transmission fluid cooler or new fluid cooler tubes have been installed, drive the vehicle to warm the transmission fluid to 96°C - 101°C (206°F - 215°F) in order to purge the air from the transmission fluid cooling system.
- Connect the diagnostic scan tool and position the vehicle on a hoist. Refer to: Jacking and Lifting - Overview .
- With the engine running, place the transmission selector lever in each gear position, holding approximately 5 seconds in each position. Place the transmission selector lever in PARK.

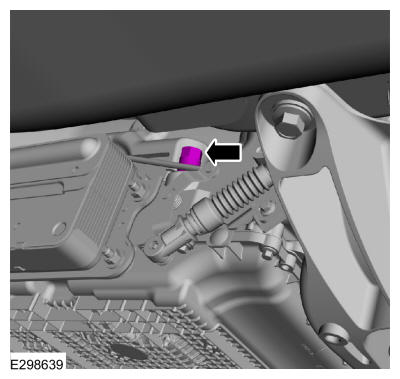

- Remove the transmission fluid fill plug.

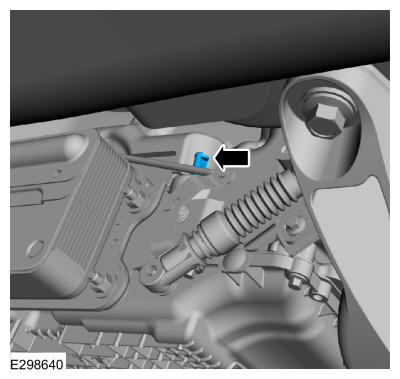

- Remove the transmission fluid level indicator from the transmission.
Check the transmission fluid level using the transmission fluid level indicator.
-

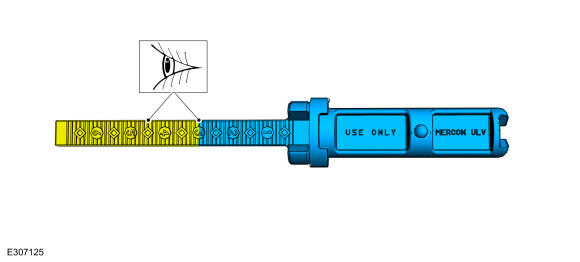

NOTE: The transmission fluid level indicator uses 1 through 6 to indicate the fluid level. The different numbers are for different vehicle models. Use the area between 3 and 4.5 when checking the transmission fluid level. The correct transmission fluid level is between 3 and 4.5 on the transmission fluid level indicator.NOTE: Do not overfill the transmission.
Using the scan tool verify the transmission fluid temperature is between 96°C - 101°C (206°F - 215°F). The transmission fluid level must be between 3 and 4.5 on the transmission fluid level indicator.
- If the transmission fluid is not at the correct level, follow the steps for adding or removing transmission fluid. Refer to: Transmission Fluid Drain and Refill .
- Install the transmission fluid level indicator.
- Install the transmission fluid fill plug.
Torque: 35 lb.ft (47 Nm)
