Connector Repair Procedures

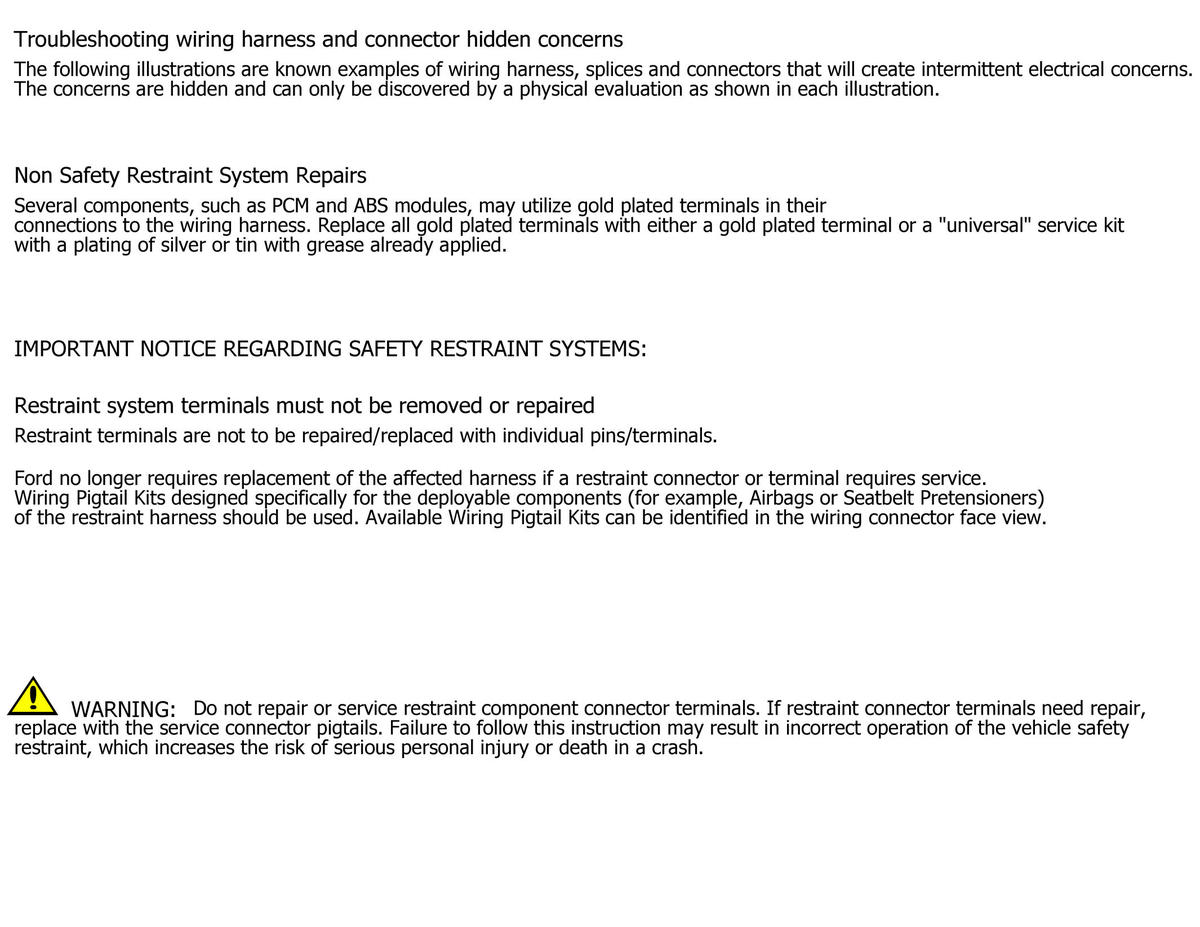

GFDWR161306Courtesy of FORD MOTOR COMPANY

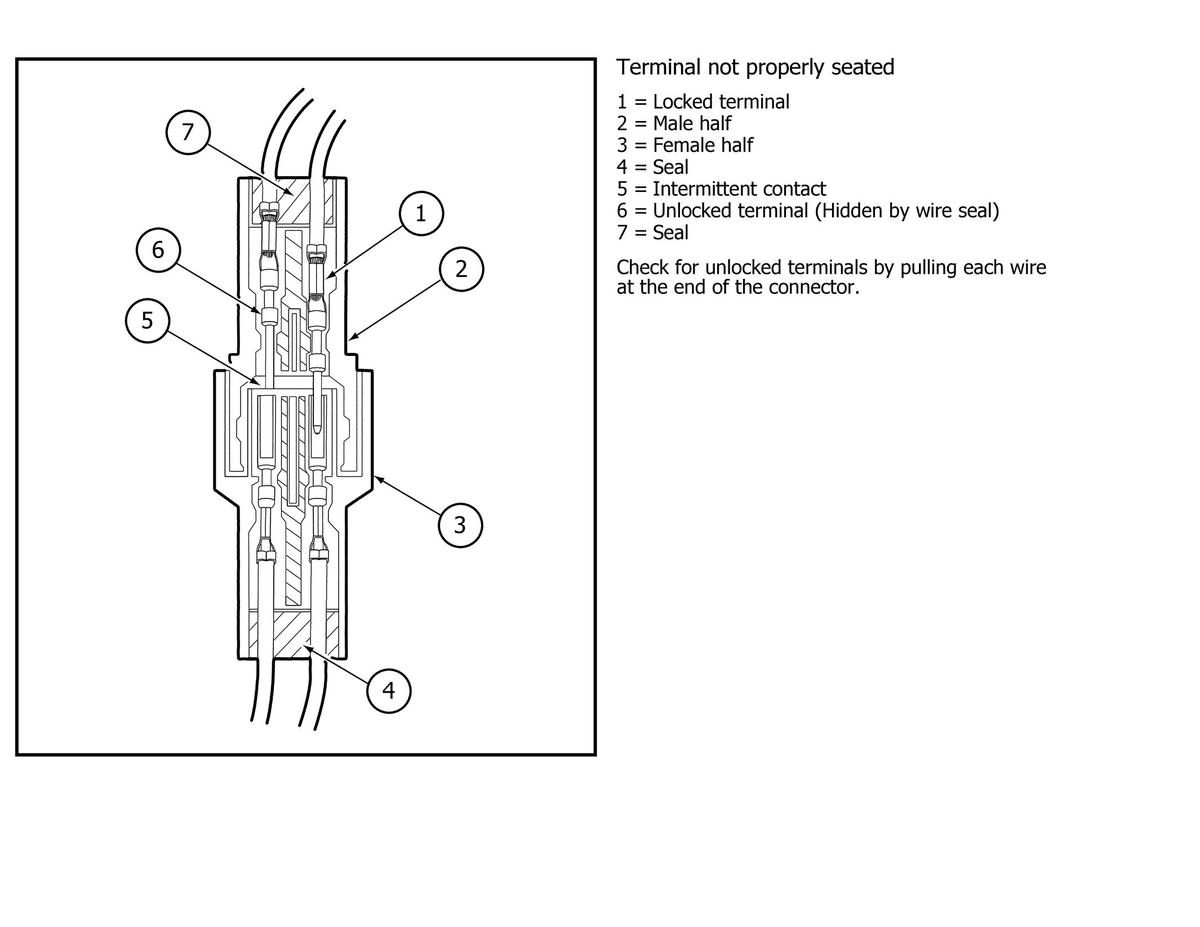

GFDWR161307Courtesy of FORD MOTOR COMPANY

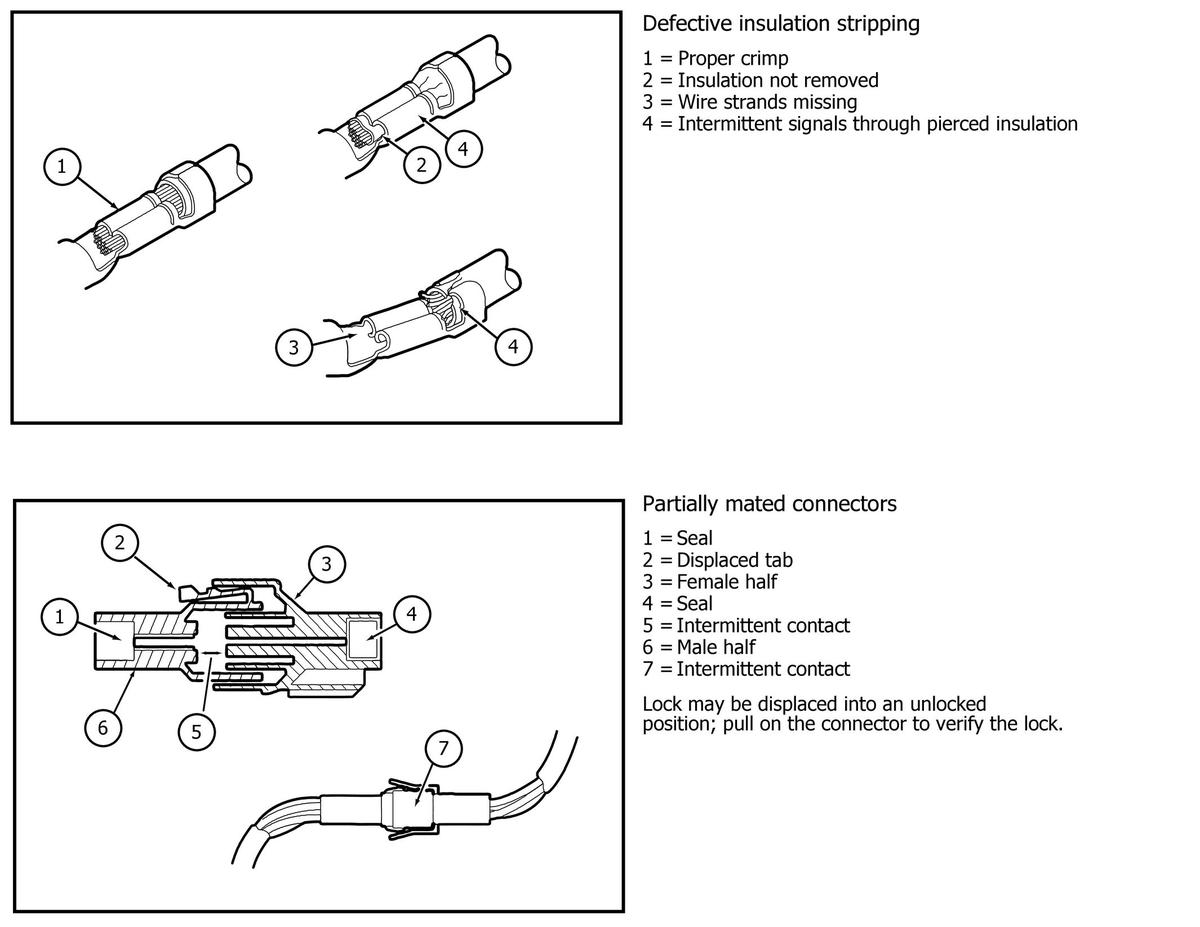

GFDWR161308Courtesy of FORD MOTOR COMPANY

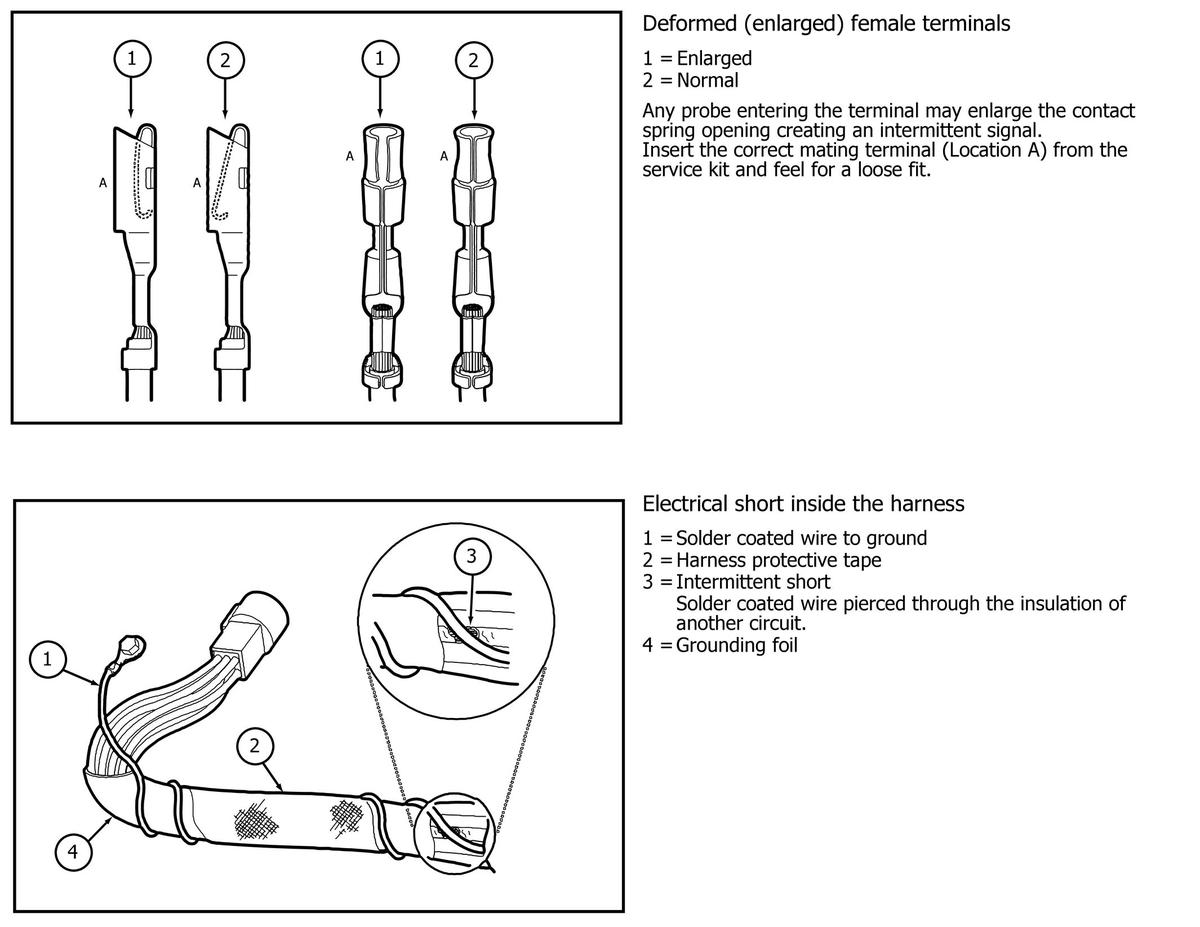

GFDWR161309Courtesy of FORD MOTOR COMPANY

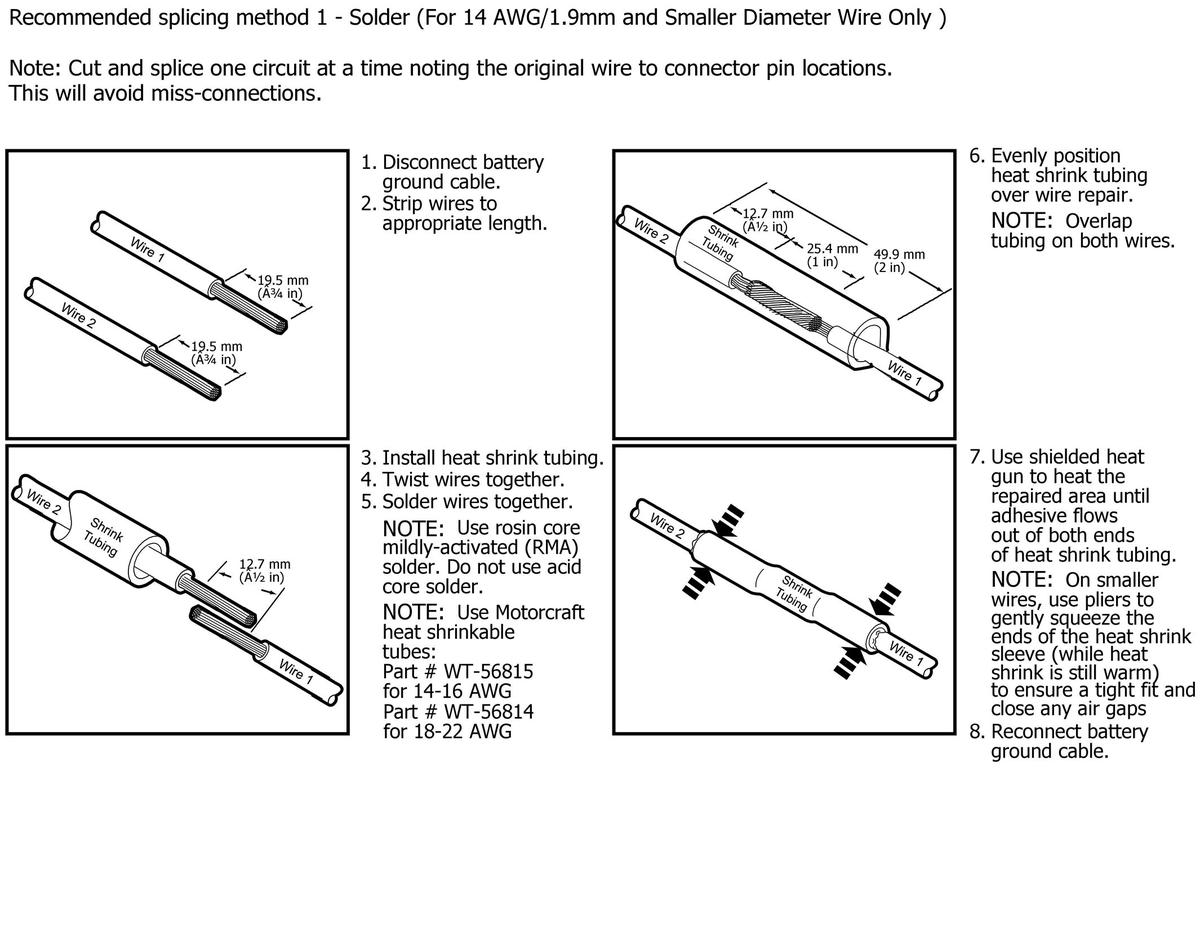

GFDWR161310Courtesy of FORD MOTOR COMPANY

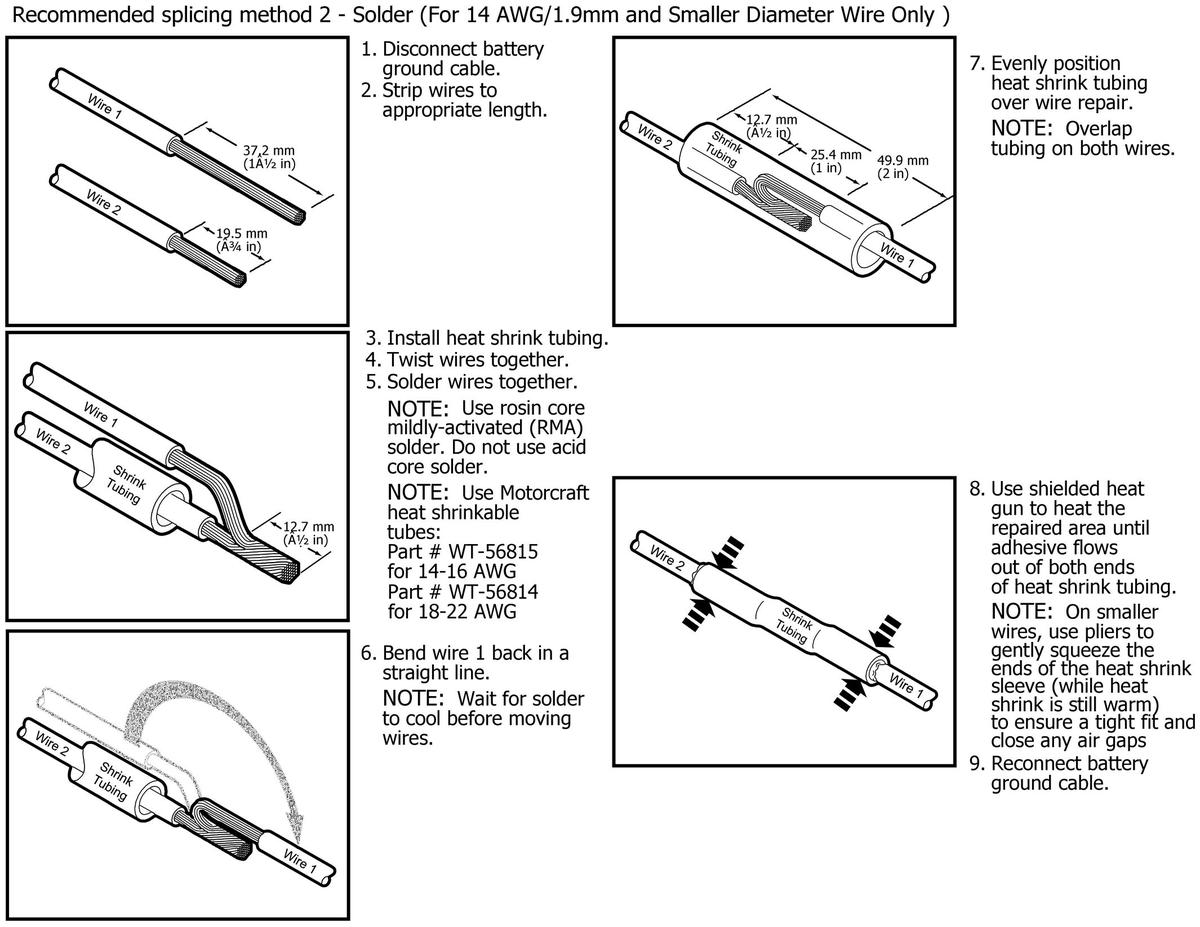

GFDWR161311Courtesy of FORD MOTOR COMPANY

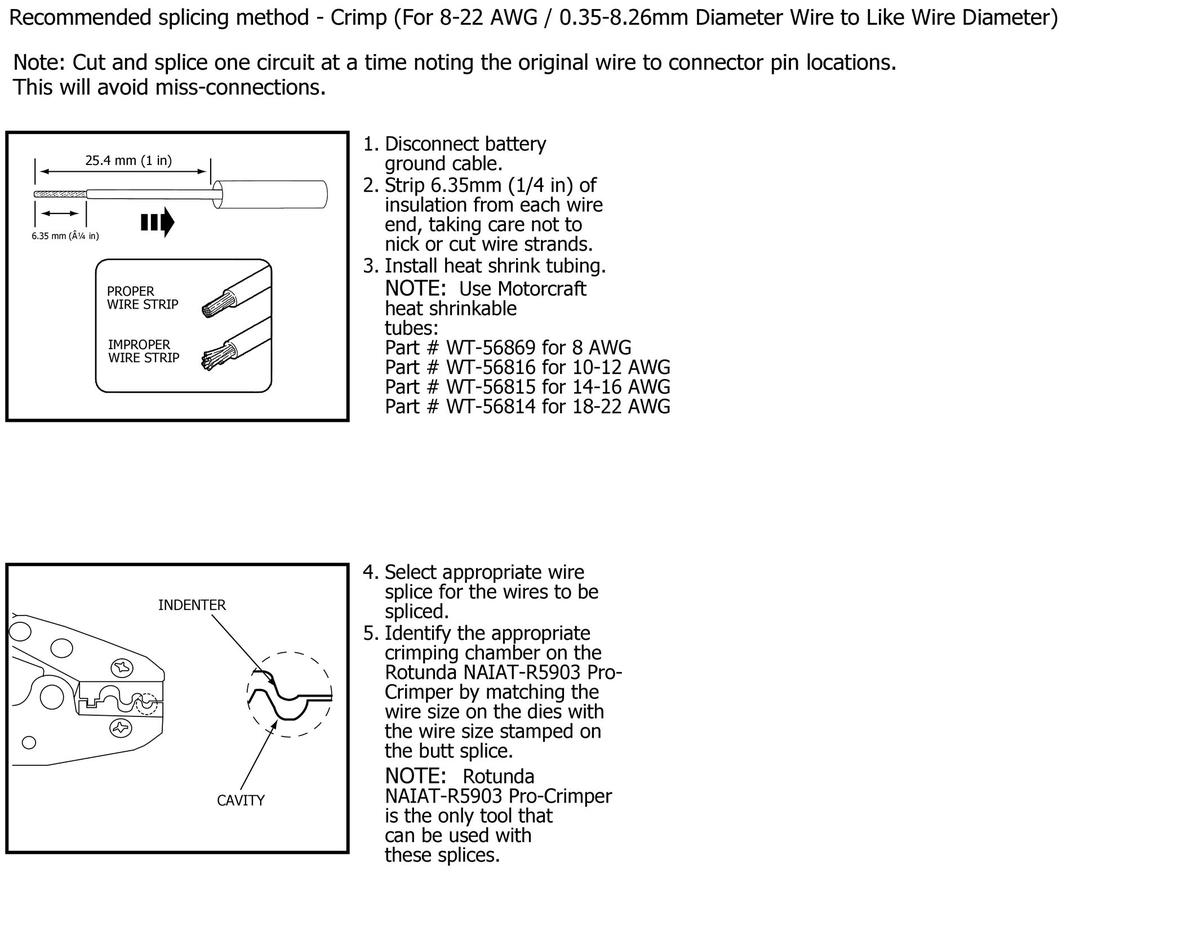

GFDWR161312Courtesy of FORD MOTOR COMPANY

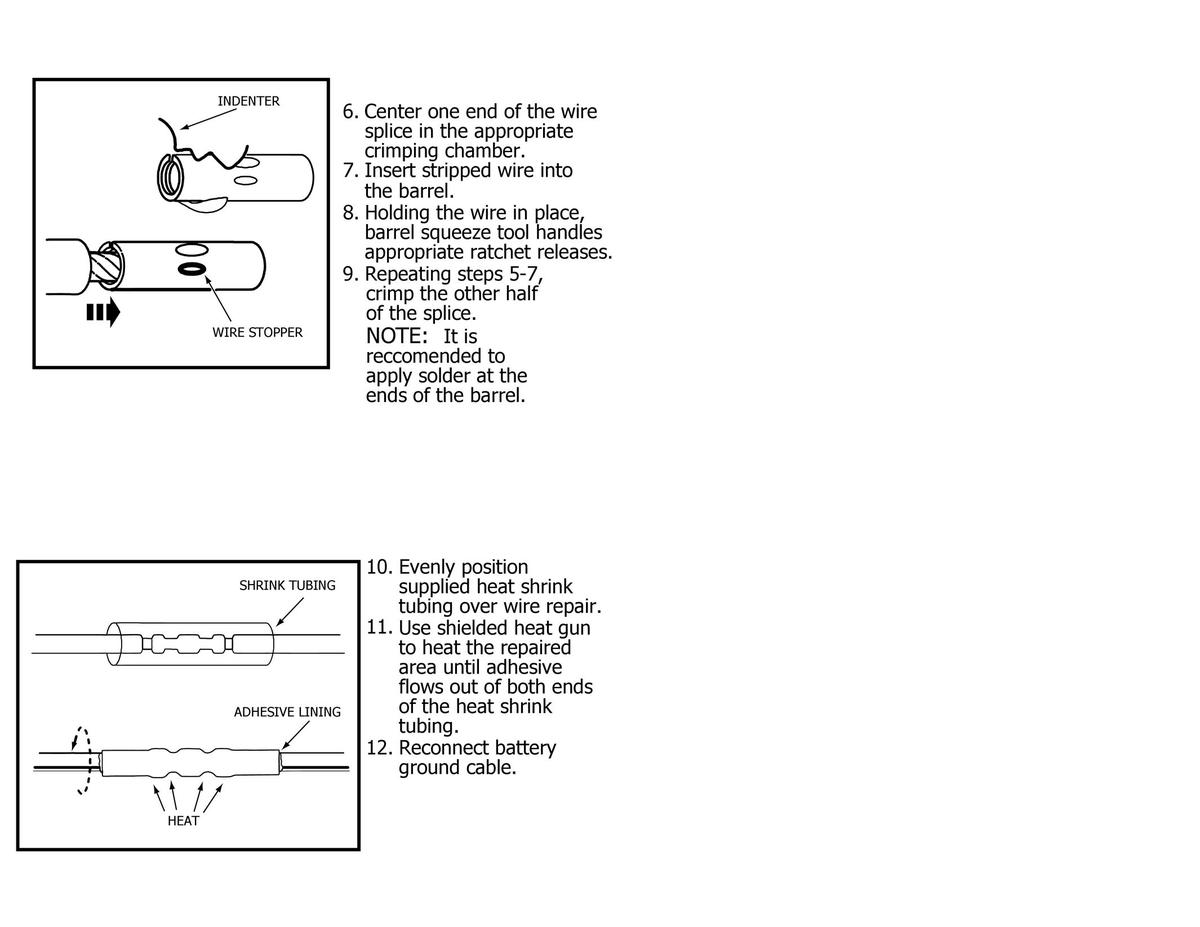

GFDWR161313Courtesy of FORD MOTOR COMPANY

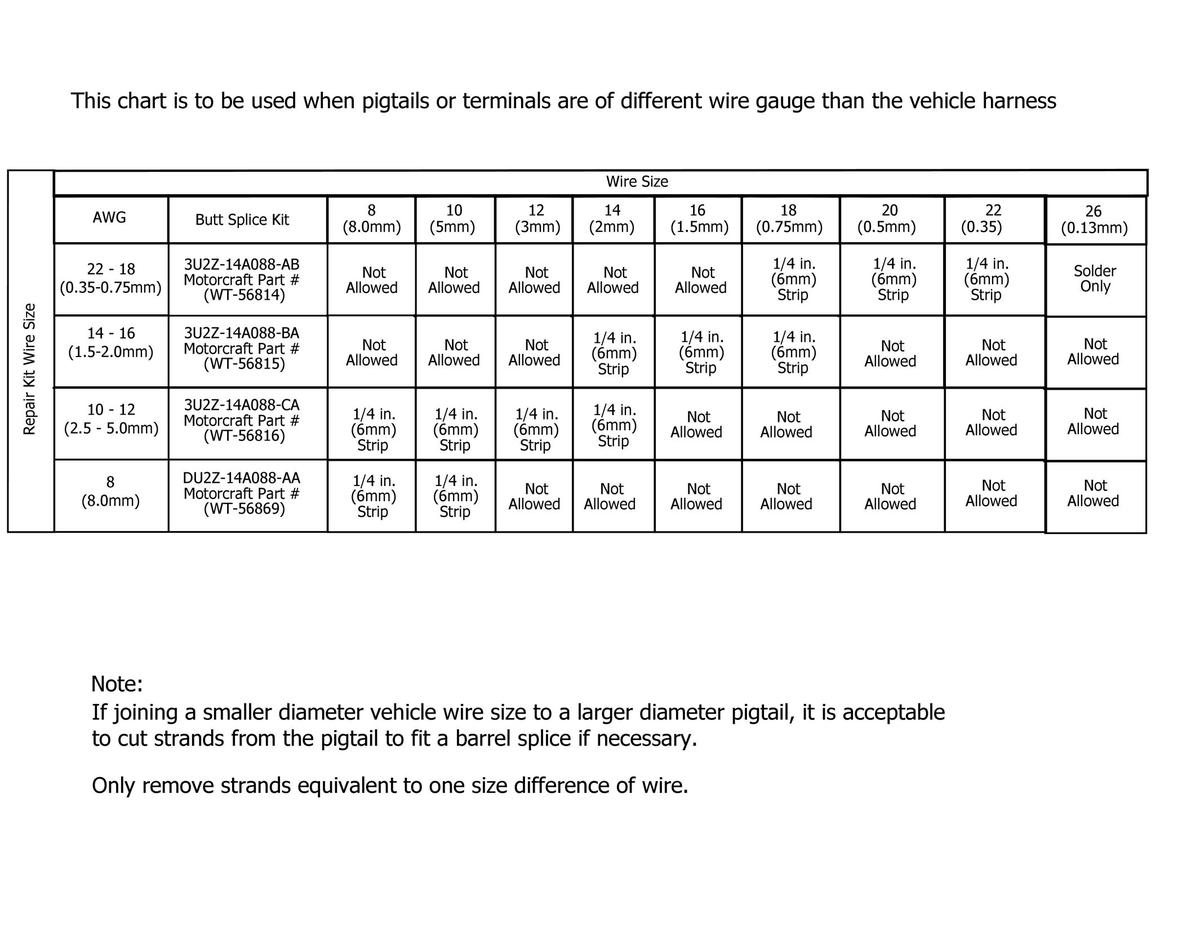

GFDWR161314Courtesy of FORD MOTOR COMPANY
