Connector Repair Procedures

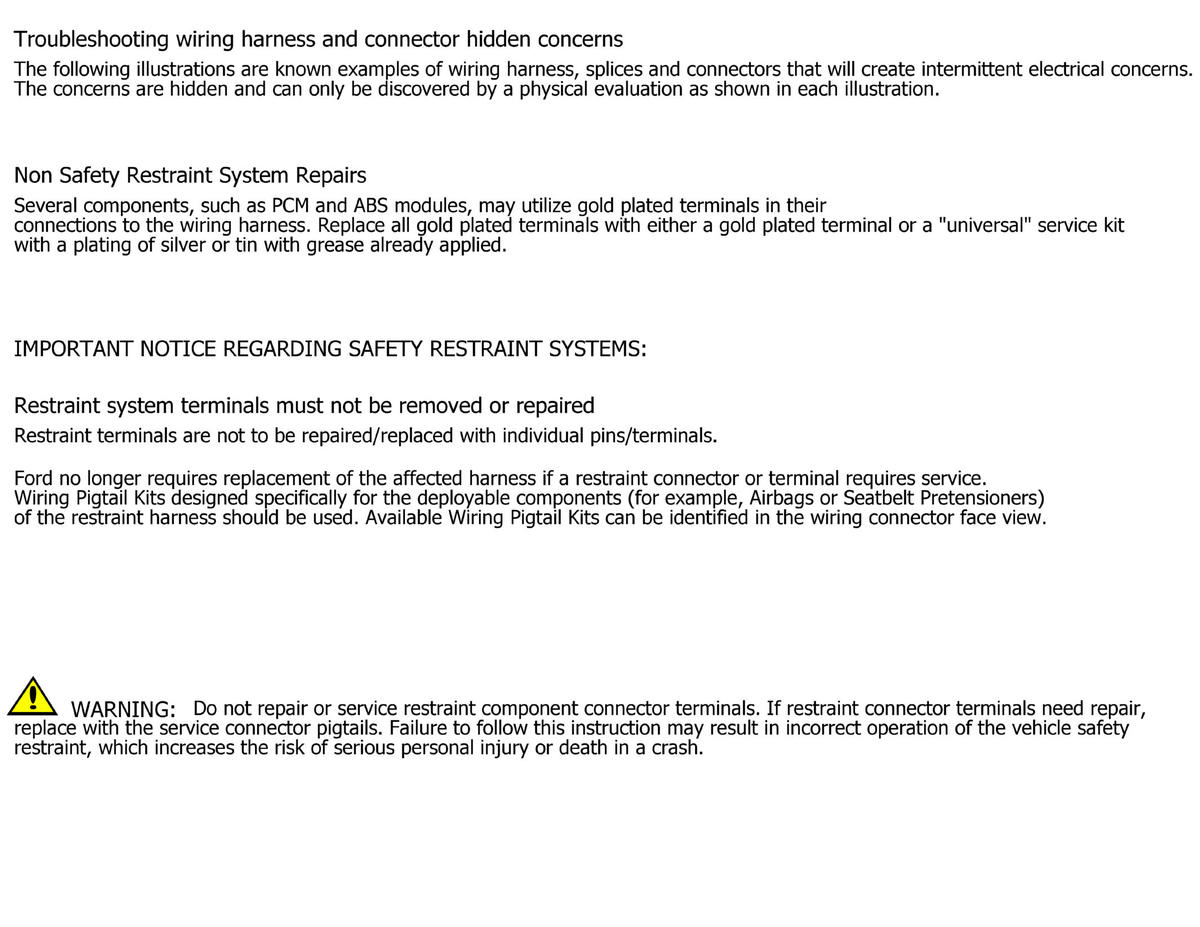

GFDWR187442Courtesy of FORD MOTOR COMPANY

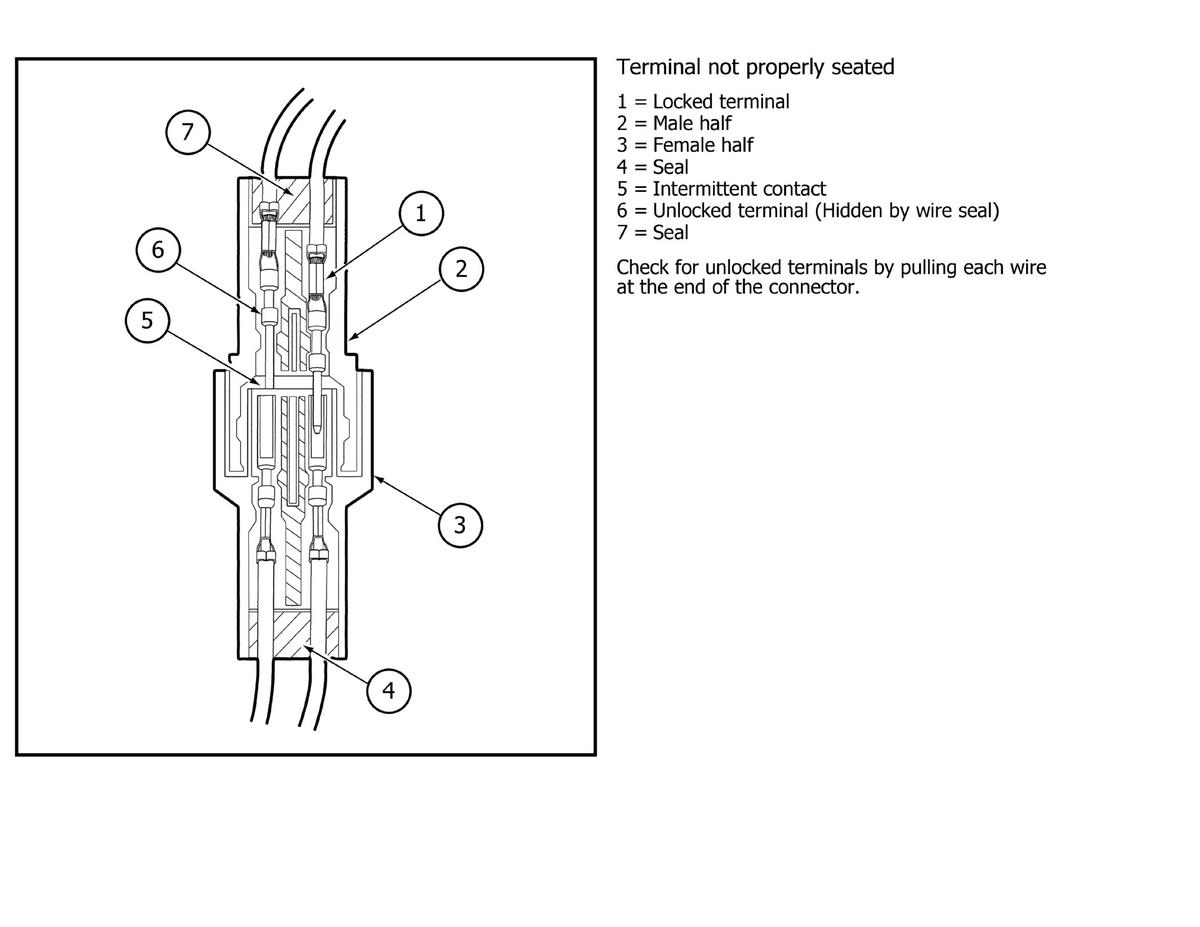

GFDWR187443Courtesy of FORD MOTOR COMPANY

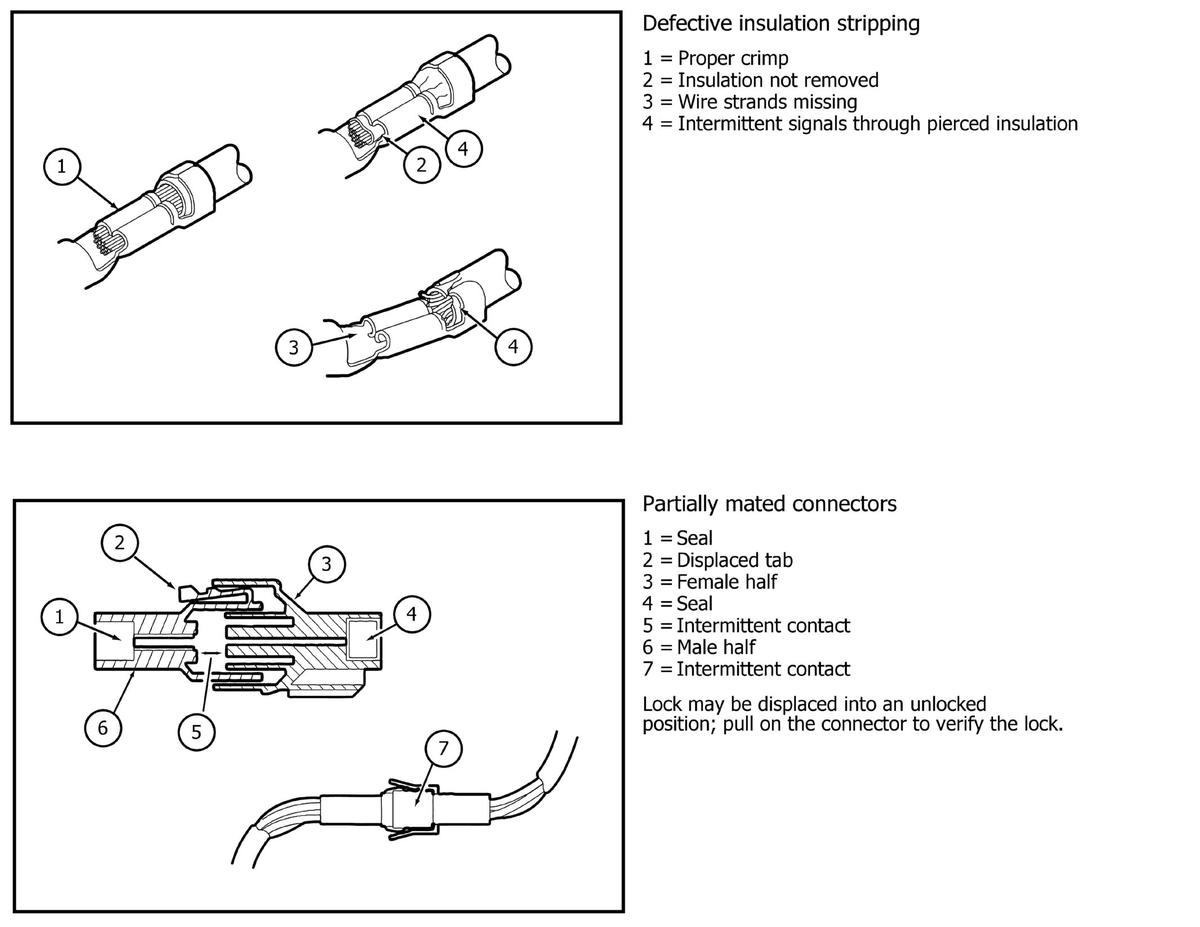

GFDWR187444Courtesy of FORD MOTOR COMPANY

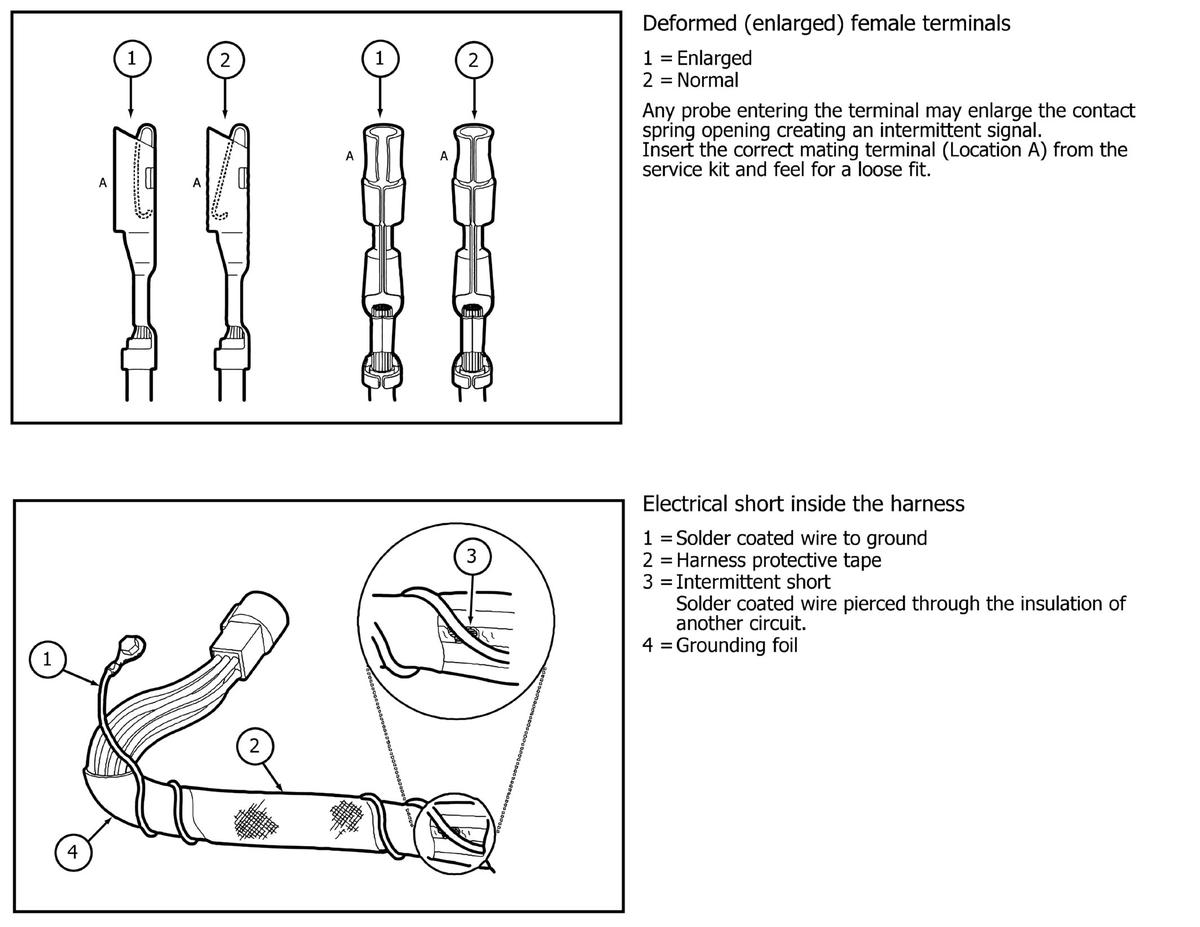

GFDWR187445Courtesy of FORD MOTOR COMPANY

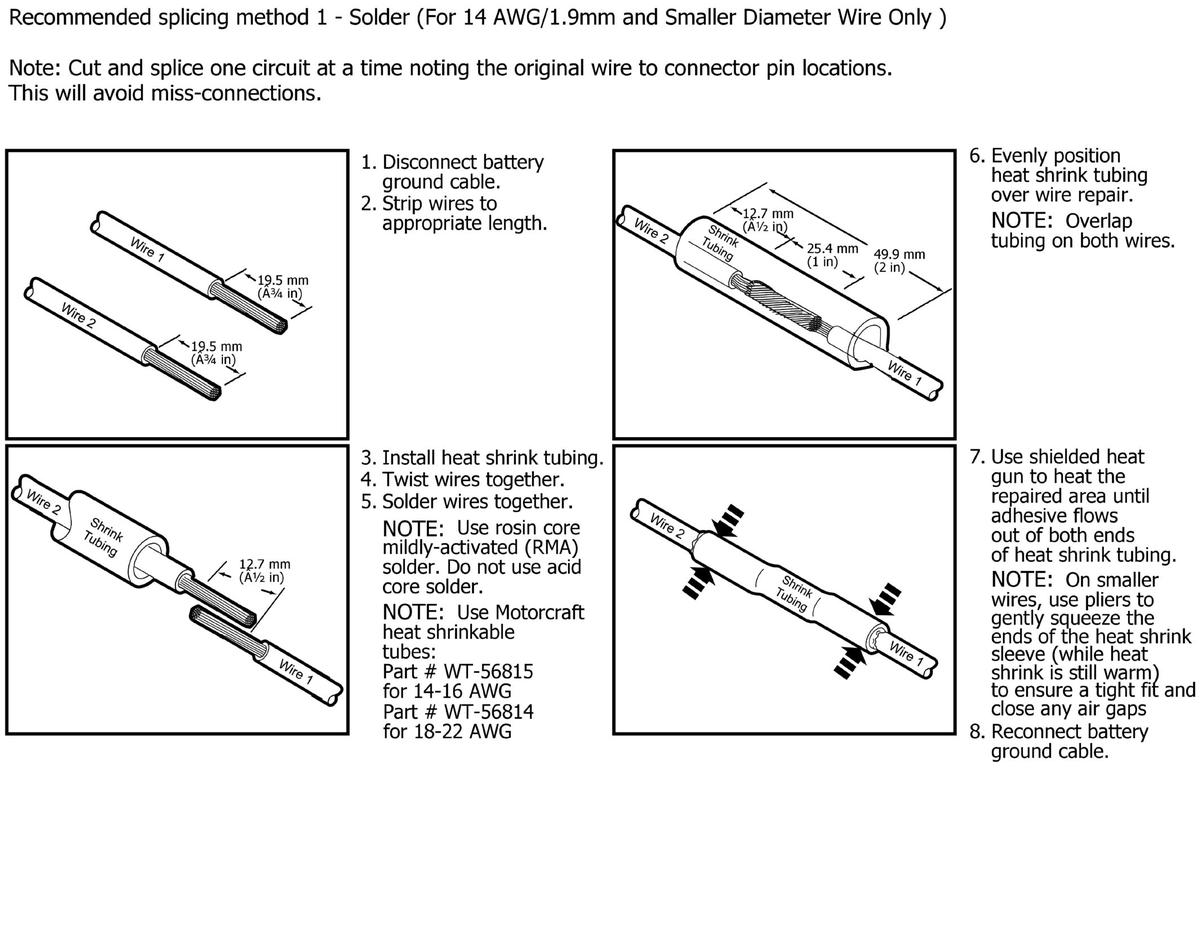

GFDWR187446Courtesy of FORD MOTOR COMPANY

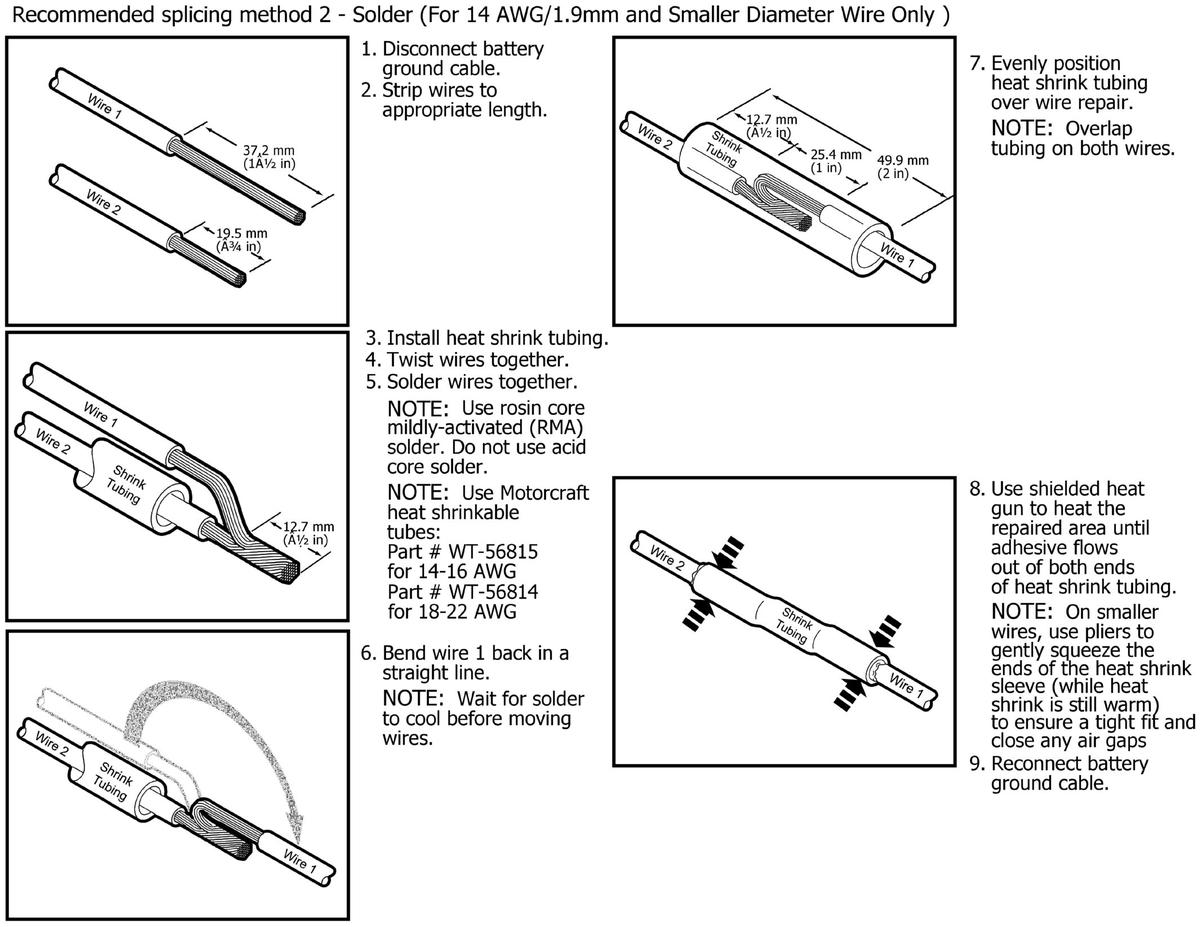

GFDWR187447Courtesy of FORD MOTOR COMPANY

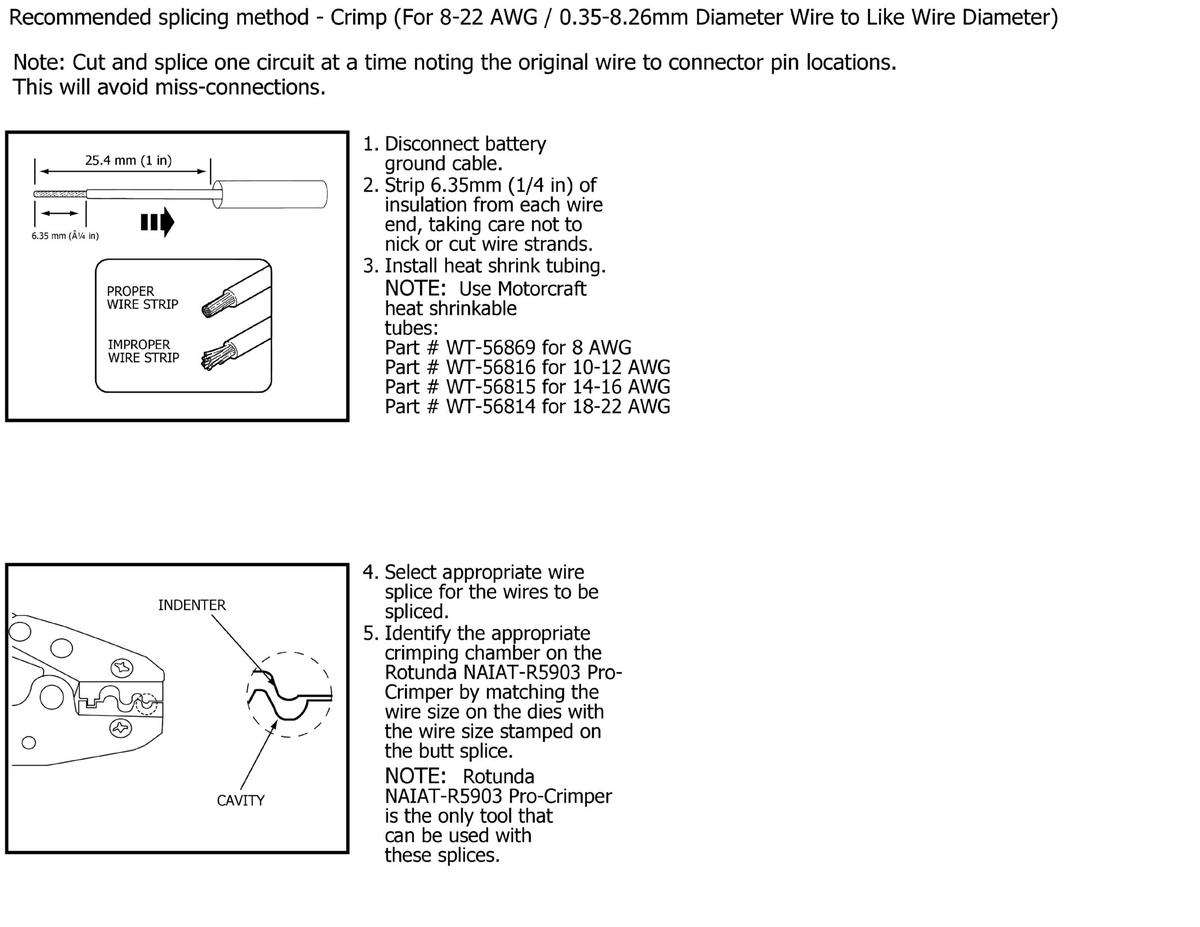

GFDWR187448Courtesy of FORD MOTOR COMPANY

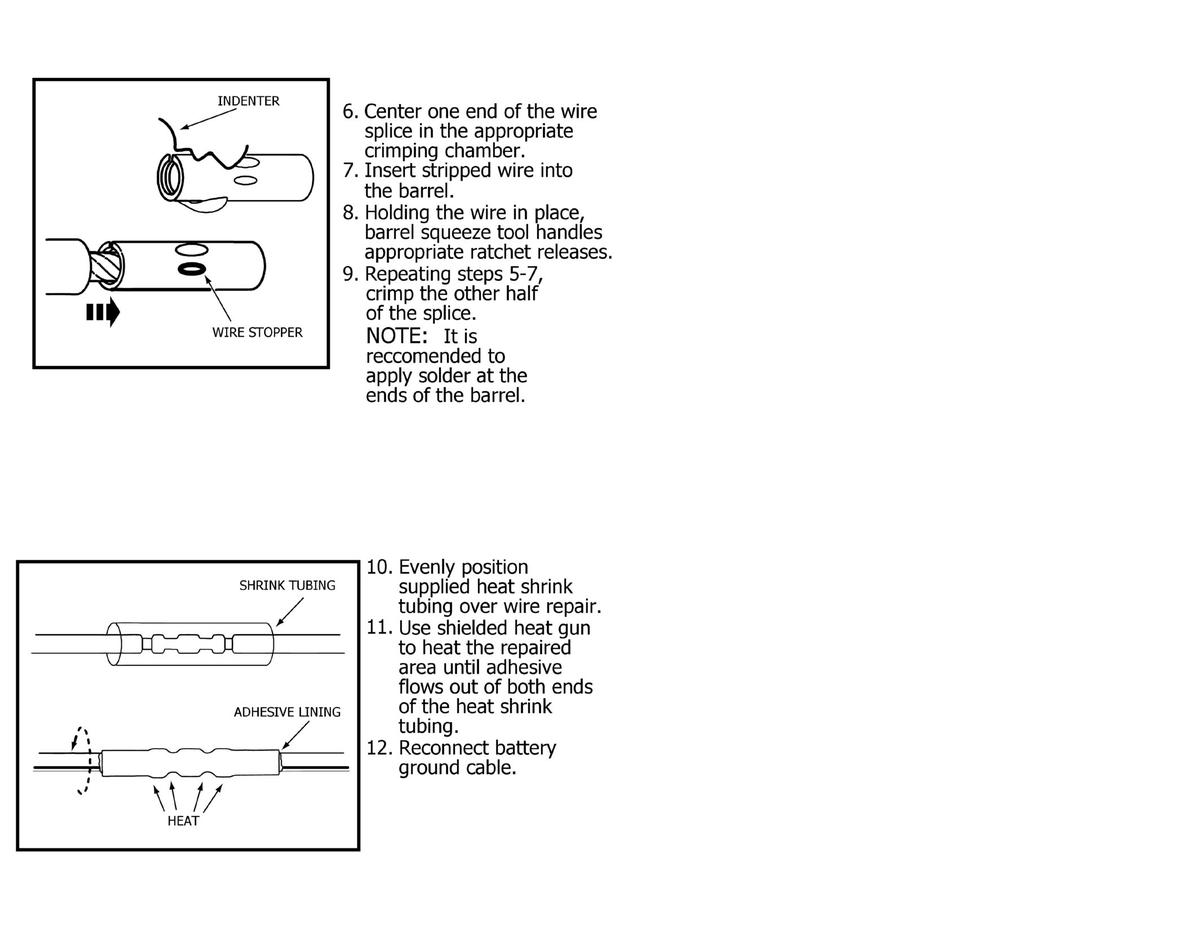

GFDWR187449Courtesy of FORD MOTOR COMPANY

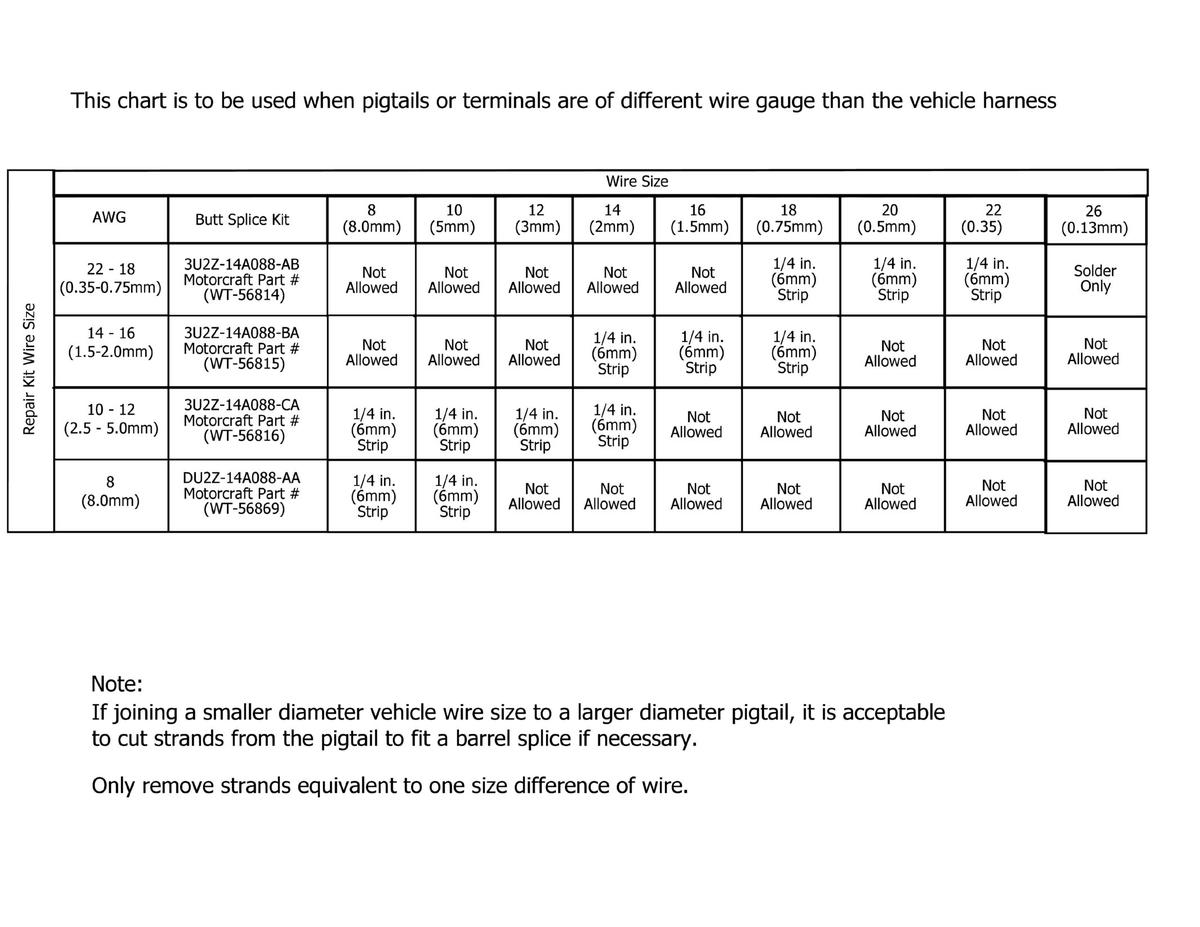

GFDWR187450Courtesy of FORD MOTOR COMPANY
