Powertrain Drivetrain Mount Neutralizing

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Powertrain/Drivetrain Mount Neutralizing

Adjustment

All vehicles

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .

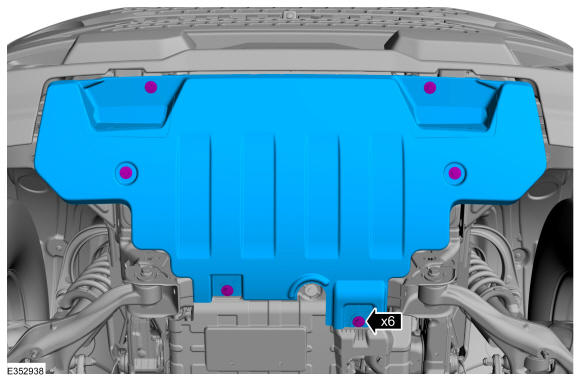

2. Remove the fasteners and the engine front undershield.

   Courtesy of FORD MOTOR COMPANY

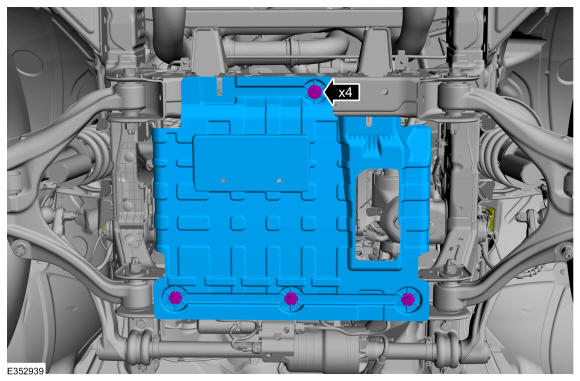

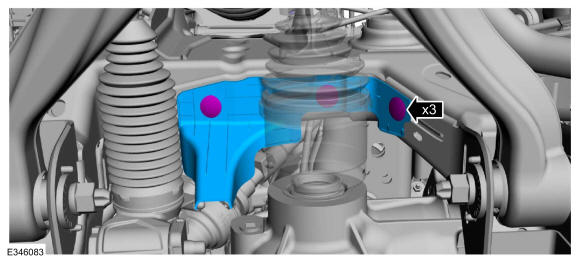

3. Remove the bolts and the engine rear undershield.

   Courtesy of FORD MOTOR COMPANY

4. Remove the fender splash shields. Refer to: Fender Splash Shield .

   2.7L EcoBoost

5. Remove the retainers and the LH axle shaft shield.

   Courtesy of FORD MOTOR COMPANY

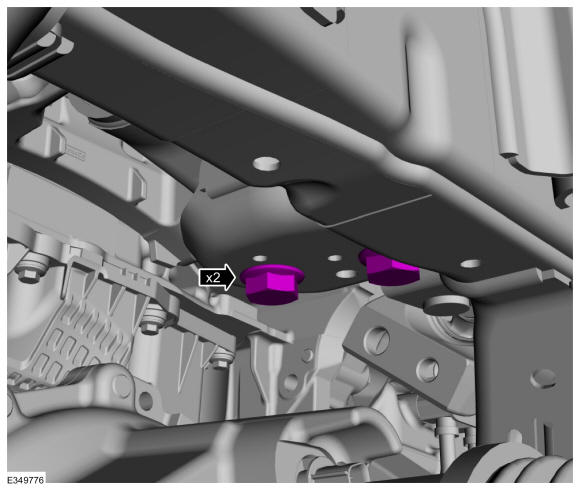

6. Loosen the LH engine mount bolts.

   Courtesy of FORD MOTOR COMPANY

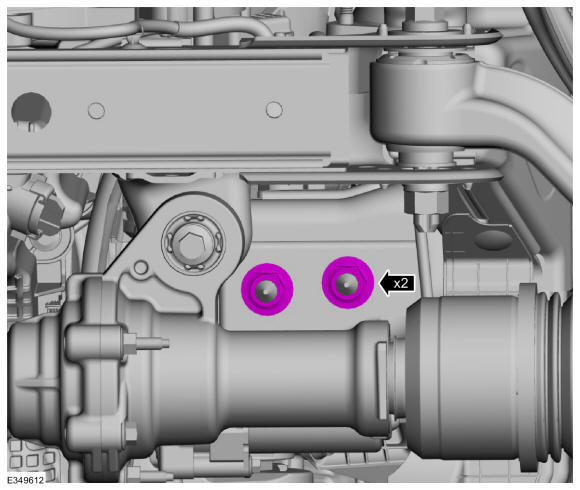

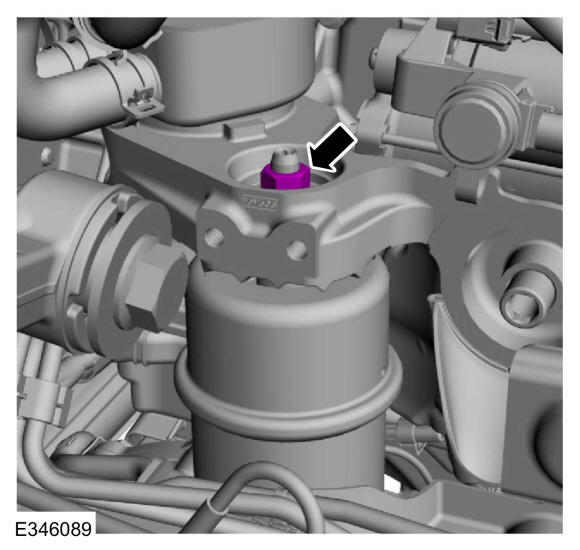

7. Loosen the RH engine mount nuts.

   Courtesy of FORD MOTOR COMPANY

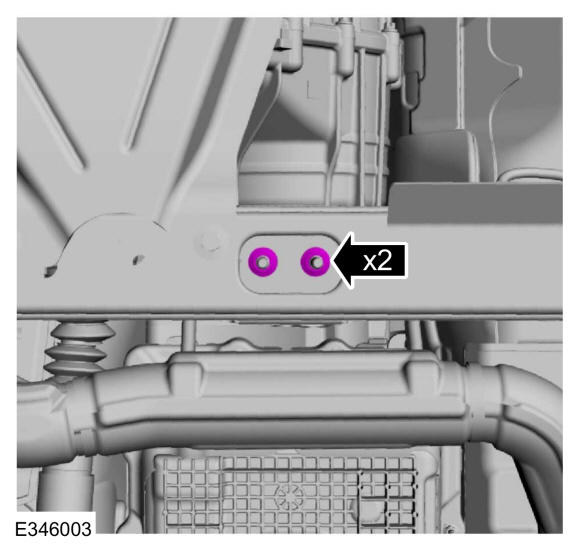

8. Loosen the transmission mount nuts.

   Courtesy of FORD MOTOR COMPANY

   2.3L EcoBoost

9. Remove the retainers and the LH axle shaft shield.

   Courtesy of FORD MOTOR COMPANY

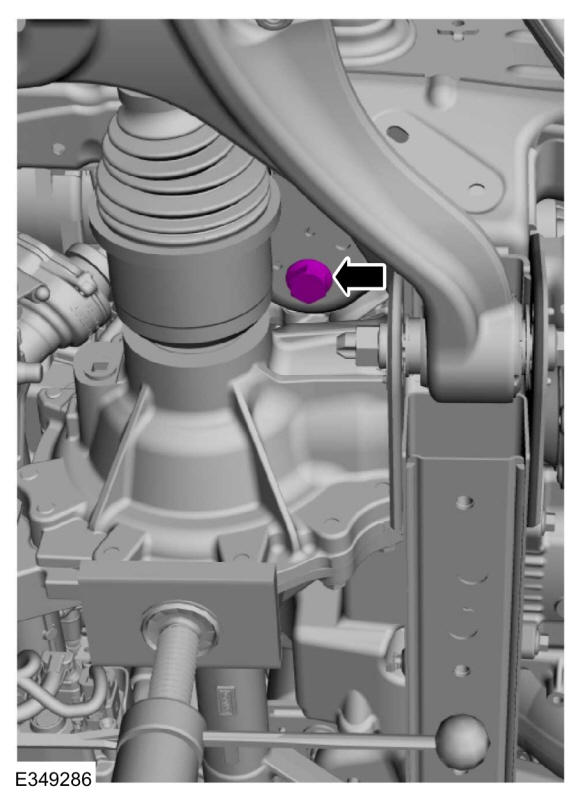

10. Loosen the LH engine mount bolt.

    Courtesy of FORD MOTOR COMPANY

11. Loosen the LH engine mount nut.

    Courtesy of FORD MOTOR COMPANY

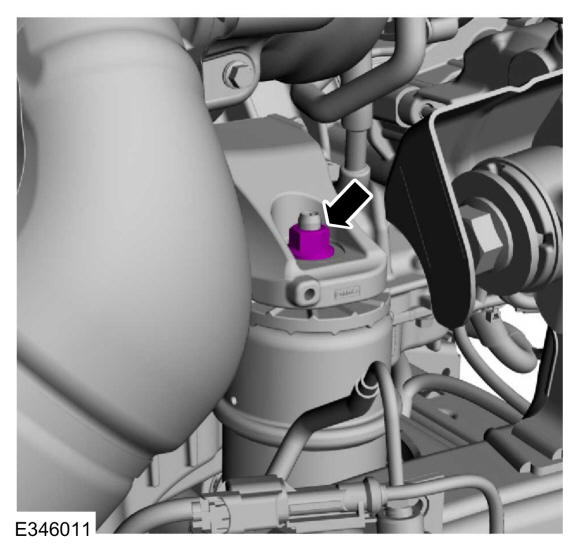

12. Loosen the RH engine mount nut.

    Courtesy of FORD MOTOR COMPANY

13. Loosen the RH engine mount nut.

    Courtesy of FORD MOTOR COMPANY

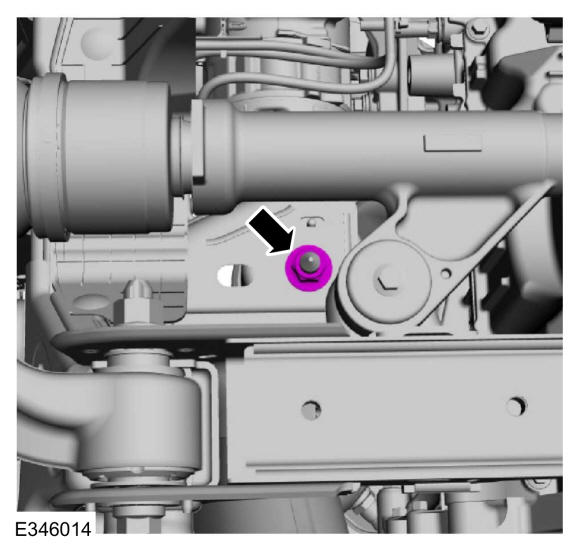

14. Loosen the transmission mount nut.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

15. NOTE: Do not twist or strain the powertrain/drivetrain mounts or damage to the mounts may occur.

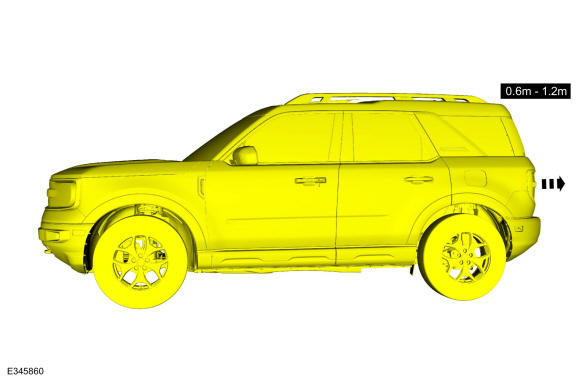

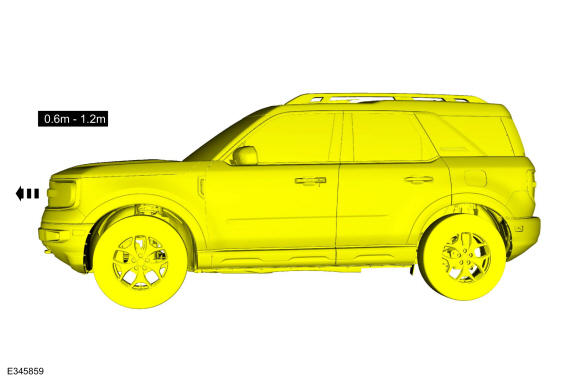

    Start the vehicle and move it forward 0.6 m (1.97 ft) - 1.2 m (3.94 ft).

    Courtesy of FORD MOTOR COMPANY

16. NOTE: Do not twist or strain the powertrain/drivetrain mounts or damage to the mounts may occur.

    Move the vehicle in reverse the same distance 0.6 m (1.97 ft) - 1.2 m (3.94 ft).

    Courtesy of FORD MOTOR COMPANY

    2.3L EcoBoost

17. Tighten the RH engine mount nut.

    Torque:Stage 1: 22 lb.ft (30 Nm)Stage 2: 120deg.

    Courtesy of FORD MOTOR COMPANY

18. Tighten the RH engine mount nut.

    Torque:Stage 1: 81 lb.ft (110 Nm)Stage 2: 120deg.

    Courtesy of FORD MOTOR COMPANY

19. Tighten the LH engine mount bolt.

    Torque:Stage 1: 136 lb.ft (185 Nm)Stage 2: 60deg.

    Courtesy of FORD MOTOR COMPANY

20. Tighten the LH engine mount nut.

    Torque:Stage 1: 22 lb.ft (30 Nm)Stage 2: 120deg.

    Courtesy of FORD MOTOR COMPANY

21. Tighten the transmission mount nuts.

    Torque: 85 lb.ft (115 Nm)

    Courtesy of FORD MOTOR COMPANY

22. Install the LH axle shaft shield and retainers.

    Courtesy of FORD MOTOR COMPANY

    2.7L EcoBoost

23. Tighten the LH engine mount bolts.

    Torque:Stage 1: 136 lb.ft (185 Nm)Stage 2: 60deg.

    Courtesy of FORD MOTOR COMPANY

24. Tighten the RH engine mount nuts.

    Torque:Stage 1: 81 lb.ft (110 Nm)Stage 2: 120deg.

    Courtesy of FORD MOTOR COMPANY

25. Tighten the transmission mount nuts.

    Torque: 85 lb.ft (115 Nm)

    Courtesy of FORD MOTOR COMPANY

26. Install the LH axle shaft shield and retainers.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

27. Install the engine rear undershield and fasteners.

    Torque: 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

28. Install the engine front undershield and fasteners.

    Torque: 124 lb.in (14 Nm)

    Courtesy of FORD MOTOR COMPANY

29. Install the fender splash shields. Refer to: Fender Splash Shield .
