Connector Repair Procedures

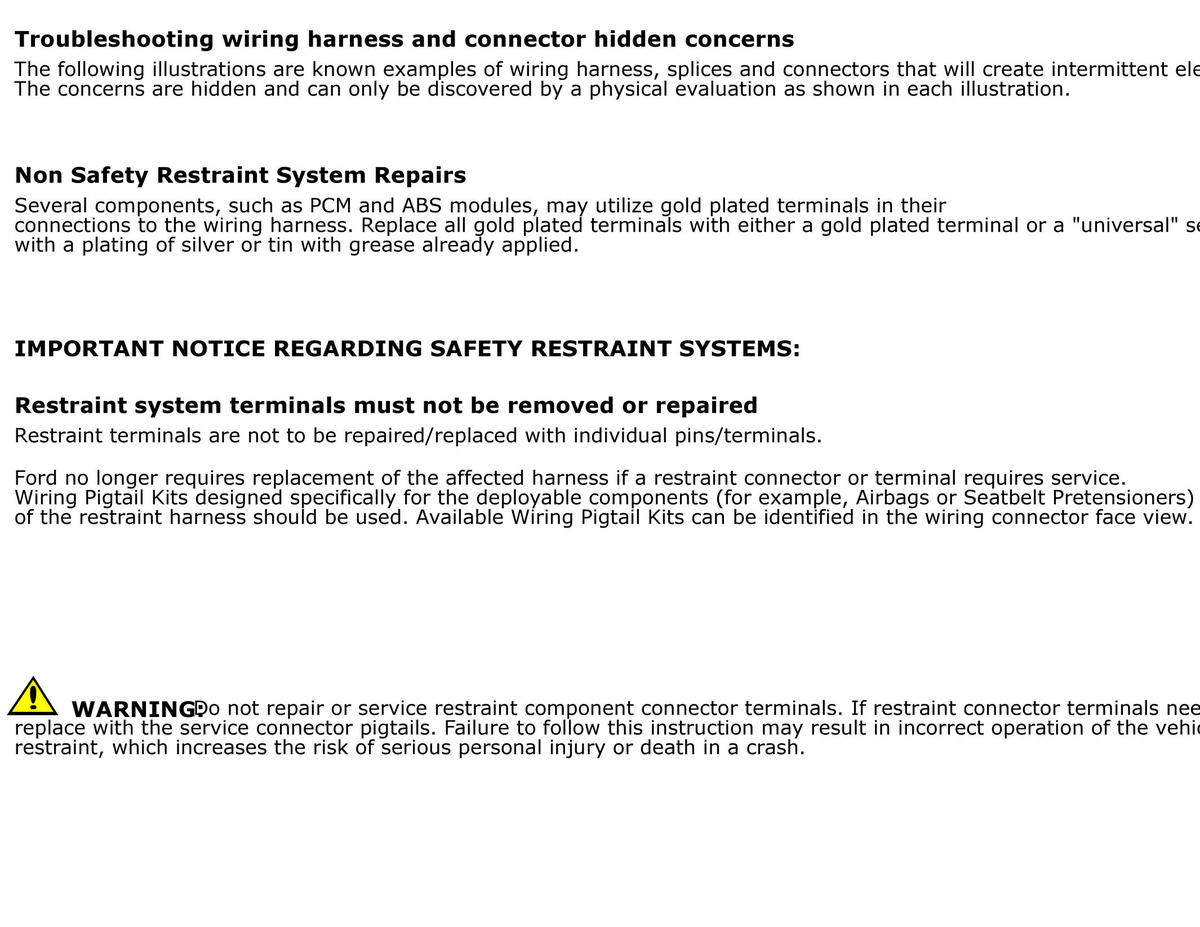

GFDWR195646Courtesy of FORD MOTOR COMPANY

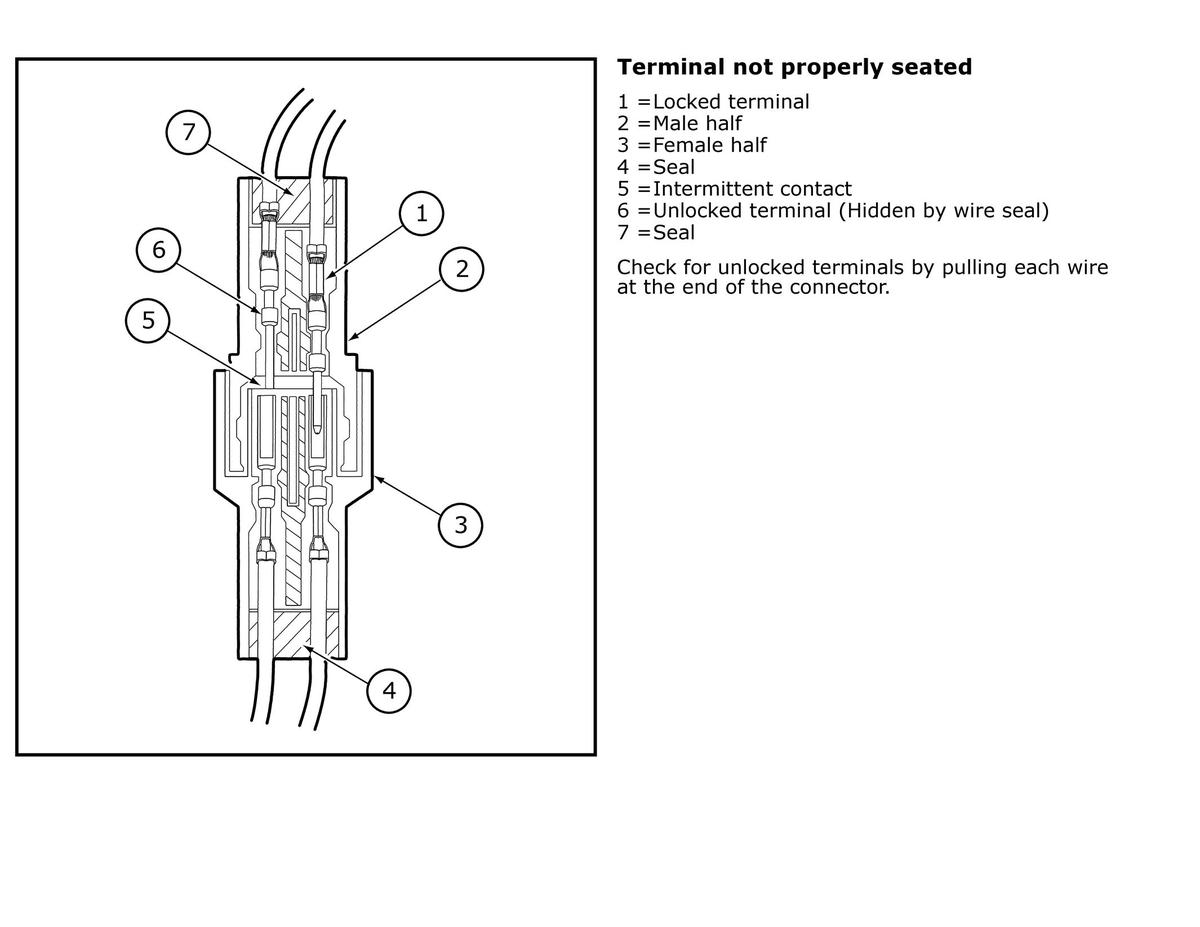

GFDWR195647Courtesy of FORD MOTOR COMPANY

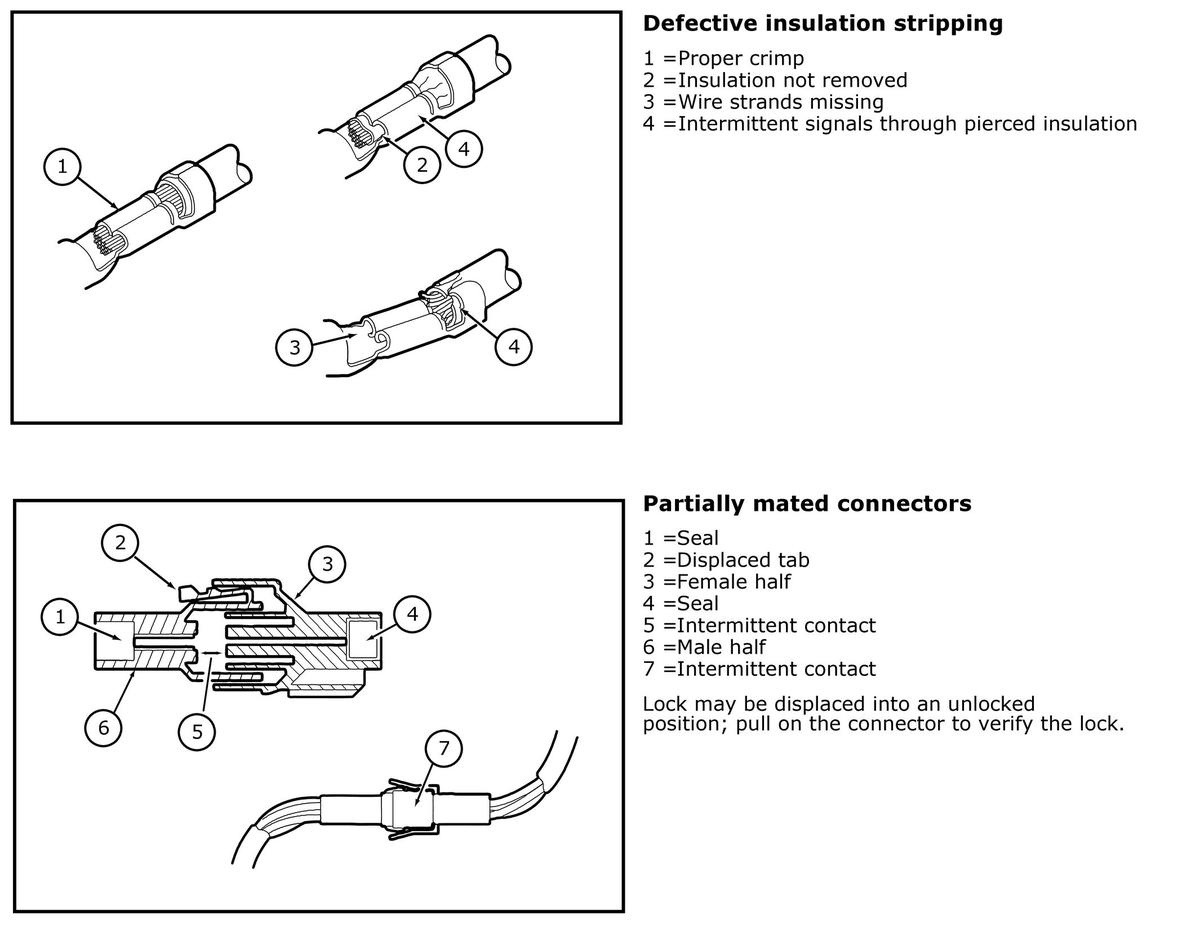

GFDWR195648Courtesy of FORD MOTOR COMPANY

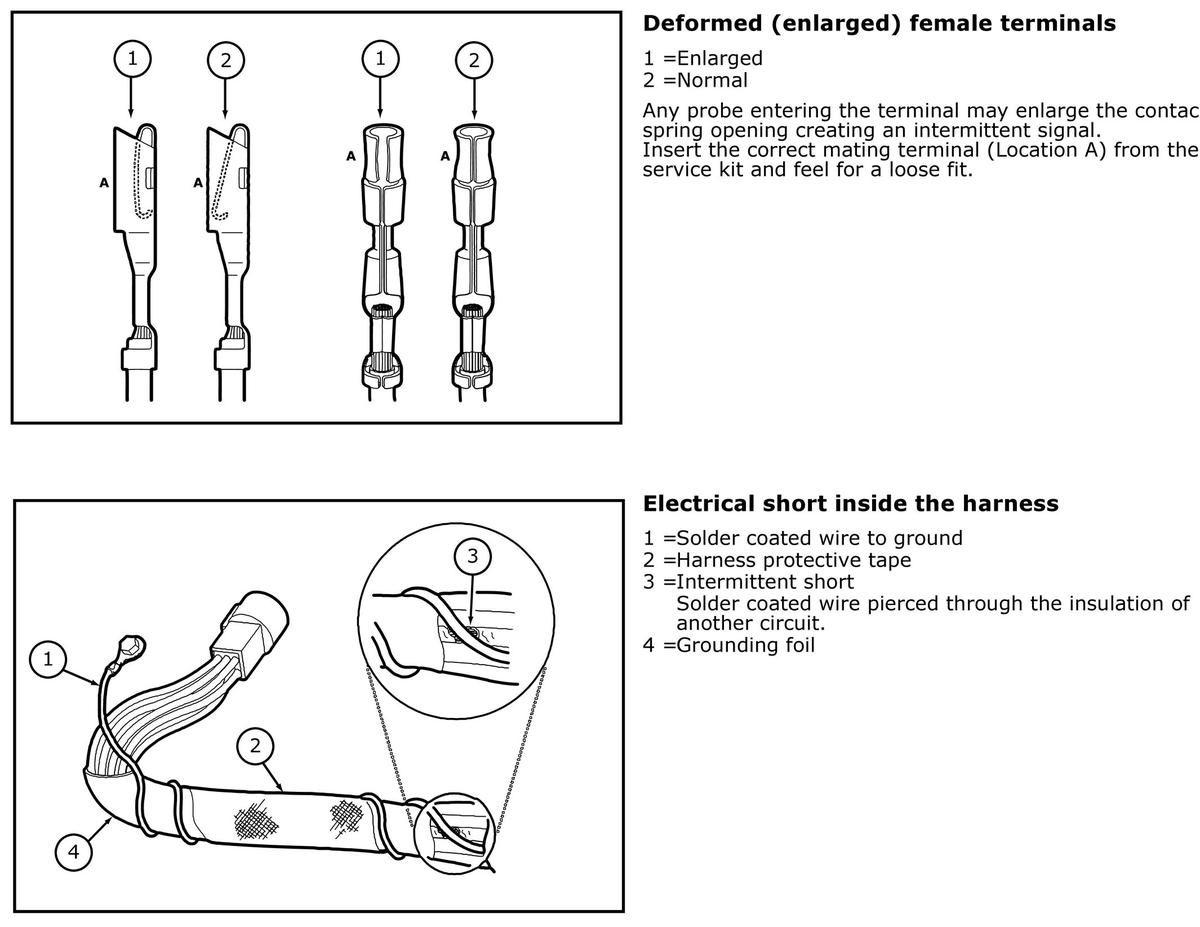

GFDWR195649Courtesy of FORD MOTOR COMPANY

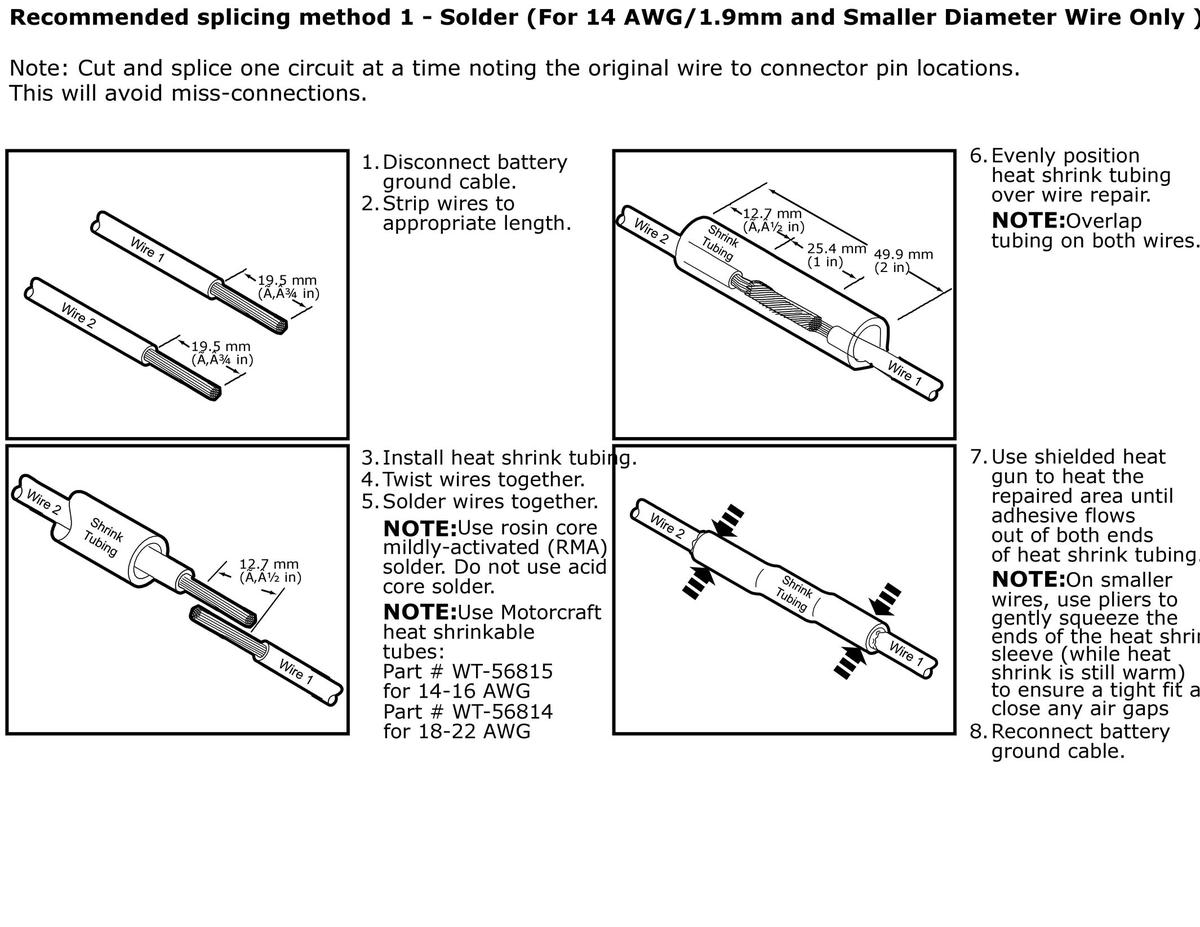

GFDWR195650Courtesy of FORD MOTOR COMPANY

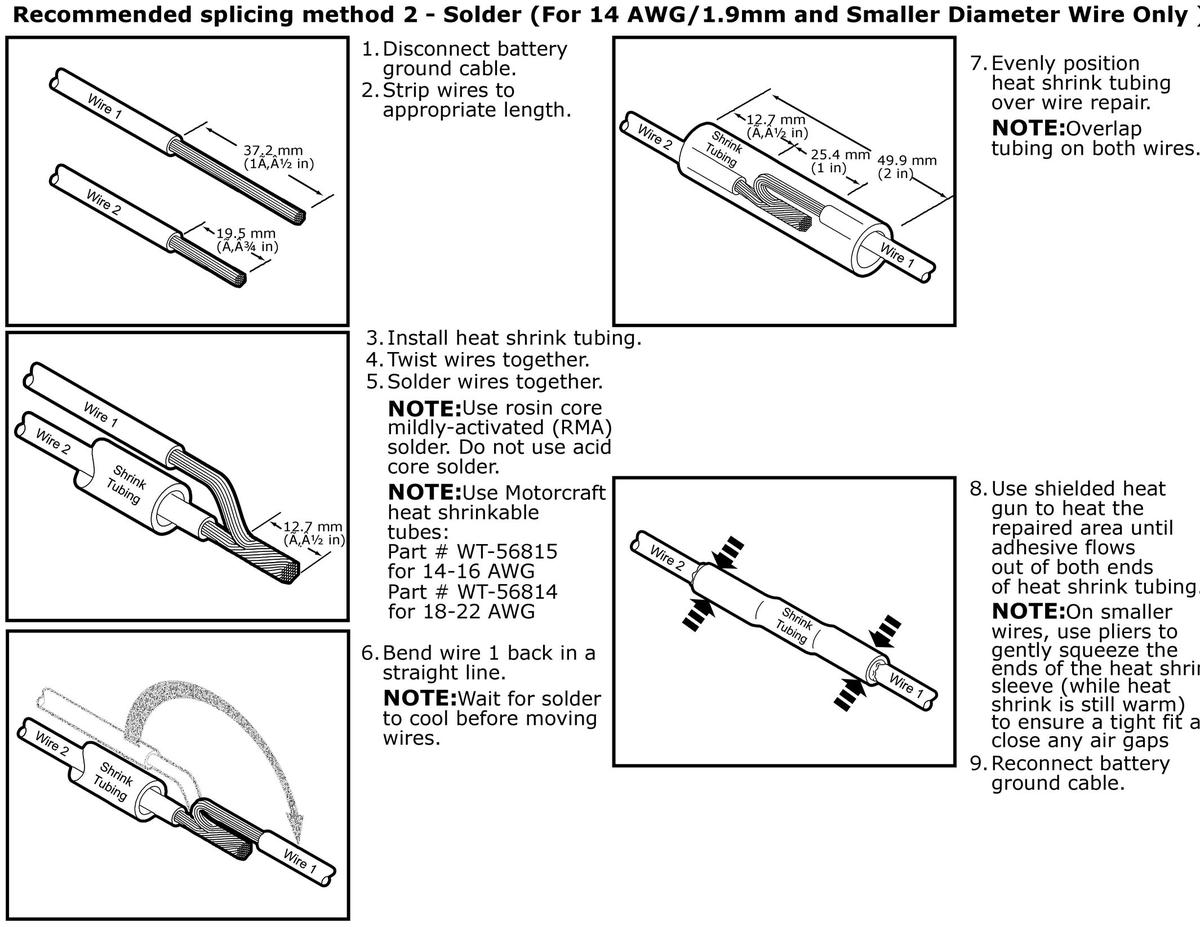

GFDWR195651Courtesy of FORD MOTOR COMPANY

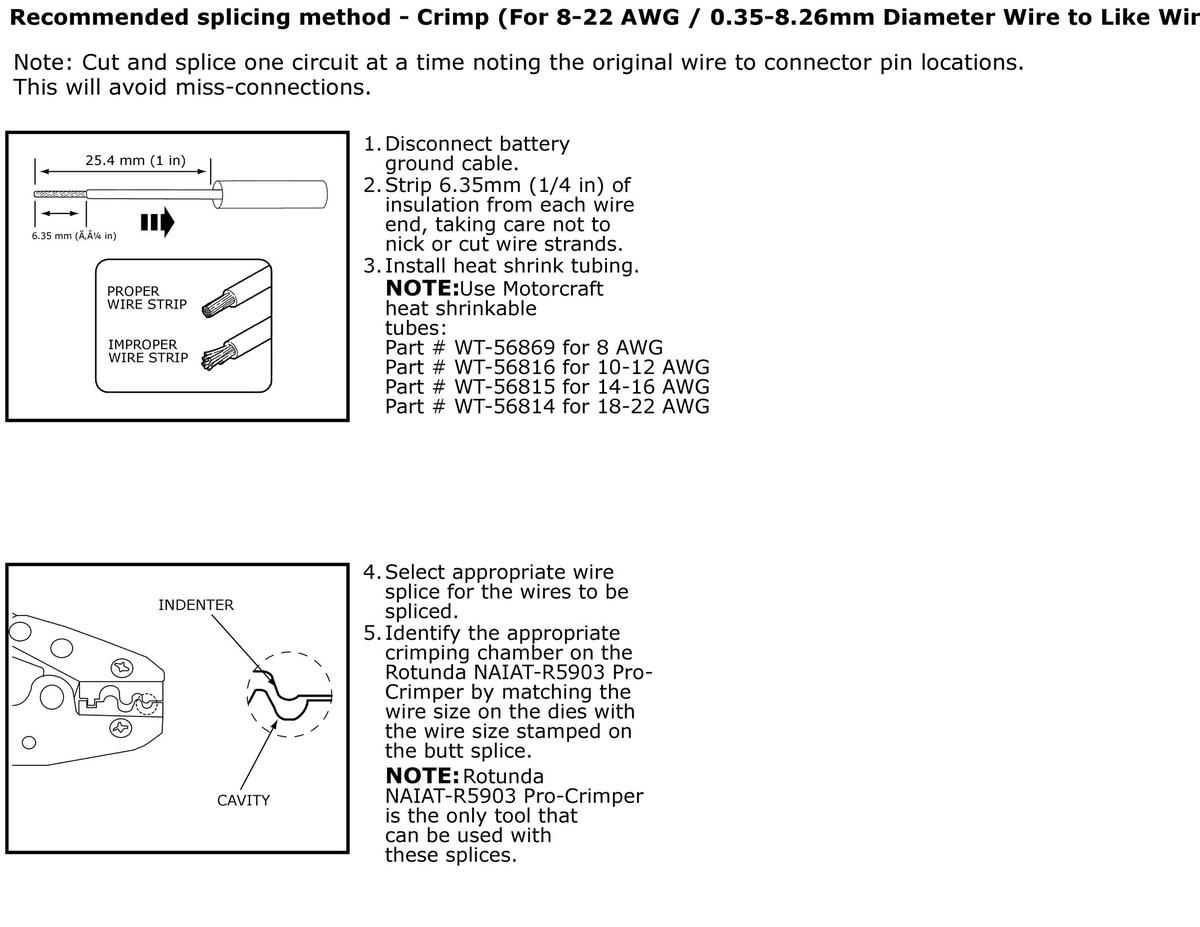

GFDWR195652Courtesy of FORD MOTOR COMPANY

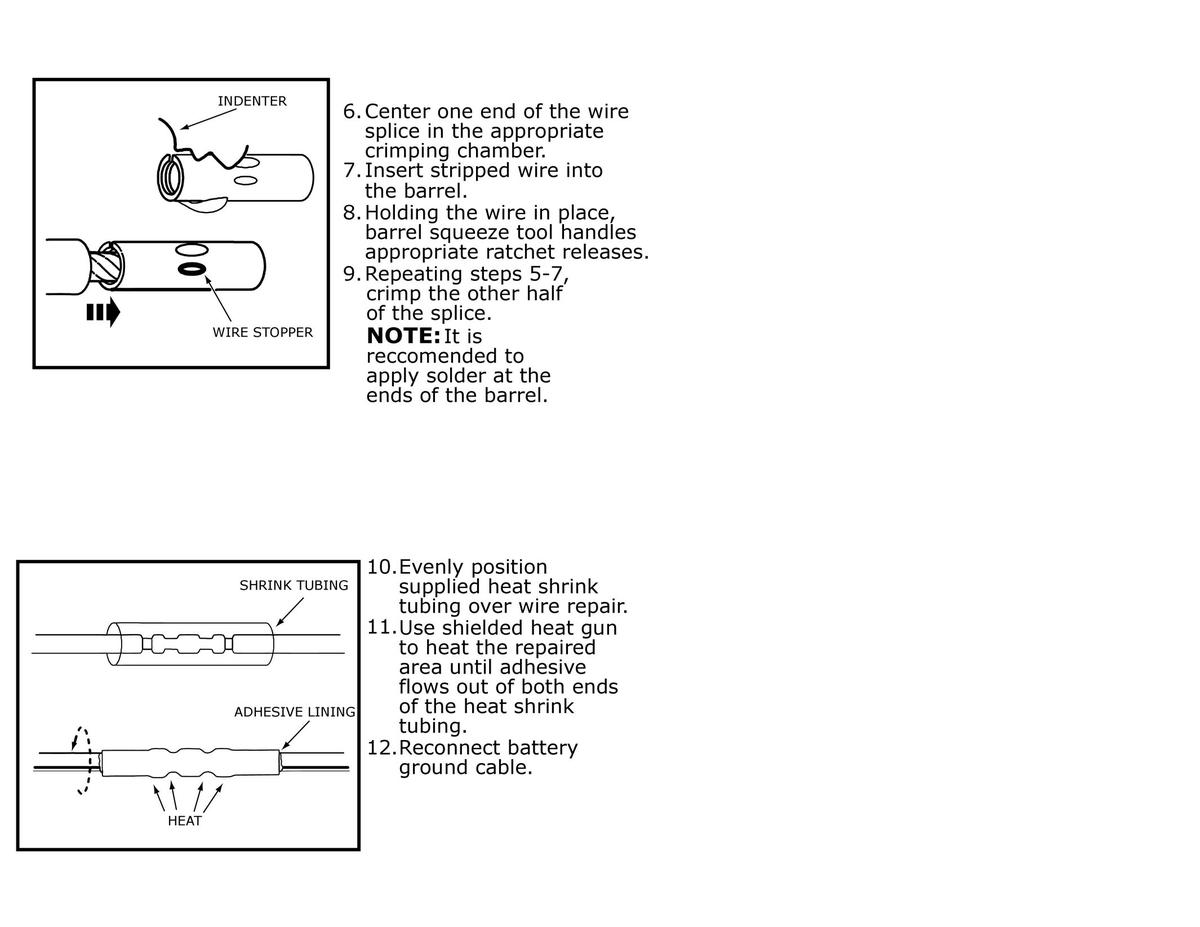

GFDWR195653Courtesy of FORD MOTOR COMPANY

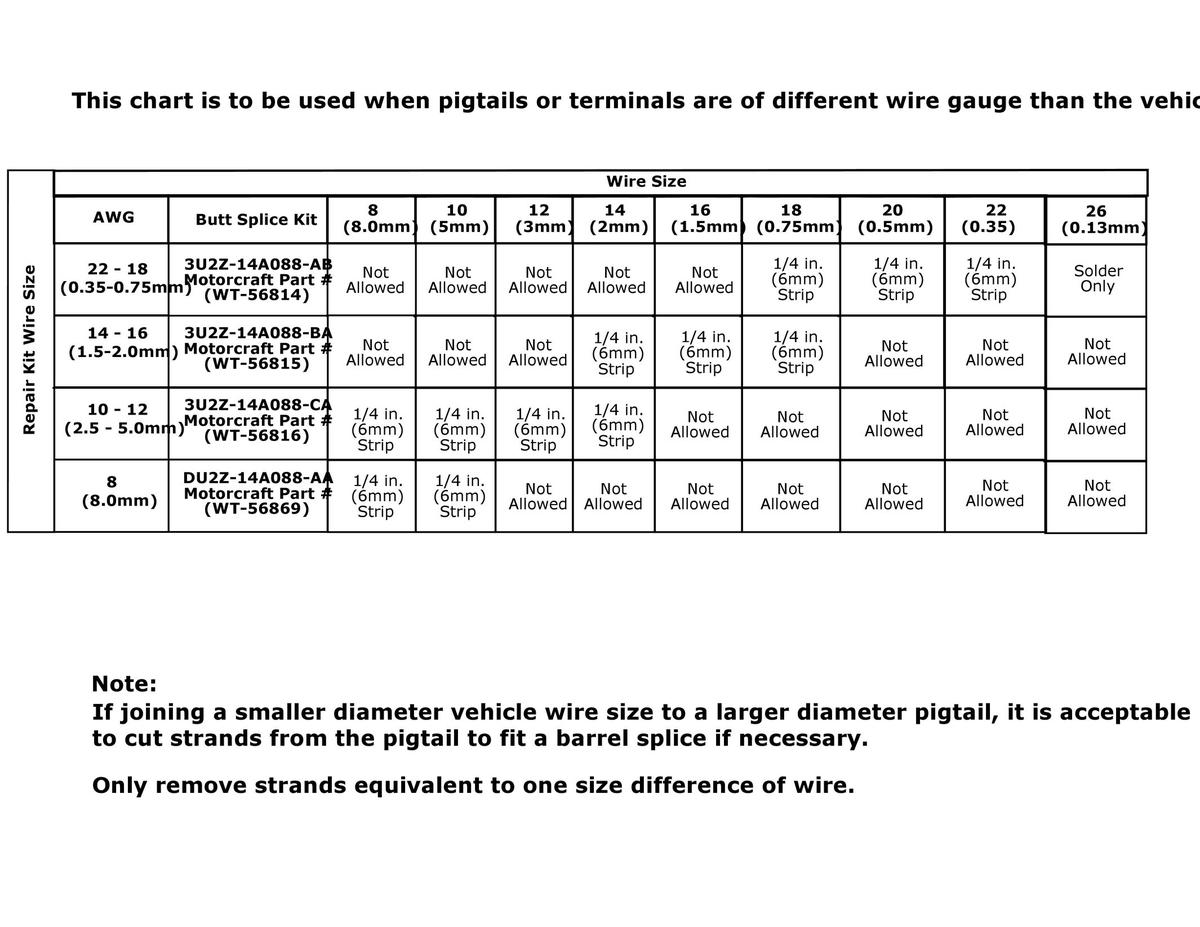

GFDWR195654Courtesy of FORD MOTOR COMPANY
