Module Communications Network

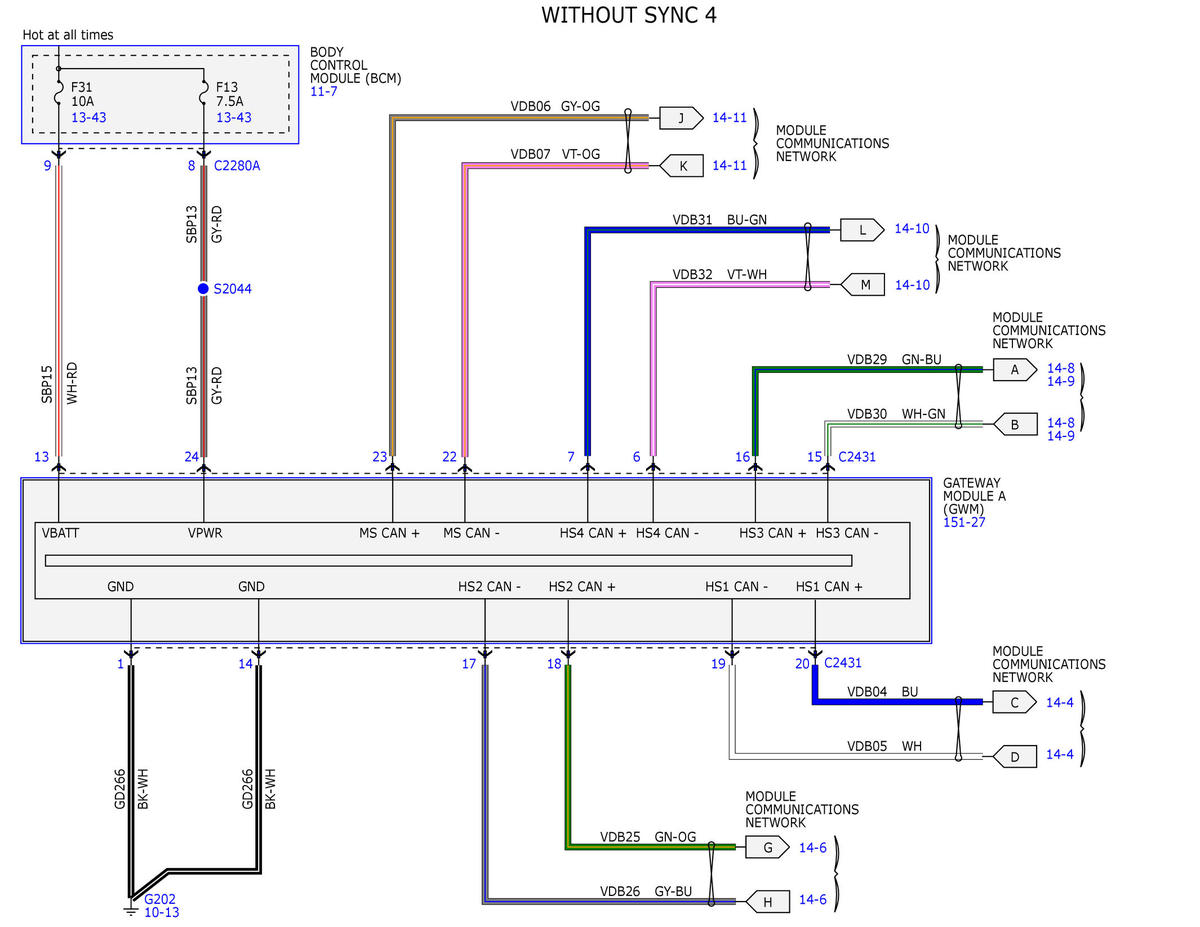

Fig 1: Module Communications Network Wiring Diagram (1 Of 25)

GFDWR213677

Courtesy of FORD MOTOR COMPANY

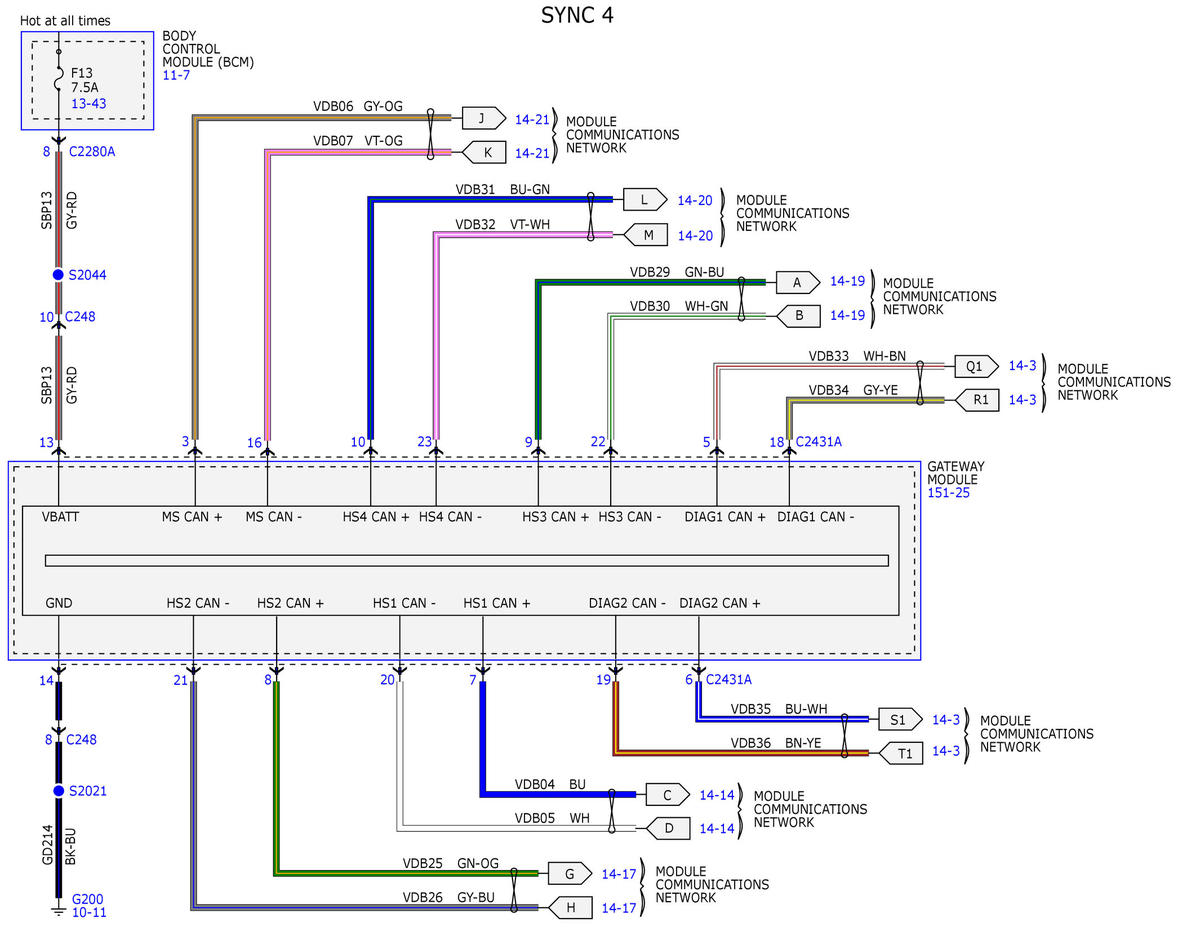

Fig 2: Module Communications Network Wiring Diagram (2 Of 25)

GFDWR213688

Courtesy of FORD MOTOR COMPANY

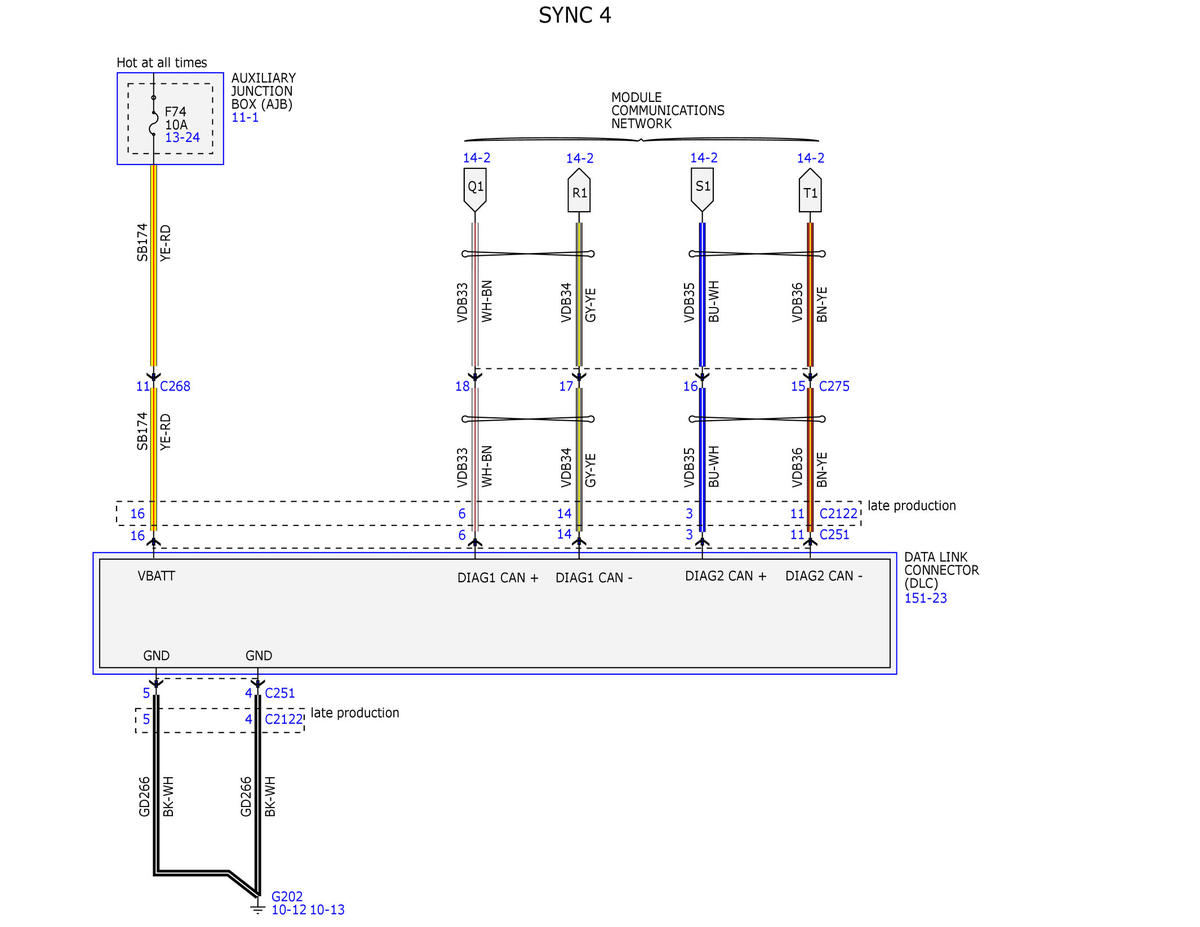

Fig 3: Module Communications Network Wiring Diagram (3 Of 25)

GFDWR213695

Courtesy of FORD MOTOR COMPANY

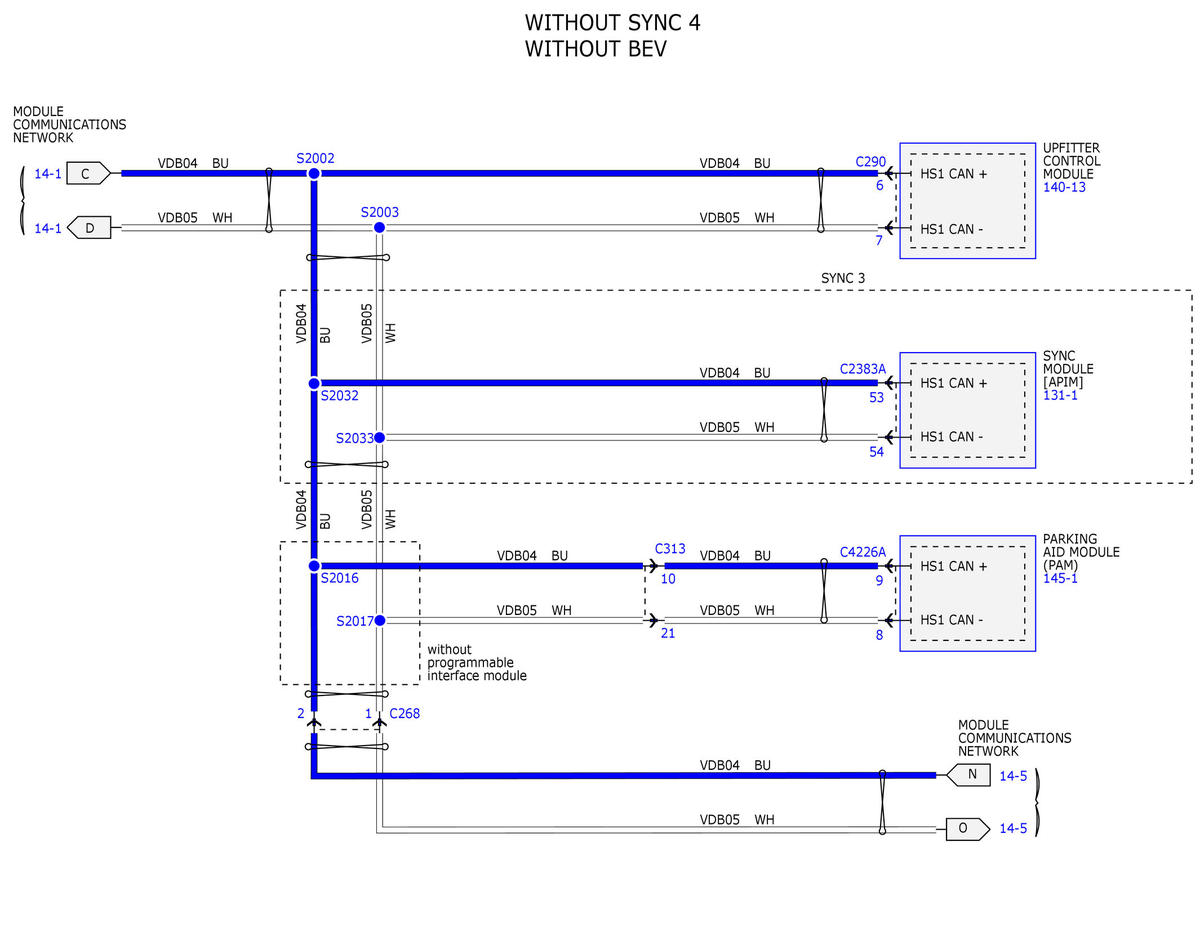

Fig 4: Module Communications Network Wiring Diagram (4 Of 25)

GFDWR213696

Courtesy of FORD MOTOR COMPANY

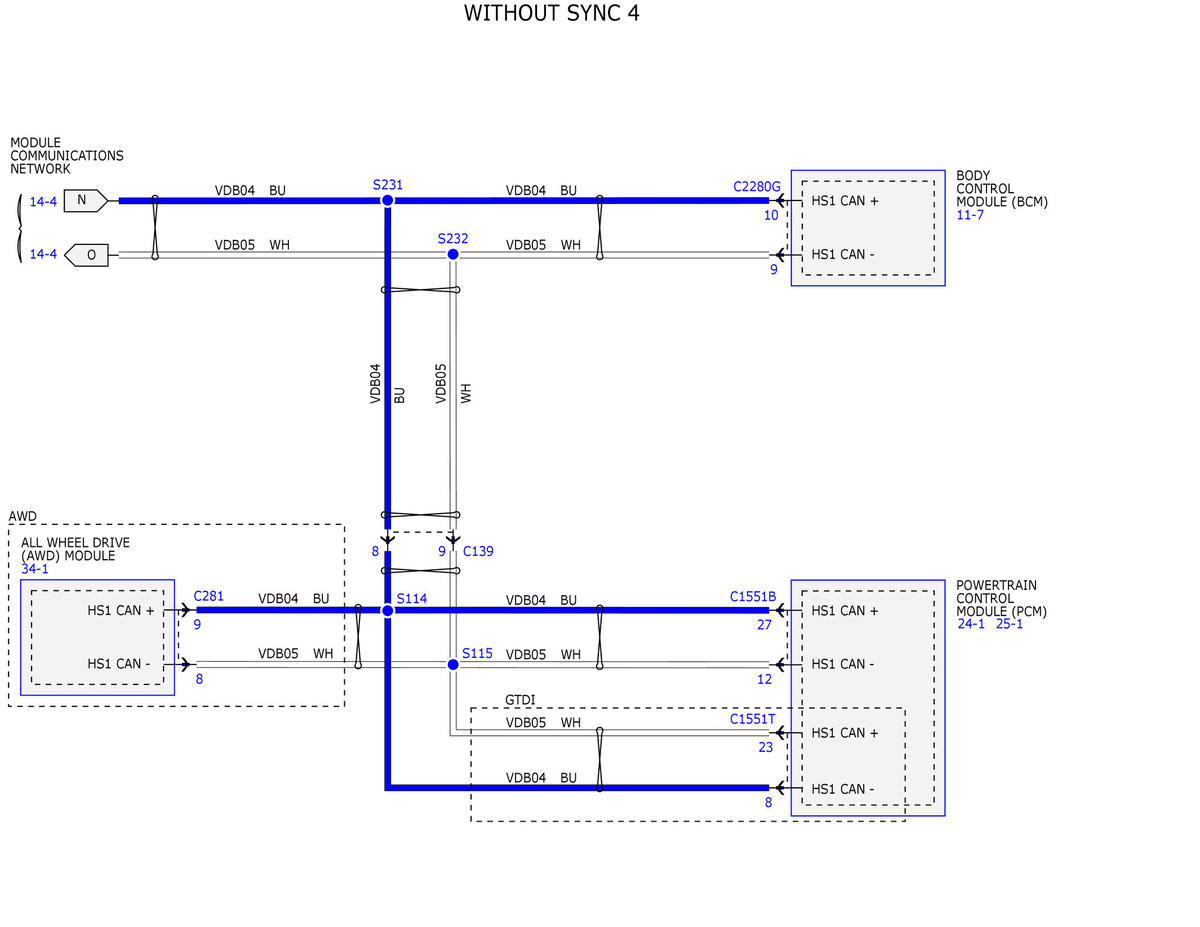

Fig 5: Module Communications Network Wiring Diagram (5 Of 25)

GFDWR213697

Courtesy of FORD MOTOR COMPANY

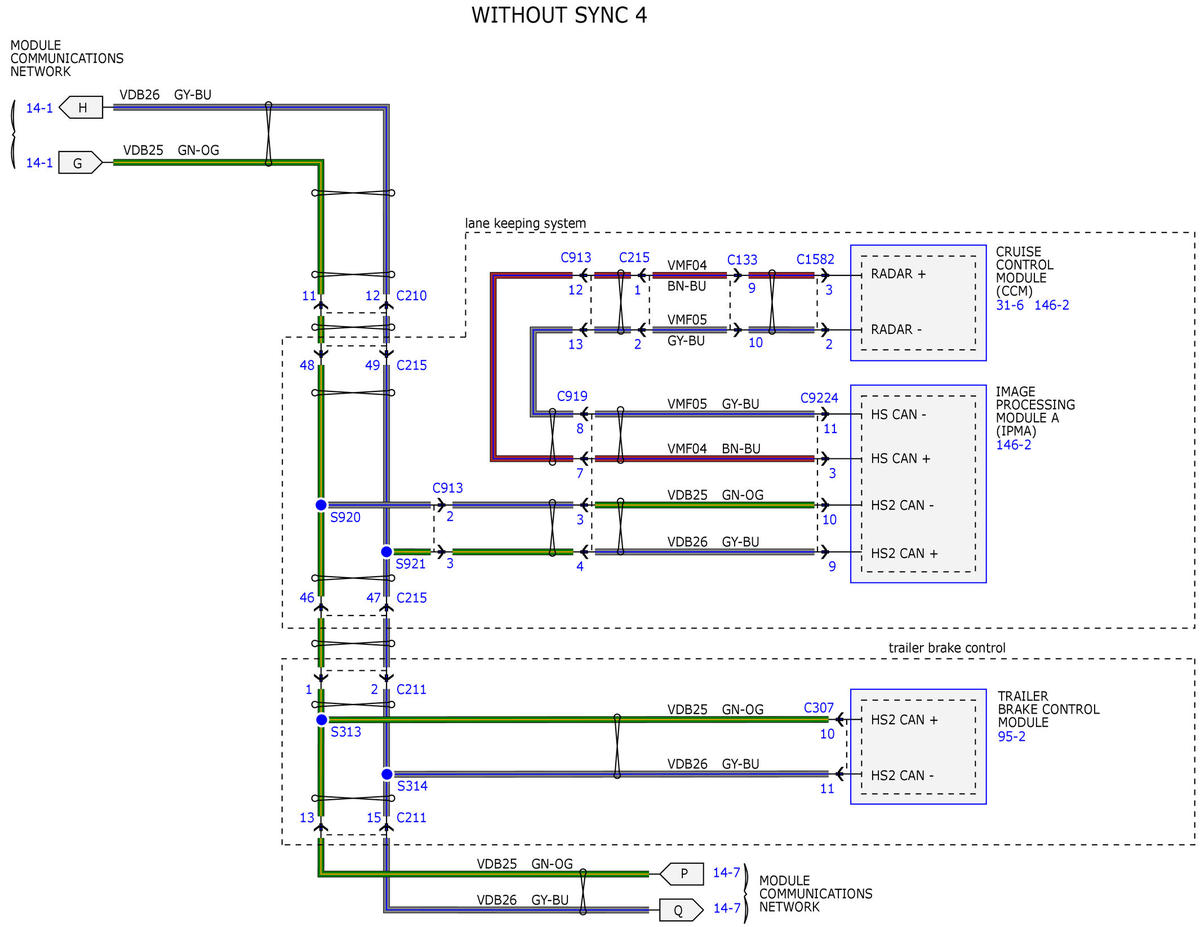

Fig 6: Module Communications Network Wiring Diagram (6 Of 25)

GFDWR213698

Courtesy of FORD MOTOR COMPANY

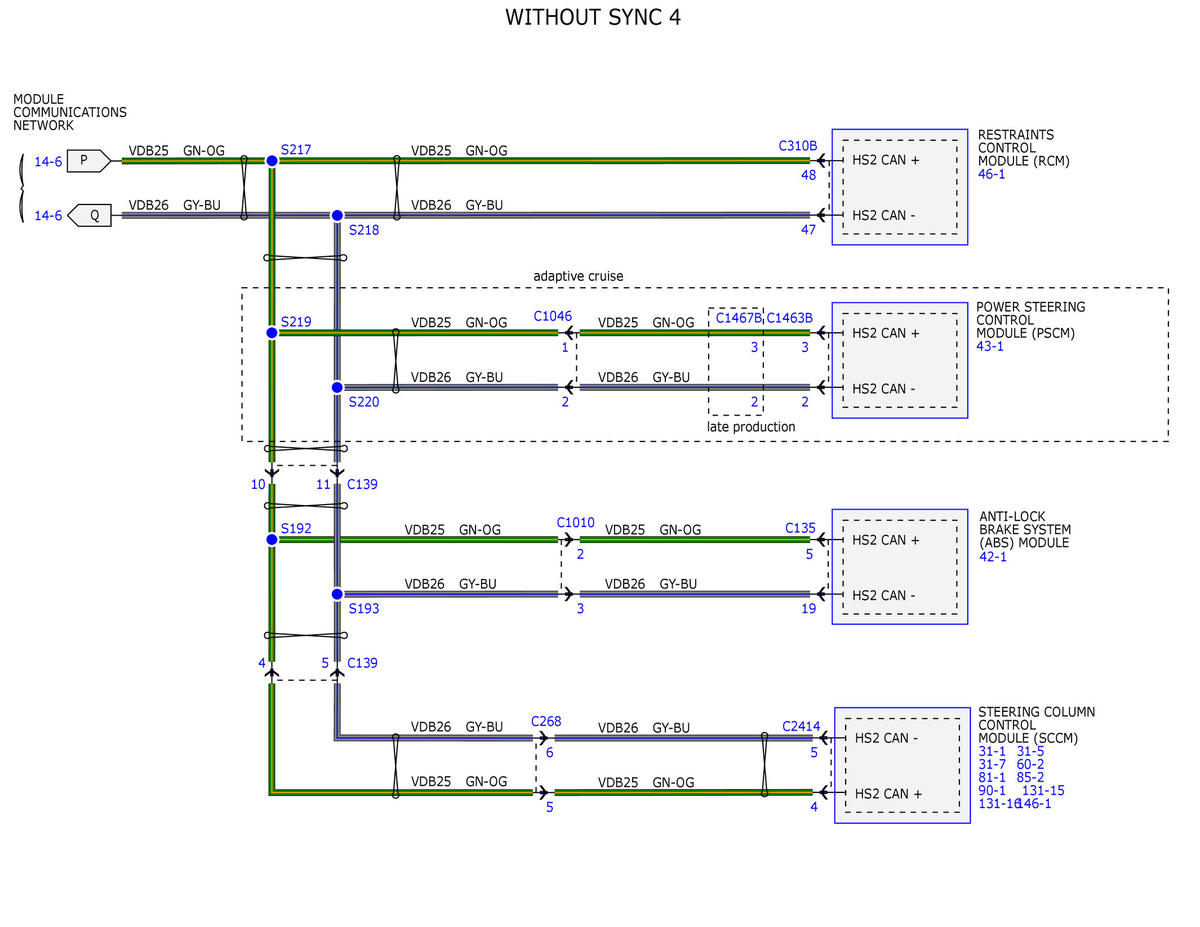

Fig 7: Module Communications Network Wiring Diagram (7 Of 25)

GFDWR213699

Courtesy of FORD MOTOR COMPANY

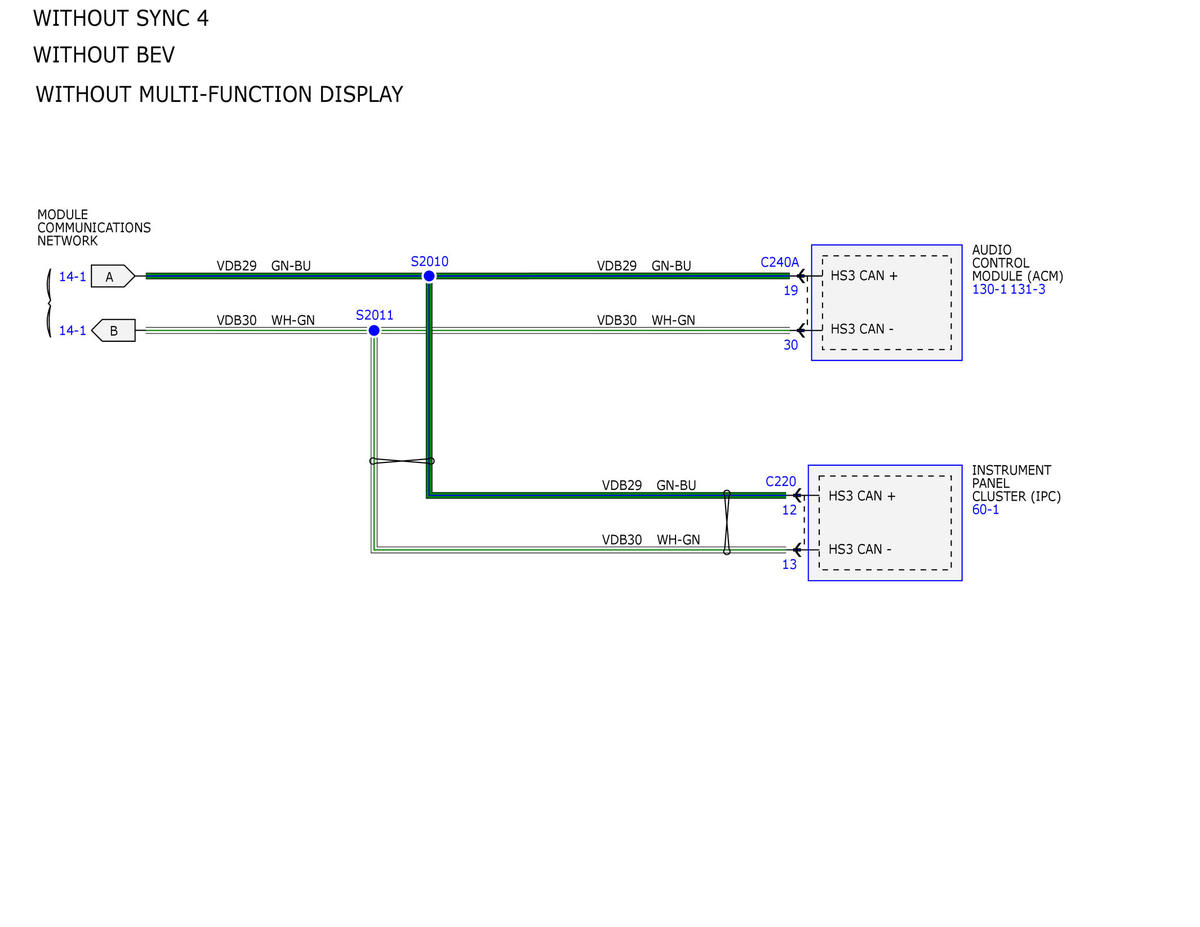

Fig 8: Module Communications Network Wiring Diagram (8 Of 25)

GFDWR213700

Courtesy of FORD MOTOR COMPANY

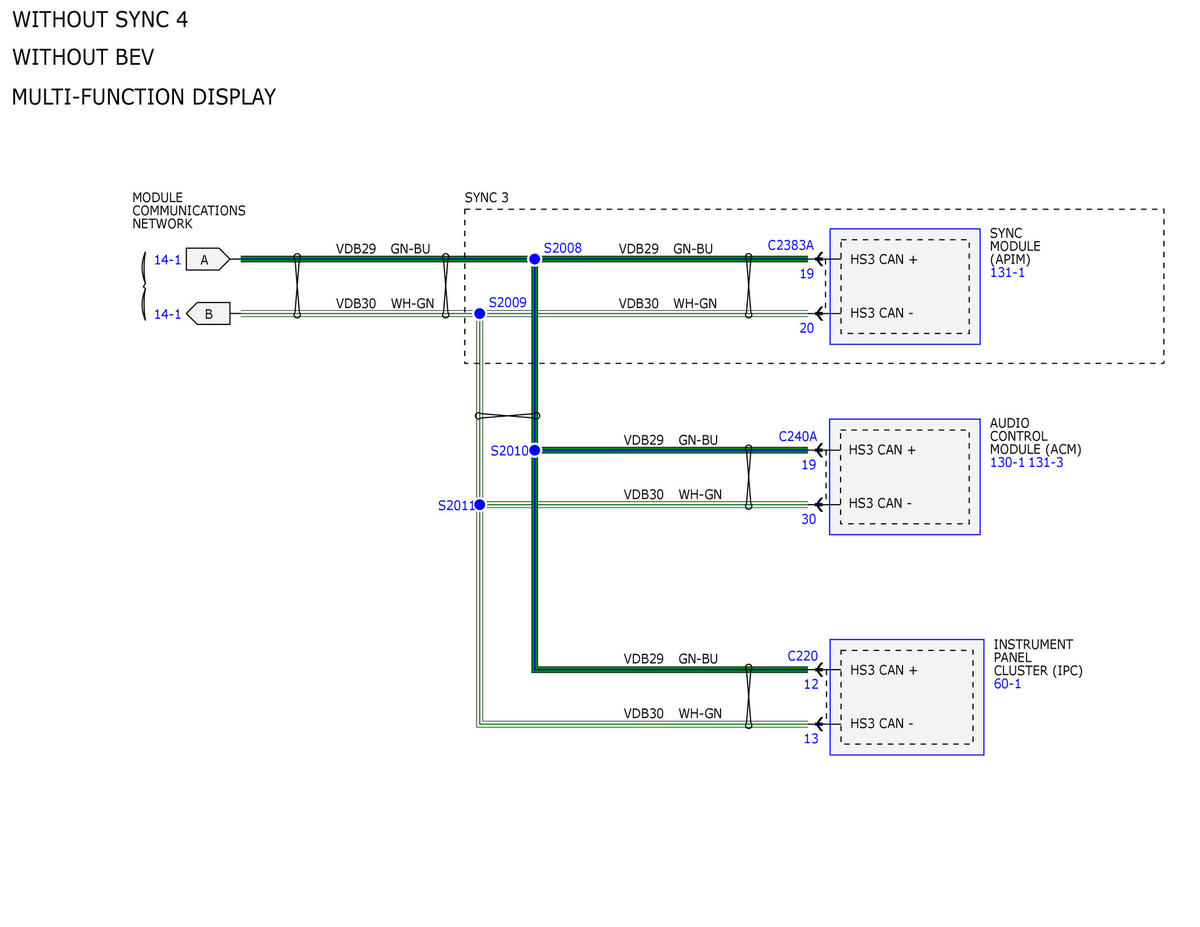

Fig 9: Module Communications Network Wiring Diagram (9 Of 25)

GFDWR213701

Courtesy of FORD MOTOR COMPANY

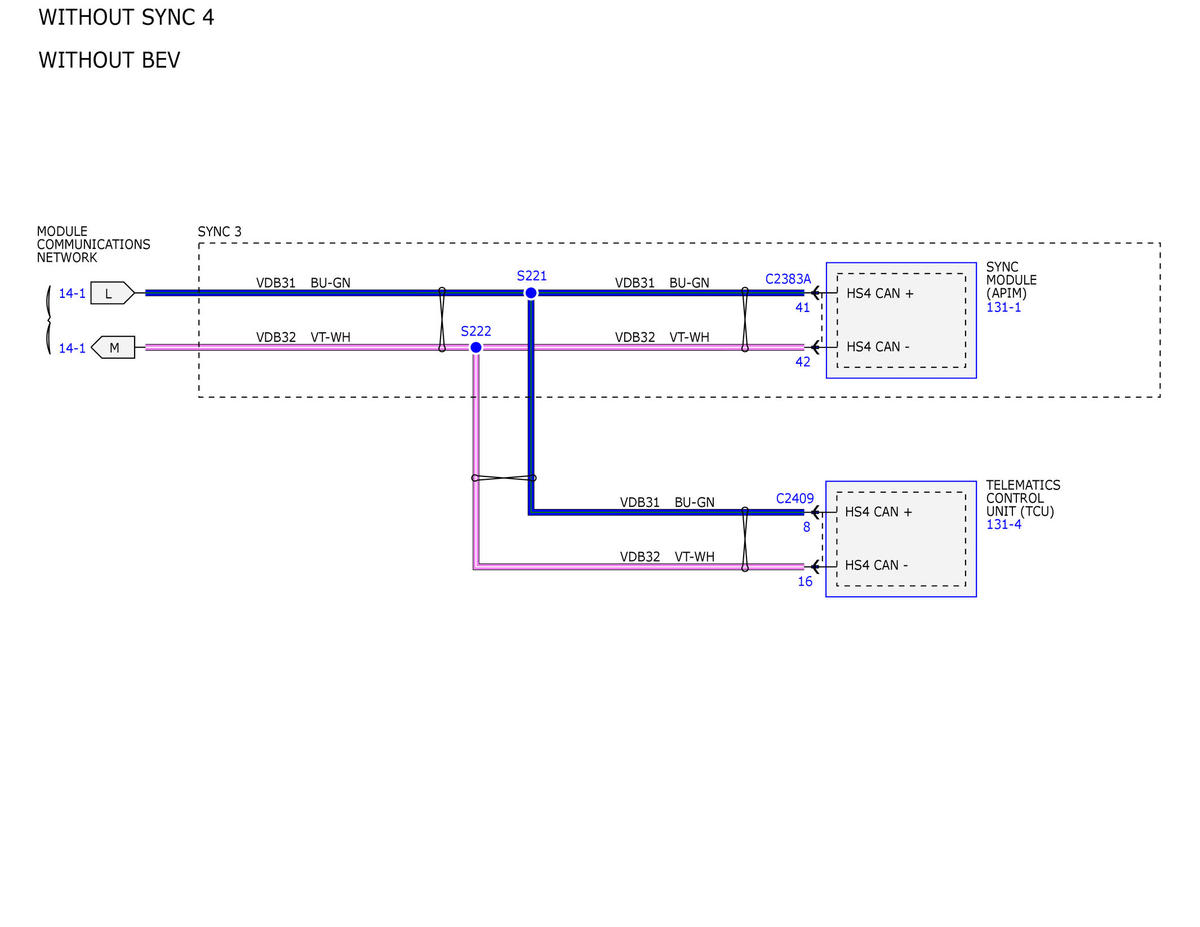

Fig 10: Module Communications Network Wiring Diagram (10 Of 25)

GFDWR213678

Courtesy of FORD MOTOR COMPANY

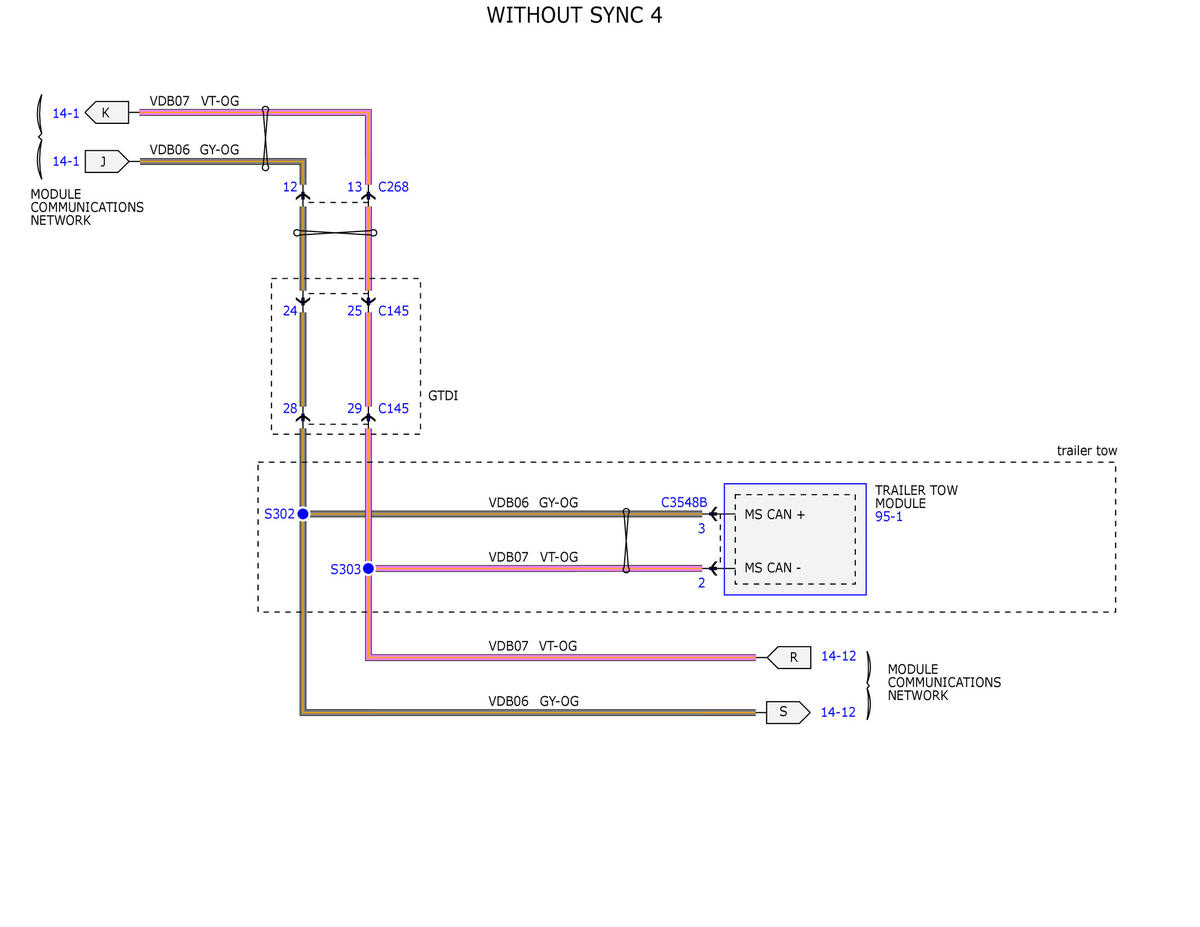

Fig 11: Module Communications Network Wiring Diagram (11 Of 25)

GFDWR213679

Courtesy of FORD MOTOR COMPANY

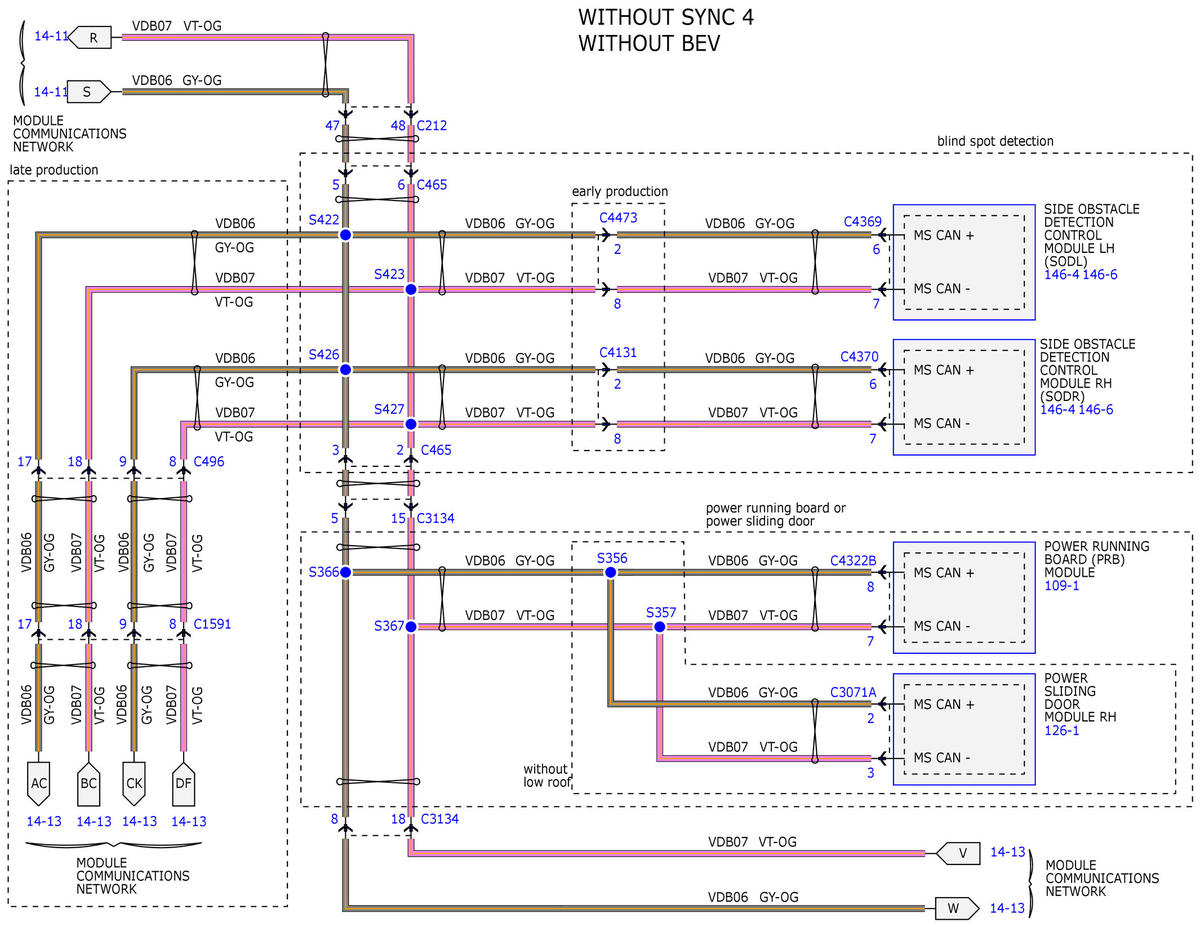

Fig 12: Module Communications Network Wiring Diagram (12 Of 25)

GFDWR213680

Courtesy of FORD MOTOR COMPANY

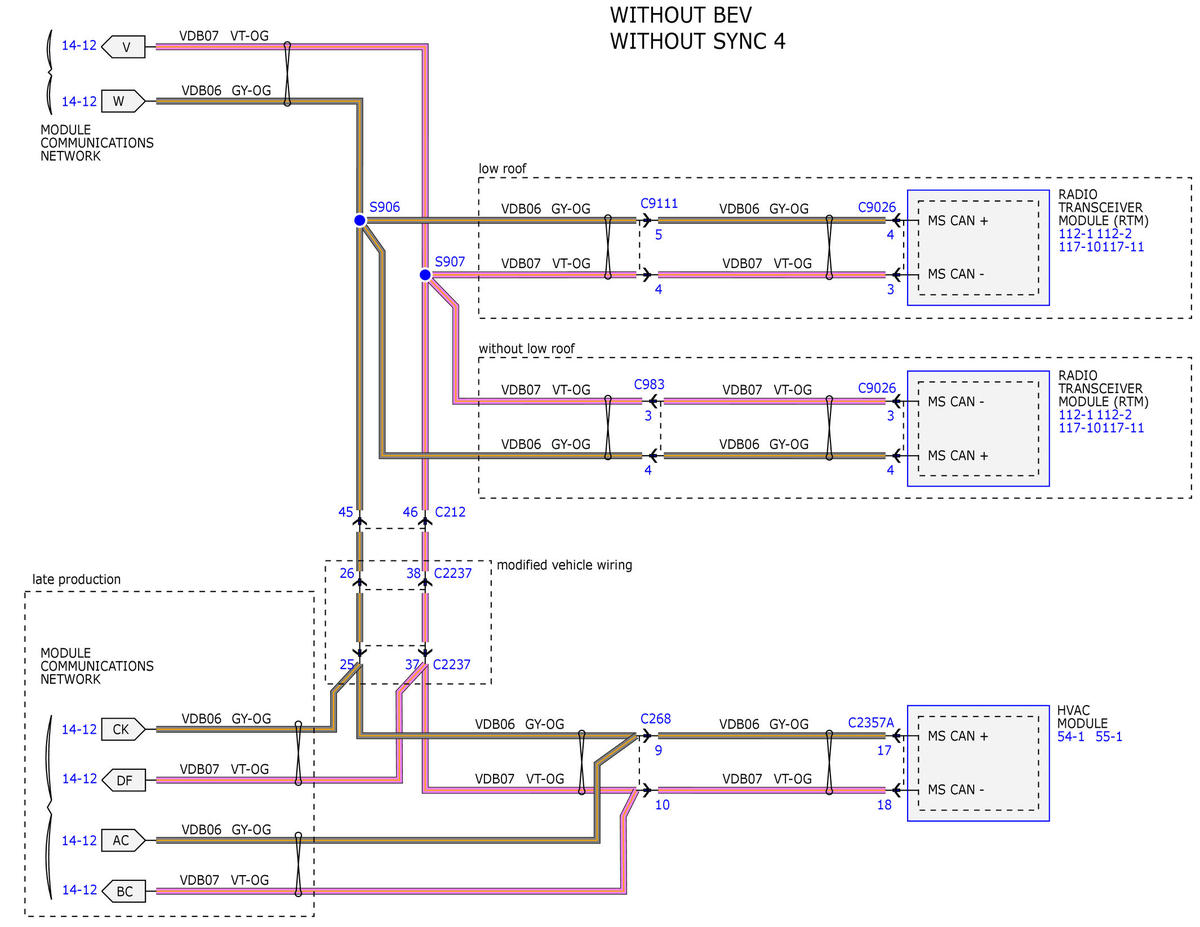

Fig 13: Module Communications Network Wiring Diagram (13 Of 25)

GFDWR213681

Courtesy of FORD MOTOR COMPANY

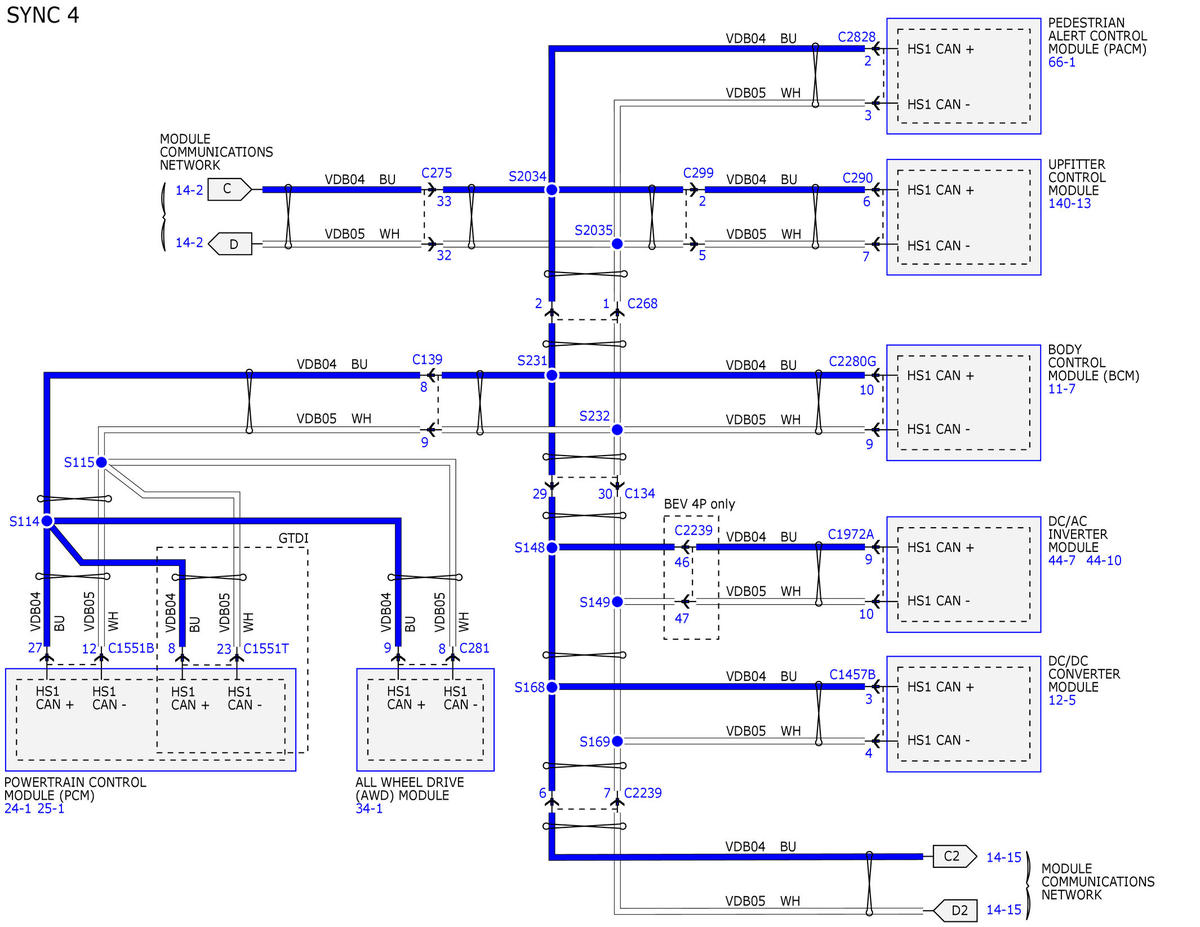

Fig 14: Module Communications Network Wiring Diagram (14 Of 25)

GFDWR213682

Courtesy of FORD MOTOR COMPANY

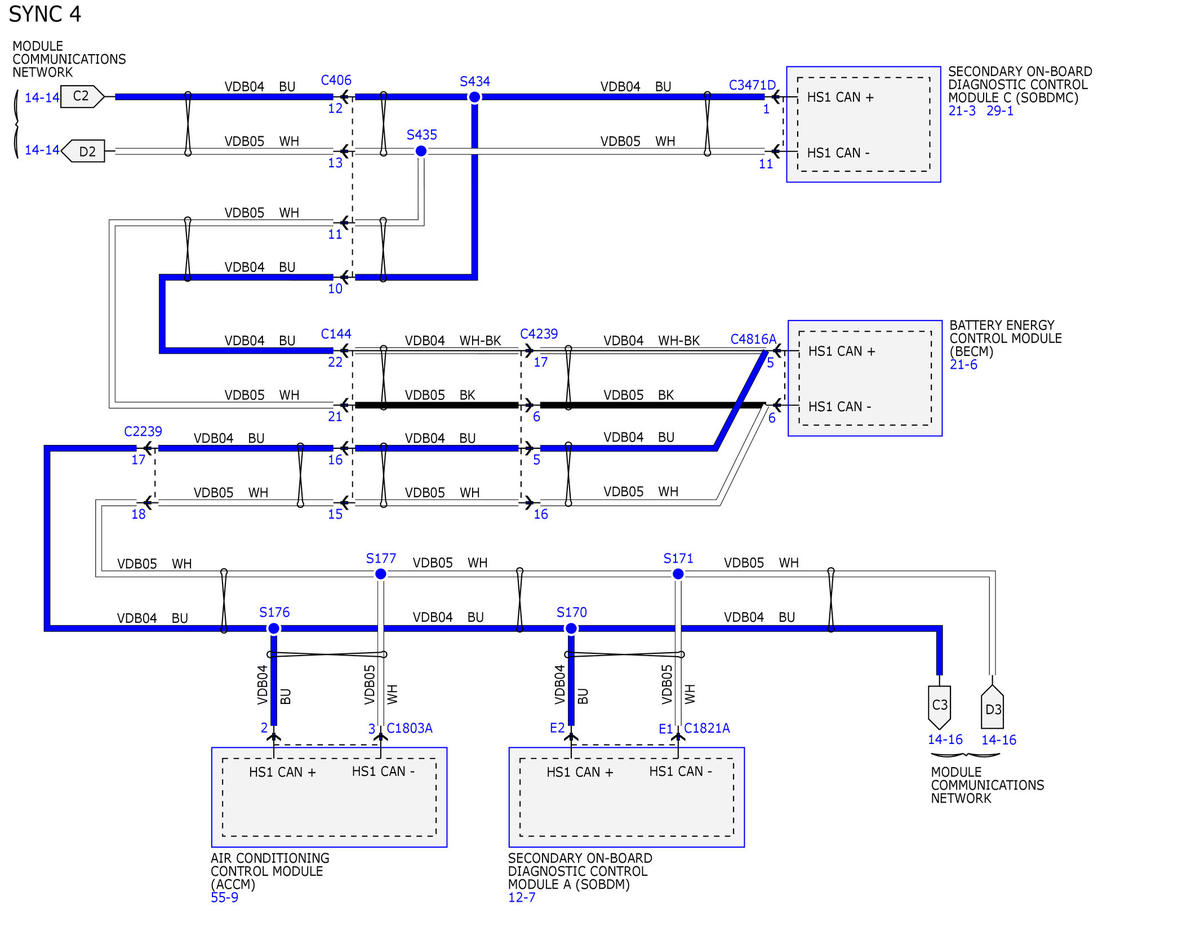

Fig 15: Module Communications Network Wiring Diagram (15 Of 25)

GFDWR213683

Courtesy of FORD MOTOR COMPANY

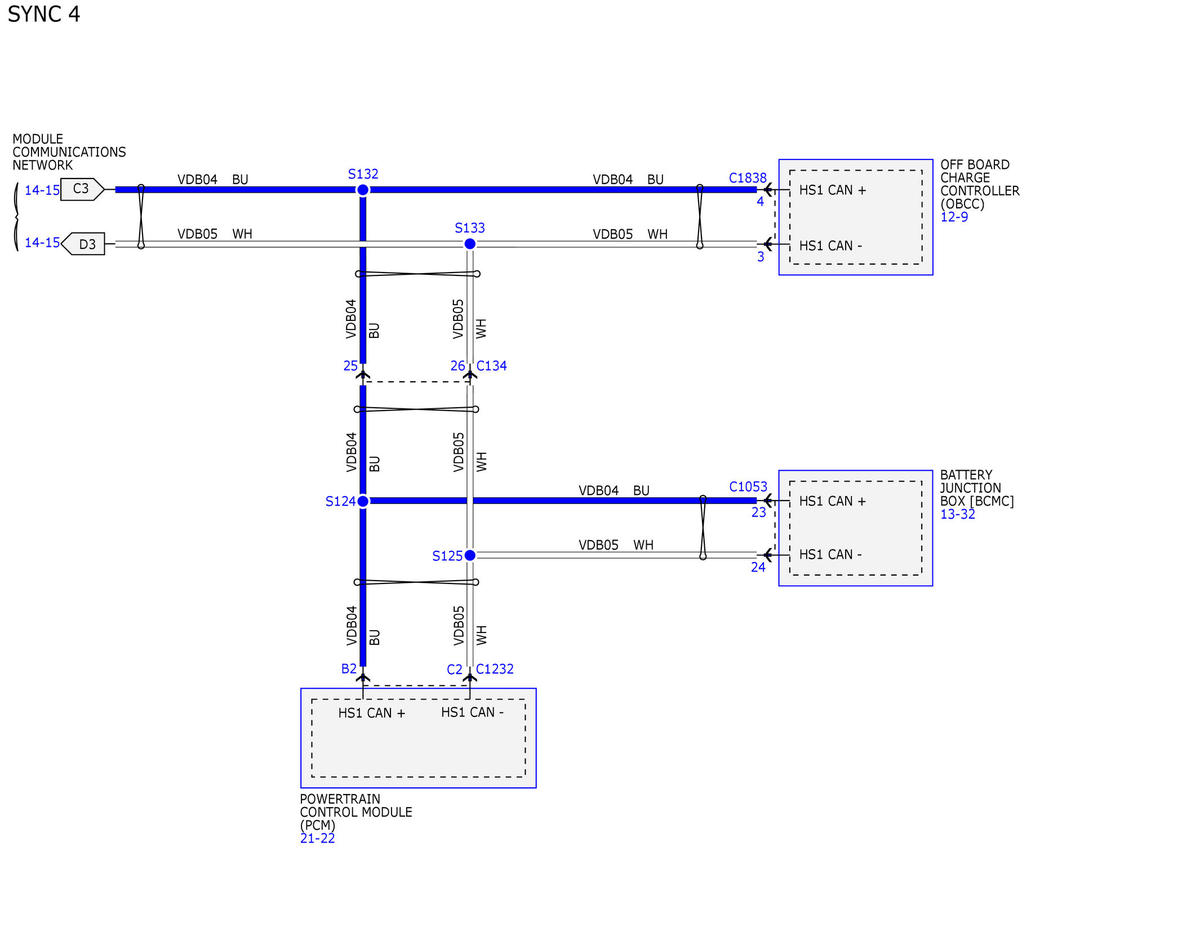

Fig 16: Module Communications Network Wiring Diagram (16 Of 25)

GFDWR213684

Courtesy of FORD MOTOR COMPANY

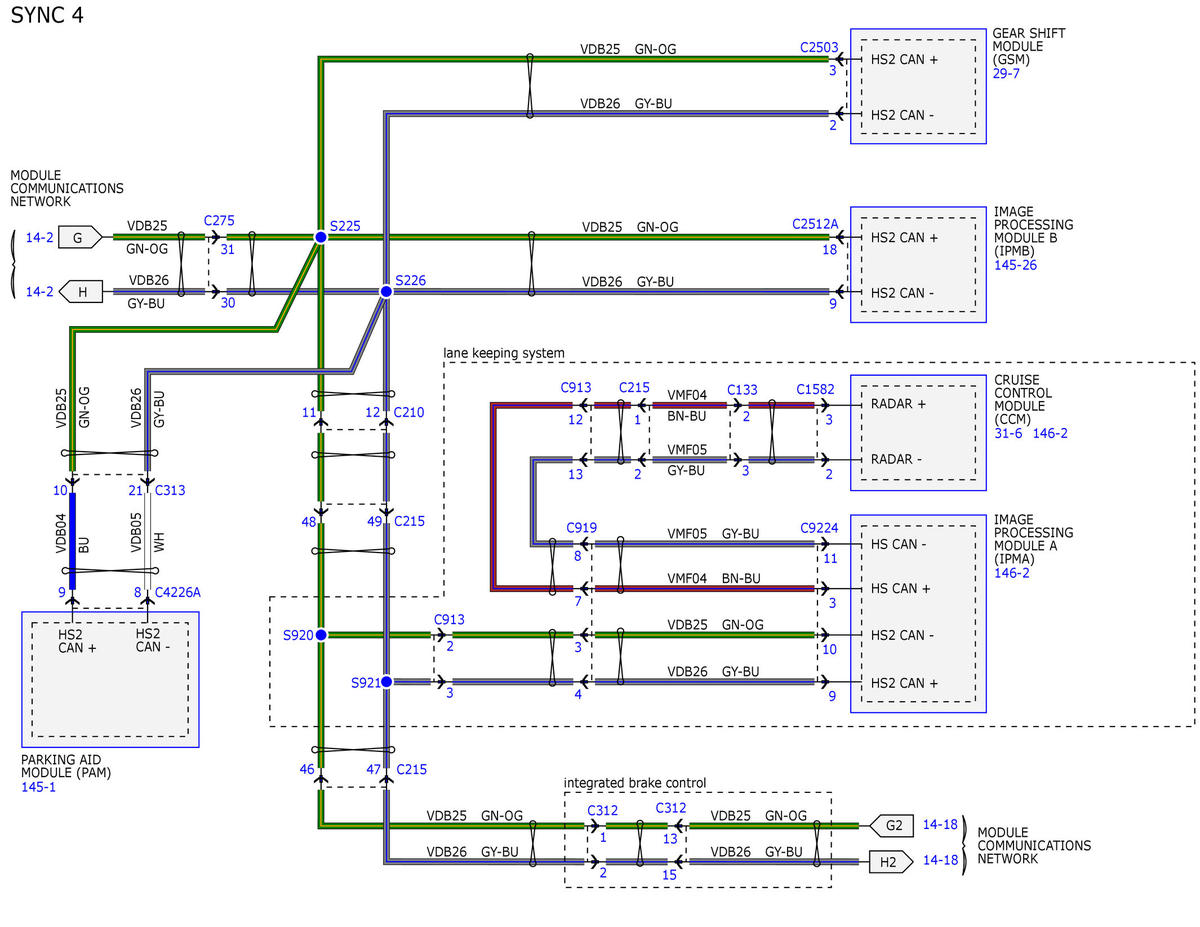

Fig 17: Module Communications Network Wiring Diagram (17 Of 25)

GFDWR213685

Courtesy of FORD MOTOR COMPANY

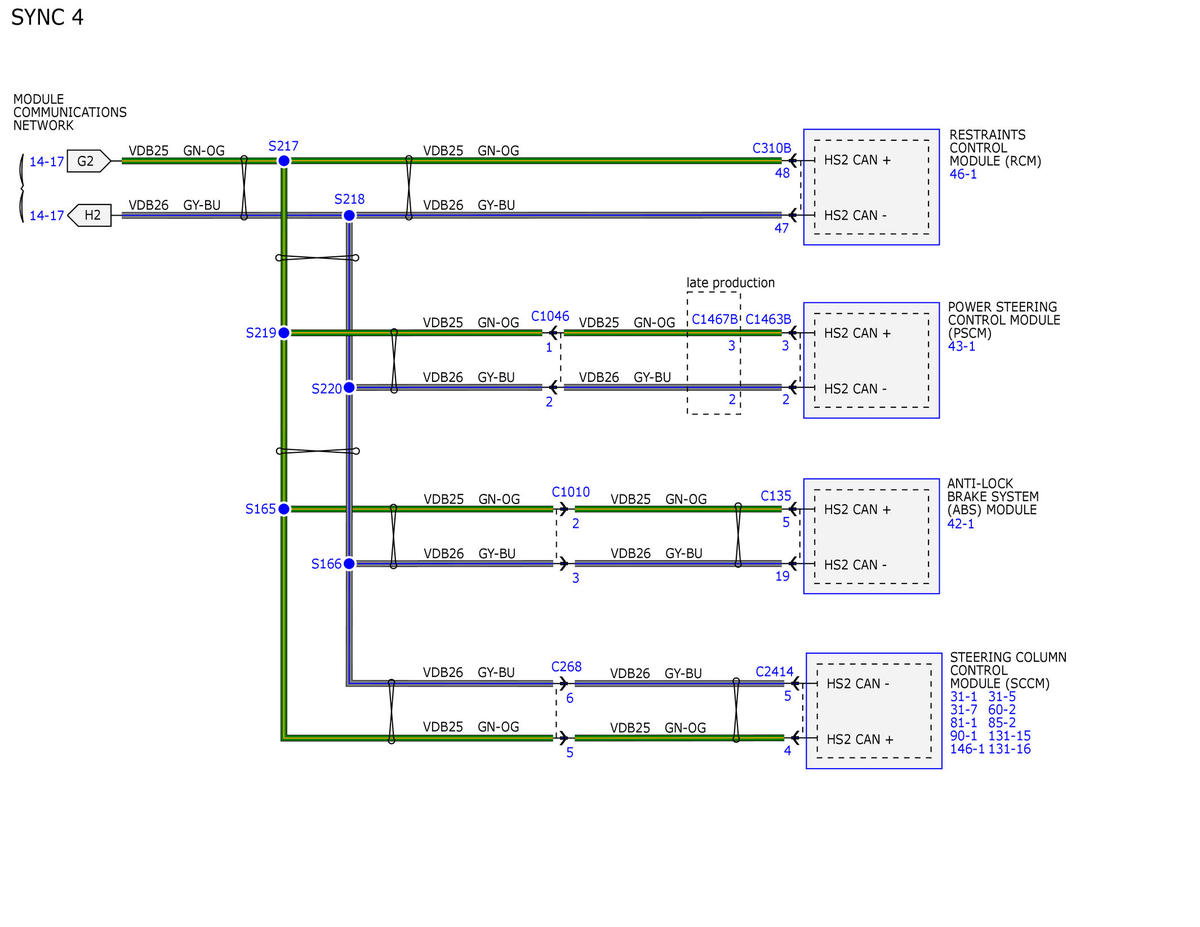

Fig 18: Module Communications Network Wiring Diagram (18 Of 25)

GFDWR213686

Courtesy of FORD MOTOR COMPANY

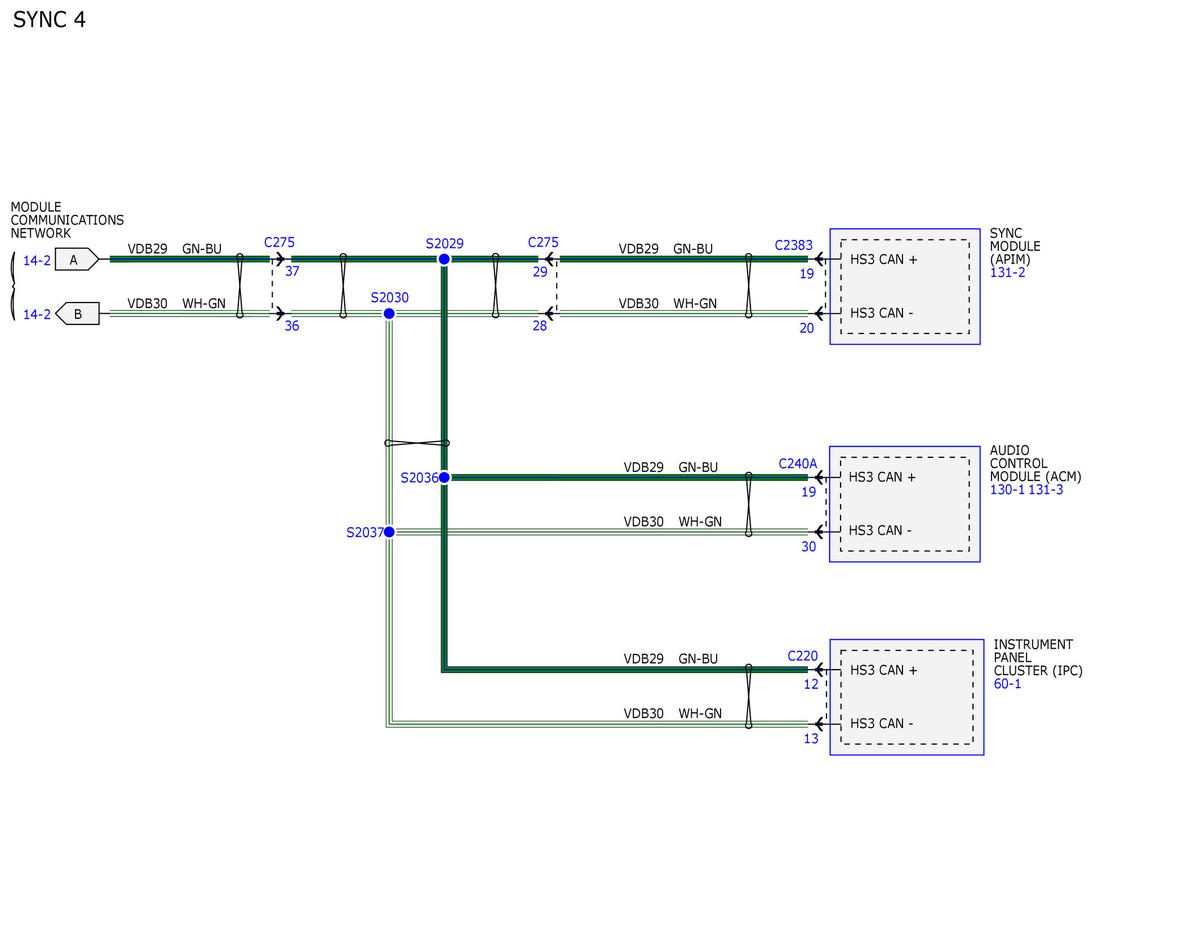

Fig 19: Module Communications Network Wiring Diagram (19 Of 25)

GFDWR213687

Courtesy of FORD MOTOR COMPANY

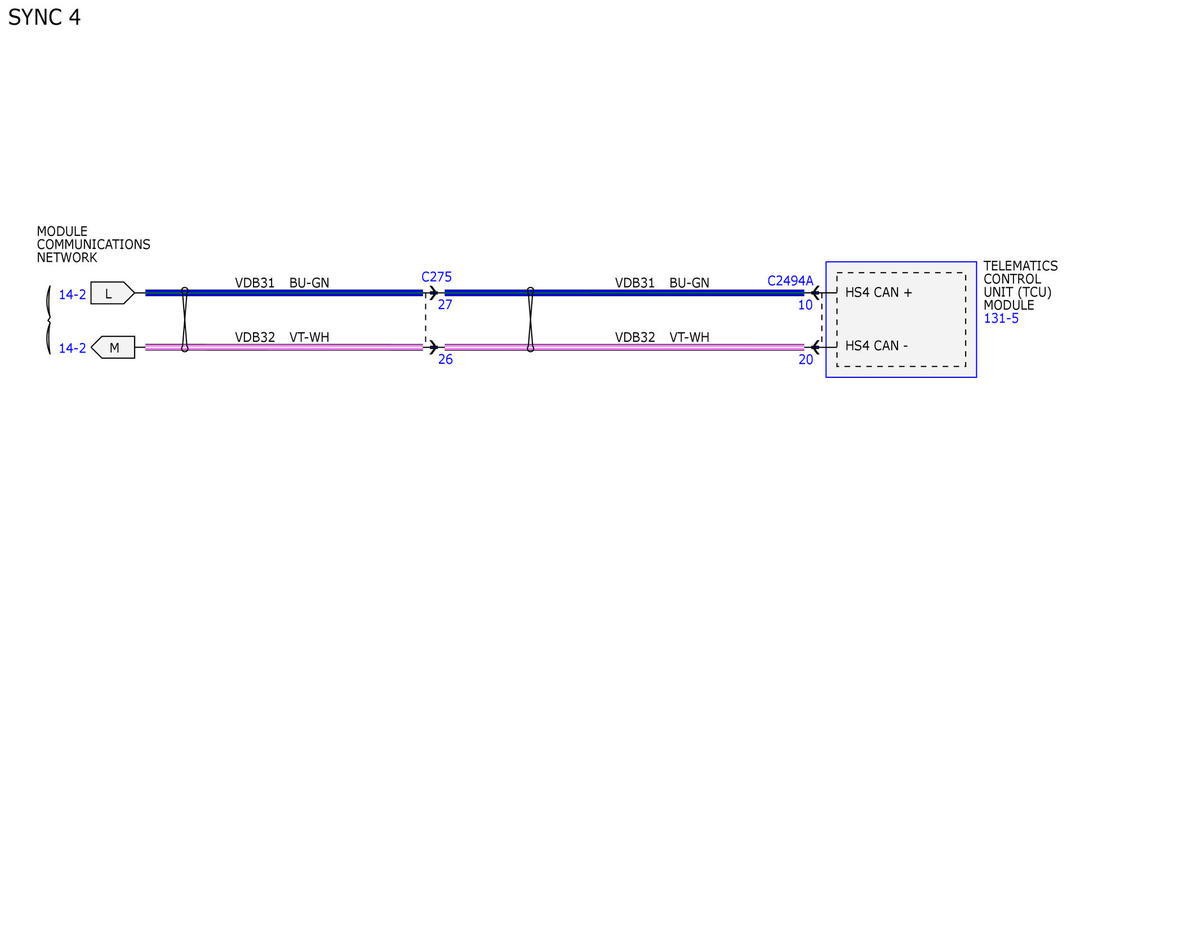

Fig 20: Module Communications Network Wiring Diagram (20 Of 25)

GFDWR213689

Courtesy of FORD MOTOR COMPANY

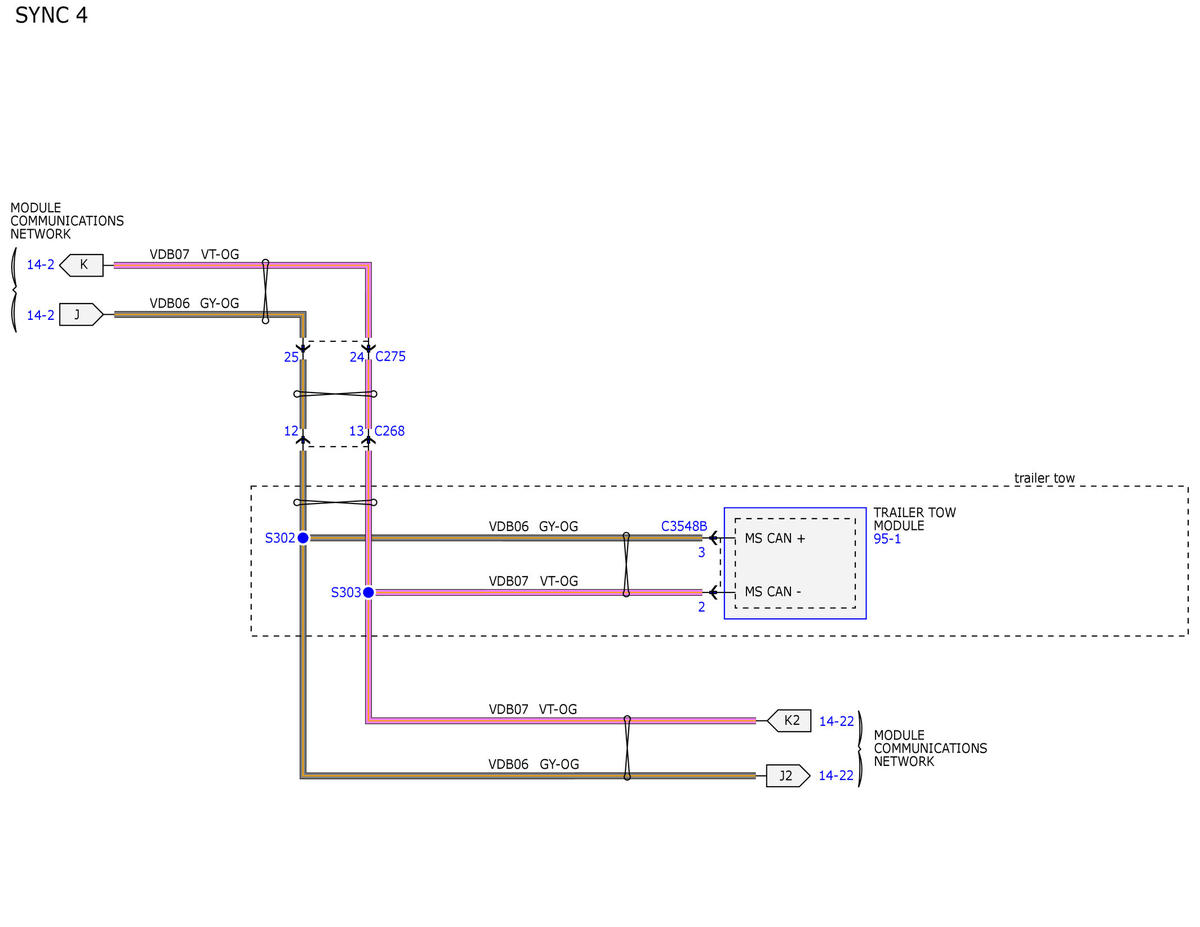

Fig 21: Module Communications Network Wiring Diagram (21 Of 25)

GFDWR213690

Courtesy of FORD MOTOR COMPANY

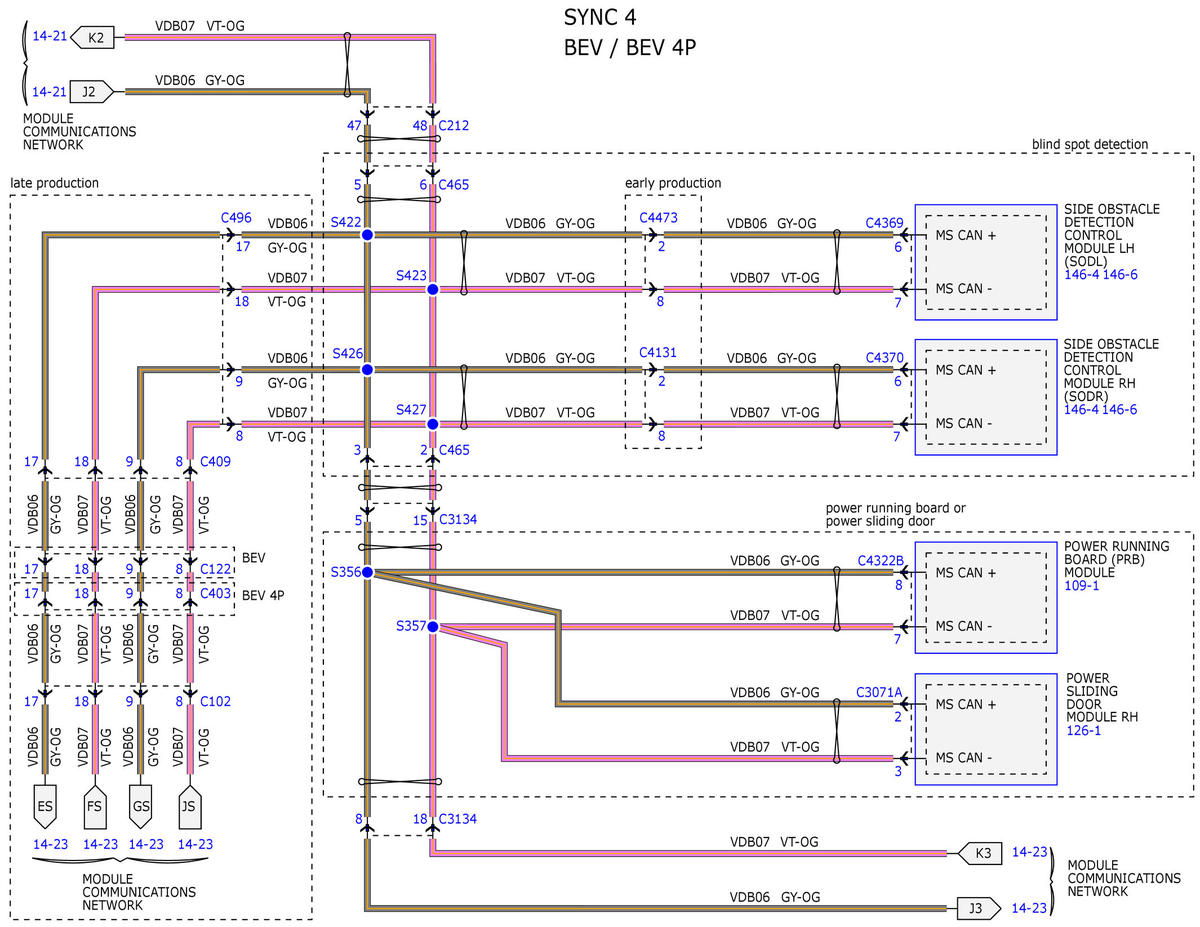

Fig 22: Module Communications Network Wiring Diagram (22 Of 25)

GFDWR213691

Courtesy of FORD MOTOR COMPANY

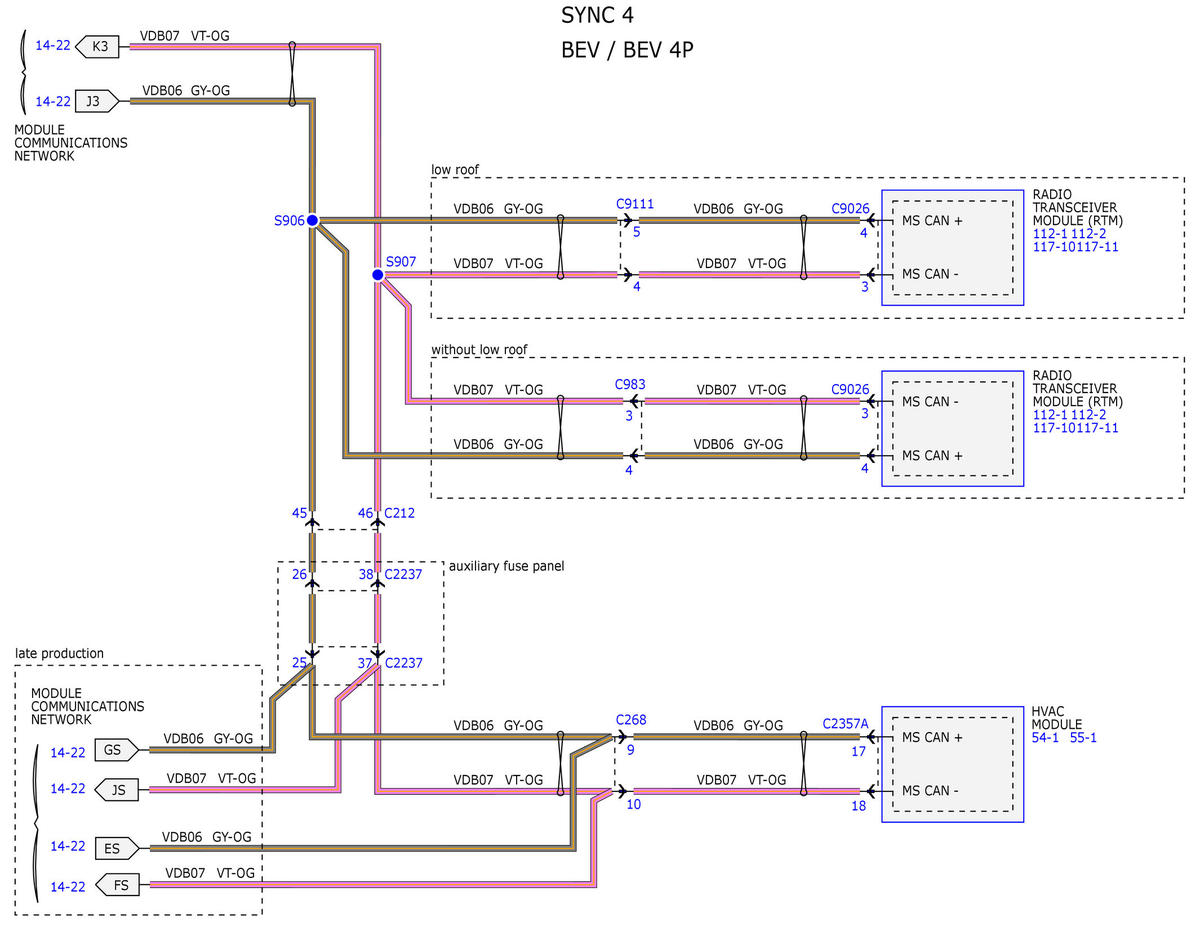

Fig 23: Module Communications Network Wiring Diagram (23 Of 25)

GFDWR213692

Courtesy of FORD MOTOR COMPANY

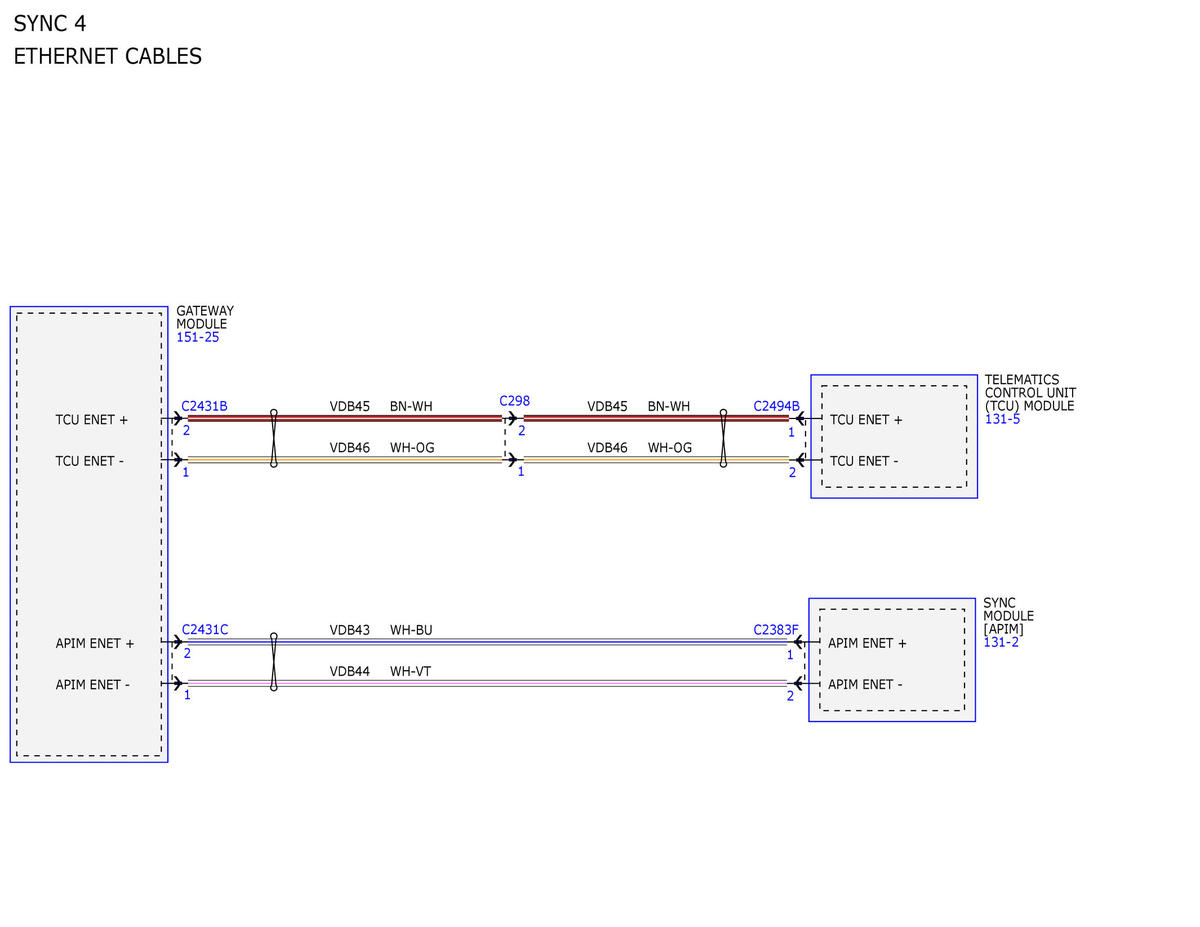

Fig 24: Module Communications Network Wiring Diagram (24 Of 25)

GFDWR213693

Courtesy of FORD MOTOR COMPANY

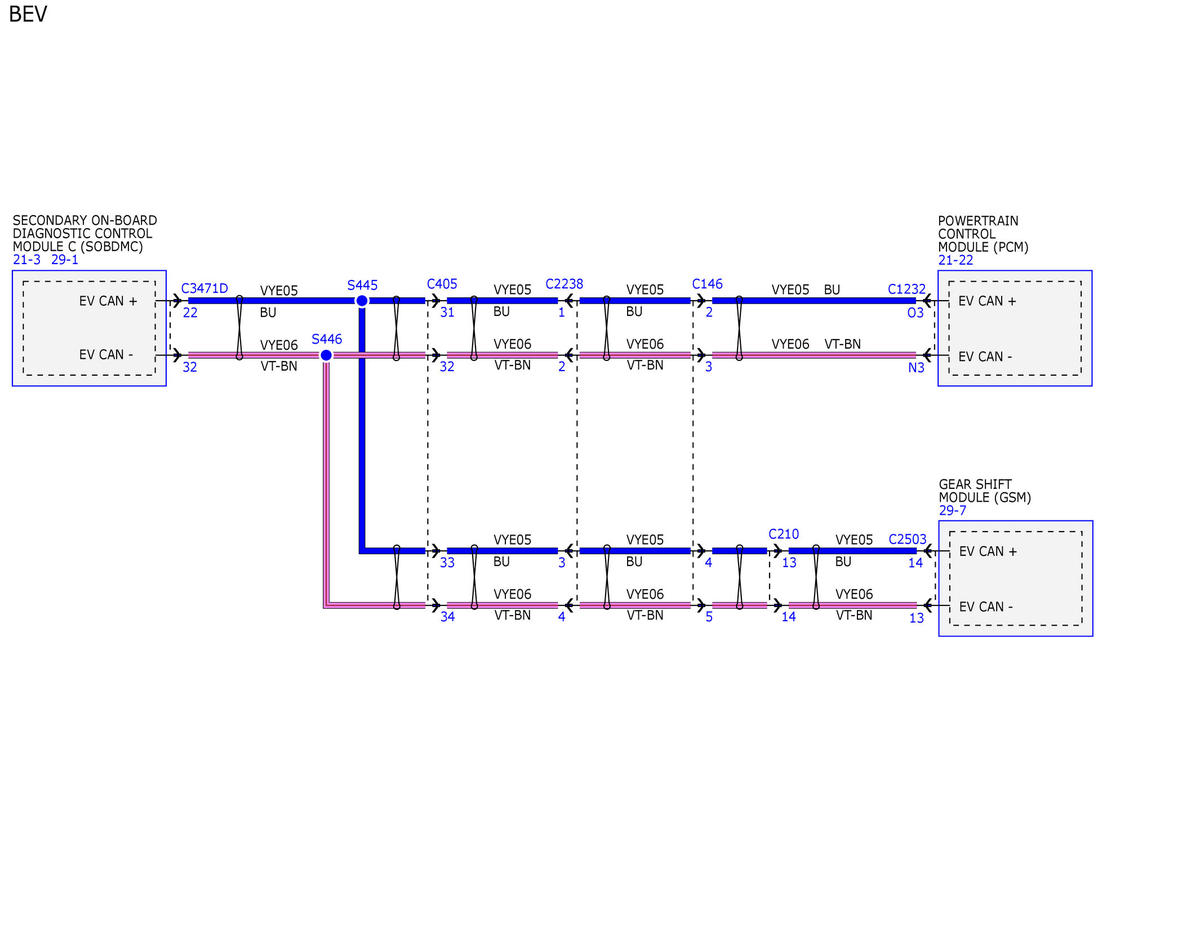

Fig 25: Module Communications Network Wiring Diagram (25 Of 25)

GFDWR213694

Courtesy of FORD MOTOR COMPANY
