Body Control Module (BCM): Removal

WARNING: This page is about a different car, the 2022 Ford Transit-350 HD, 2022 Ford Transit-350, 2022 Ford Transit-250, 2022 Ford Transit-150, and 2022 Ford E-Transit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Modules are not interchangeable between vehicles.

NOTE: When installing a new junction box, make sure that the contents match those of the removed junction box.

If installing a new BCM, connect a battery charger to the battery to make sure it is charged to maintain proper battery voltage. Refer to: Battery Charging .
NOTE: This step is only necessary when installing a new component.

Download the module information to the diagnostic tool using the Programmable Modules Installation PMI routine.

General Equipment

Ford approved diagnostic tool
Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .

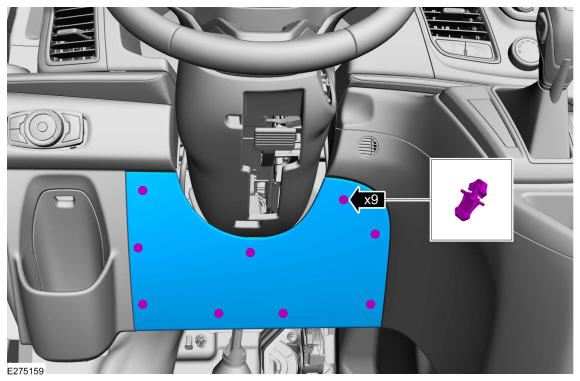

Release the clips and remove the trim panel.

Courtesy of FORD MOTOR COMPANY

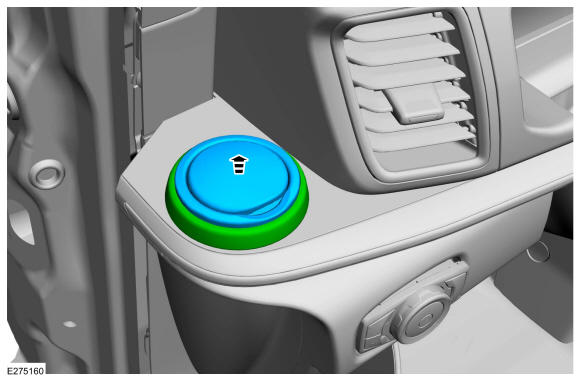

Remove the cup holder assembly.

Courtesy of FORD MOTOR COMPANY

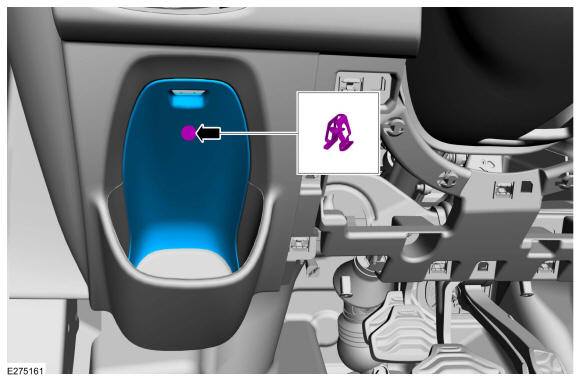

Release the clip and remove the trim panel.

Courtesy of FORD MOTOR COMPANY

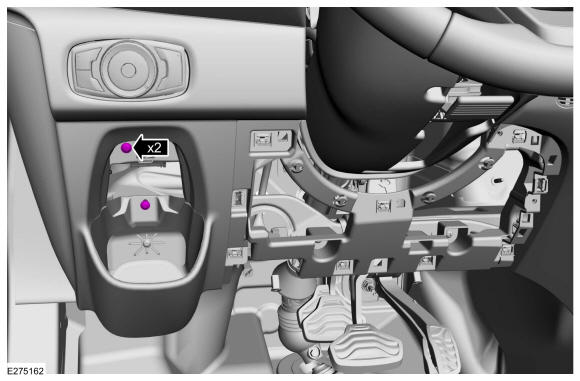

Remove the retainers.

Courtesy of FORD MOTOR COMPANY

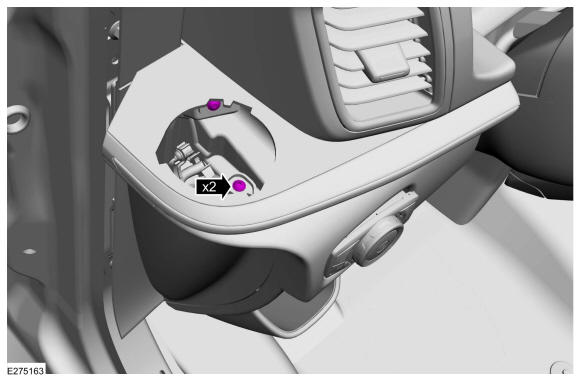

Remove the retainers.

Courtesy of FORD MOTOR COMPANY

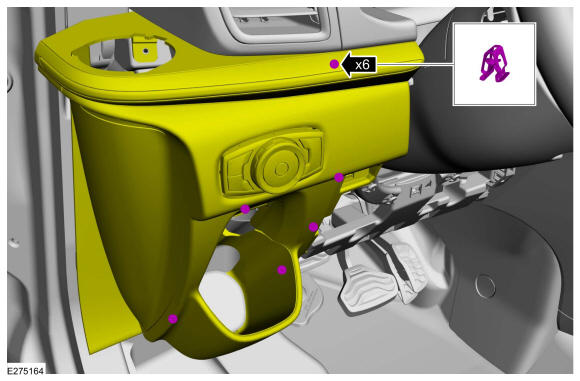

Release the clips and position the LH trim panel to access the electrical connector.

Courtesy of FORD MOTOR COMPANY

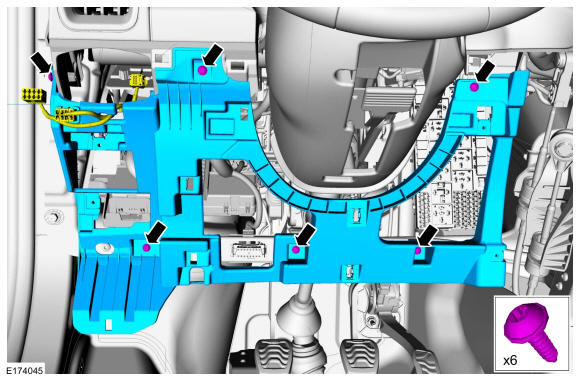

Remove the screws and the panel.

Courtesy of FORD MOTOR COMPANY

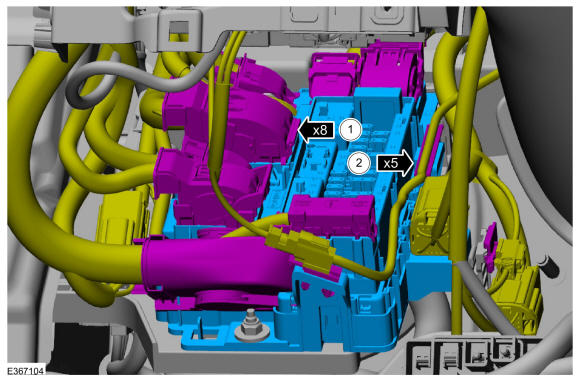

Disconnect the BCM electrical connectors and wire harness retainers.
1. Disconnect the BCM electrical connectors.
2. Detach the BCM wiring harness retainers and position them aside.
Courtesy of FORD MOTOR COMPANY

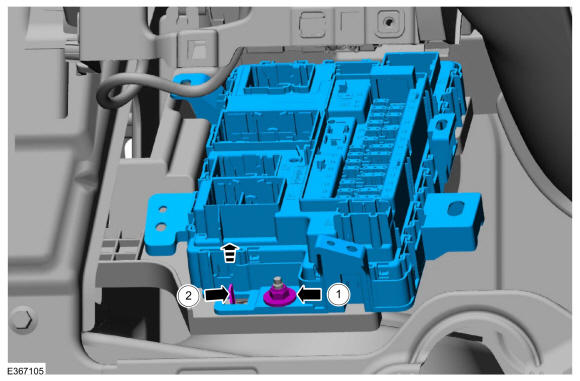

Remove the BCM.
1. Remove the bracket nut.
  Torque:

  48 lb.in (5.4 Nm)
2. Release the tab and by slightly lifting up, remove the BCM.

Courtesy of FORD MOTOR COMPANY
