Radio Transceiver Module (RTM): Removal

WARNING: This page is about a different car, the 2022 Ford Transit-350 HD, 2022 Ford Transit-350, 2022 Ford Transit-250, 2022 Ford Transit-150, and 2022 Ford E-Transit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the diagnostic scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Carry out the PMI procedure for the RTM. Refer to: Module Configuration - System Operation and Component Description .
Lower the headliner.

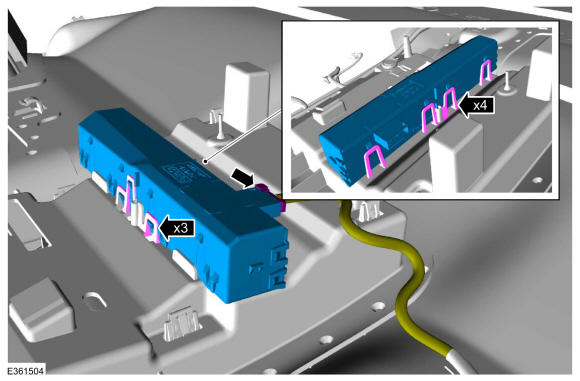

Disconnect the electrical connector, then release the RTM bracket clips and remove the RTM.
