Transfer Case

WARNING: This page is about a different car, the 2022 Ford Transit-350 HD, 2022 Ford Transit-350, 2022 Ford Transit-250, and 2022 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Rivet Gun

Materials

Name	Specification
Motorcraft® Premium Long-Life Grease XG-1-E1	ESA-M1C75-B

NOTE: Make sure that the mating faces are clean and free of foreign material.

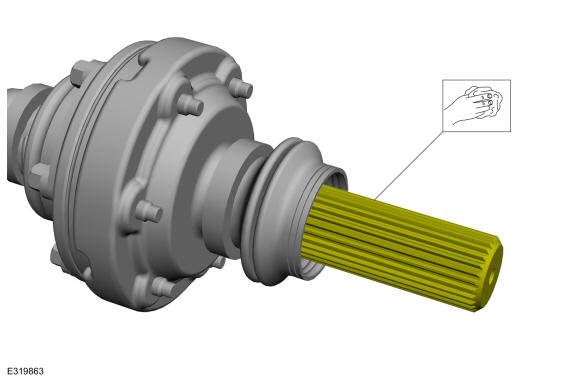

Clean the debris or contamination of the splines.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not over-lubricate the driveshaft components. Using excessive grease may damage the driveshaft components.

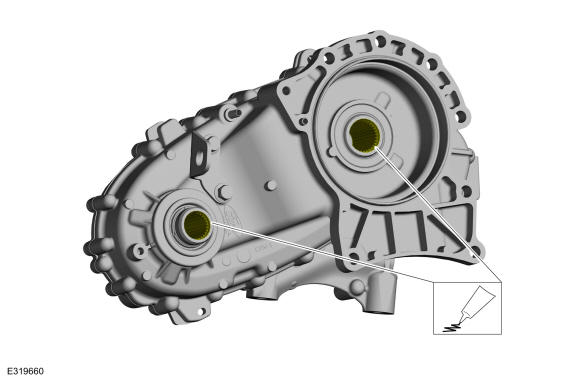

Lubricate the transfer case inner splines with grease.

Material: Motorcraft® Premium Long-Life Grease / XG-1-E1 (ESA-M1C75-B)

Courtesy of FORD MOTOR COMPANY

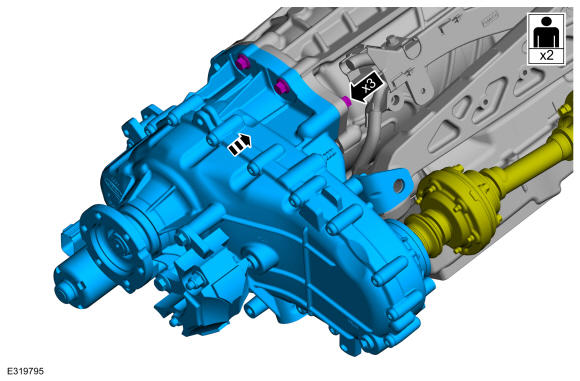

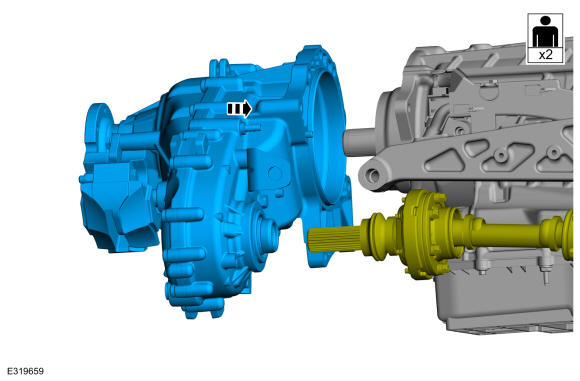

Connect the transfer case to the transmission bell housing.

Courtesy of FORD MOTOR COMPANY

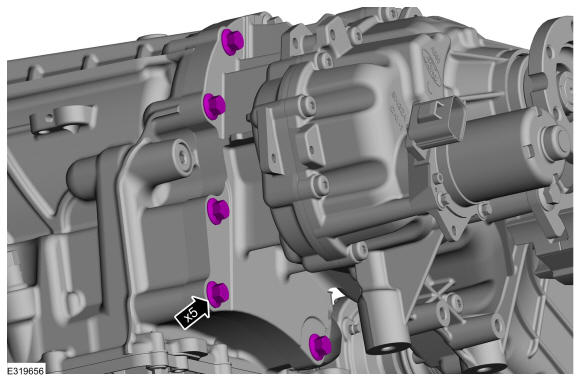

Install the transfer case mounting bolts.
Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY
Install the transfer case mounting bolts.
Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY

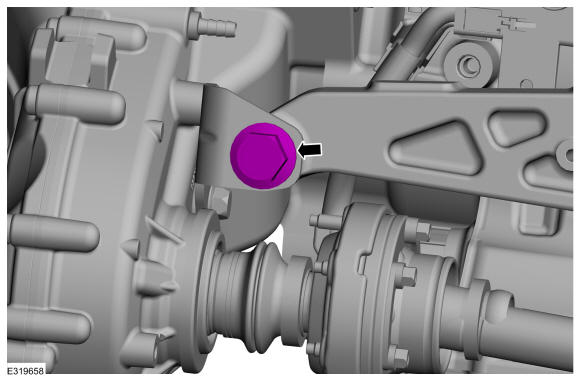

Install the torque arm retainer.
Torque: 221 lb.ft (300 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the vent hose/valve is not blocked.

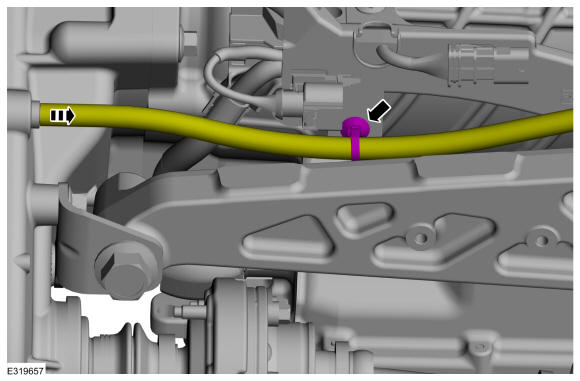

Install the transfer case vent hose clamp and retainer.

Courtesy of FORD MOTOR COMPANY

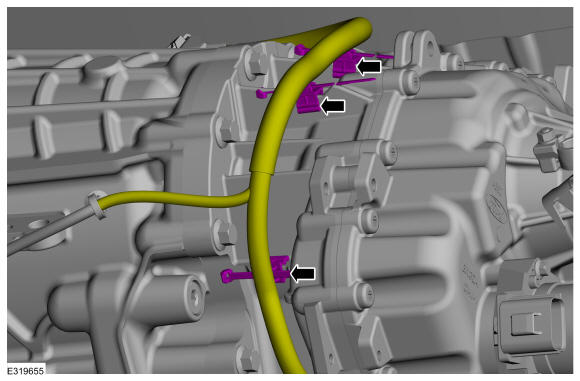

Attach the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

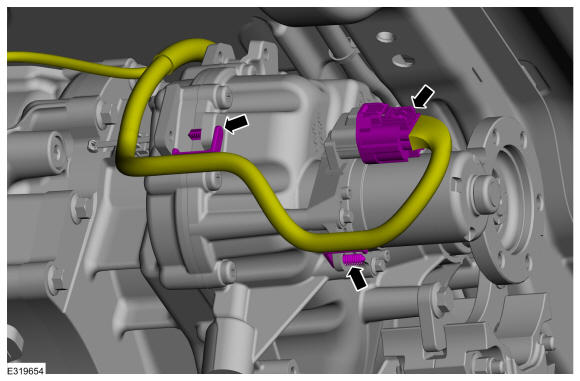

- Attach the wiring harness retainers.
- Connect the transfer case electrical connector.
Courtesy of FORD MOTOR COMPANY
Install the transmission support crossmember. Refer to: Transmission Support Insulator .

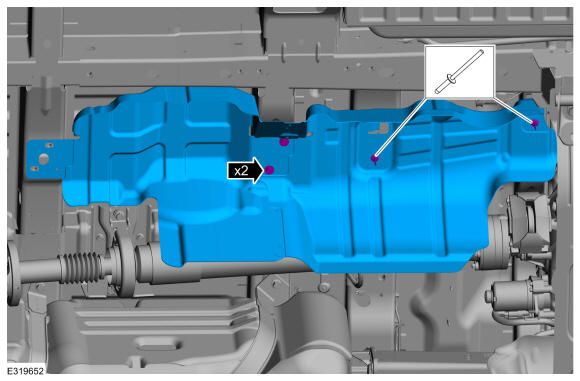

- Install the front floor heat shield and the retainers.
  Torque: 177 lb.in (20 Nm)
- install the rivets. Use the General Equipment: Rivet Gun
Courtesy of FORD MOTOR COMPANY

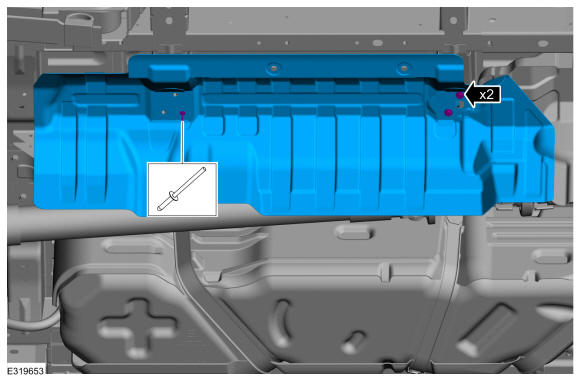

- Install the muffler heat shield and the retainers.
  Torque: 177 lb.in (20 Nm)
- Install the rivet. Use the General Equipment: Rivet Gun
Courtesy of FORD MOTOR COMPANY
If equipped

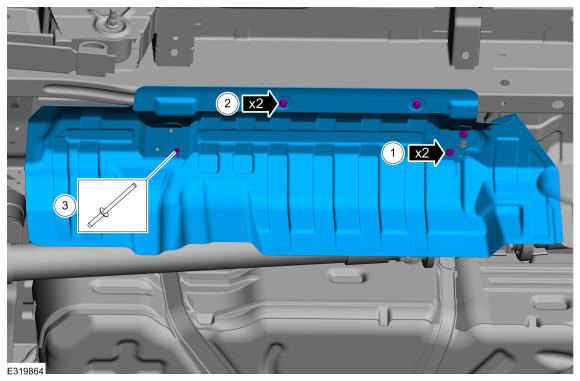

1. Install the muffler heat shield and the retainers.
  Torque: 177 lb.in (20 Nm)
2. Install the retainers
  Torque: 20 lb.ft (27 Nm)
3. Remove the rivet. Use the General Equipment: Rivet Gun
Courtesy of FORD MOTOR COMPANY

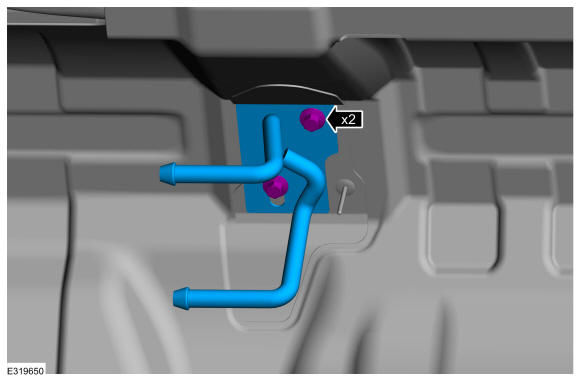

Install the muffler bracket and the retainers.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
Install the dual catalytic converter y-pipe. Refer to: Dual Catalytic Converter Y-Pipe - AWD (EcoBoost) . Refer to: Dual Catalytic Converter Y-Pipe - AWD (Duratec) .
Install the rear driveshaft.
Fill the transfer case. Refer to: Transfer Case Draining and Filling .
Connect battery terminals.
NOTE: This step is only necessary when a new transfer case is installed.

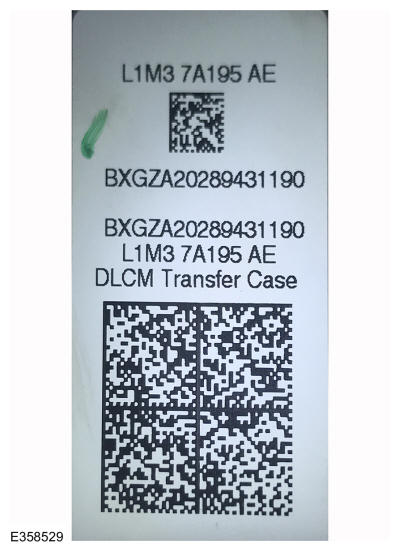

Using the scan tool, carry out the AWD - Active Torque Coupling Configuration routine. The transfer case 16-digit alpha numeric bar code is located on the label attached to the transfer case.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when a new transfer case is installed.

Using the scan tool, carry out the AWD - Relearn Vehicle Data routine. If the routine is unsuccessful, perform the transfer case clutch learn procedure. Refer to: Transfer Case Clutch Learn .
