Image Processing Module A (IPMA): Removal
WARNING: This page is about a different car, the 2022 Ford Transit-350 HD, 2022 Ford Transit-350, 2022 Ford Transit-250, 2022 Ford Transit-150, and 2022 Ford E-Transit. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

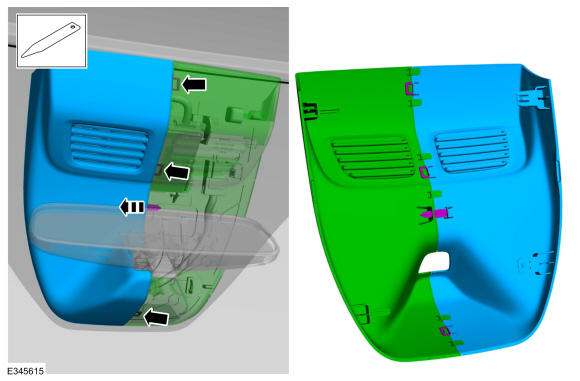

High Roof
- Use the General Equipment: Interior Trim Remover
-

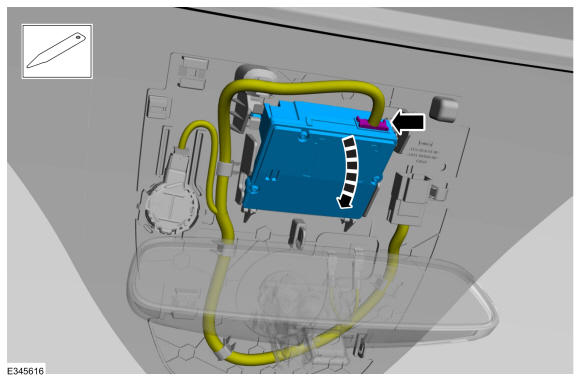

NOTE: Make sure that the cable cannot be damaged or cause a noise, vibration or harshness (NVH) concern.
Use the General Equipment: Interior Trim Remover

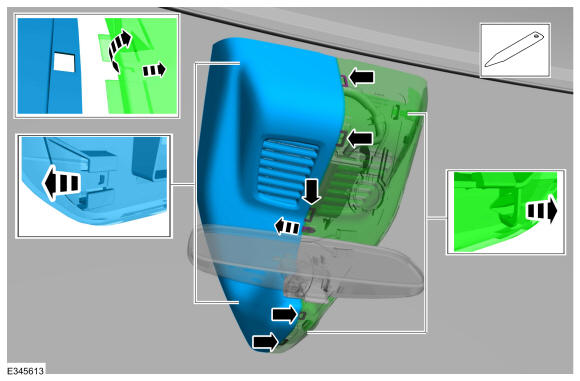

Low Roof
- Use the General Equipment: Interior Trim Remover
-

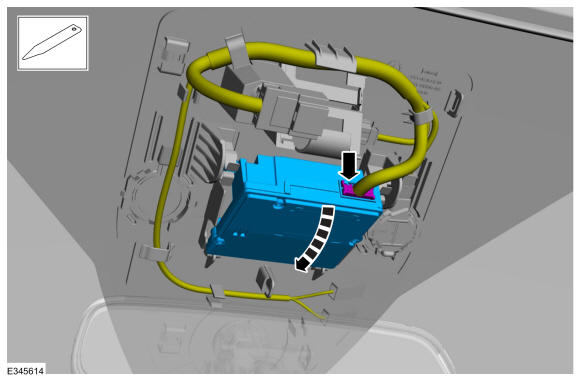

NOTE: Make sure that the cable cannot be damaged or cause a noise, vibration or harshness (NVH) concern.
Use the General Equipment: Interior Trim Remover
