All-Wheel Drive (AWD) Module: Removal

WARNING: This page is about a different car, the 2023 Ford Transit-350 HD, 2023 Ford Transit-350, 2023 Ford Transit-250, and 2023 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: If installing a new all-wheel drive module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new all-wheel drive module after installation. Using a diagnostic scan tool, begin the PMI process for the all-wheel drive module following the onscreen instructions
  1. Remove the degas bottle. Refer to: Degas Bottle - 3.5L EcoBoost (235kW/320PS), . Refer to: Degas Bottle - 3.5L Duratec (202kW/275PS), .
  2. Remove the module.

    1. Release the tab from the connector.
    2. Disconnect the electrical connector from the module.

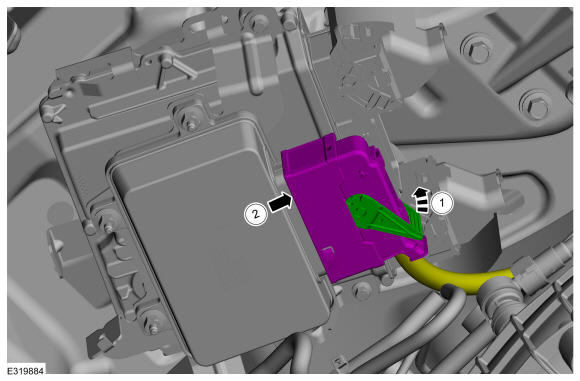

    GFD786510Courtesy of FORD MOTOR COMPANY
  3. Remove the bolts and the AWD module.

    Torque: 71 lb.in (8 Nm)

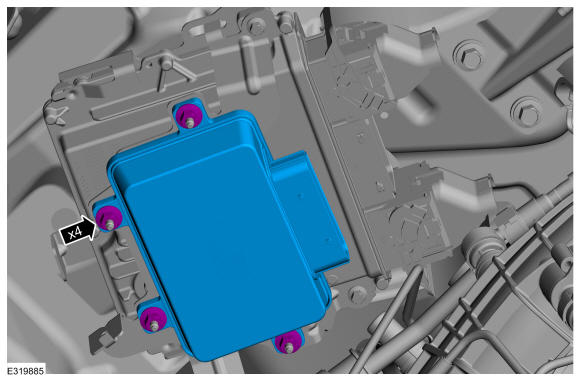

GFD786511Courtesy of FORD MOTOR COMPANY
