OEM Ground Distribution: Grounds

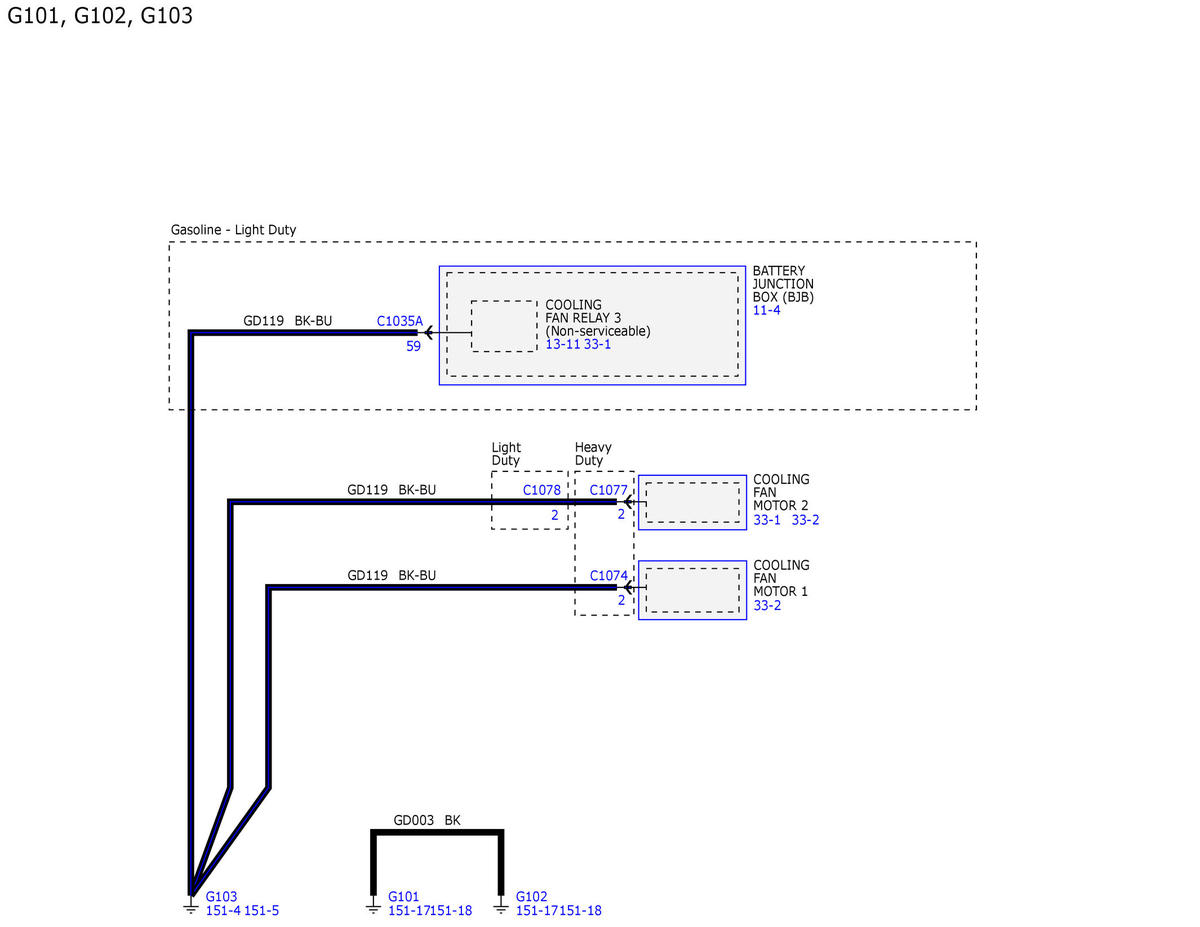

GFDWR213453Courtesy of FORD MOTOR COMPANY

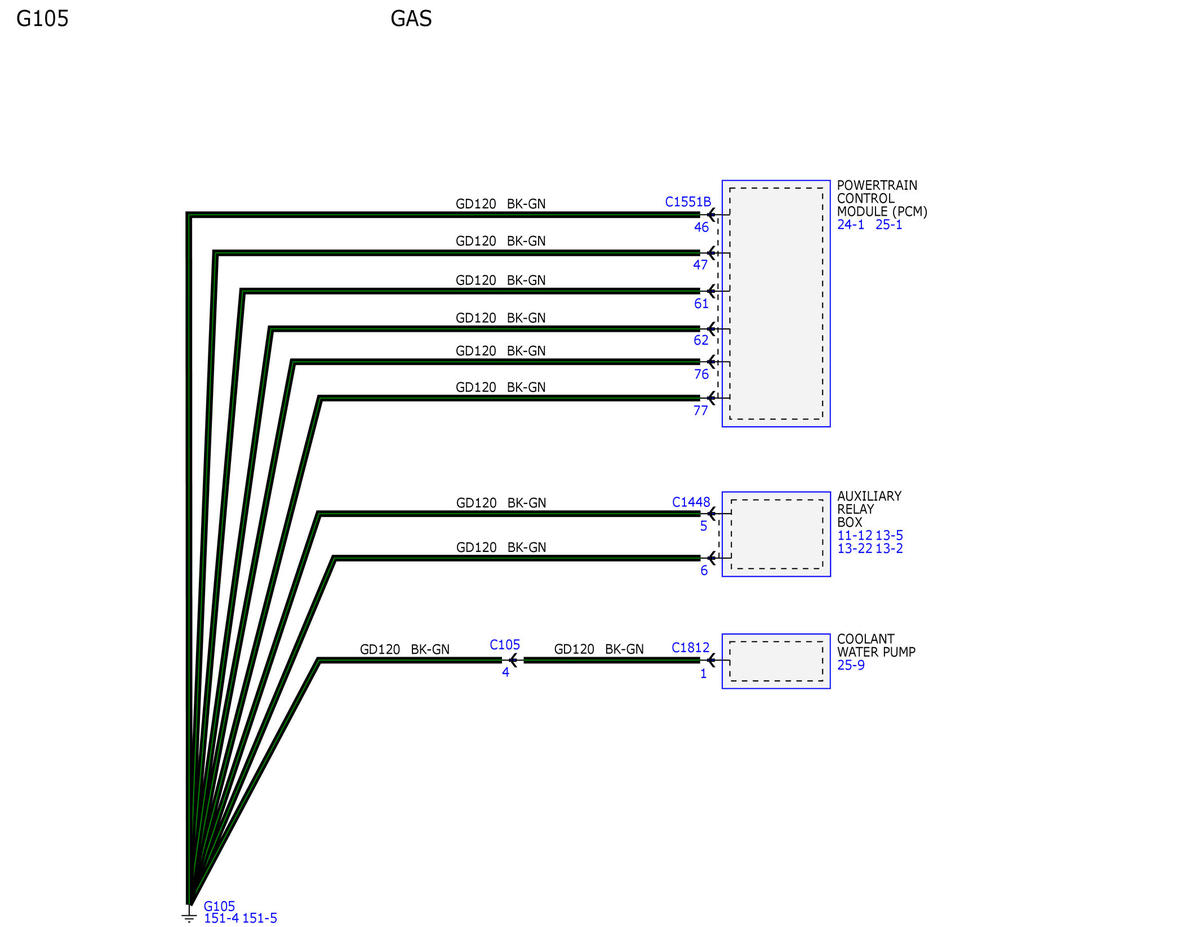

GFDWR213464Courtesy of FORD MOTOR COMPANY

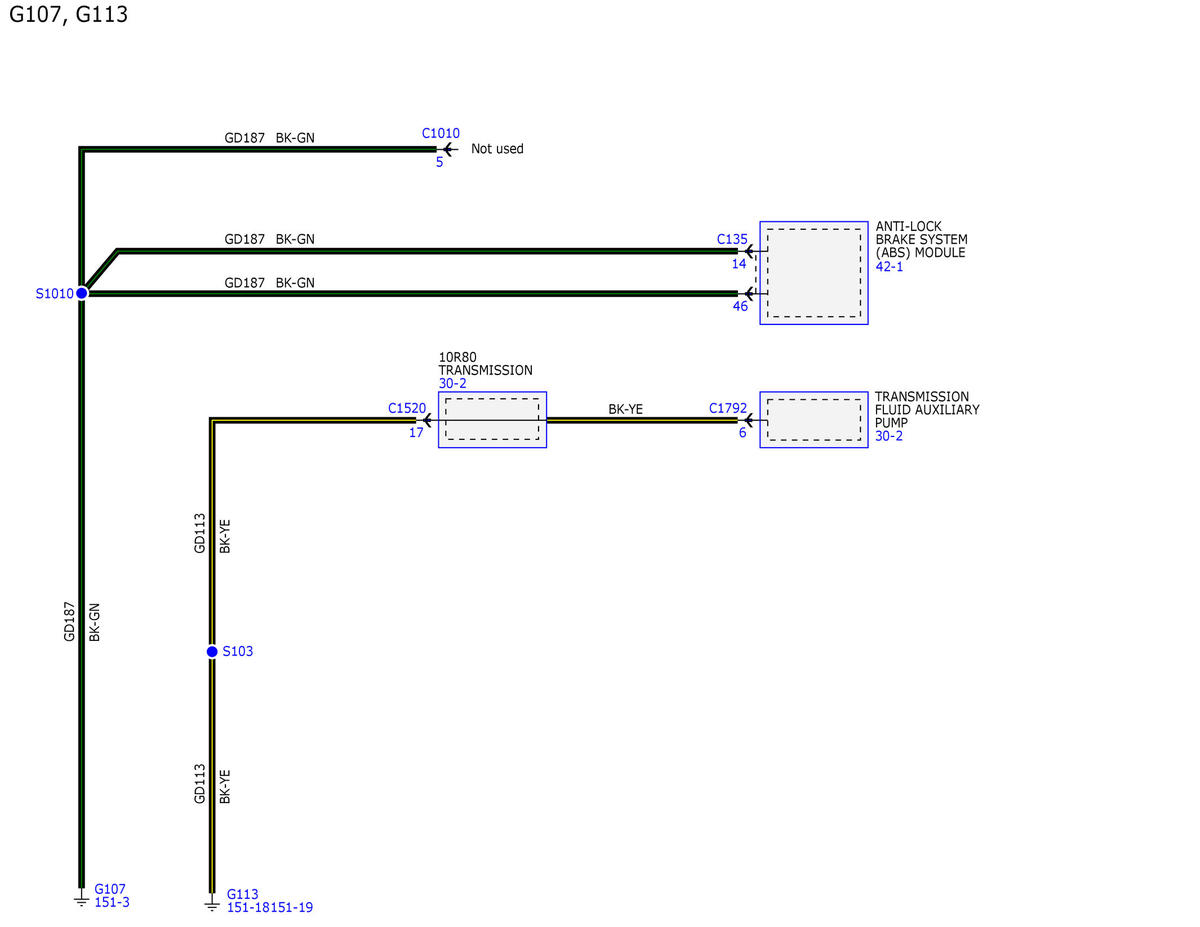

GFDWR213475Courtesy of FORD MOTOR COMPANY

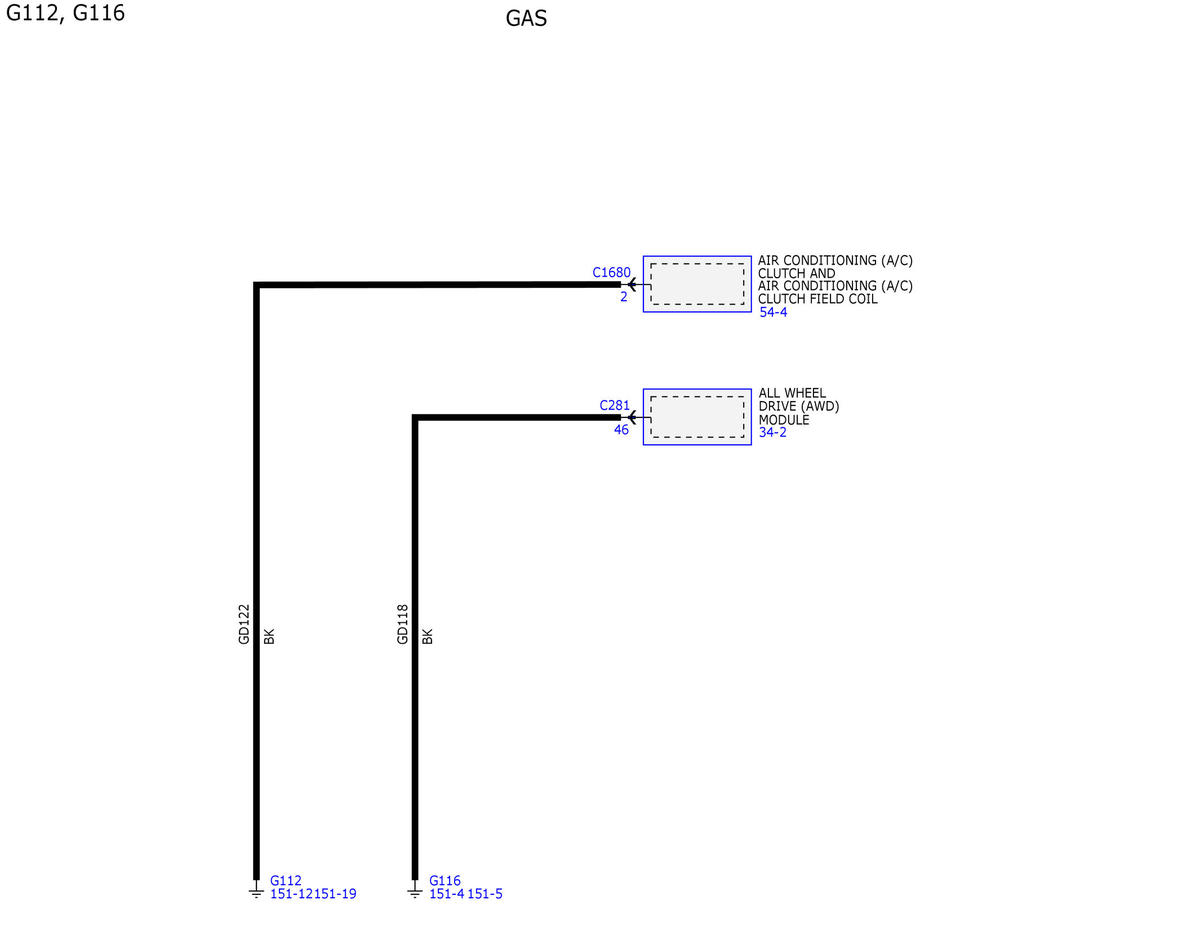

GFDWR213484Courtesy of FORD MOTOR COMPANY

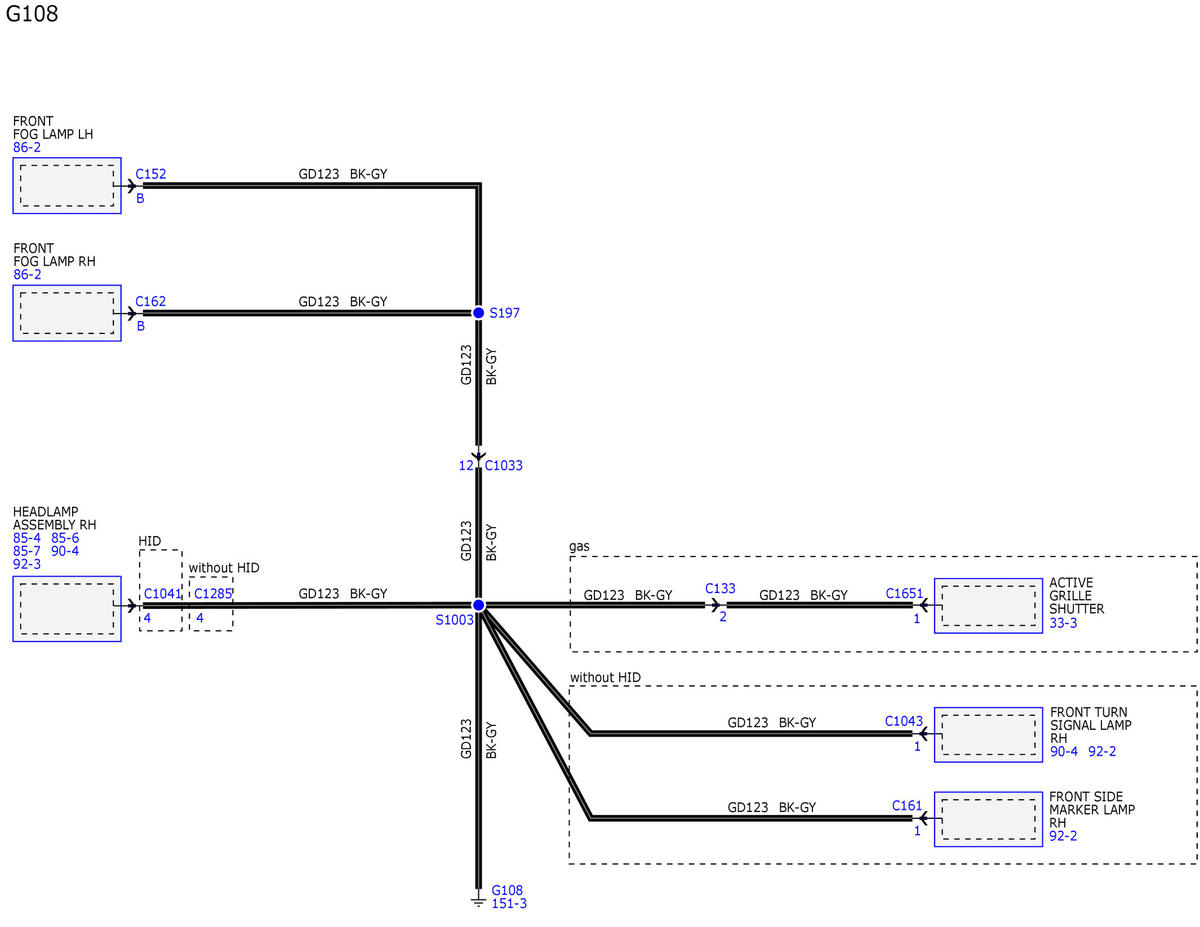

GFDWR213485Courtesy of FORD MOTOR COMPANY

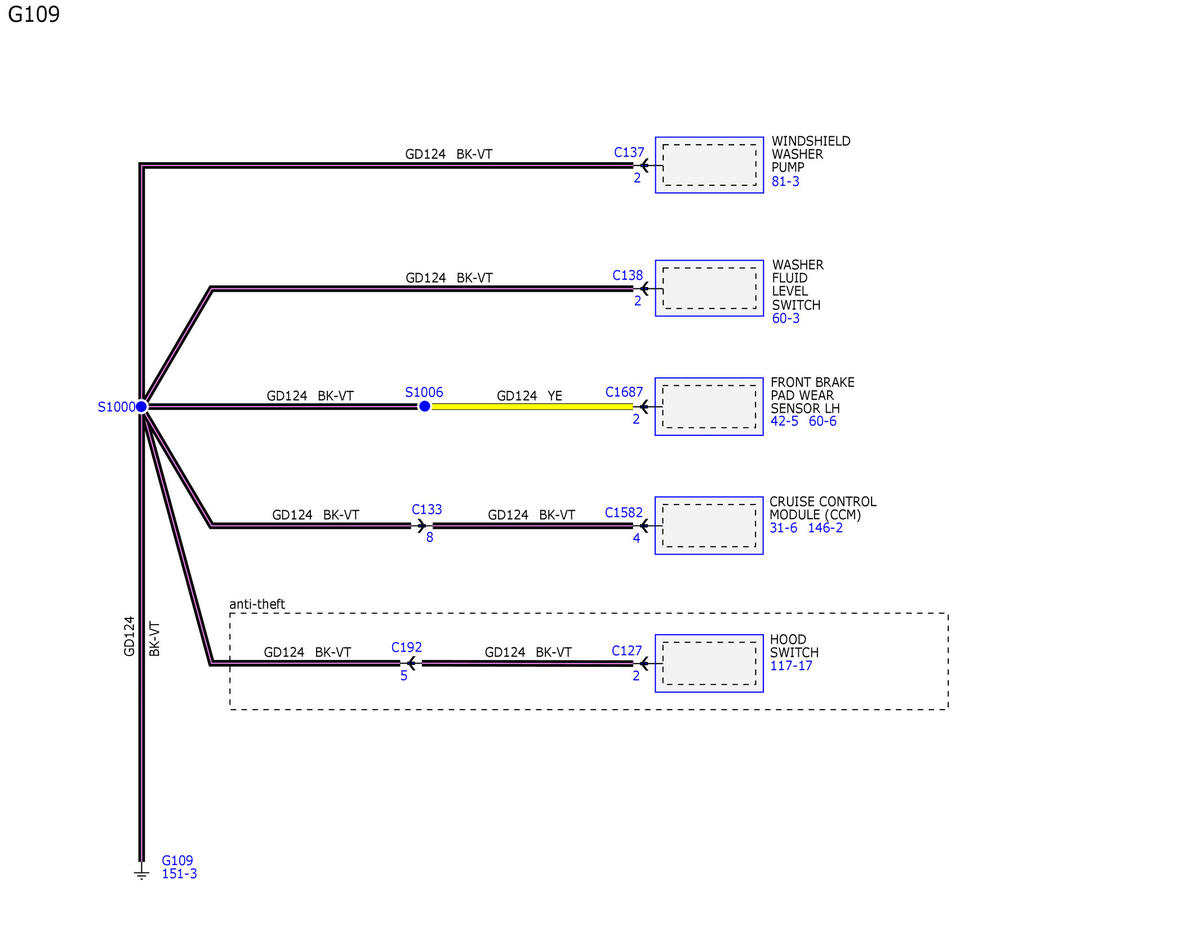

GFDWR213486Courtesy of FORD MOTOR COMPANY

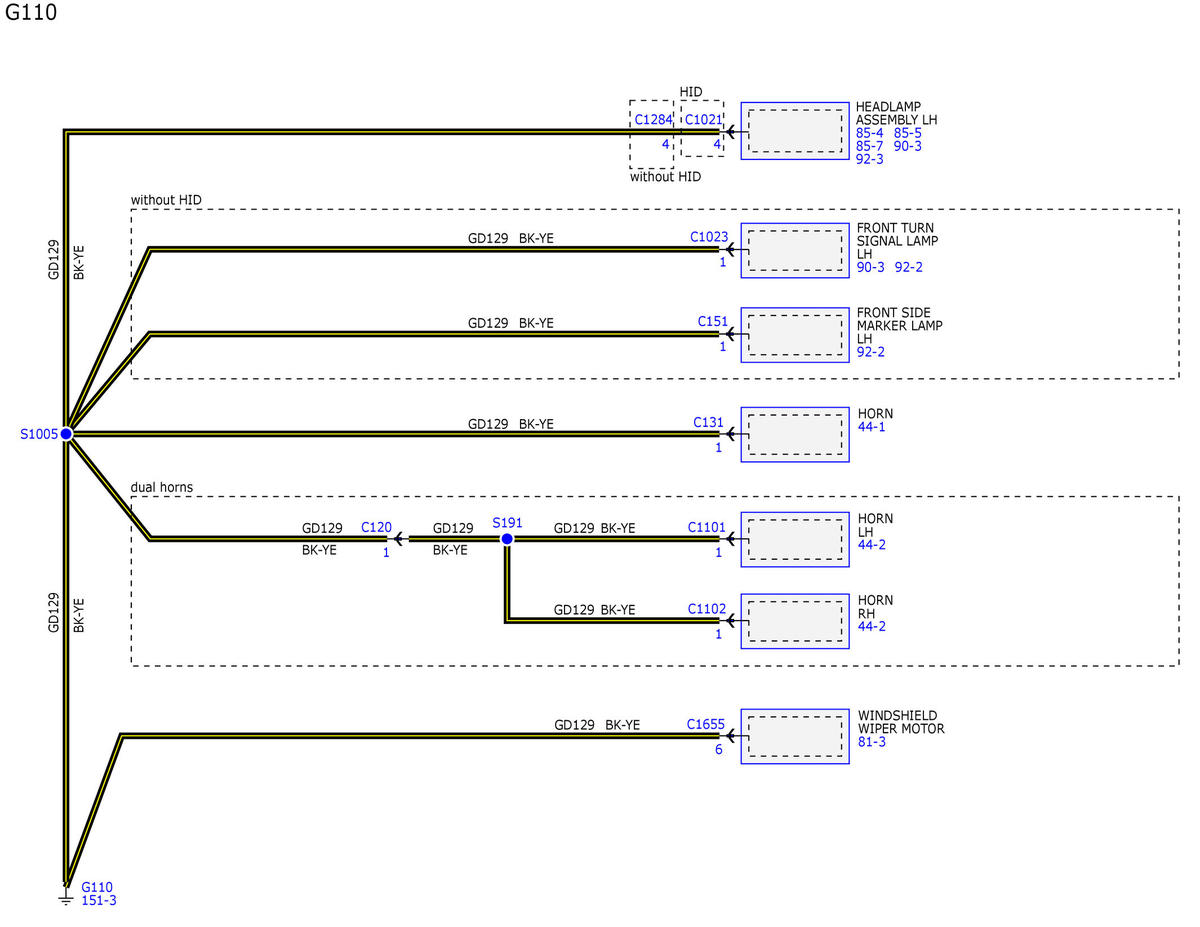

GFDWR213487Courtesy of FORD MOTOR COMPANY

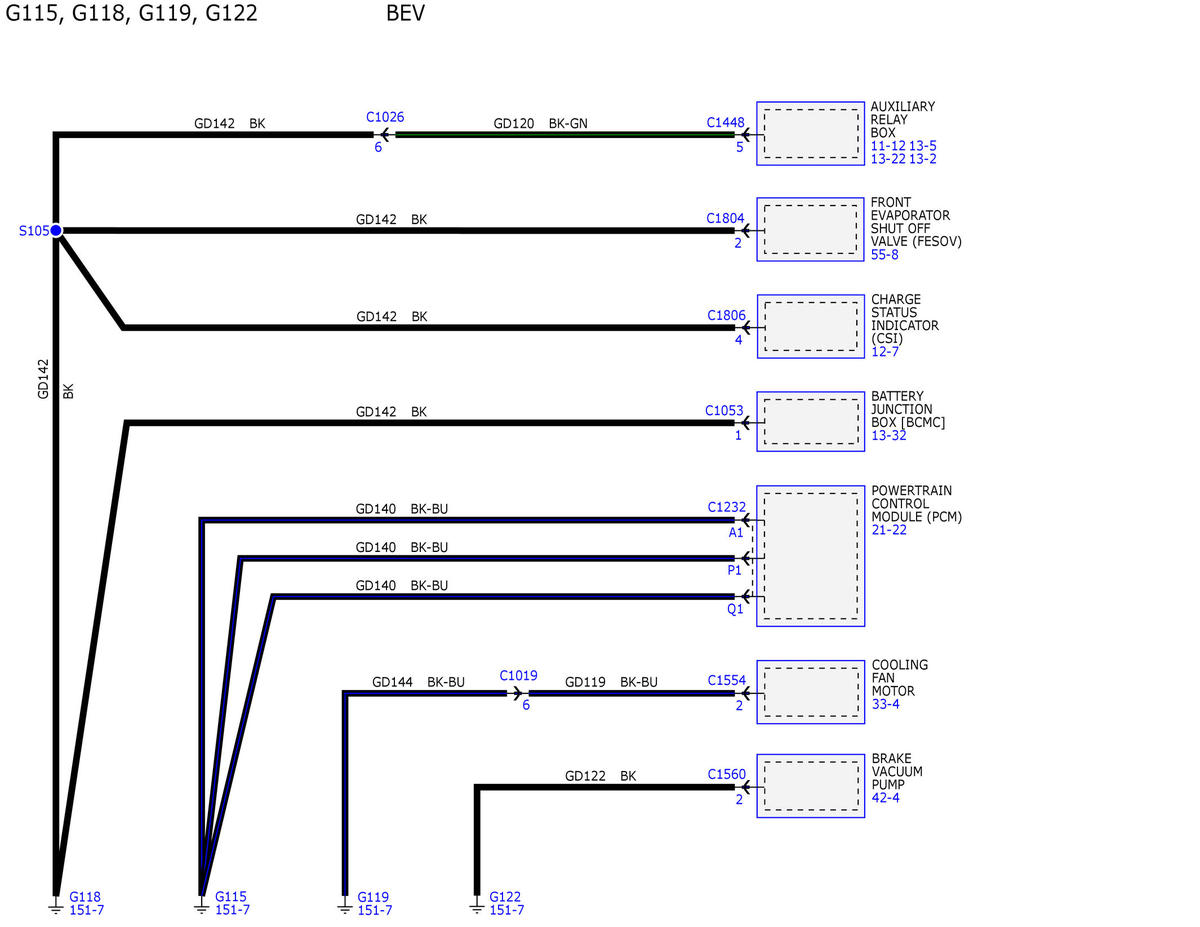

GFDWR213488Courtesy of FORD MOTOR COMPANY

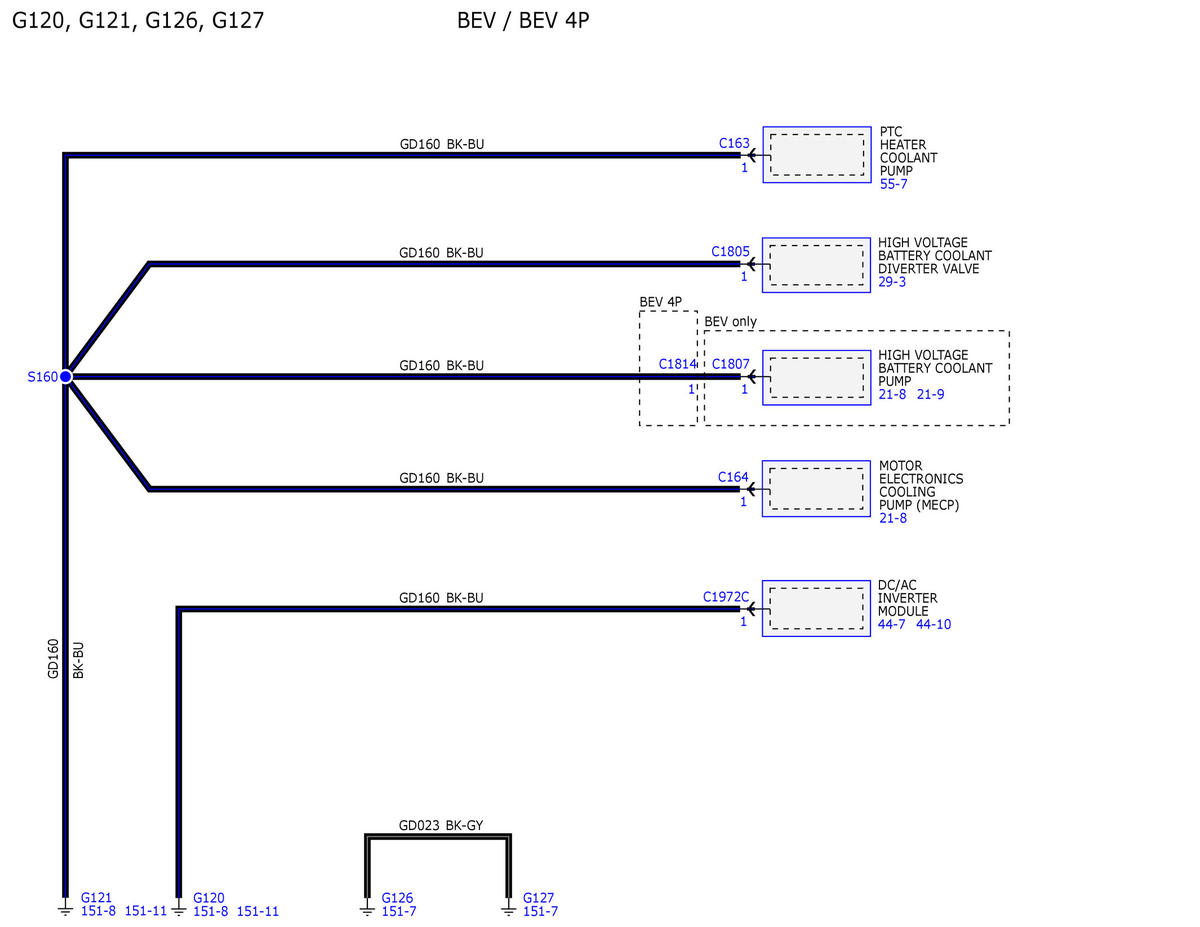

GFDWR213489Courtesy of FORD MOTOR COMPANY

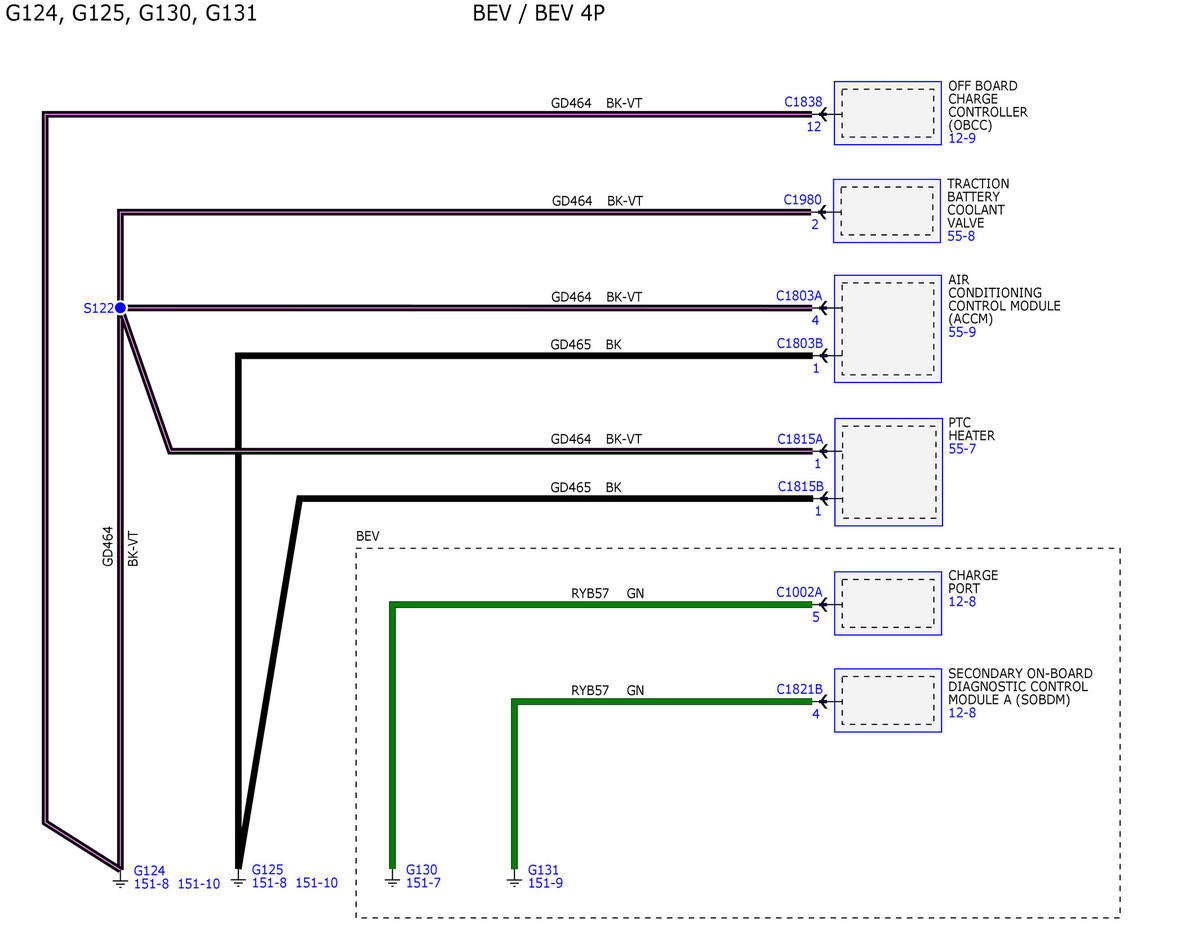

GFDWR213454Courtesy of FORD MOTOR COMPANY

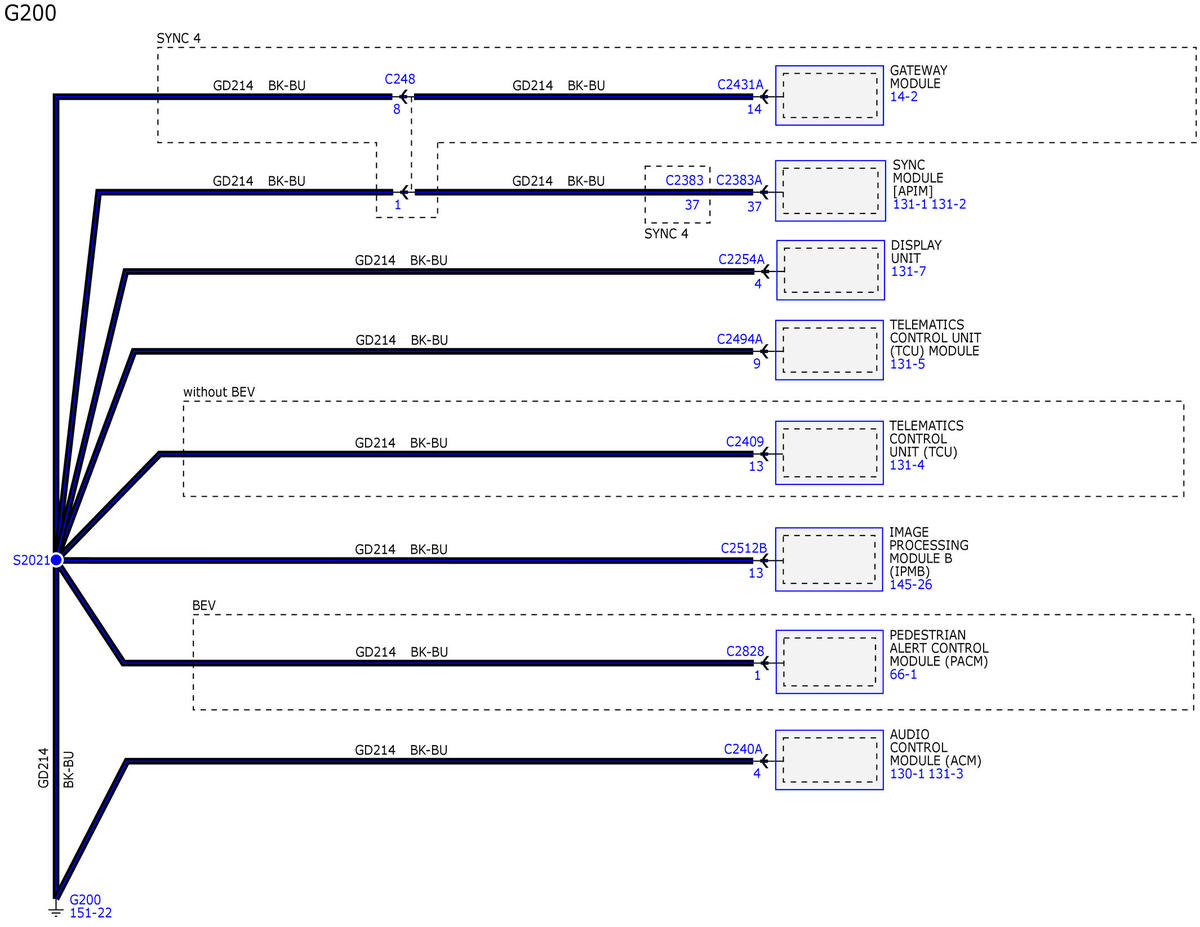

GFDWR213455Courtesy of FORD MOTOR COMPANY

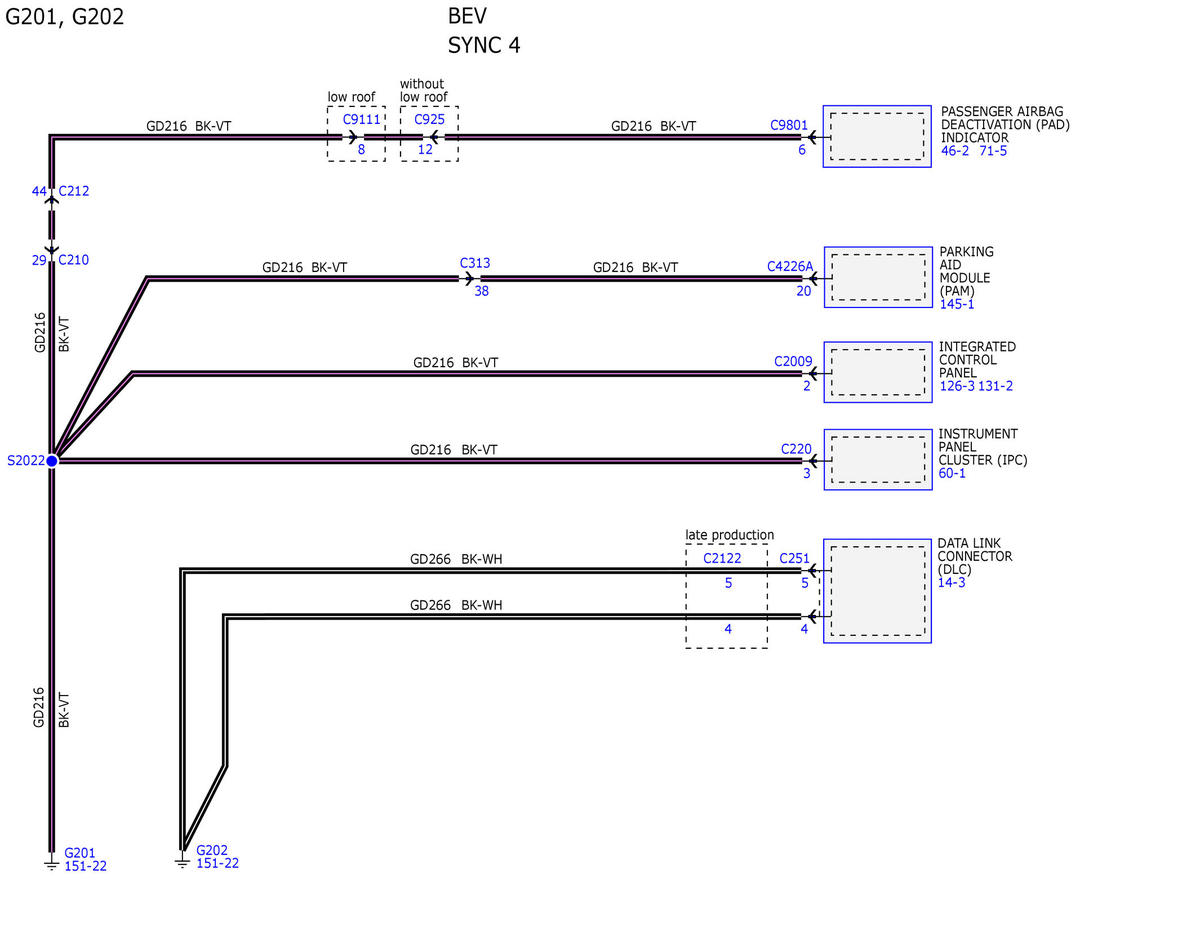

GFDWR213456Courtesy of FORD MOTOR COMPANY

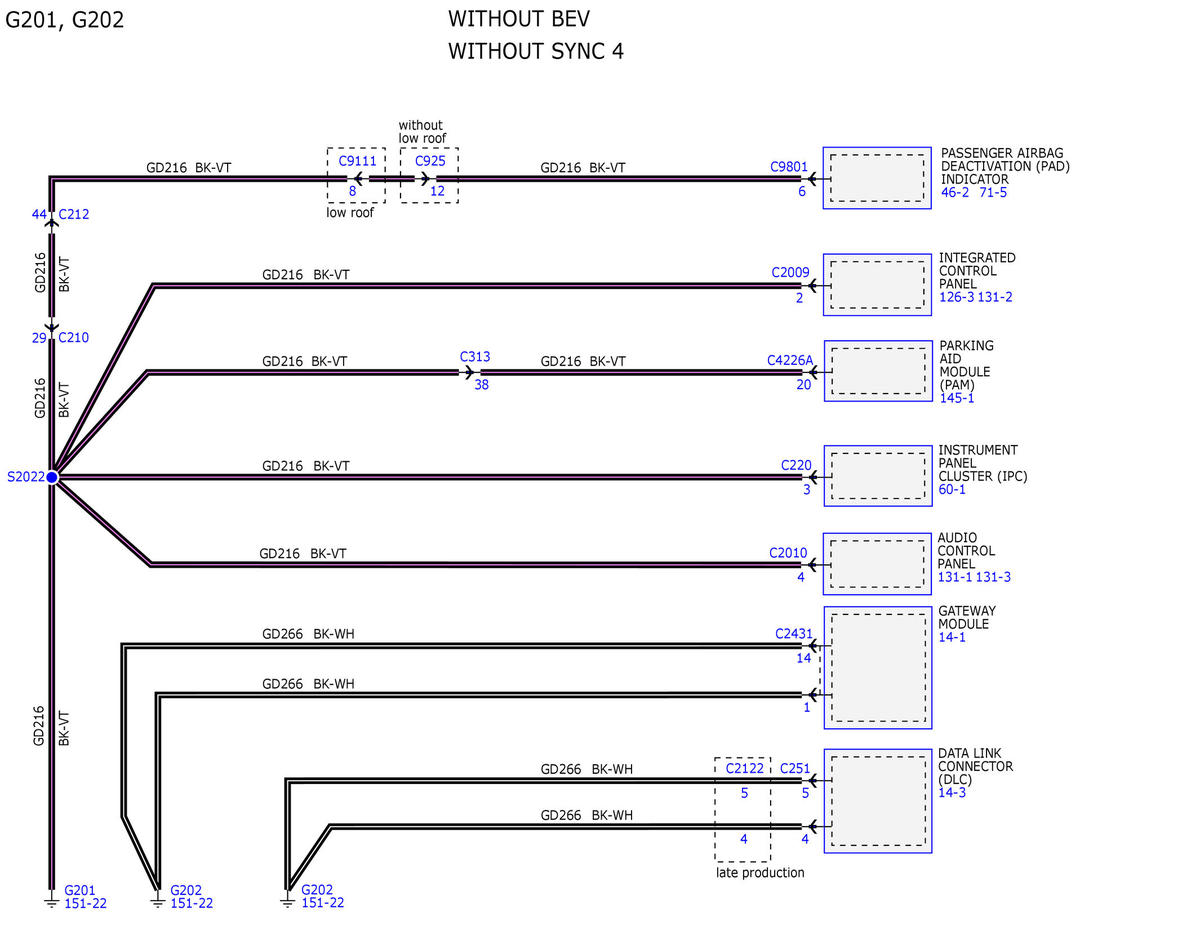

GFDWR213457Courtesy of FORD MOTOR COMPANY

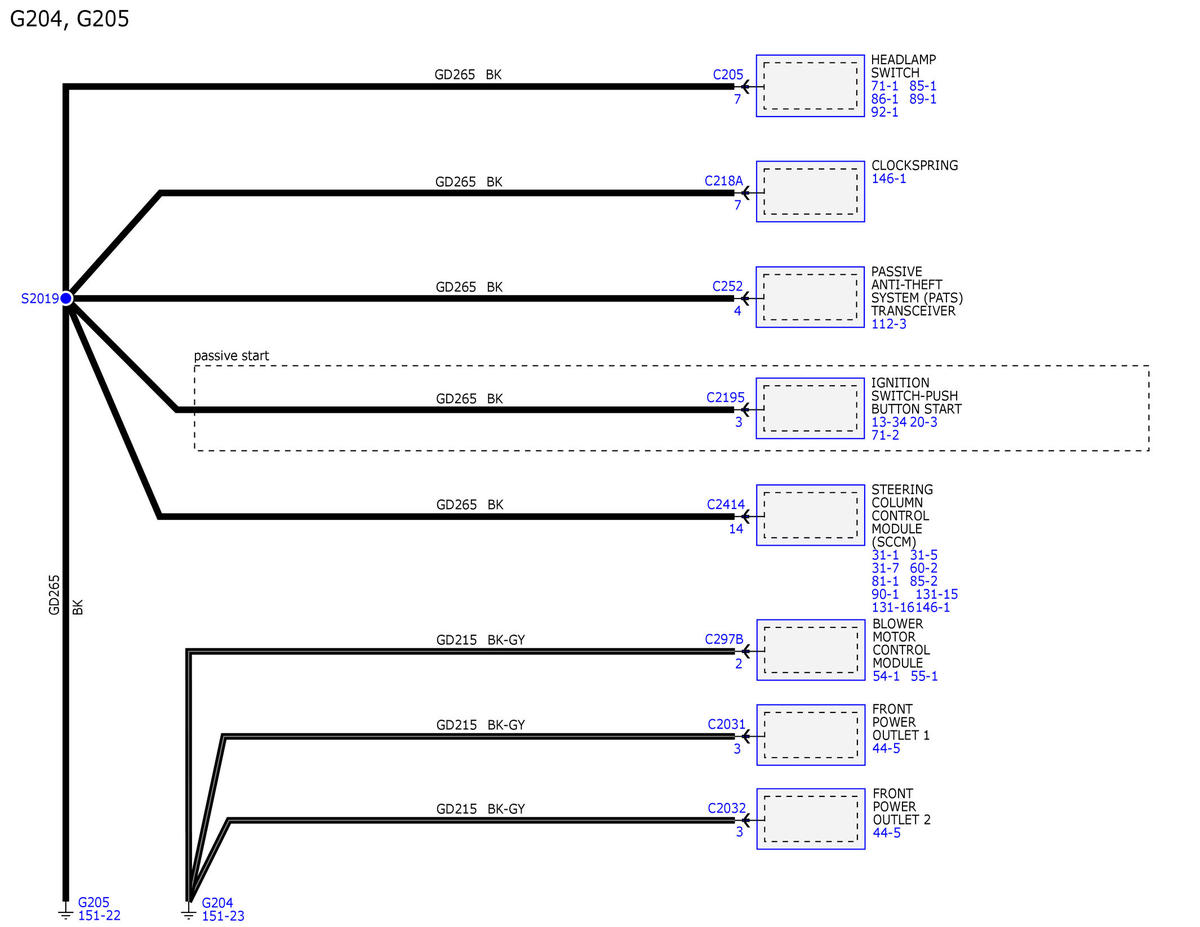

GFDWR213458Courtesy of FORD MOTOR COMPANY

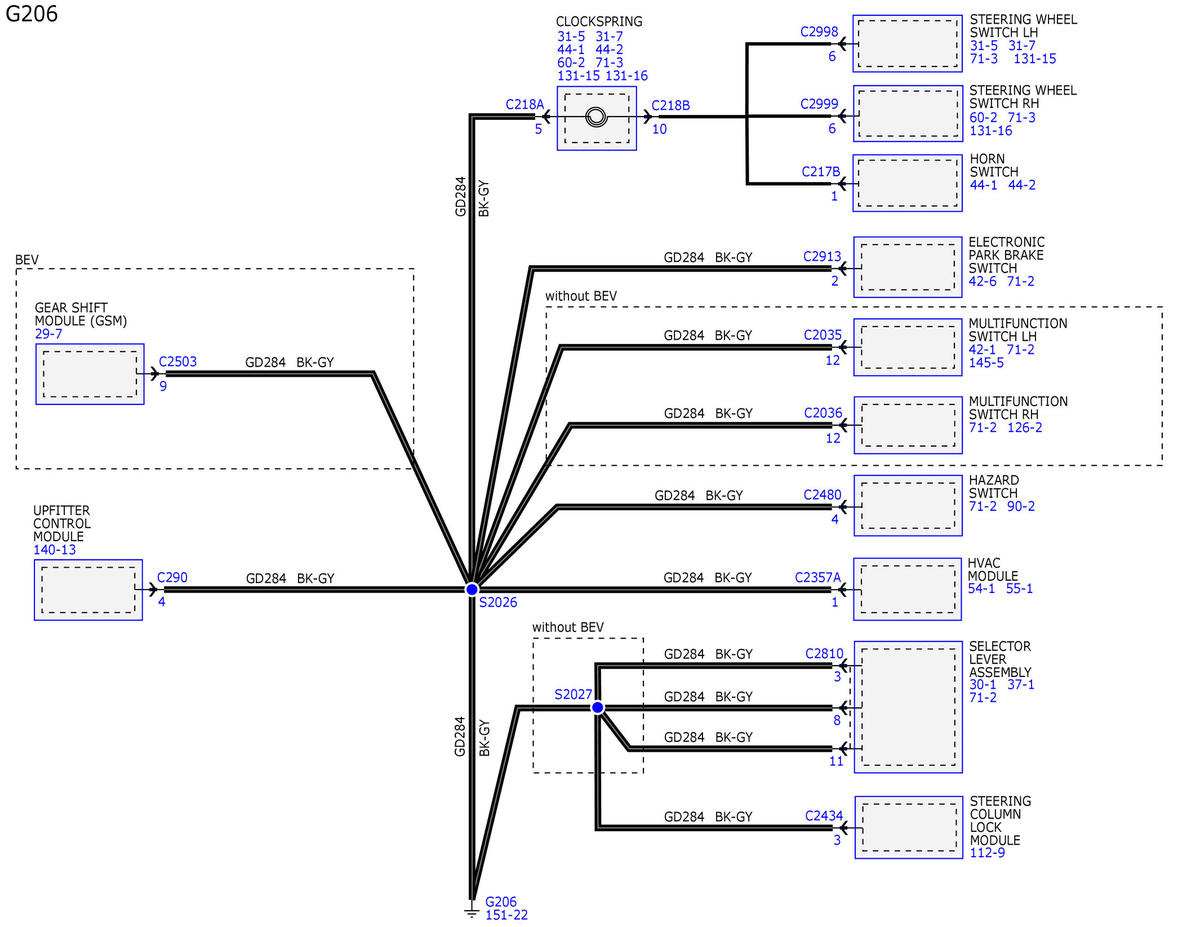

GFDWR213459Courtesy of FORD MOTOR COMPANY

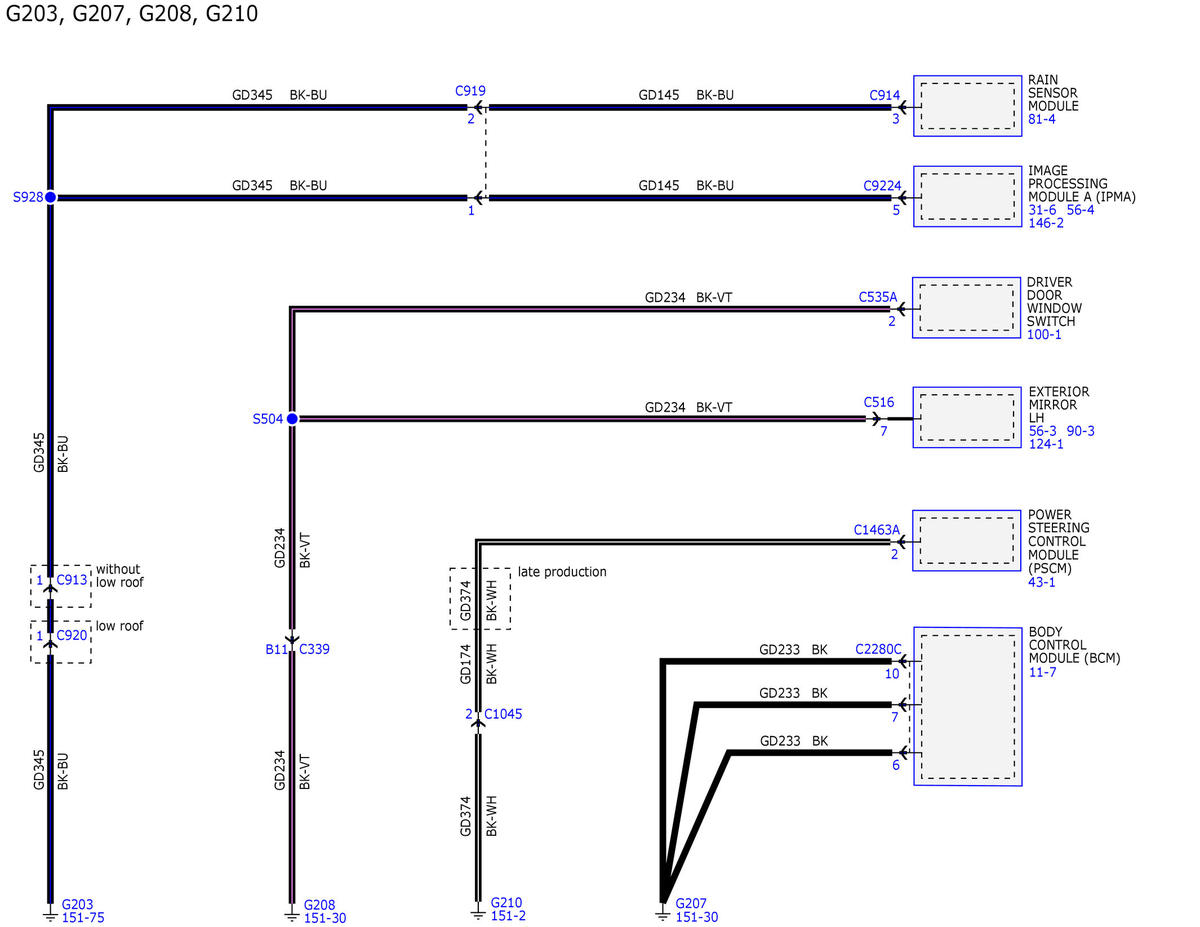

GFDWR213460Courtesy of FORD MOTOR COMPANY

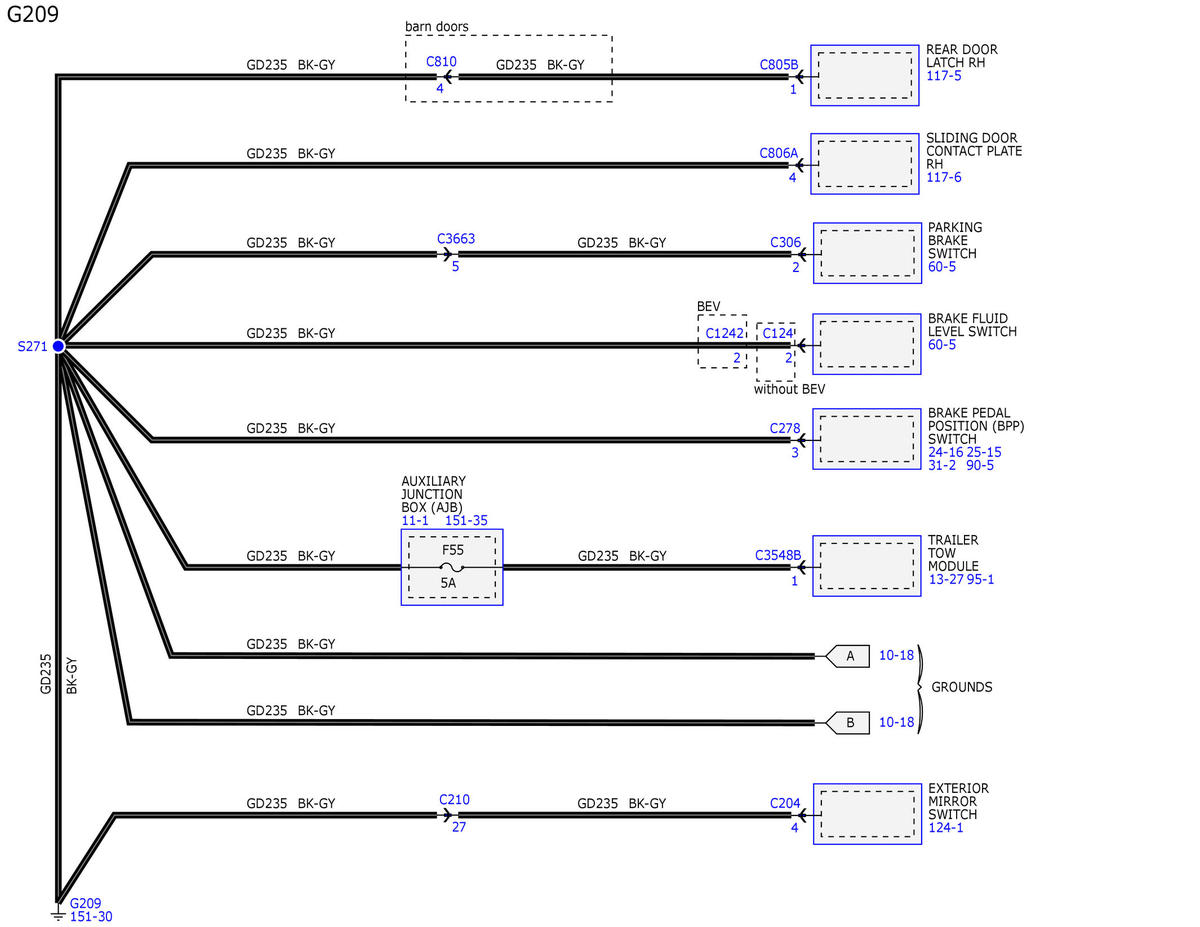

GFDWR213461Courtesy of FORD MOTOR COMPANY

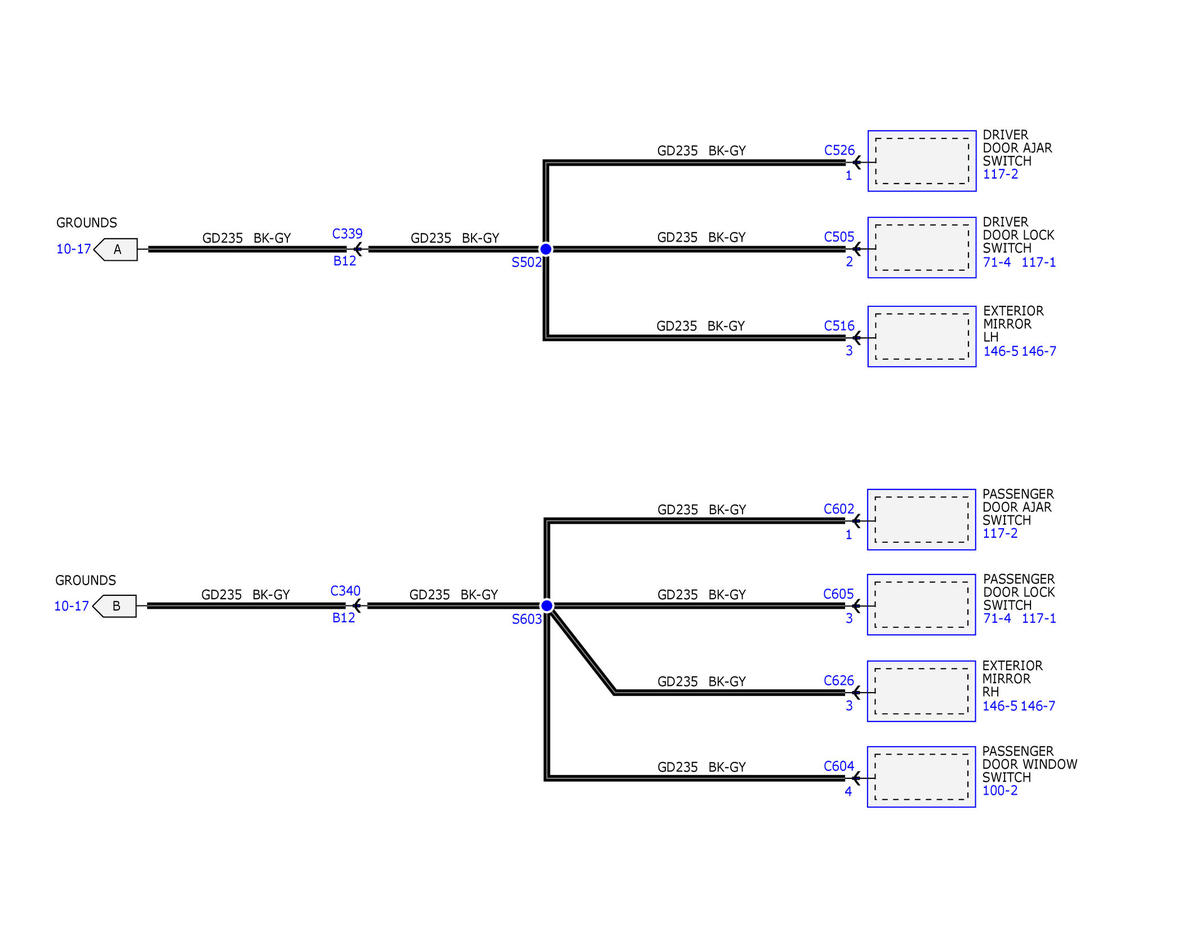

GFDWR213462Courtesy of FORD MOTOR COMPANY

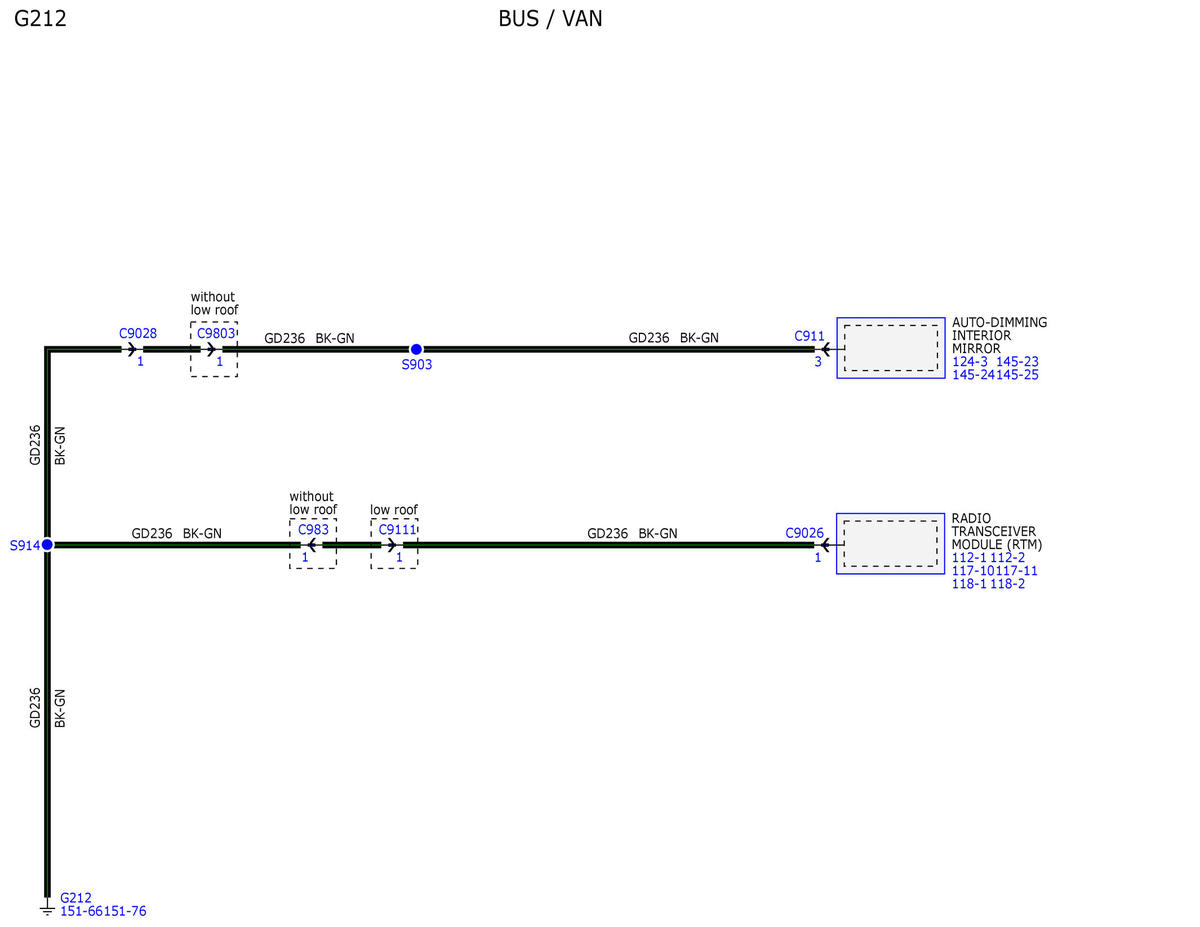

GFDWR213463Courtesy of FORD MOTOR COMPANY

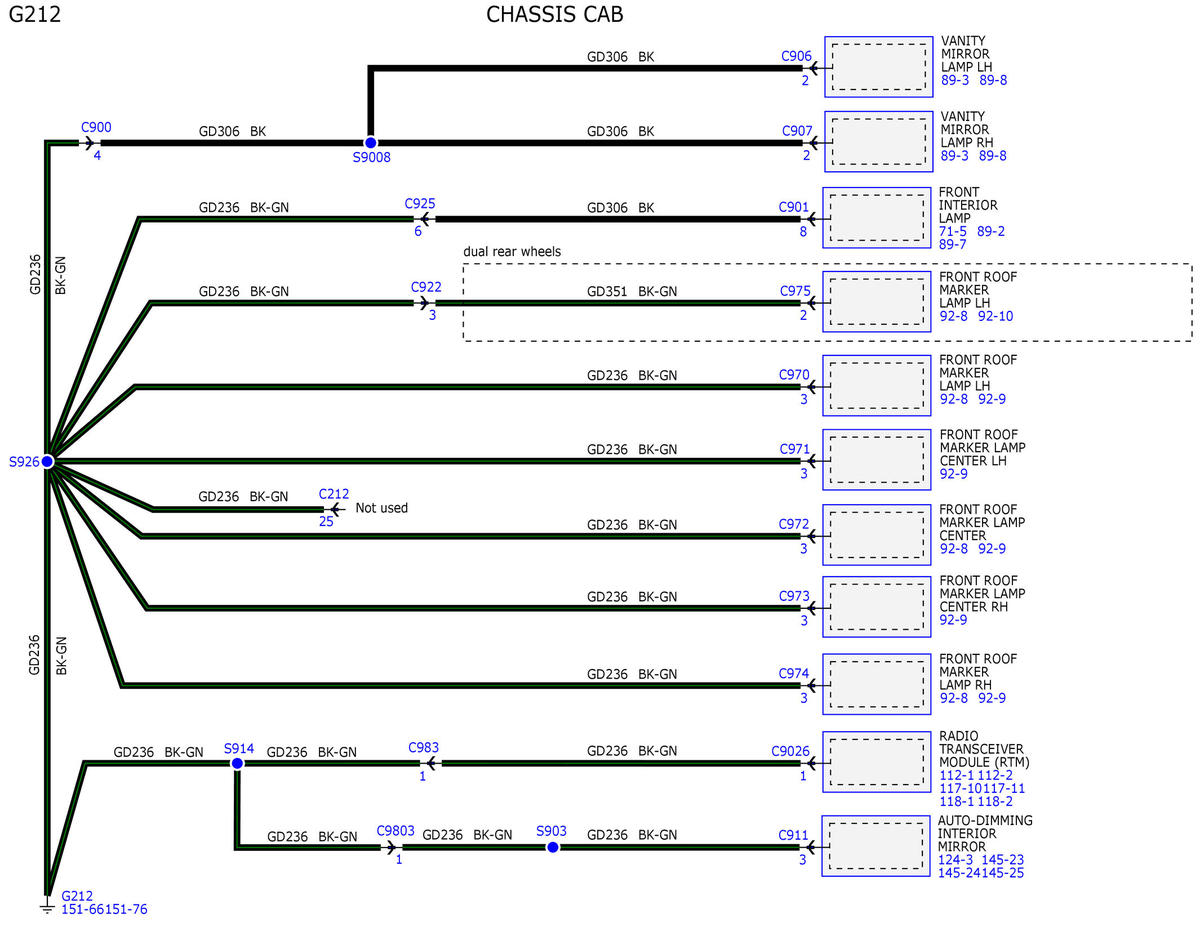

GFDWR213465Courtesy of FORD MOTOR COMPANY

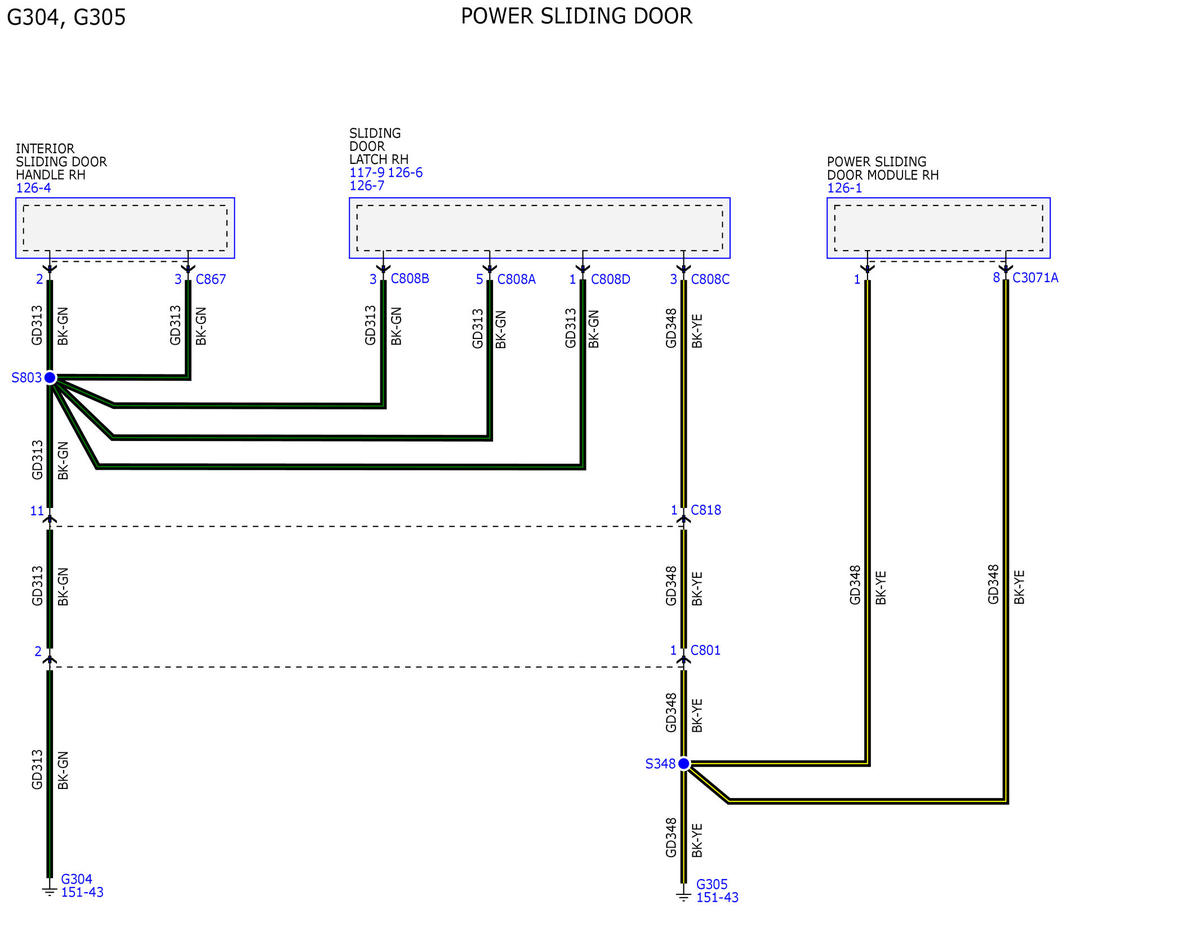

GFDWR213466Courtesy of FORD MOTOR COMPANY

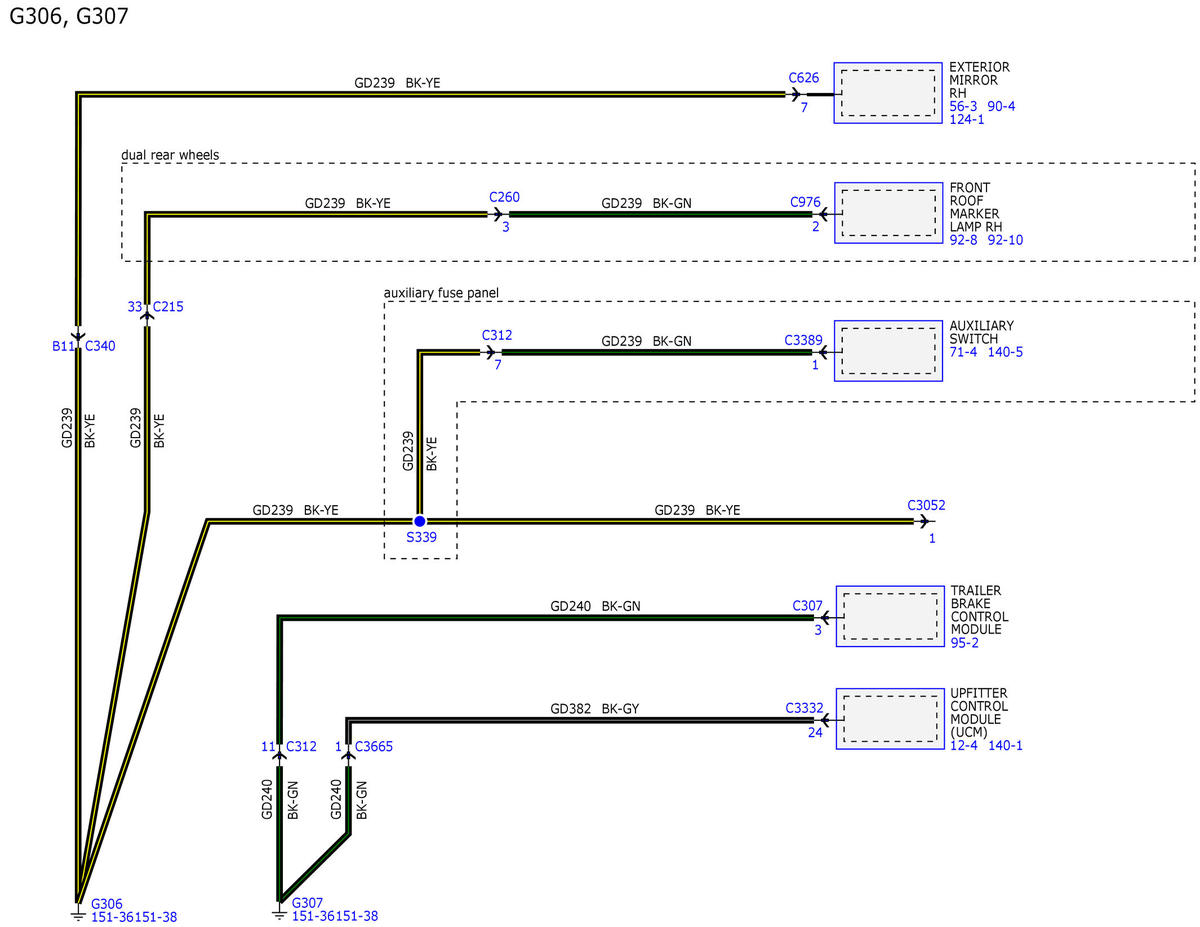

GFDWR213467Courtesy of FORD MOTOR COMPANY

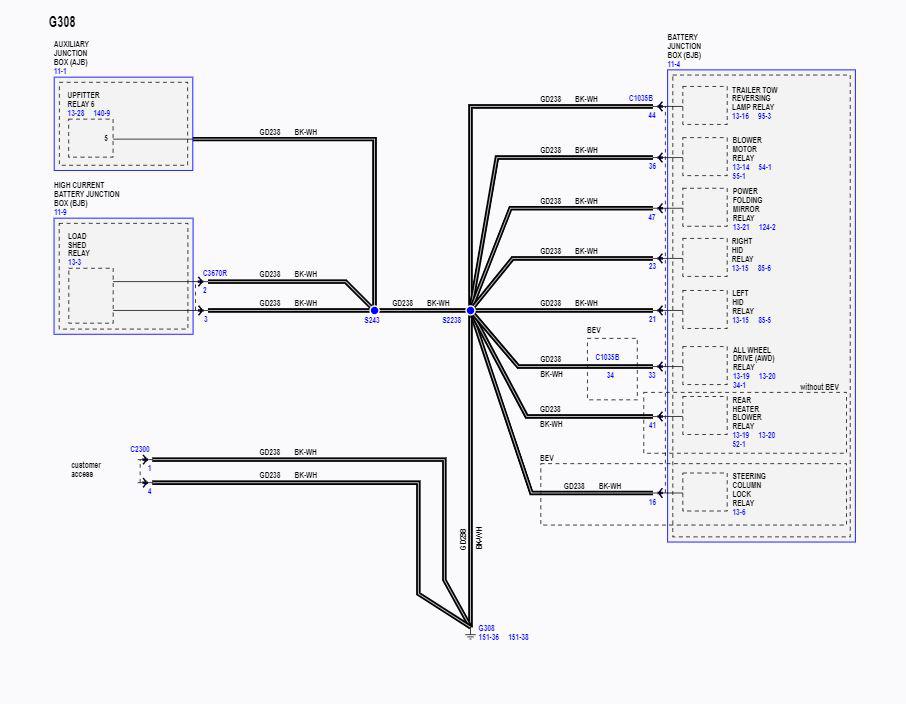

G00637797Courtesy of FORD MOTOR COMPANY

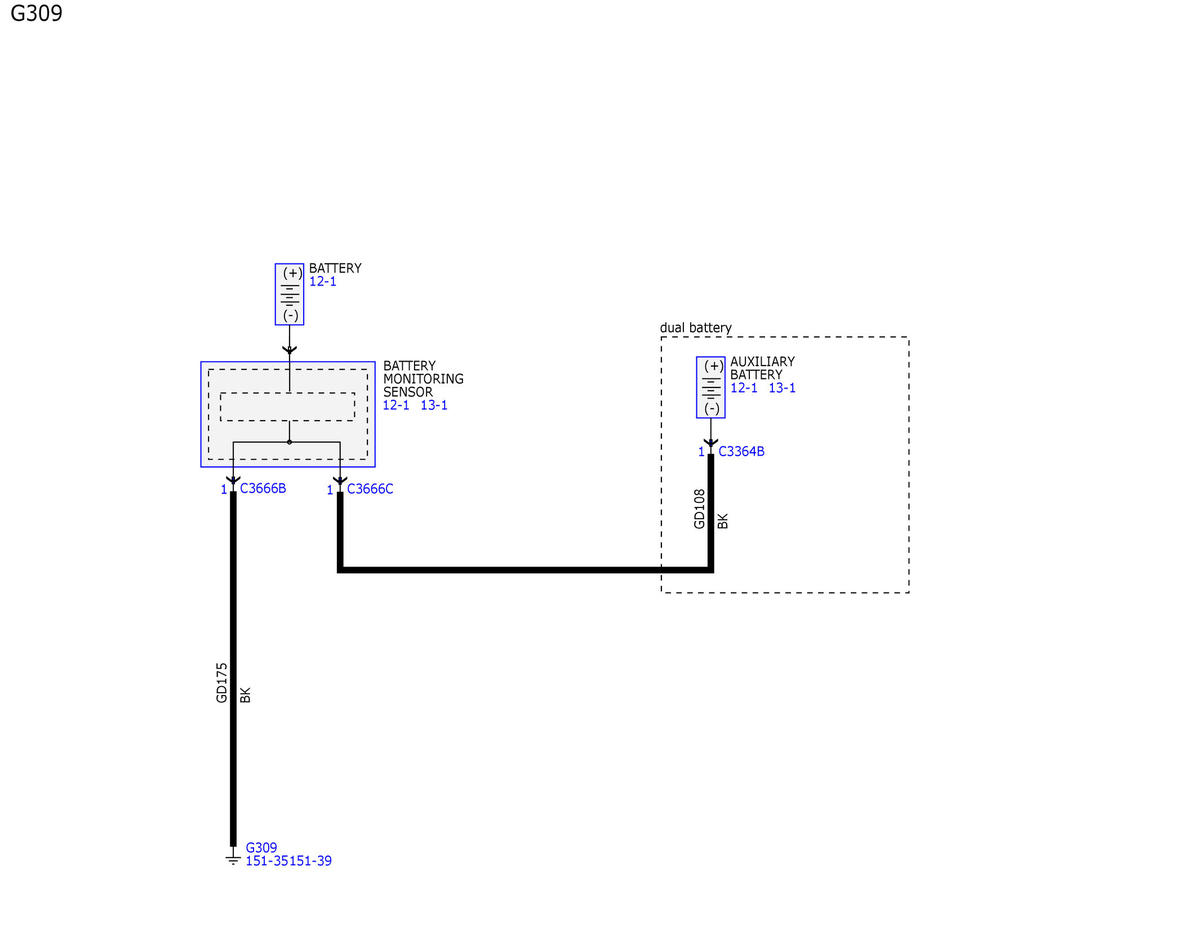

GFDWR213469Courtesy of FORD MOTOR COMPANY

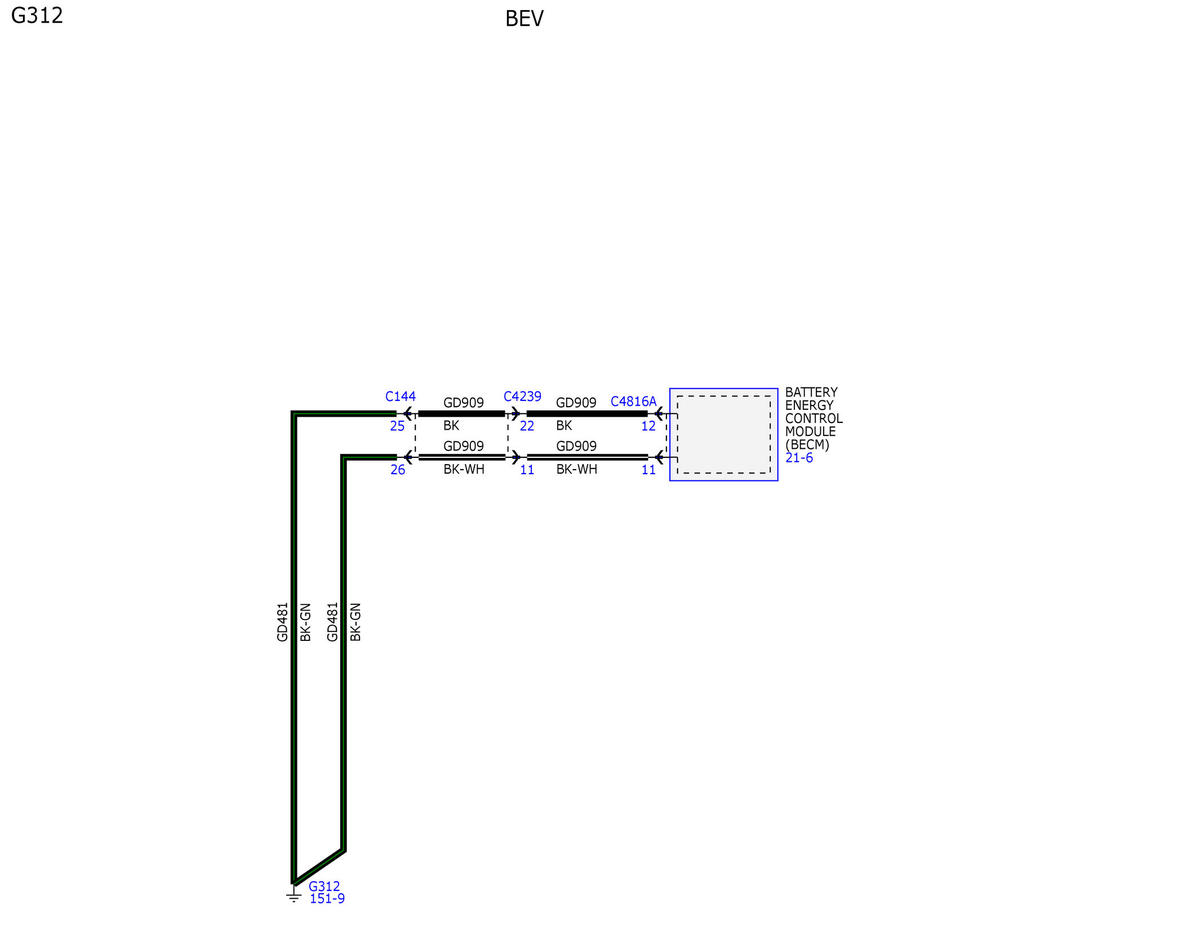

GFDWR213470Courtesy of FORD MOTOR COMPANY

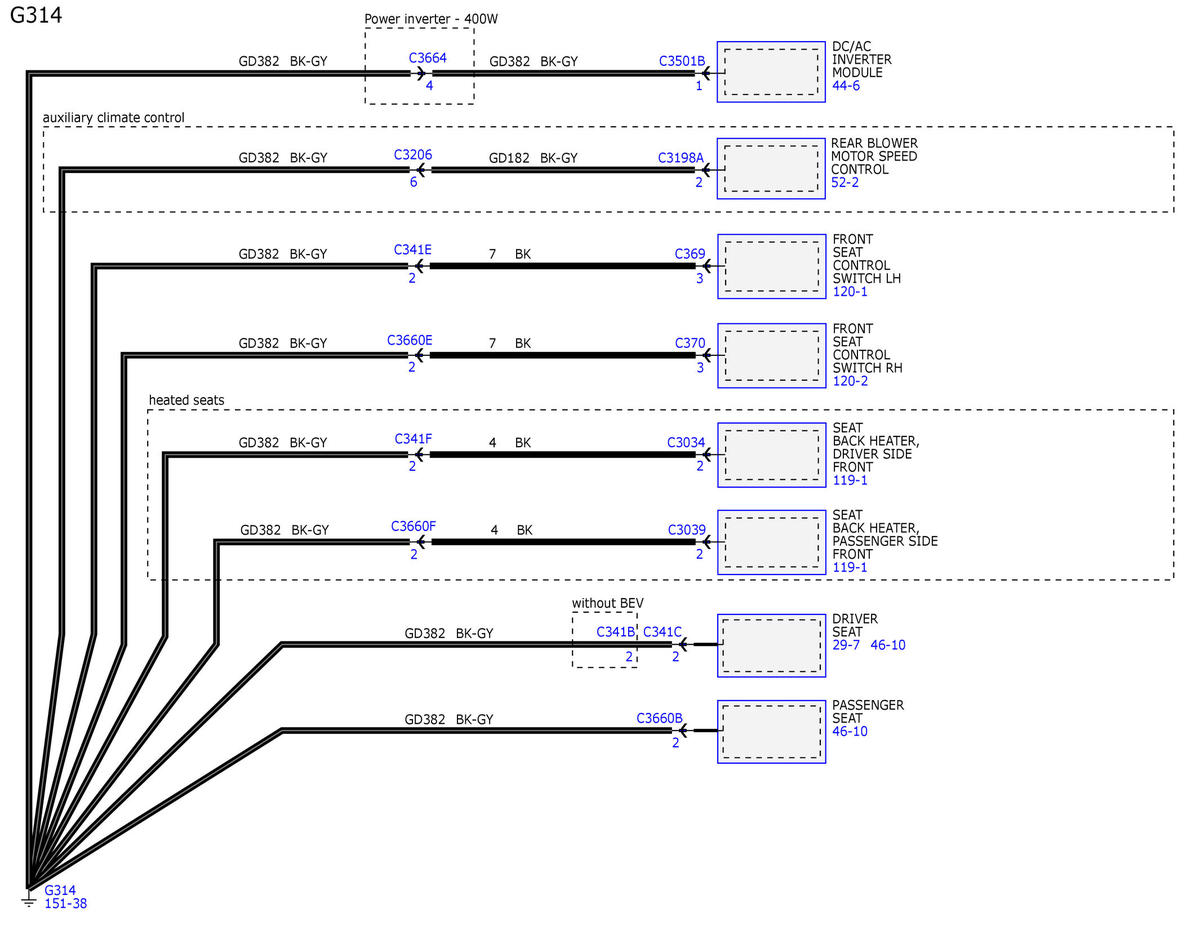

GFDWR213471Courtesy of FORD MOTOR COMPANY

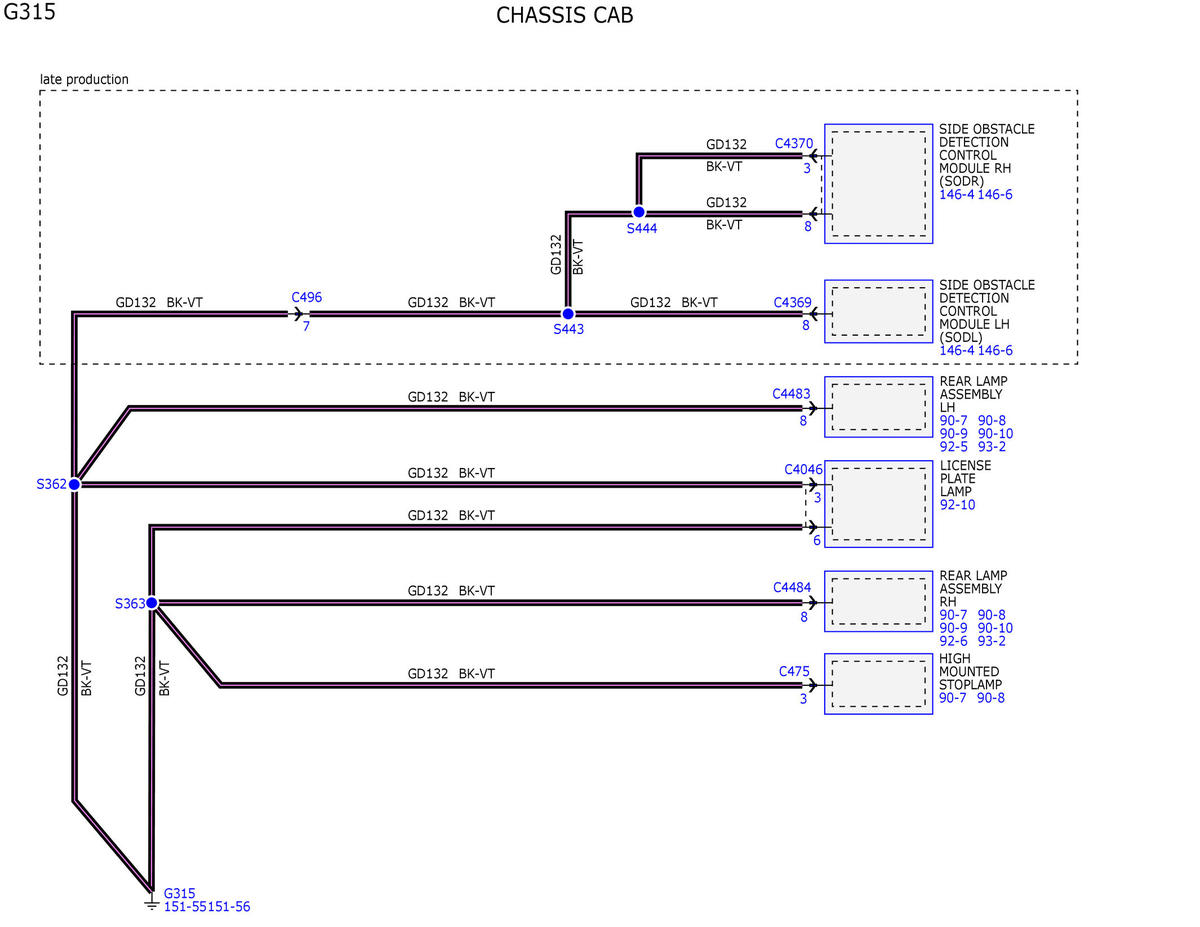

GFDWR213472Courtesy of FORD MOTOR COMPANY

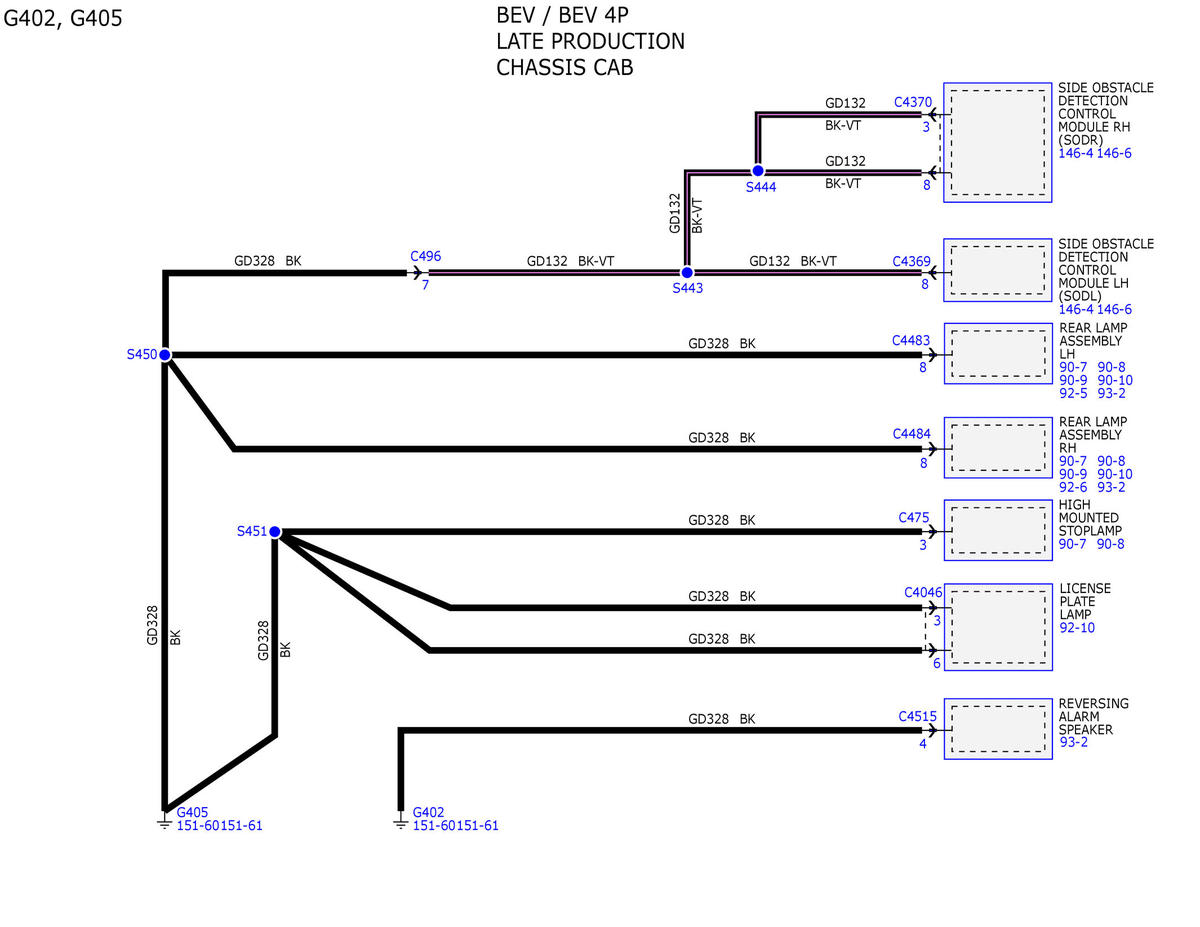

GFDWR213473Courtesy of FORD MOTOR COMPANY

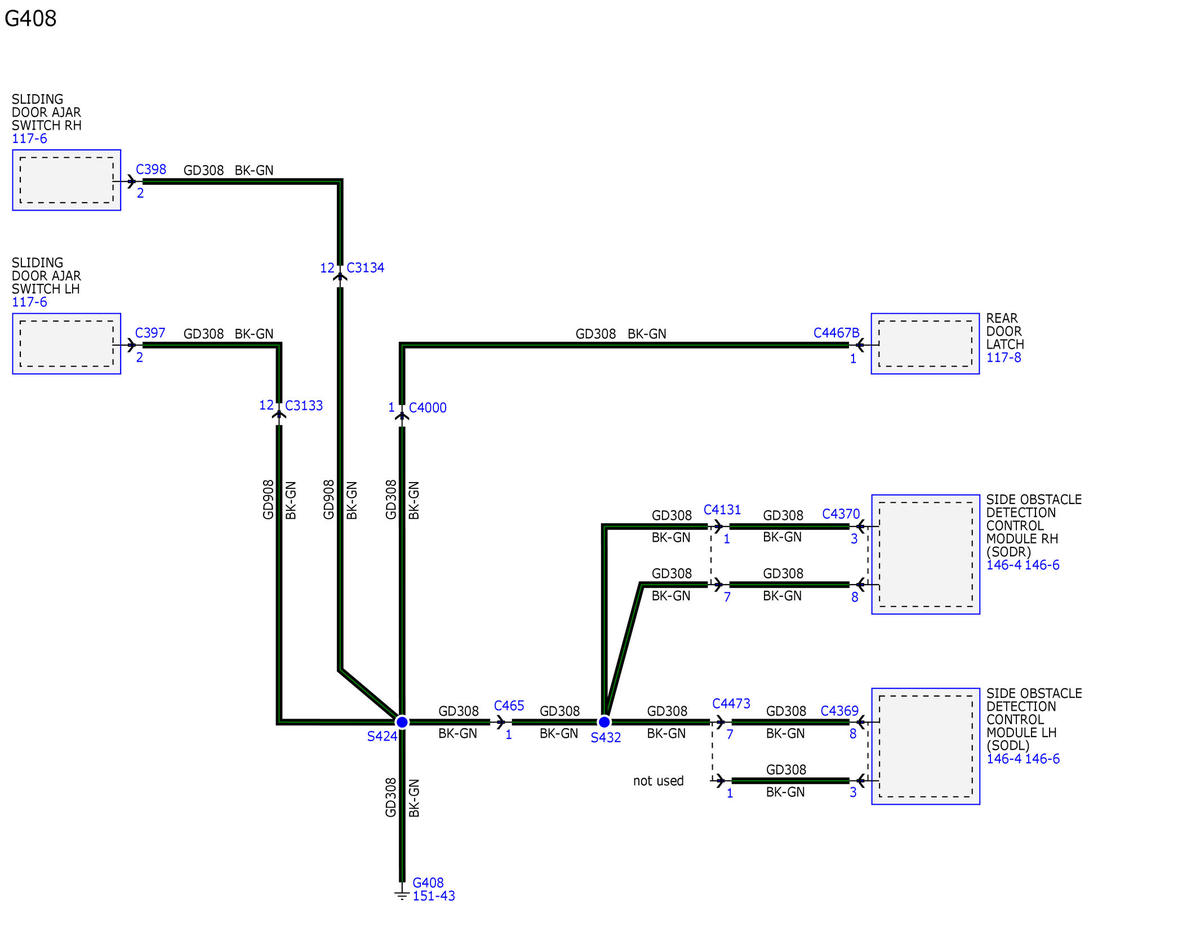

GFDWR213474Courtesy of FORD MOTOR COMPANY

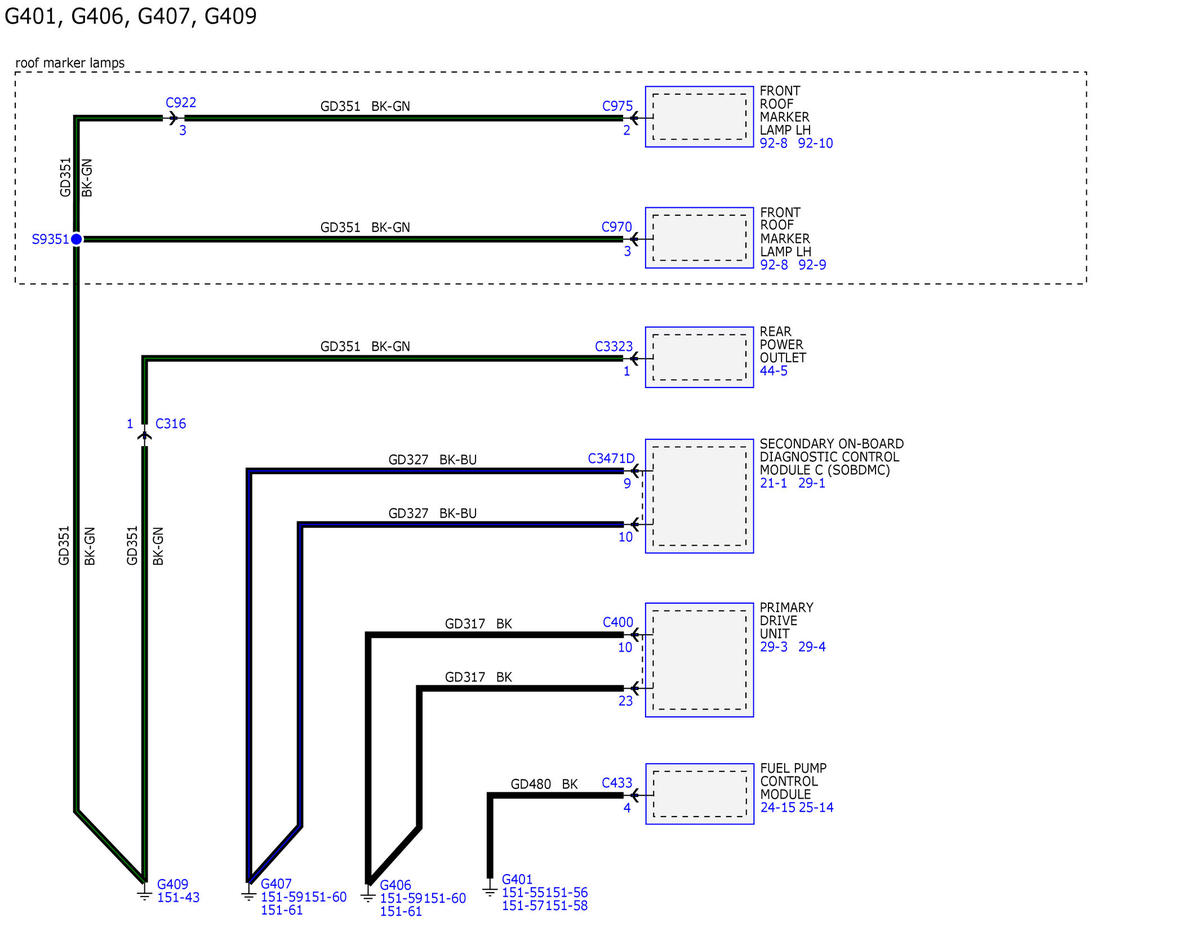

GFDWR213476Courtesy of FORD MOTOR COMPANY

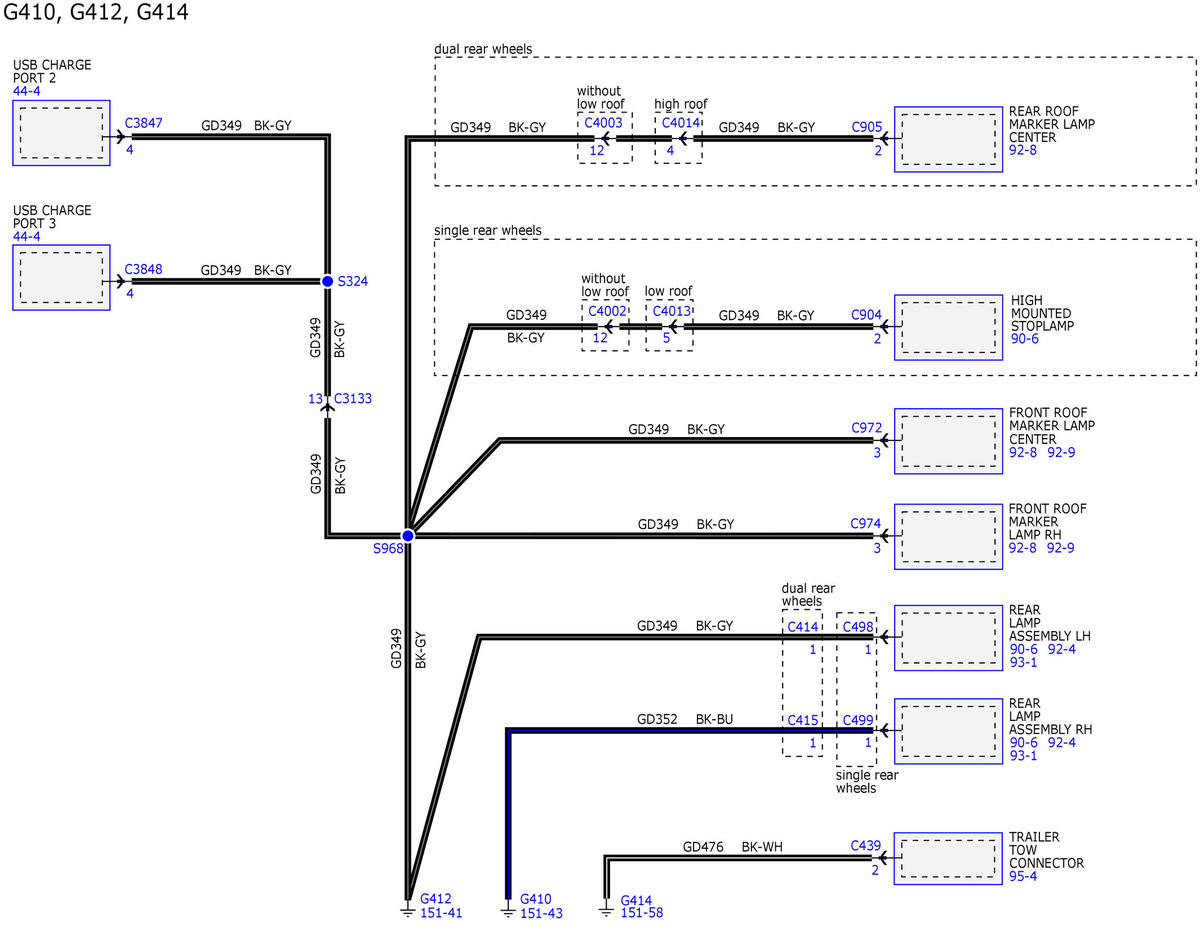

GFDWR213477Courtesy of FORD MOTOR COMPANY

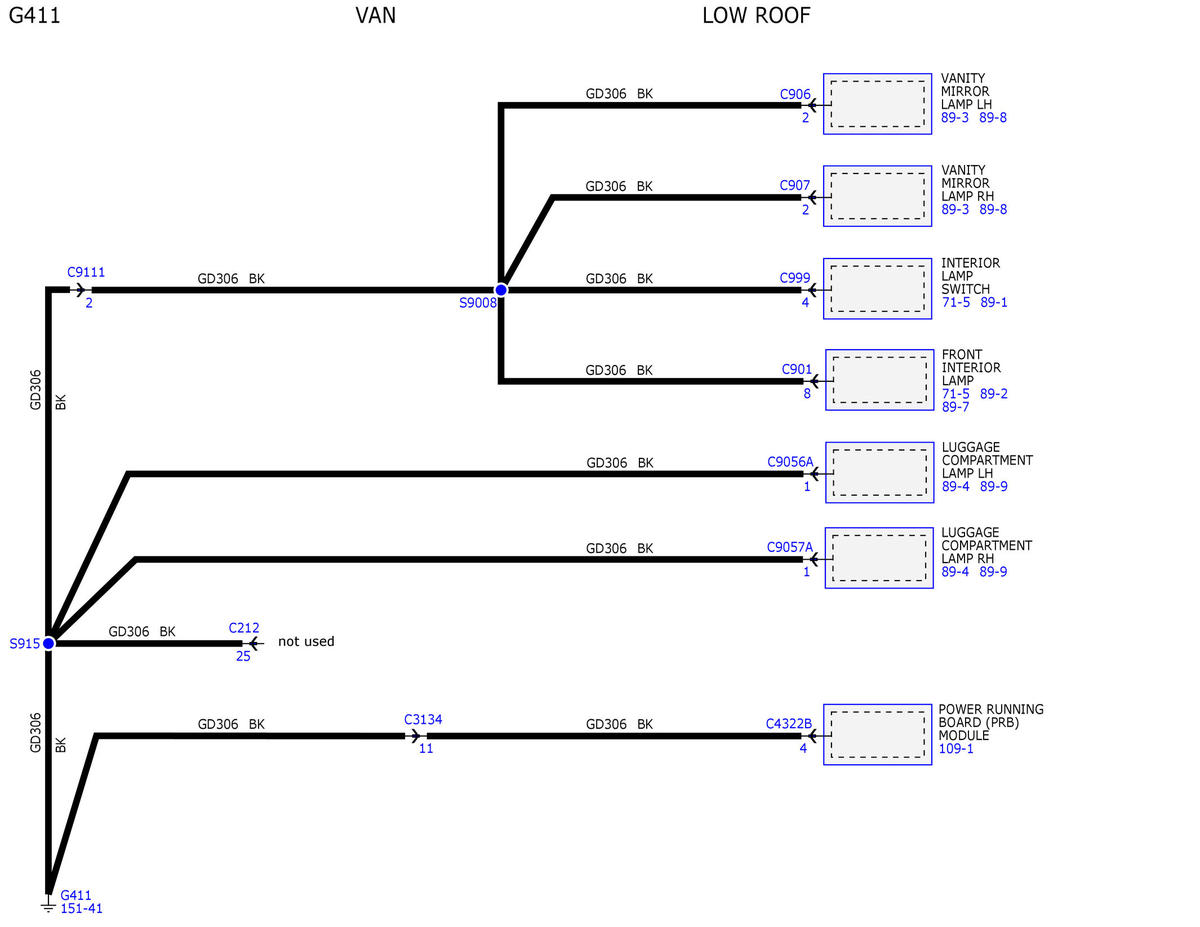

GFDWR213478Courtesy of FORD MOTOR COMPANY

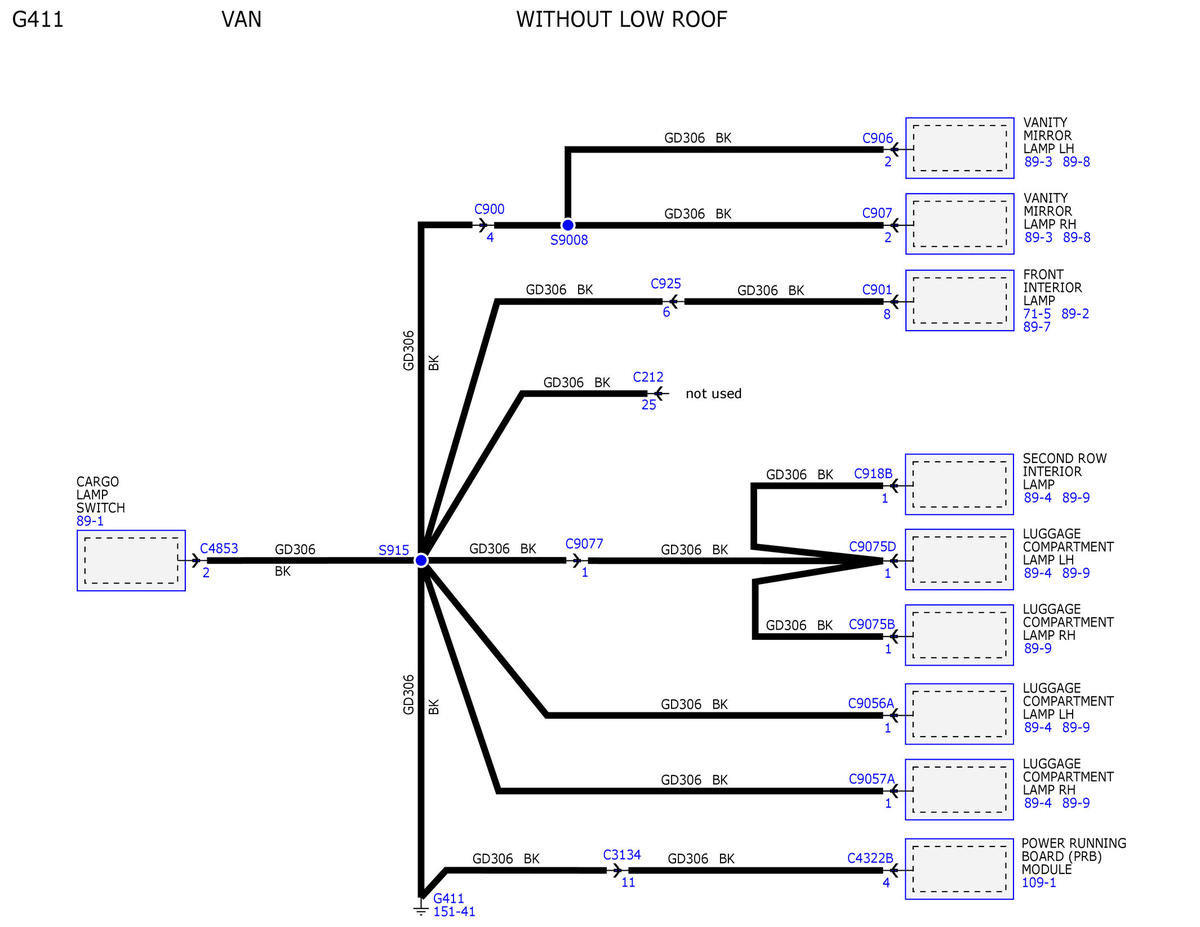

GFDWR213479Courtesy of FORD MOTOR COMPANY

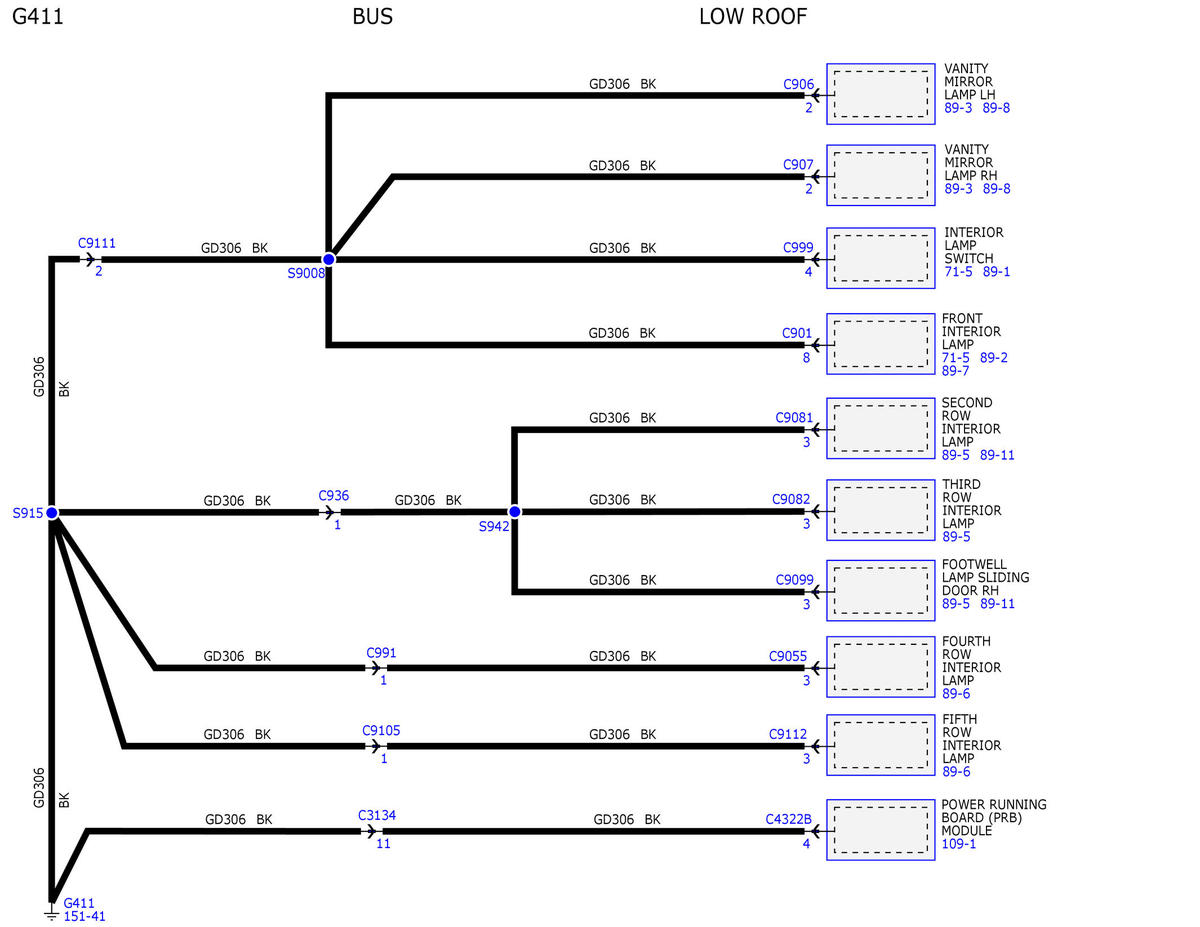

GFDWR213480Courtesy of FORD MOTOR COMPANY

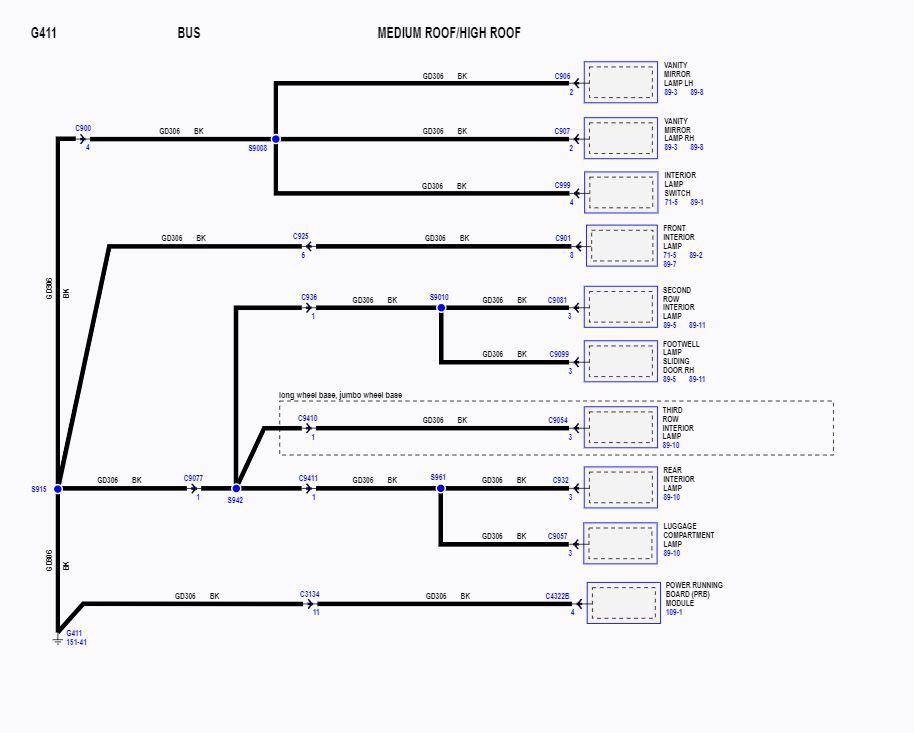

G00637801Courtesy of FORD MOTOR COMPANY

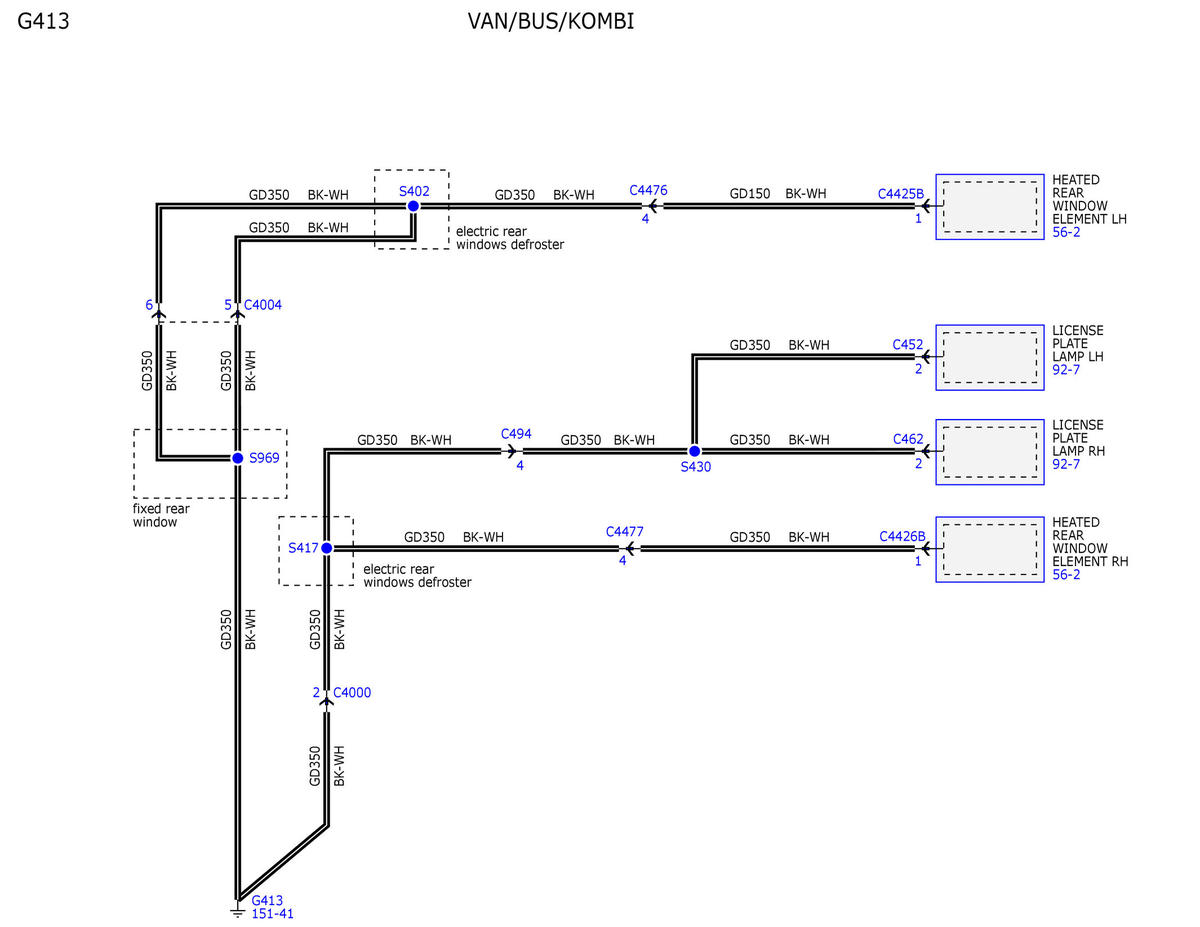

GFDWR213482Courtesy of FORD MOTOR COMPANY

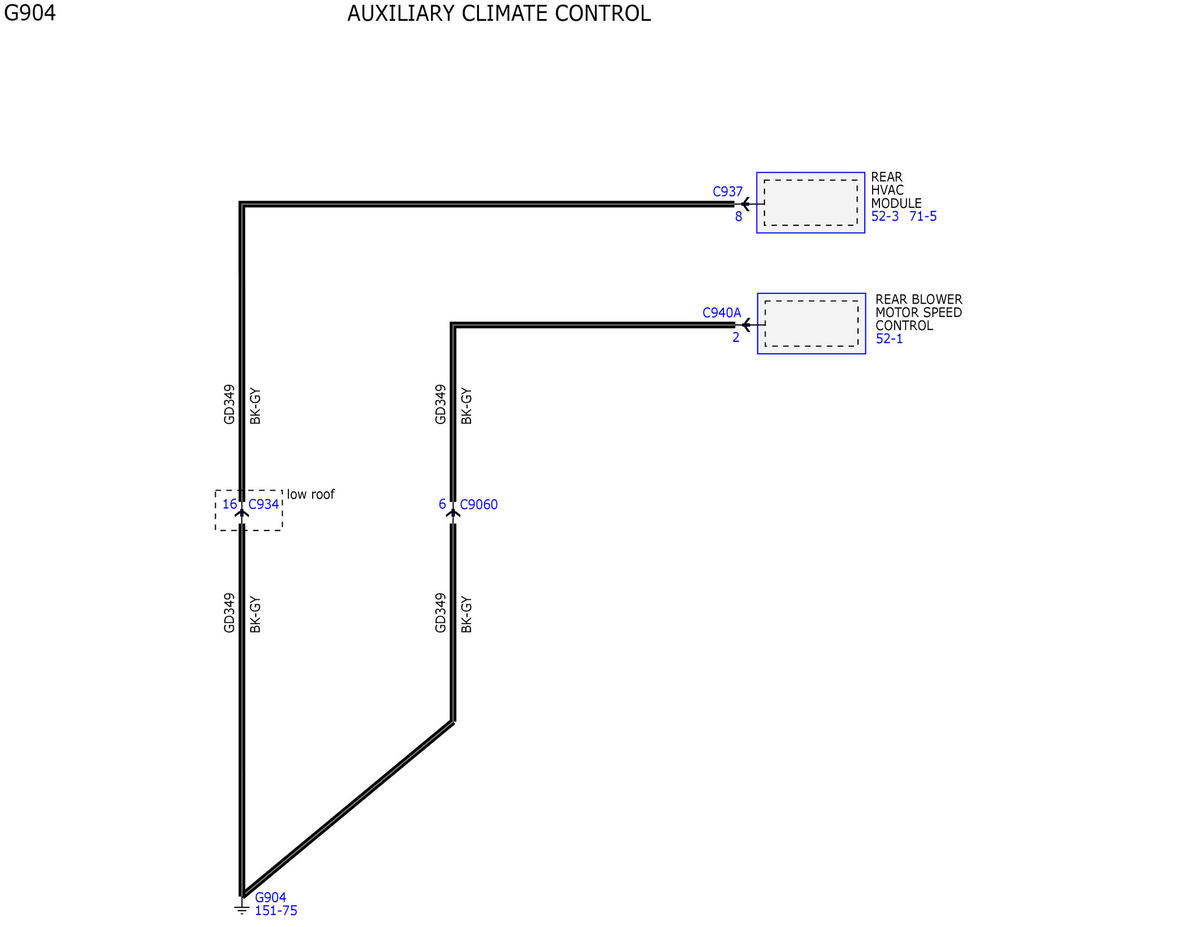

GFDWR213483Courtesy of FORD MOTOR COMPANY
