Rear Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Wheel and Tire .

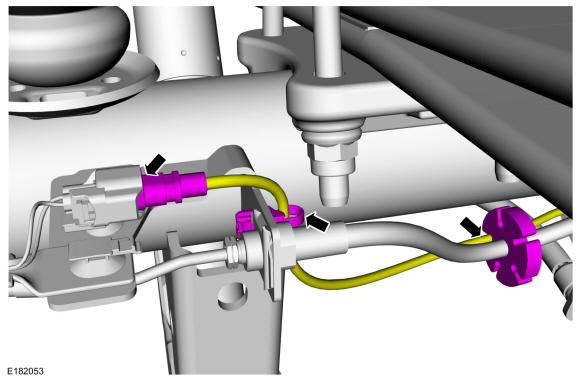

2. Disconnect the electrical connector and detach the harness retainers.

   Courtesy of FORD MOTOR COMPANY

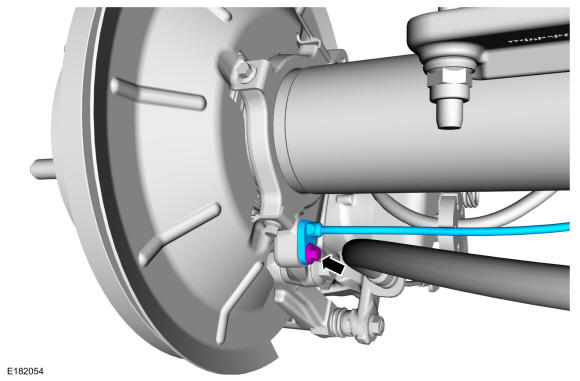

3. Using compressed air, clean the sensor housing area. Remove the bolt and the rear wheel speed sensor.

   Torque

   : 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
