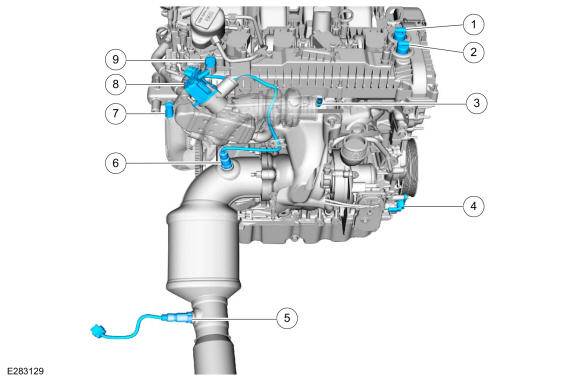

Electronic Engine Controls - Rear

Courtesy of FORD MOTOR COMPANY

Item	Description
1	Intake VCT oil control solenoid
2	Exhaust VCT oil control solenoid
3	CHT (CHT2) sensor
4	CKP sensor
5	Catalyst monitor sensor
6	HO2S
7	ECT sensor
8	Turbocharger bypass valve
9	Exhaust CMP sensor
