Oil Pressure Control Solenoid: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

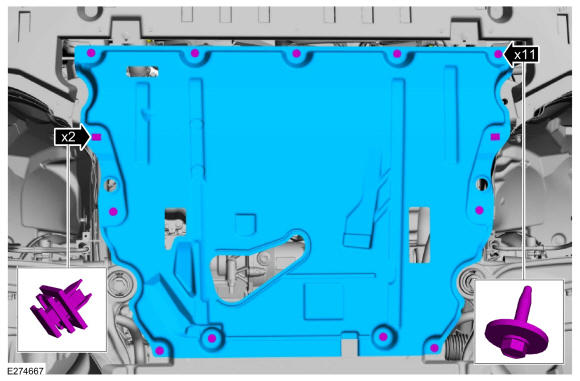

- Remove the retainers and the underbody shield.

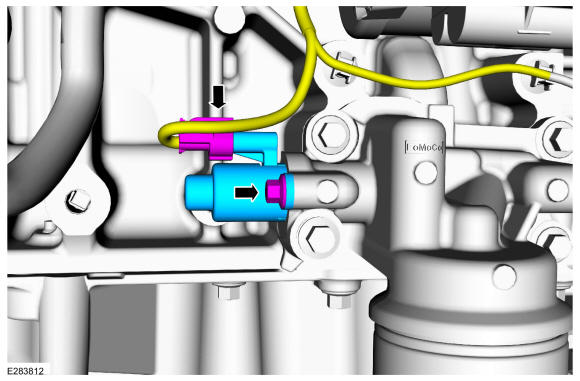

- Disconnect the electrical connector, remove the bolt and the oil pressure control solenoid.
Torque: 97 lb.in (11 Nm)
