Section 1014 (OEM Wiring Diagrams)
›
Audio System/Navigation - Navigator
Audio System/Navigation - Navigator
WARNING:
This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

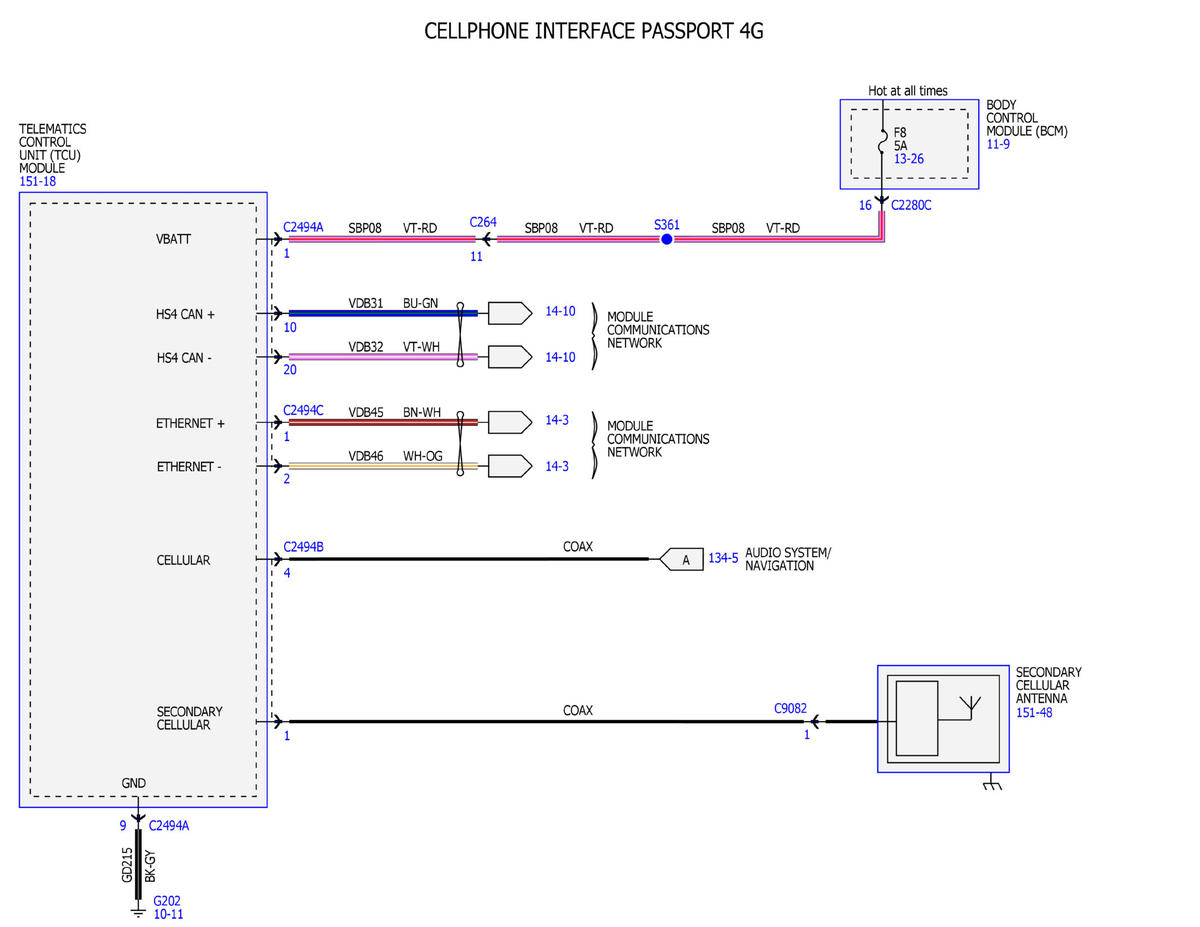

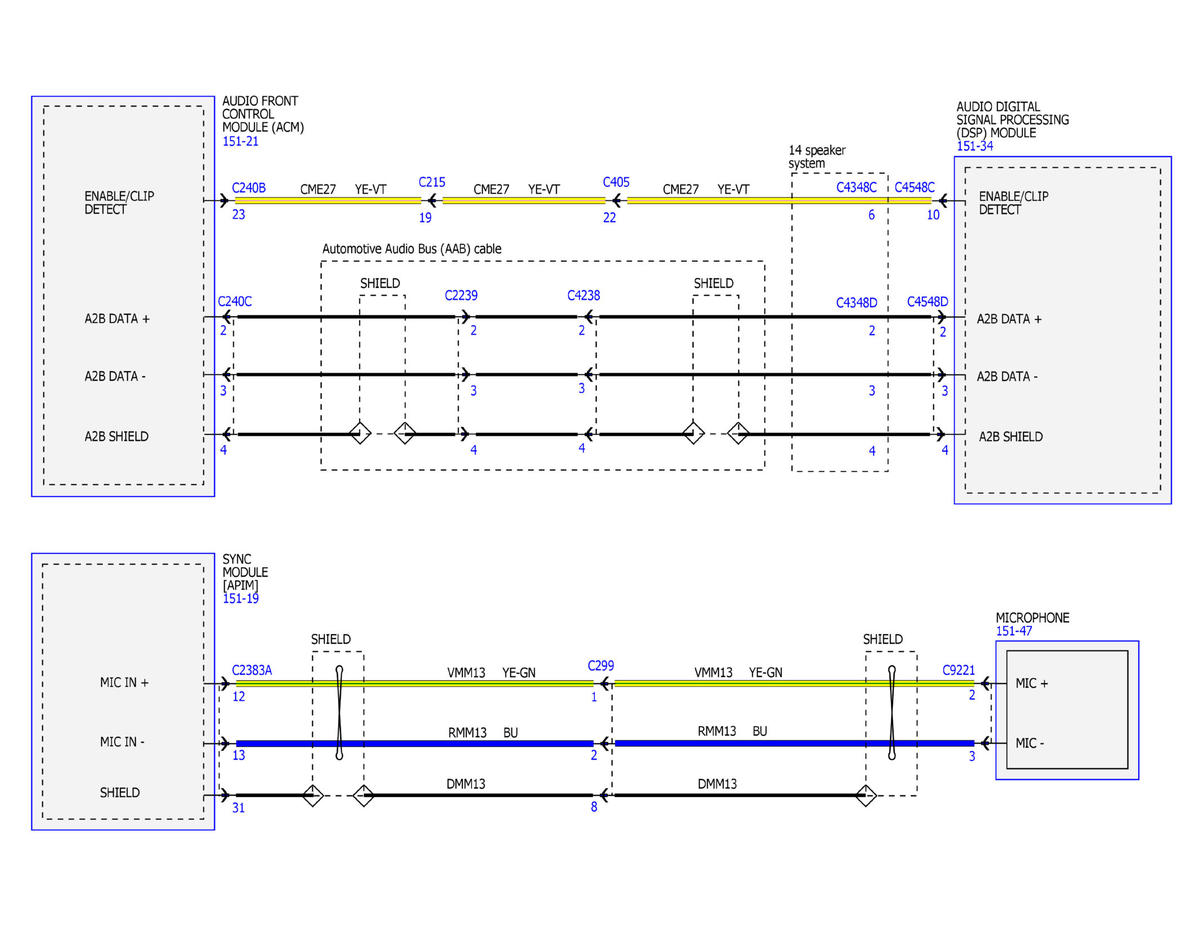

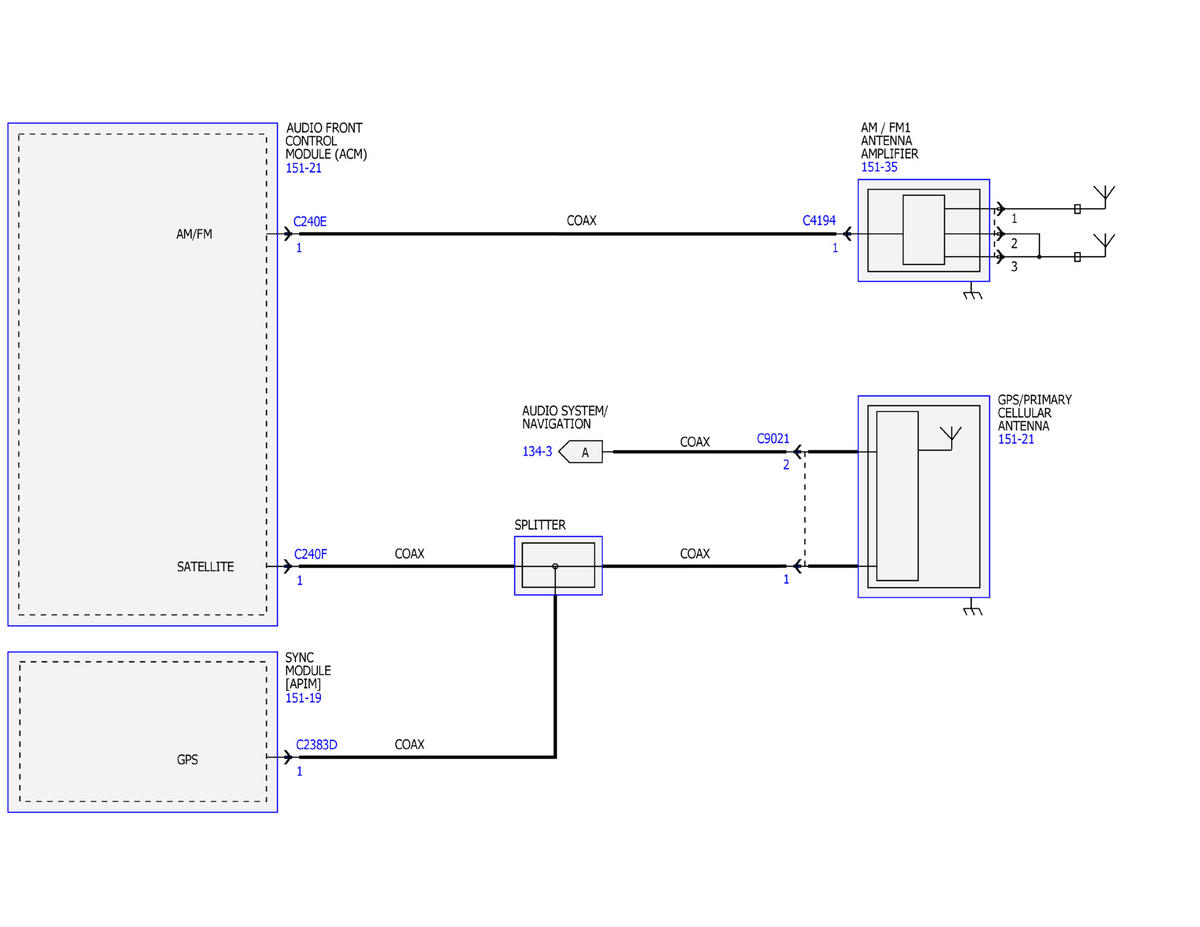

Fig 1: Audio System/Navigation - Navigator Wiring Diagrams (1 Of 21)
Courtesy of FORD MOTOR COMPANY

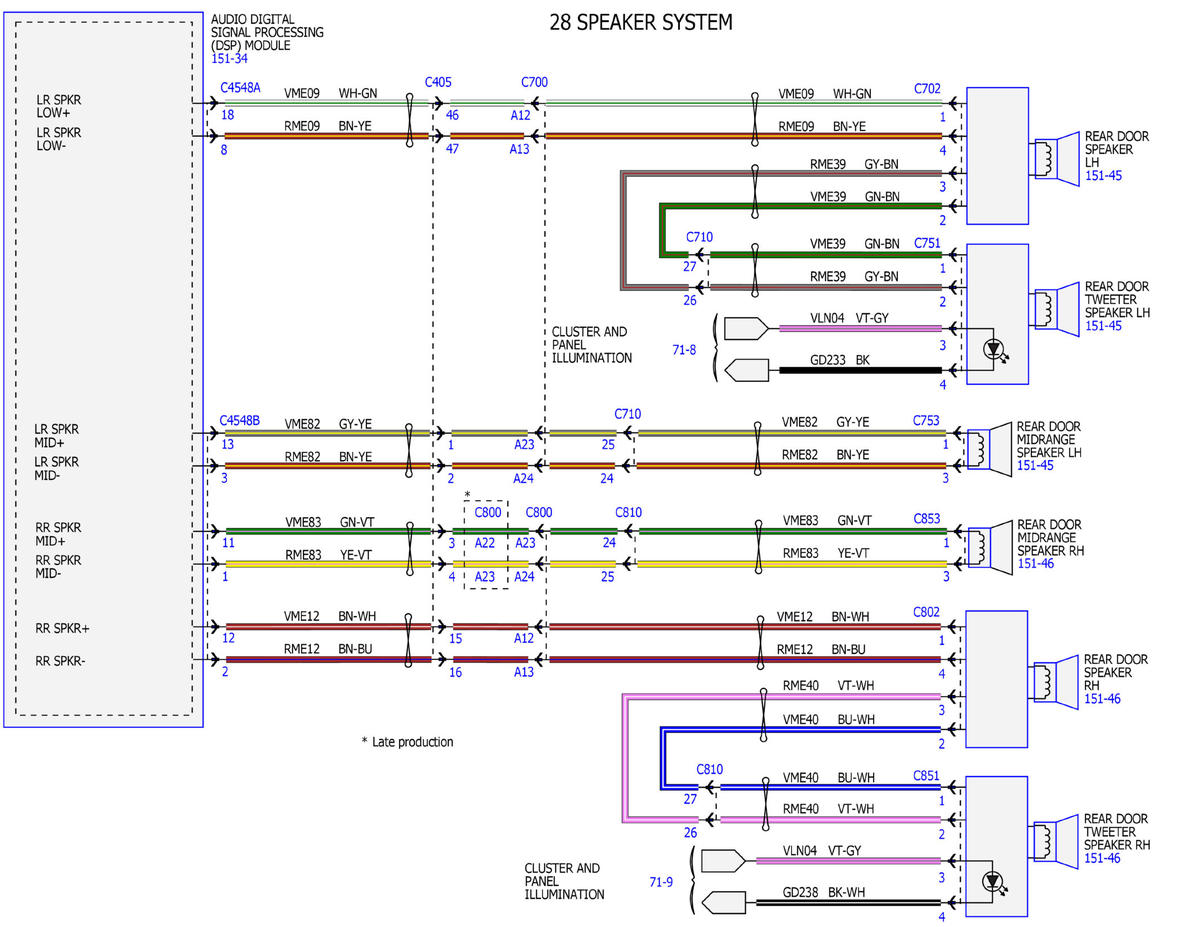

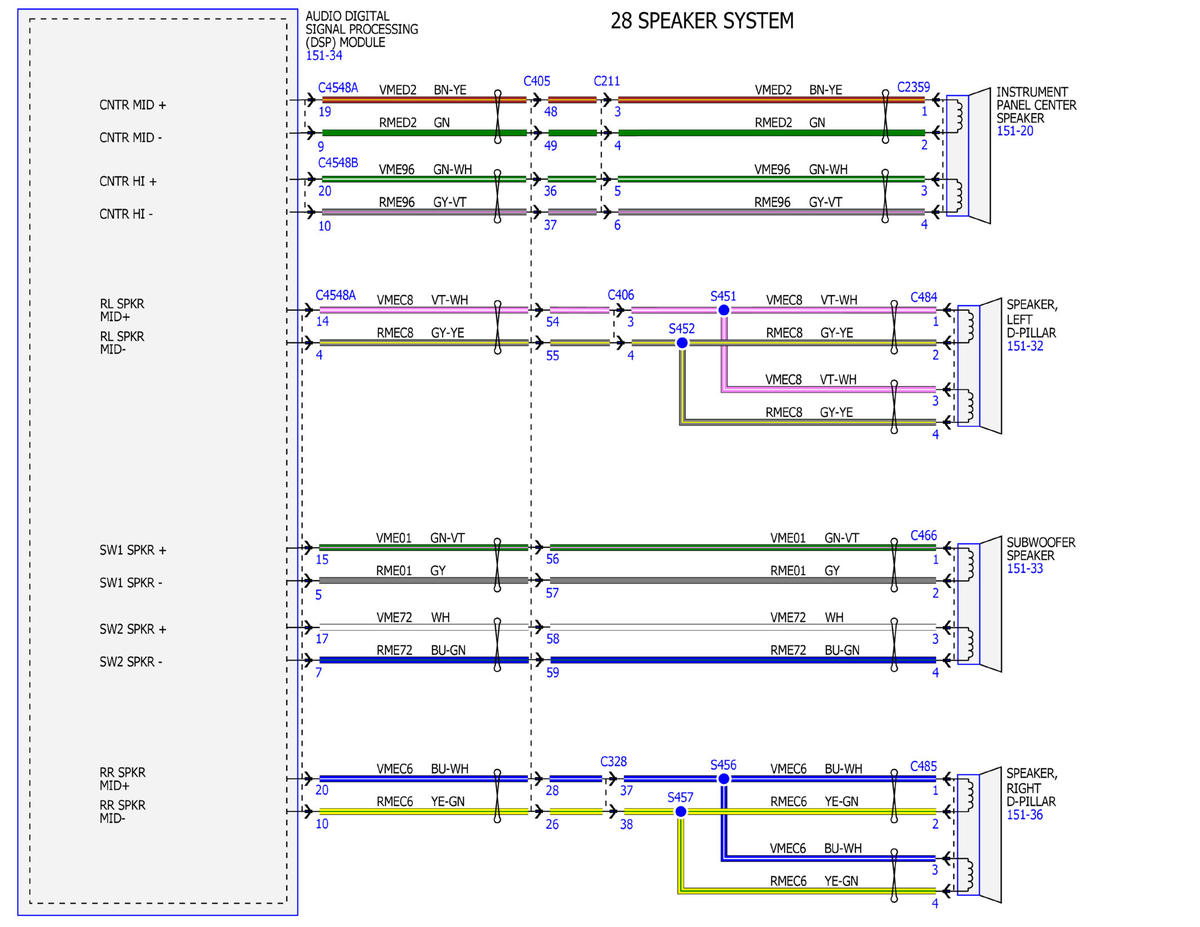

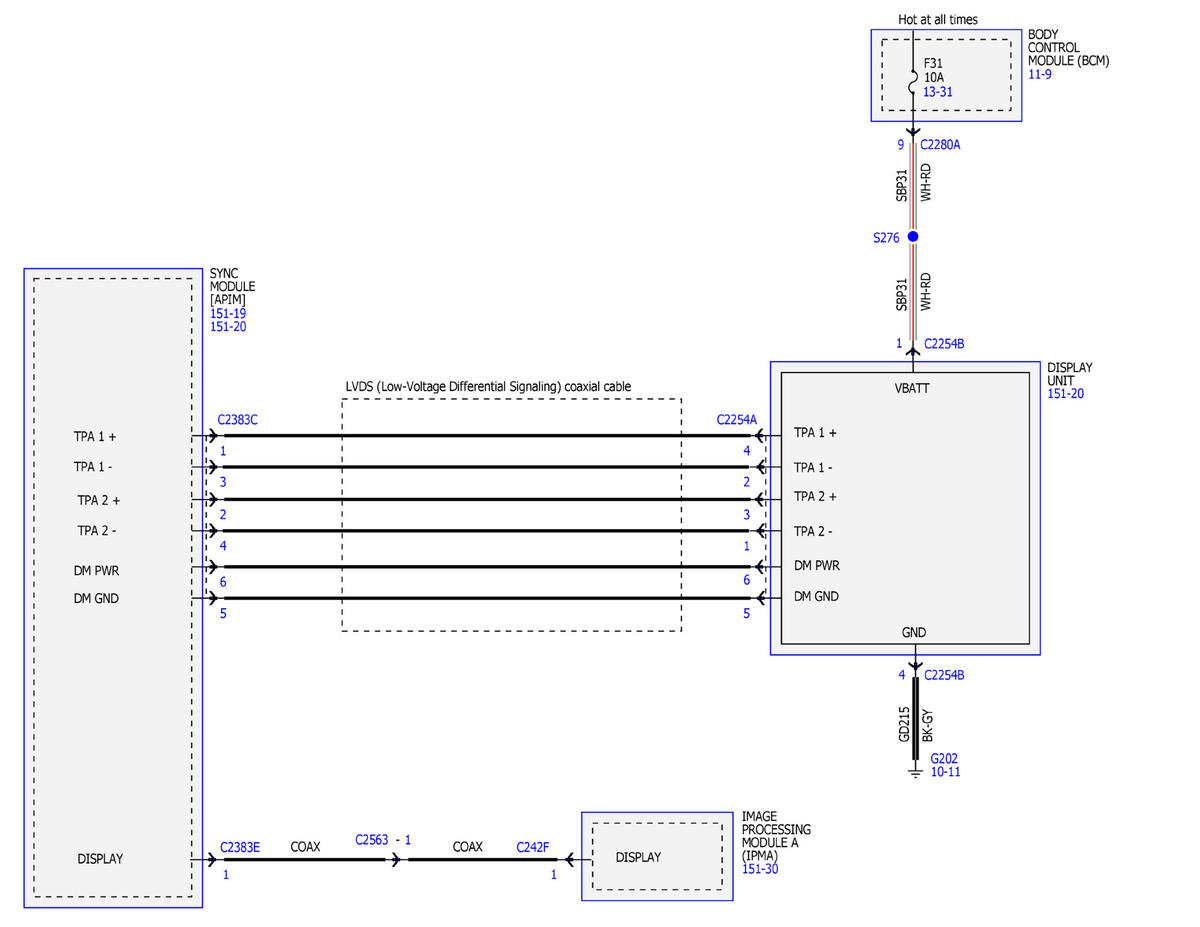

Fig 2: Audio System/Navigation - Navigator Wiring Diagrams (2 Of 21)
Courtesy of FORD MOTOR COMPANY

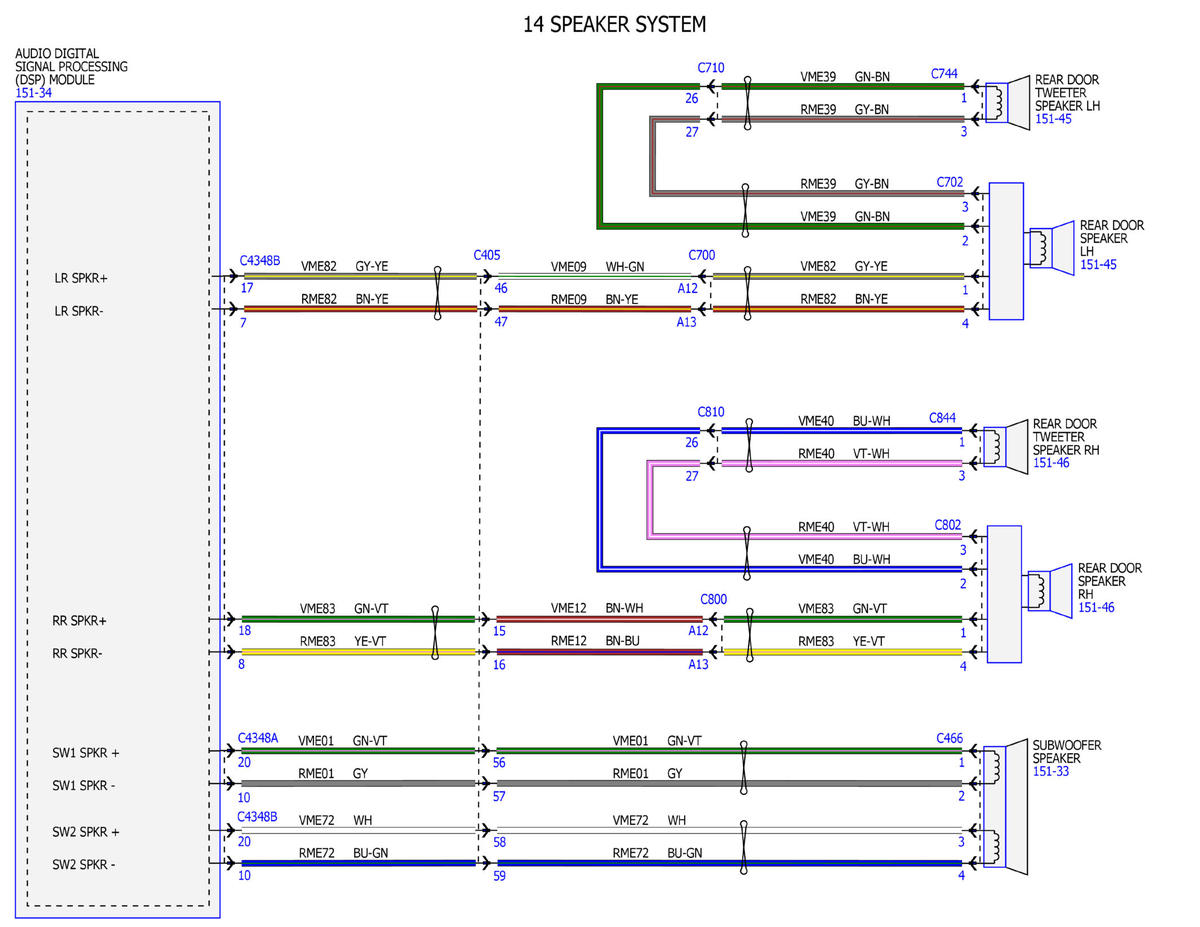

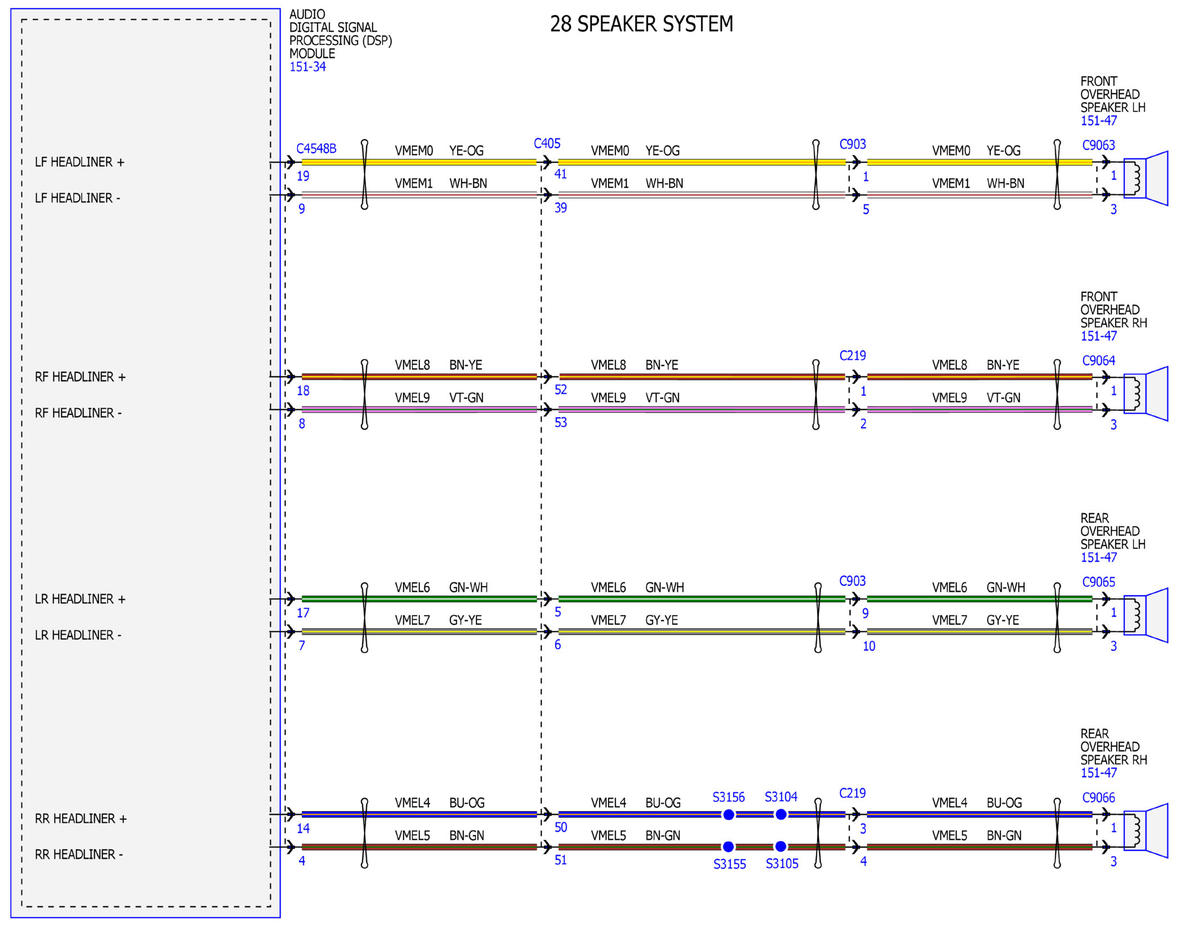

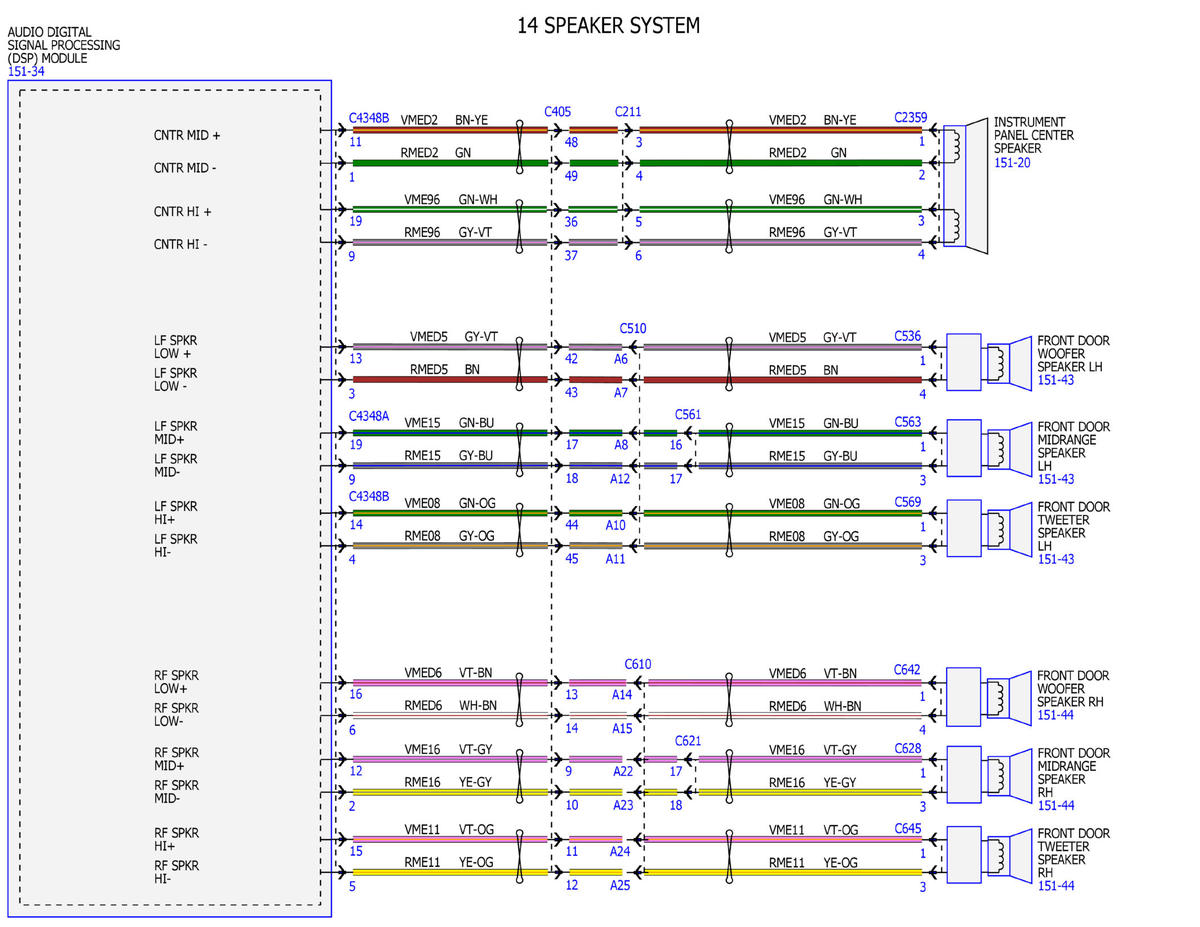

Fig 3: Audio System/Navigation - Navigator Wiring Diagrams (3 Of 21)
Courtesy of FORD MOTOR COMPANY

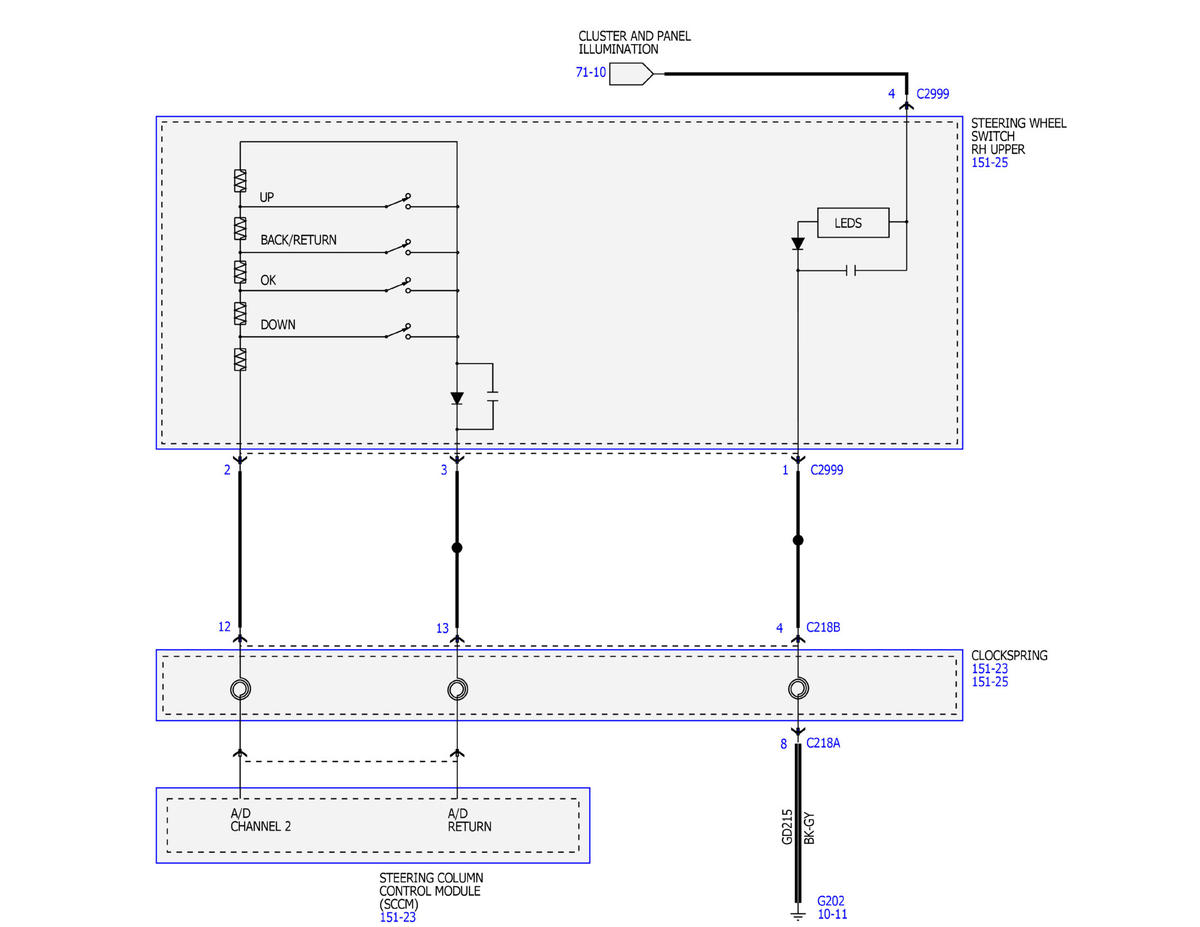

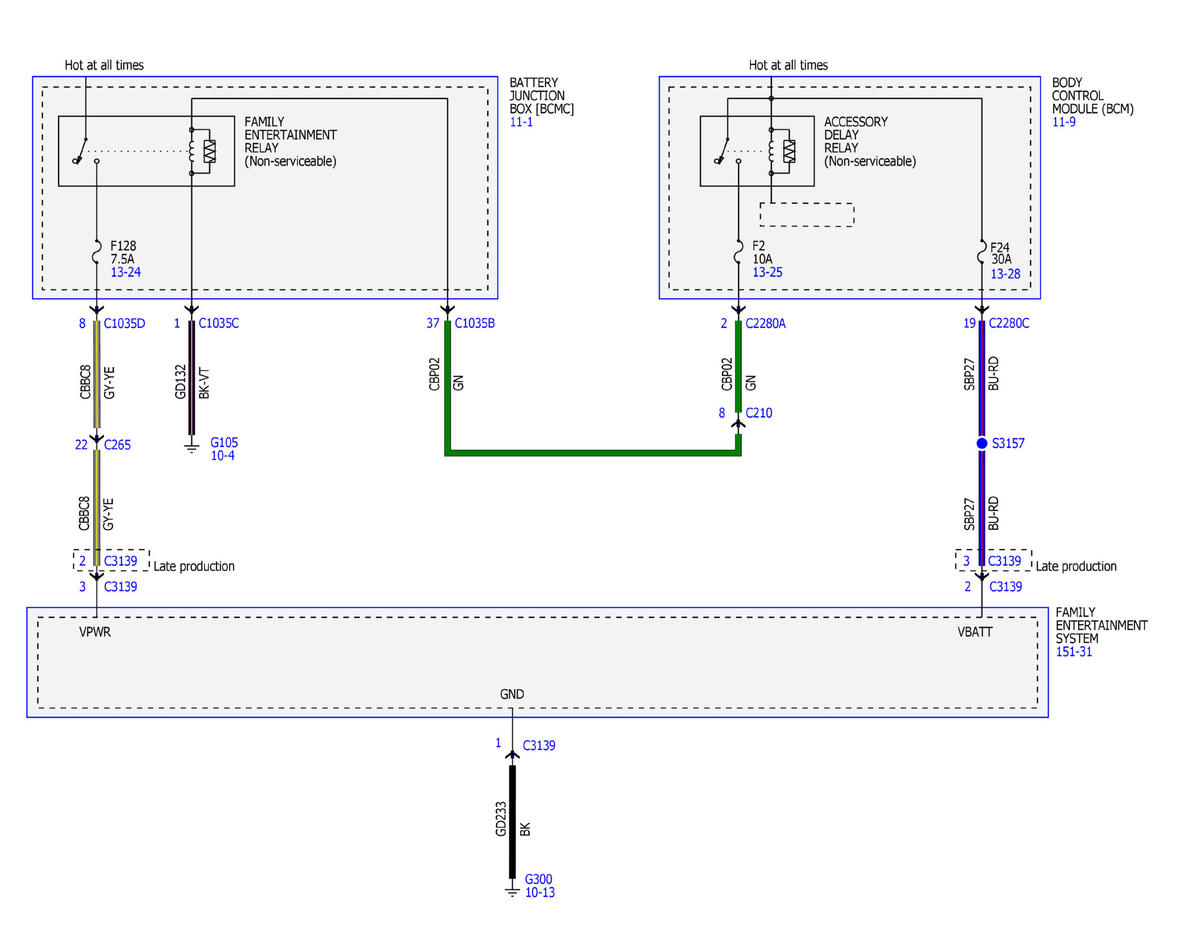

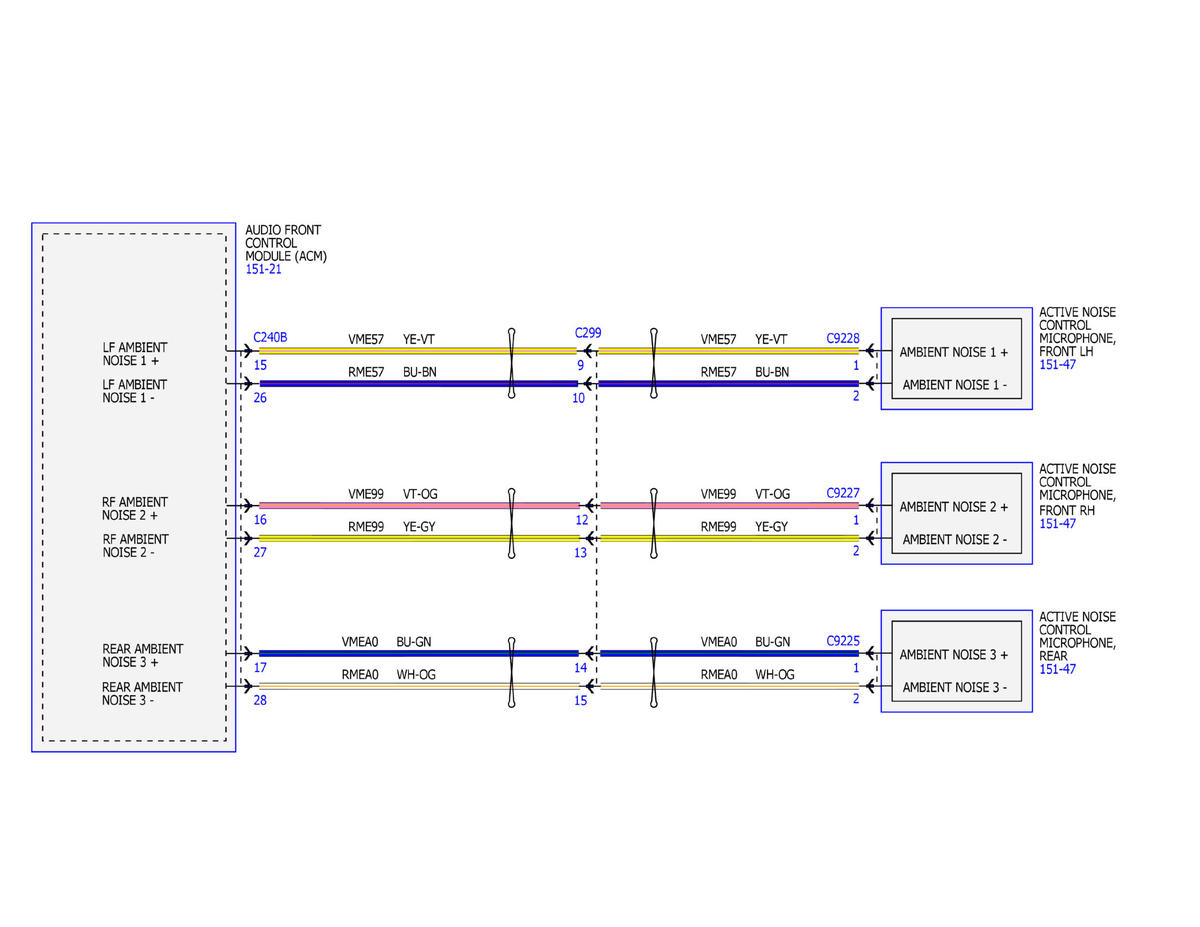

Fig 4: Audio System/Navigation - Navigator Wiring Diagrams (4 Of 21)
Courtesy of FORD MOTOR COMPANY

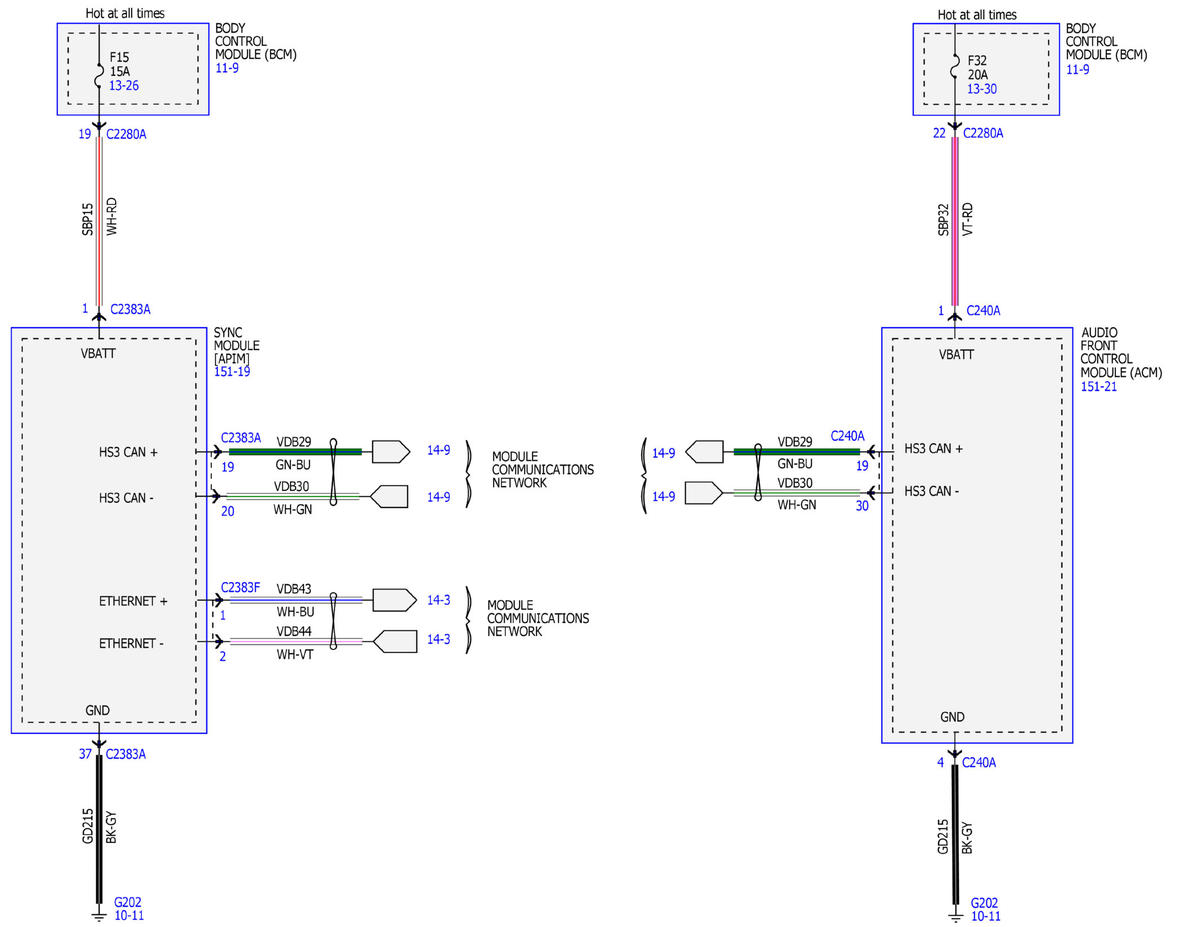

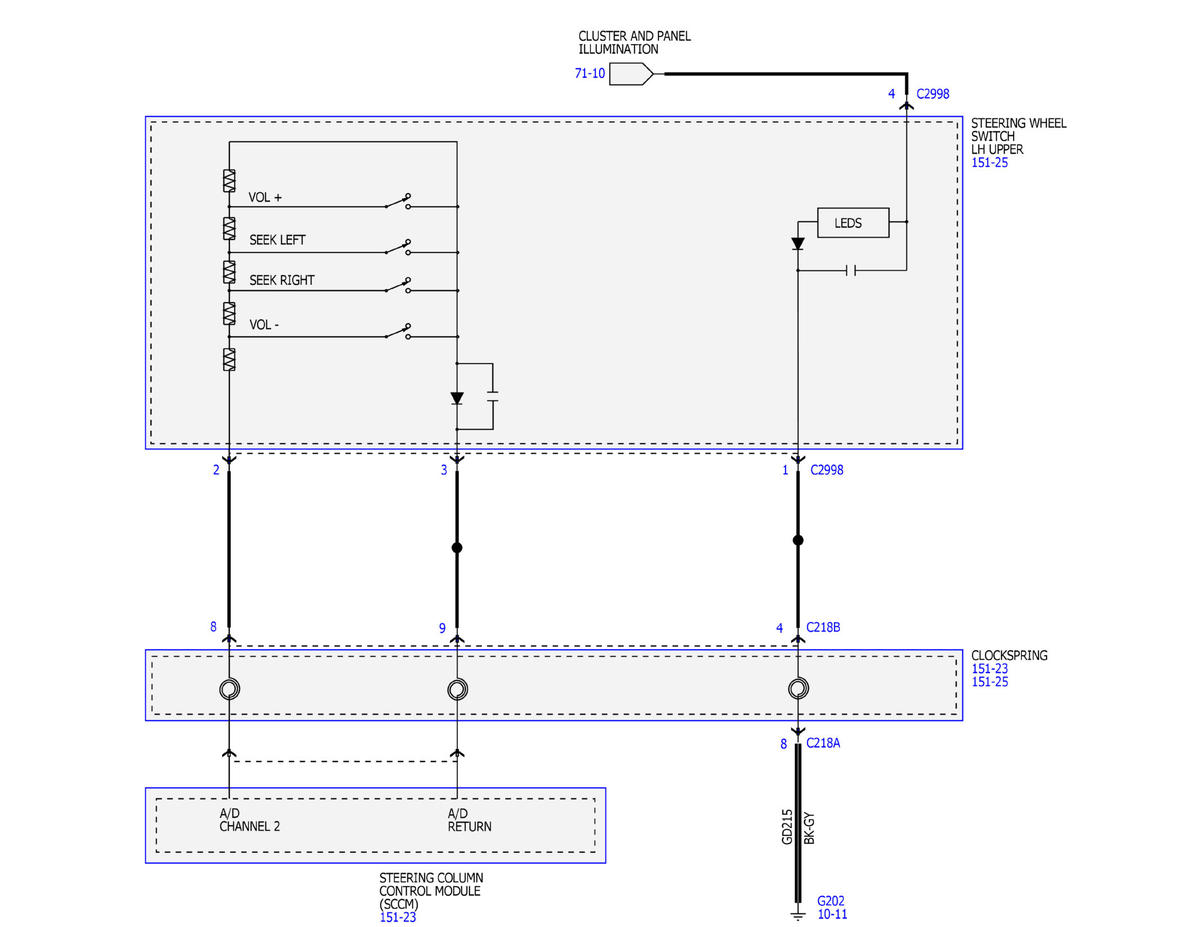

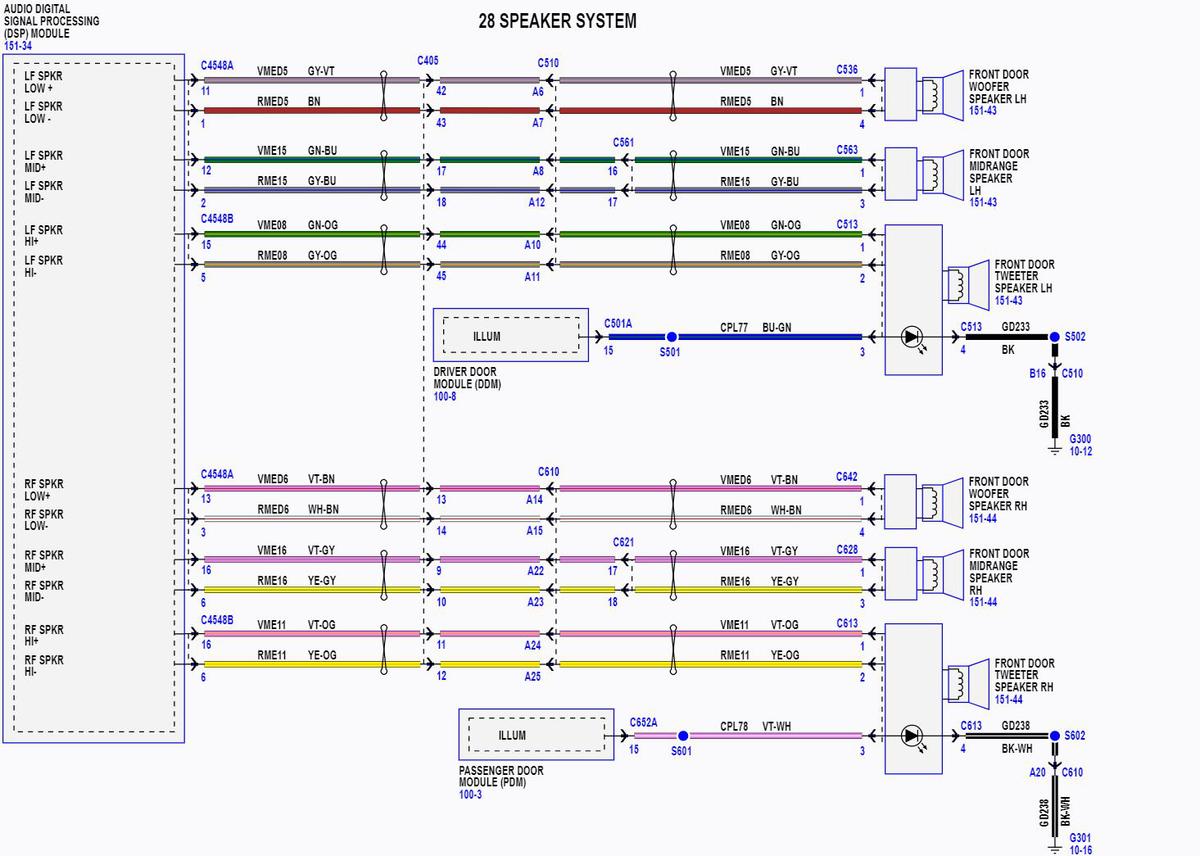

Fig 5: Audio System/Navigation - Navigator Wiring Diagrams (5 Of 21)
Courtesy of FORD MOTOR COMPANY

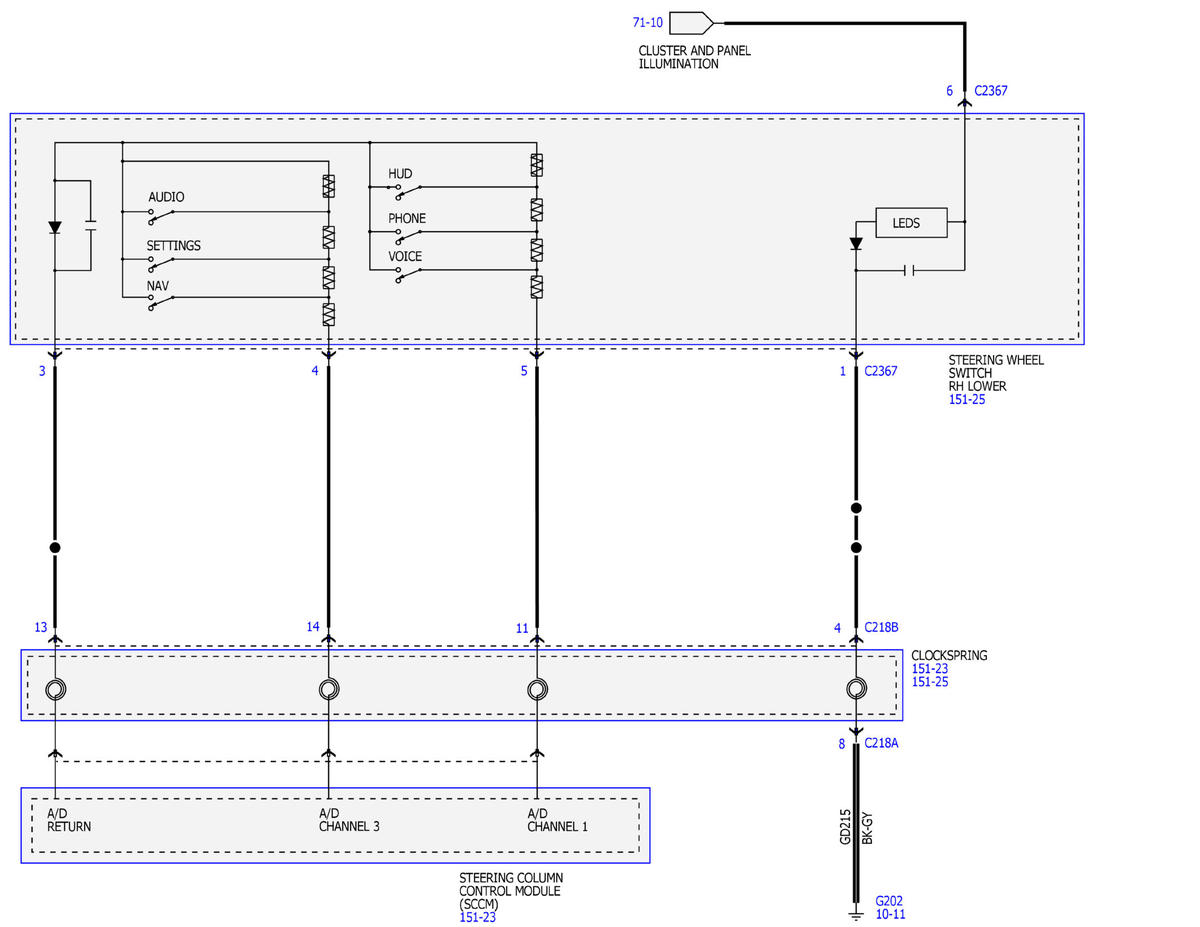

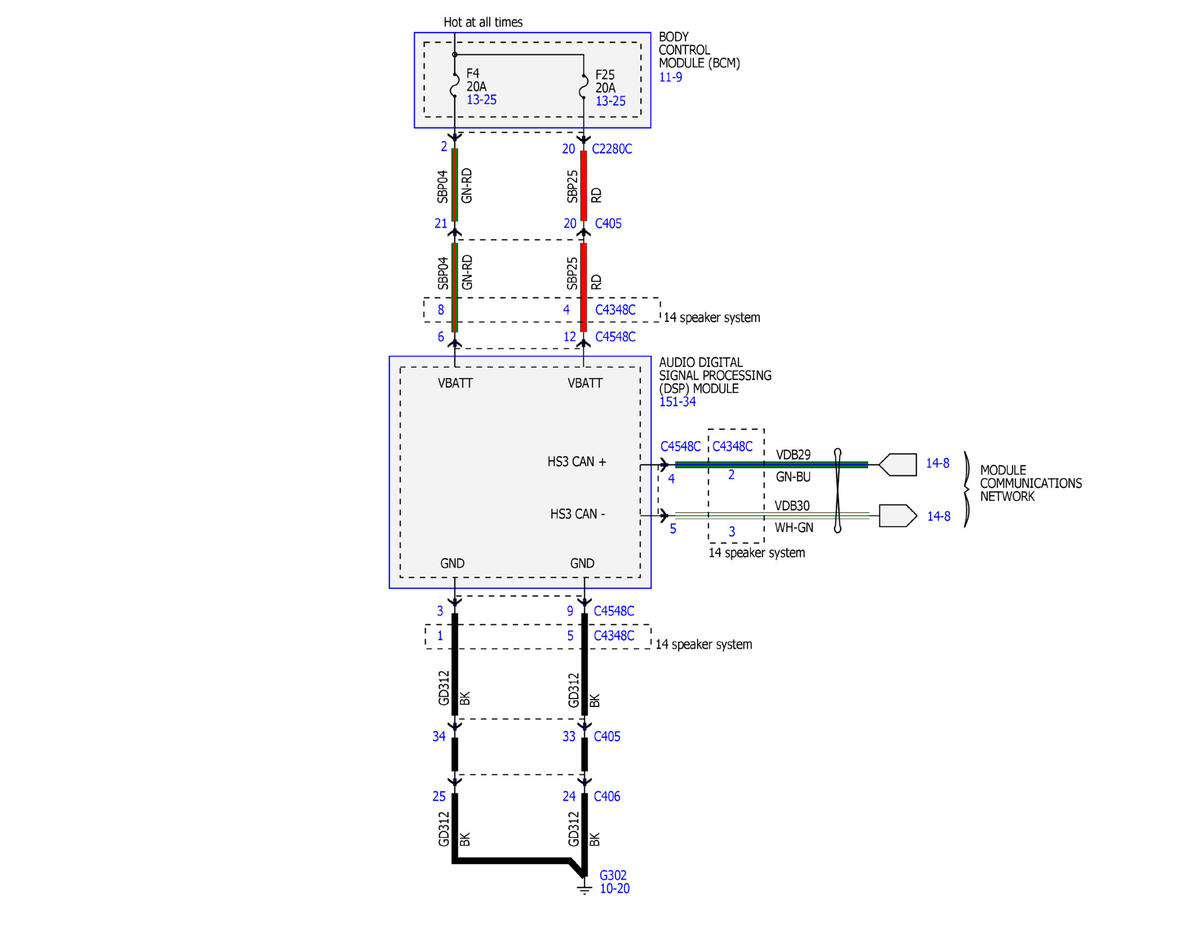

Fig 6: Audio System/Navigation - Navigator Wiring Diagrams (6 Of 21)
Courtesy of FORD MOTOR COMPANY

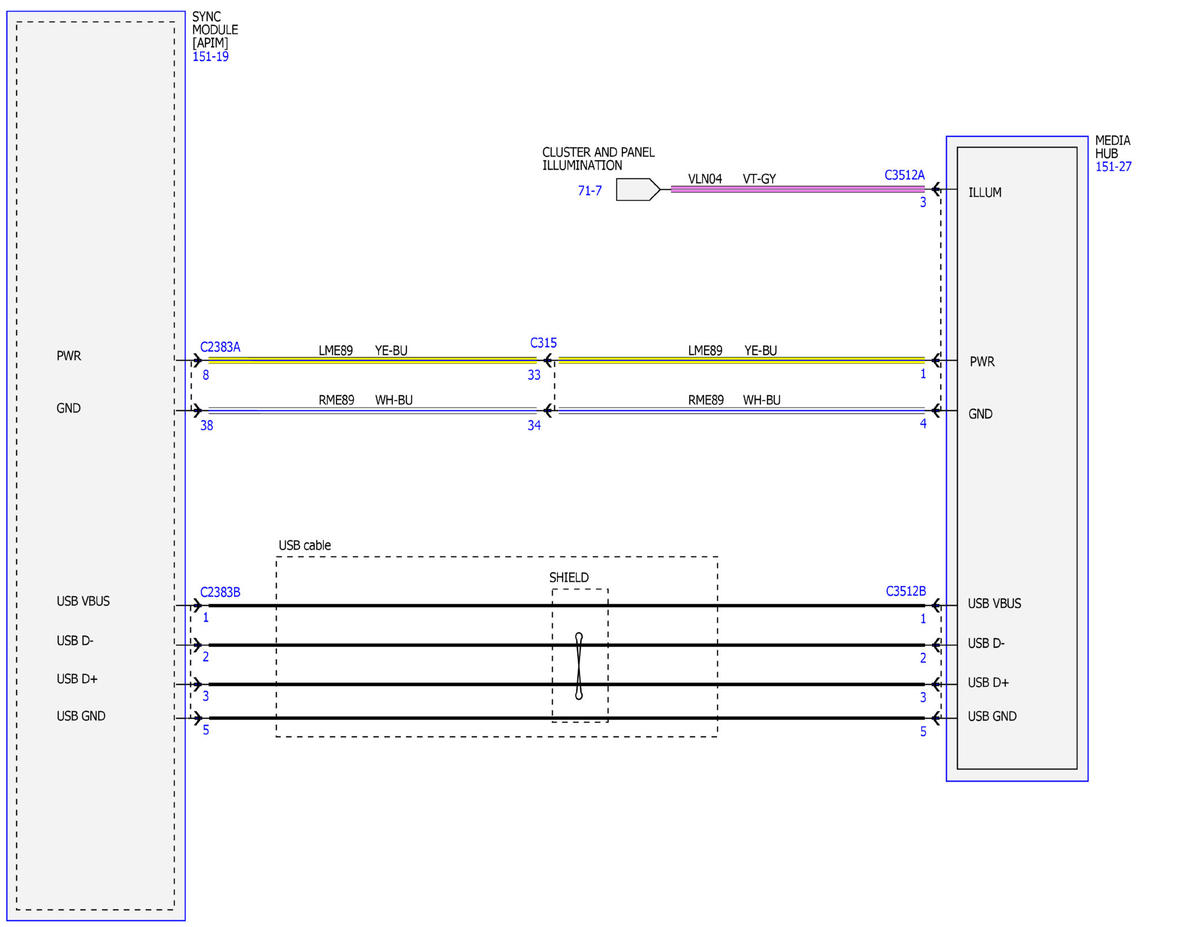

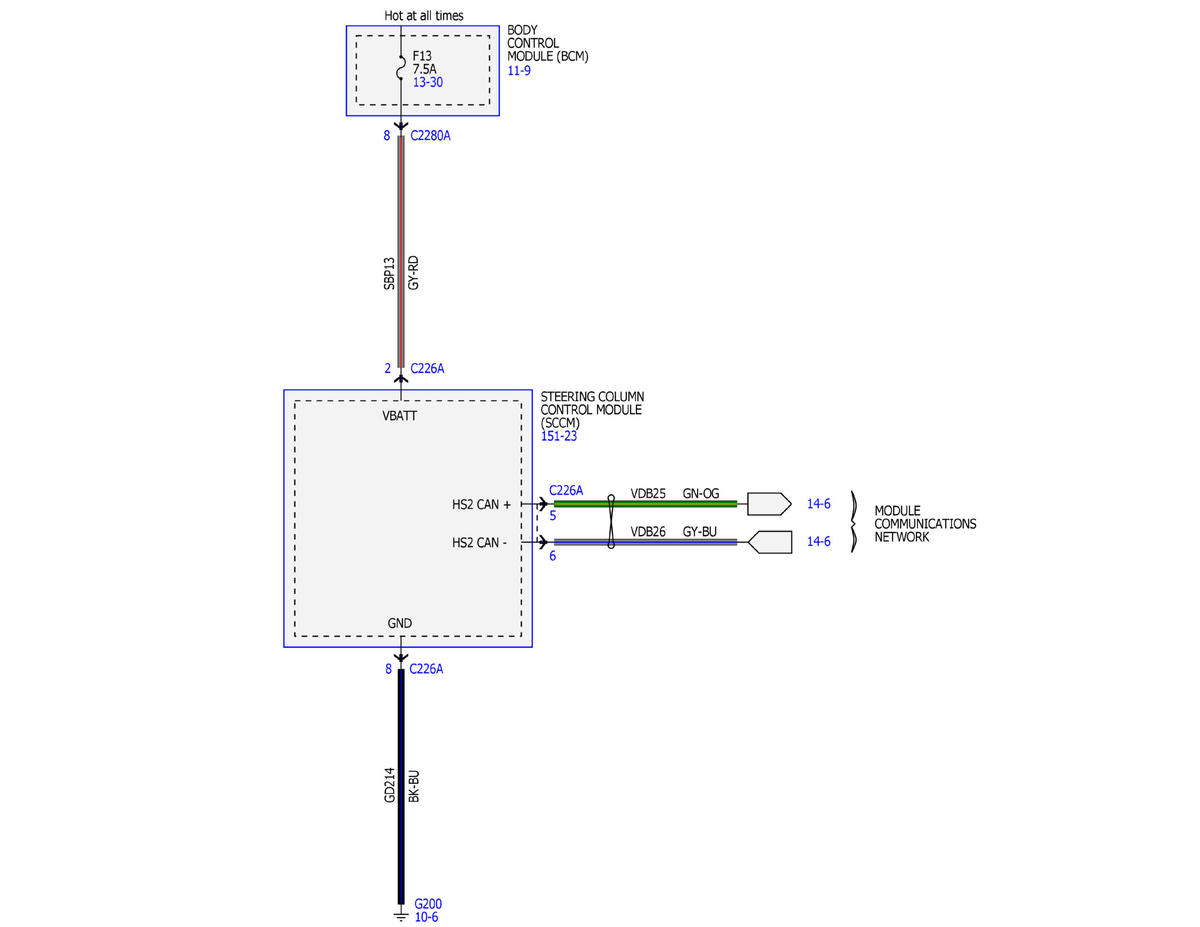

Fig 7: Audio System/Navigation - Navigator Wiring Diagrams (7 Of 21)
Courtesy of FORD MOTOR COMPANY

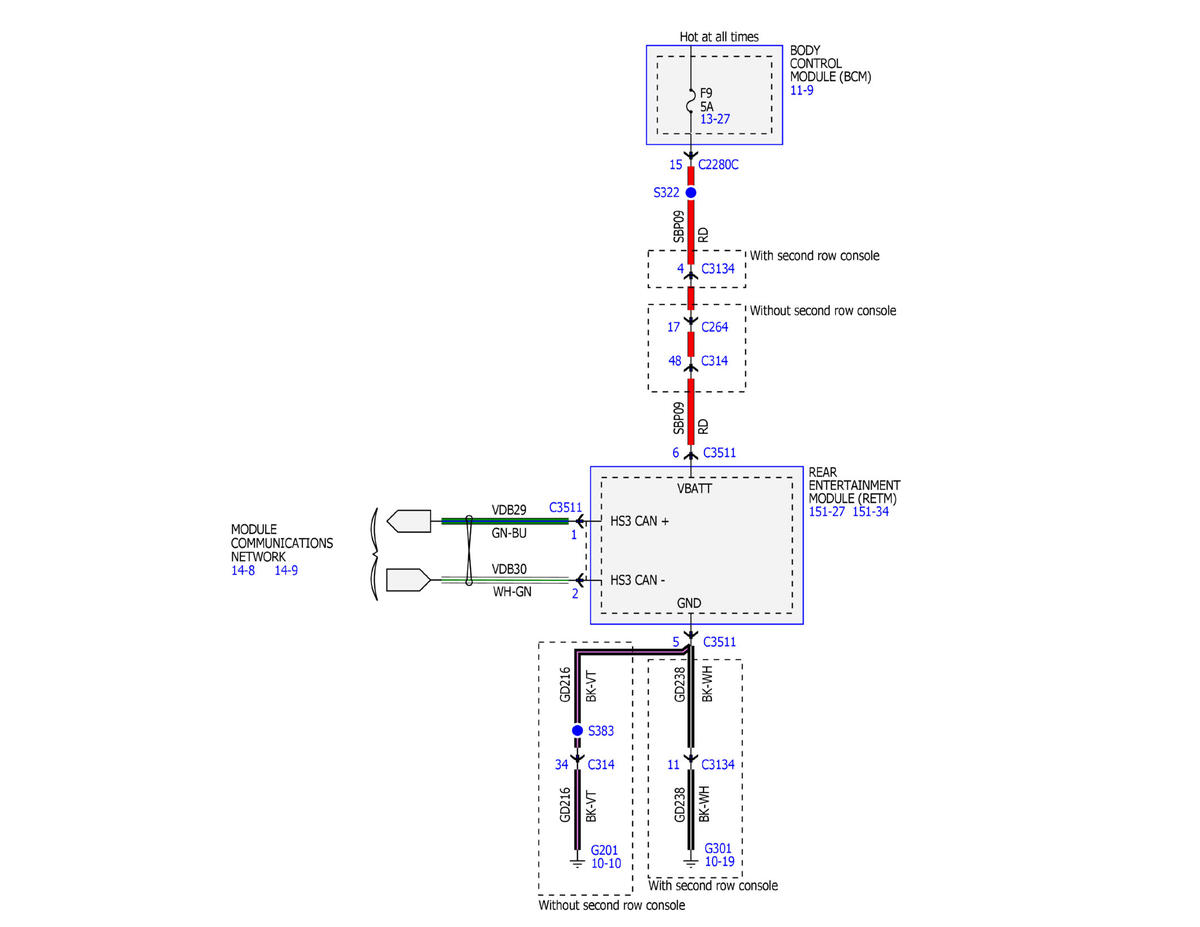

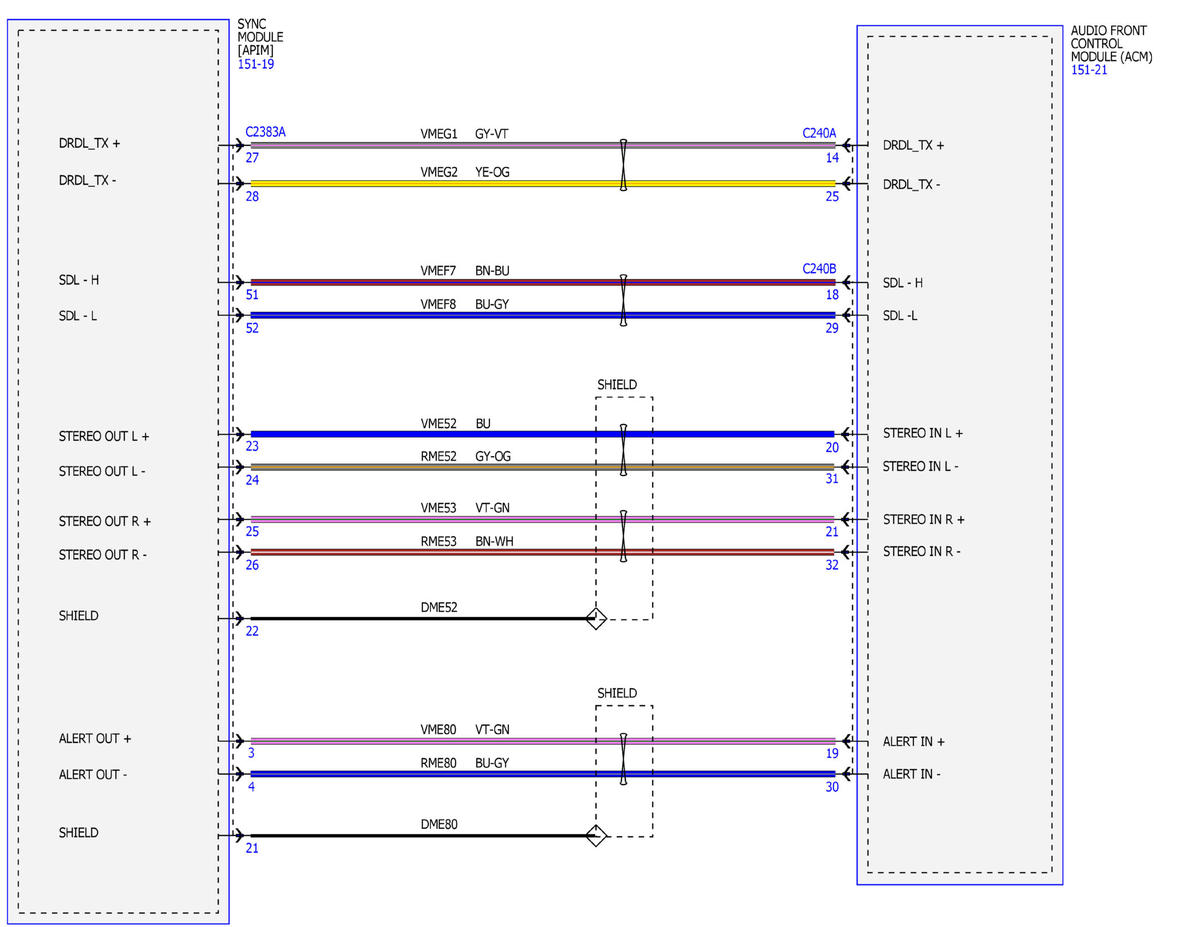

Fig 8: Audio System/Navigation - Navigator Wiring Diagrams (8 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 9: Audio System/Navigation - Navigator Wiring Diagrams (9 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 10: Audio System/Navigation - Navigator Wiring Diagrams (10 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 11: Audio System/Navigation - Navigator Wiring Diagrams (11 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 12: Audio System/Navigation - Navigator Wiring Diagrams (12 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 13: Audio System/Navigation - Navigator Wiring Diagrams (13 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 14: Audio System/Navigation - Navigator Wiring Diagrams (14 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 15: Audio System/Navigation - Navigator Wiring Diagrams (15 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 16: Audio System/Navigation - Navigator Wiring Diagrams (16 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 17: Audio System/Navigation - Navigator Wiring Diagrams (17 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 18: Audio System/Navigation - Navigator Wiring Diagrams (18 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 19: Audio System/Navigation - Navigator Wiring Diagrams (19 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 20: Audio System/Navigation - Navigator Wiring Diagrams (20 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 21: Audio System/Navigation - Navigator Wiring Diagrams (21 Of 21)
Courtesy of FORD MOTOR COMPANY
