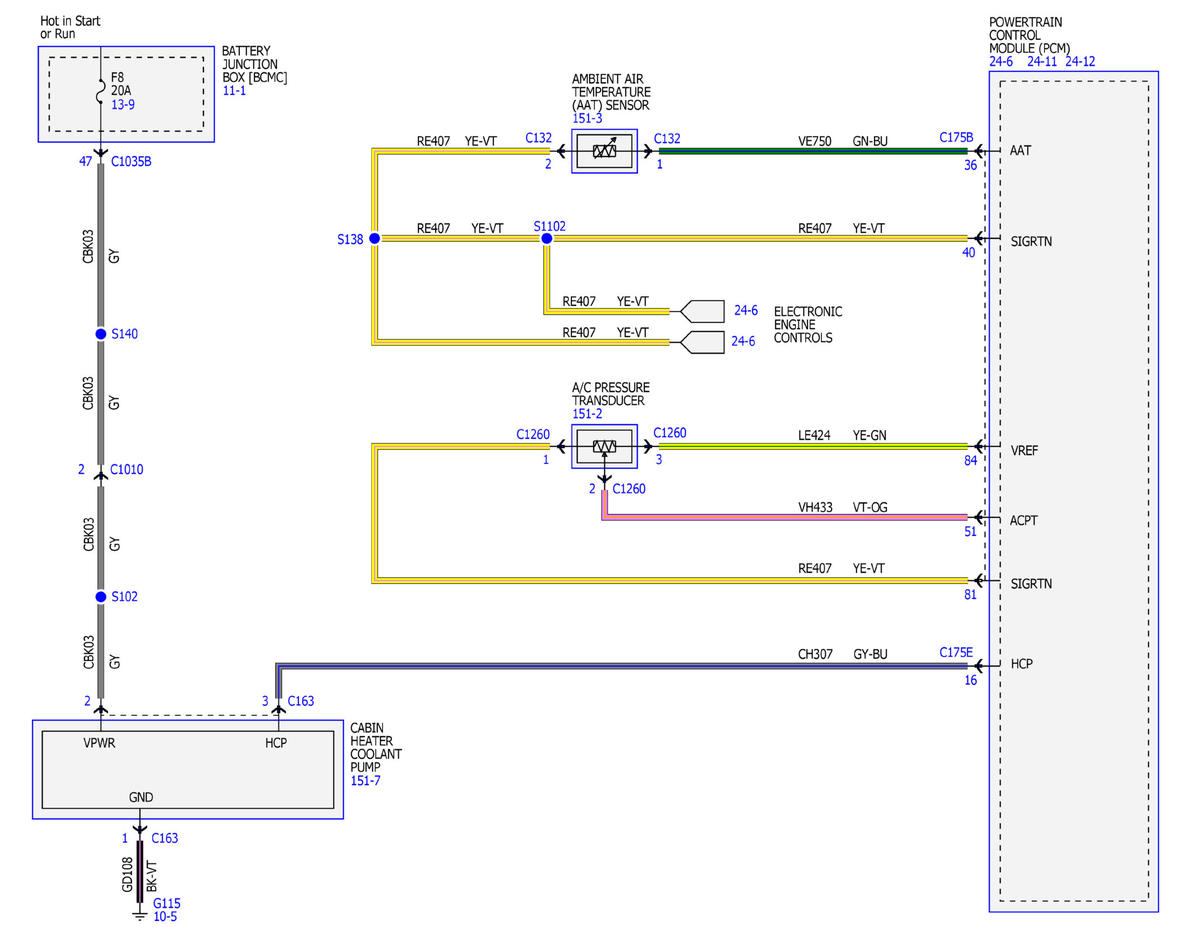

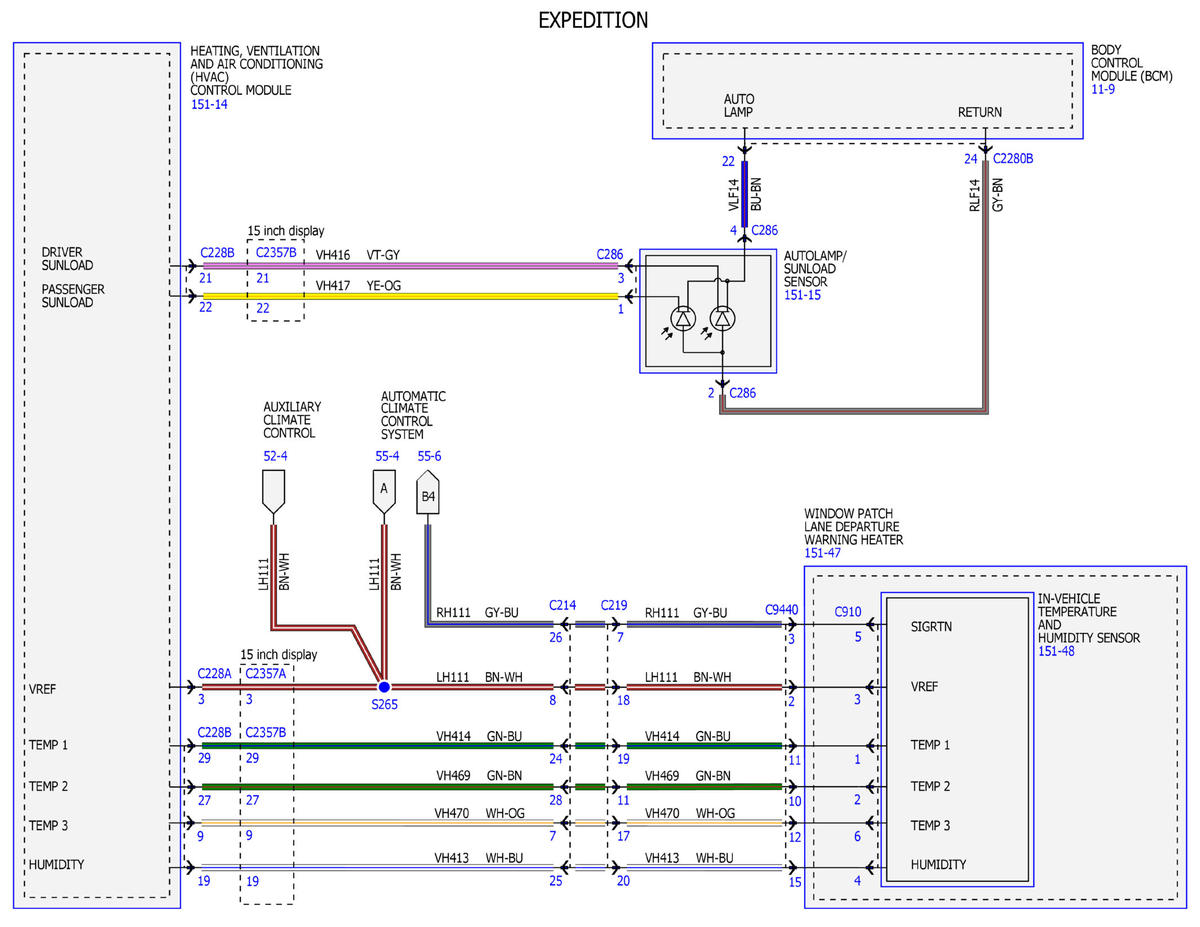

Fig 1: Automatic Climate Control System Wiring Diagrams (1 Of 12)
Courtesy of FORD MOTOR COMPANY

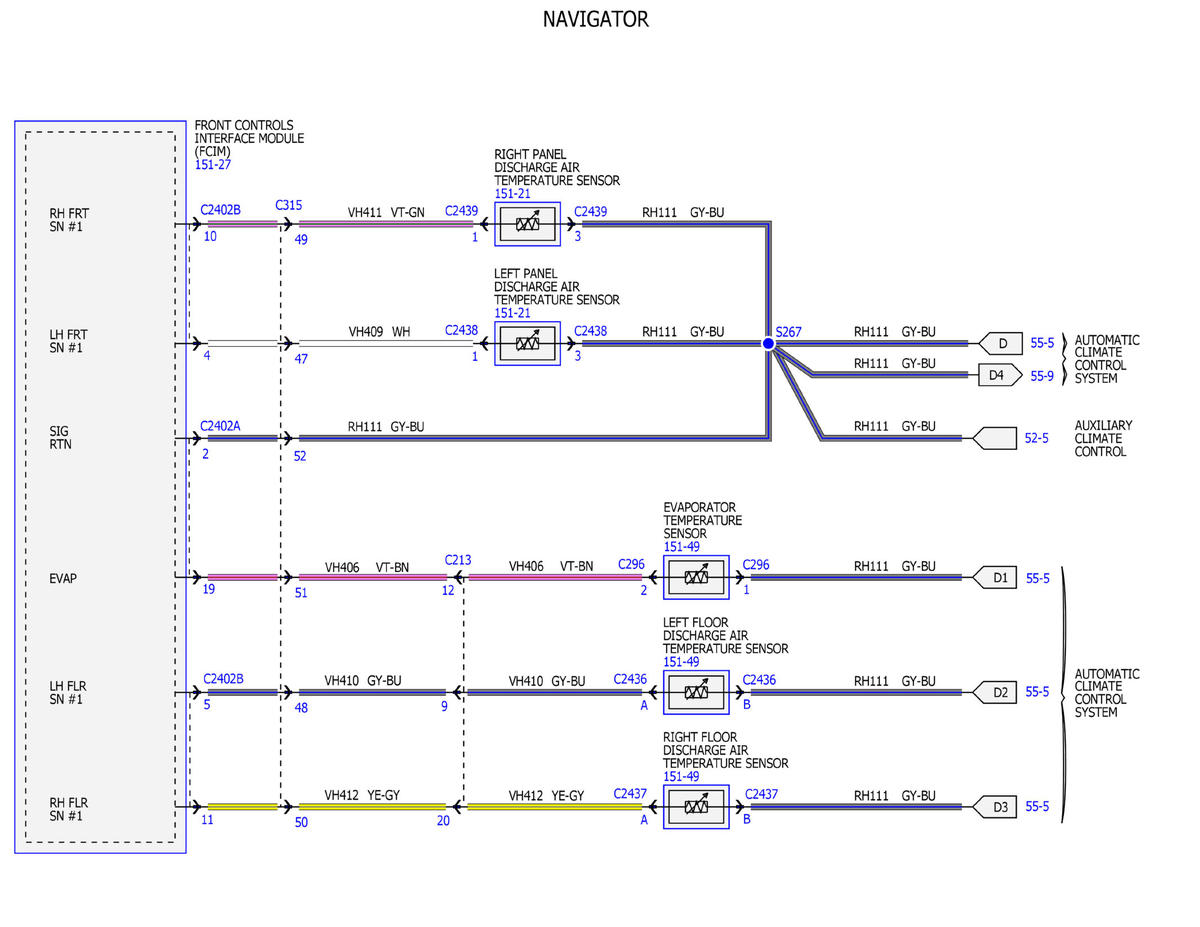

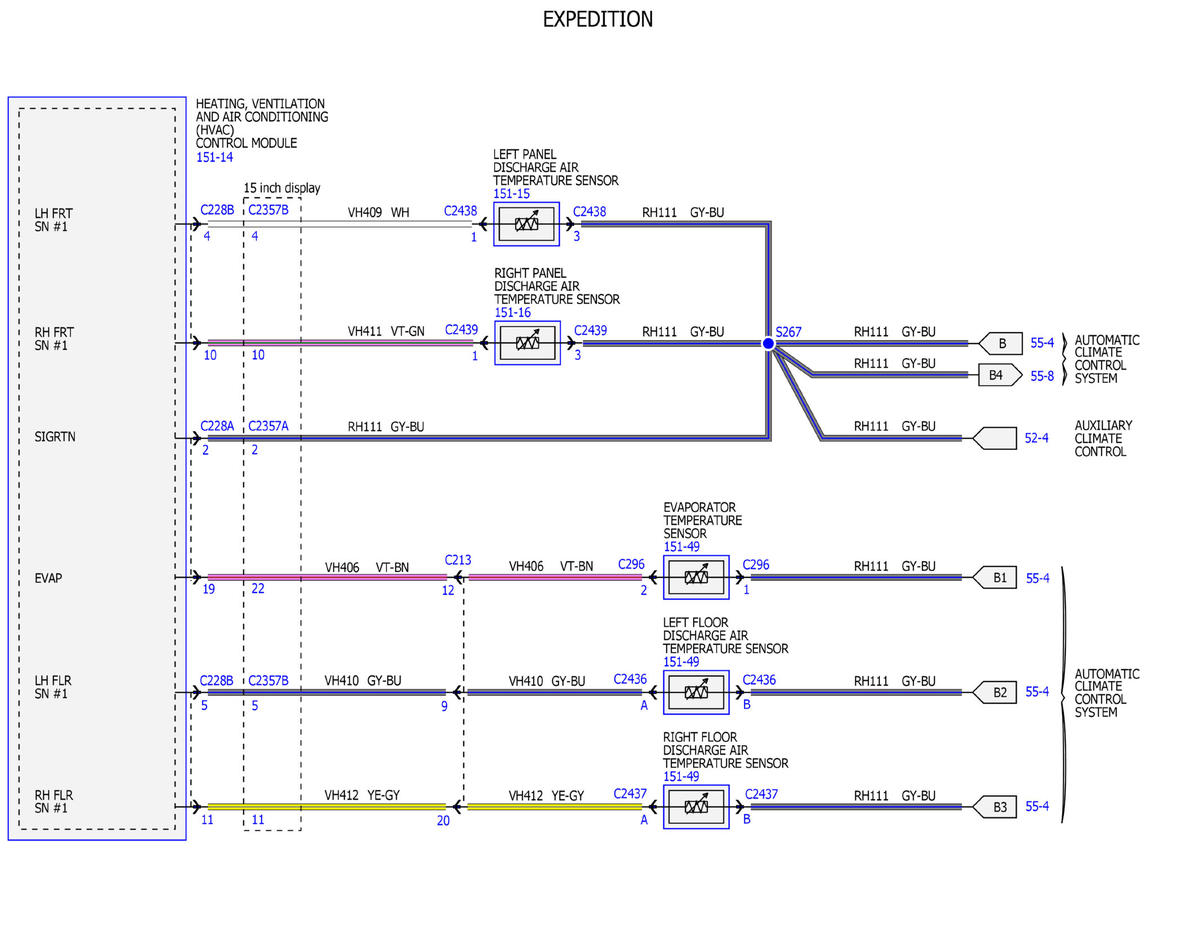

Fig 2: Automatic Climate Control System Wiring Diagrams (2 Of 12)
Courtesy of FORD MOTOR COMPANY

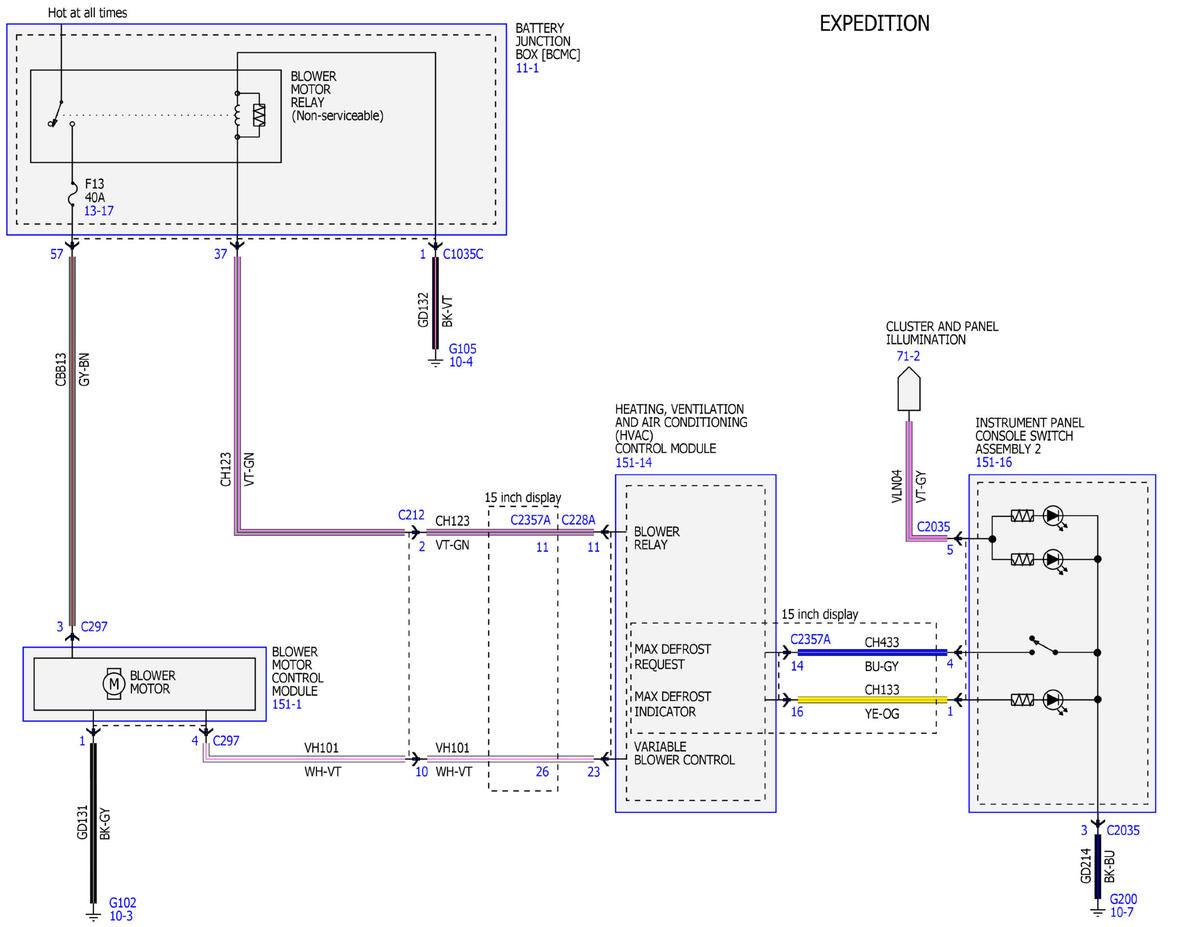

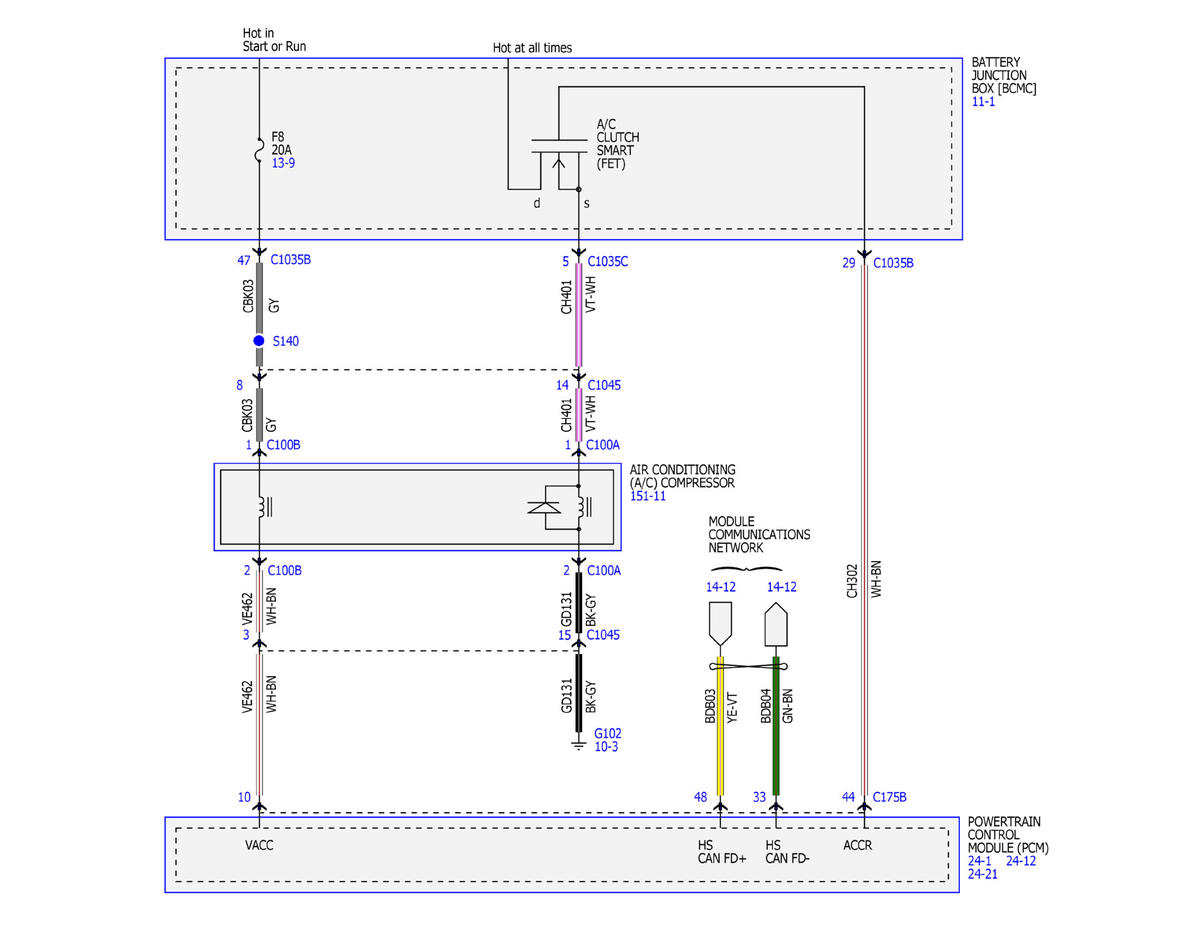

Fig 3: Automatic Climate Control System Wiring Diagrams (3 Of 12)
Courtesy of FORD MOTOR COMPANY

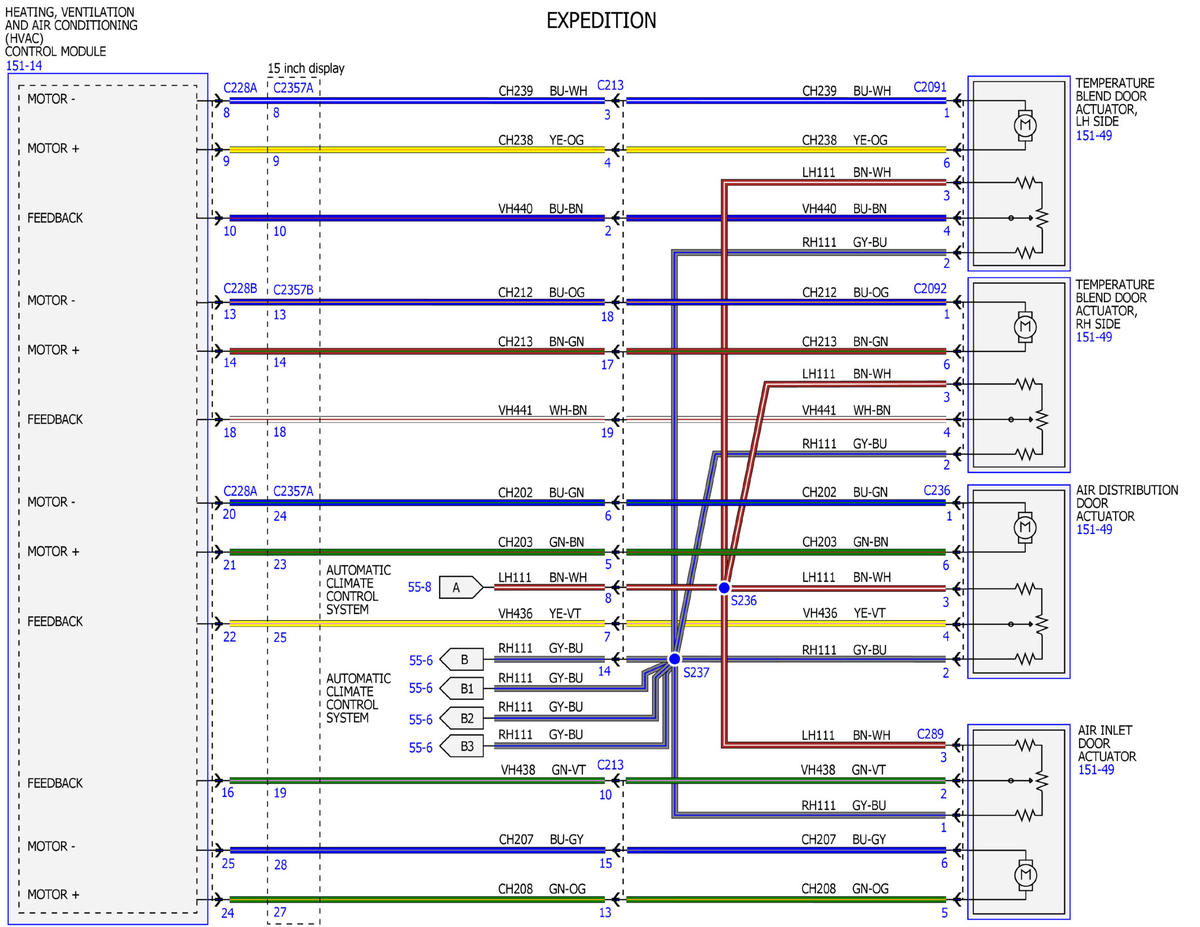

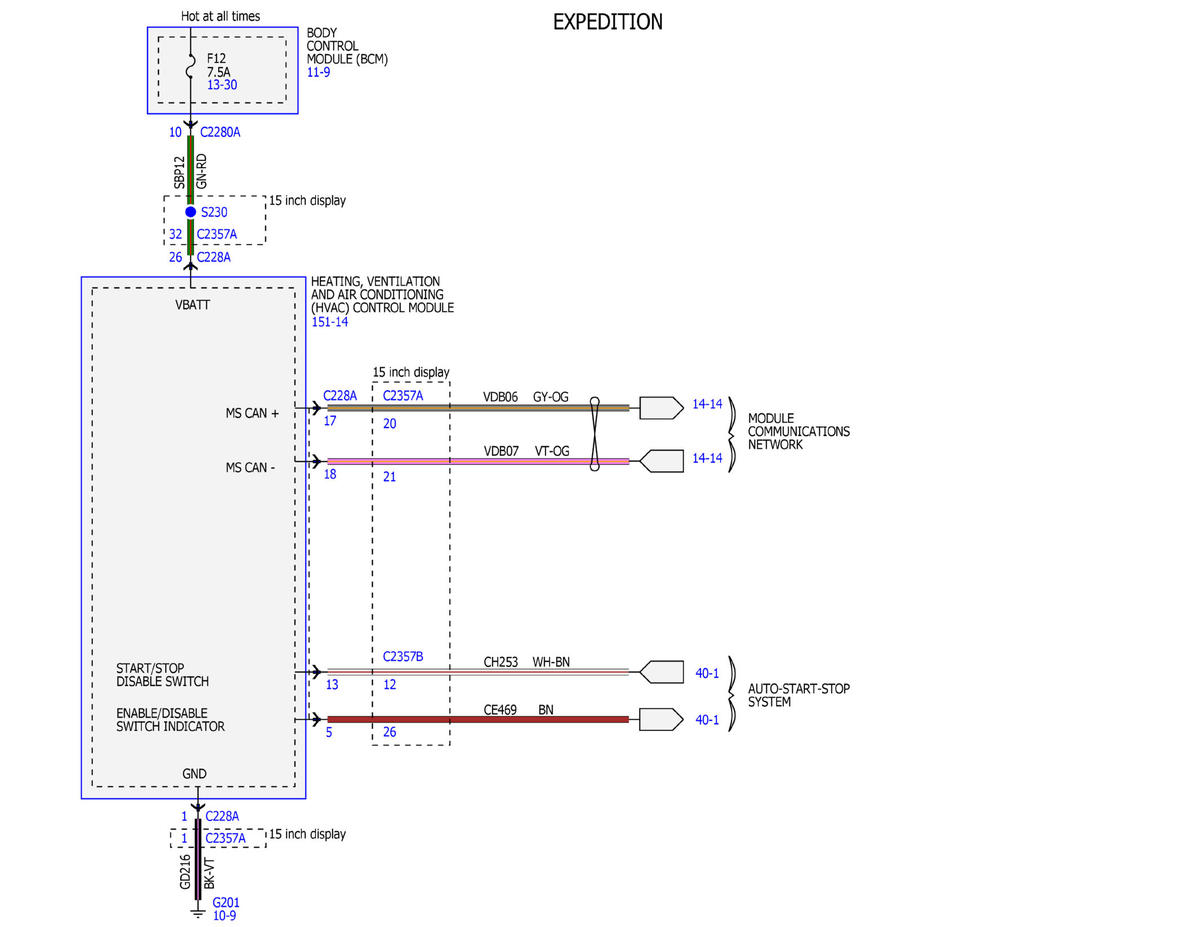

Fig 4: Automatic Climate Control System Wiring Diagrams (4 Of 12)
Courtesy of FORD MOTOR COMPANY

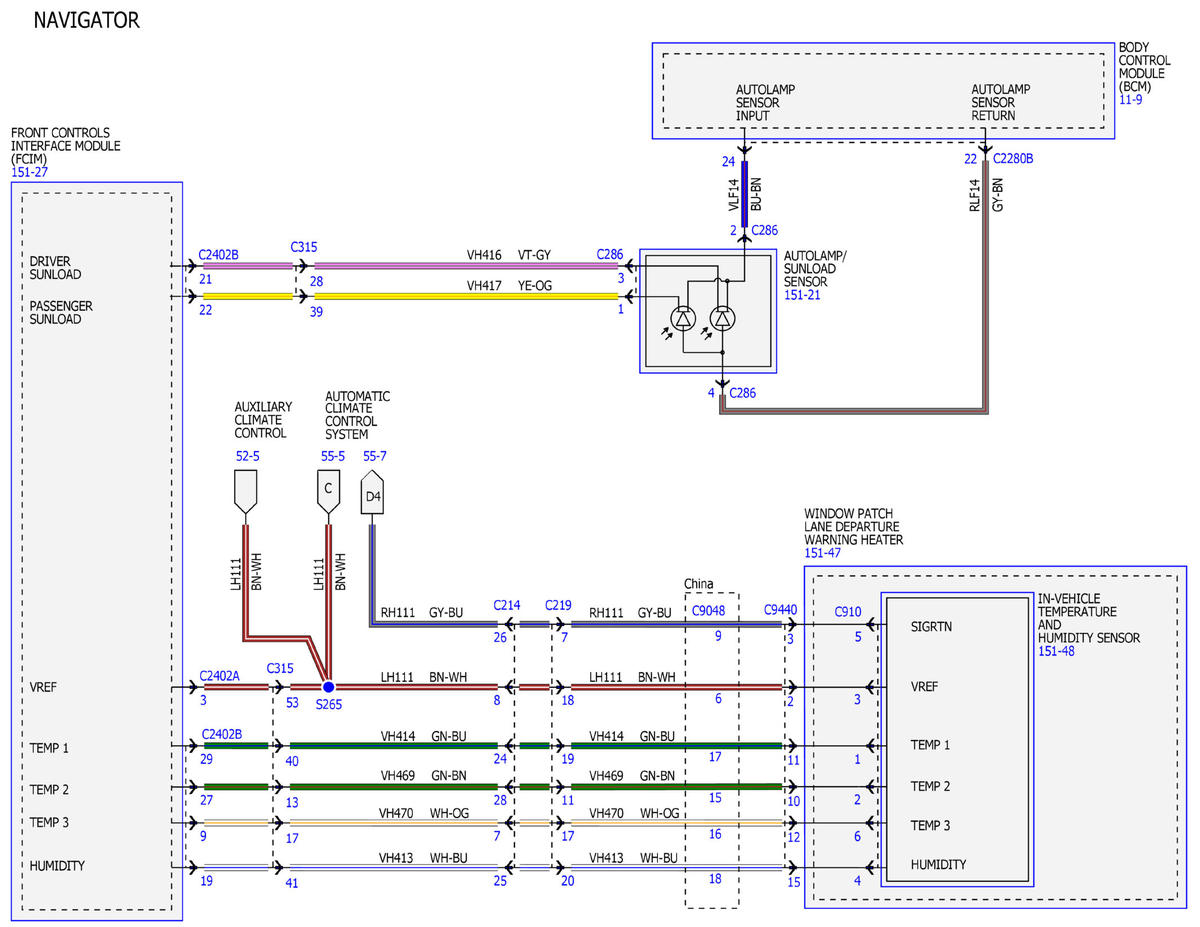

Fig 5: Automatic Climate Control System Wiring Diagrams (5 Of 12)
Courtesy of FORD MOTOR COMPANY

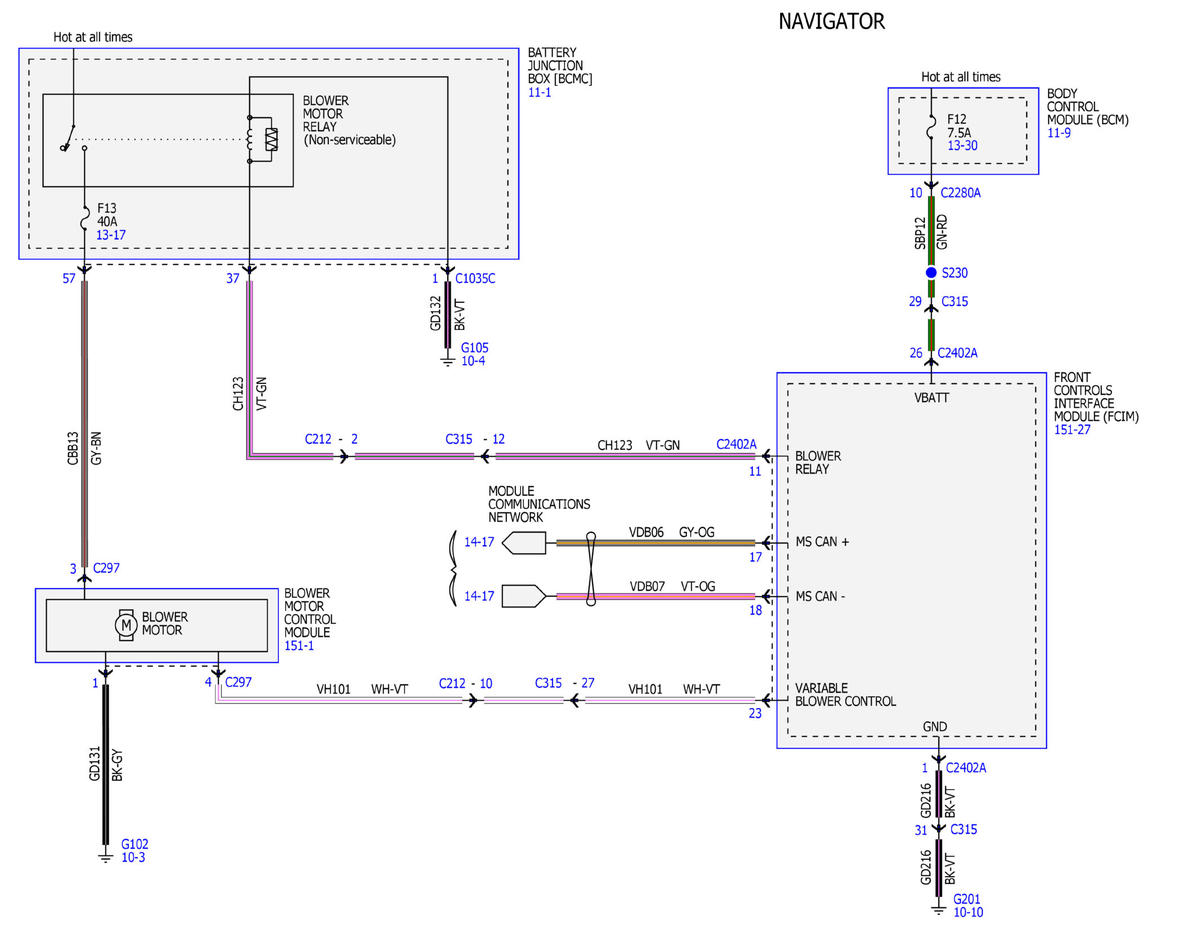

Fig 6: Automatic Climate Control System Wiring Diagrams (6 Of 12)
Courtesy of FORD MOTOR COMPANY

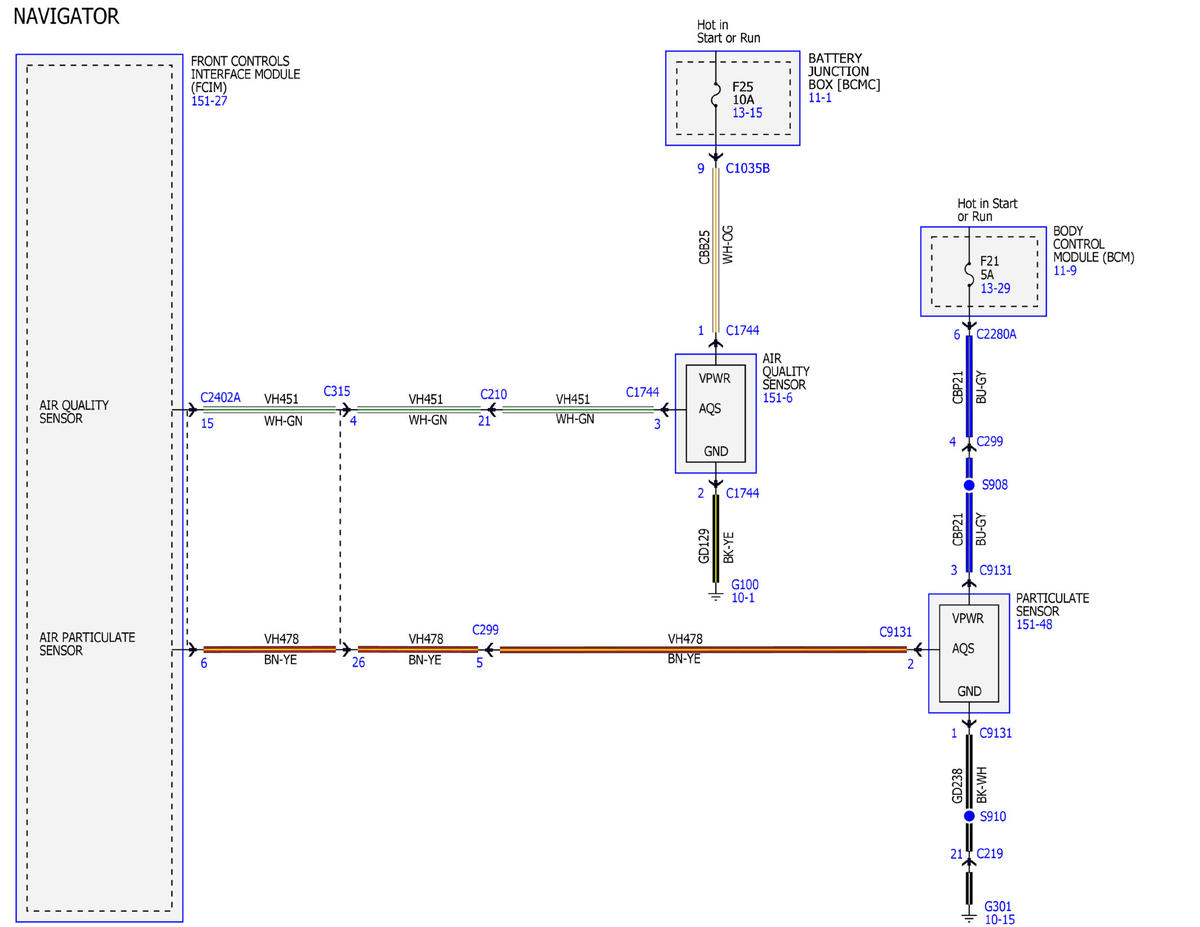

Fig 7: Automatic Climate Control System Wiring Diagrams (7 Of 12)
Courtesy of FORD MOTOR COMPANY

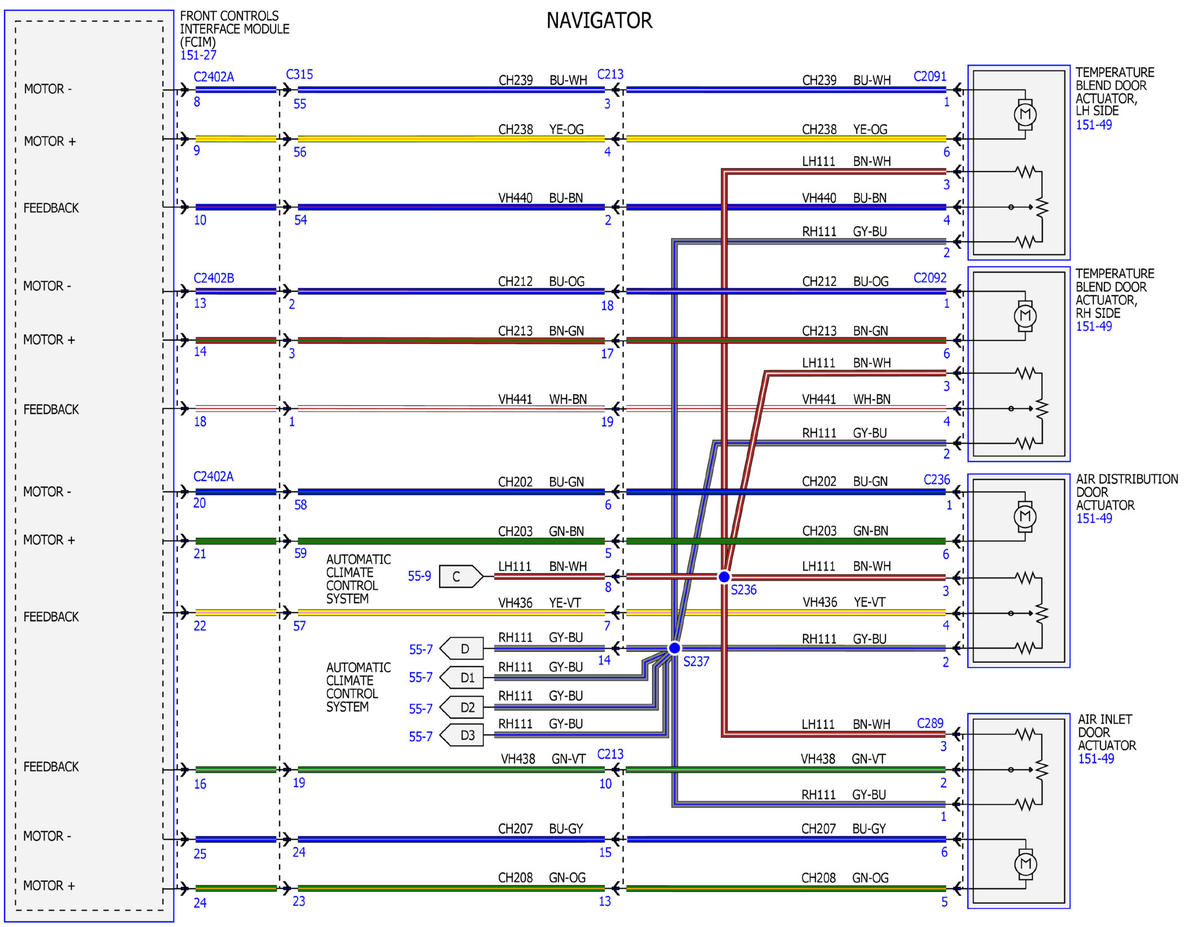

Fig 8: Automatic Climate Control System Wiring Diagrams (8 Of 12)
Courtesy of FORD MOTOR COMPANY
Fig 9: Automatic Climate Control System Wiring Diagrams (9 Of 12)
Courtesy of FORD MOTOR COMPANY
Fig 10: Automatic Climate Control System Wiring Diagrams (10 Of 12)
Courtesy of FORD MOTOR COMPANY
Fig 11: Automatic Climate Control System Wiring Diagrams (11 Of 12)
Courtesy of FORD MOTOR COMPANY
Fig 12: Automatic Climate Control System Wiring Diagrams (12 Of 12)
