WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

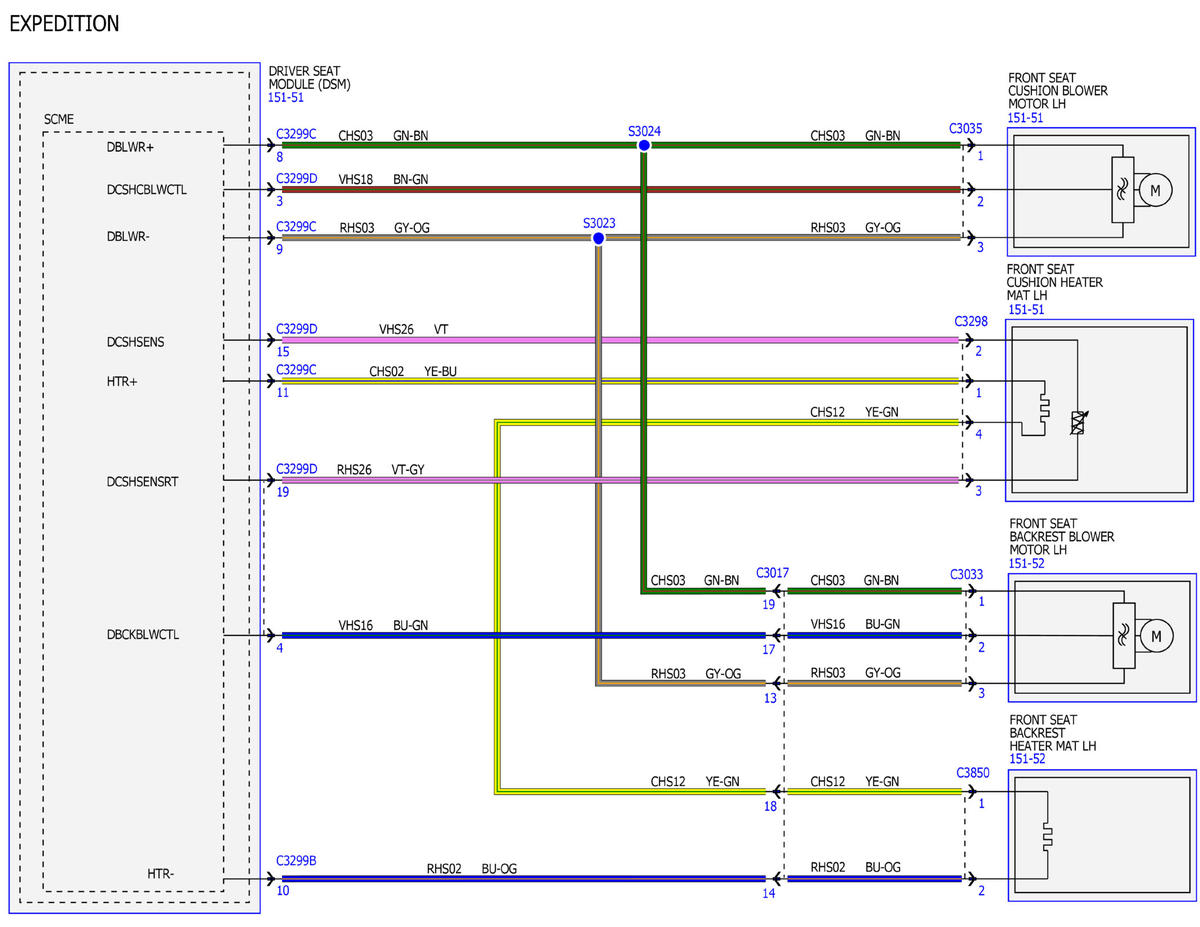

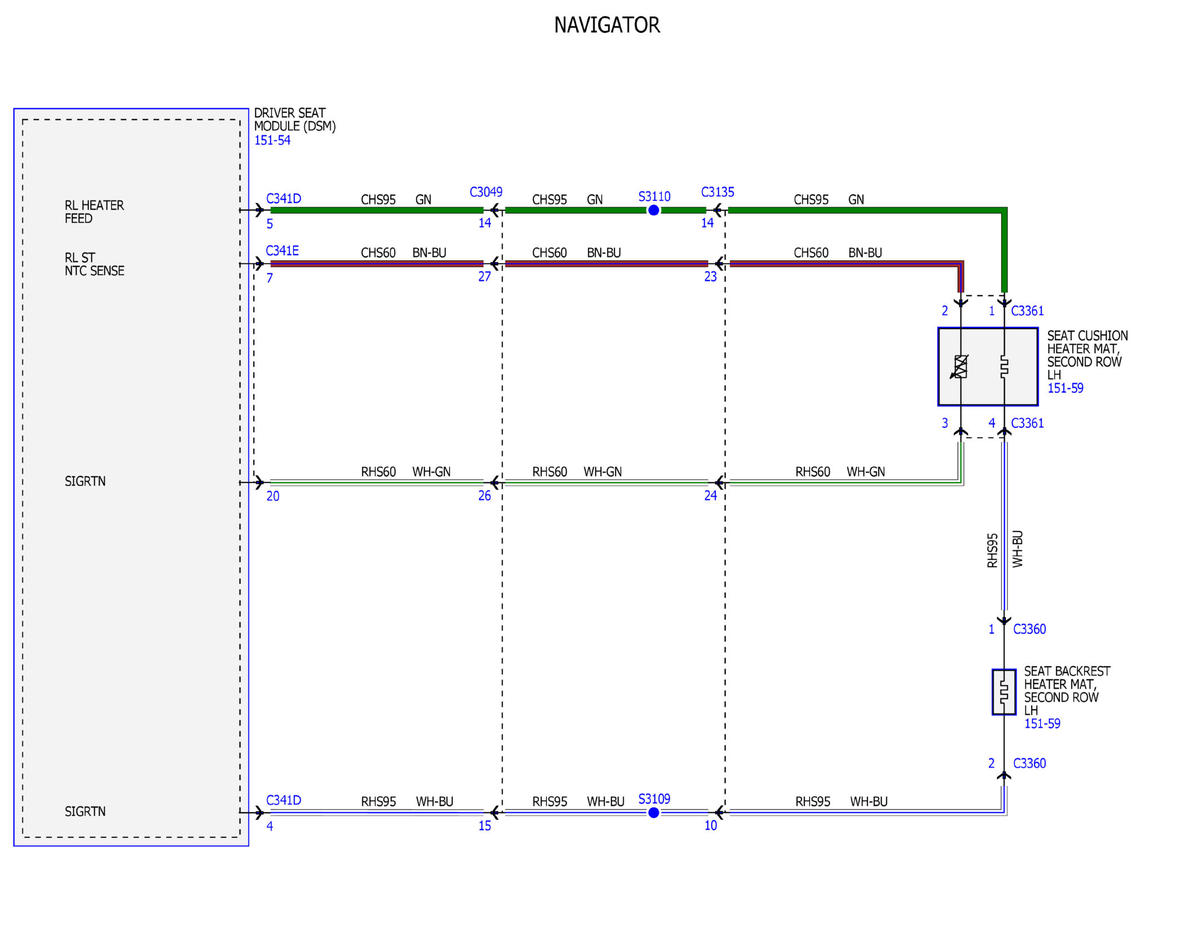

Fig 1: Climate Controlled Seats Wiring Diagrams (1 Of 15)
Courtesy of FORD MOTOR COMPANY

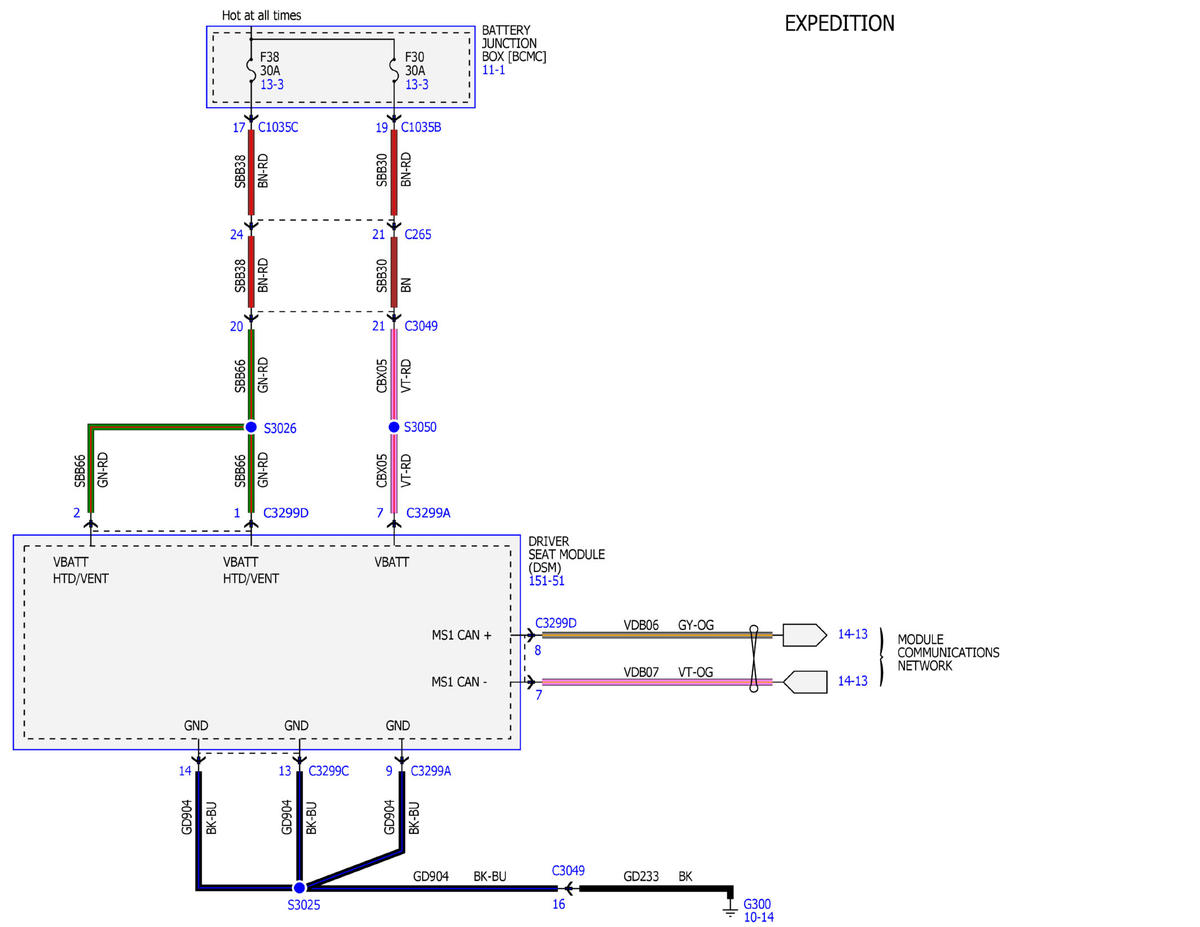

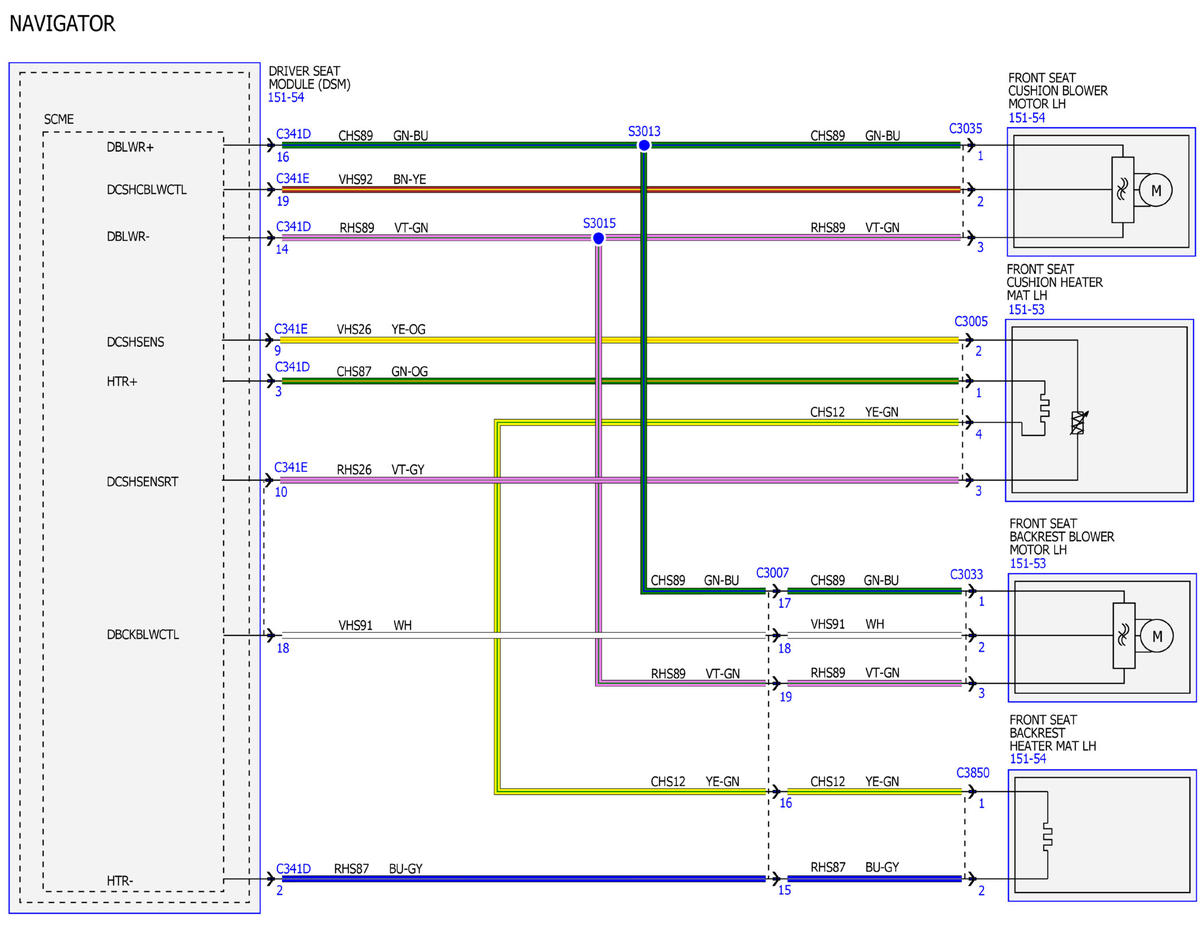

Fig 2: Climate Controlled Seats Wiring Diagrams (2 Of 15)
Courtesy of FORD MOTOR COMPANY

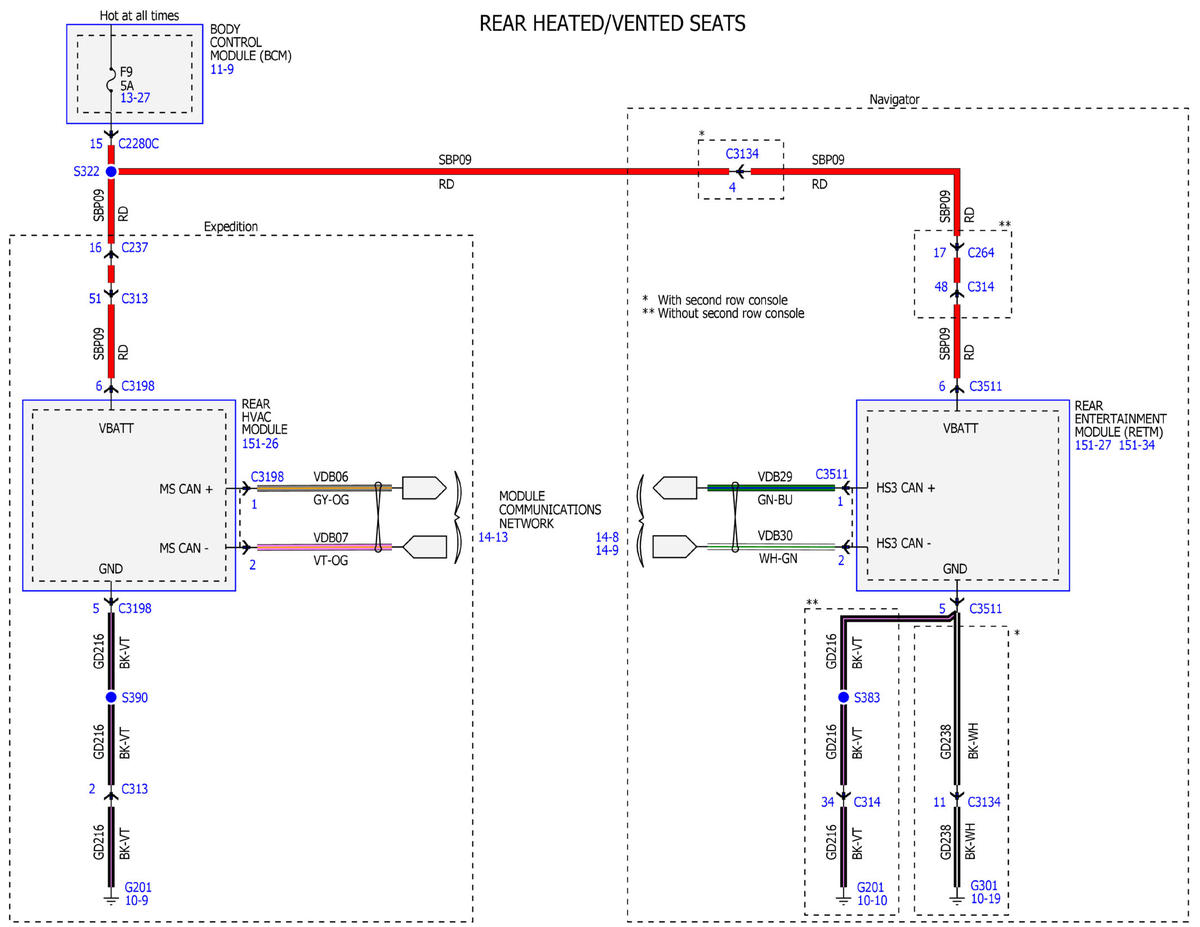

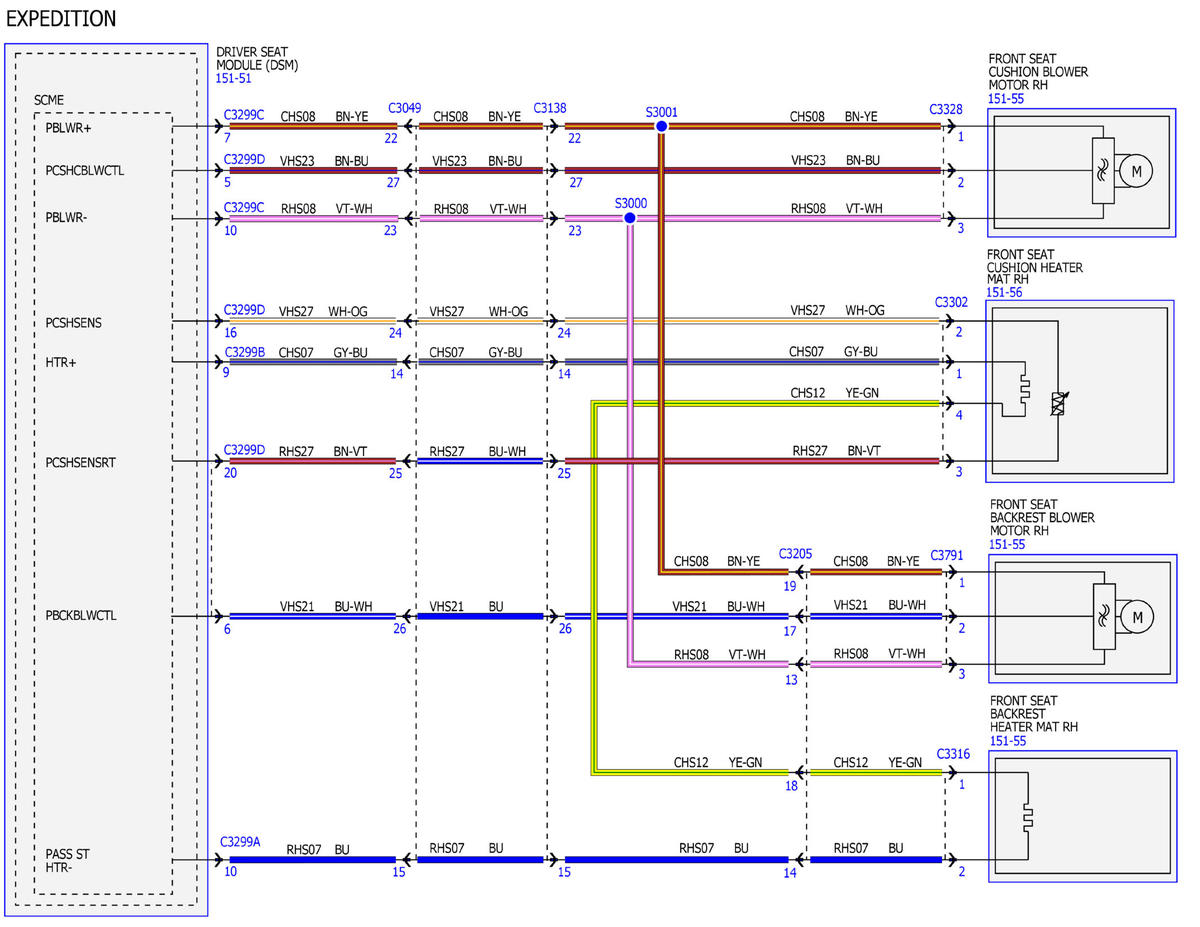

Fig 3: Climate Controlled Seats Wiring Diagrams (3 Of 15)
Courtesy of FORD MOTOR COMPANY

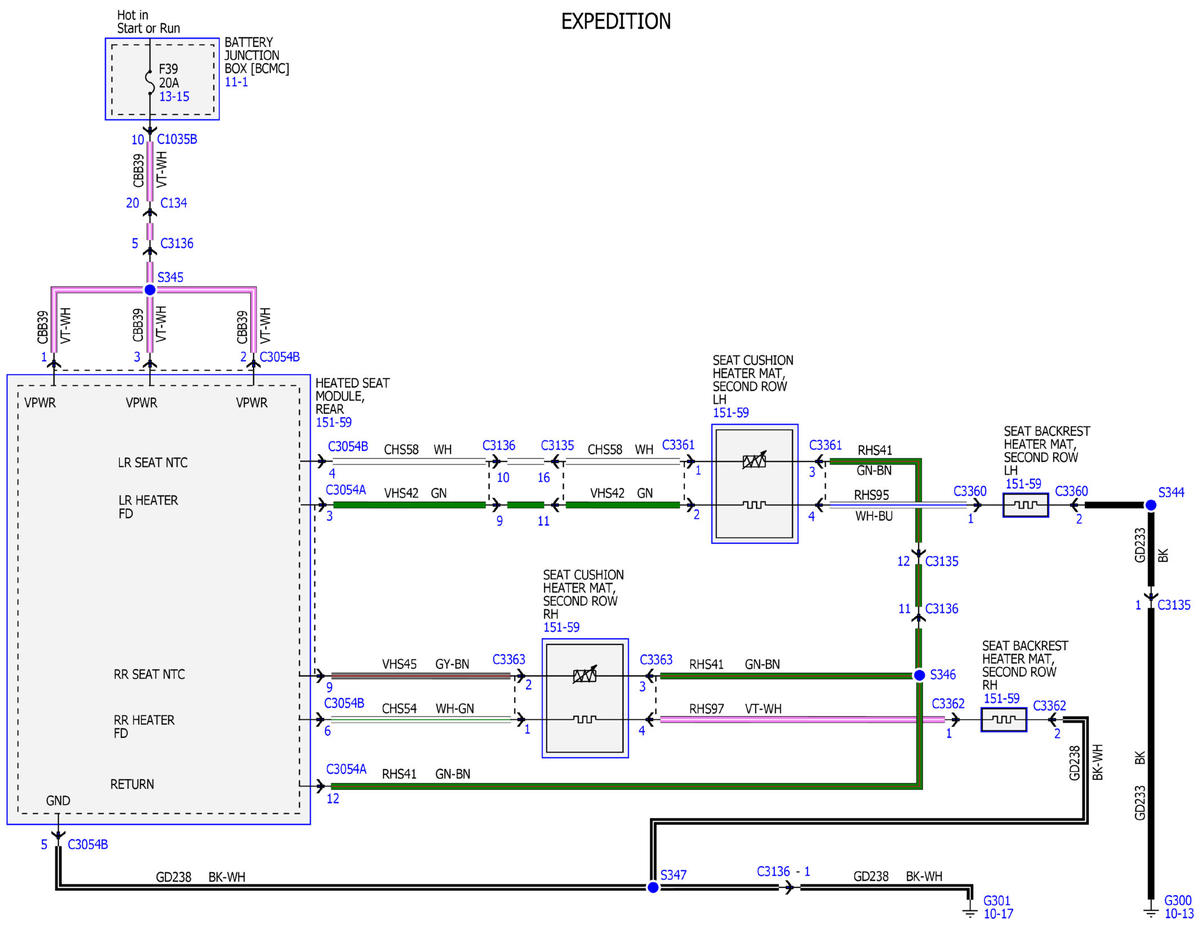

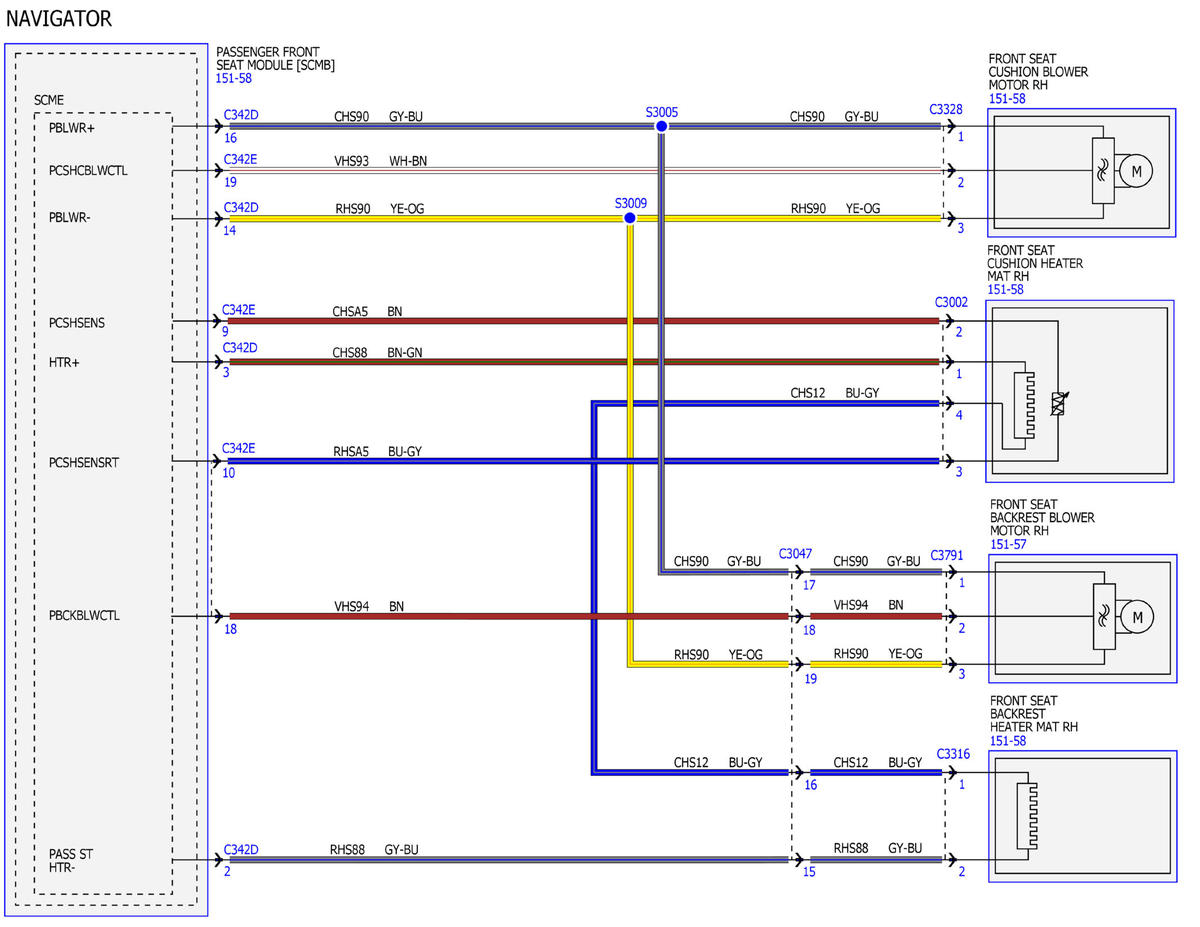

Fig 4: Climate Controlled Seats Wiring Diagrams (4 Of 15)
Courtesy of FORD MOTOR COMPANY

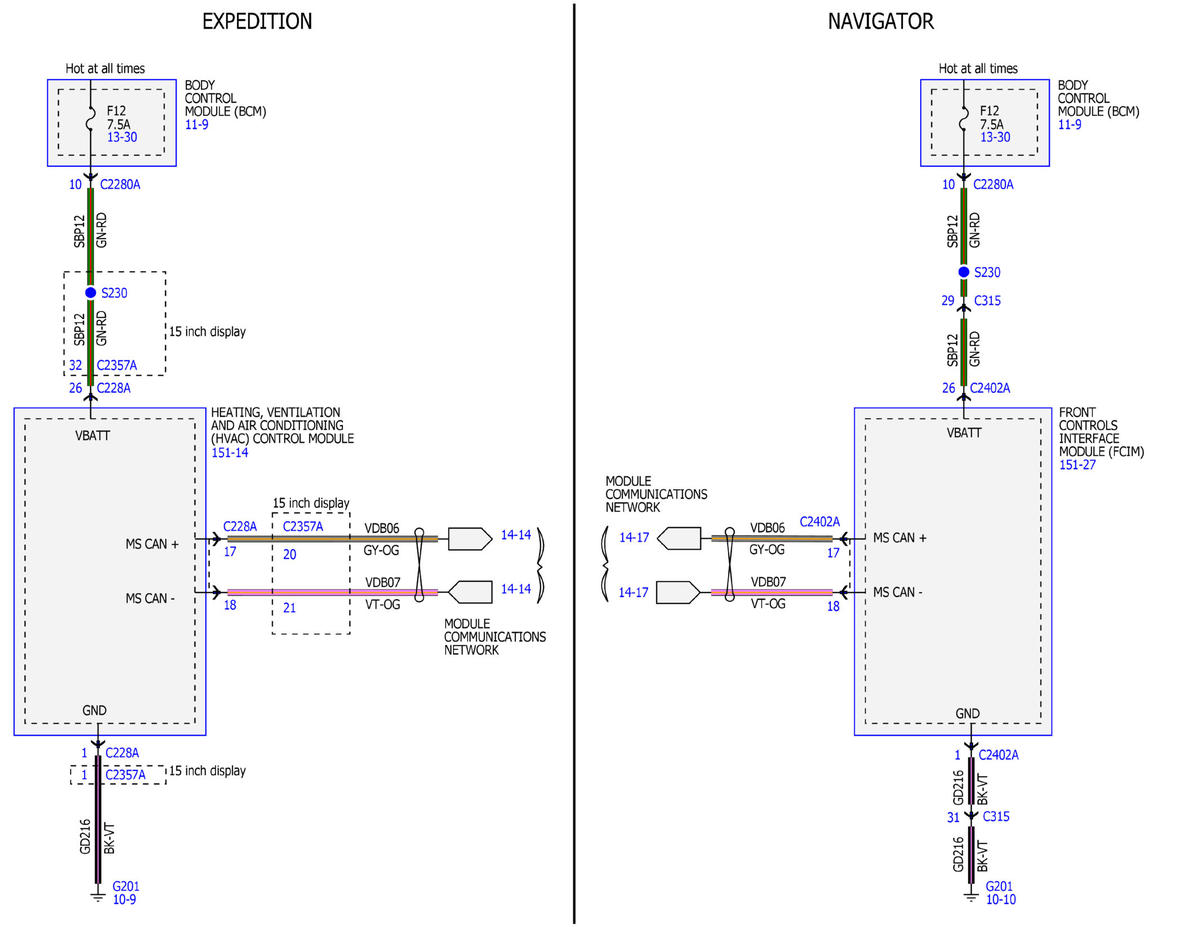

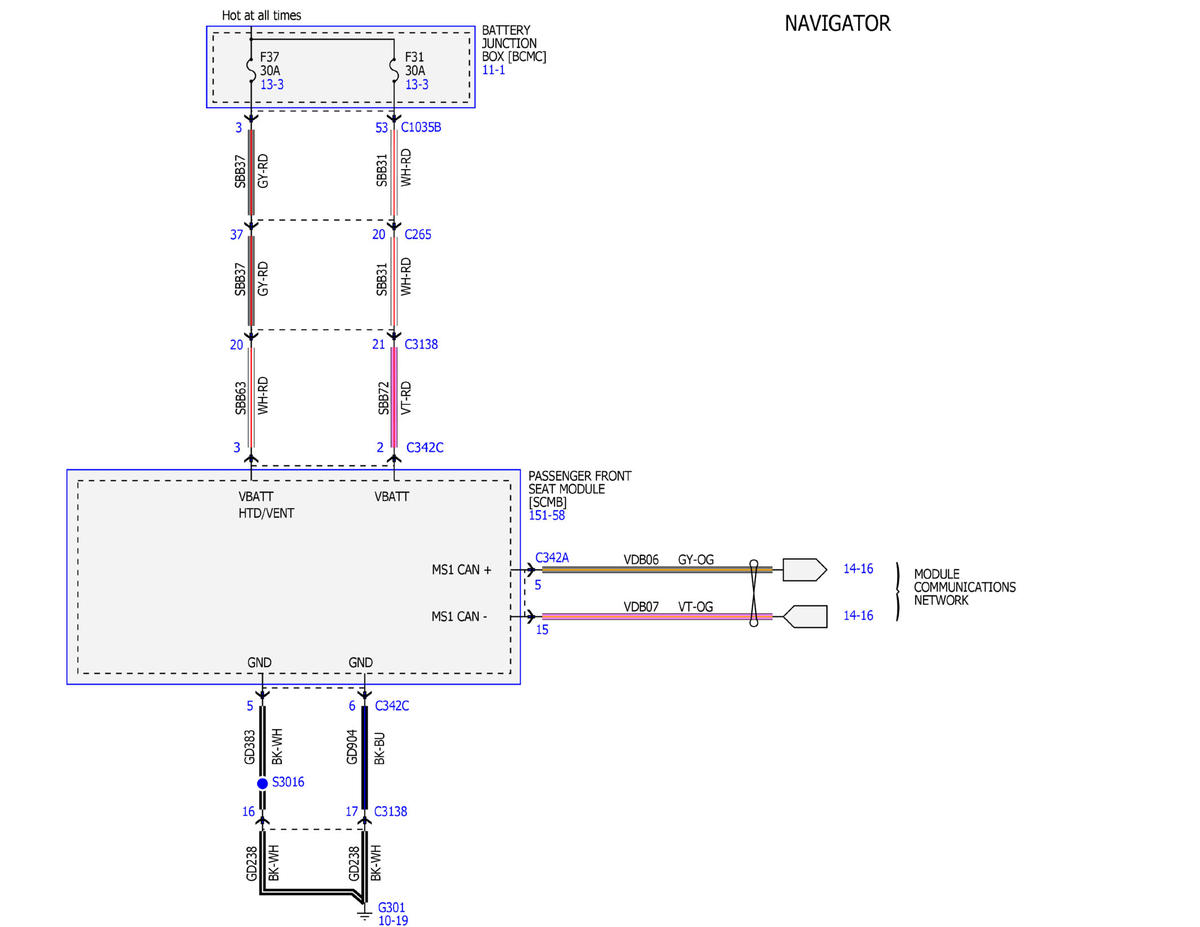

Fig 5: Climate Controlled Seats Wiring Diagrams (5 Of 15)
Courtesy of FORD MOTOR COMPANY

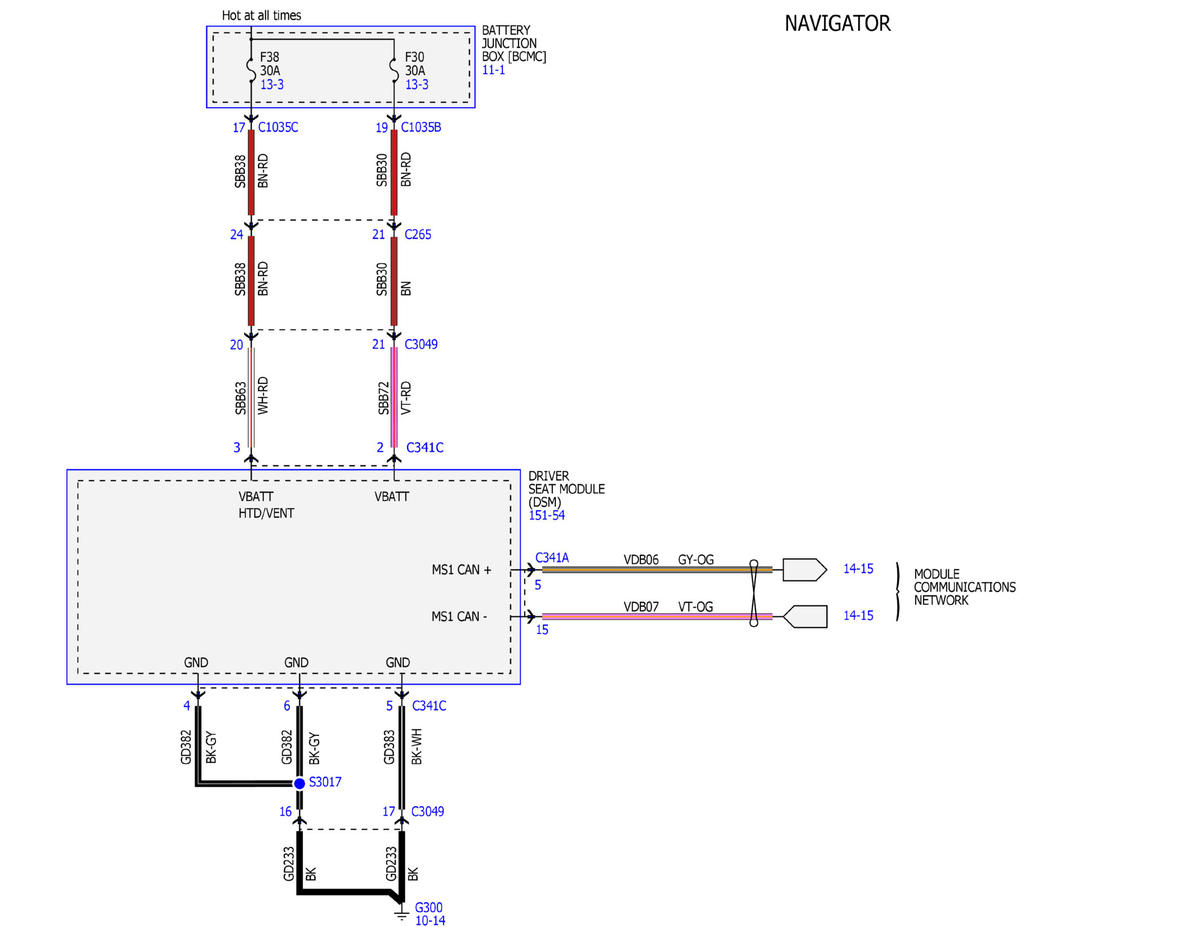

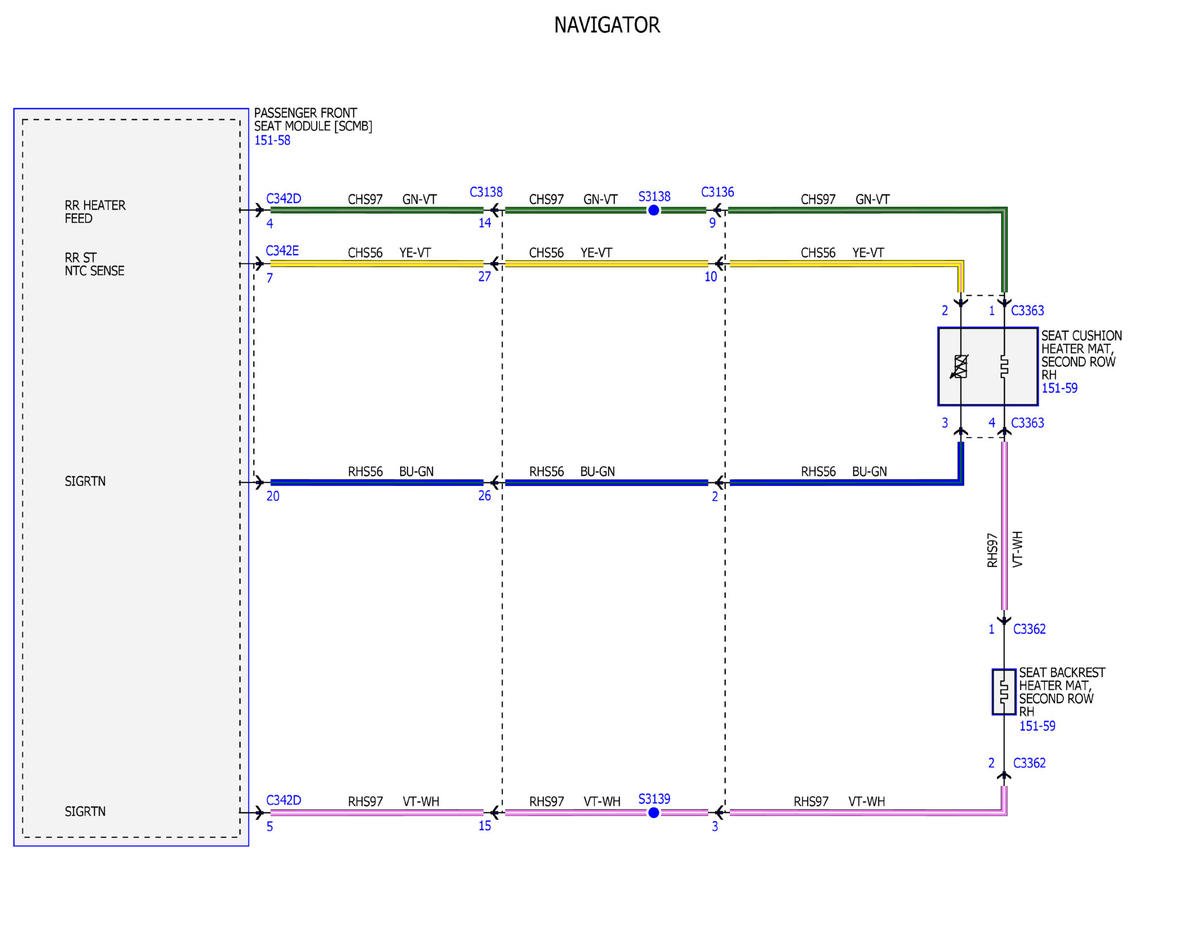

Fig 6: Climate Controlled Seats Wiring Diagrams (6 Of 15)
Courtesy of FORD MOTOR COMPANY

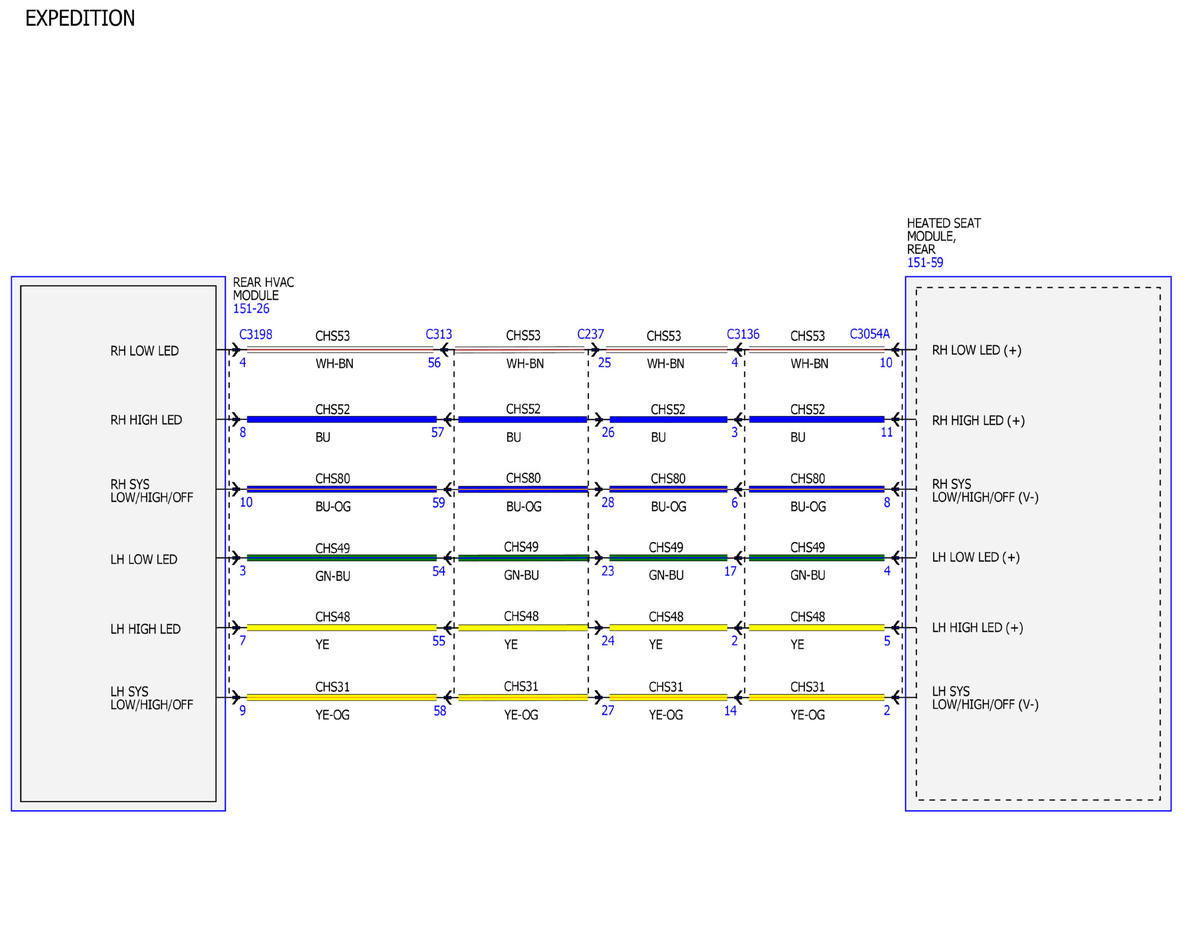

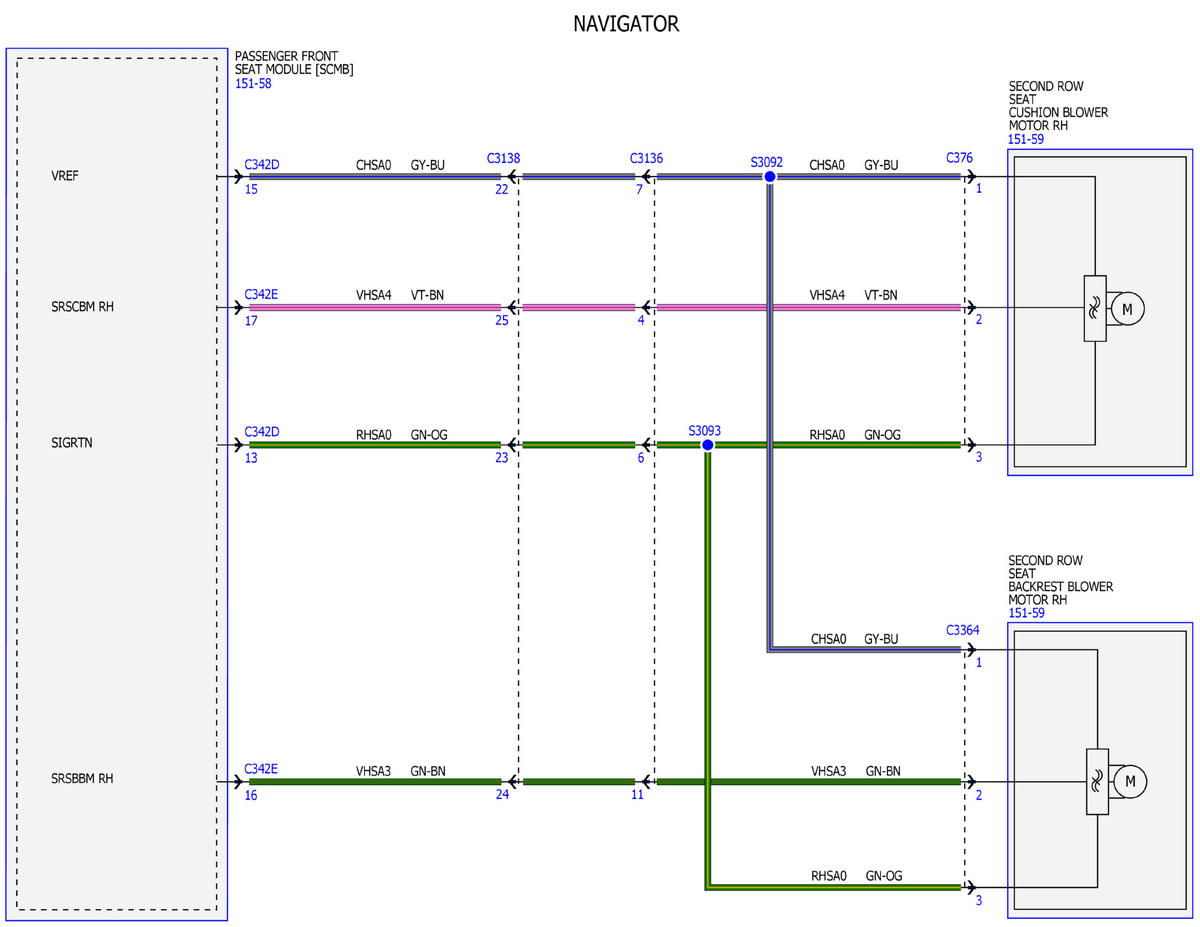

Fig 7: Climate Controlled Seats Wiring Diagrams (7 Of 15)
Courtesy of FORD MOTOR COMPANY

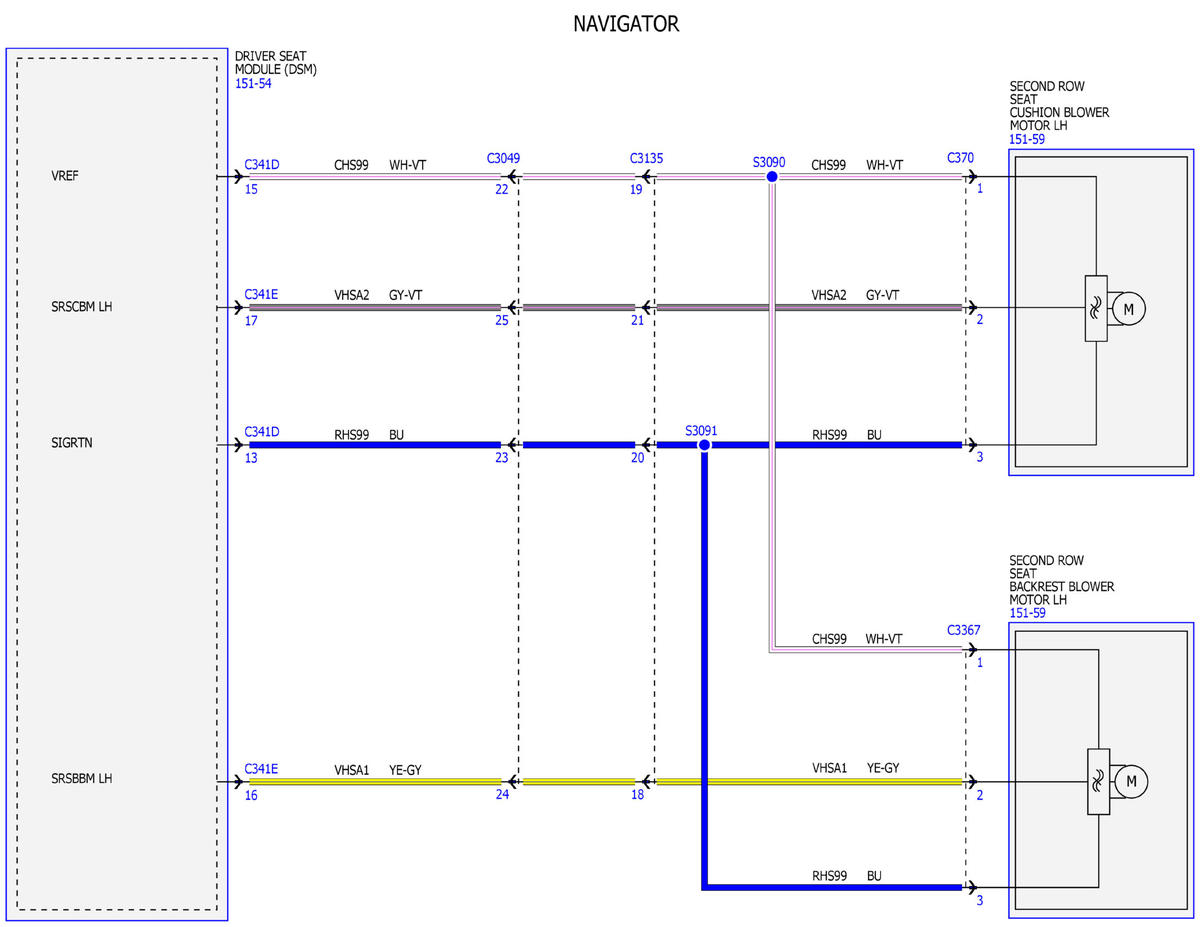

Fig 8: Climate Controlled Seats Wiring Diagrams (8 Of 15)
Courtesy of FORD MOTOR COMPANY
Fig 9: Climate Controlled Seats Wiring Diagrams (9 Of 15)
Courtesy of FORD MOTOR COMPANY
Fig 10: Climate Controlled Seats Wiring Diagrams (10 Of 15)
Courtesy of FORD MOTOR COMPANY
Fig 11: Climate Controlled Seats Wiring Diagrams (11 Of 15)
Courtesy of FORD MOTOR COMPANY
Fig 12: Climate Controlled Seats Wiring Diagrams (12 Of 15)
Courtesy of FORD MOTOR COMPANY
Fig 13: Climate Controlled Seats Wiring Diagrams (13 Of 15)
Courtesy of FORD MOTOR COMPANY
Fig 14: Climate Controlled Seats Wiring Diagrams (14 Of 15)
Courtesy of FORD MOTOR COMPANY
Fig 15: Climate Controlled Seats Wiring Diagrams (15 Of 15)
