Cruise Control

WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

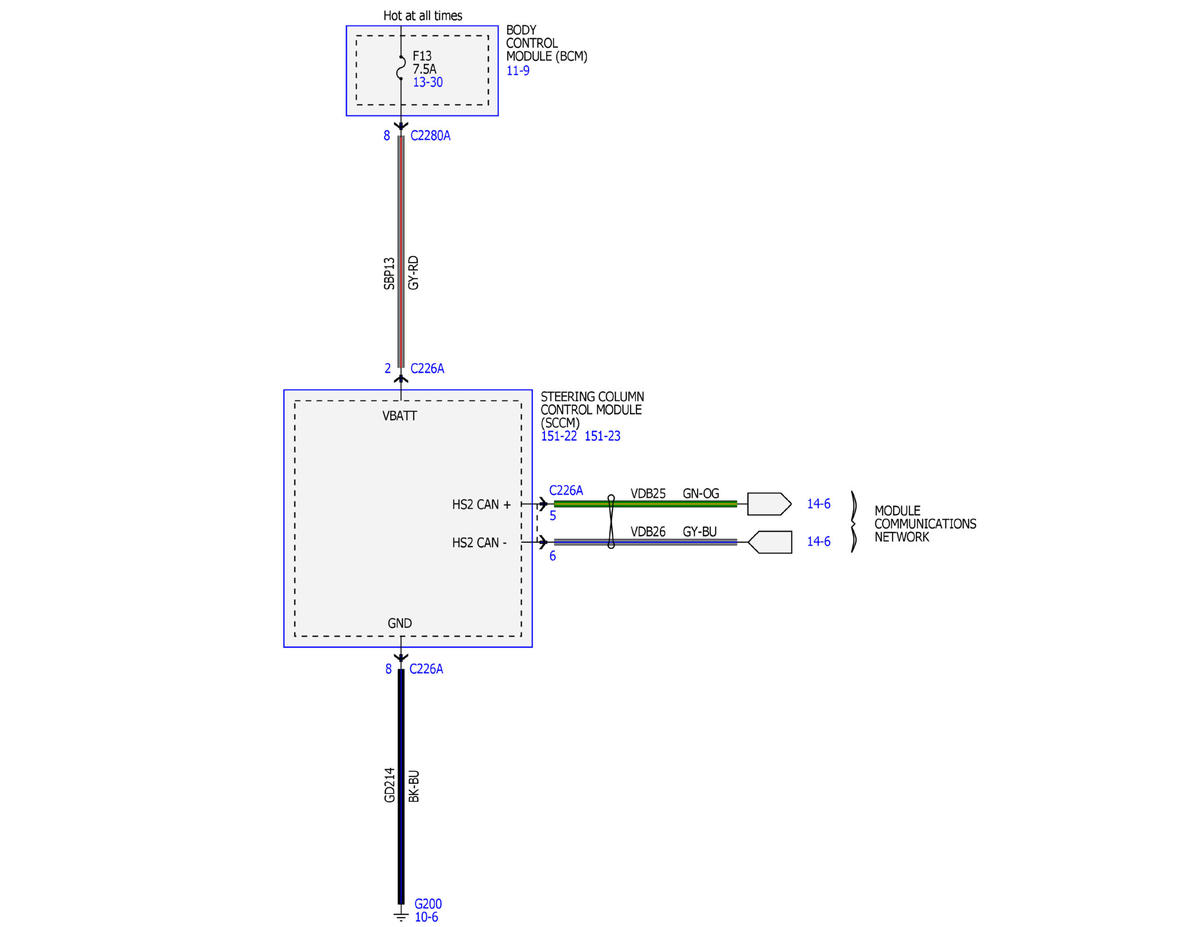

Fig 1: Cruise Control Wiring Diagrams (1 Of 11)

GFDWR184891

Courtesy of FORD MOTOR COMPANY

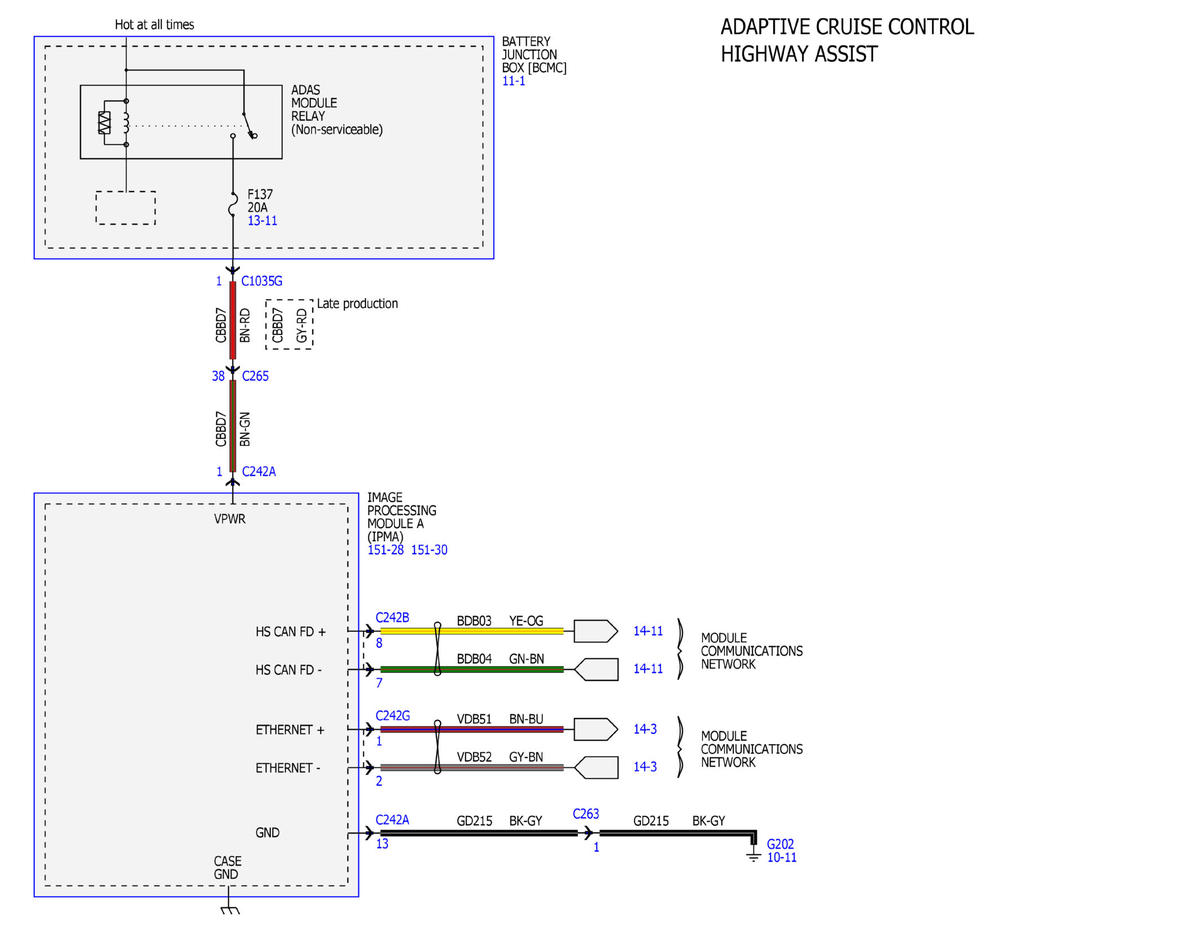

Fig 2: Cruise Control Wiring Diagrams (2 Of 11)

GFDWR184894

Courtesy of FORD MOTOR COMPANY

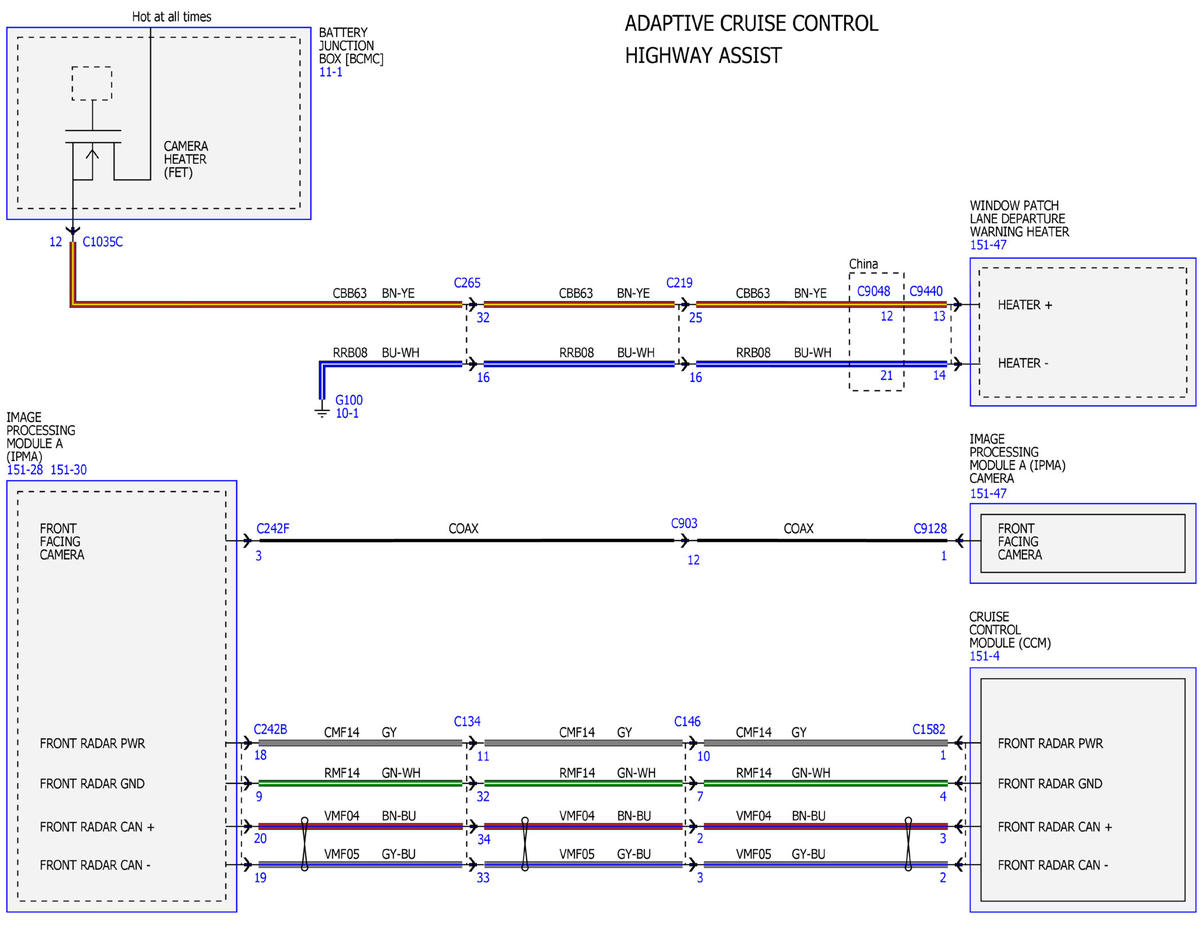

Fig 3: Cruise Control Wiring Diagrams (3 Of 11)

GFDWR184895

Courtesy of FORD MOTOR COMPANY

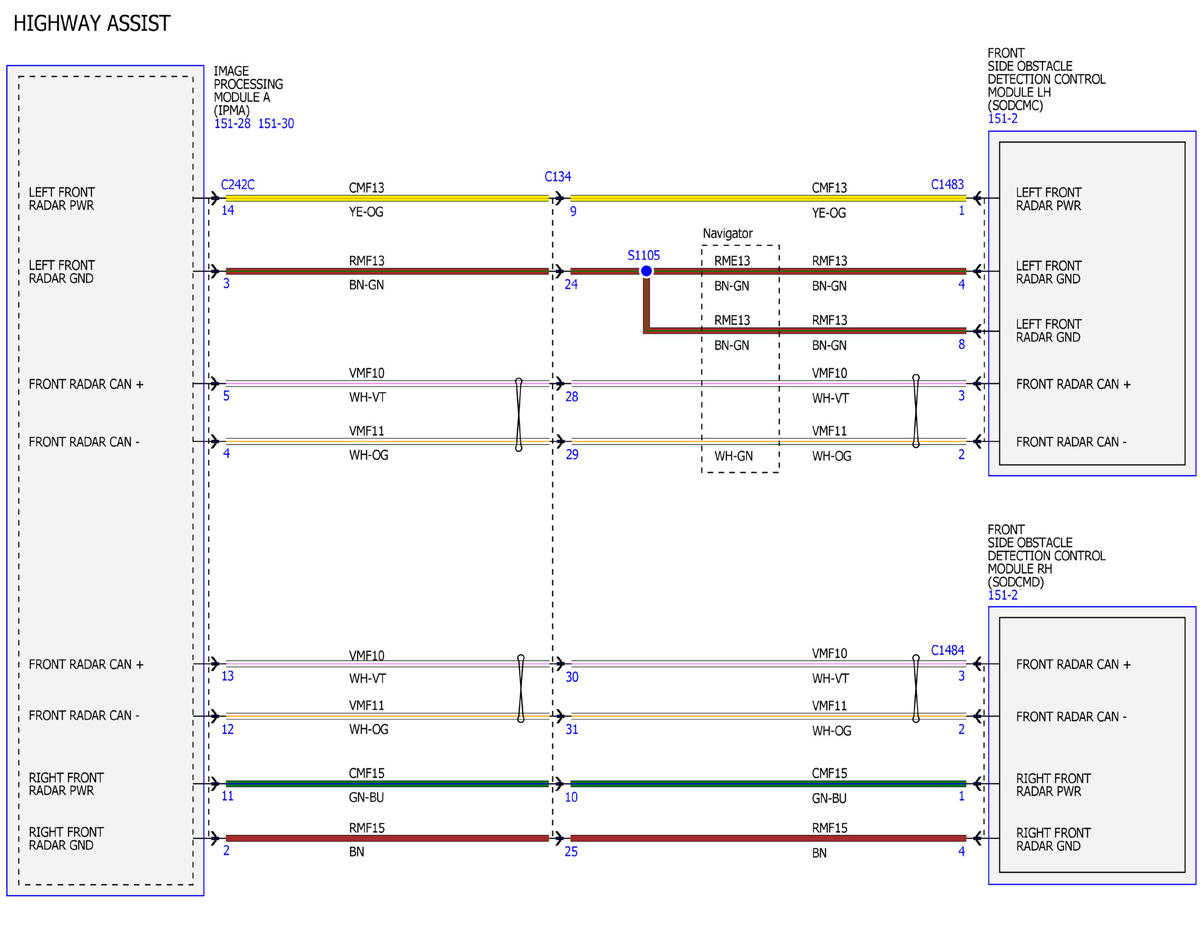

Fig 4: Cruise Control Wiring Diagrams (4 Of 11)

GFDWR184896

Courtesy of FORD MOTOR COMPANY

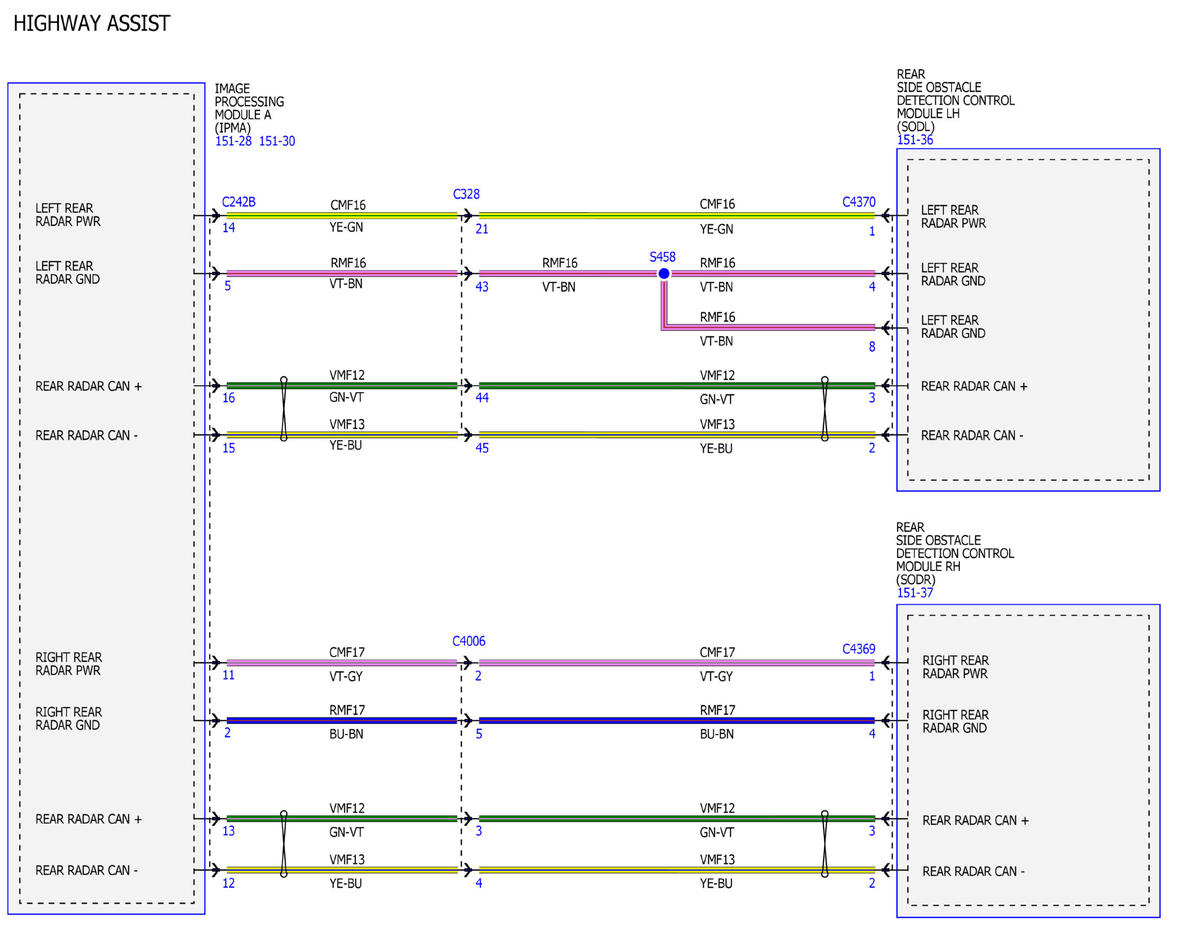

Fig 5: Cruise Control Wiring Diagrams (5 Of 11)

GFDWR184897

Courtesy of FORD MOTOR COMPANY

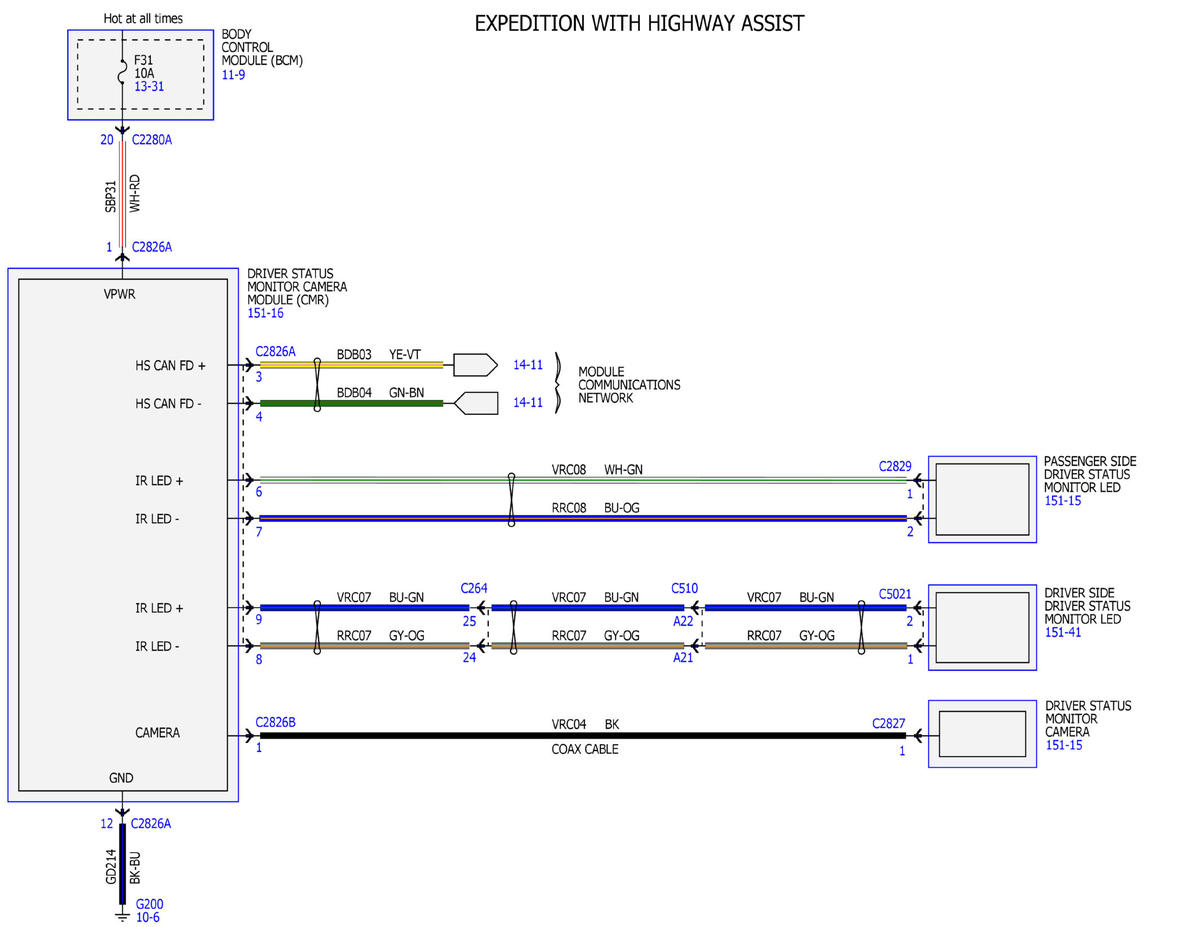

Fig 6: Cruise Control Wiring Diagrams (6 Of 11)

GFDWR184898

Courtesy of FORD MOTOR COMPANY

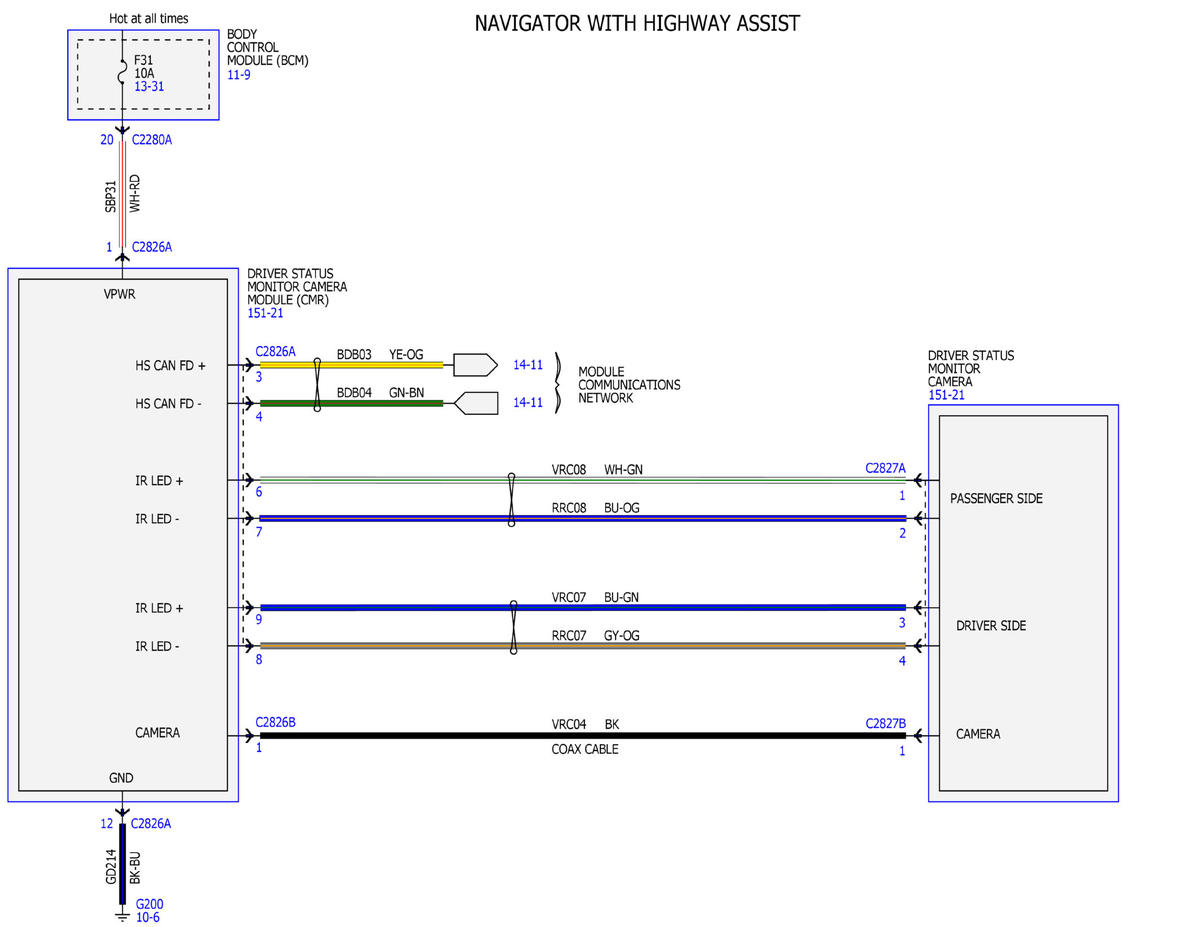

Fig 7: Cruise Control Wiring Diagrams (7 Of 11)

GFDWR184899

Courtesy of FORD MOTOR COMPANY

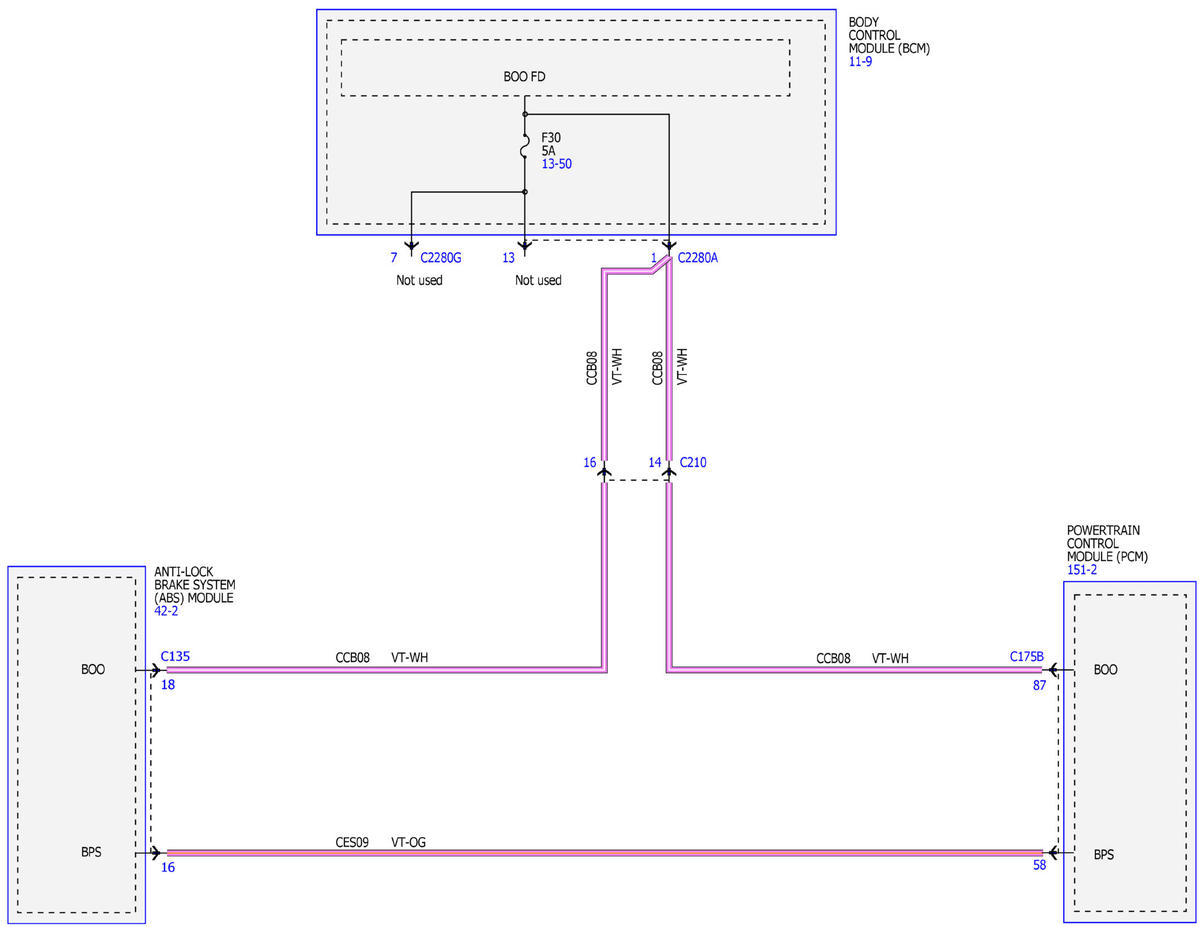

Fig 8: Cruise Control Wiring Diagrams (8 Of 11)

GFDWR184900

Courtesy of FORD MOTOR COMPANY

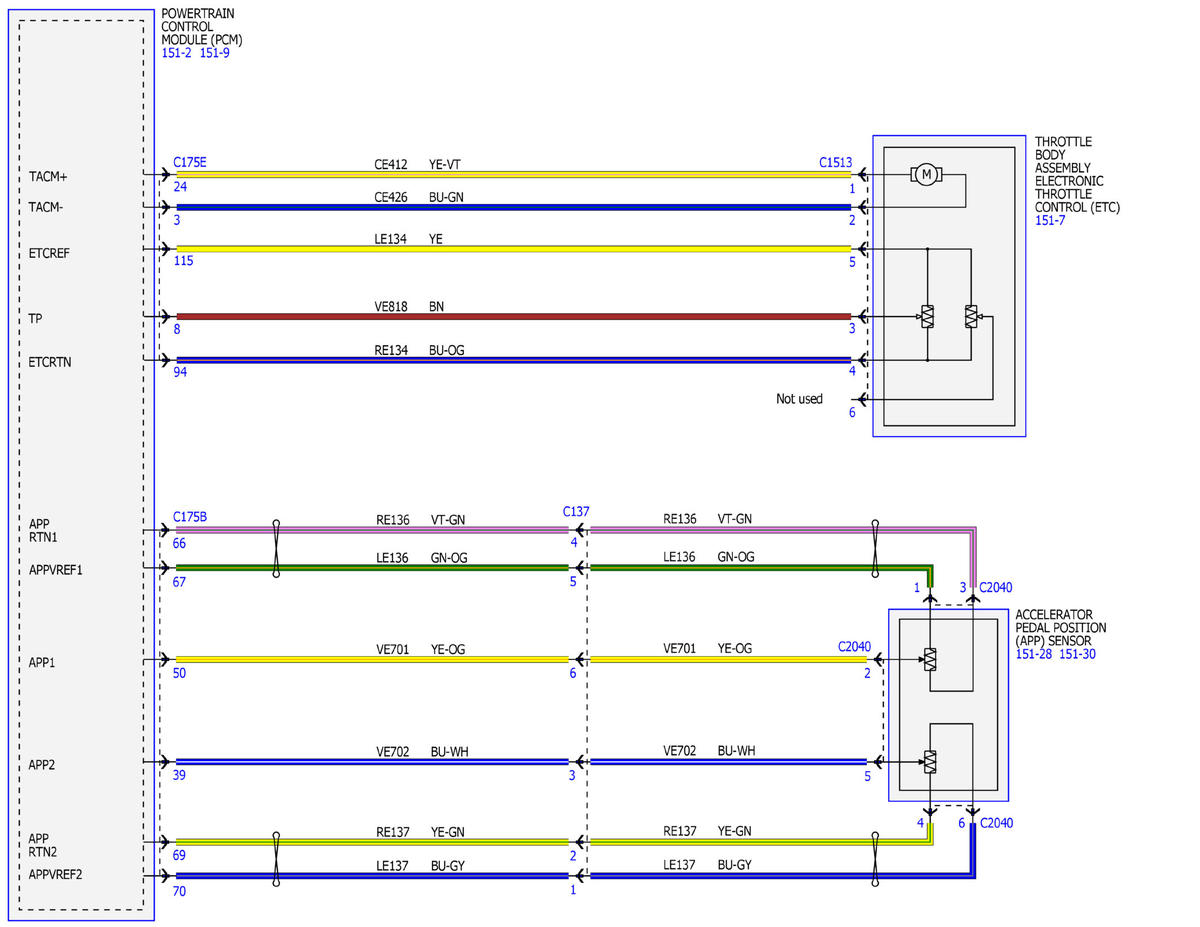

Fig 9: Cruise Control Wiring Diagrams (9 Of 11)

GFDWR184901

Courtesy of FORD MOTOR COMPANY

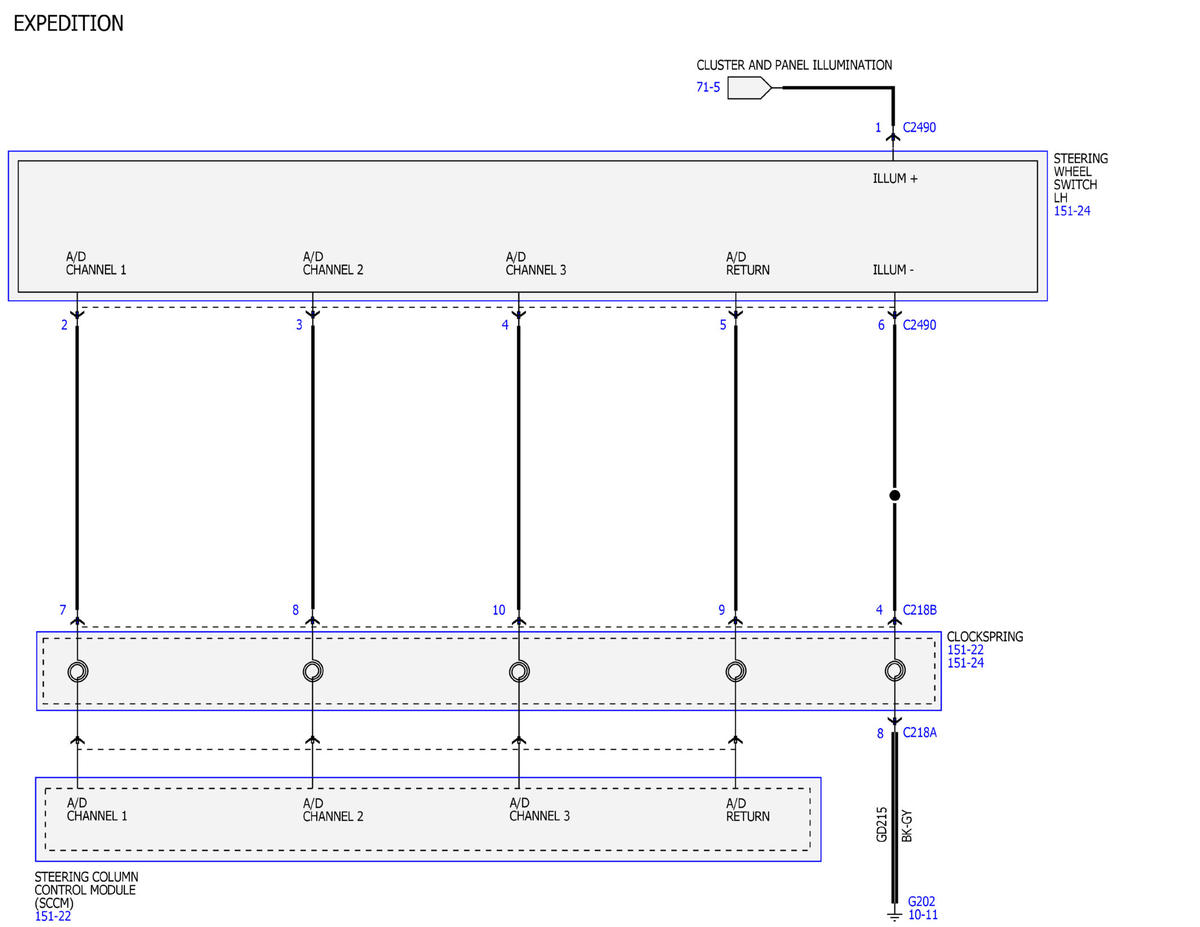

Fig 10: Cruise Control Wiring Diagrams (10 Of 11)

GFDWR184892

Courtesy of FORD MOTOR COMPANY

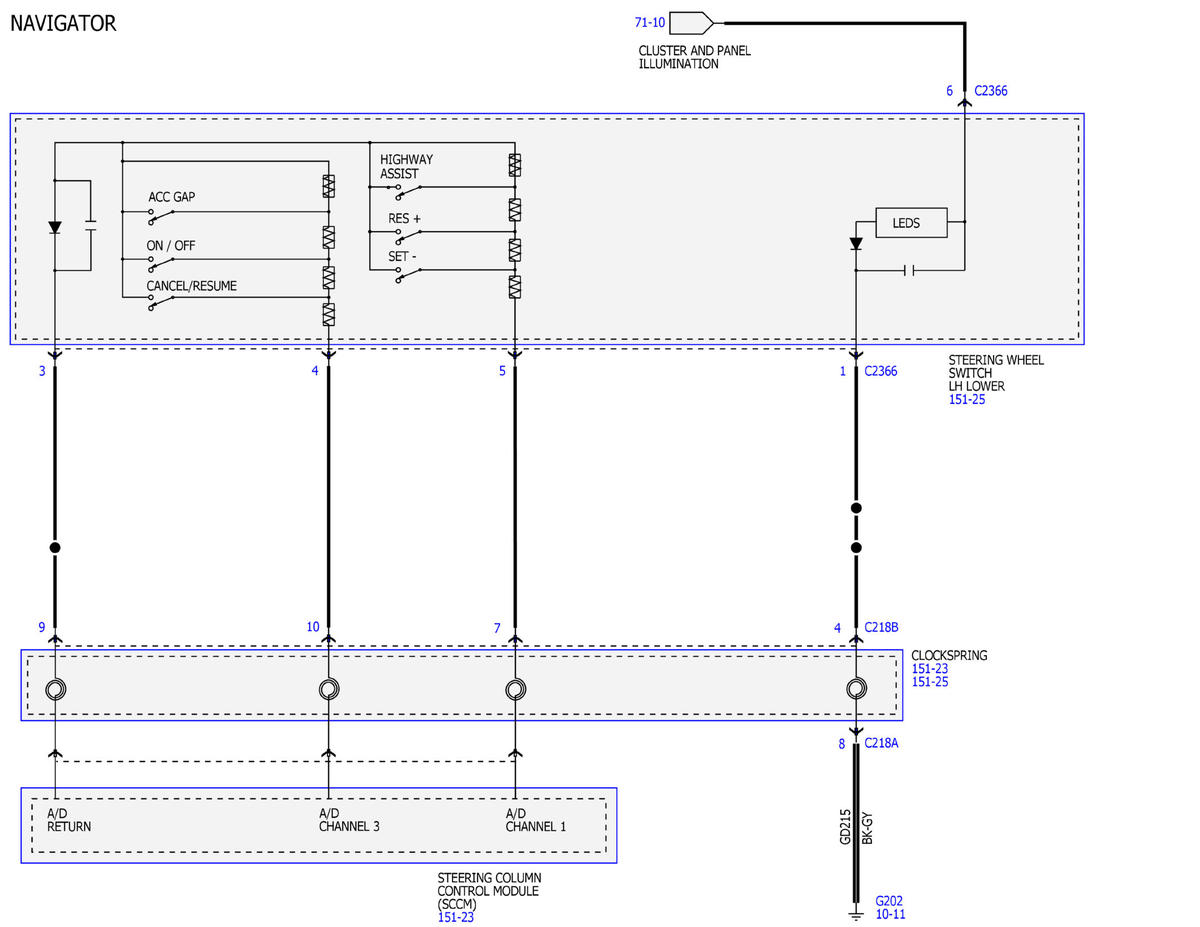

Fig 11: Cruise Control Wiring Diagrams (11 Of 11)

GFDWR184893

Courtesy of FORD MOTOR COMPANY
