Memory Seats

WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

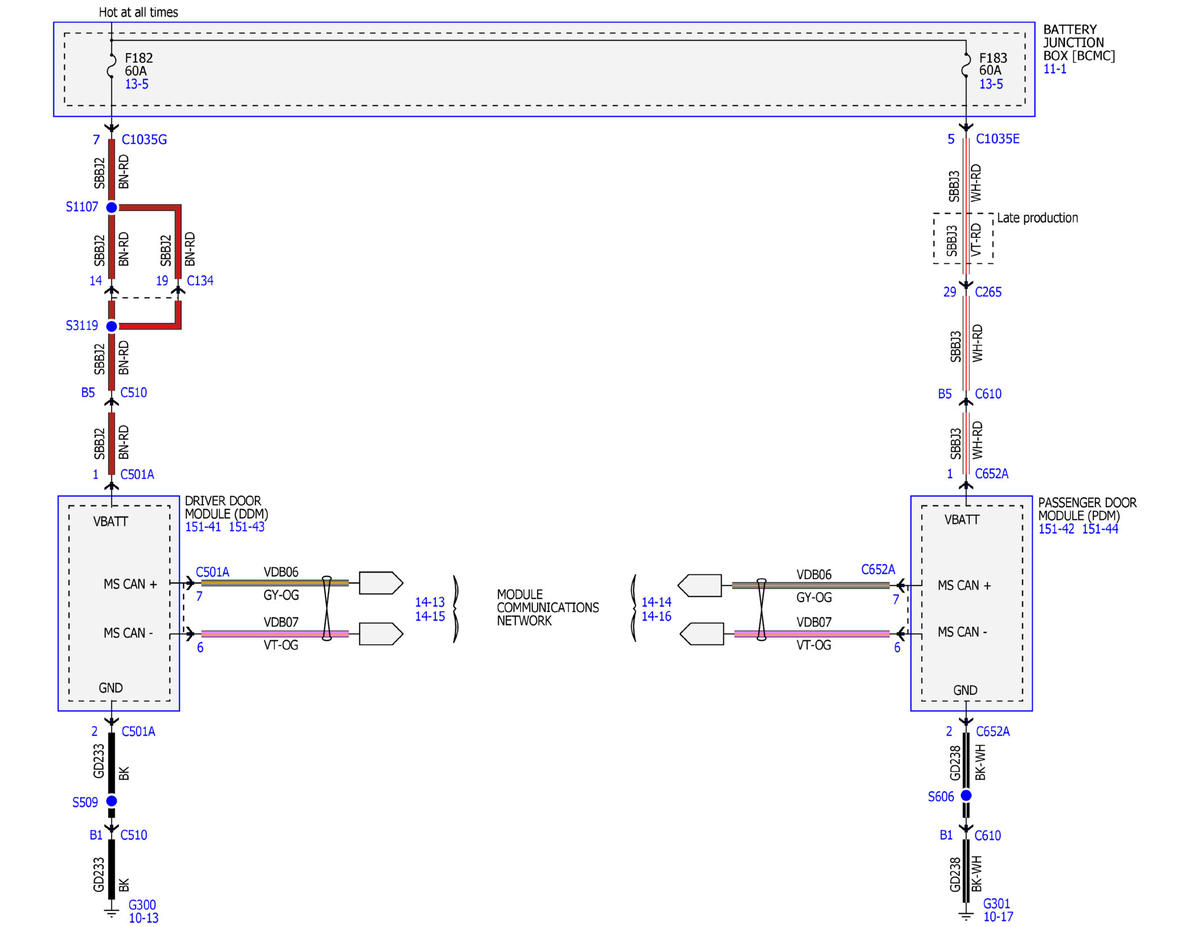

Fig 1: Memory Seats Wiring Diagrams (1 Of 19)

GFDWR184971

Courtesy of FORD MOTOR COMPANY

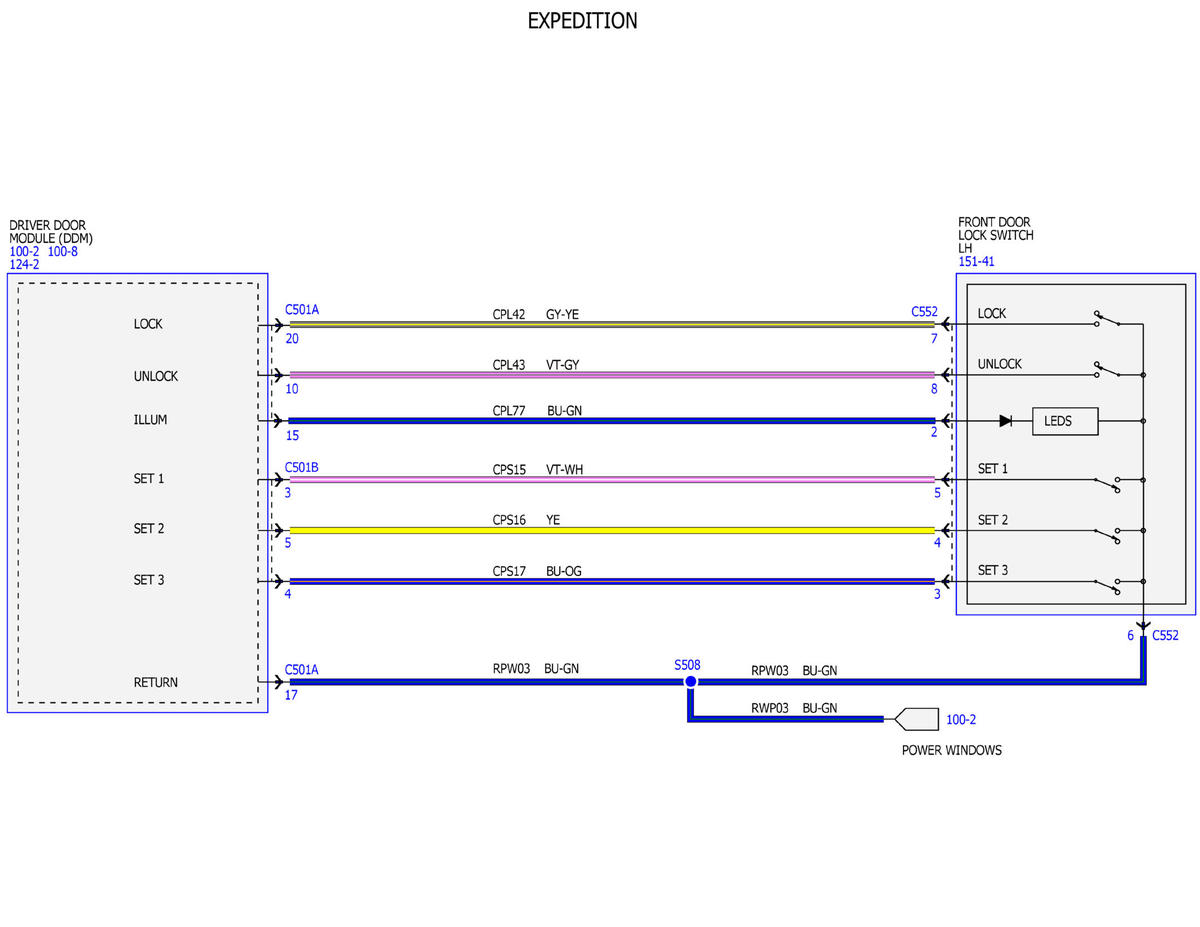

Fig 2: Memory Seats Wiring Diagrams (2 Of 19)

GFDWR184982

Courtesy of FORD MOTOR COMPANY

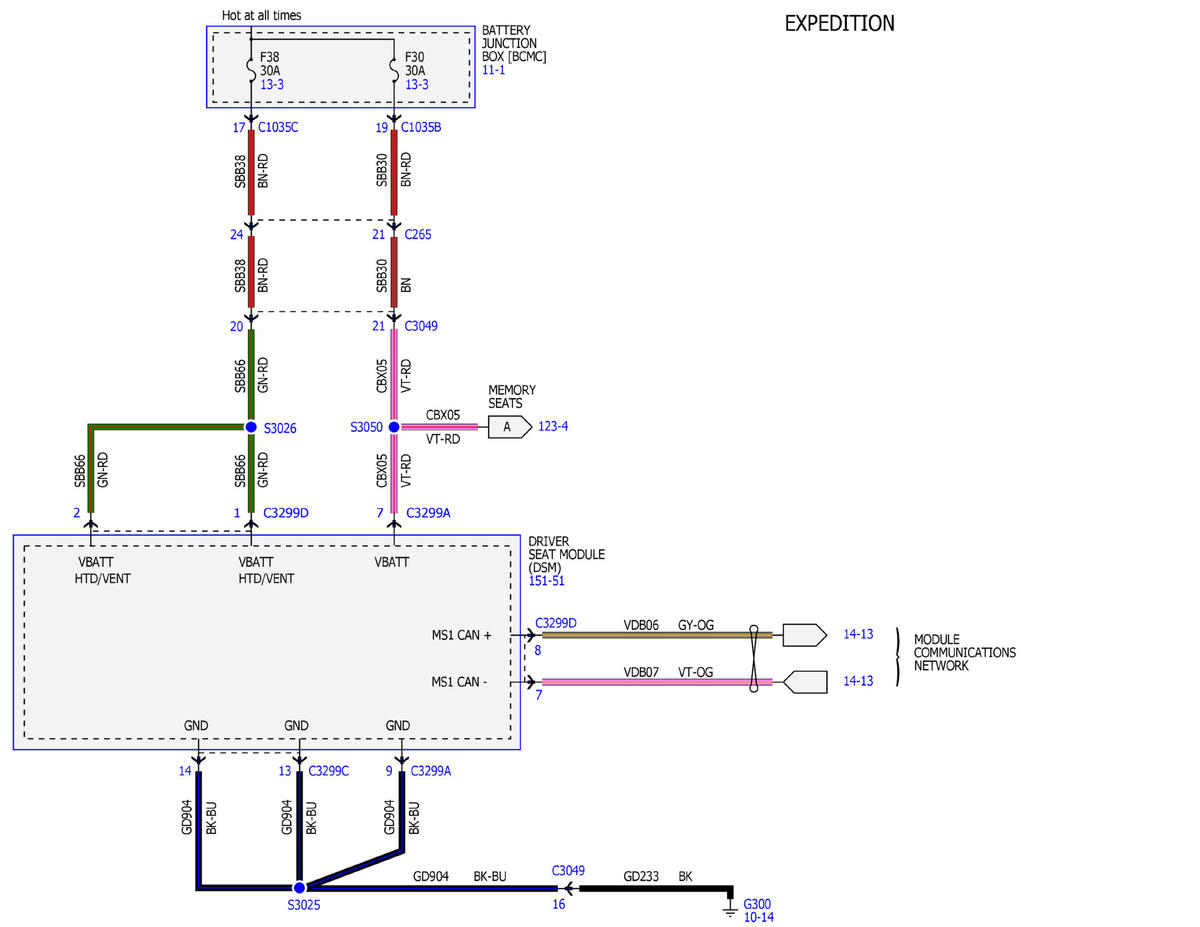

Fig 3: Memory Seats Wiring Diagrams (3 Of 19)

GFDWR184983

Courtesy of FORD MOTOR COMPANY

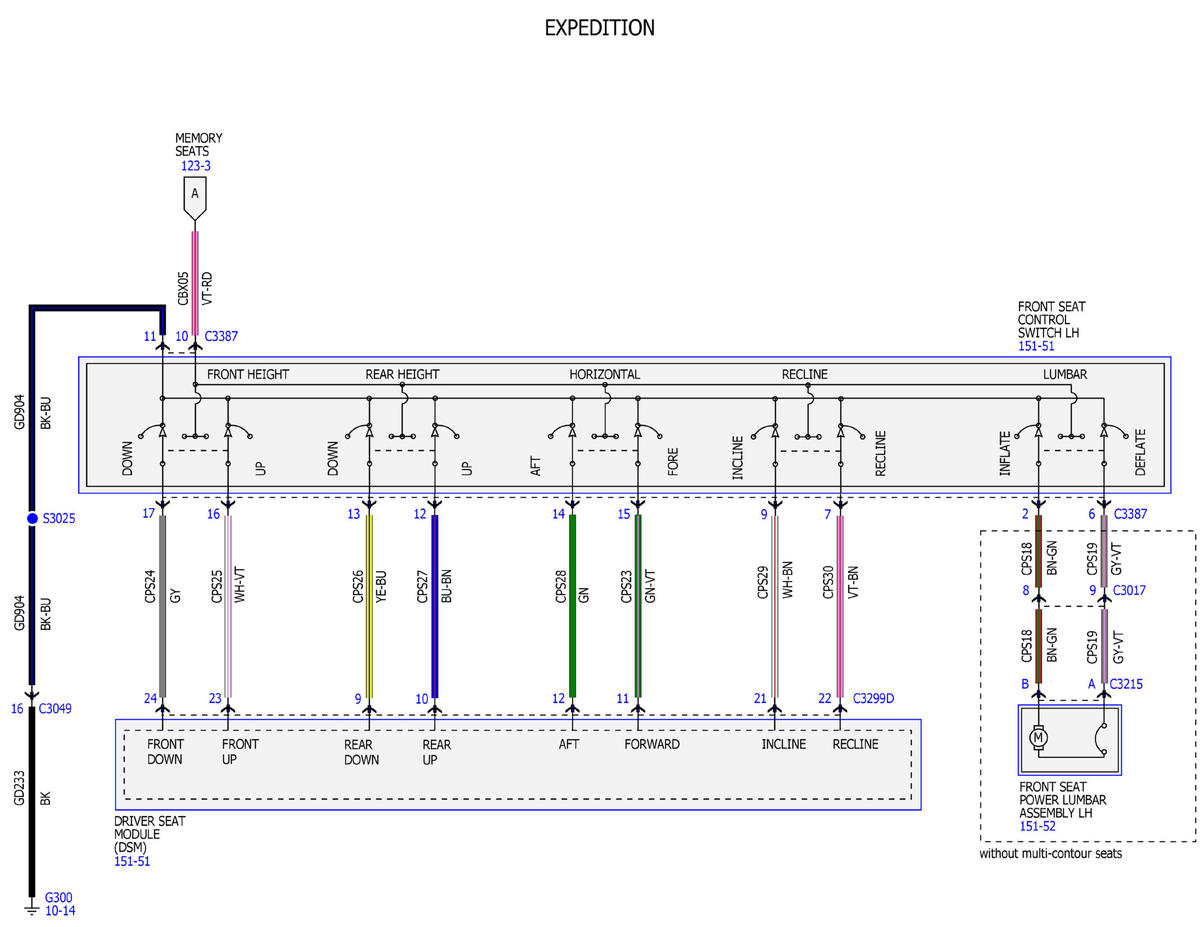

Fig 4: Memory Seats Wiring Diagrams (4 Of 19)

GFDWR184984

Courtesy of FORD MOTOR COMPANY

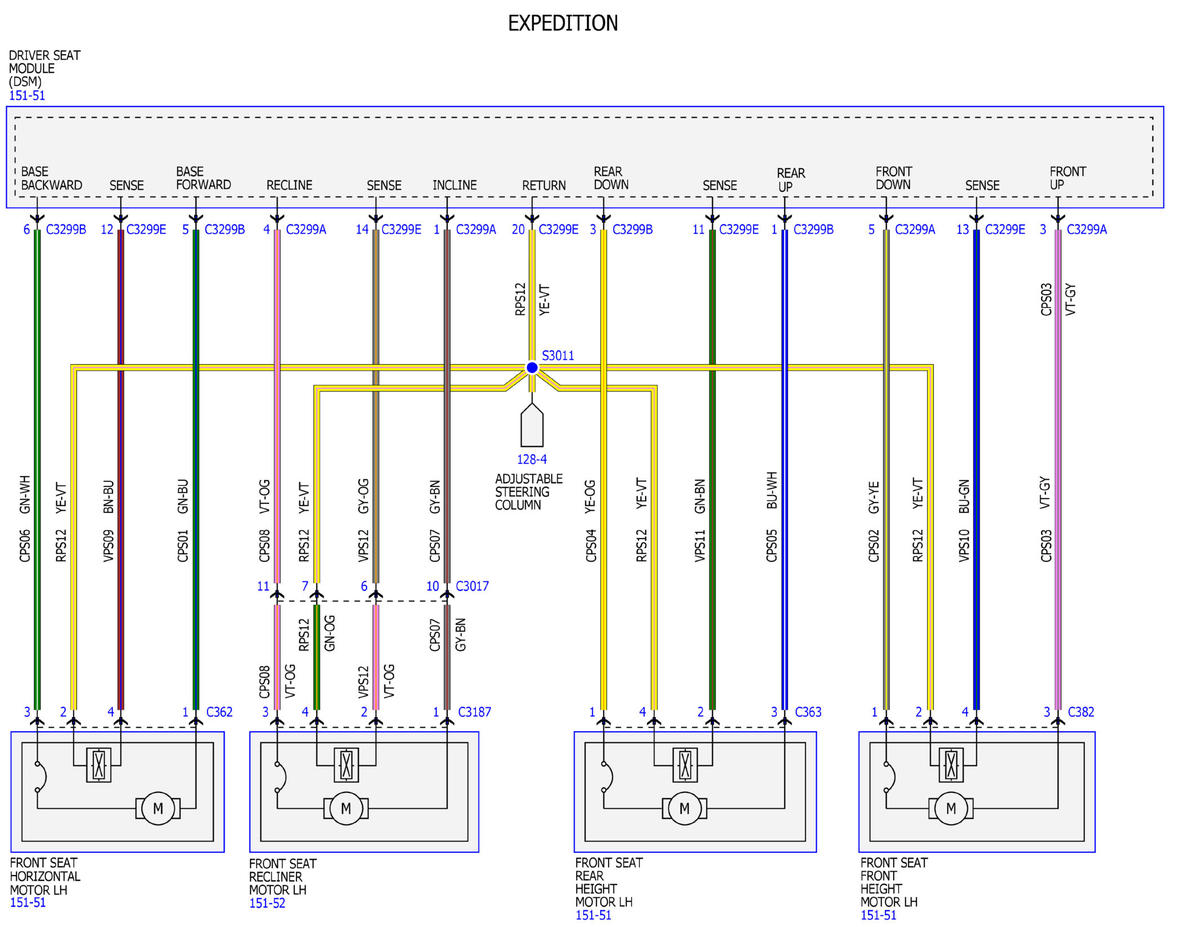

Fig 5: Memory Seats Wiring Diagrams (5 Of 19)

GFDWR184985

Courtesy of FORD MOTOR COMPANY

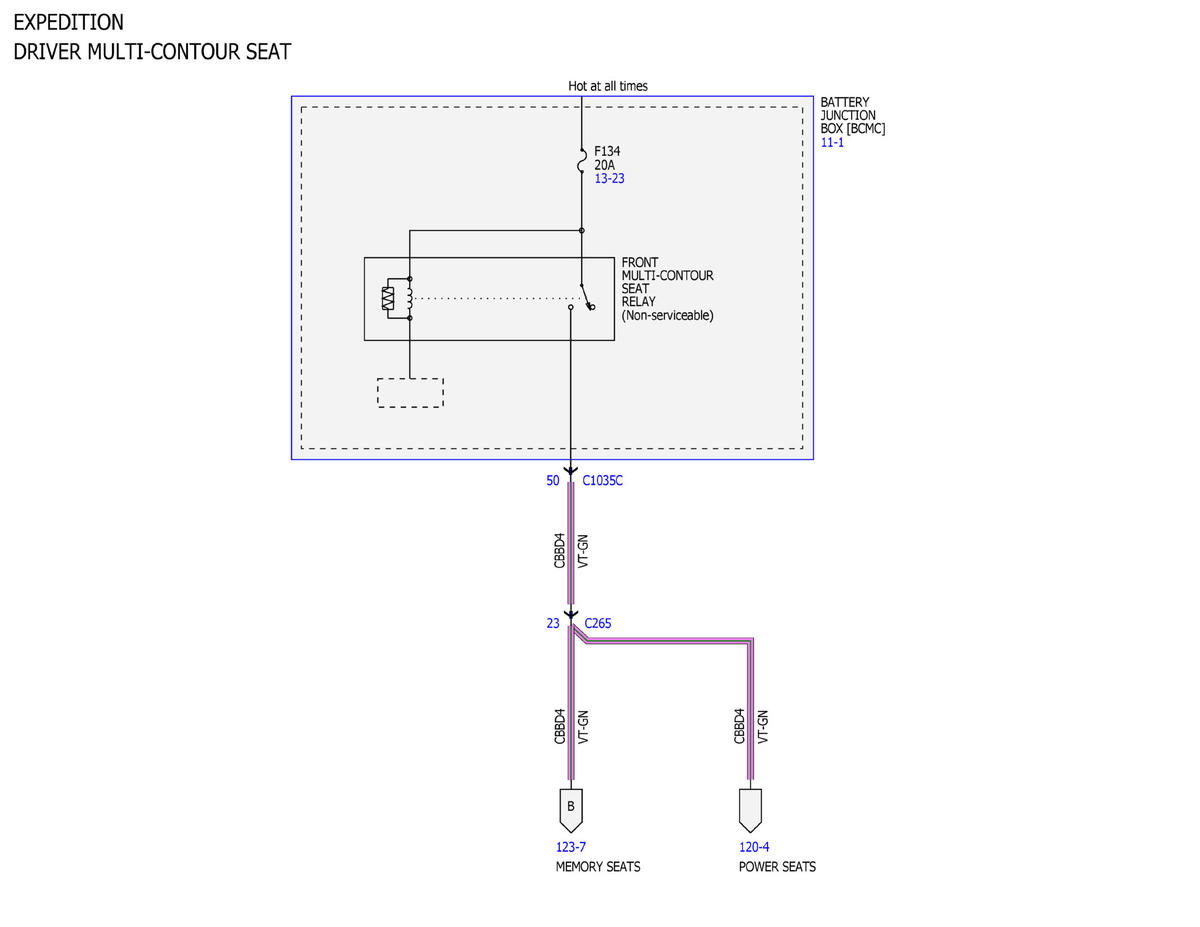

Fig 6: Memory Seats Wiring Diagrams (6 Of 19)

GFDWR184986

Courtesy of FORD MOTOR COMPANY

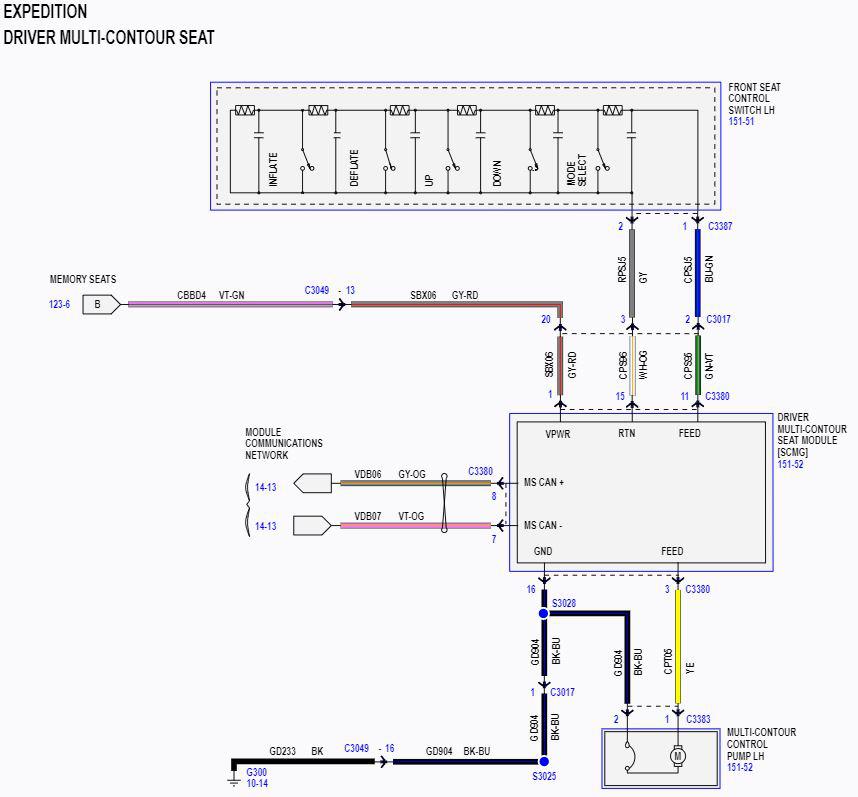

Fig 7: Memory Seats Wiring Diagrams (7 Of 19)

G00614031

Courtesy of FORD MOTOR COMPANY

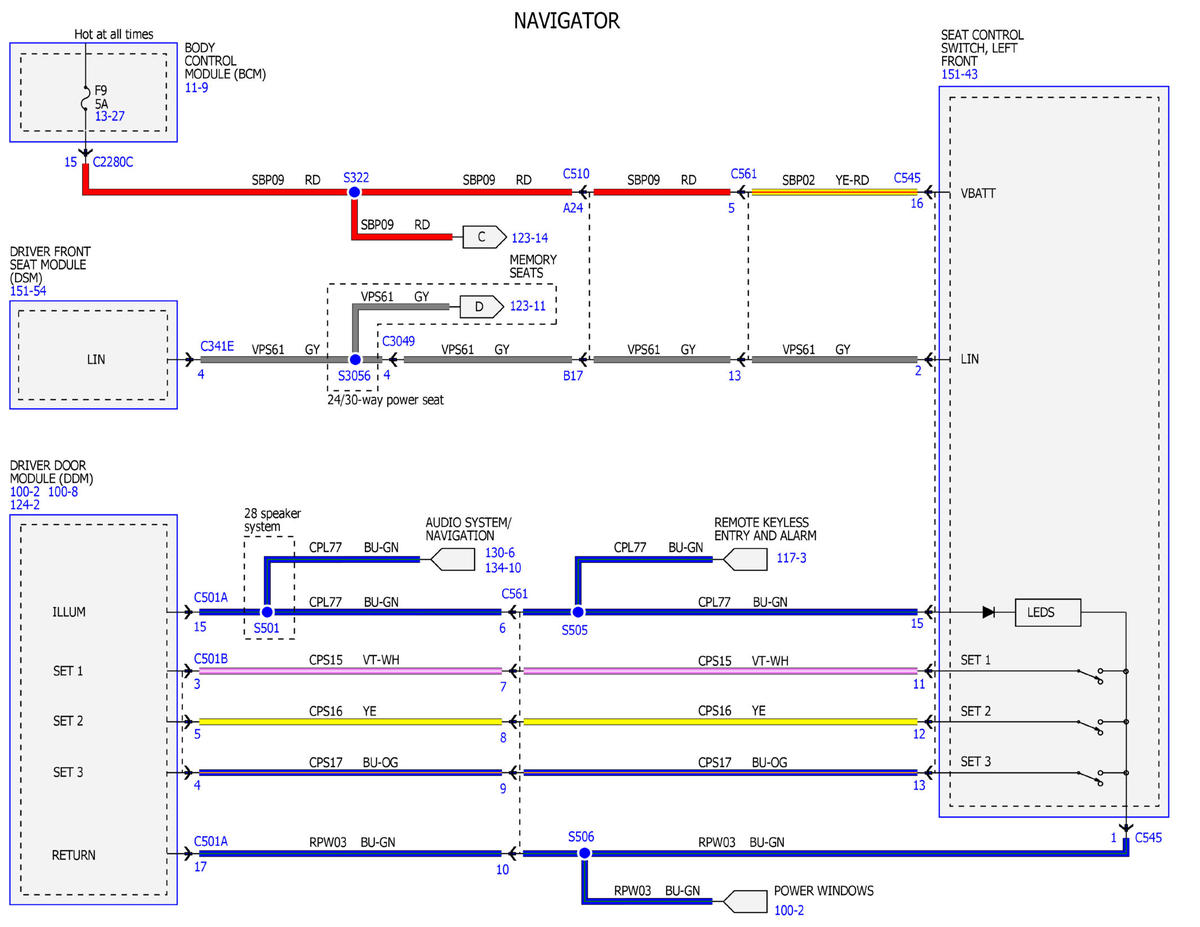

Fig 8: Memory Seats Wiring Diagrams (8 Of 19)

GFDWR184987

Courtesy of FORD MOTOR COMPANY

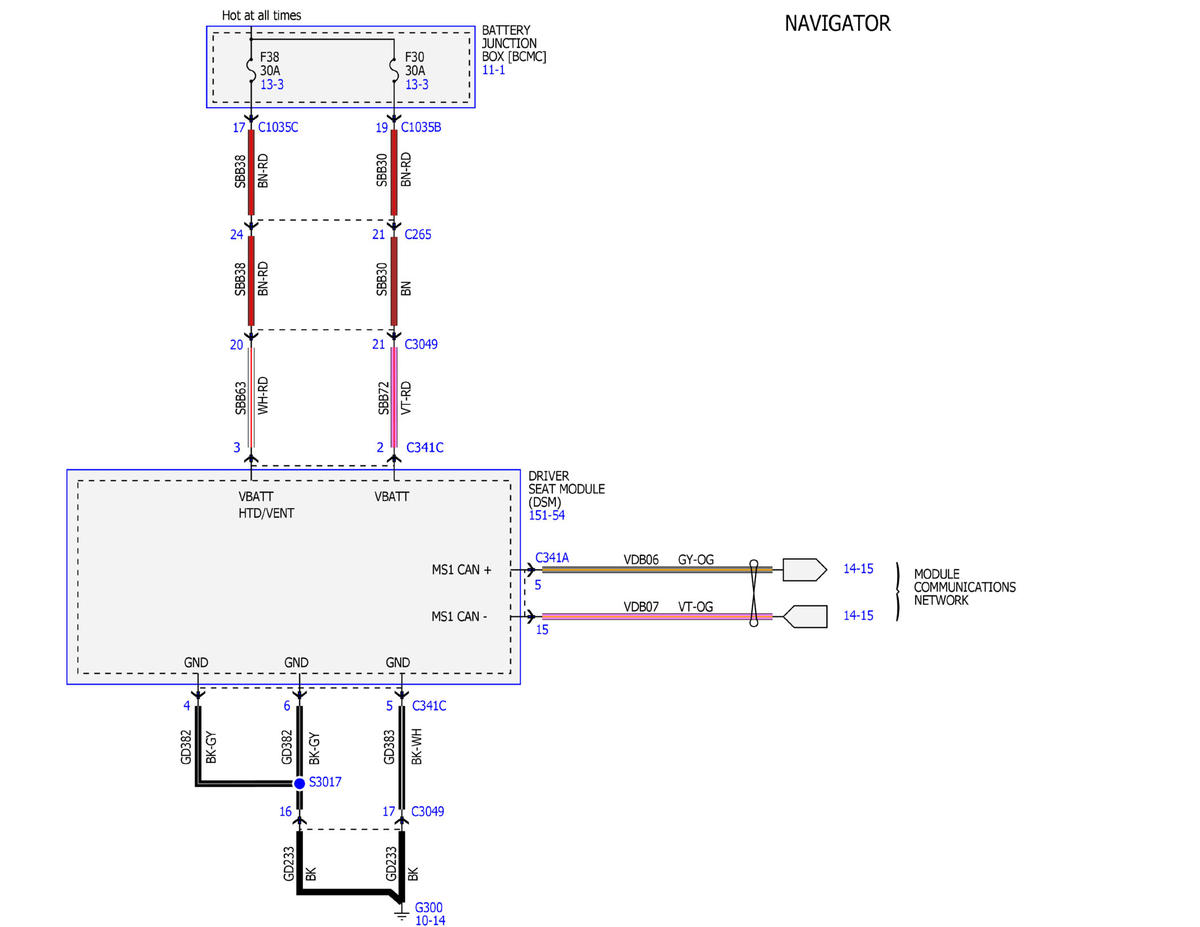

Fig 9: Memory Seats Wiring Diagrams (9 Of 19)

GFDWR184988

Courtesy of FORD MOTOR COMPANY

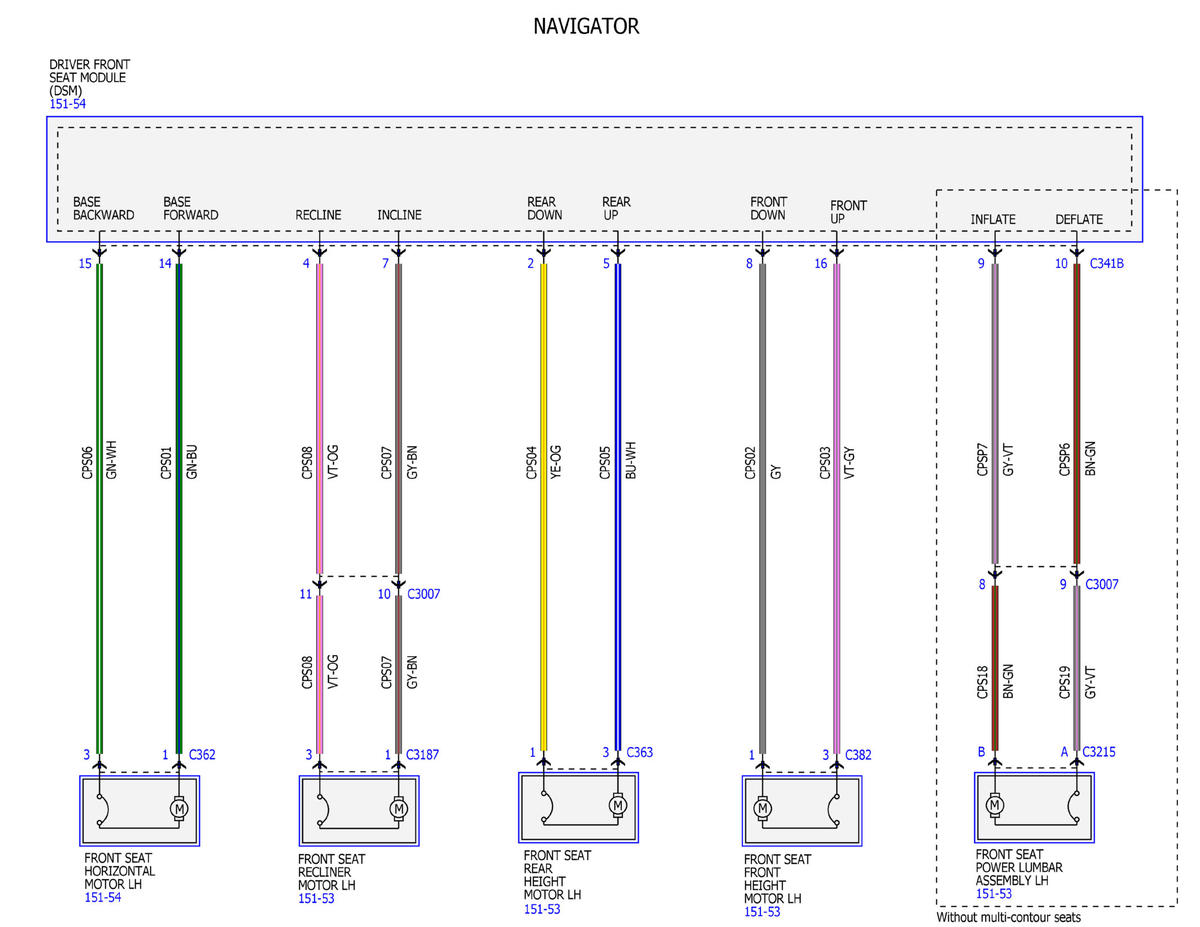

Fig 10: Memory Seats Wiring Diagrams (10 Of 19)

GFDWR184972

Courtesy of FORD MOTOR COMPANY

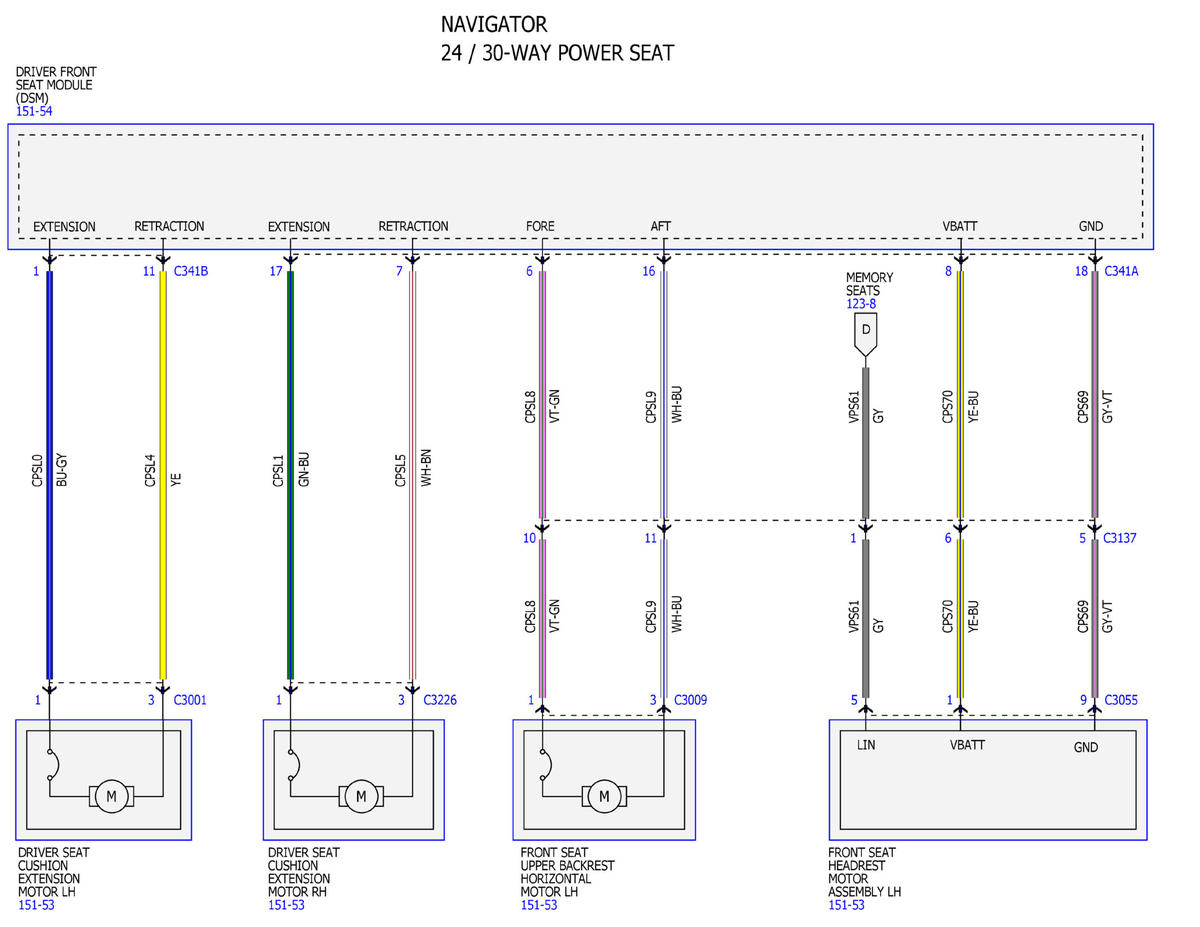

Fig 11: Memory Seats Wiring Diagrams (11 Of 19)

GFDWR184973

Courtesy of FORD MOTOR COMPANY

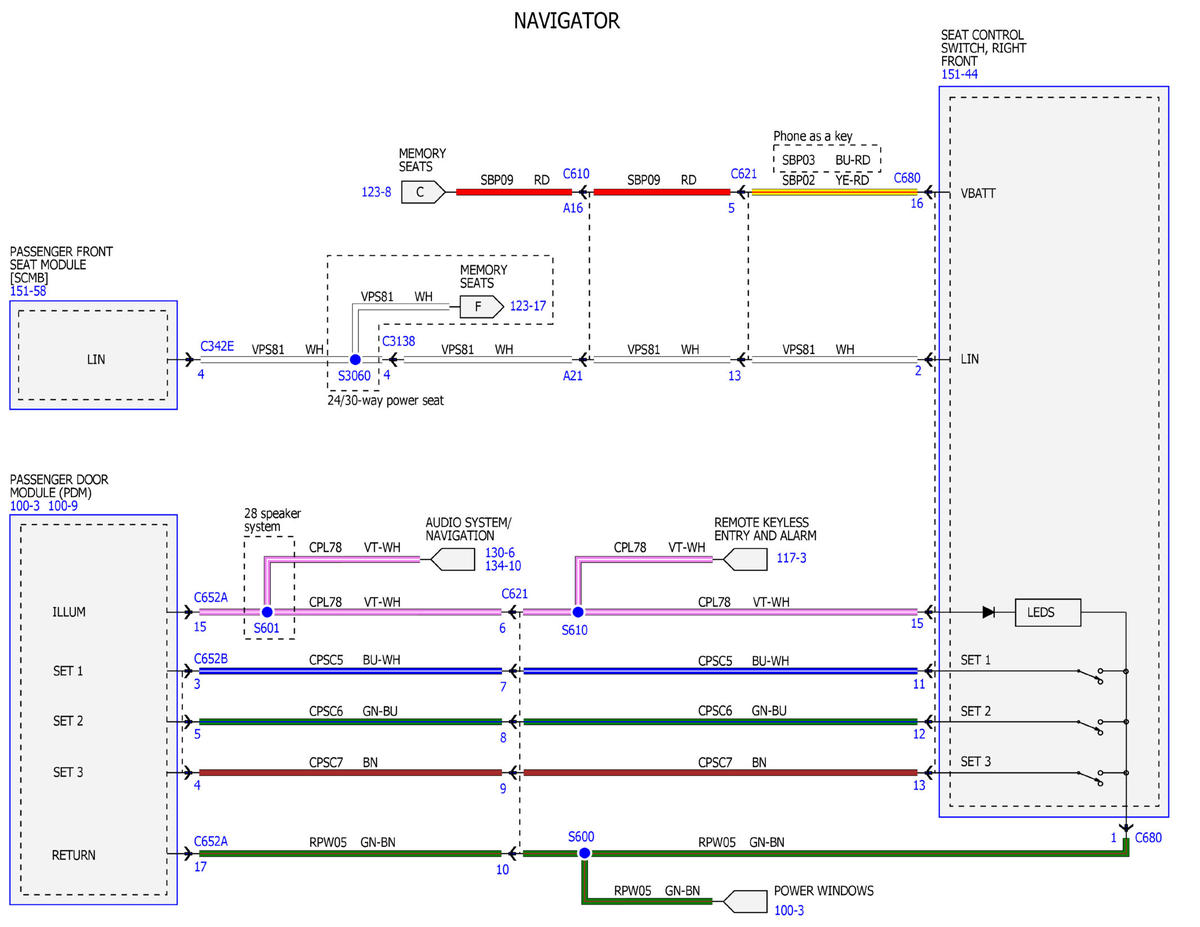

Fig 12: Memory Seats Wiring Diagrams (12 Of 19)

GFDWR184974

Courtesy of FORD MOTOR COMPANY

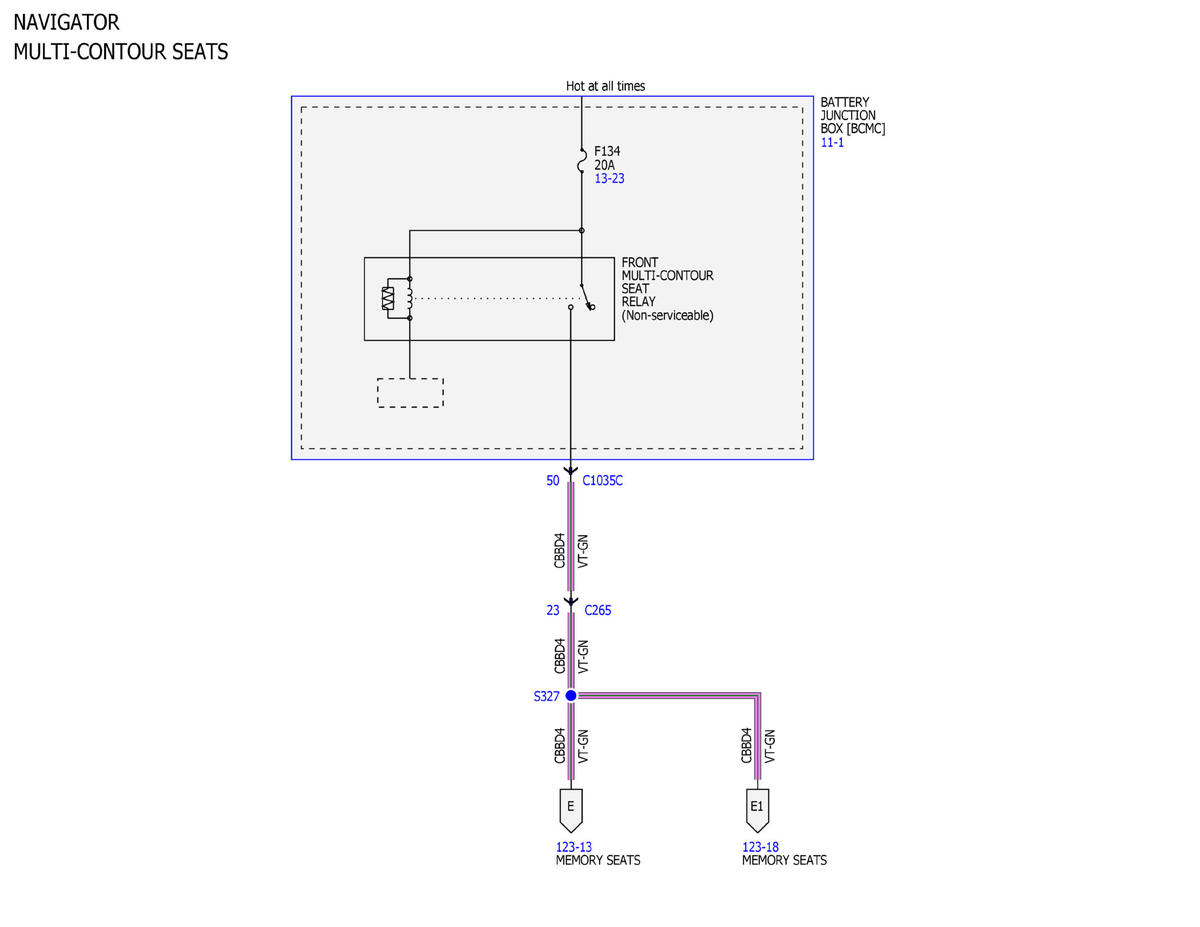

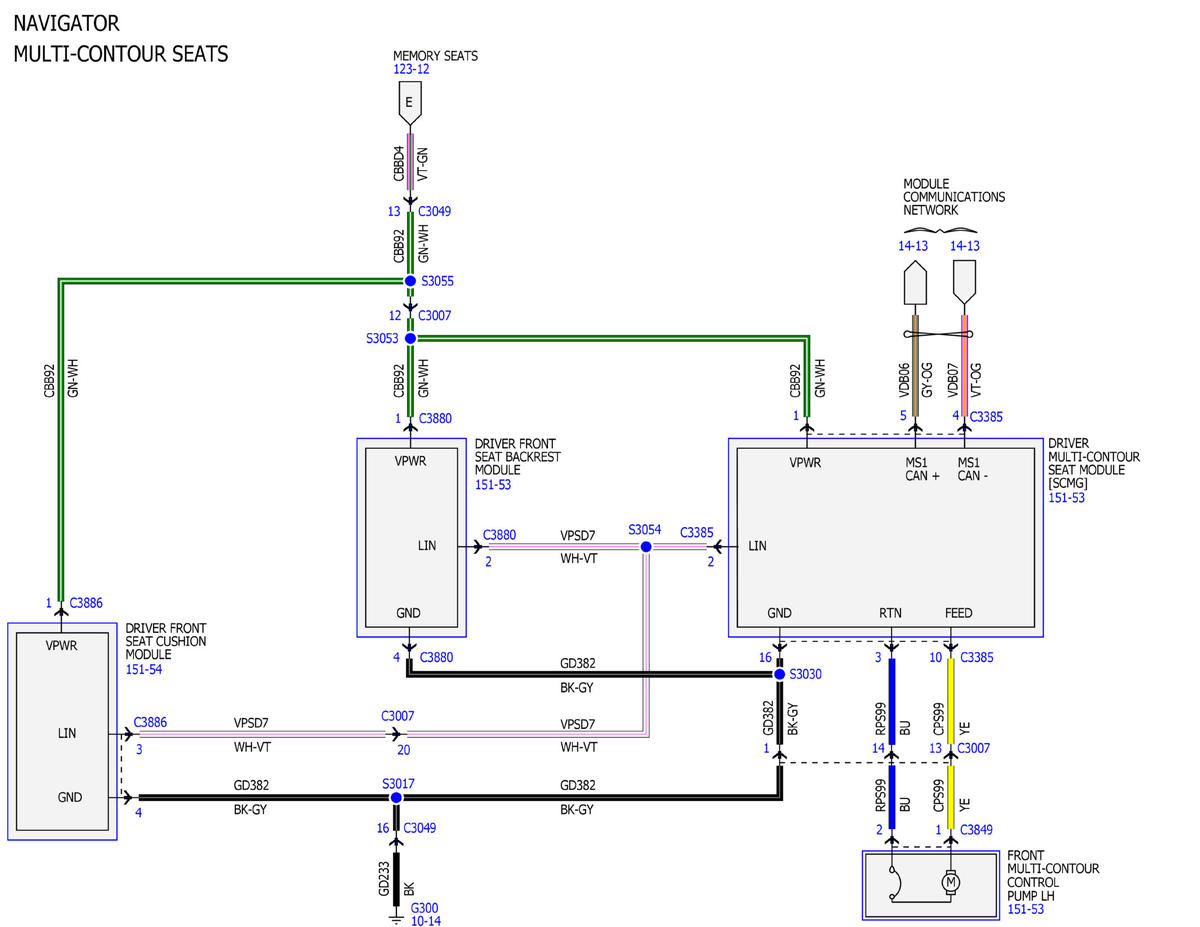

Fig 13: Memory Seats Wiring Diagrams (13 Of 19)

GFDWR184975

Courtesy of FORD MOTOR COMPANY

Fig 14: Memory Seats Wiring Diagrams (14 Of 19)

GFDWR184976

Courtesy of FORD MOTOR COMPANY

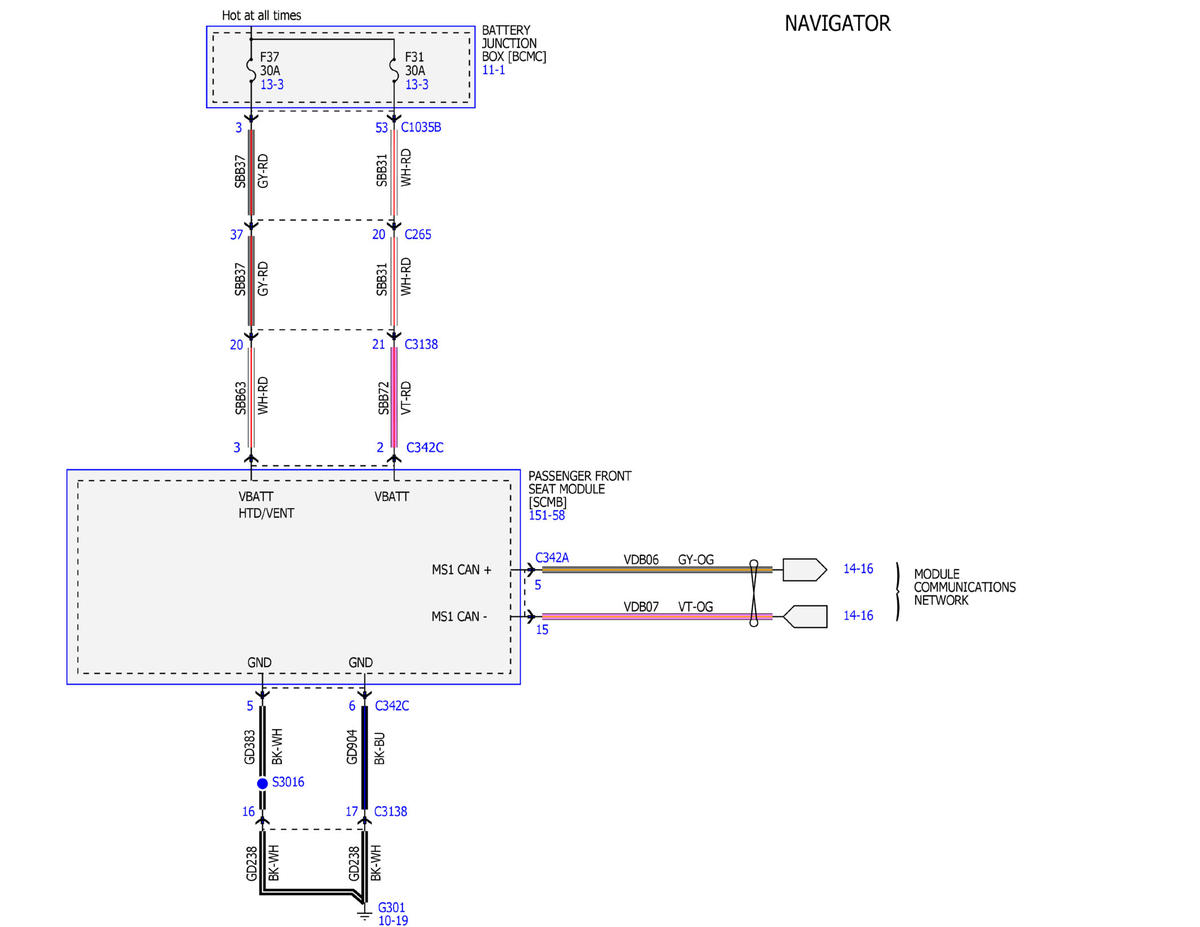

Fig 15: Memory Seats Wiring Diagrams (15 Of 19)

GFDWR184977

Courtesy of FORD MOTOR COMPANY

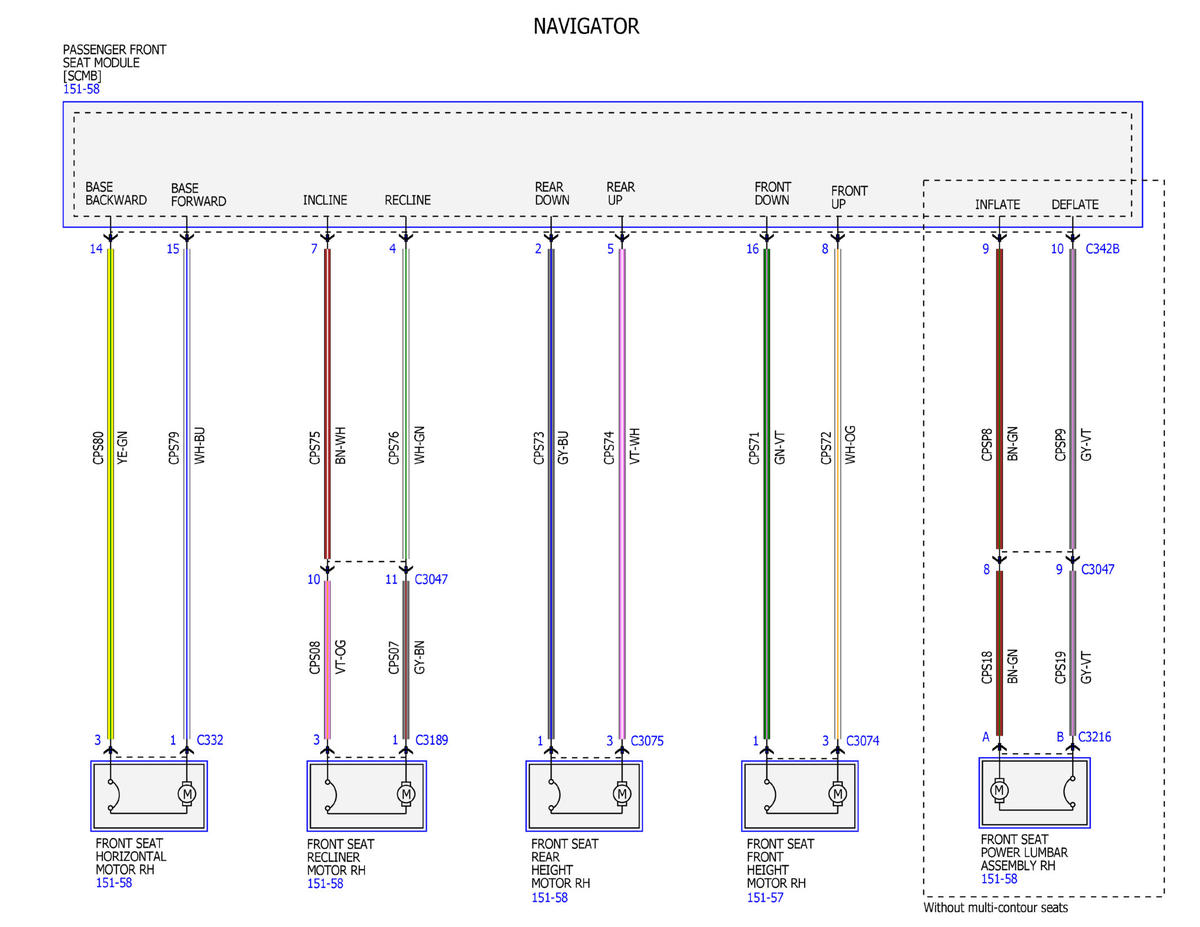

Fig 16: Memory Seats Wiring Diagrams (16 Of 19)

GFDWR184978

Courtesy of FORD MOTOR COMPANY

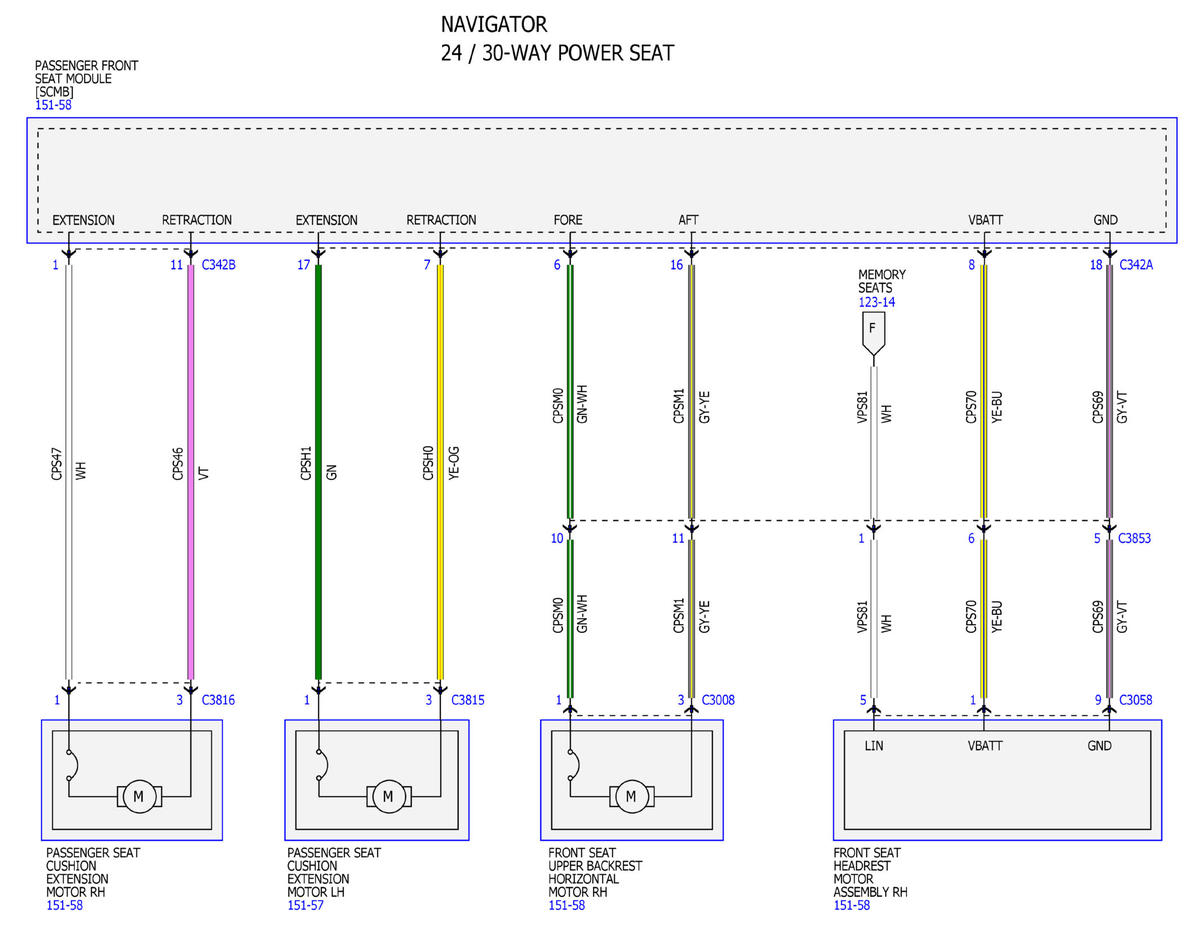

Fig 17: Memory Seats Wiring Diagrams (17 Of 19)

GFDWR184979

Courtesy of FORD MOTOR COMPANY

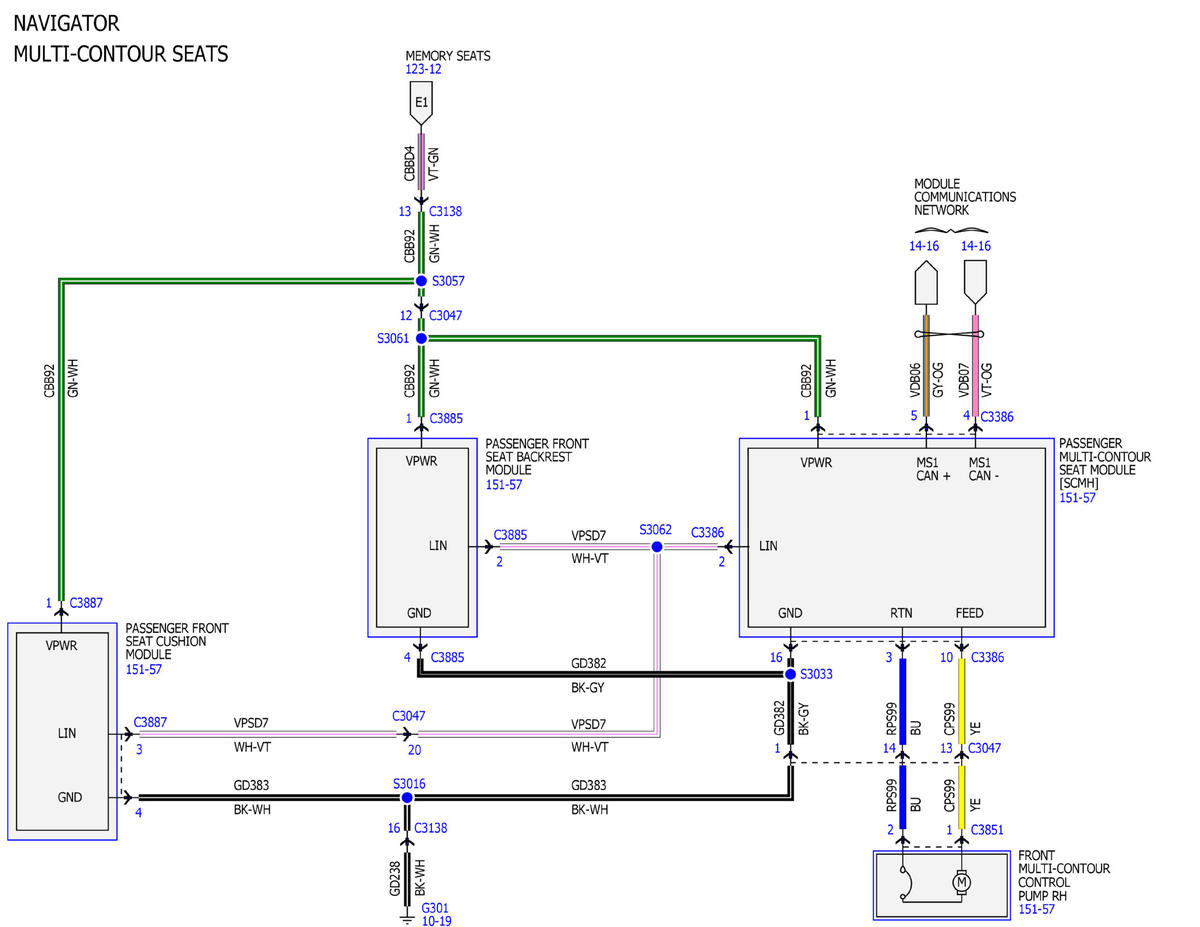

Fig 18: Memory Seats Wiring Diagrams (18 Of 19)

GFDWR184980

Courtesy of FORD MOTOR COMPANY

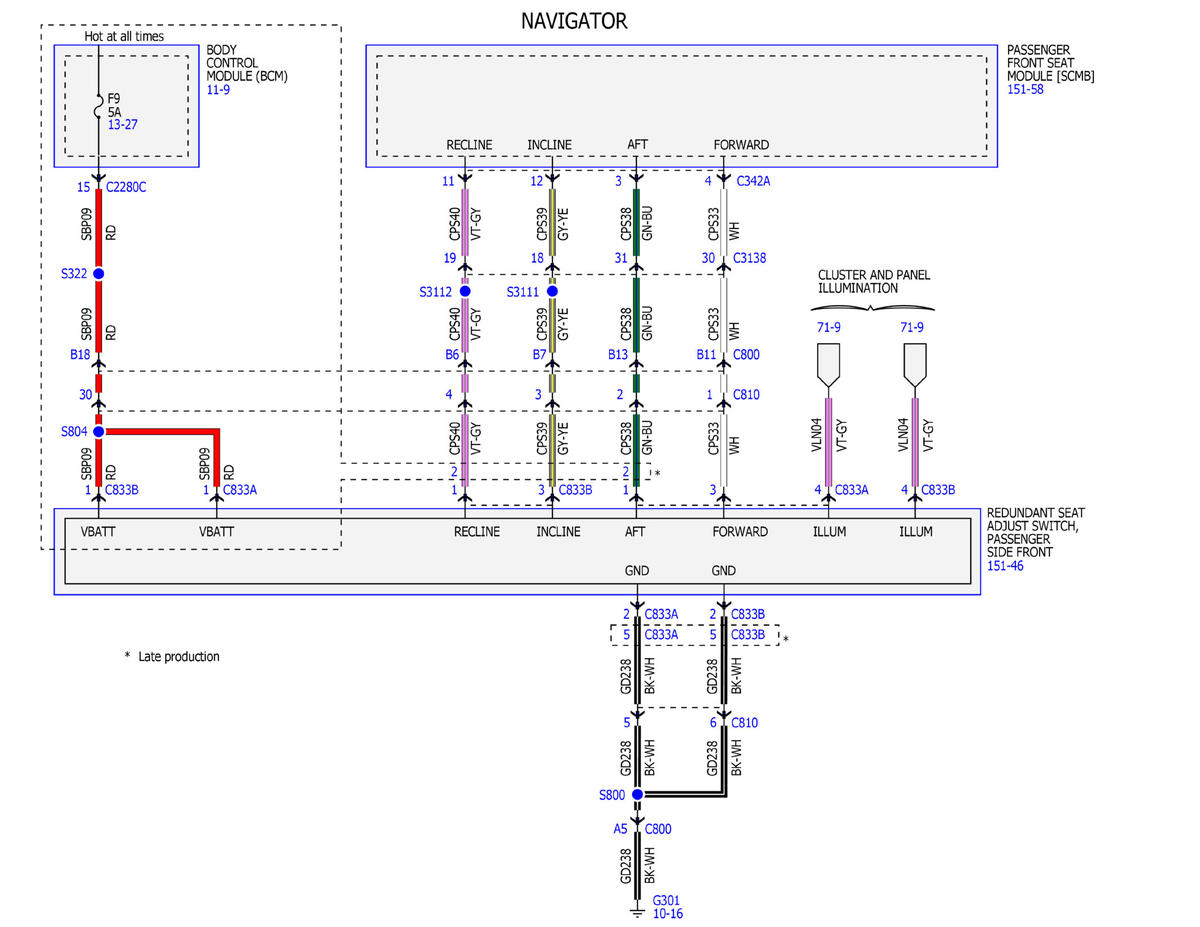

Fig 19: Memory Seats Wiring Diagrams (19 Of 19)

GFDWR184981

Courtesy of FORD MOTOR COMPANY
