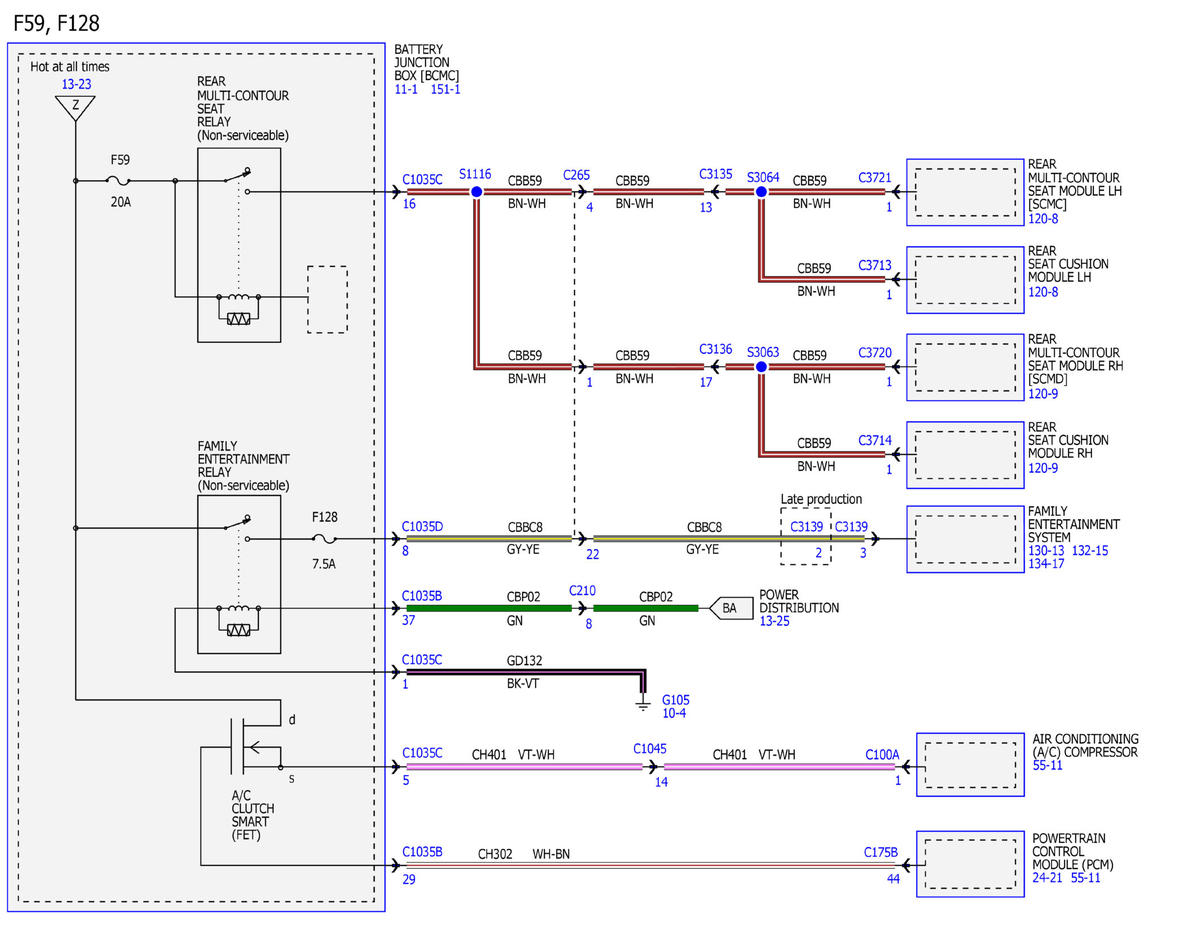

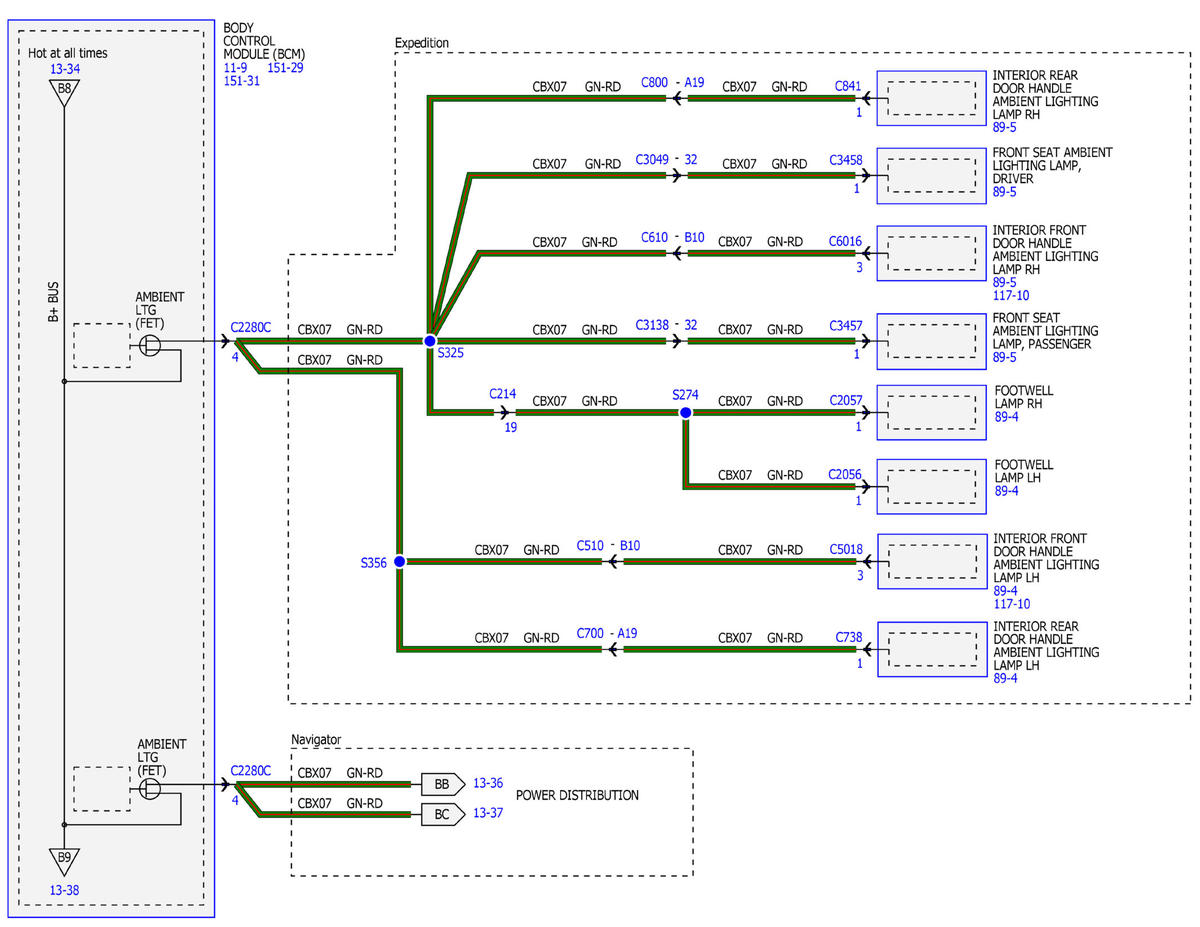

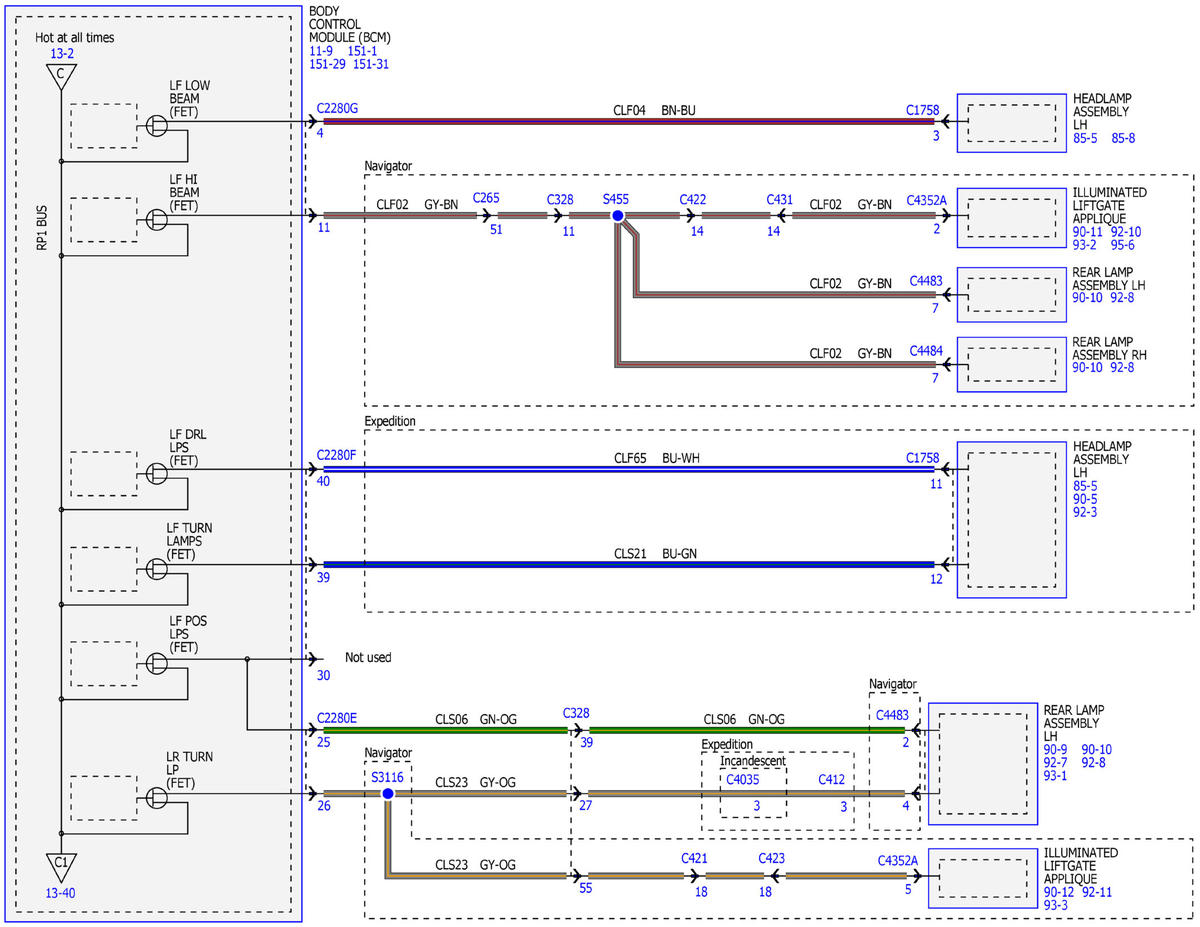

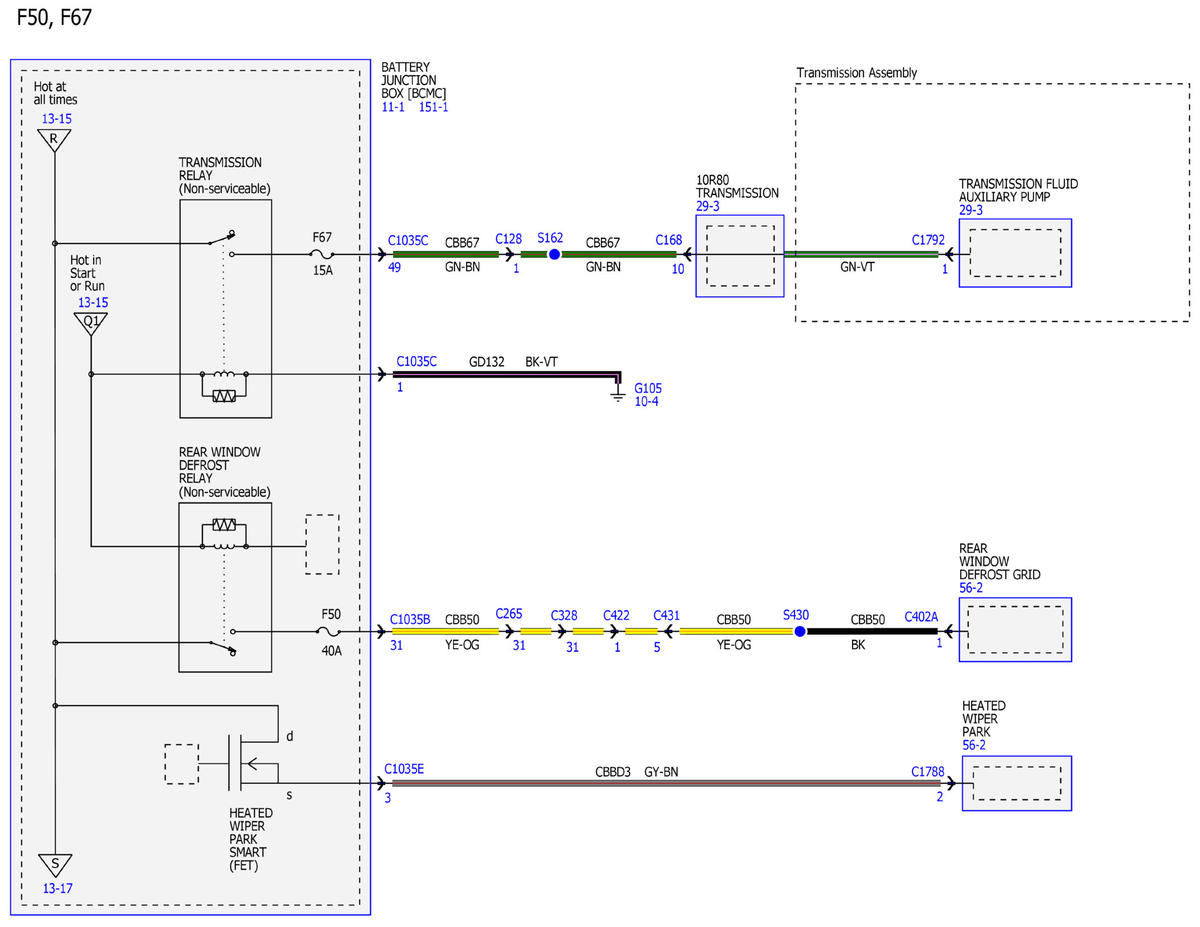

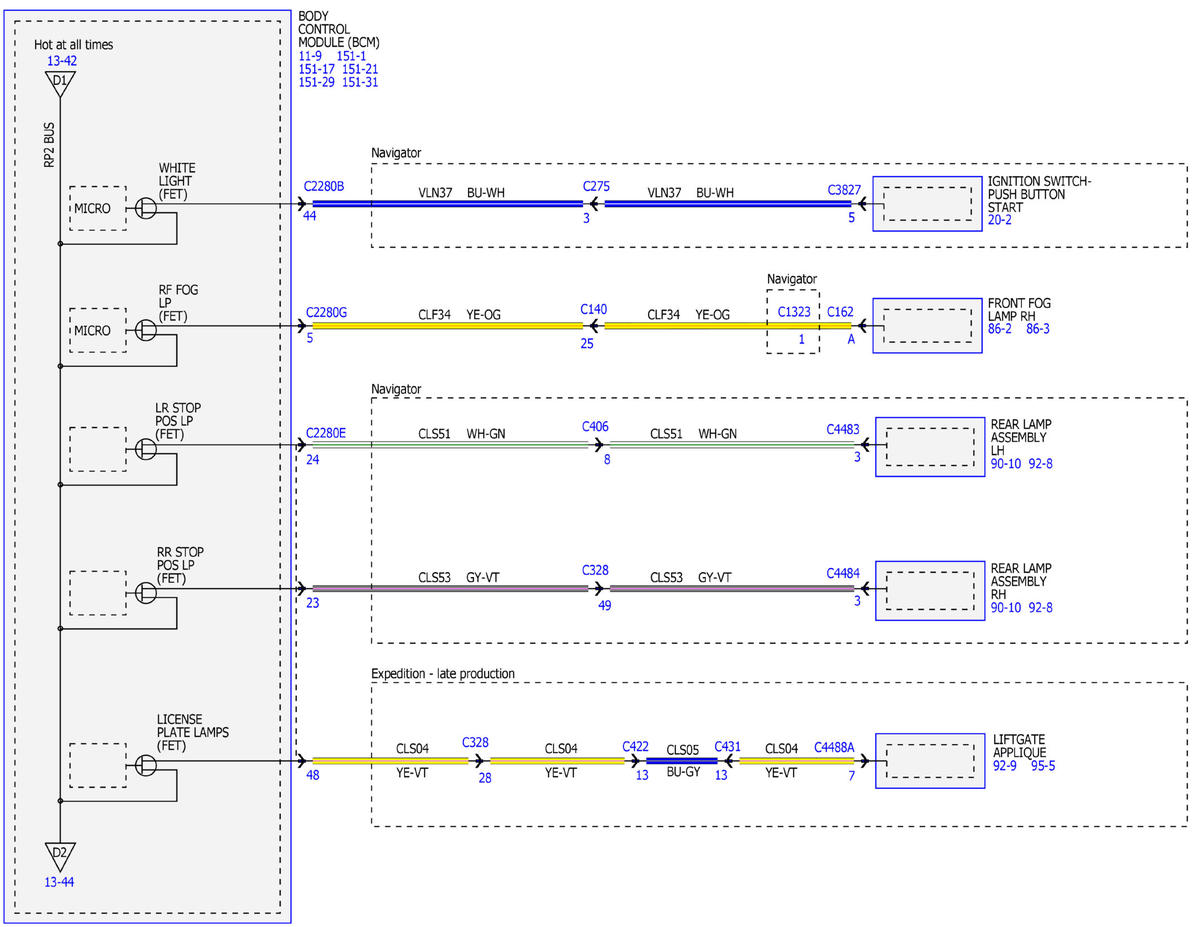

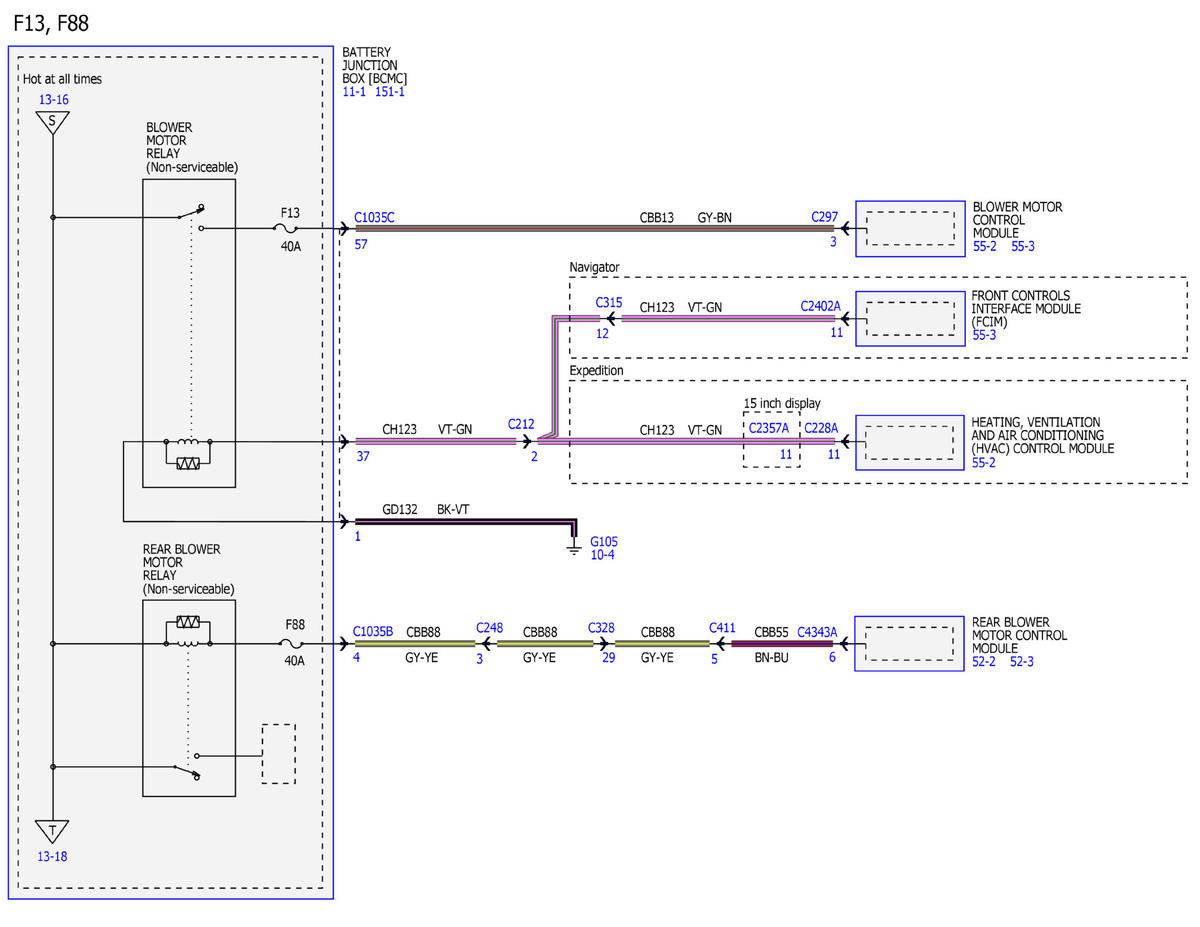

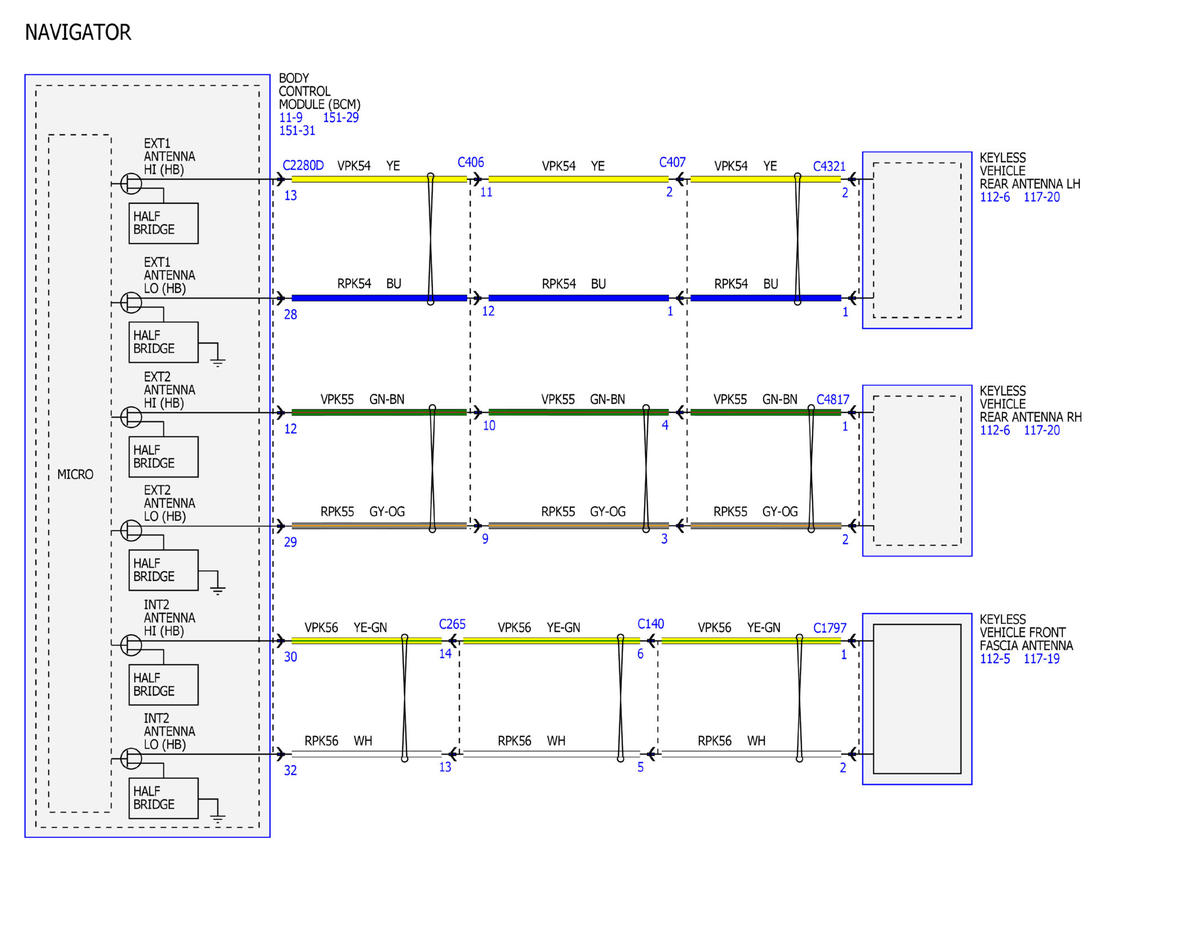

Fig 1: Power Distribution Wiring Diagrams (1 Of 53)
Courtesy of FORD MOTOR COMPANY

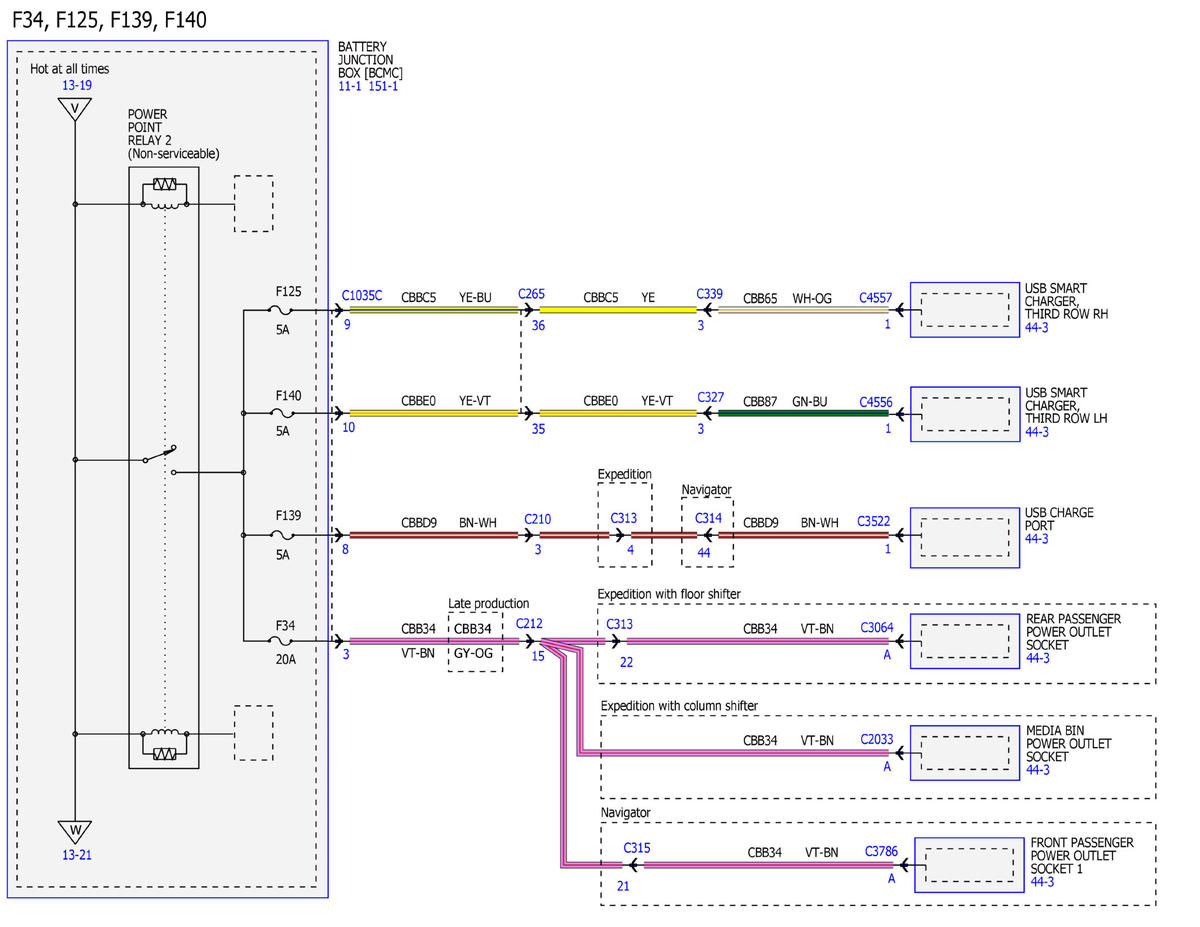

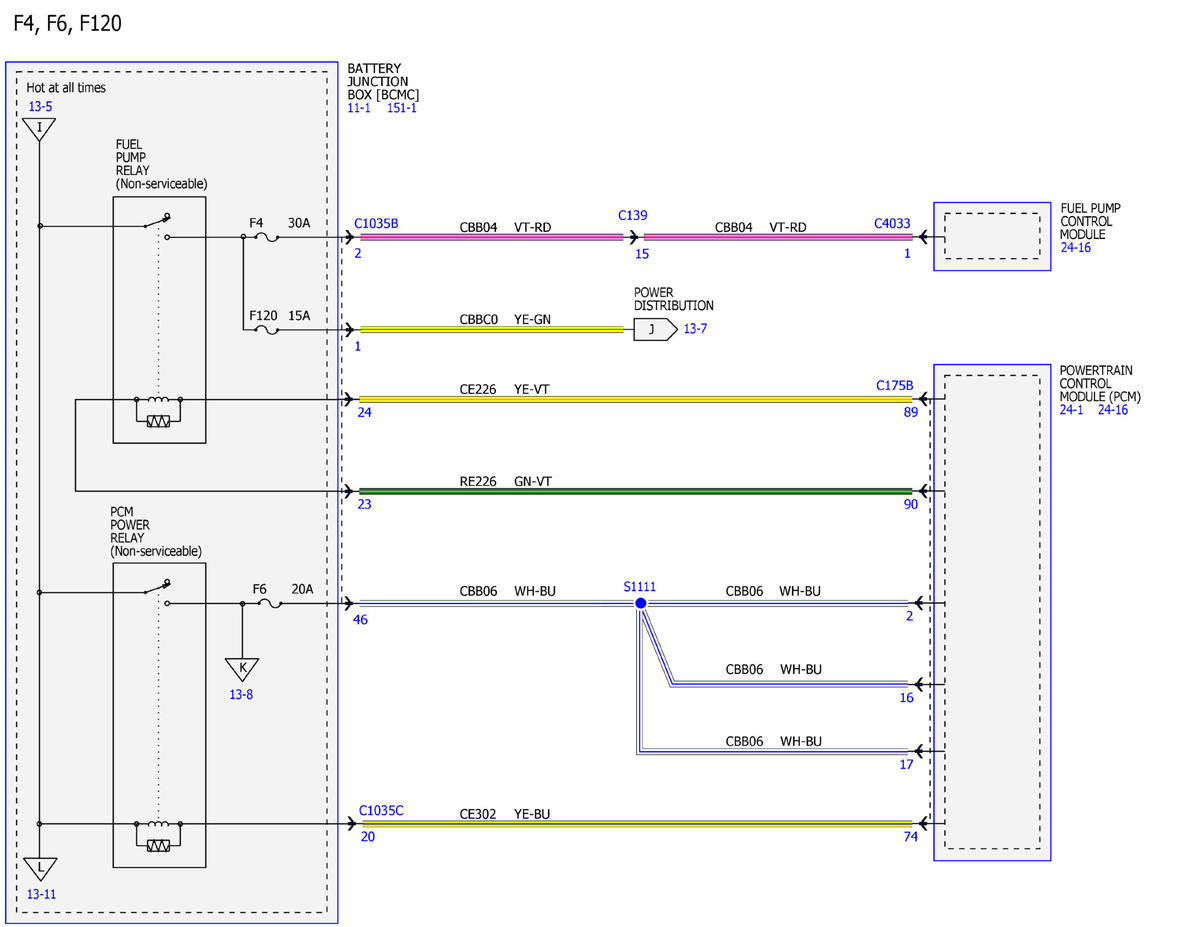

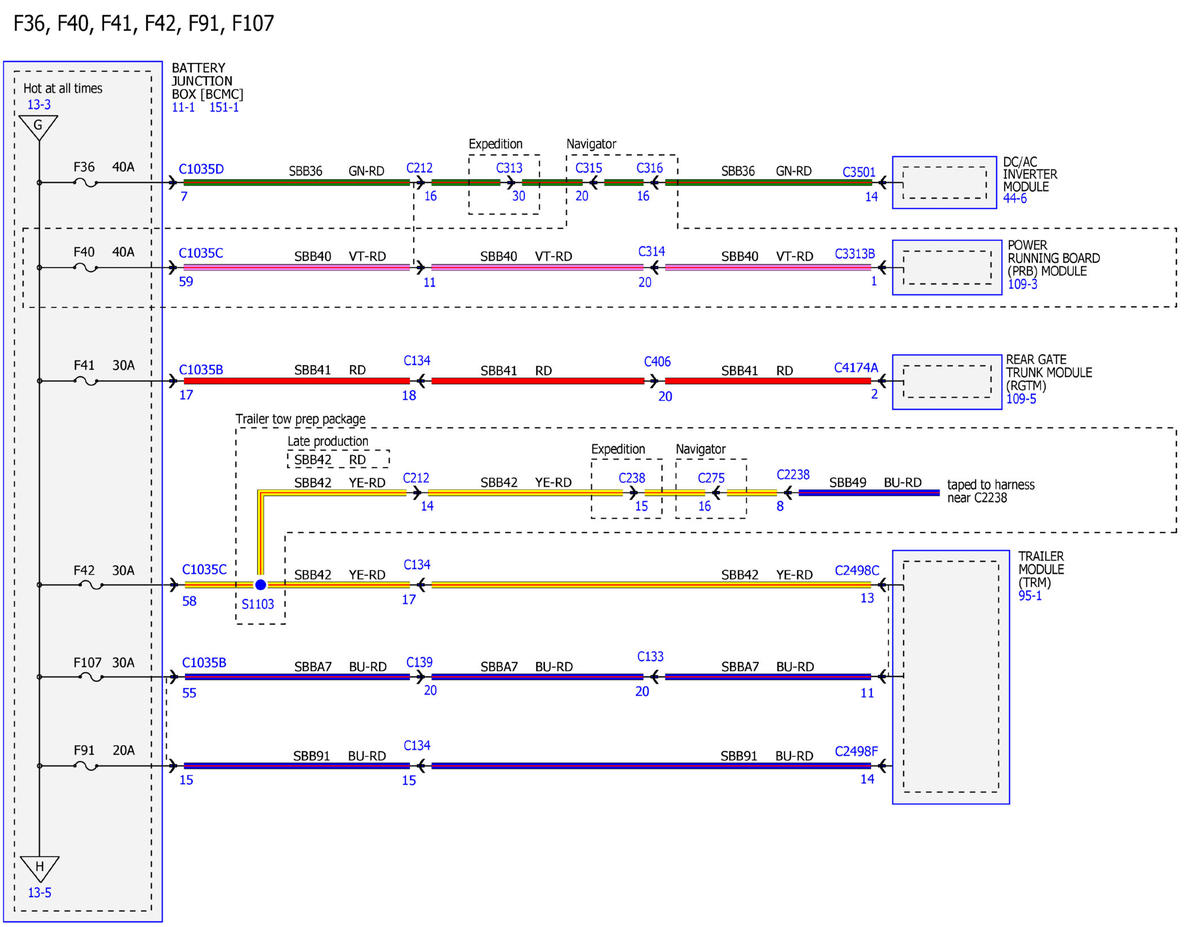

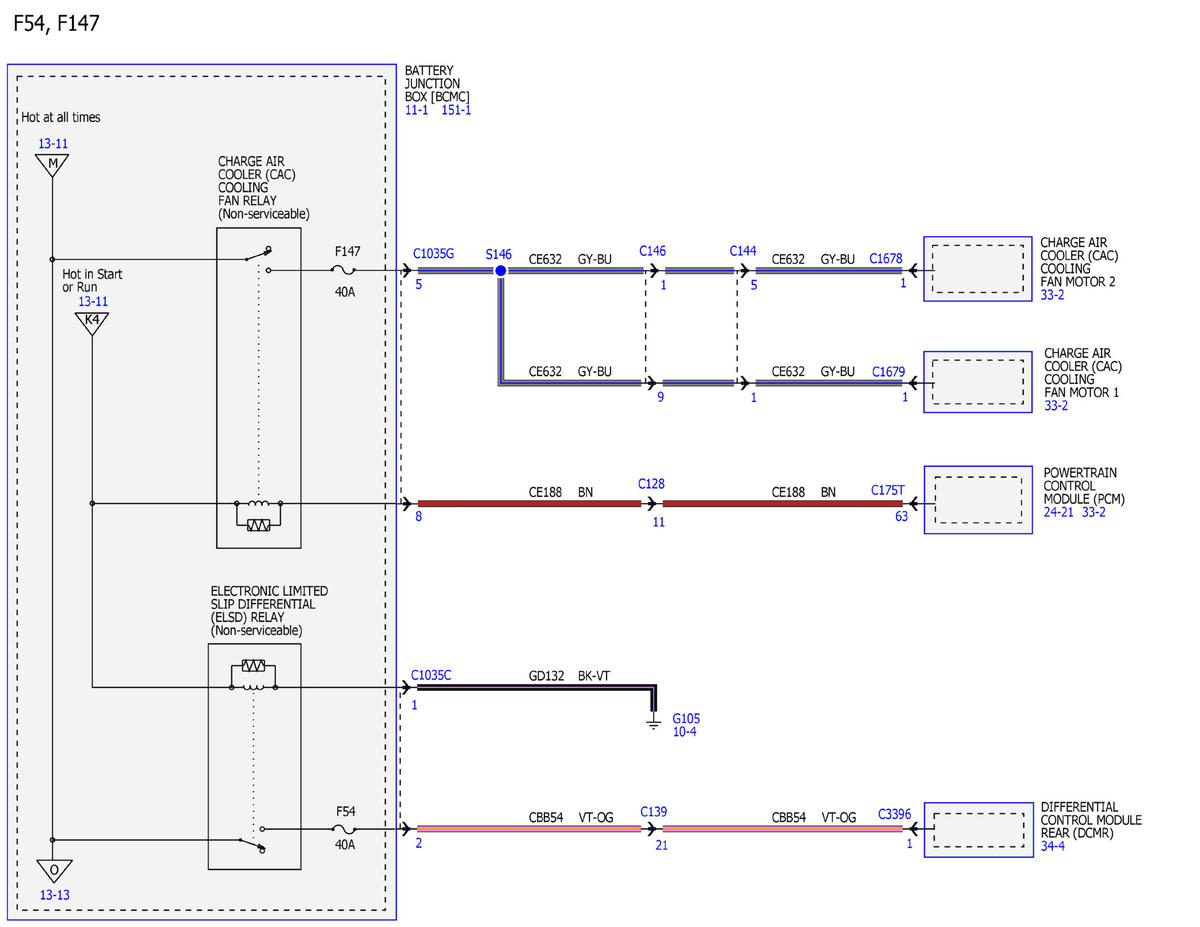

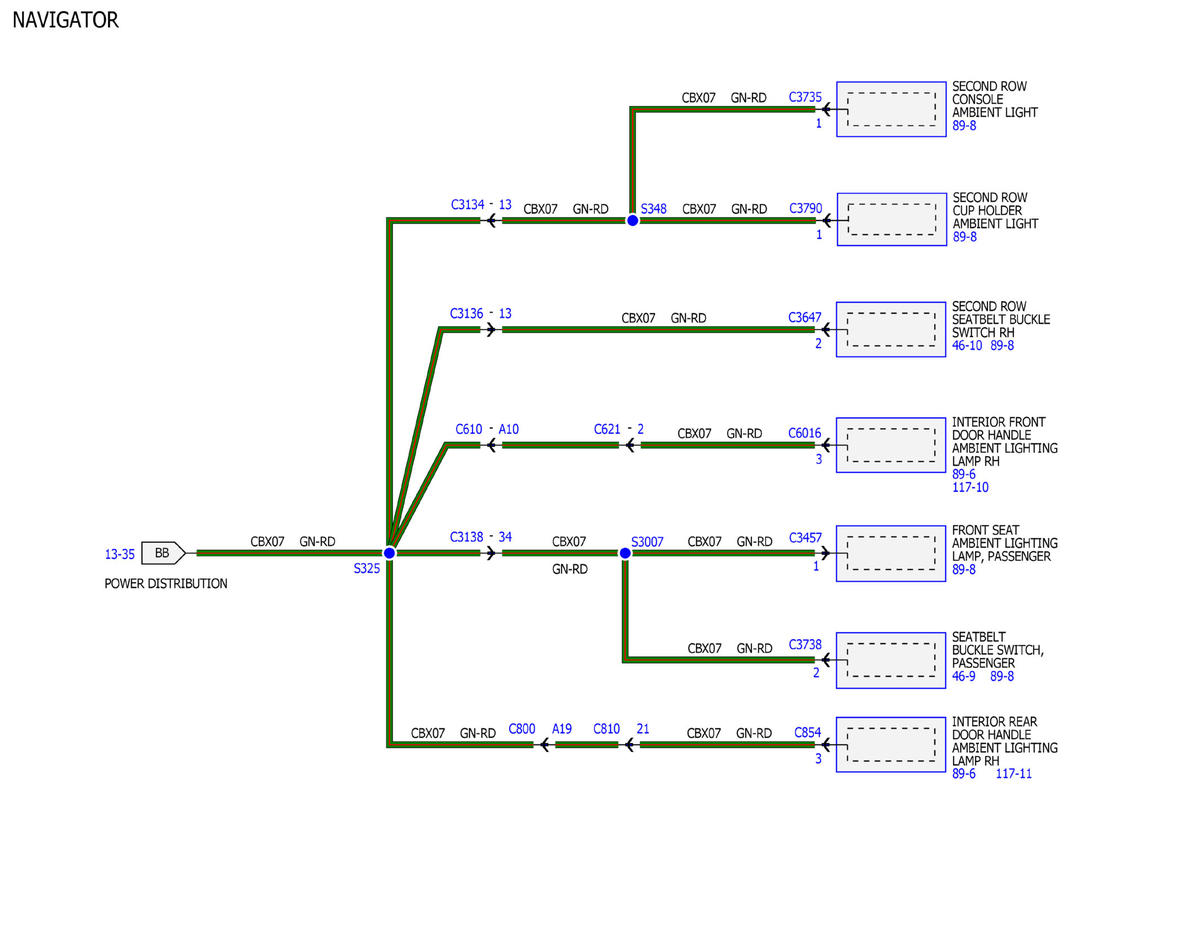

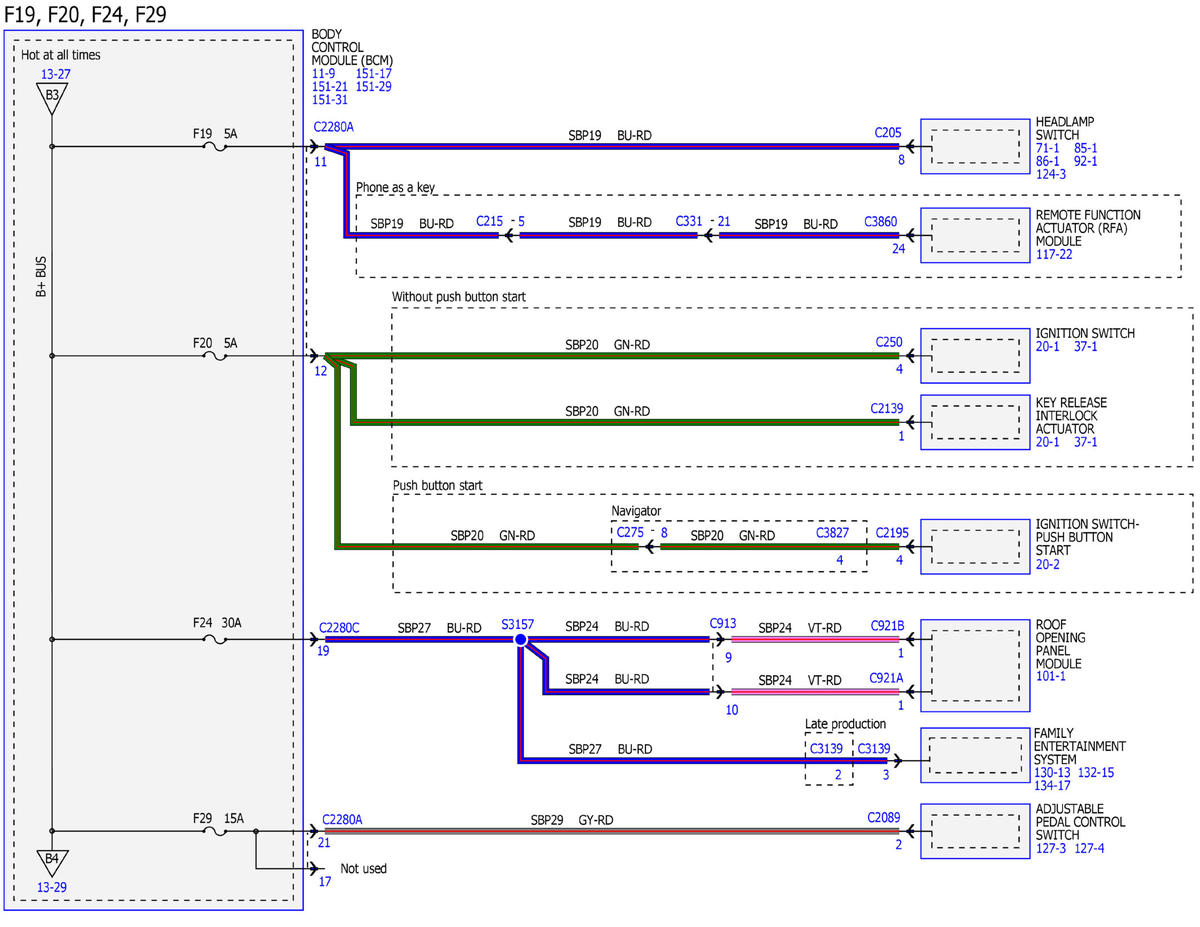

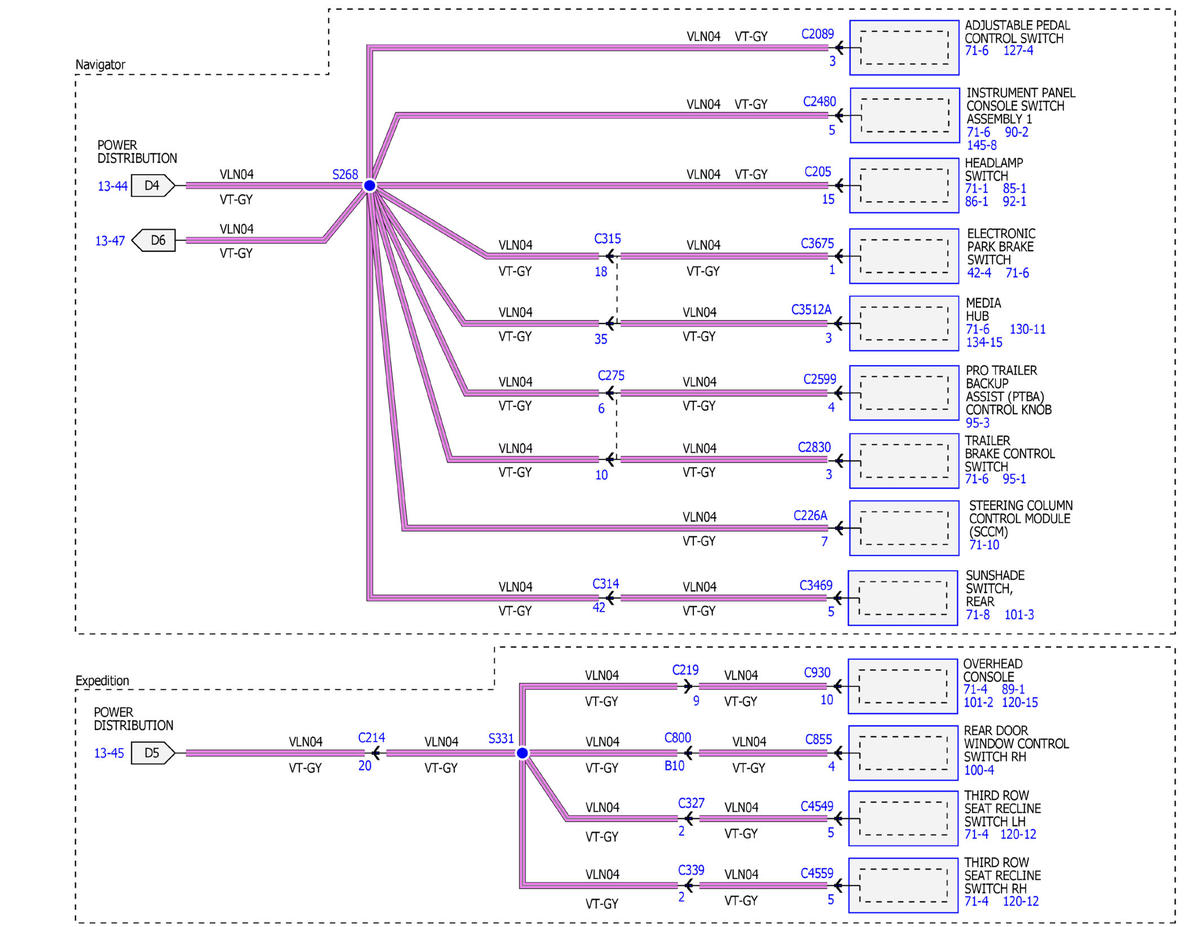

Fig 2: Power Distribution Wiring Diagrams (2 Of 53)
Courtesy of FORD MOTOR COMPANY

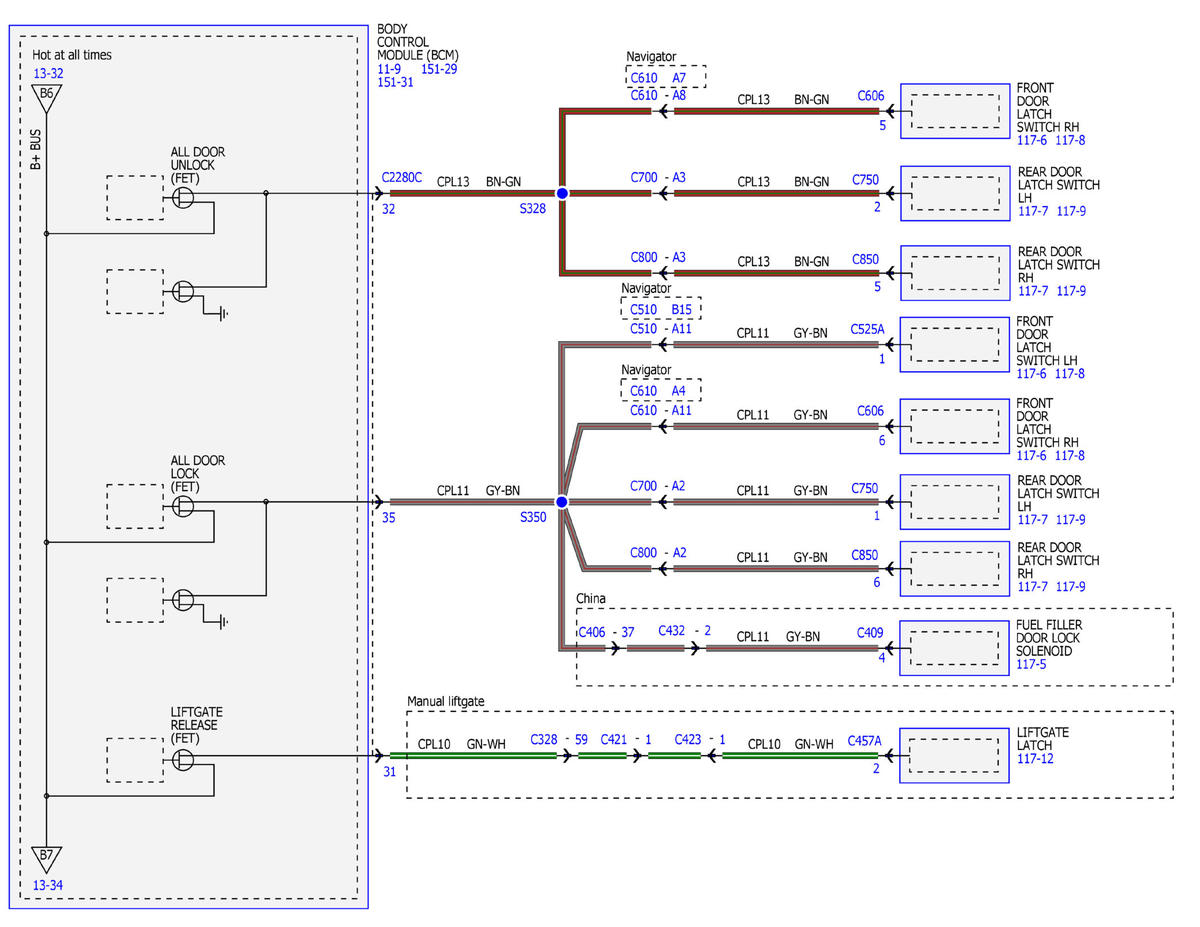

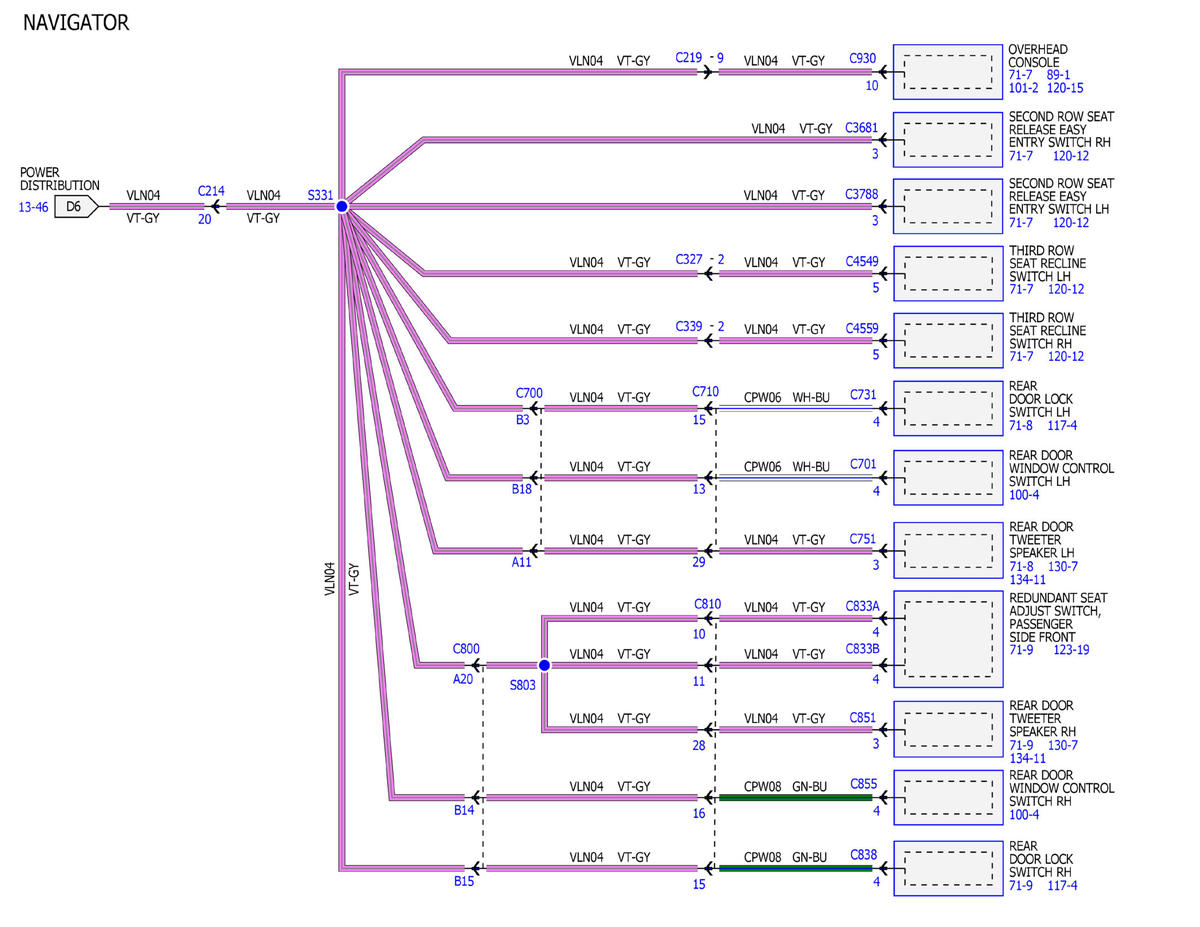

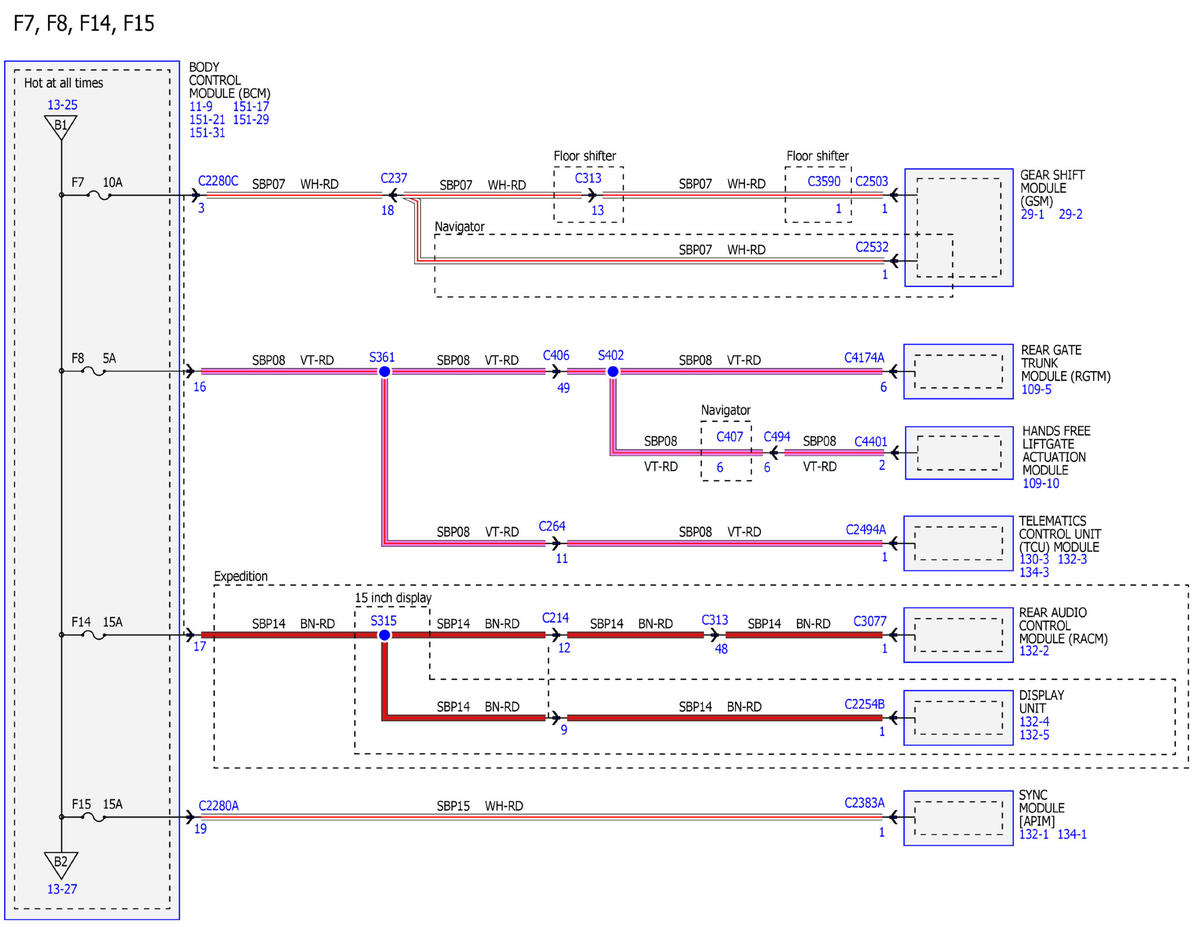

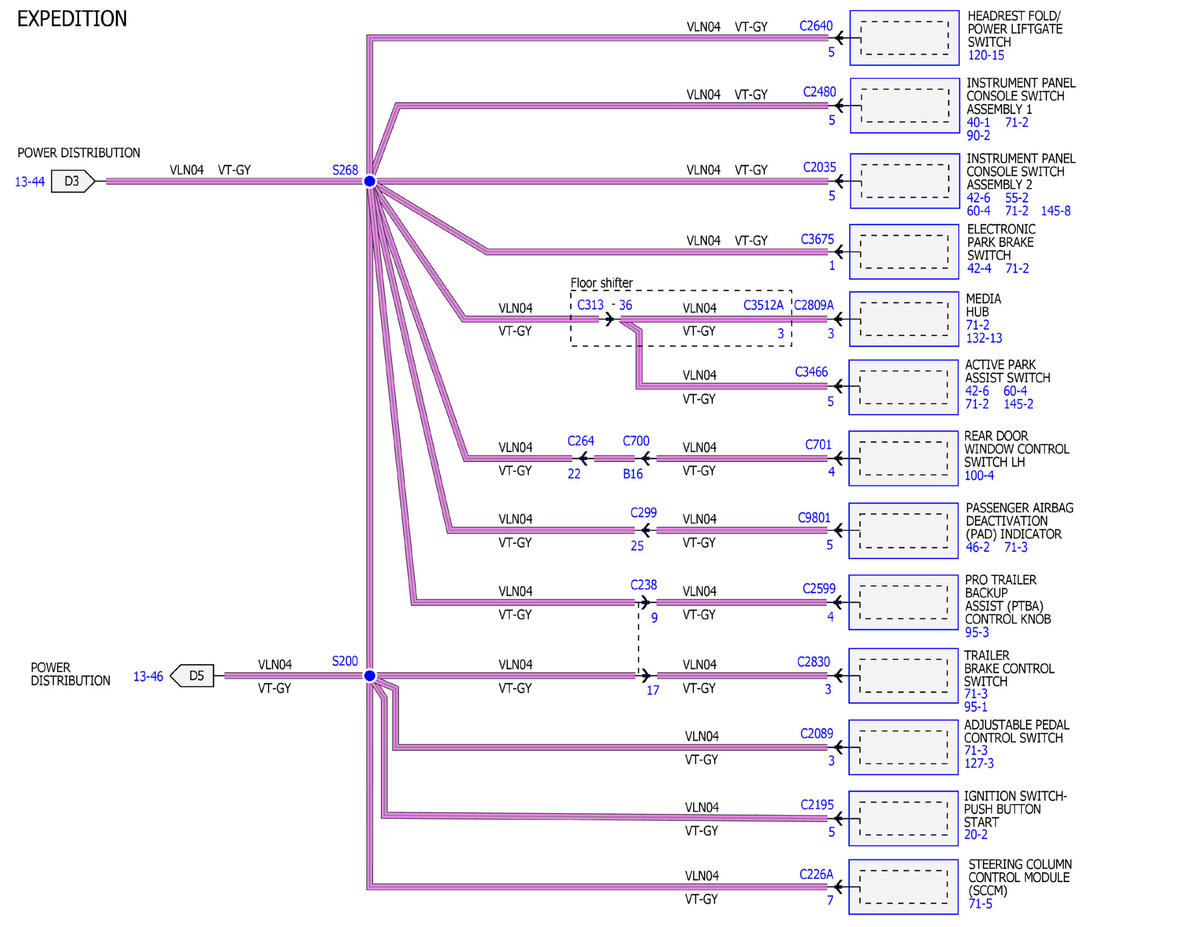

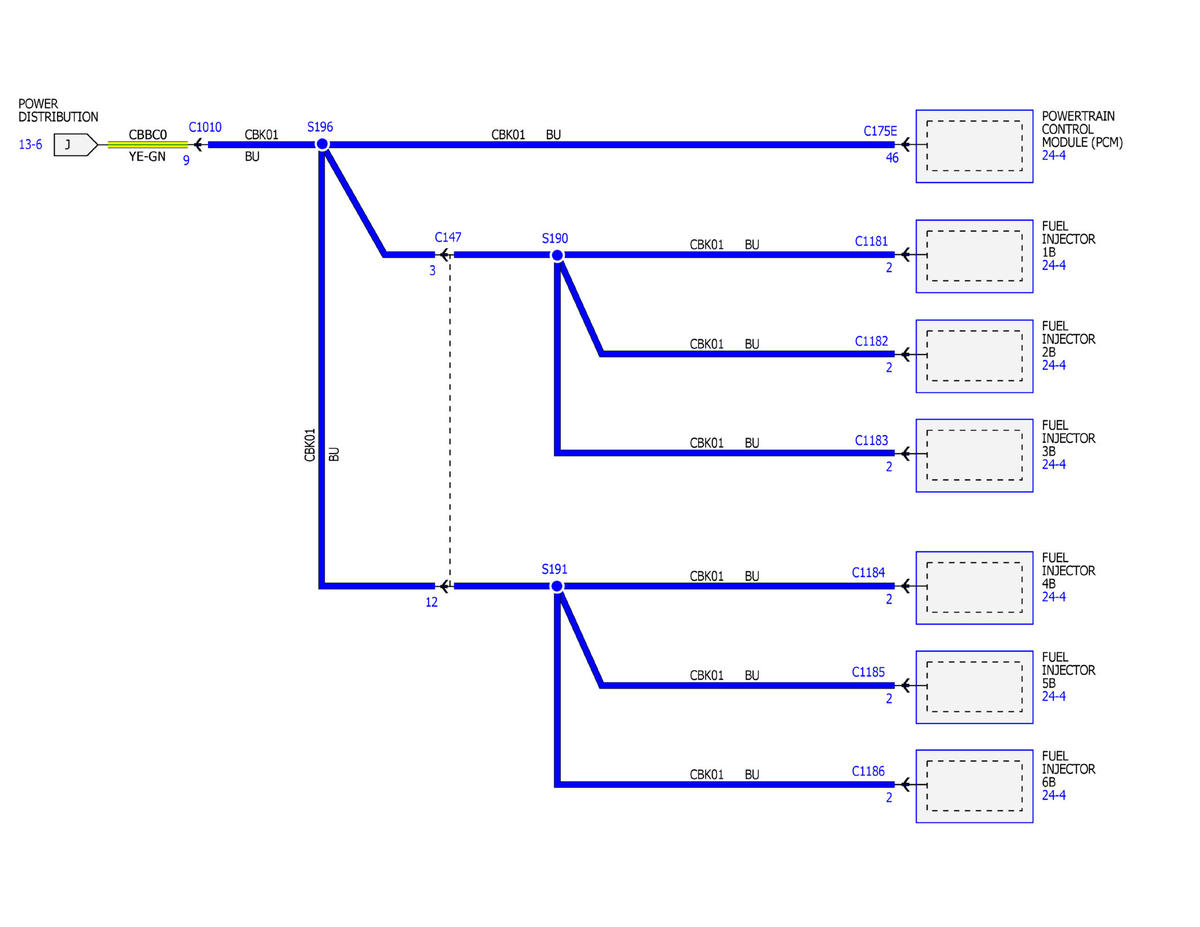

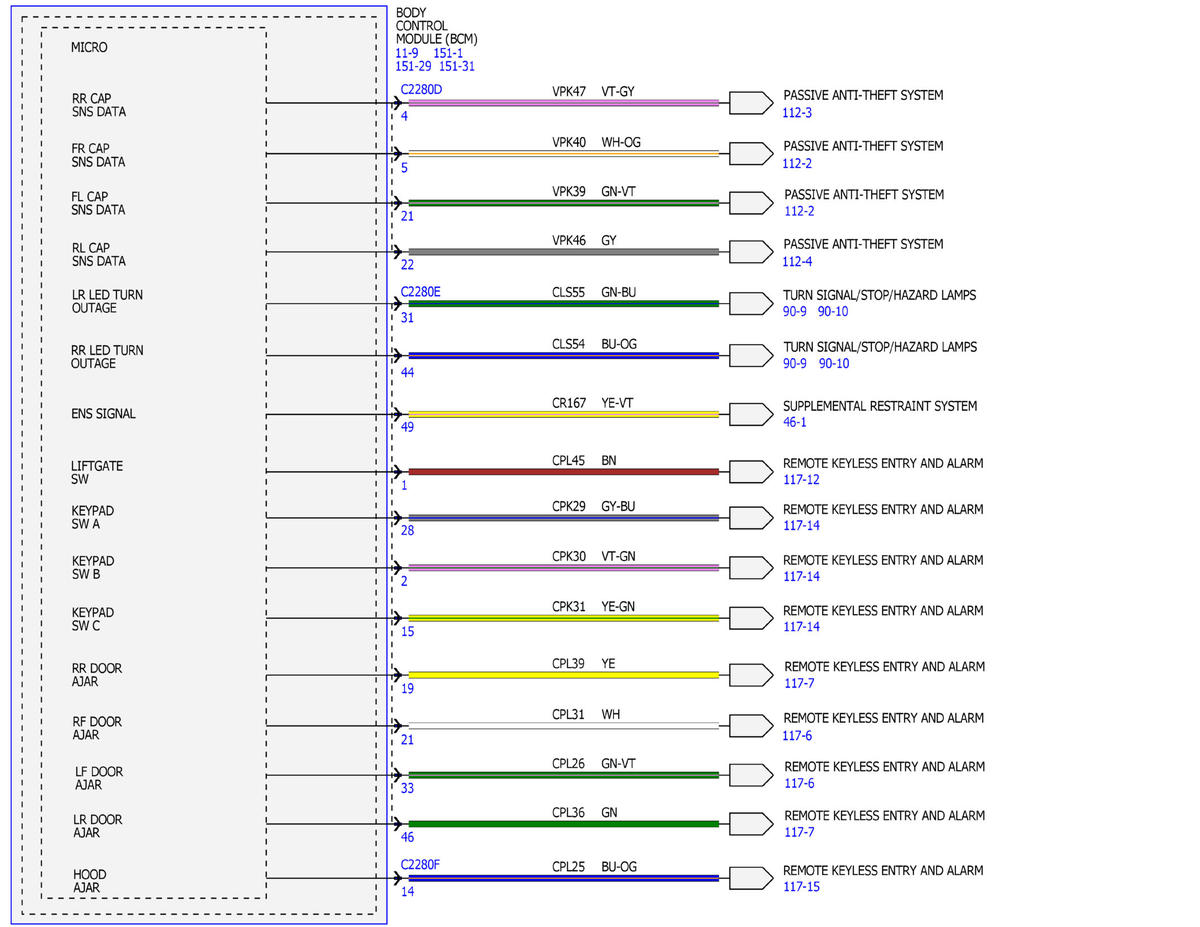

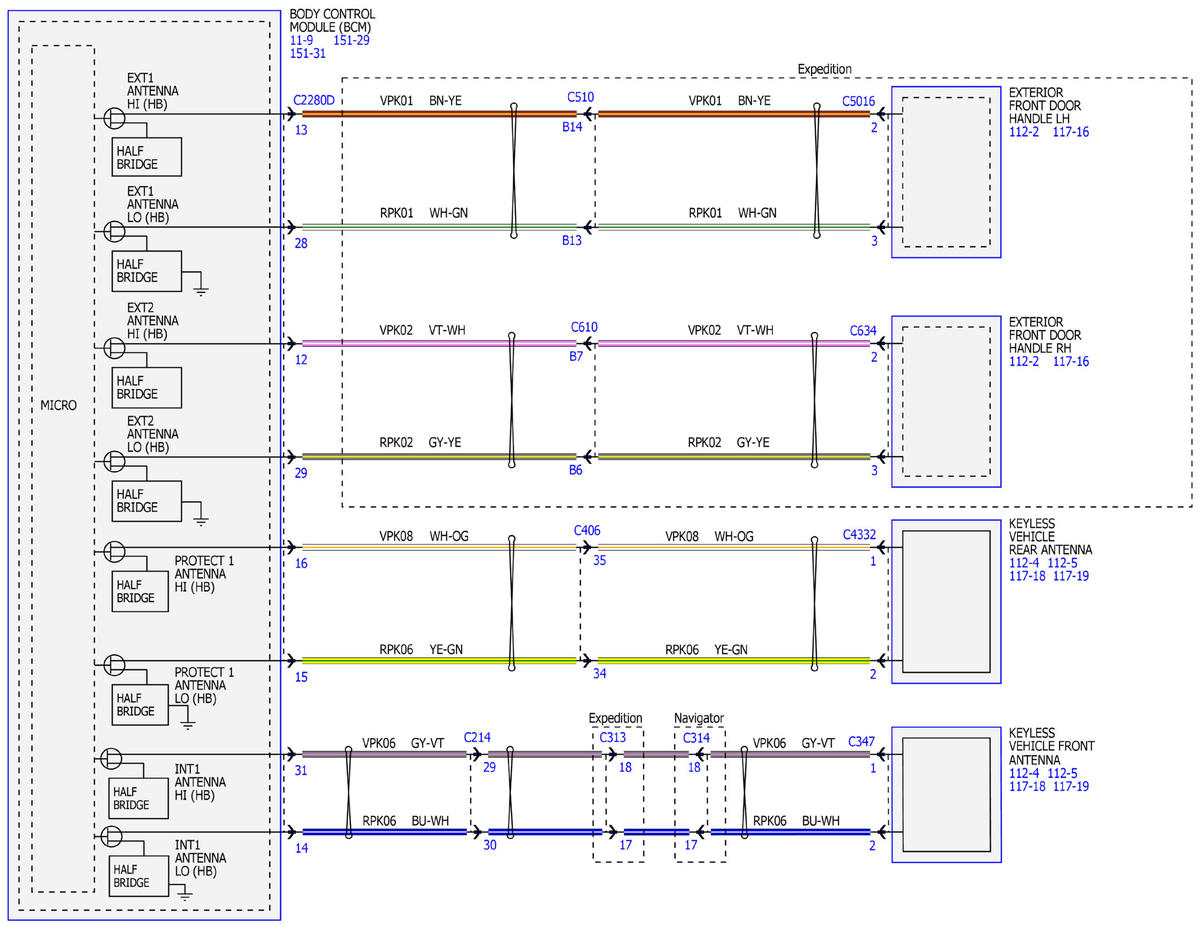

Fig 3: Power Distribution Wiring Diagrams (3 Of 53)
Courtesy of FORD MOTOR COMPANY

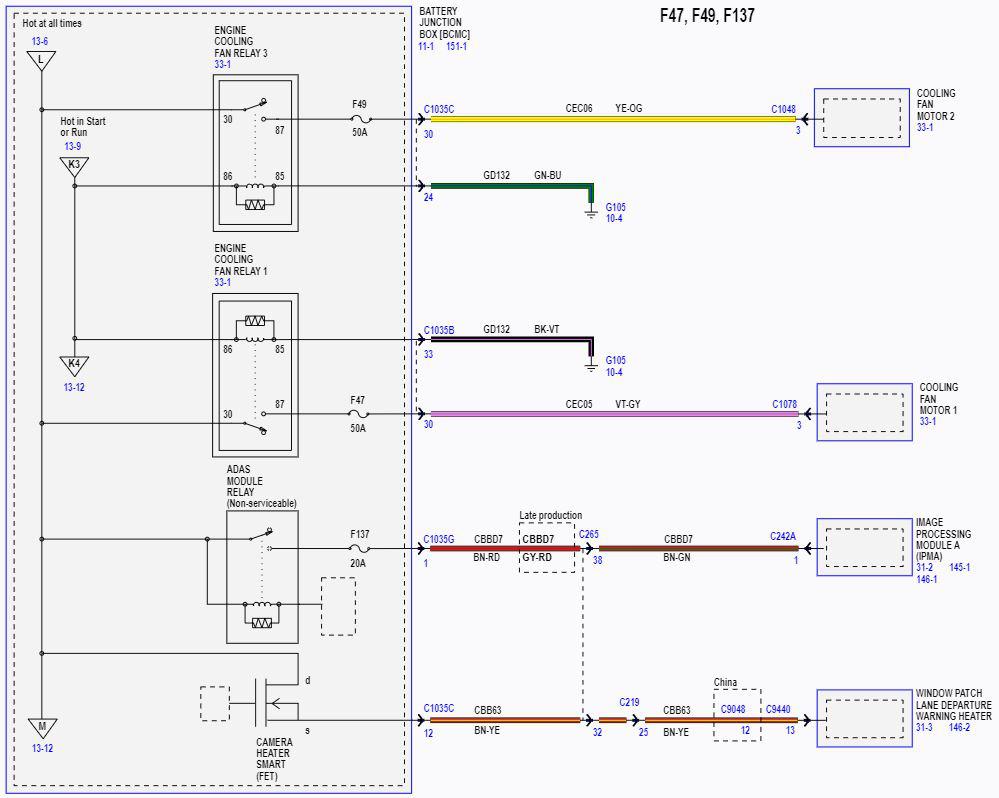

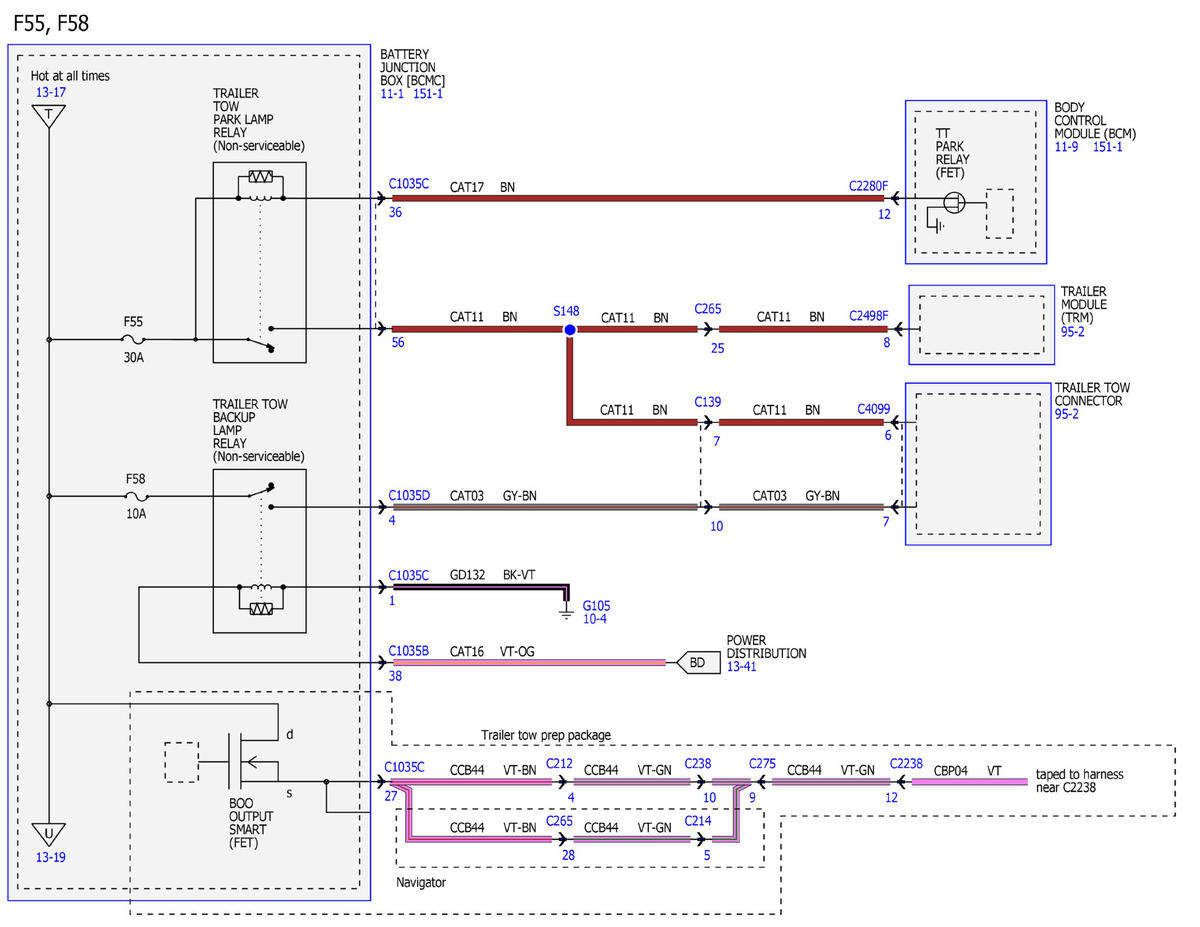

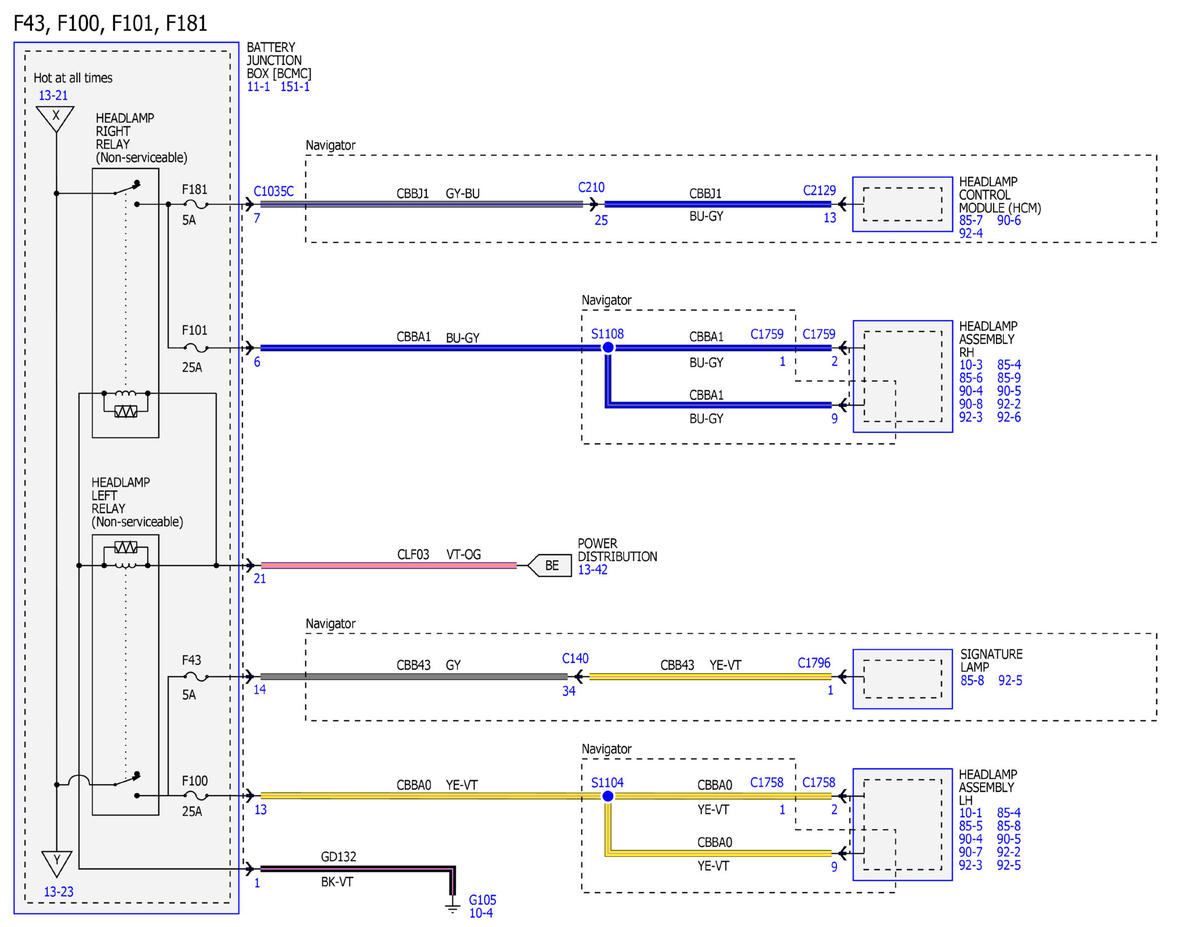

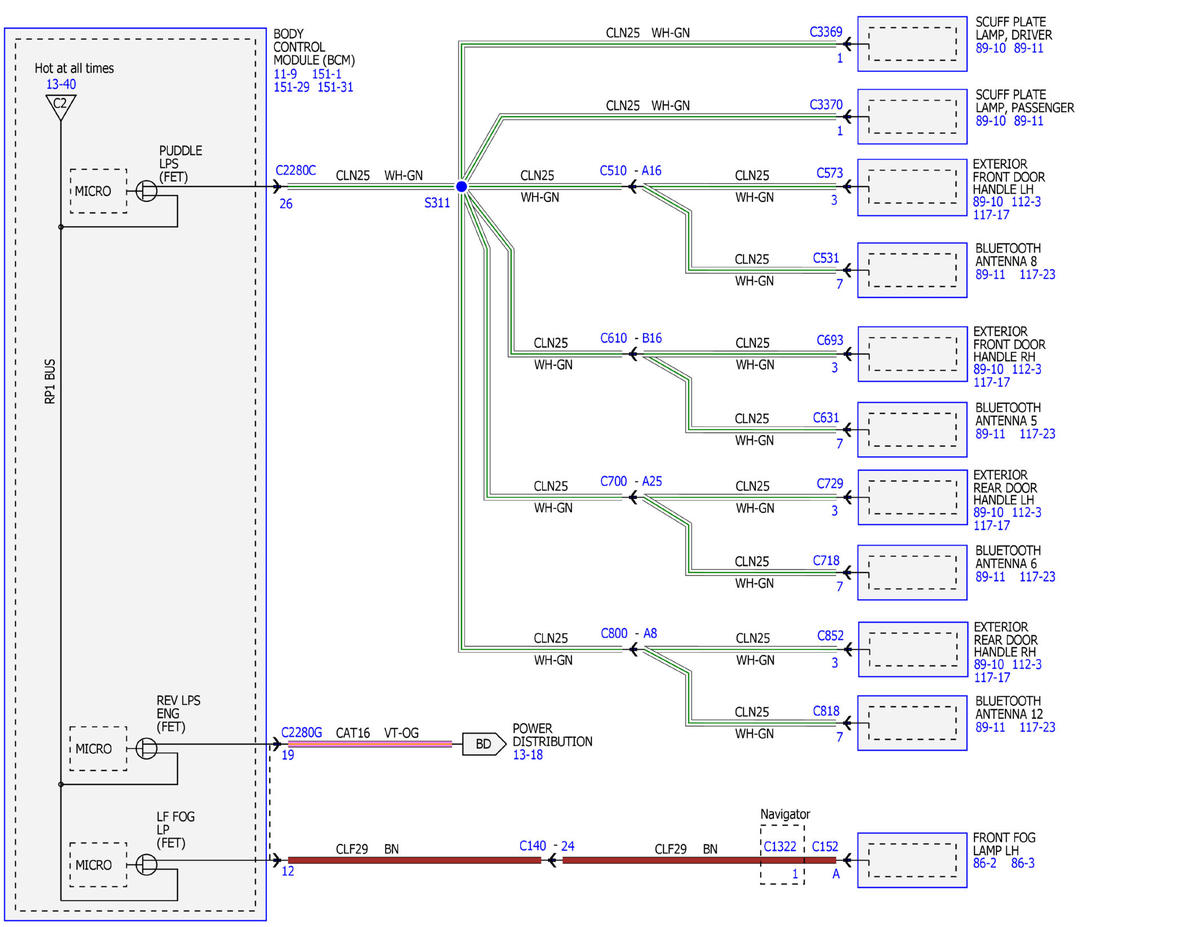

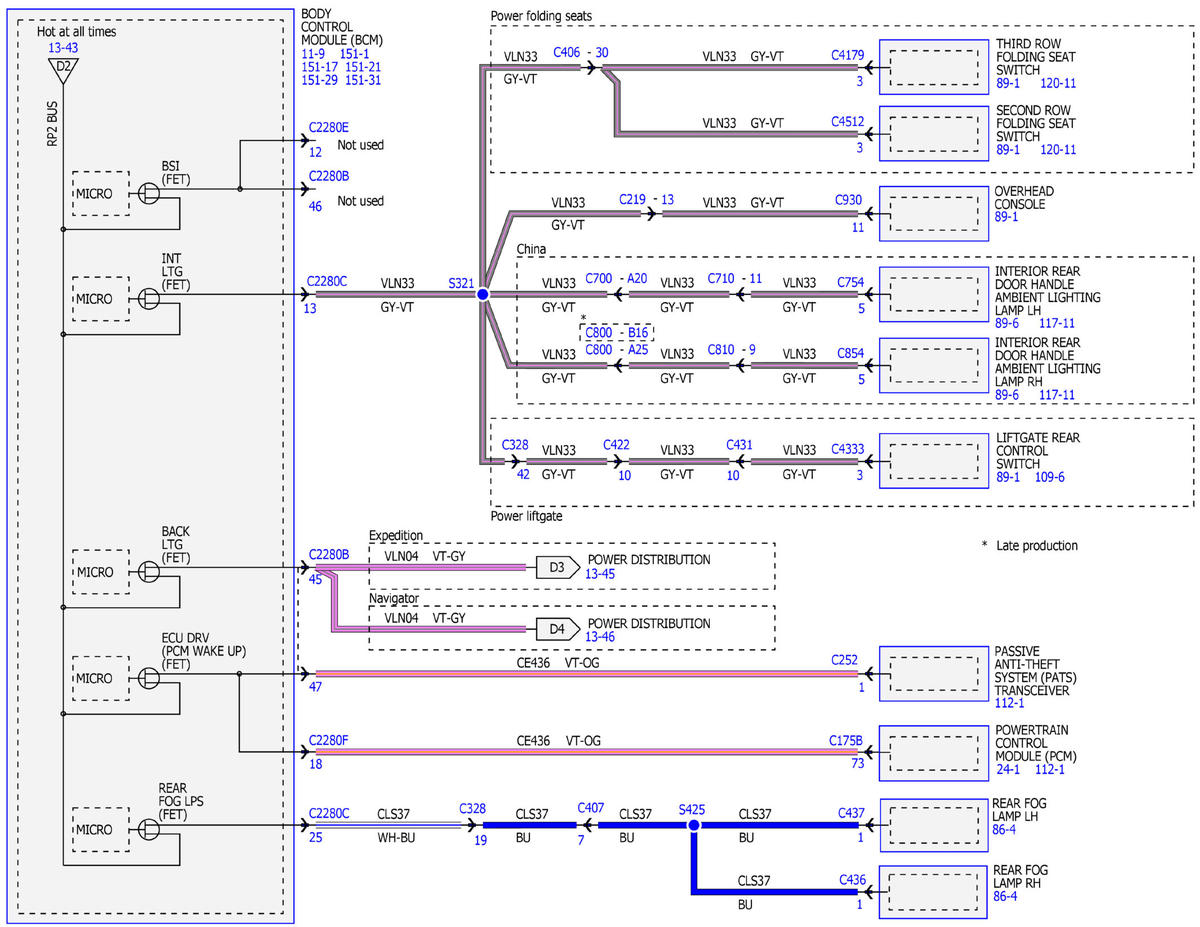

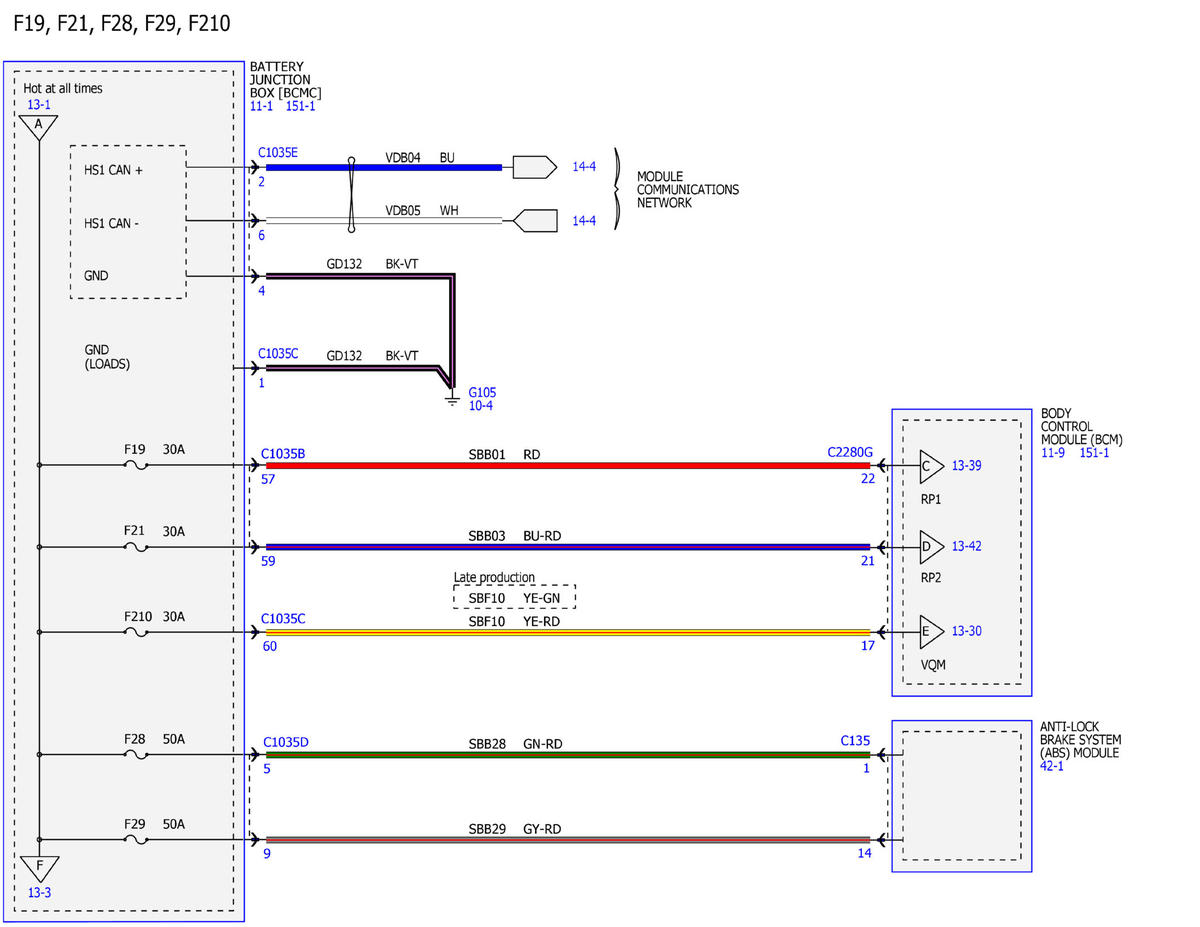

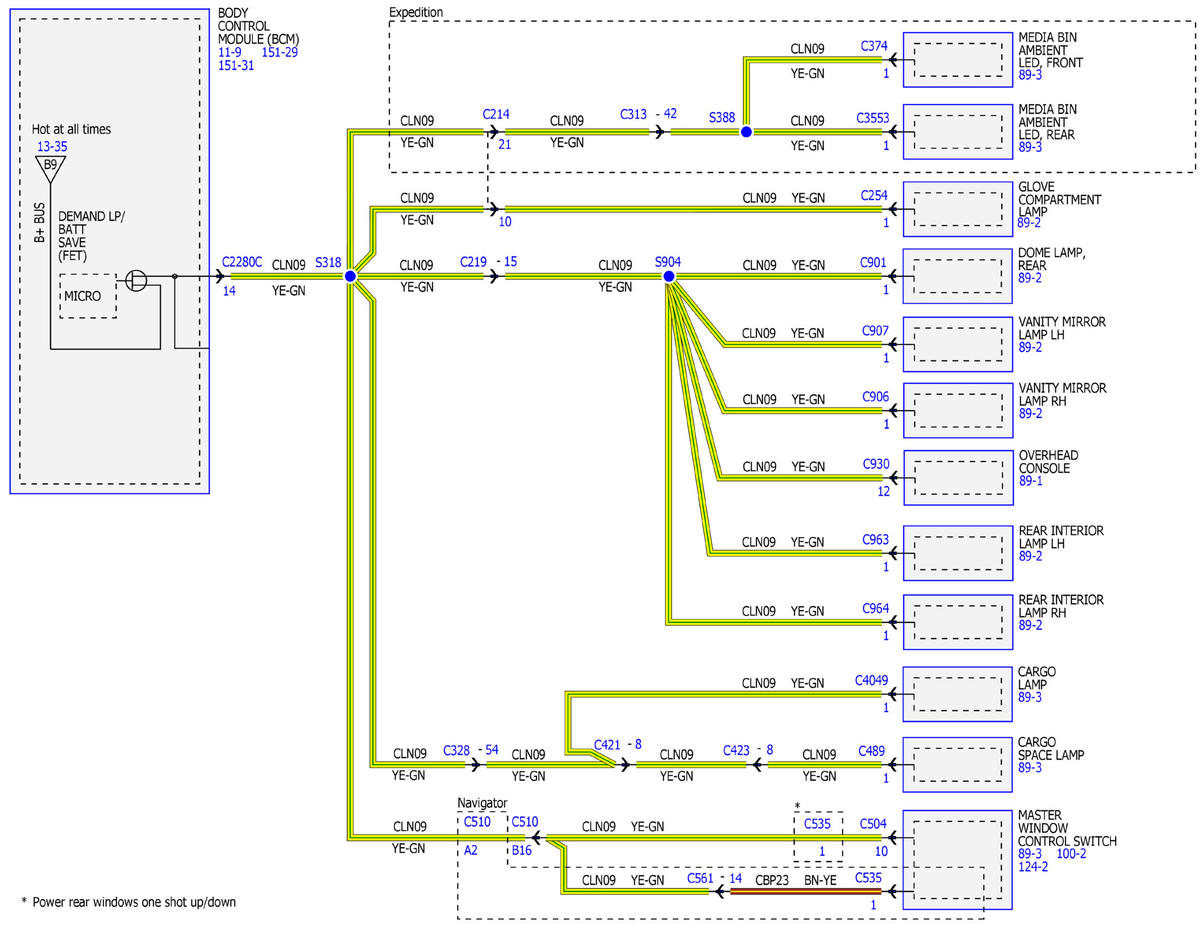

Fig 4: Power Distribution Wiring Diagrams (4 Of 53)
Courtesy of FORD MOTOR COMPANY

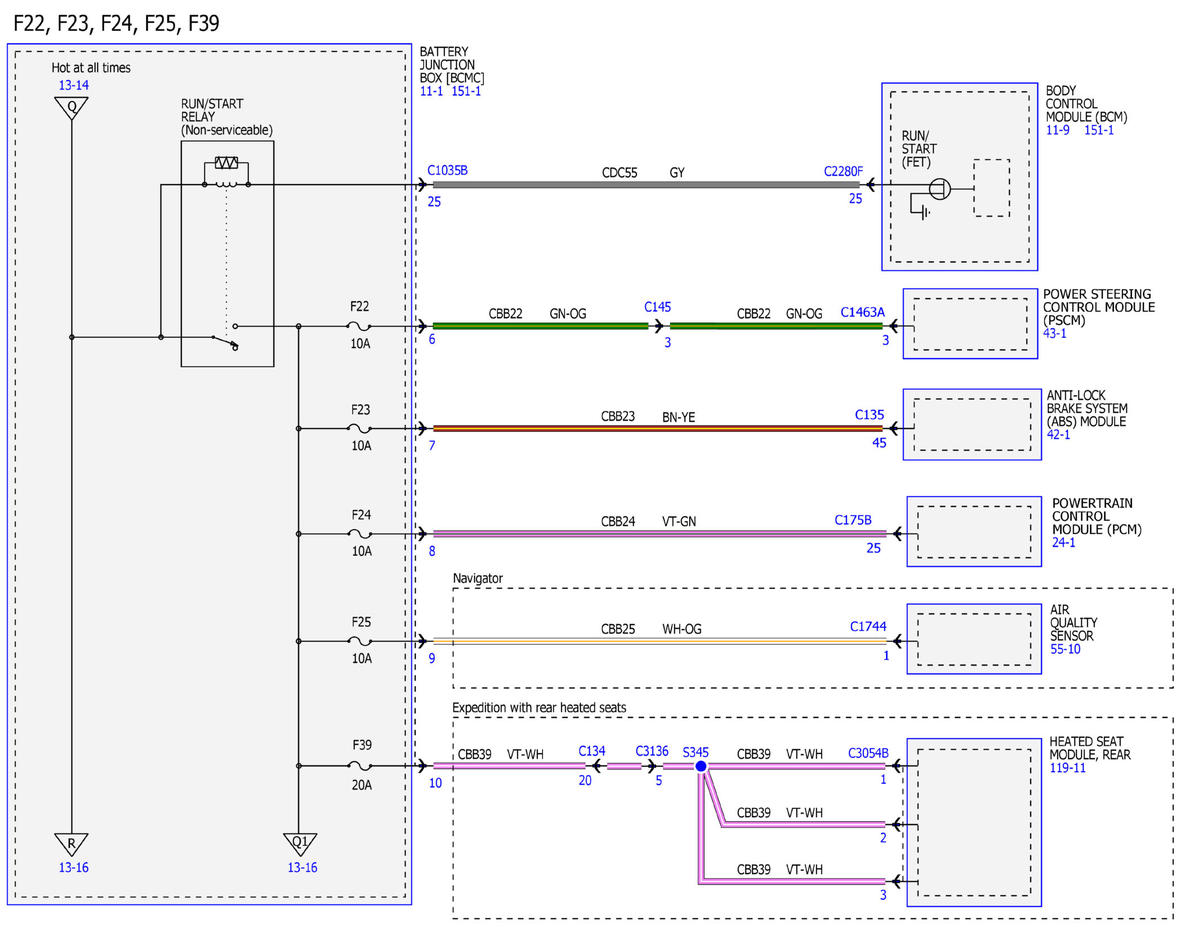

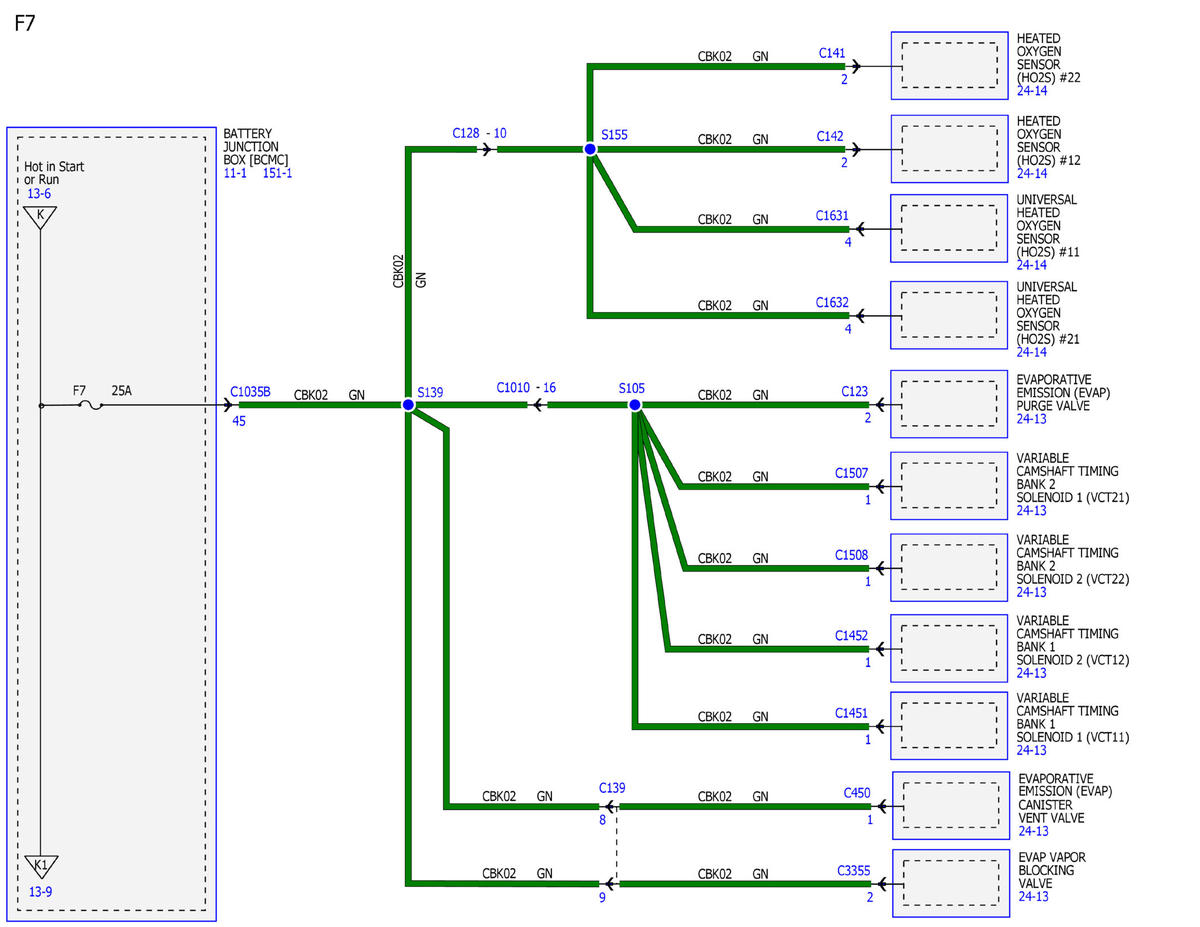

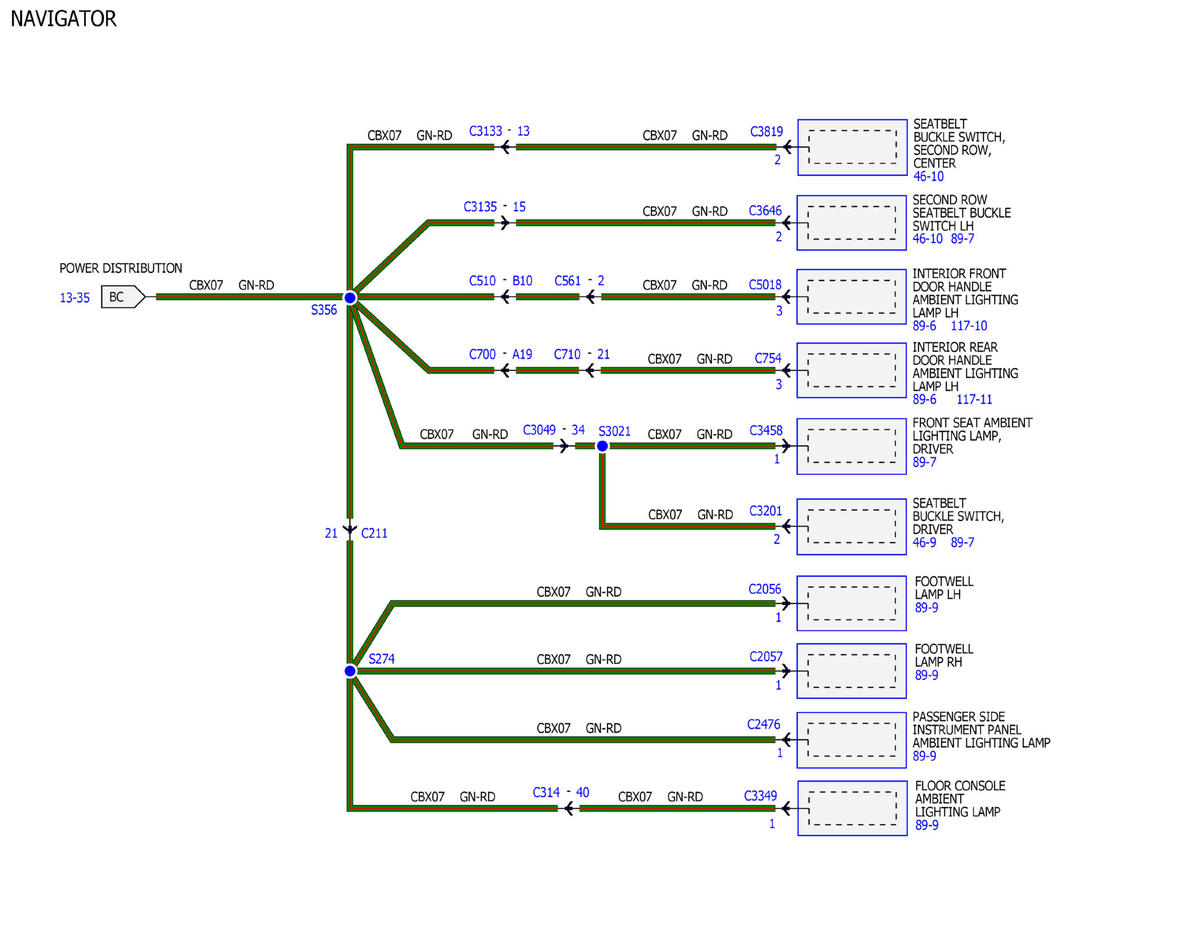

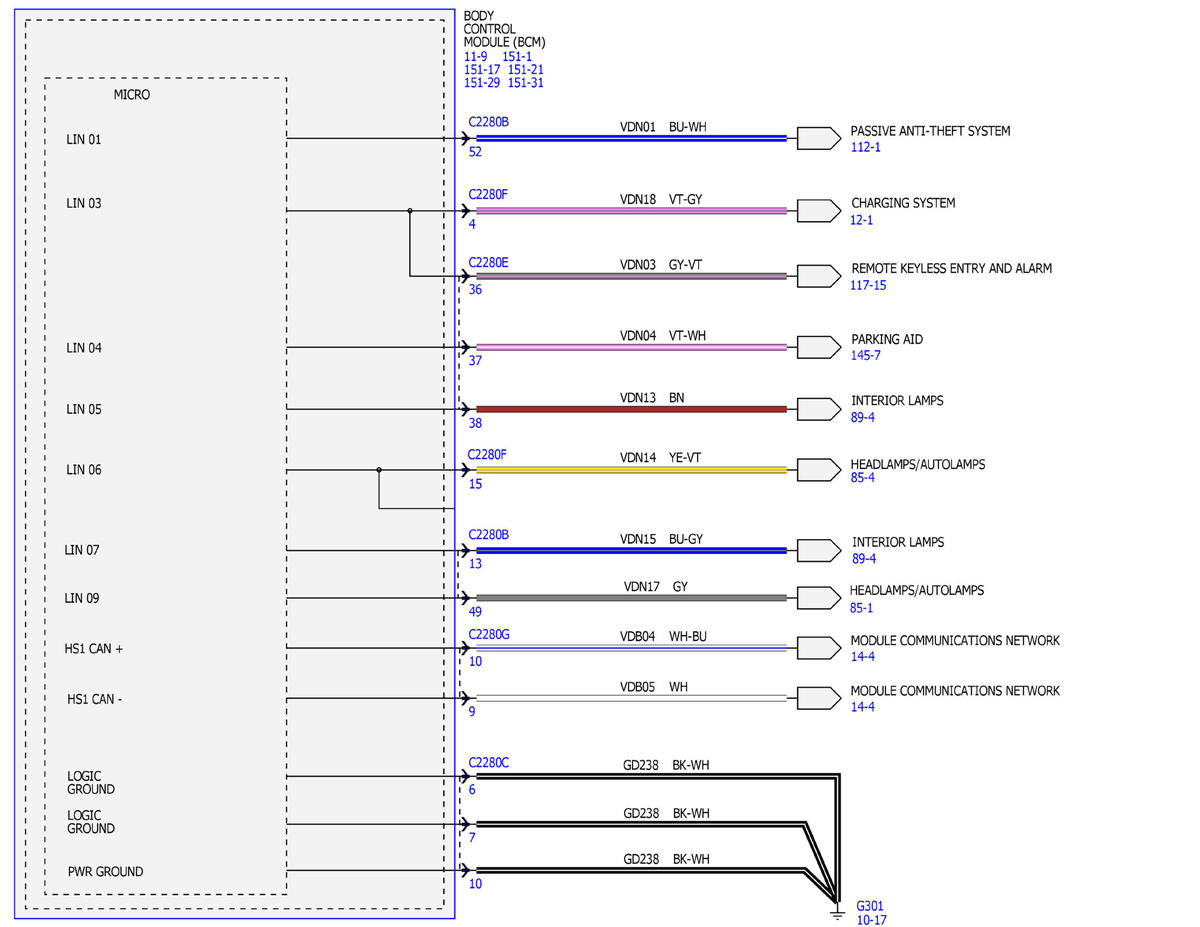

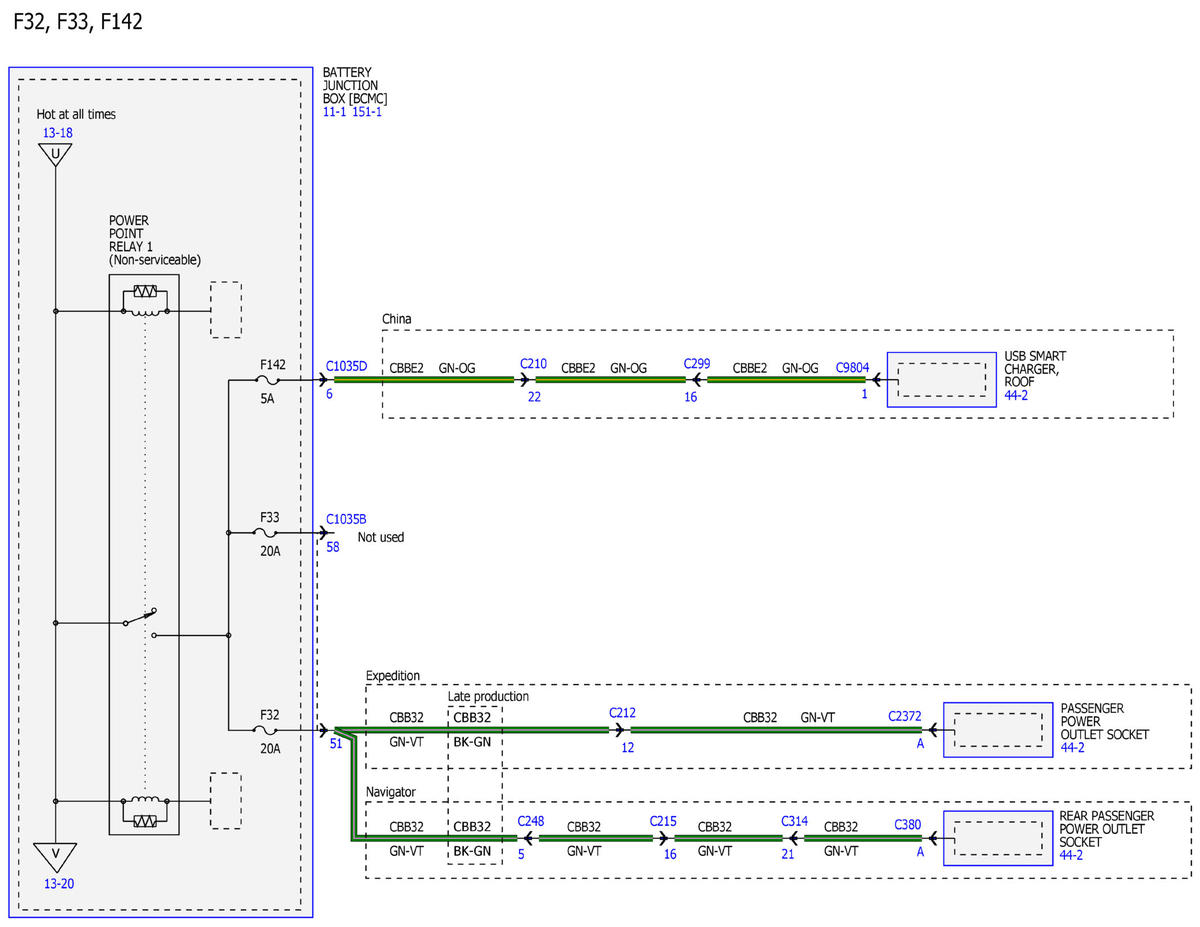

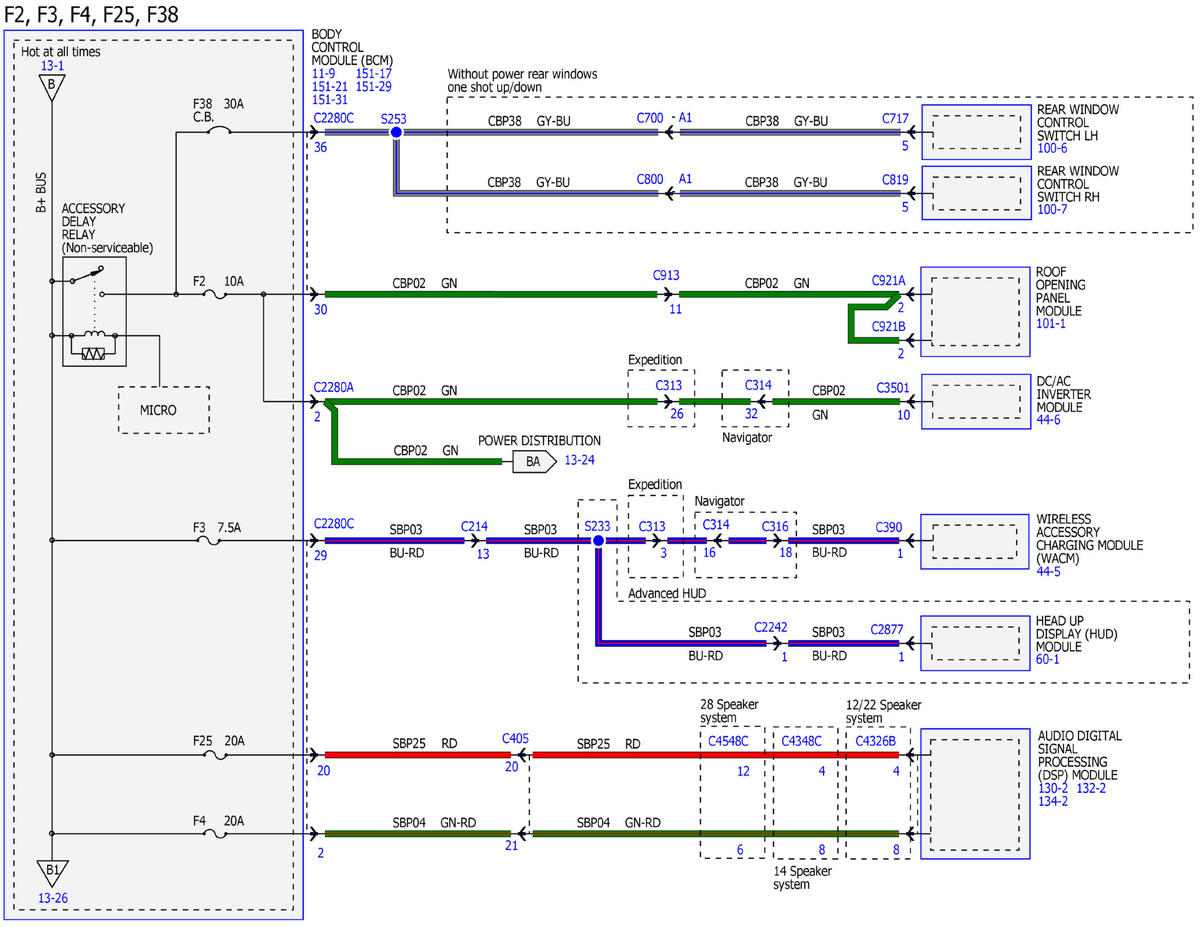

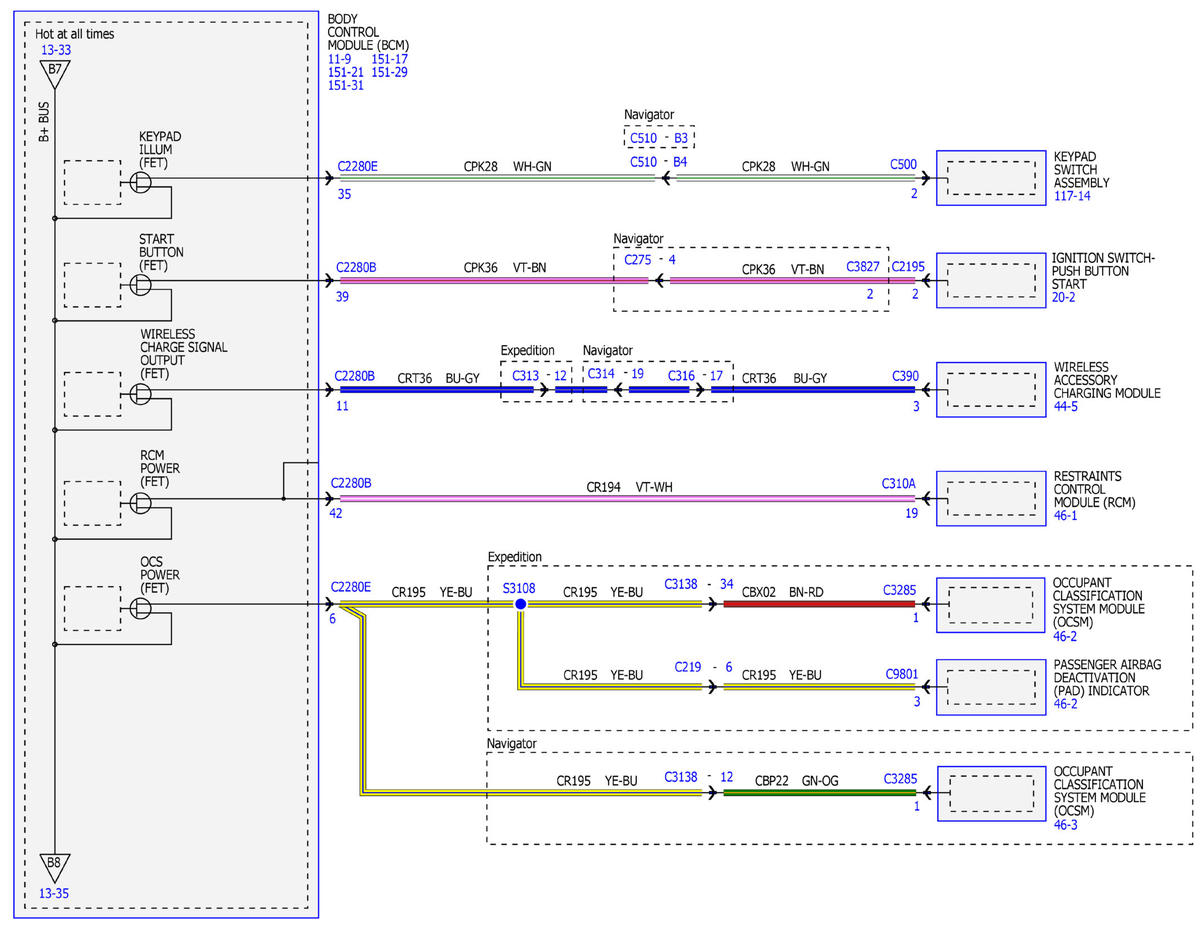

Fig 5: Power Distribution Wiring Diagrams (5 Of 53)
Courtesy of FORD MOTOR COMPANY

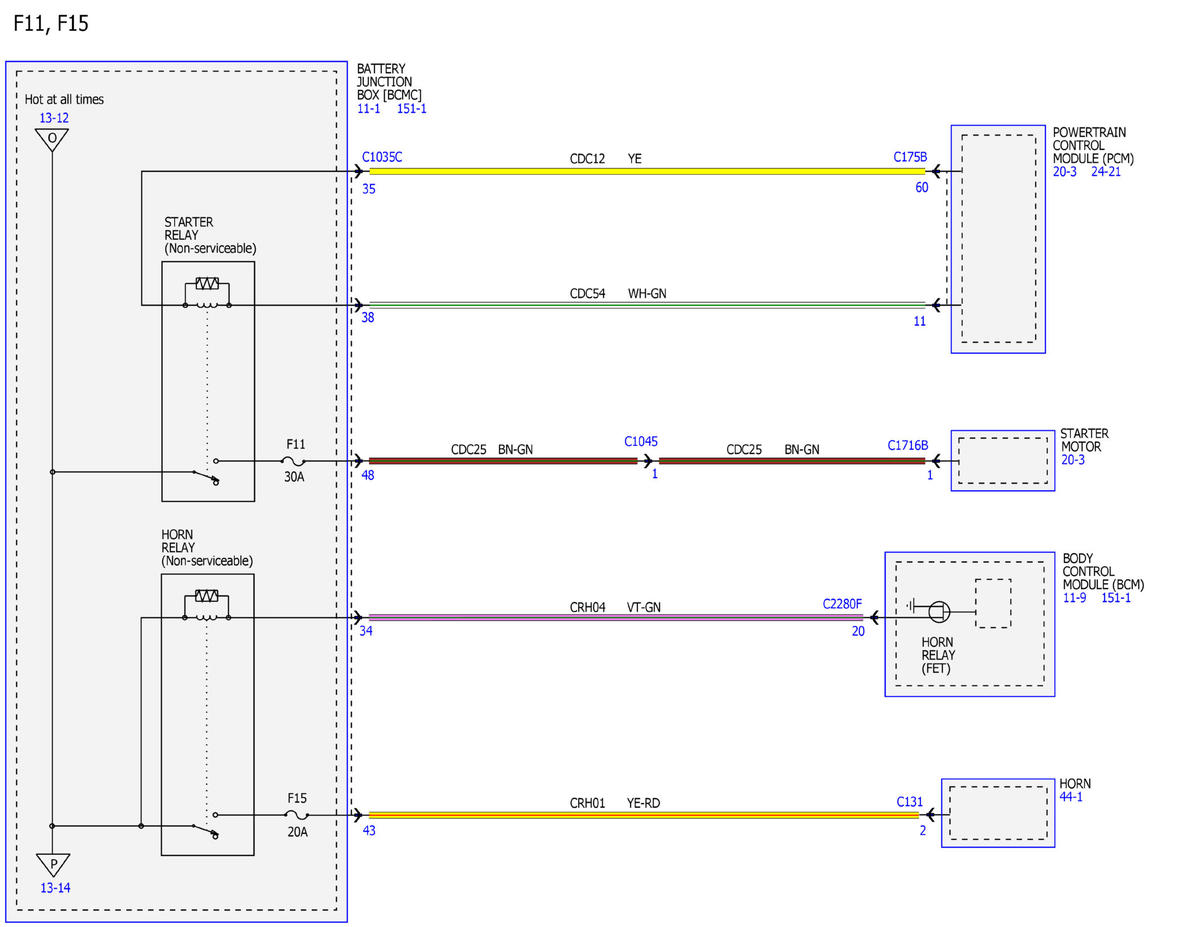

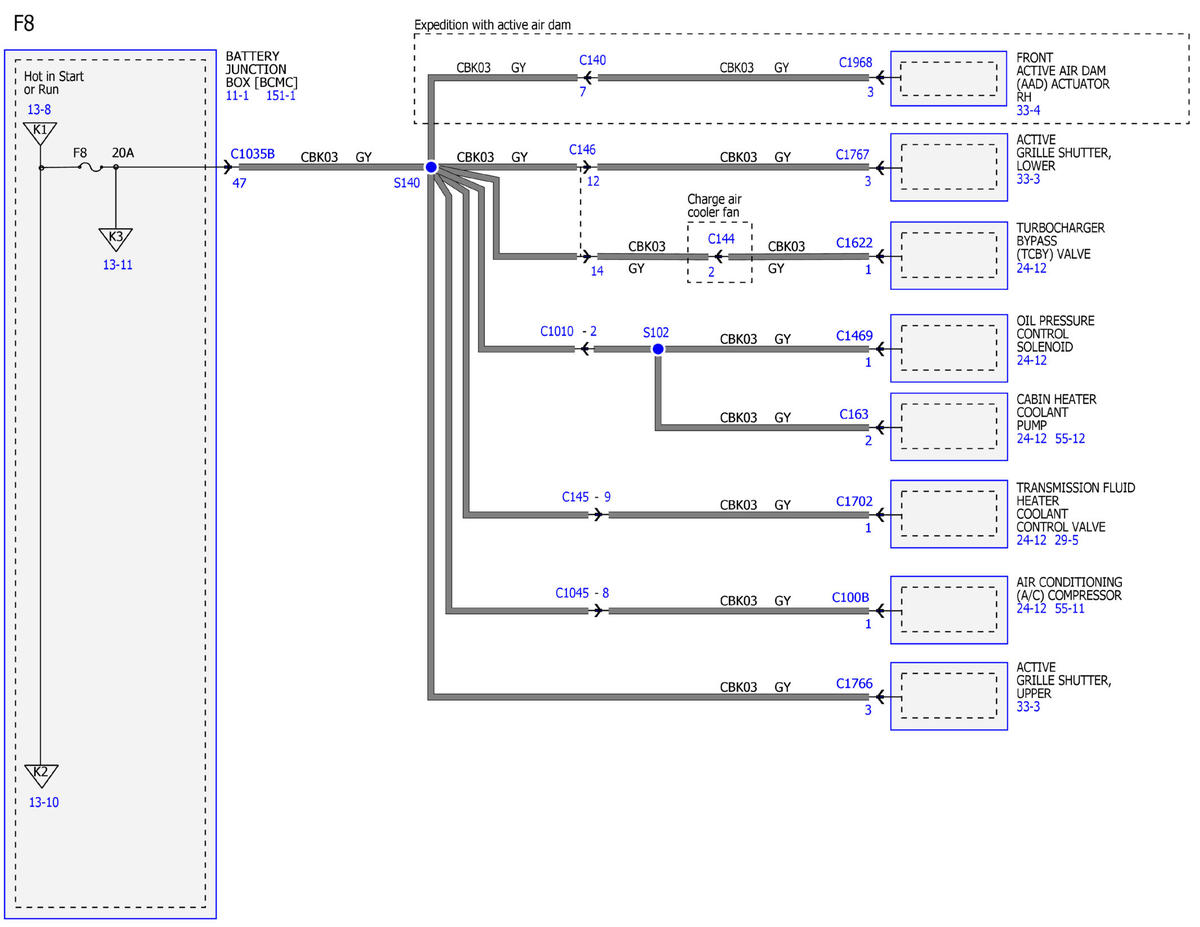

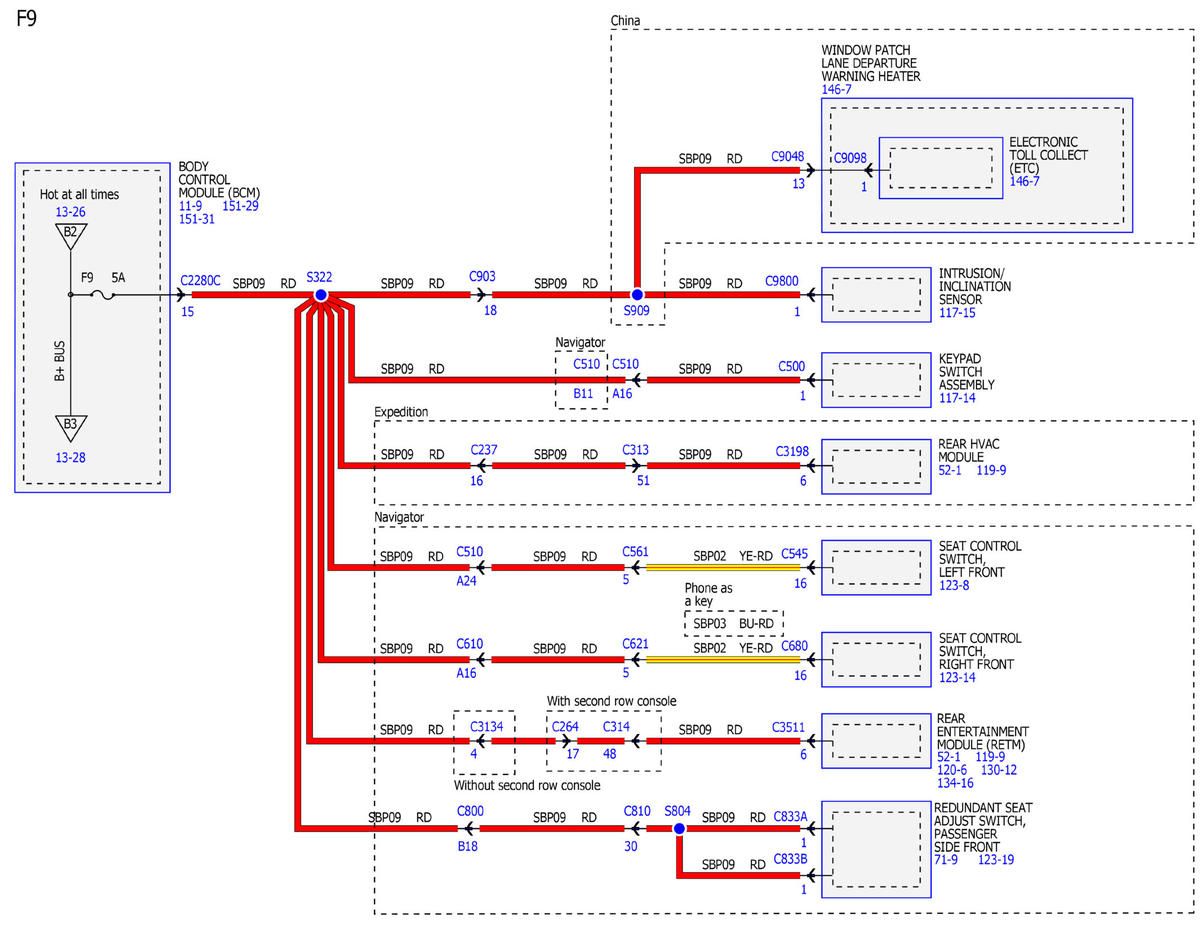

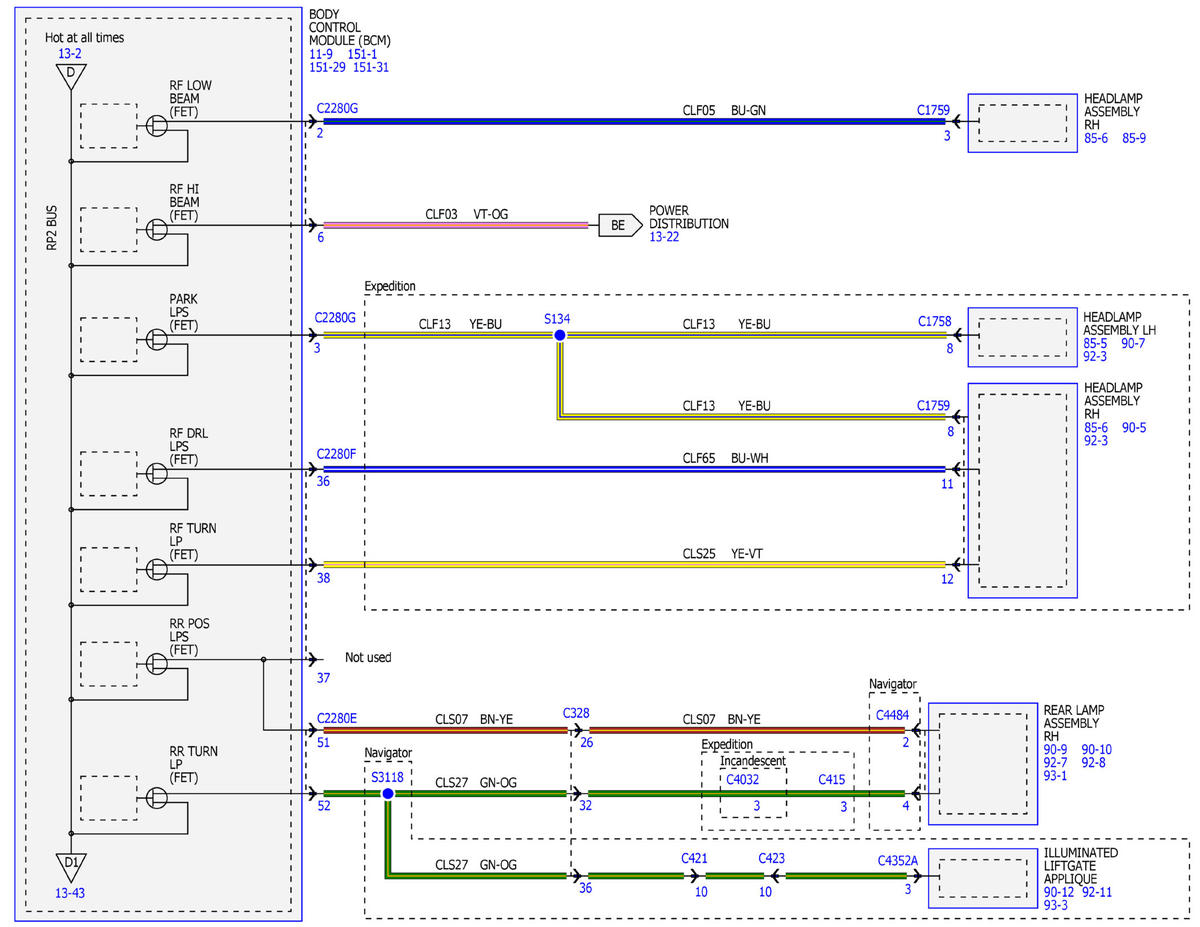

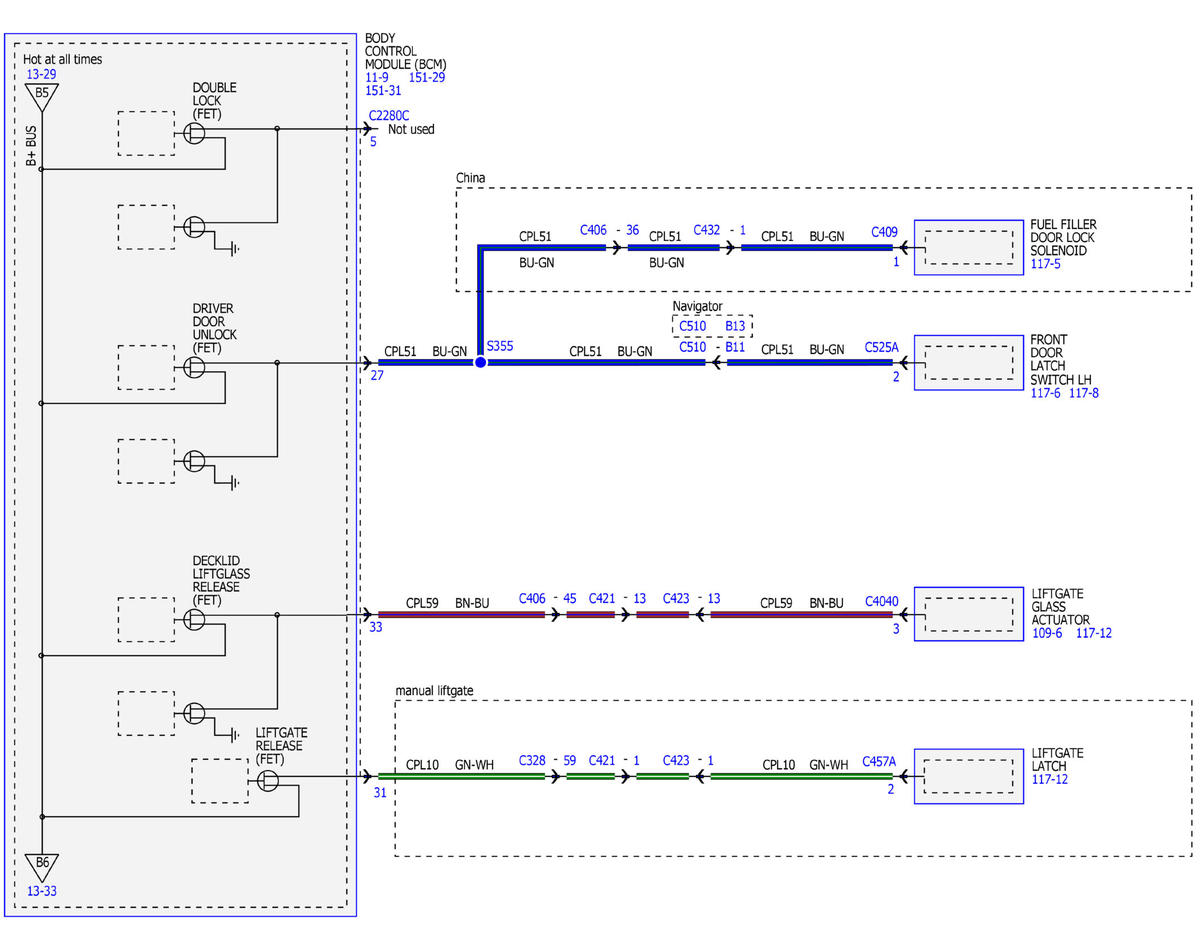

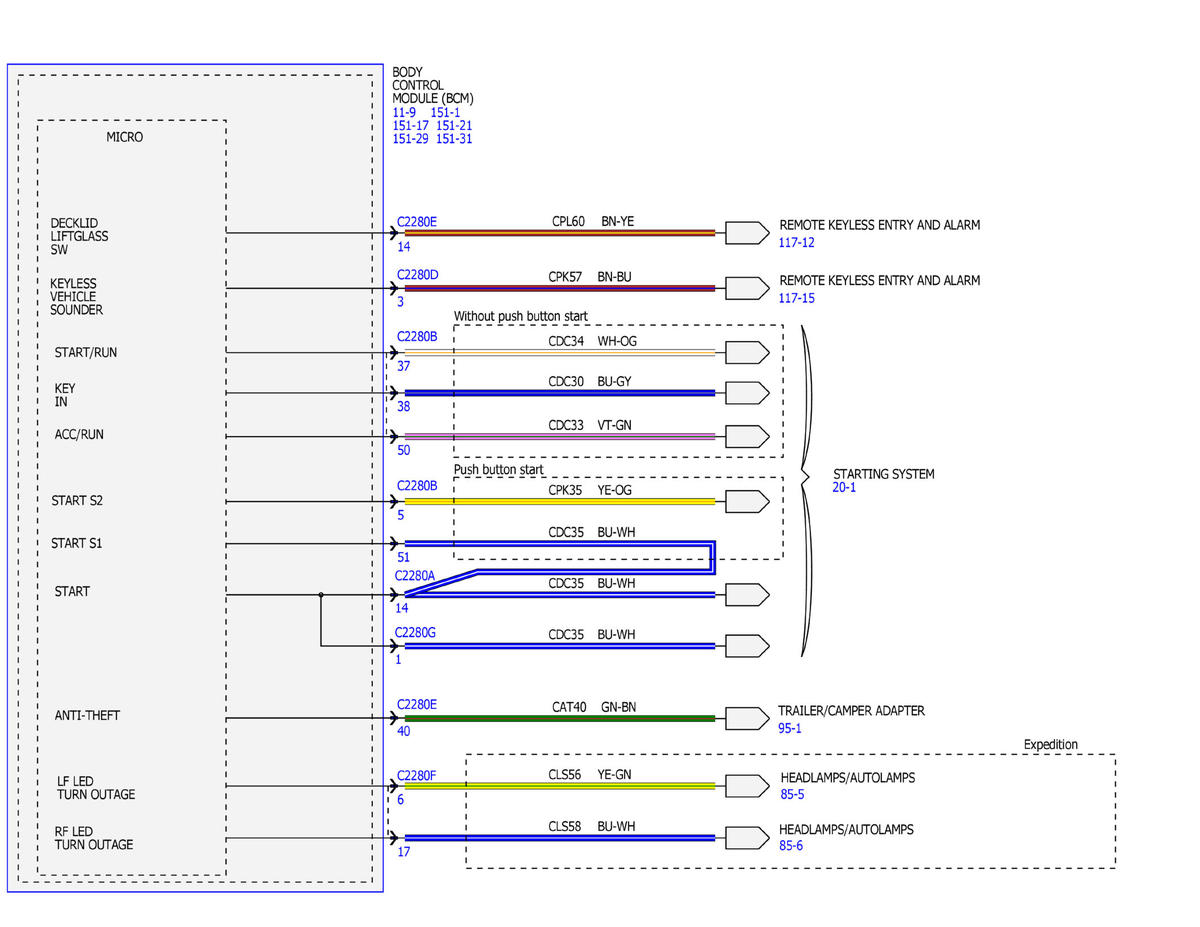

Fig 6: Power Distribution Wiring Diagrams (6 Of 53)
Courtesy of FORD MOTOR COMPANY

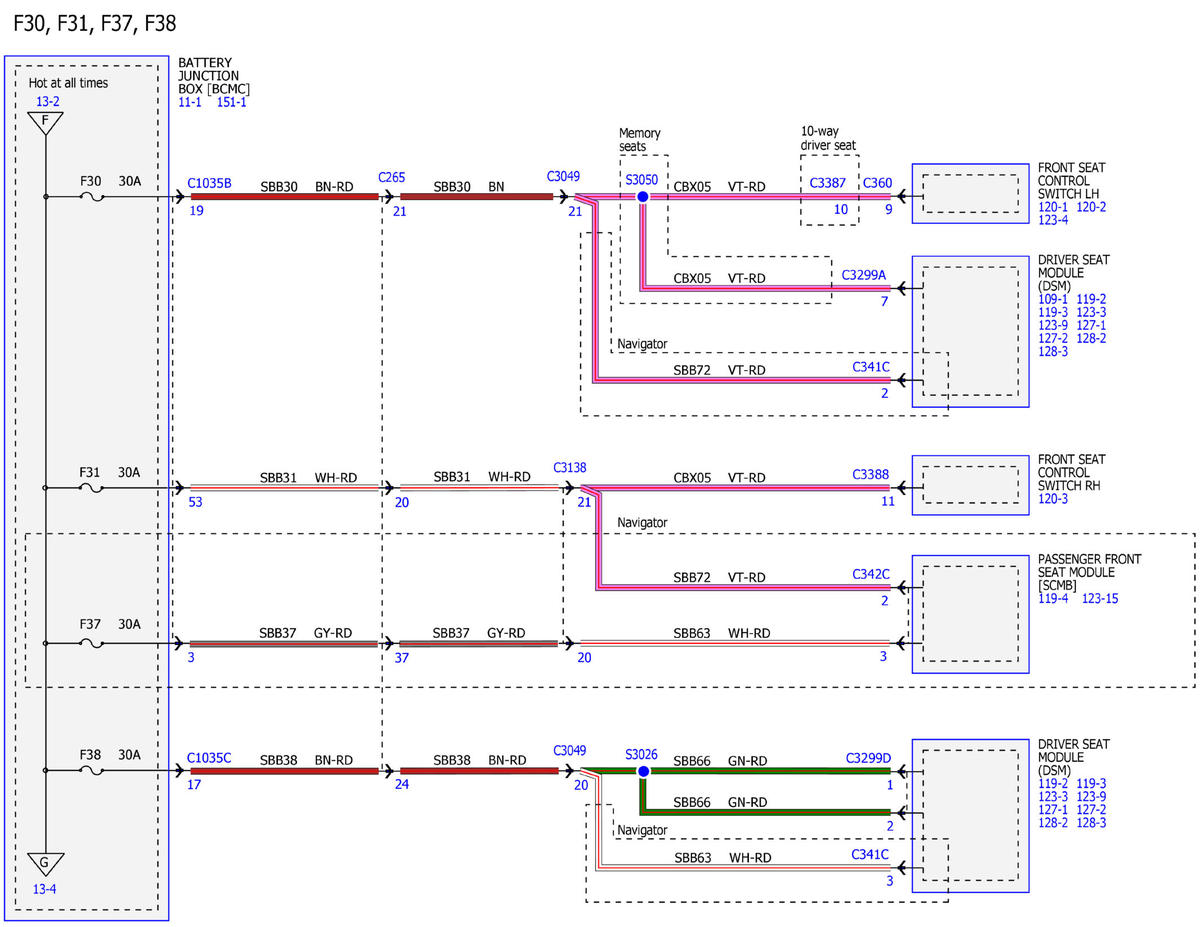

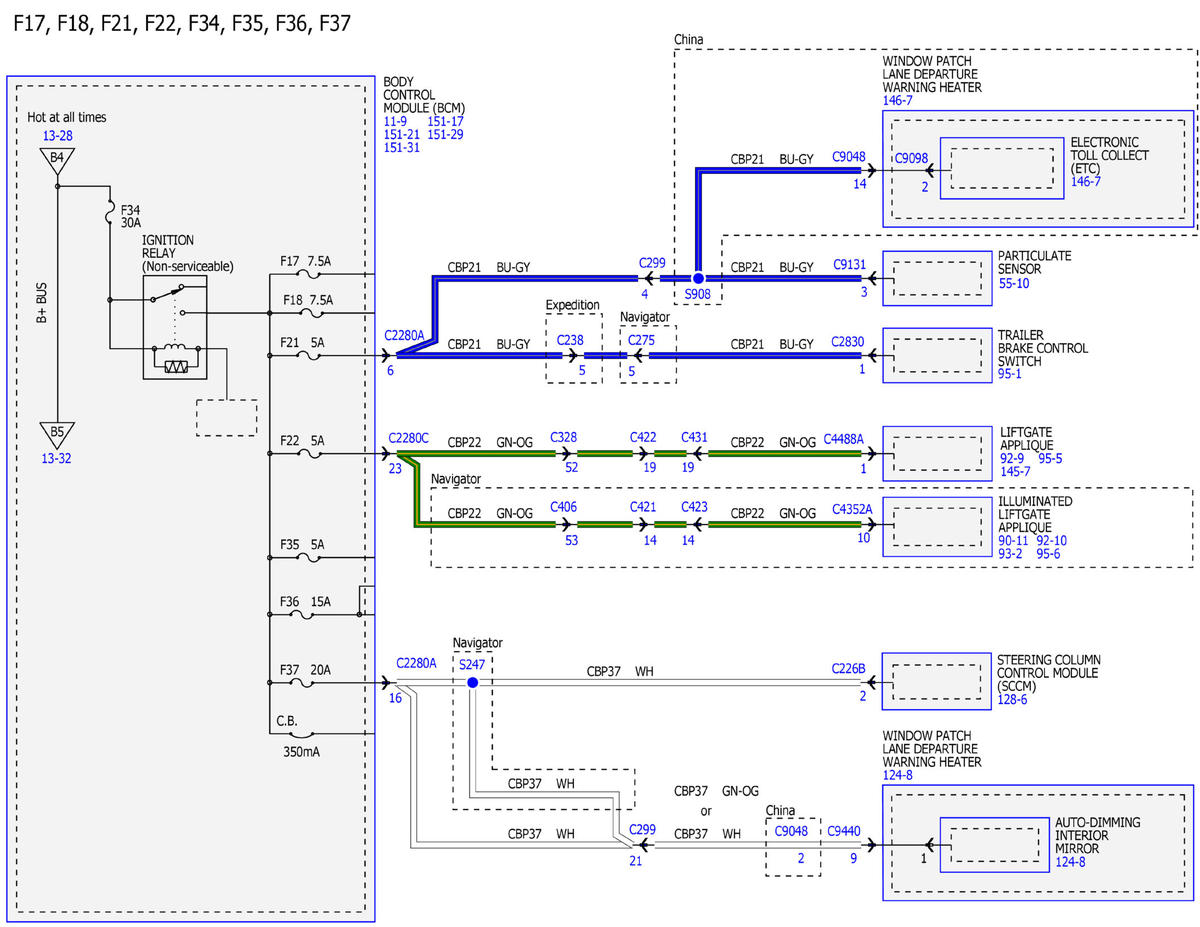

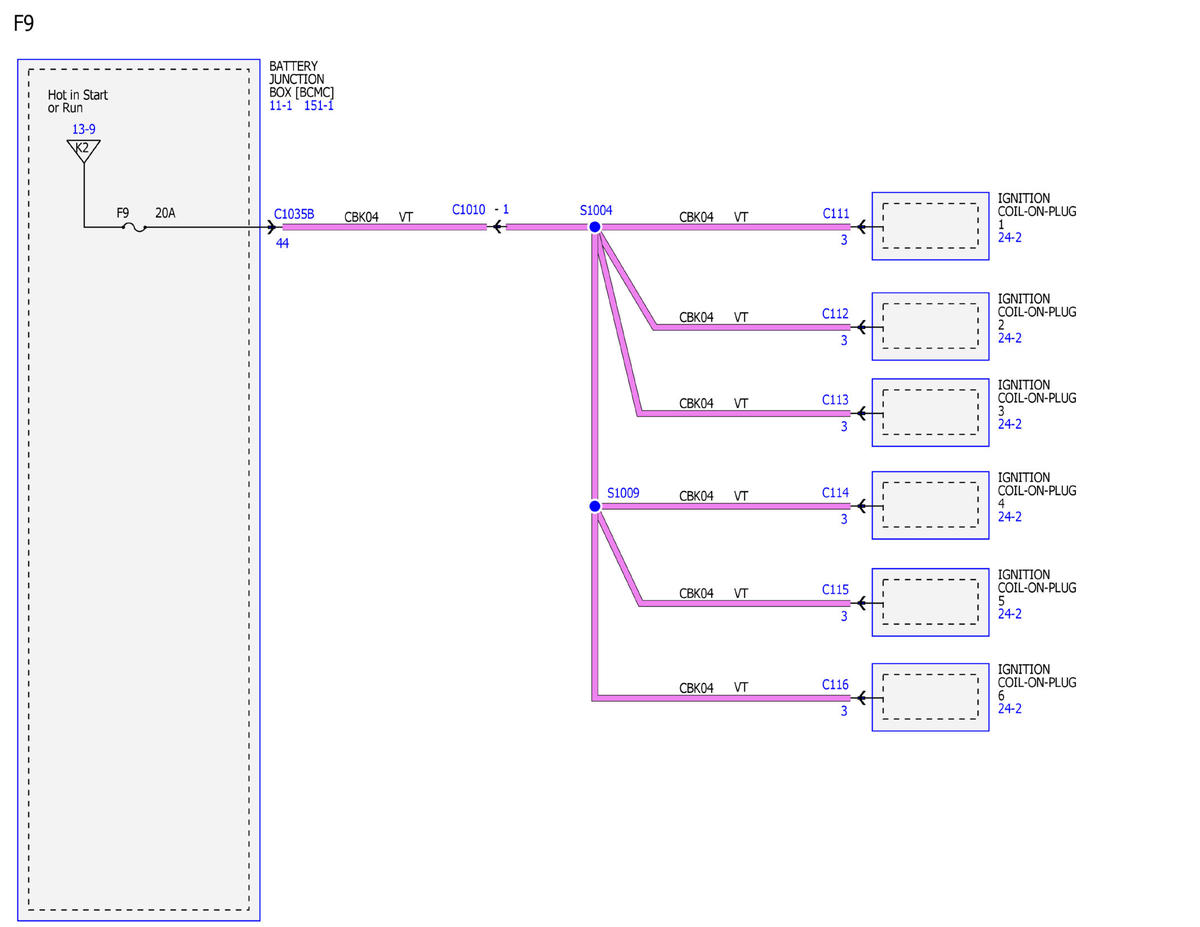

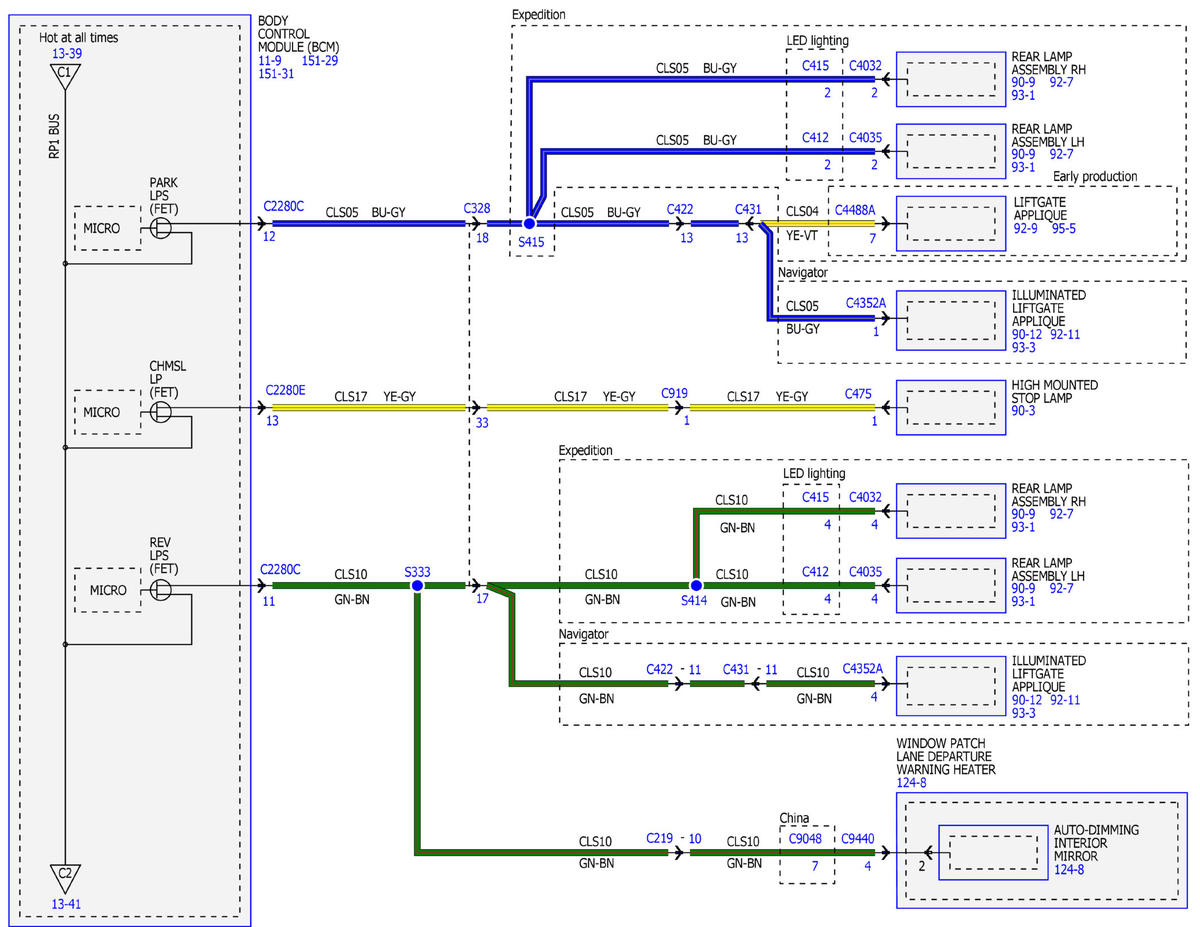

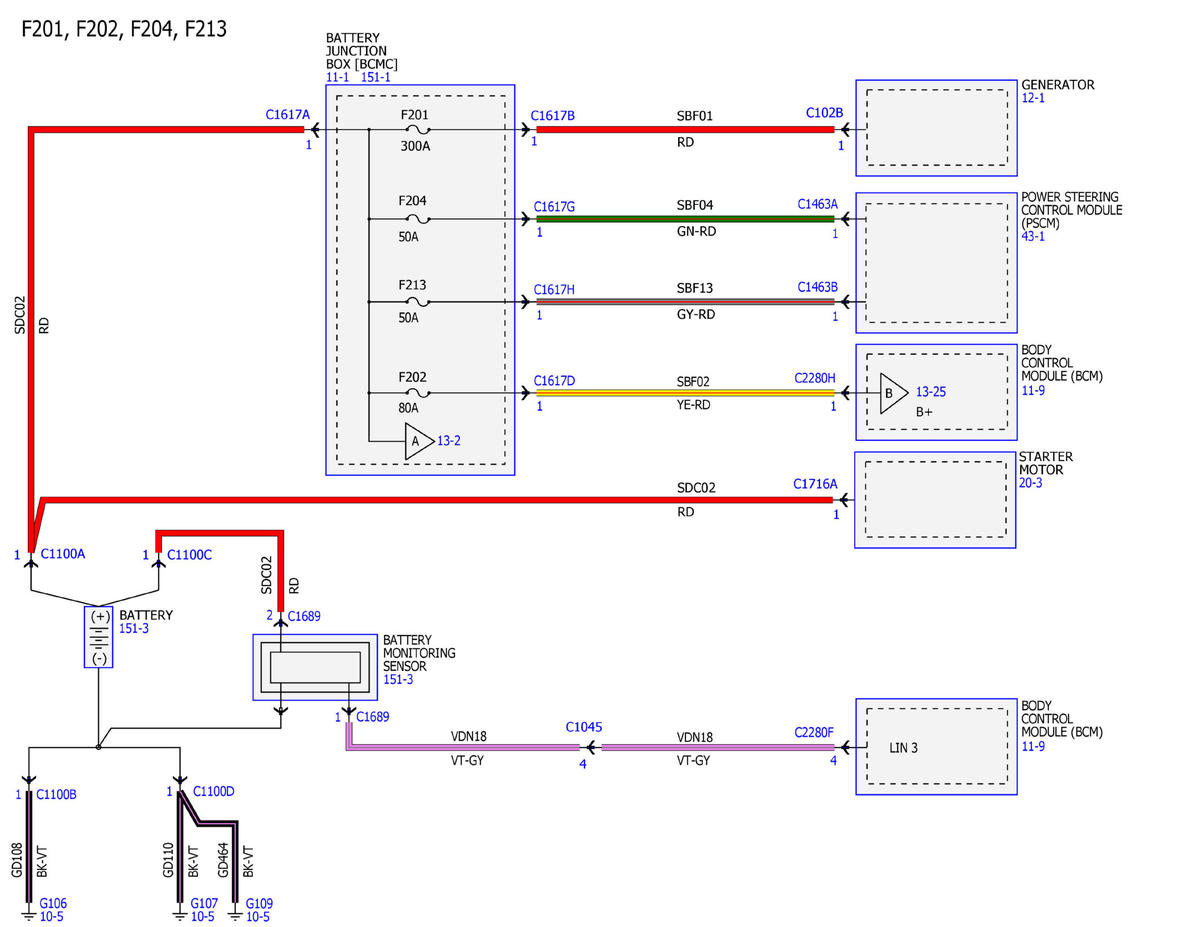

Fig 7: Power Distribution Wiring Diagrams (7 Of 53)
Courtesy of FORD MOTOR COMPANY

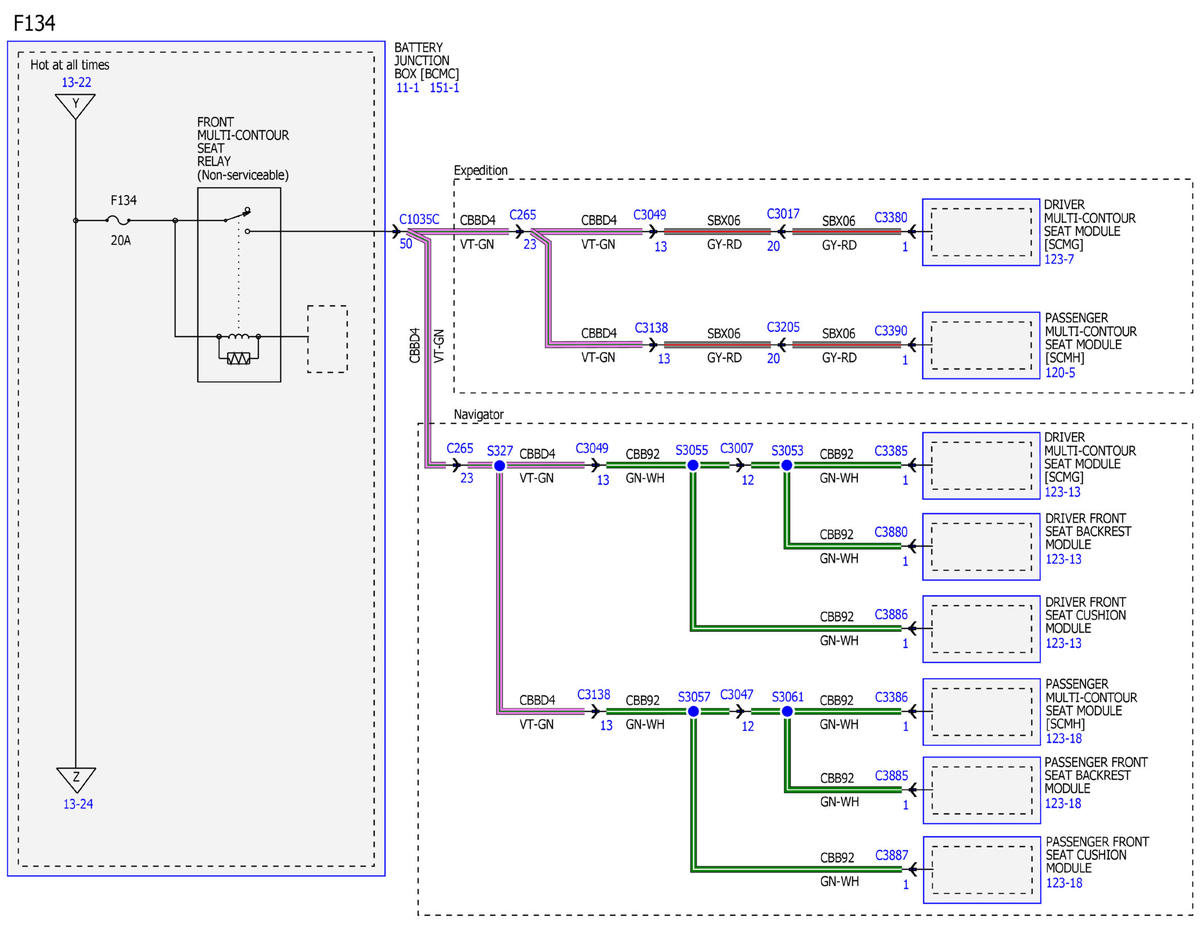

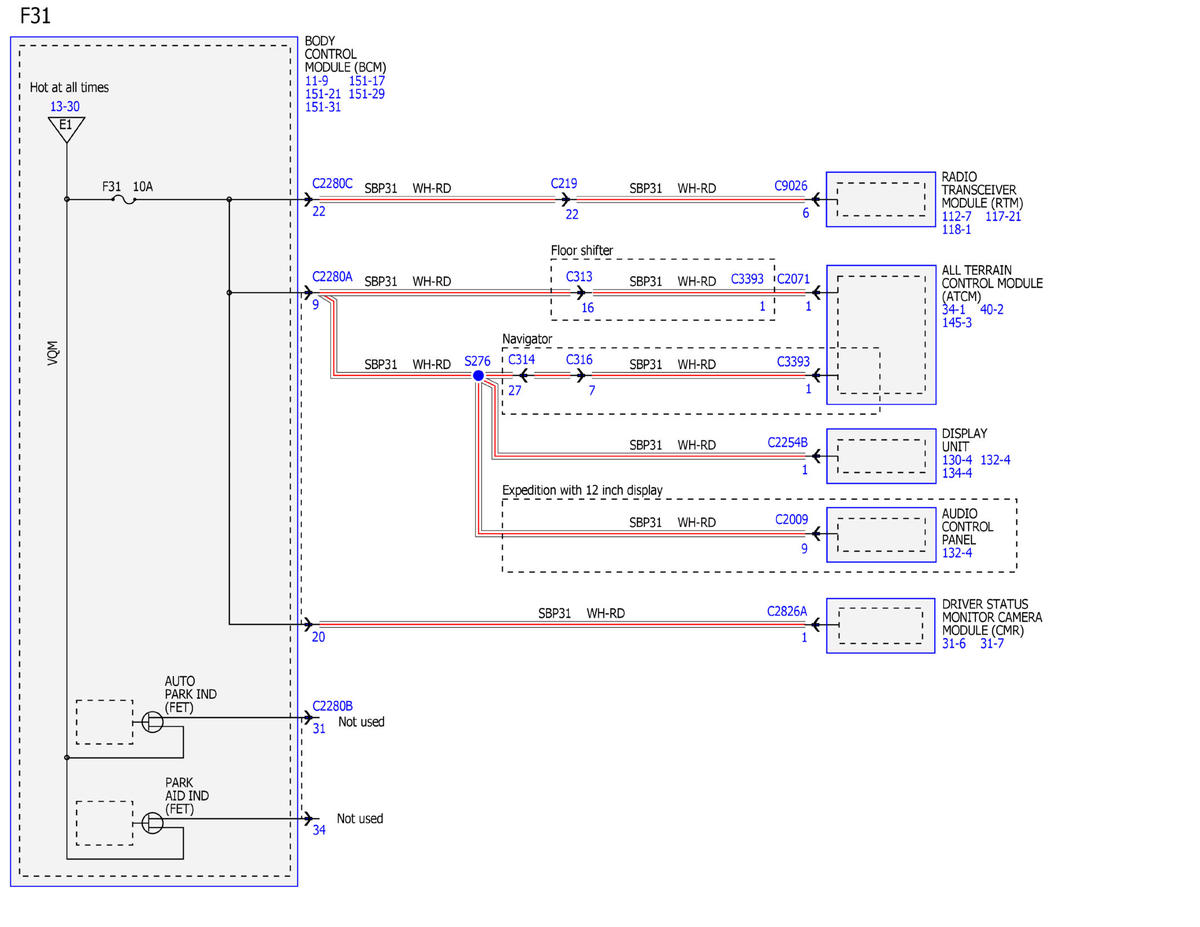

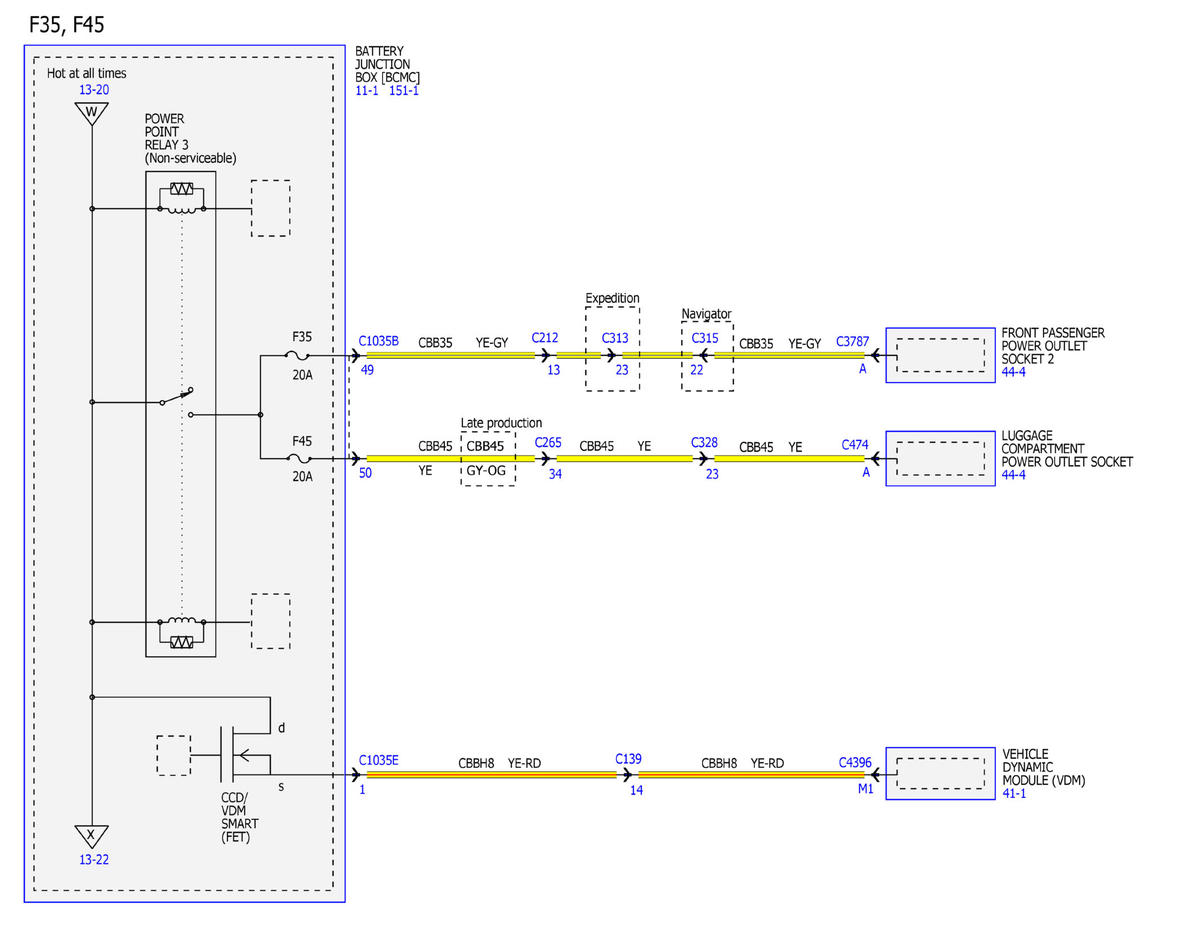

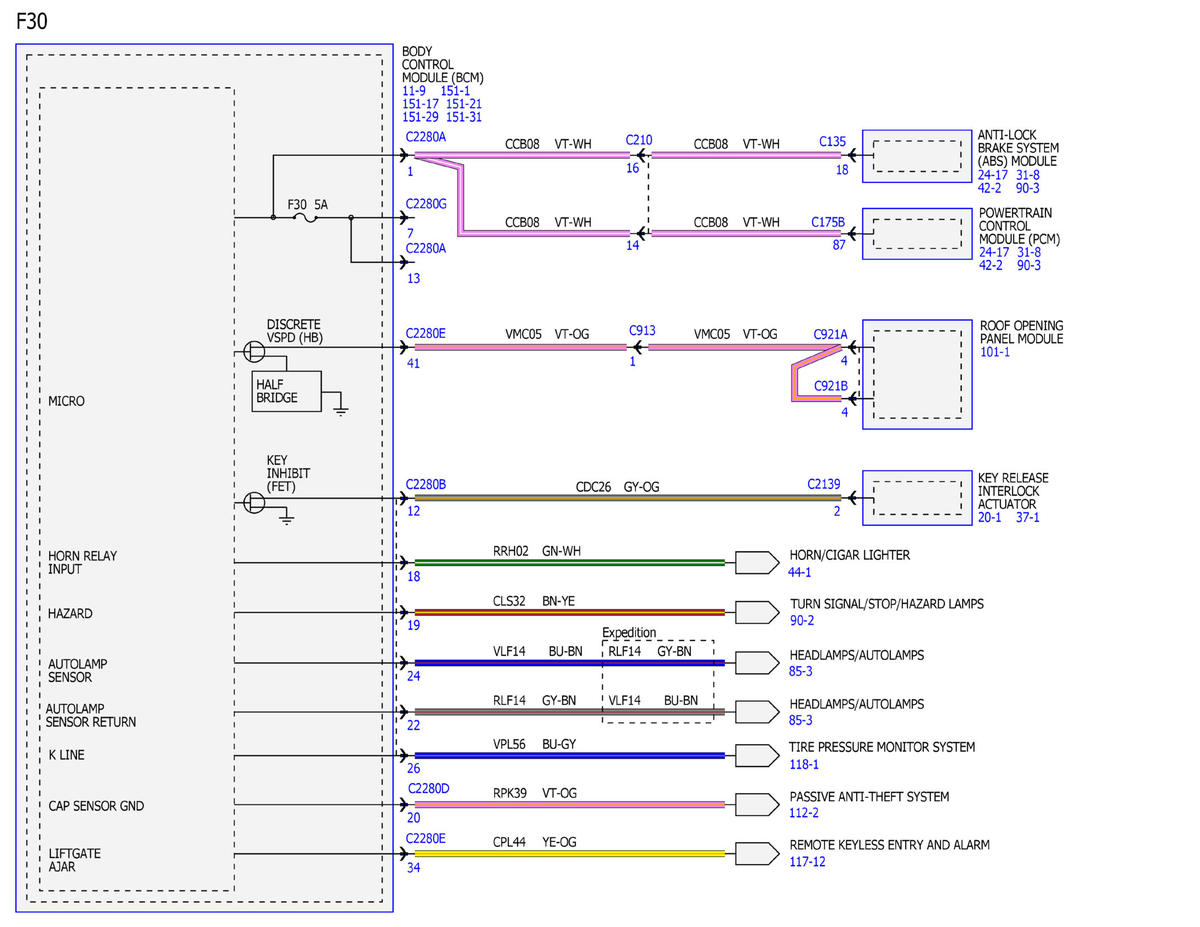

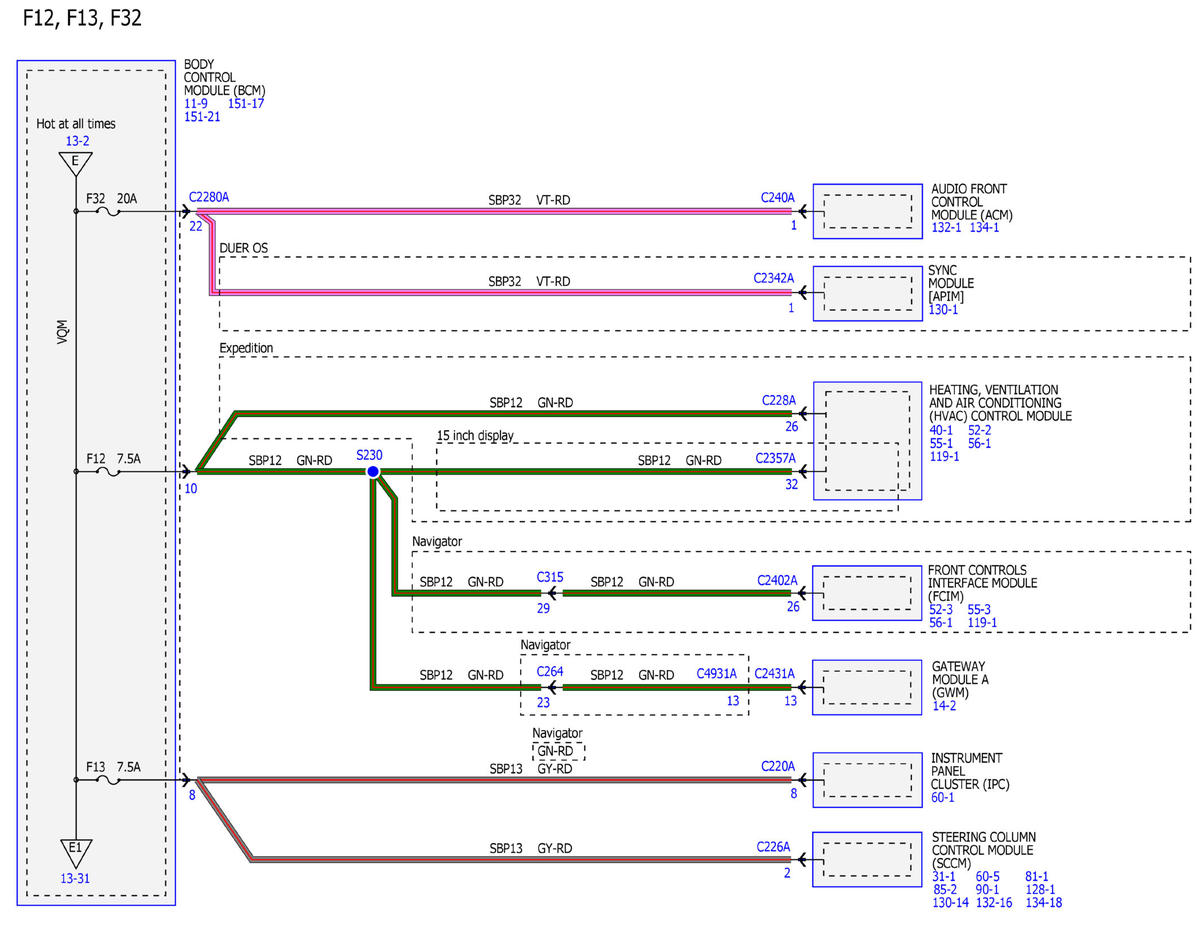

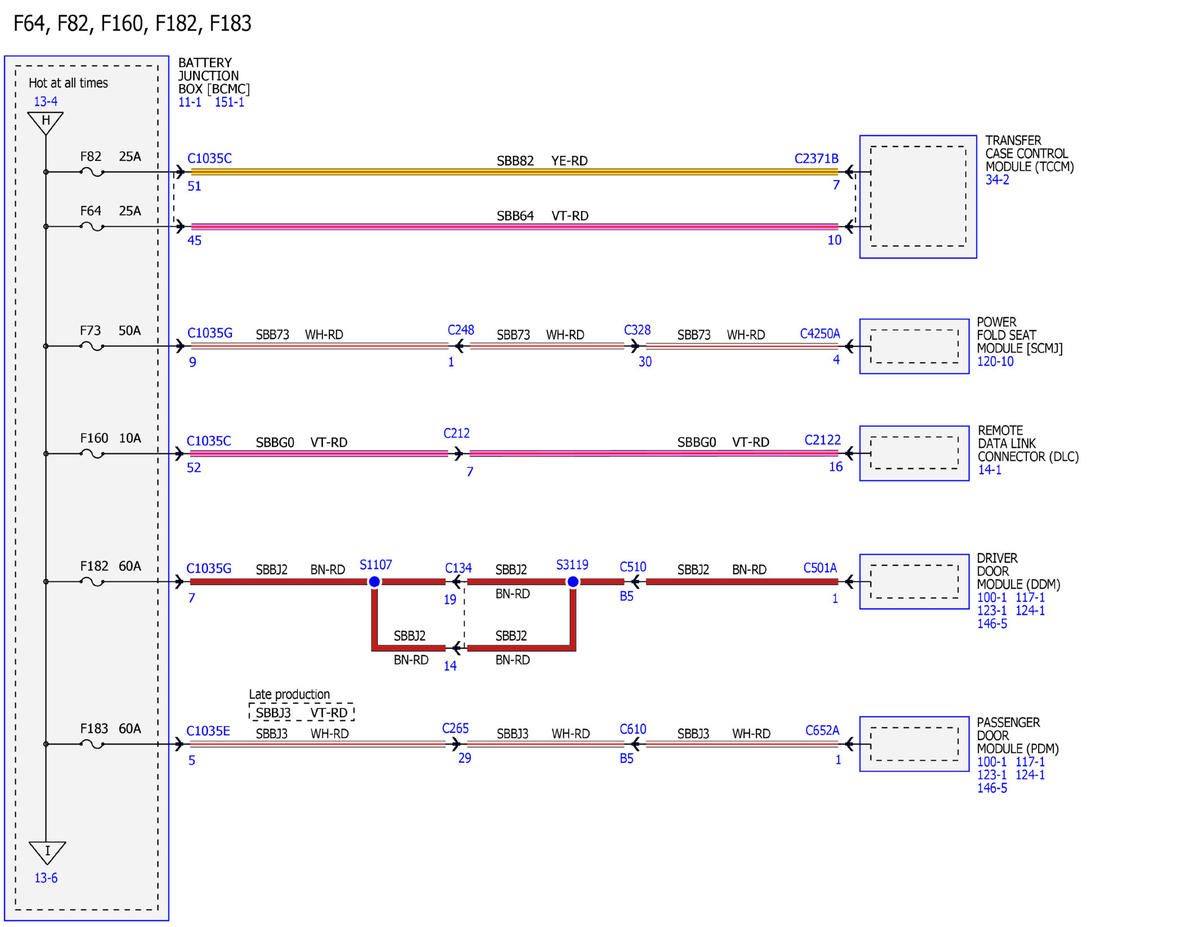

Fig 8: Power Distribution Wiring Diagrams (8 Of 53)
Courtesy of FORD MOTOR COMPANY

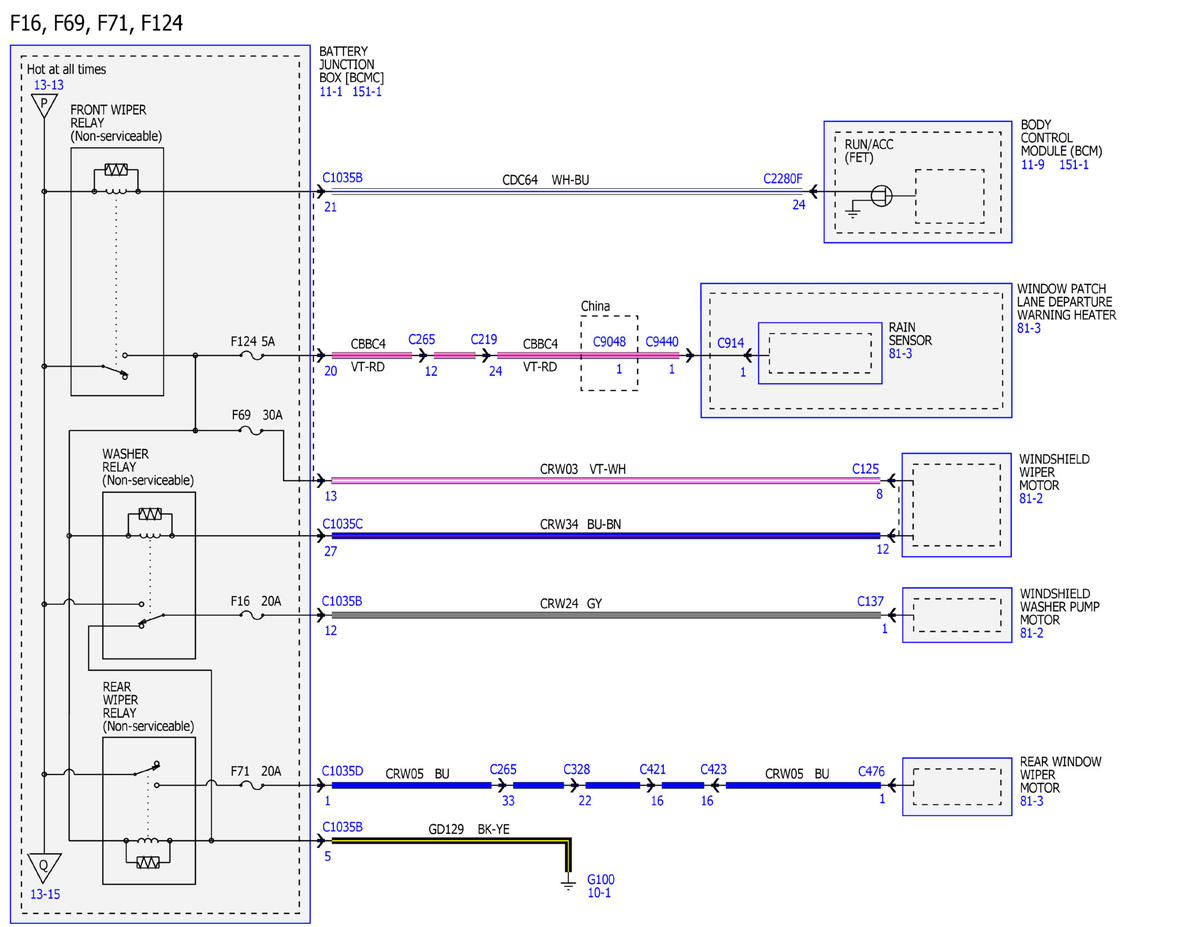

Fig 9: Power Distribution Wiring Diagrams (9 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 10: Power Distribution Wiring Diagrams (10 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 11: Power Distribution Wiring Diagrams (11 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 12: Power Distribution Wiring Diagrams (12 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 13: Power Distribution Wiring Diagrams (13 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 14: Power Distribution Wiring Diagrams (14 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 15: Power Distribution Wiring Diagrams (15 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 16: Power Distribution Wiring Diagrams (16 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 17: Power Distribution Wiring Diagrams (17 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 18: Power Distribution Wiring Diagrams (18 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 19: Power Distribution Wiring Diagrams (19 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 20: Power Distribution Wiring Diagrams (20 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 21: Power Distribution Wiring Diagrams (21 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 22: Power Distribution Wiring Diagrams (22 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 23: Power Distribution Wiring Diagrams (23 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 24: Power Distribution Wiring Diagrams (24 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 25: Power Distribution Wiring Diagrams (25 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 26: Power Distribution Wiring Diagrams (26 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 27: Power Distribution Wiring Diagrams (27 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 28: Power Distribution Wiring Diagrams (28 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 29: Power Distribution Wiring Diagrams (29 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 30: Power Distribution Wiring Diagrams (30 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 31: Power Distribution Wiring Diagrams (31 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 32: Power Distribution Wiring Diagrams (32 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 33: Power Distribution Wiring Diagrams (33 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 34: Power Distribution Wiring Diagrams (34 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 35: Power Distribution Wiring Diagrams (35 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 36: Power Distribution Wiring Diagrams (36 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 37: Power Distribution Wiring Diagrams (37 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 38: Power Distribution Wiring Diagrams (38 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 39: Power Distribution Wiring Diagrams (39 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 40: Power Distribution Wiring Diagrams (40 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 41: Power Distribution Wiring Diagrams (41 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 42: Power Distribution Wiring Diagrams (42 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 43: Power Distribution Wiring Diagrams (43 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 44: Power Distribution Wiring Diagrams (44 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 45: Power Distribution Wiring Diagrams (45 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 46: Power Distribution Wiring Diagrams (46 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 47: Power Distribution Wiring Diagrams (47 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 48: Power Distribution Wiring Diagrams (48 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 49: Power Distribution Wiring Diagrams (49 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 50: Power Distribution Wiring Diagrams (50 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 51: Power Distribution Wiring Diagrams (51 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 52: Power Distribution Wiring Diagrams (52 Of 53)
Courtesy of FORD MOTOR COMPANY
Fig 53: Power Distribution Wiring Diagrams (53 Of 53)
