Power Mirrors

WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

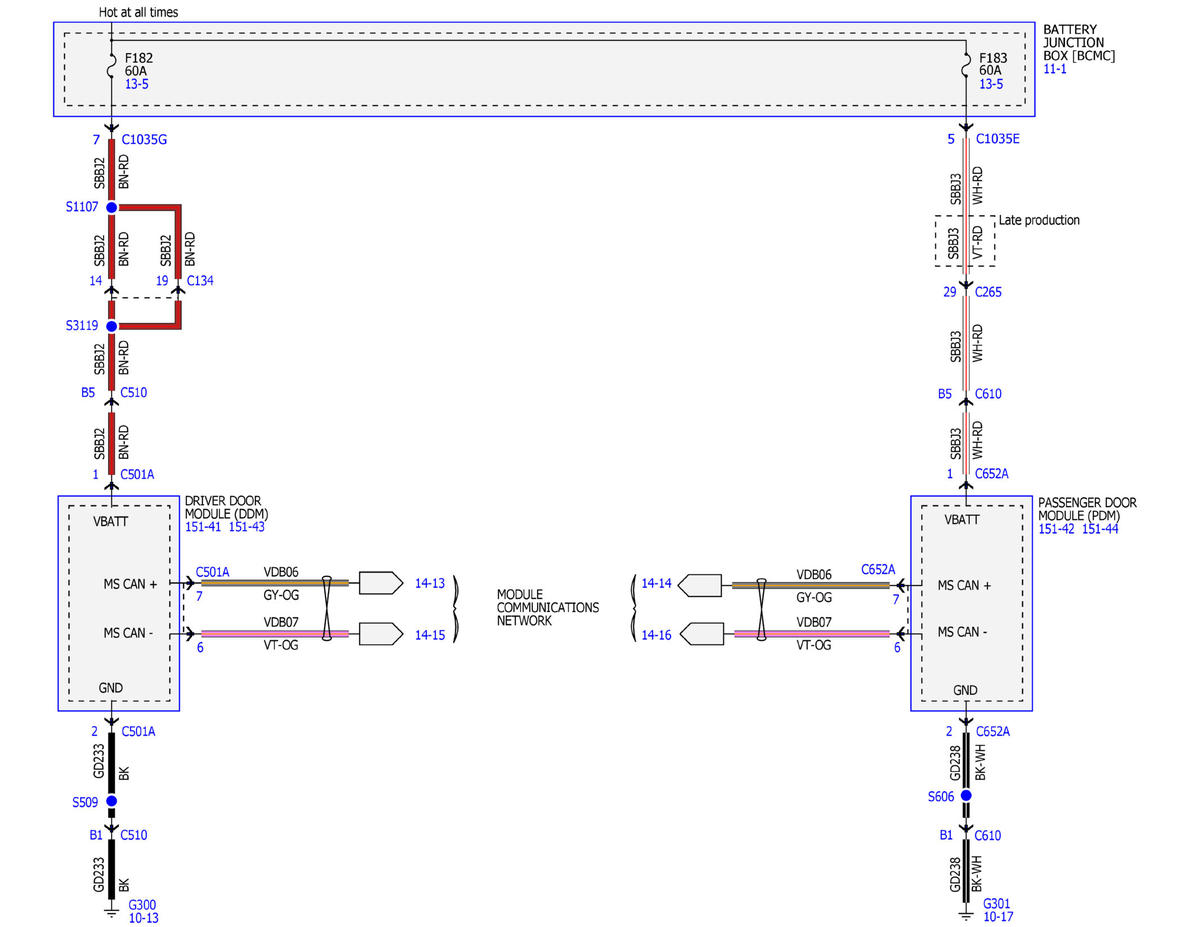

Fig 1: Power Mirrors Wiring Diagrams (1 Of 8)

GFDWR185098

Courtesy of FORD MOTOR COMPANY

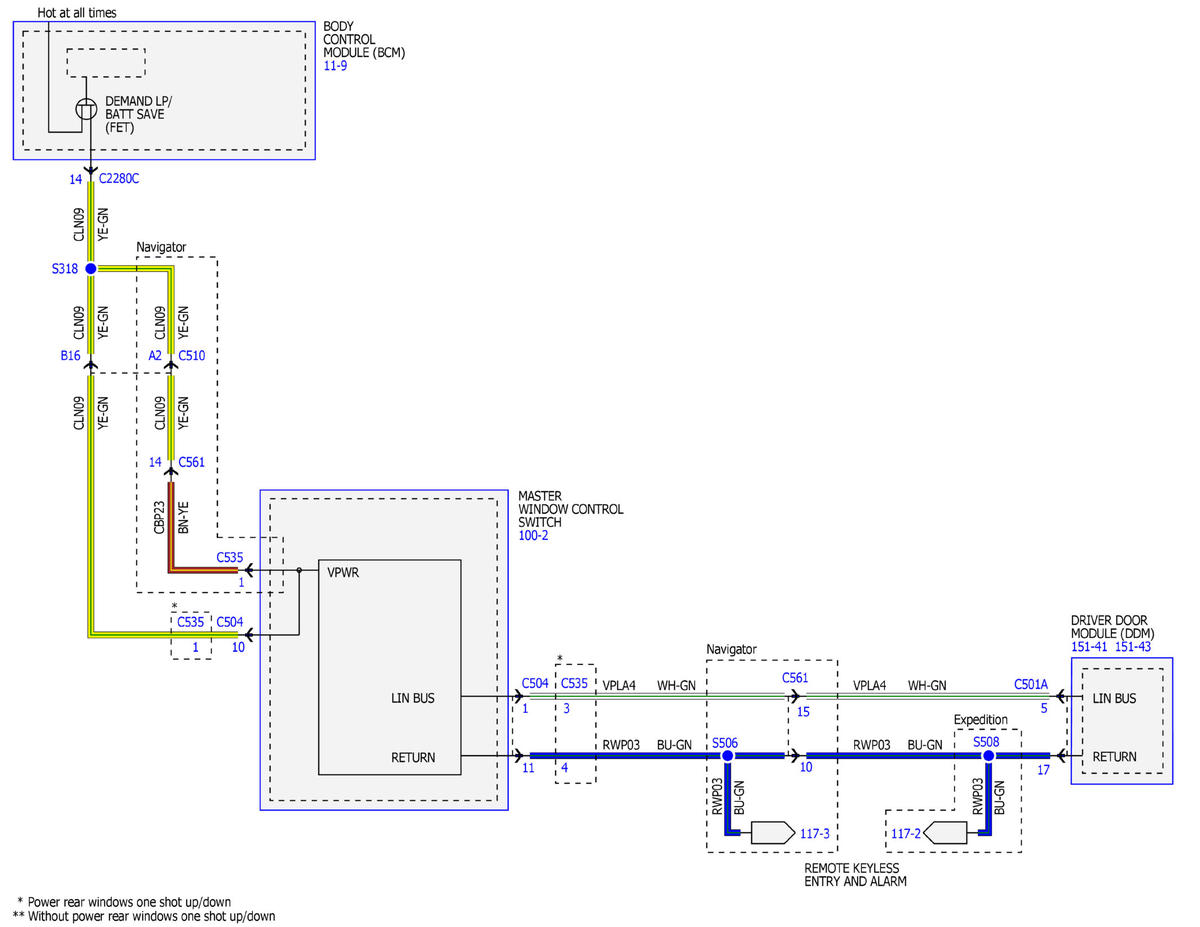

Fig 2: Power Mirrors Wiring Diagrams (2 Of 8)

GFDWR185099

Courtesy of FORD MOTOR COMPANY

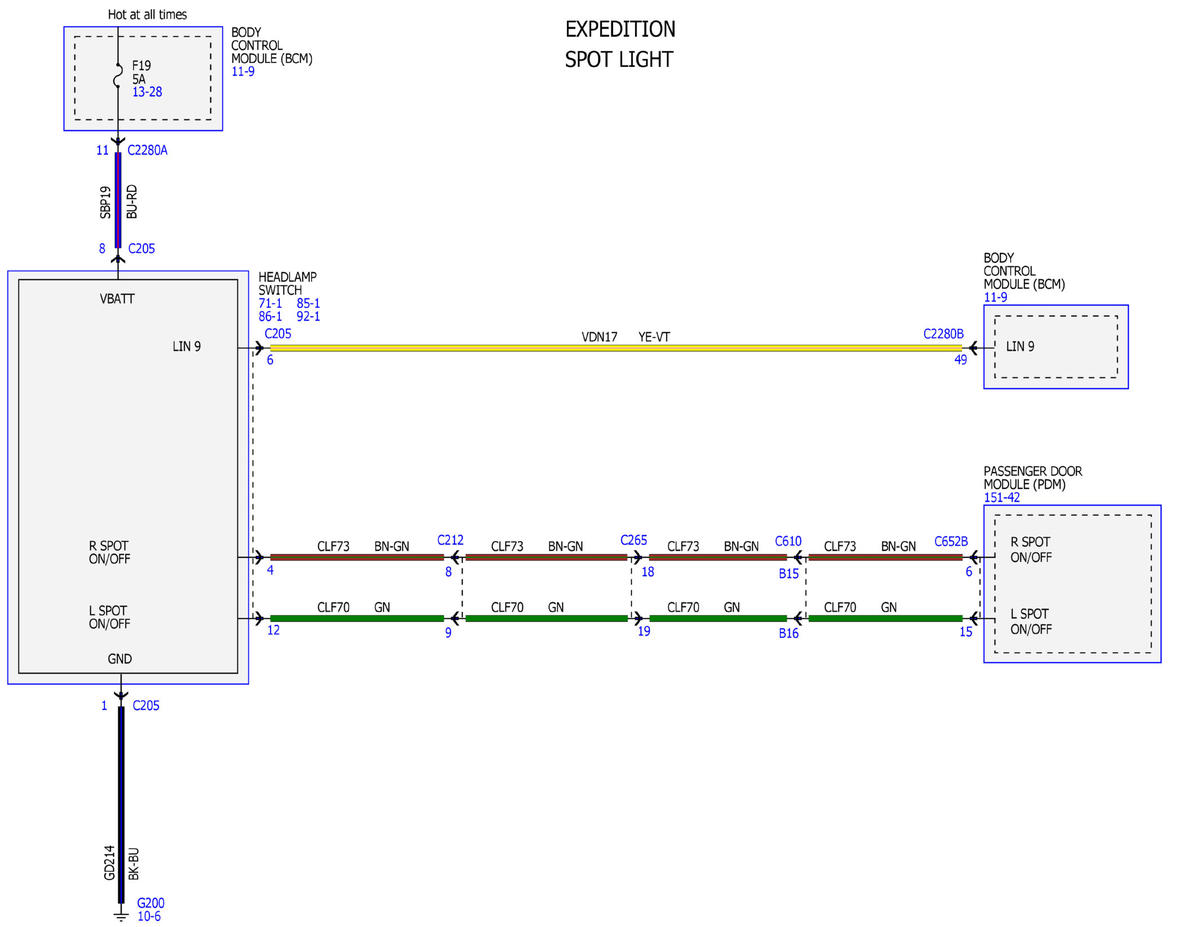

Fig 3: Power Mirrors Wiring Diagrams (3 Of 8)

GFDWR185100

Courtesy of FORD MOTOR COMPANY

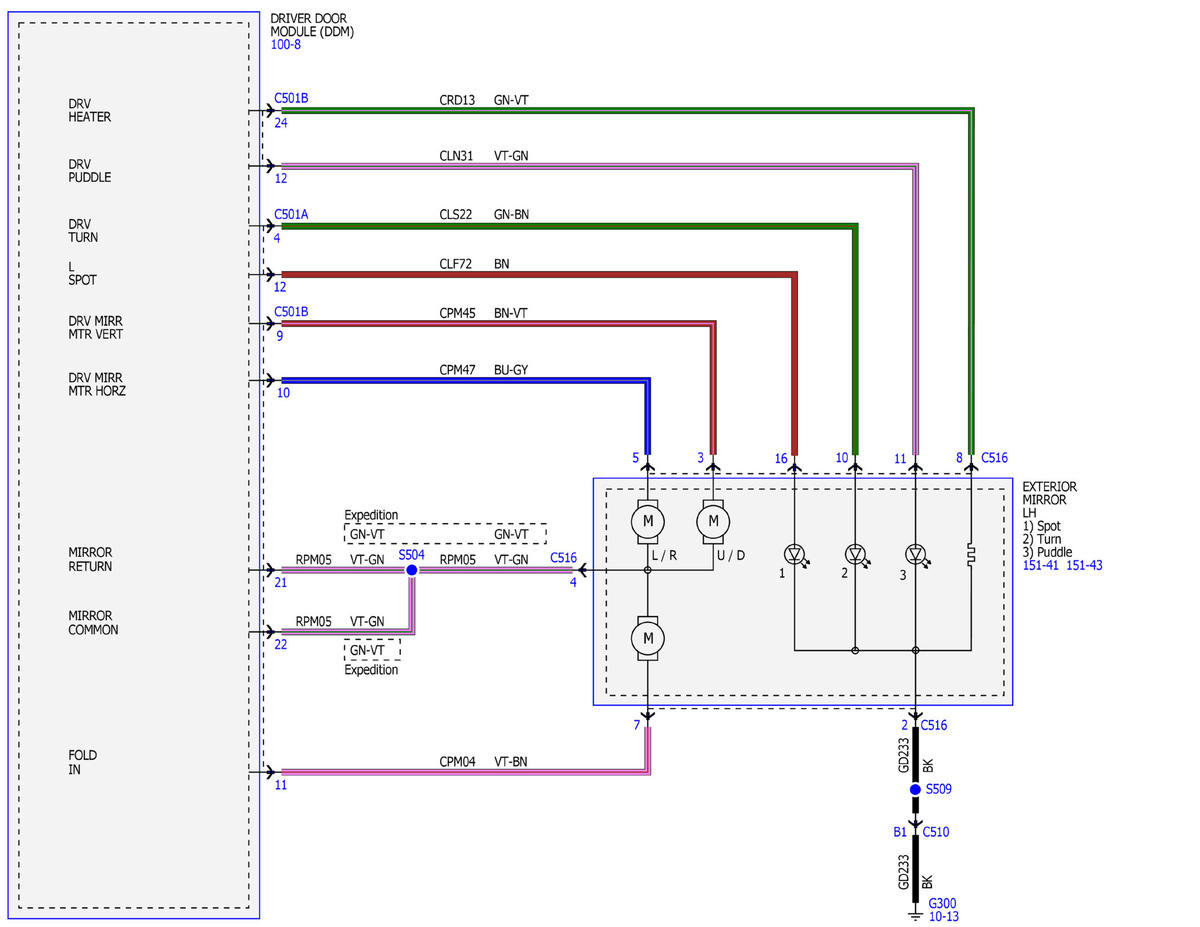

Fig 4: Power Mirrors Wiring Diagrams (4 Of 8)

GFDWR185101

Courtesy of FORD MOTOR COMPANY

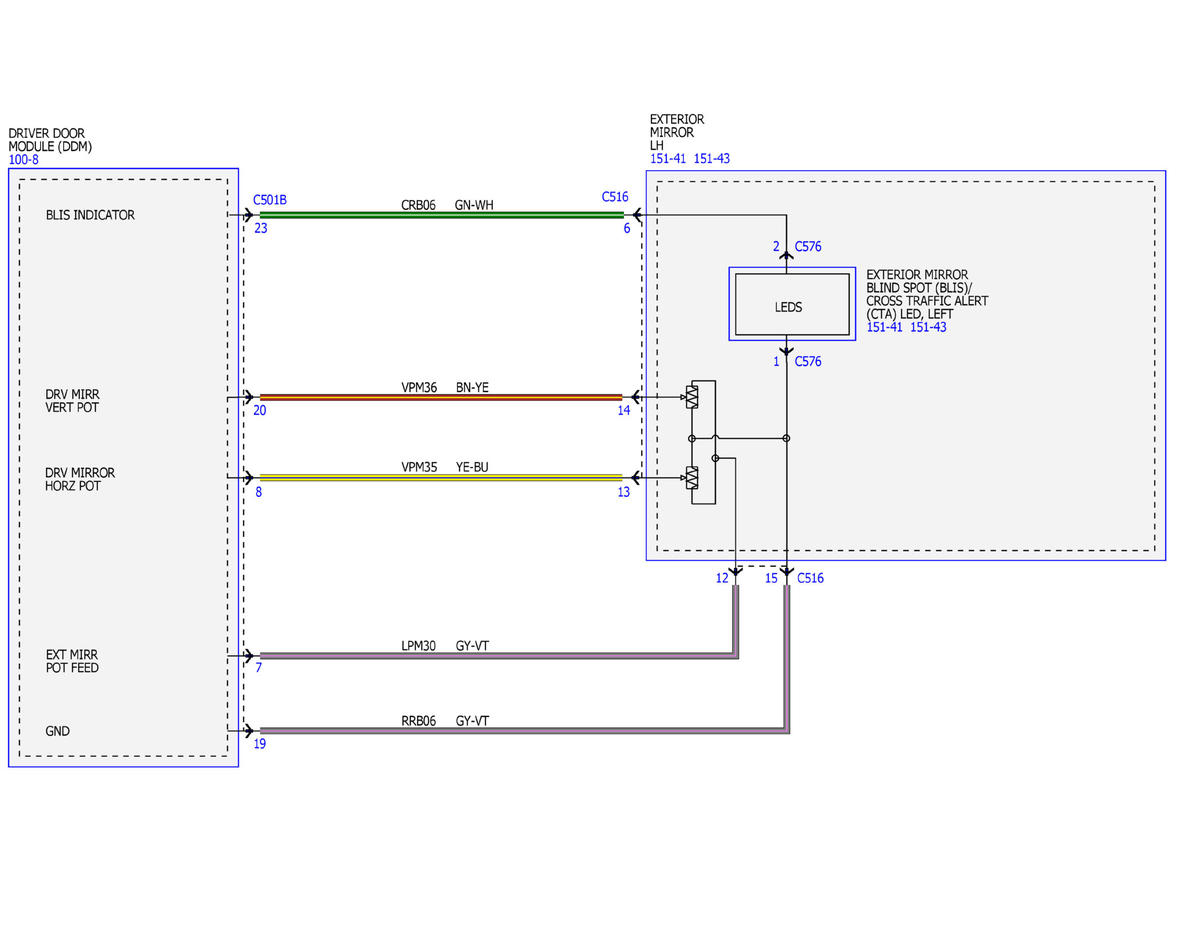

Fig 5: Power Mirrors Wiring Diagrams (5 Of 8)

GFDWR185102

Courtesy of FORD MOTOR COMPANY

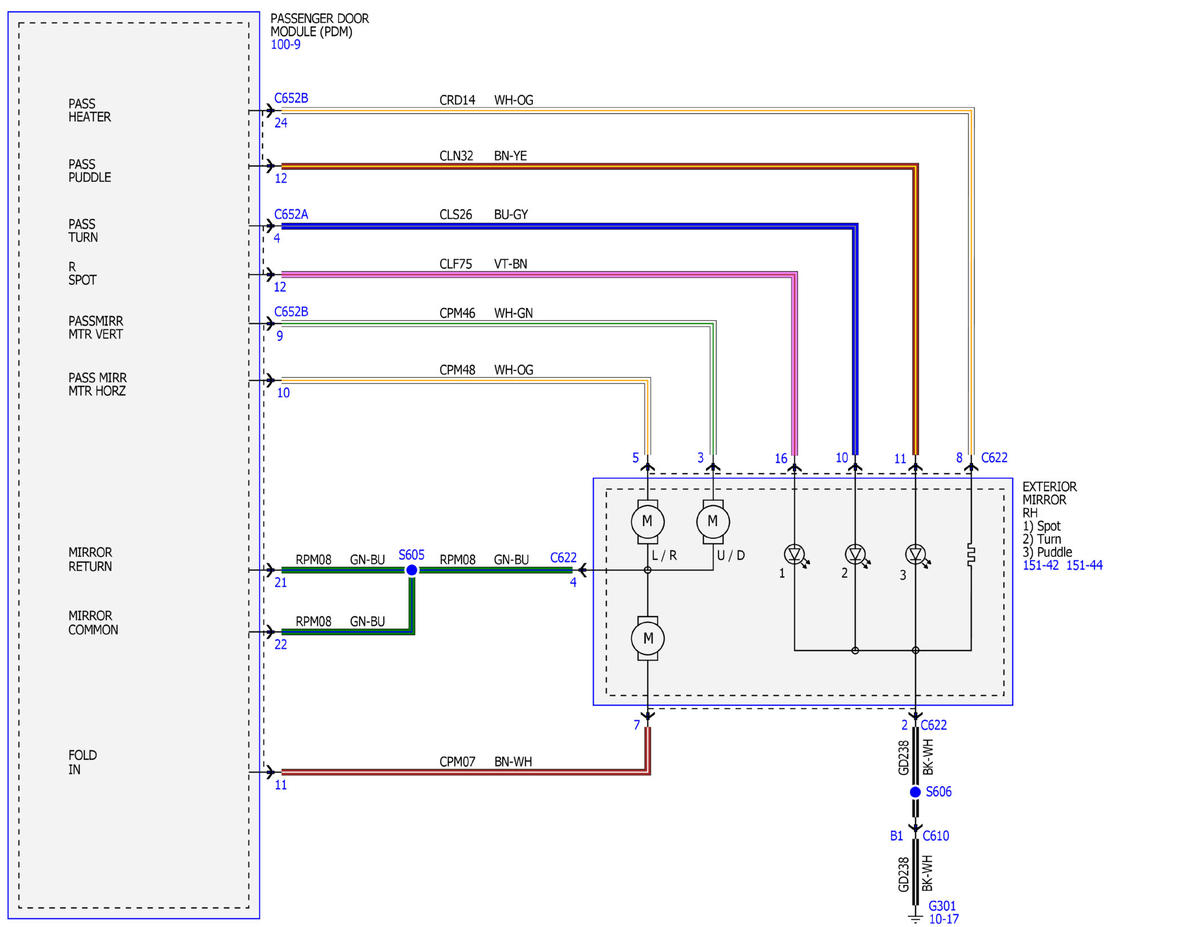

Fig 6: Power Mirrors Wiring Diagrams (6 Of 8)

GFDWR185103

Courtesy of FORD MOTOR COMPANY

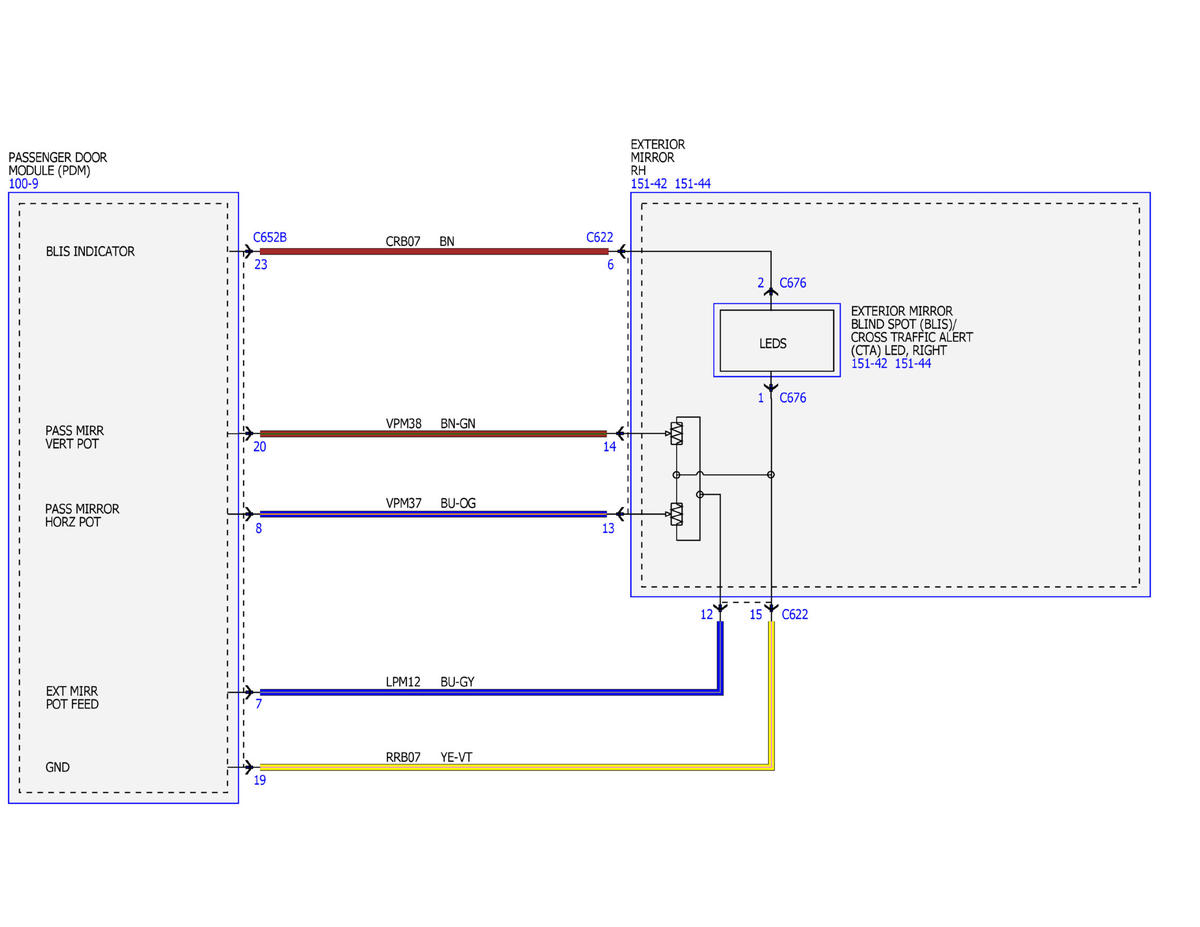

Fig 7: Power Mirrors Wiring Diagrams (7 Of 8)

GFDWR185104

Courtesy of FORD MOTOR COMPANY

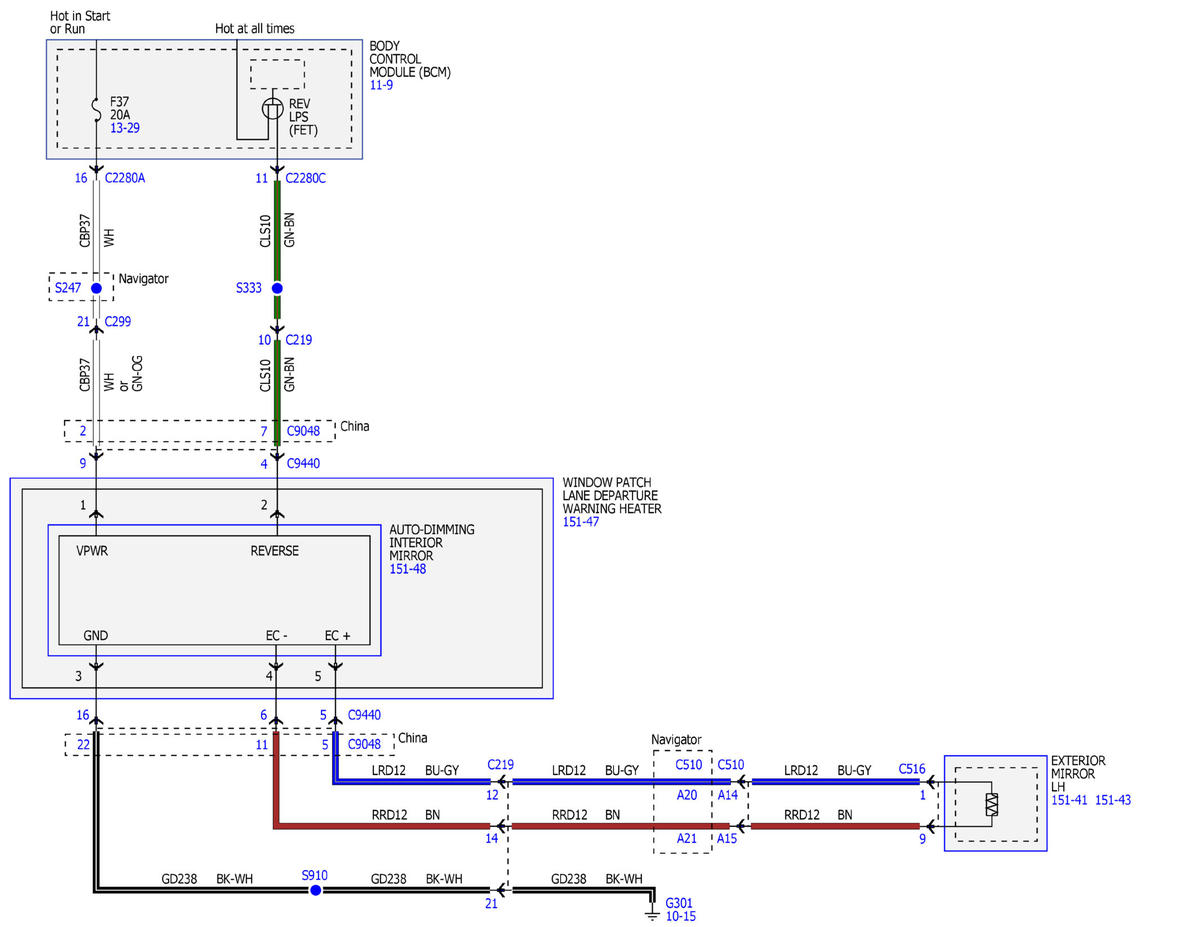

Fig 8: Power Mirrors Wiring Diagrams (8 Of 8)

GFDWR185105

Courtesy of FORD MOTOR COMPANY
