Power Seats

WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

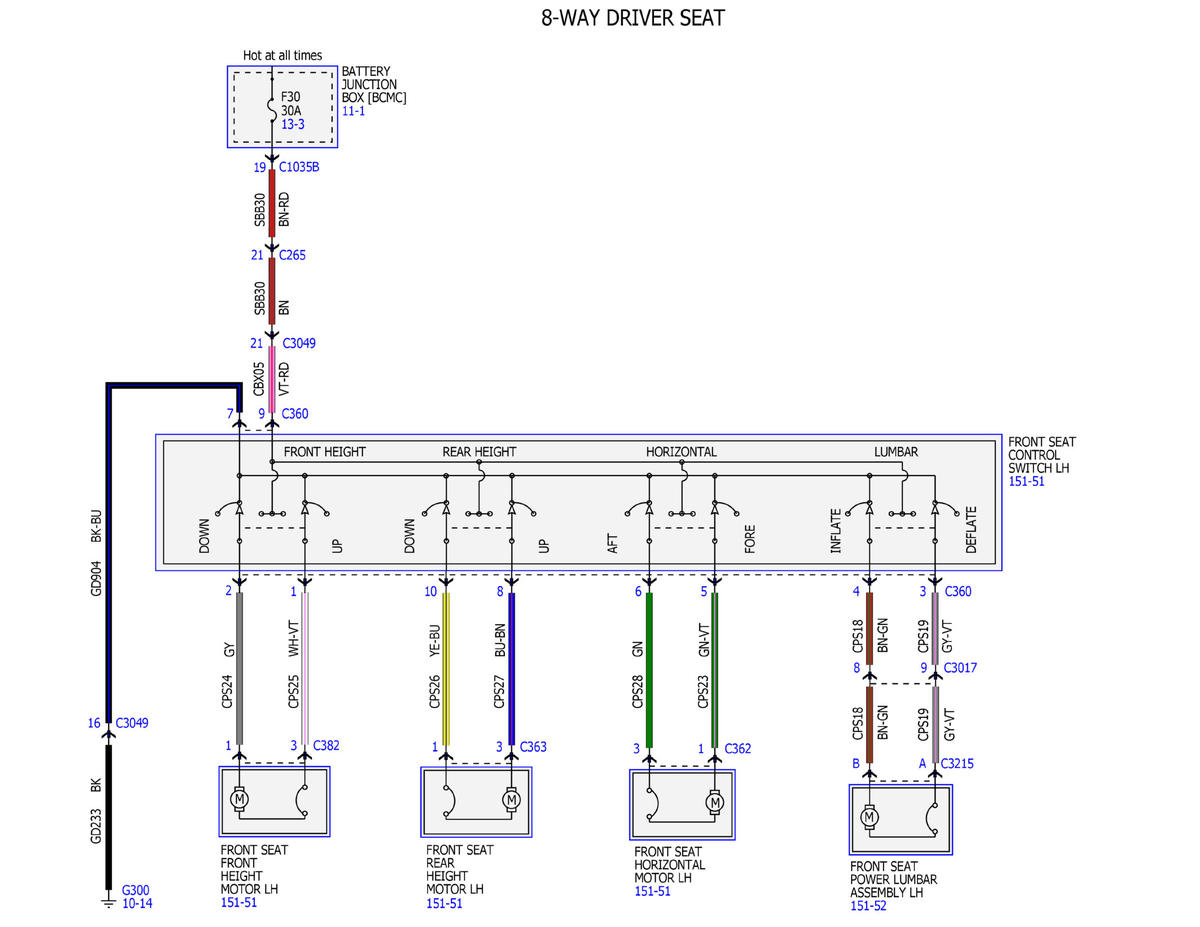

Fig 1: Power Seats Wiring Diagrams (1 Of 15)

GFDWR185106

Courtesy of FORD MOTOR COMPANY

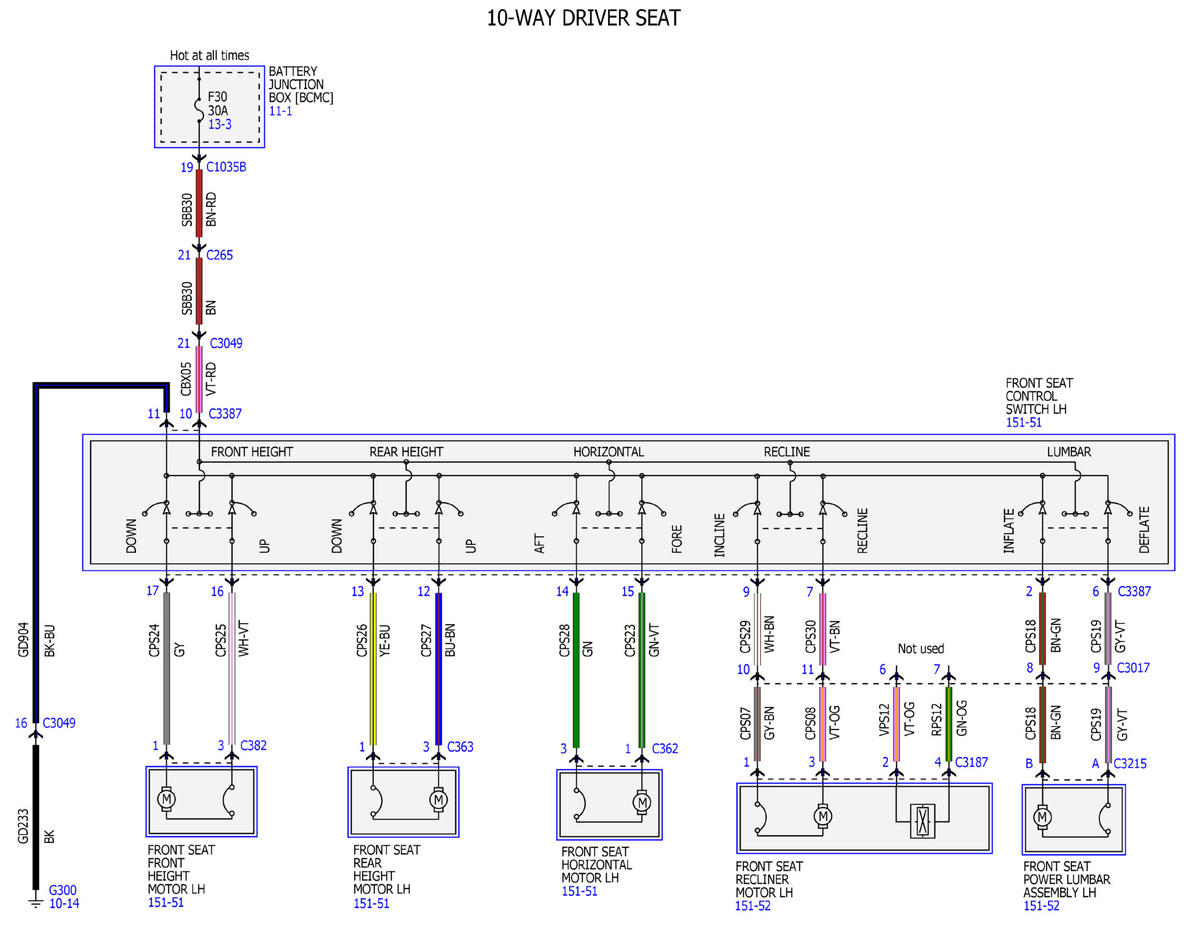

Fig 2: Power Seats Wiring Diagrams (2 Of 15)

GFDWR185113

Courtesy of FORD MOTOR COMPANY

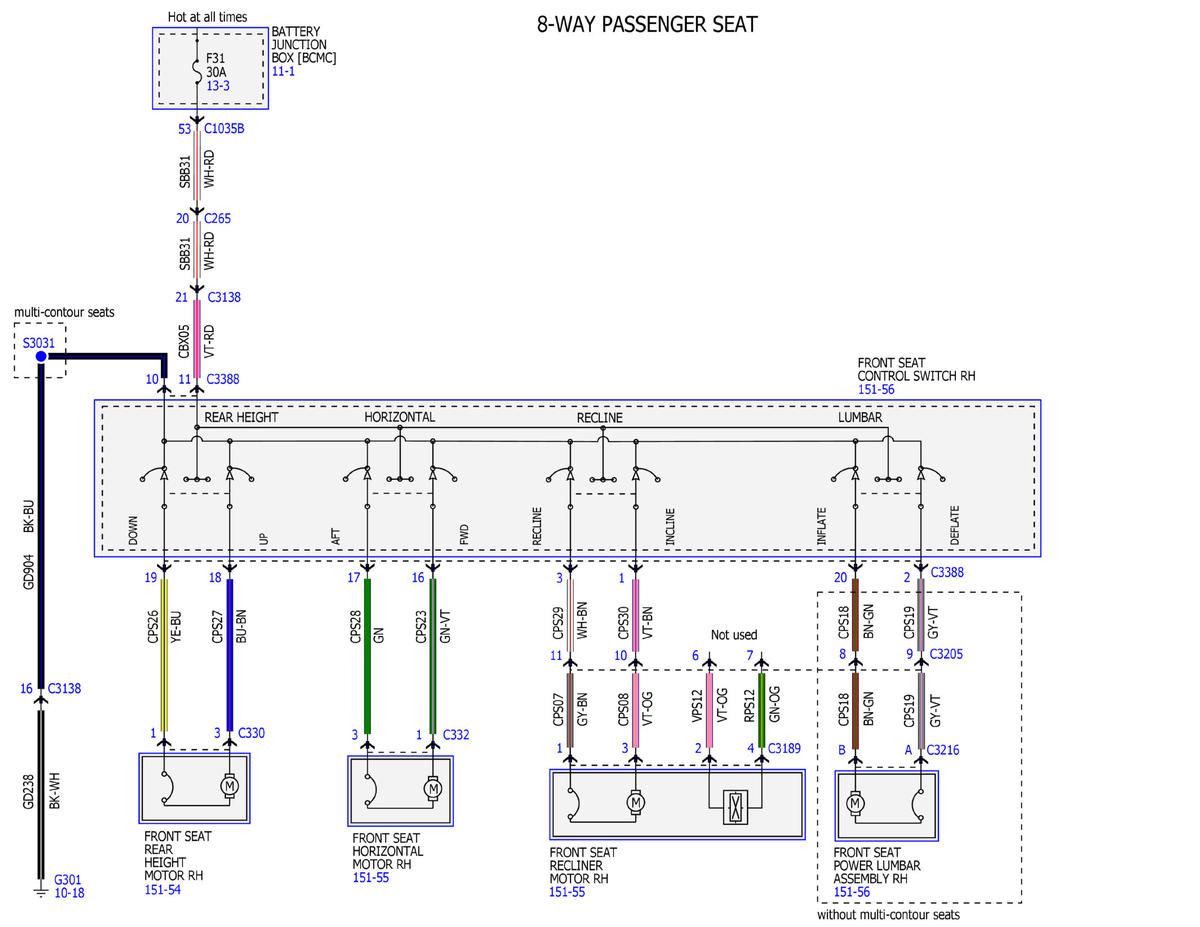

Fig 3: Power Seats Wiring Diagrams (3 Of 15)

GFDWR185114

Courtesy of FORD MOTOR COMPANY

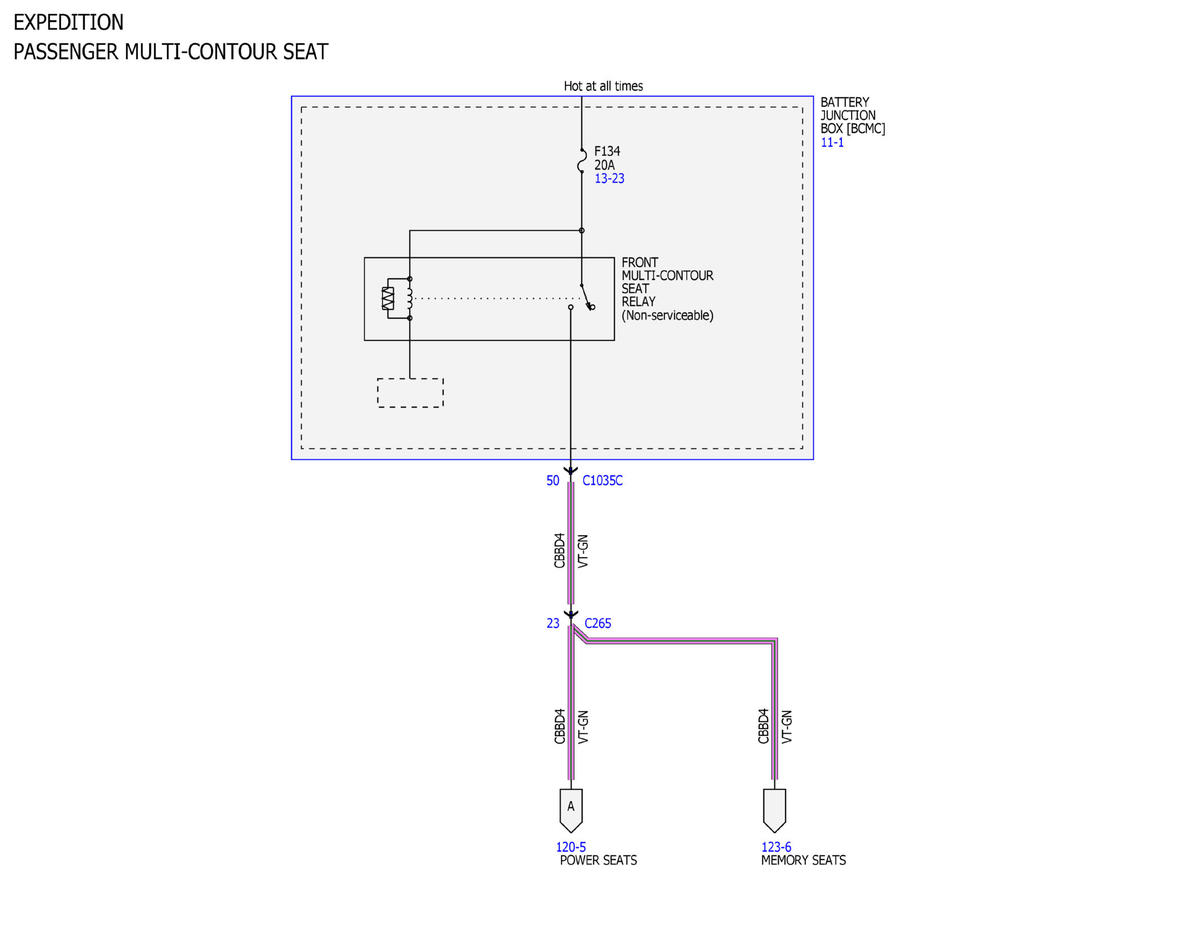

Fig 4: Power Seats Wiring Diagrams (4 Of 15)

GFDWR185115

Courtesy of FORD MOTOR COMPANY

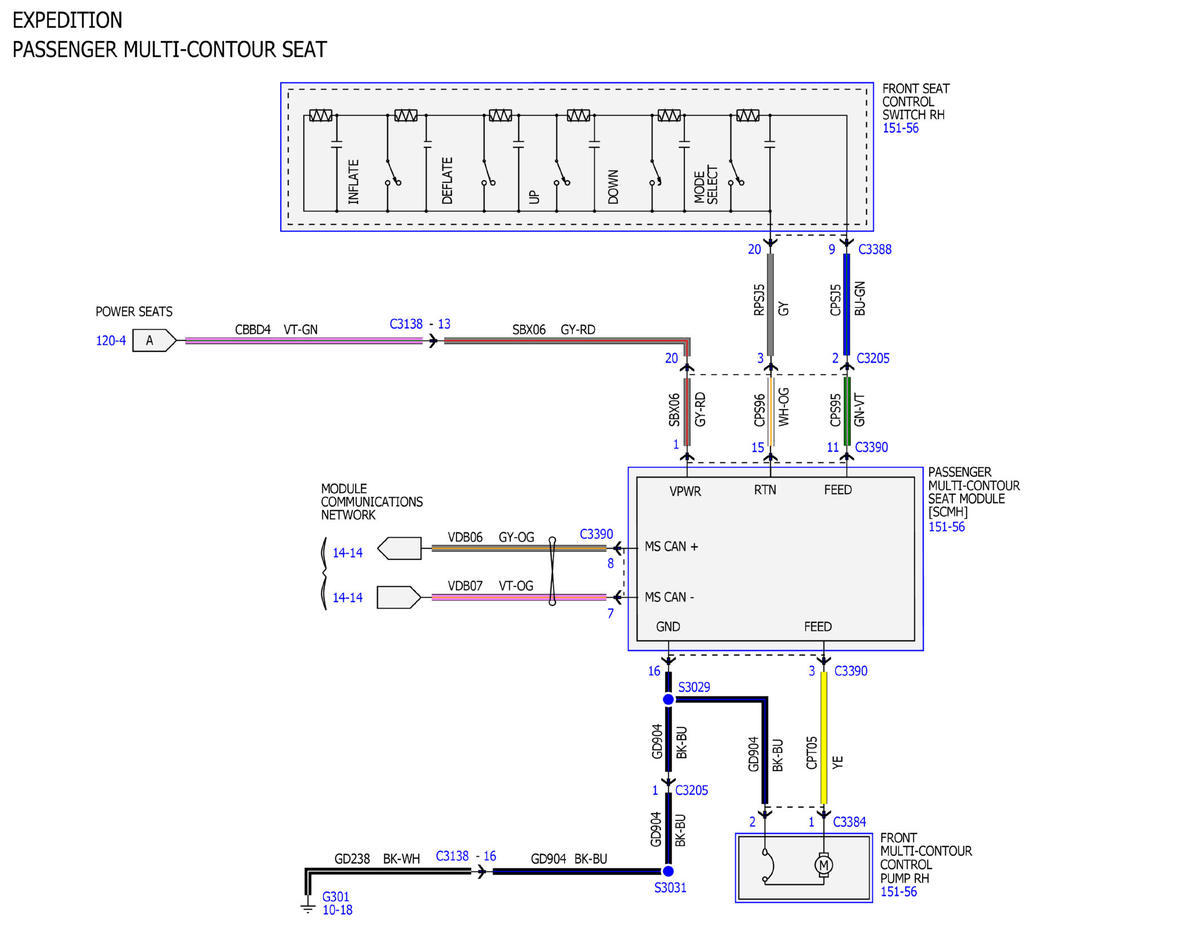

Fig 5: Power Seats Wiring Diagrams (5 Of 15)

GFDWR185116

Courtesy of FORD MOTOR COMPANY

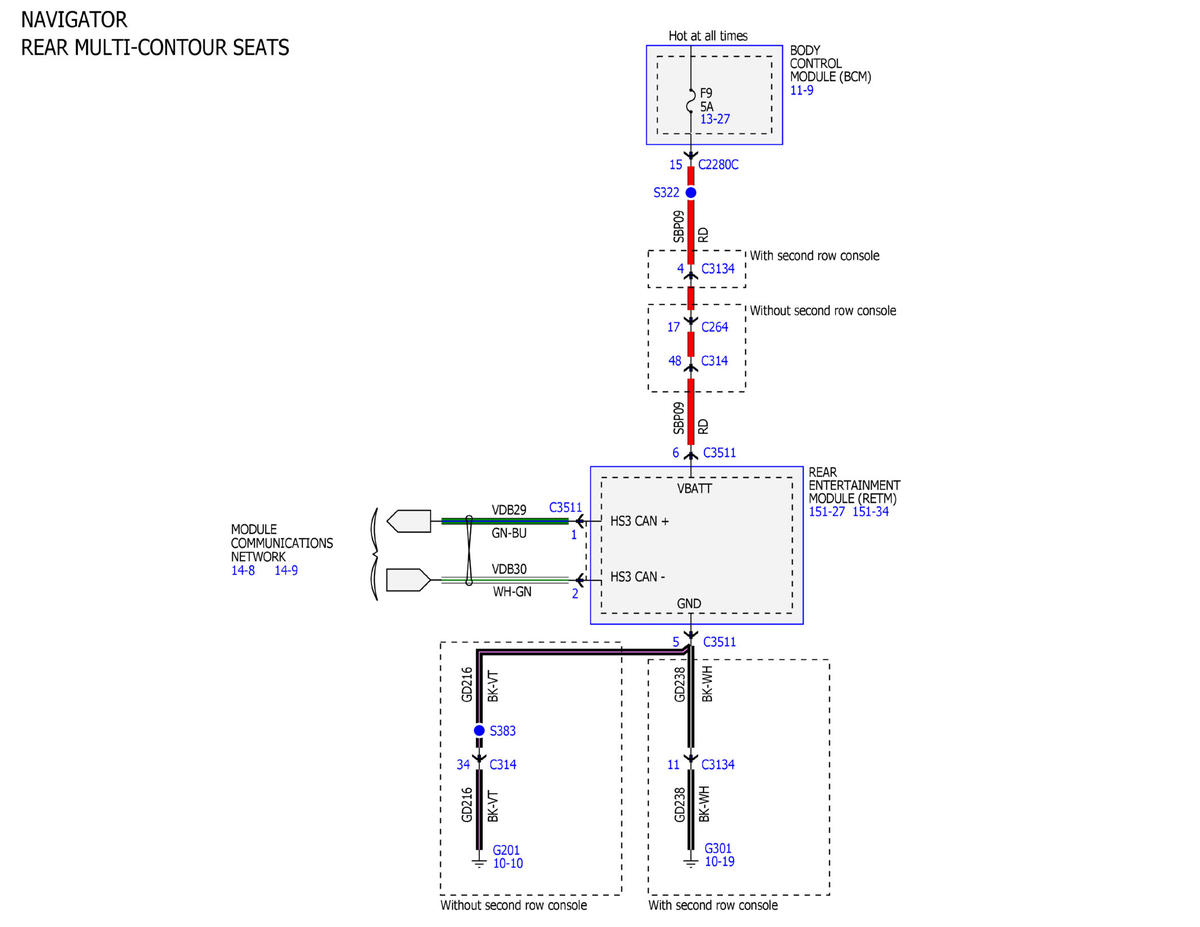

Fig 6: Power Seats Wiring Diagrams (6 Of 15)

GFDWR185117

Courtesy of FORD MOTOR COMPANY

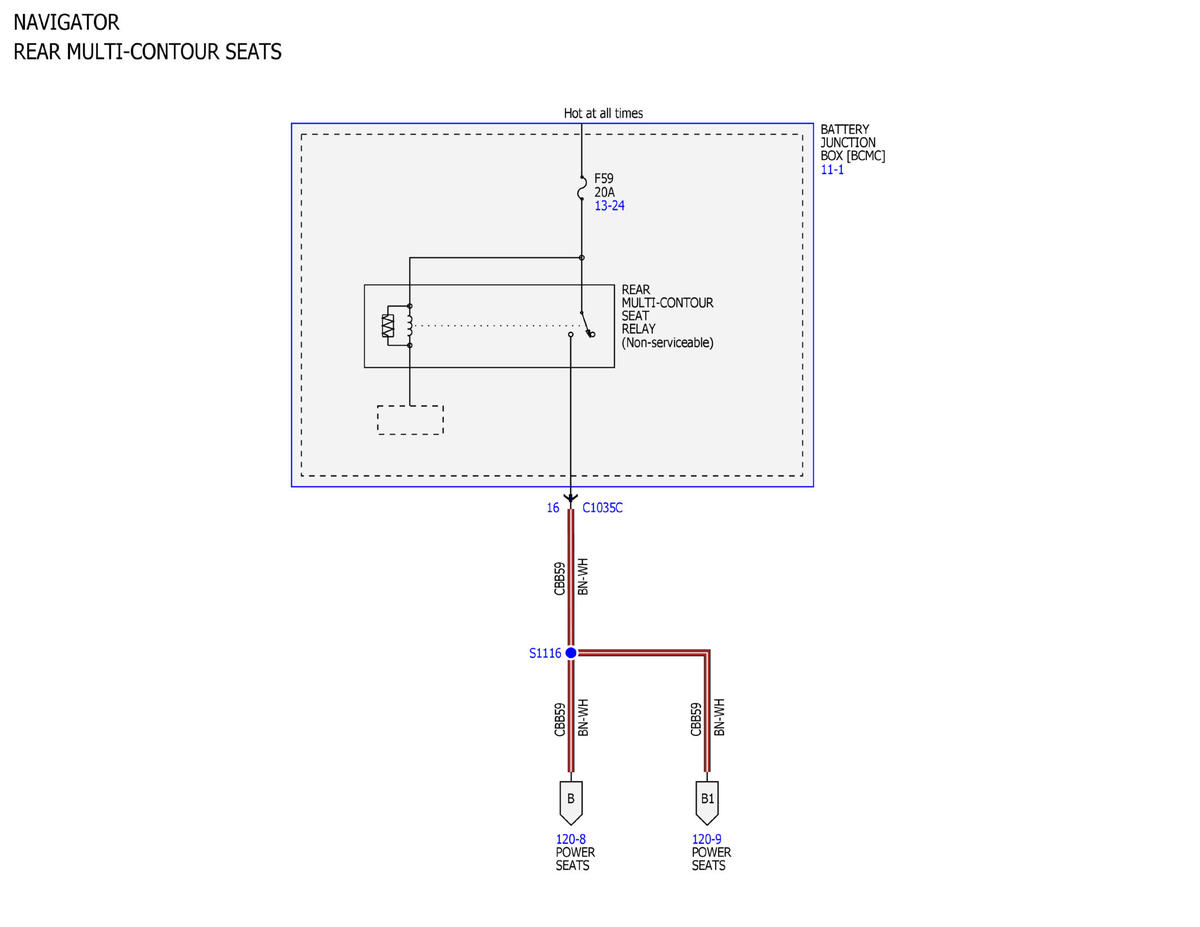

Fig 7: Power Seats Wiring Diagrams (7 Of 15)

GFDWR185118

Courtesy of FORD MOTOR COMPANY

Fig 8: Power Seats Wiring Diagrams (8 Of 15)

GFDWR185119

Courtesy of FORD MOTOR COMPANY

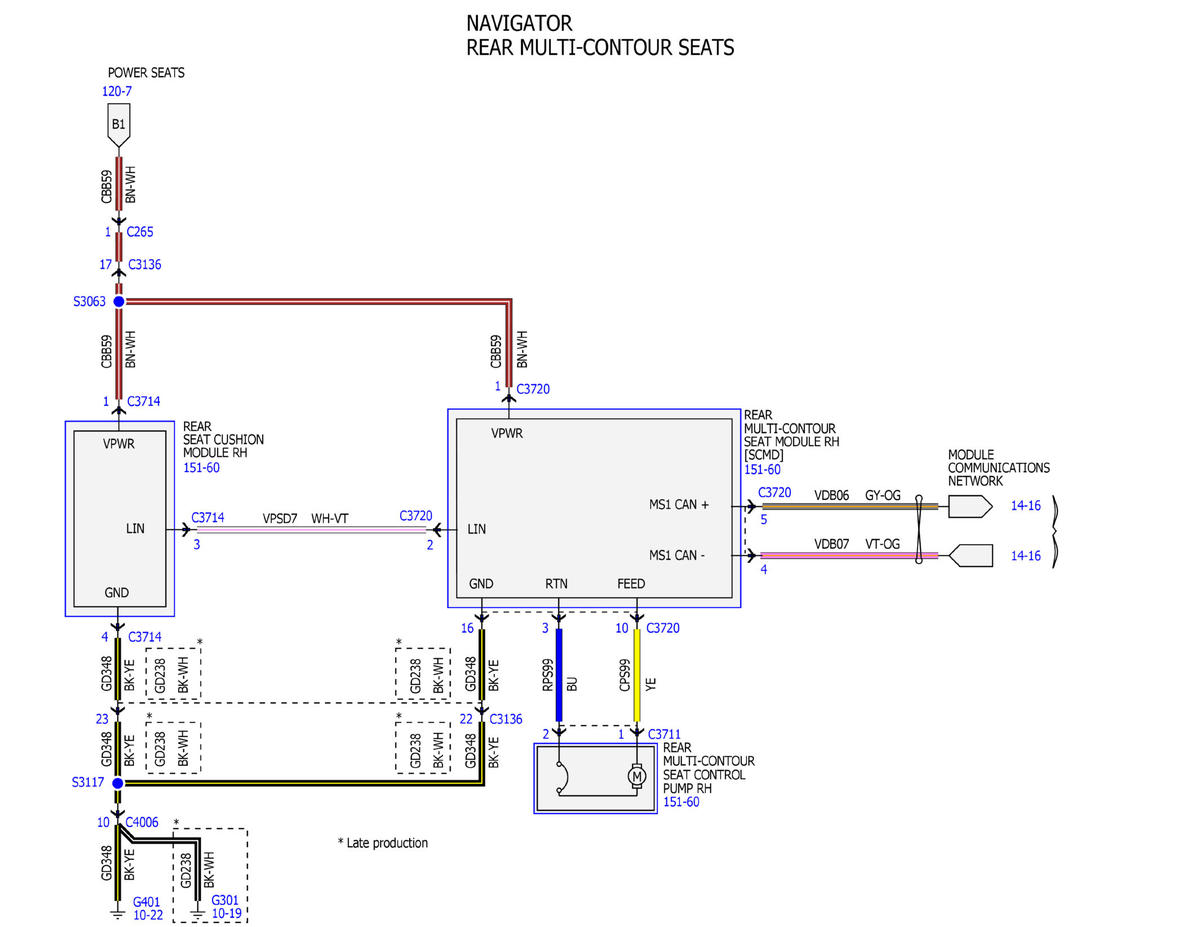

Fig 9: Power Seats Wiring Diagrams (9 Of 15)

GFDWR185120

Courtesy of FORD MOTOR COMPANY

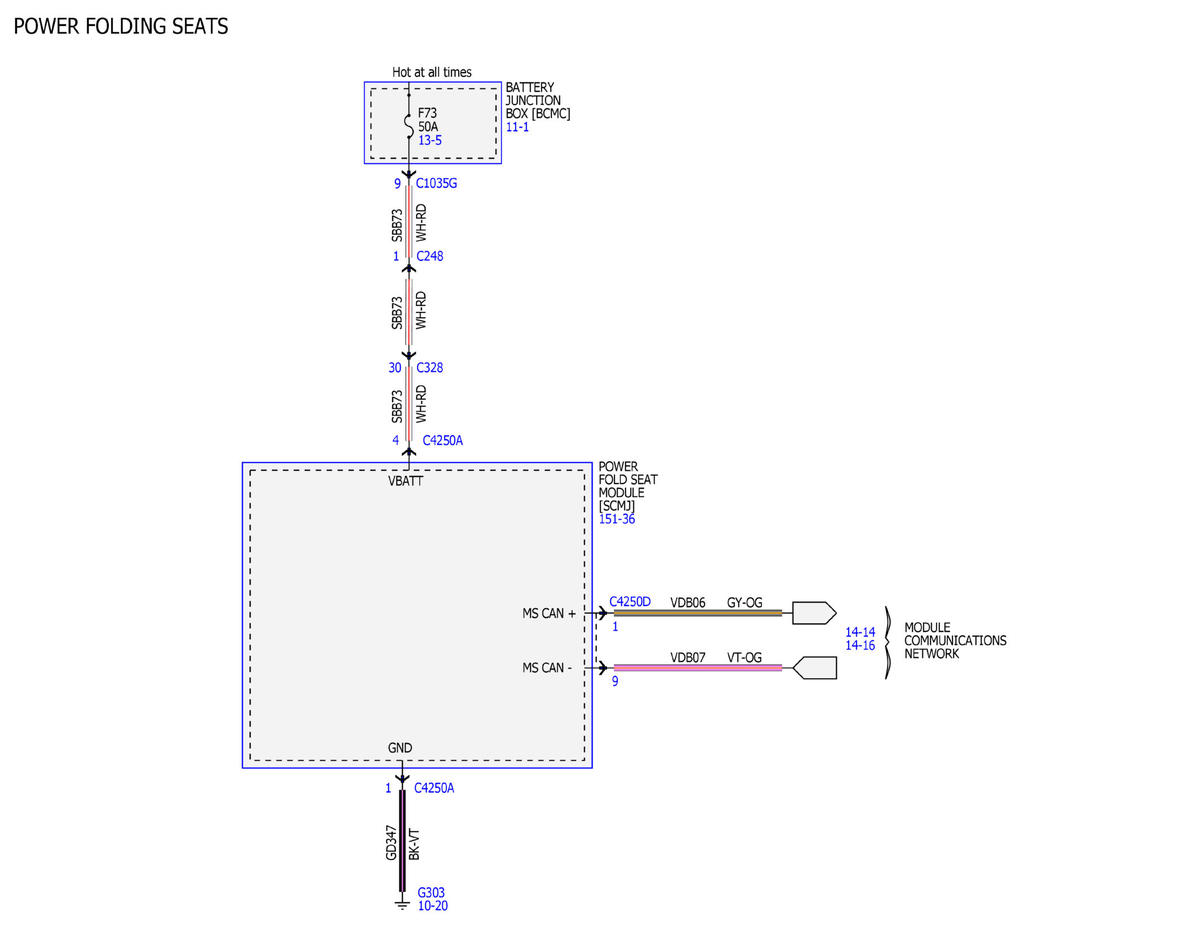

Fig 10: Power Seats Wiring Diagrams (10 Of 15)

GFDWR185107

Courtesy of FORD MOTOR COMPANY

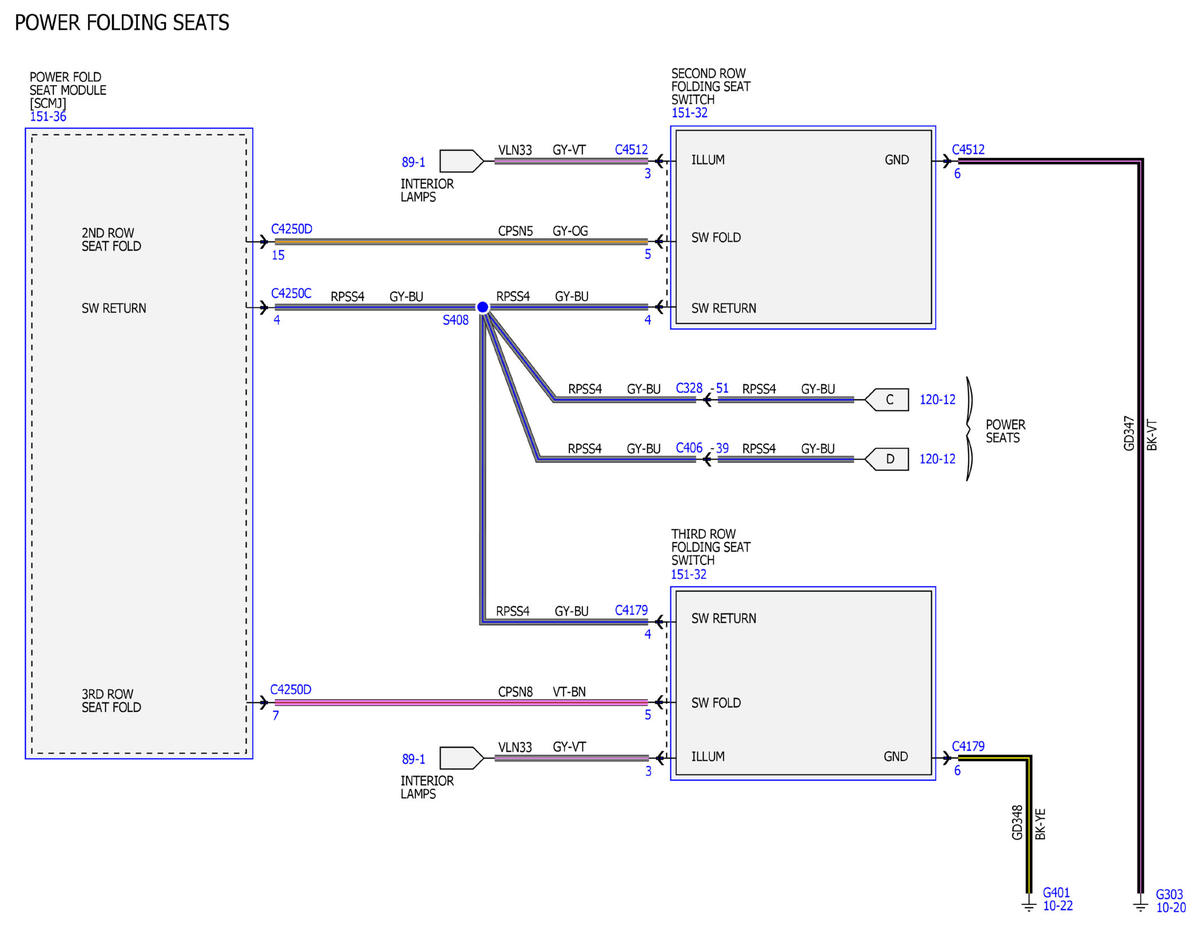

Fig 11: Power Seats Wiring Diagrams (11 Of 15)

GFDWR185108

Courtesy of FORD MOTOR COMPANY

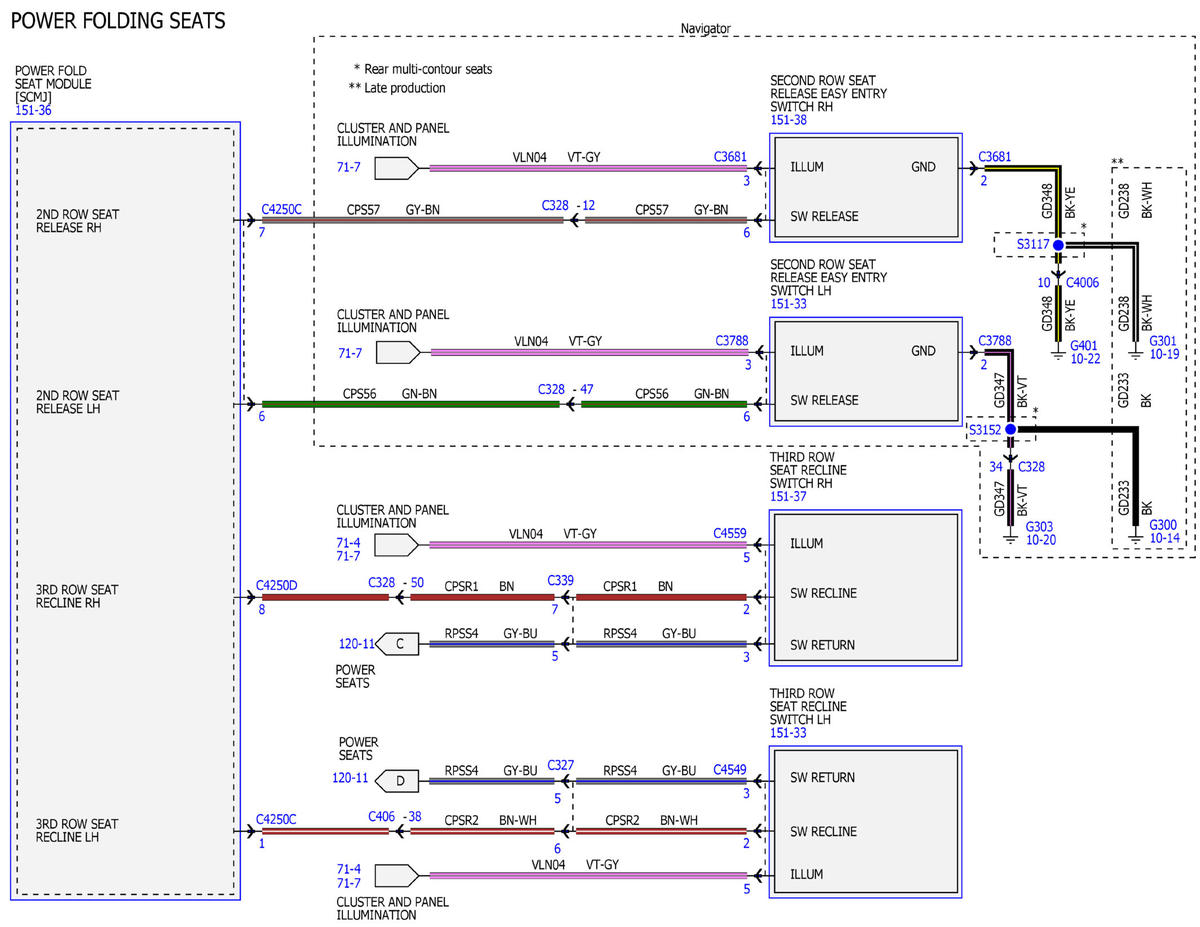

Fig 12: Power Seats Wiring Diagrams (12 Of 15)

GFDWR185109

Courtesy of FORD MOTOR COMPANY

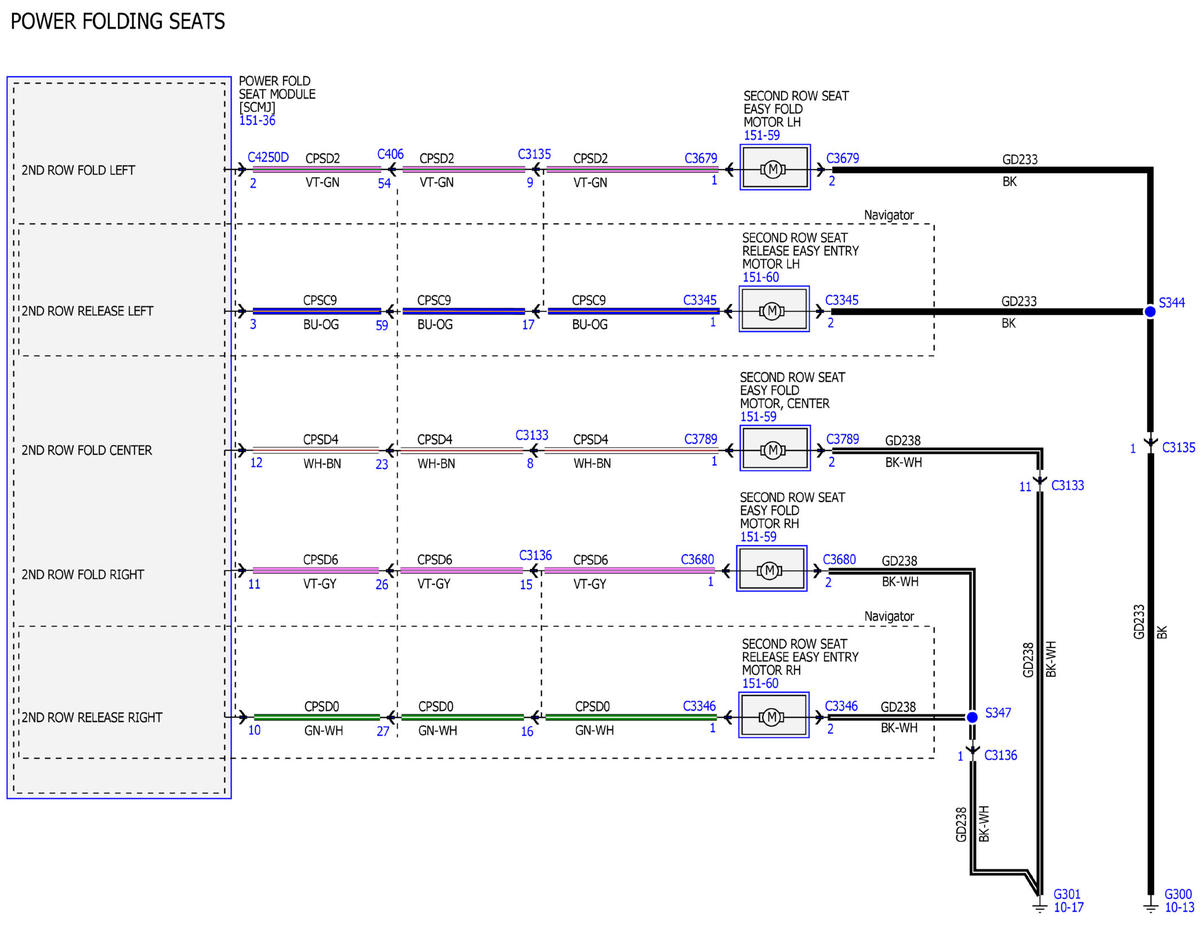

Fig 13: Power Seats Wiring Diagrams (13 Of 15)

GFDWR185110

Courtesy of FORD MOTOR COMPANY

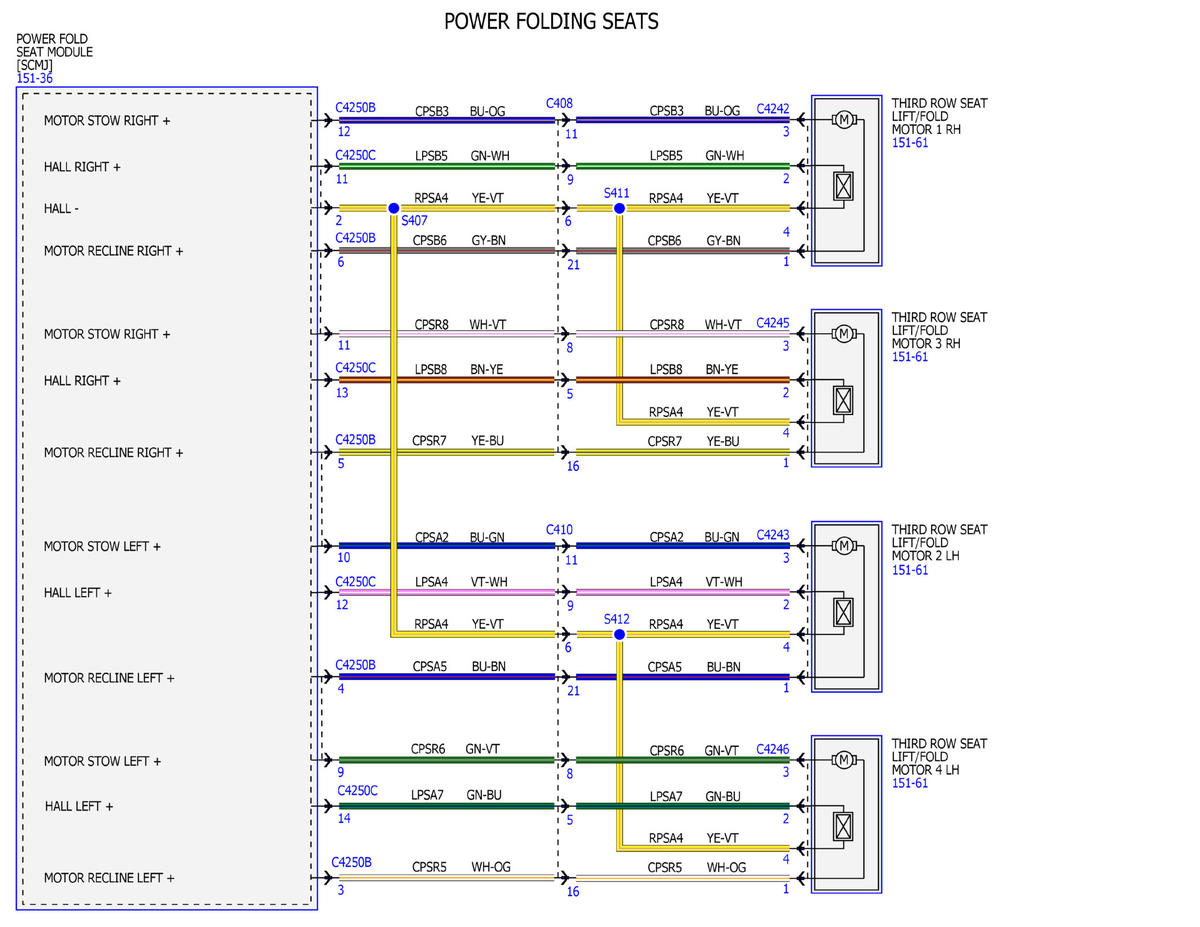

Fig 14: Power Seats Wiring Diagrams (14 Of 15)

GFDWR185111

Courtesy of FORD MOTOR COMPANY

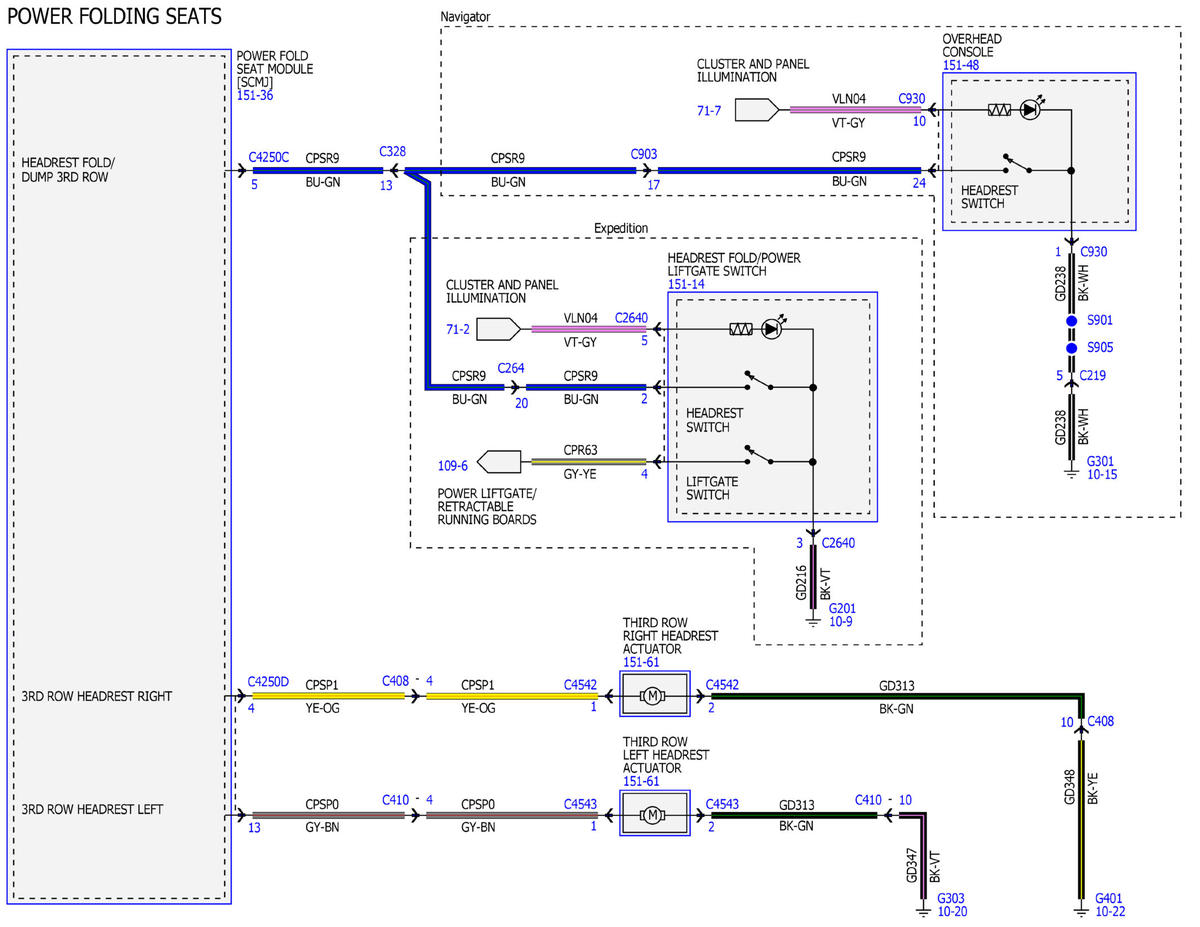

Fig 15: Power Seats Wiring Diagrams (15 Of 15)

GFDWR185112

Courtesy of FORD MOTOR COMPANY
