Power Windows

WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

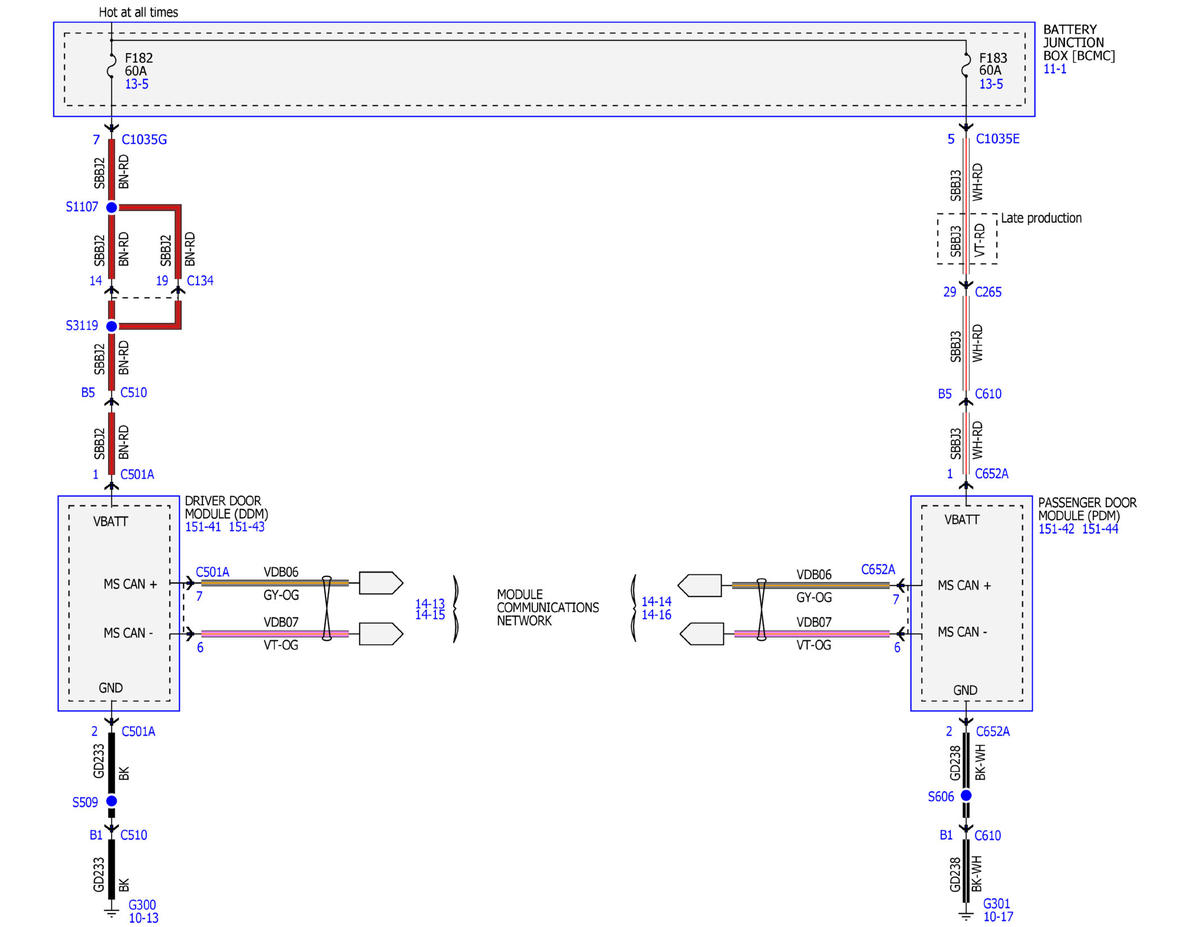

Fig 1: Power Windows Wiring Diagrams (1 Of 9)

GFDWR185122

Courtesy of FORD MOTOR COMPANY

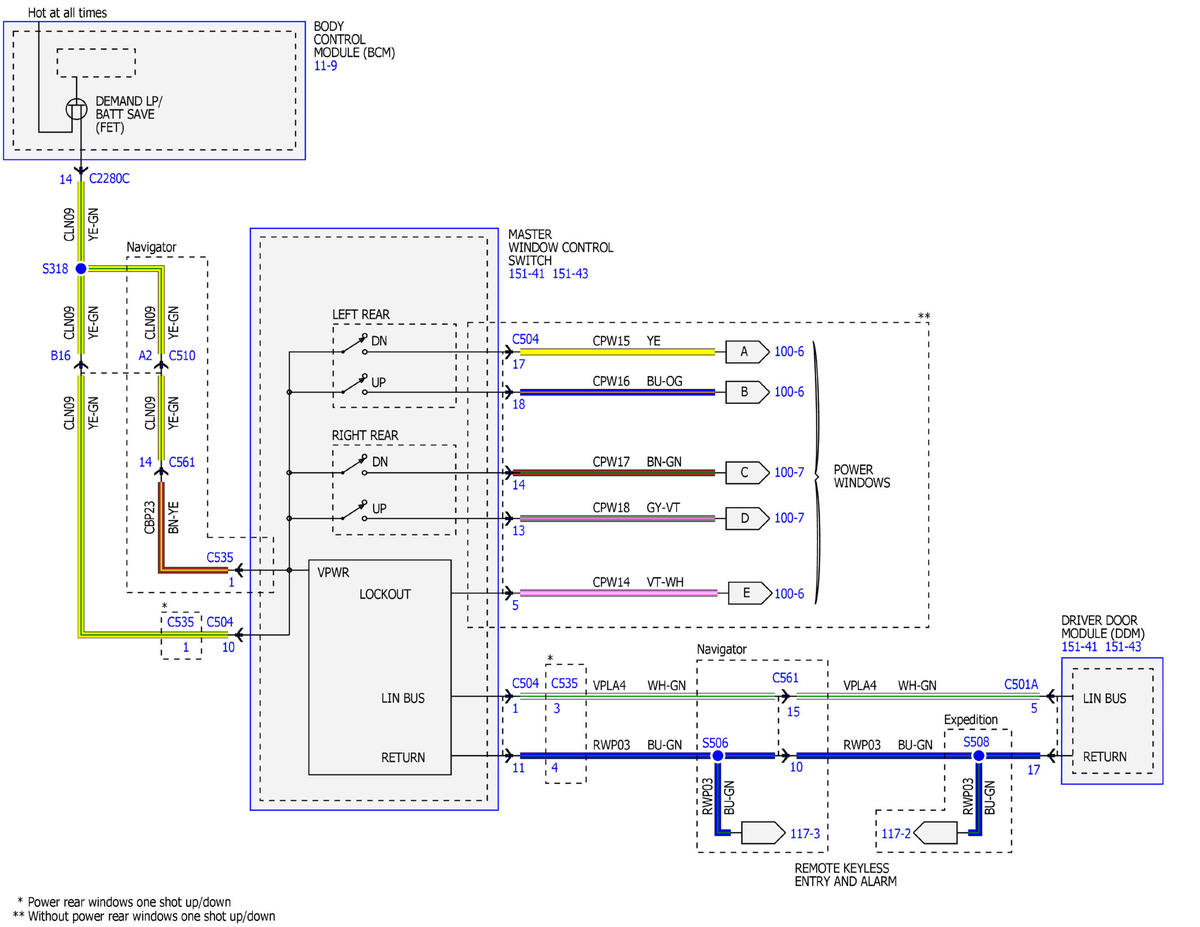

Fig 2: Power Windows Wiring Diagrams (2 Of 9)

GFDWR185123

Courtesy of FORD MOTOR COMPANY

Fig 3: Power Windows Wiring Diagrams (3 Of 9)

GFDWR185124

Courtesy of FORD MOTOR COMPANY

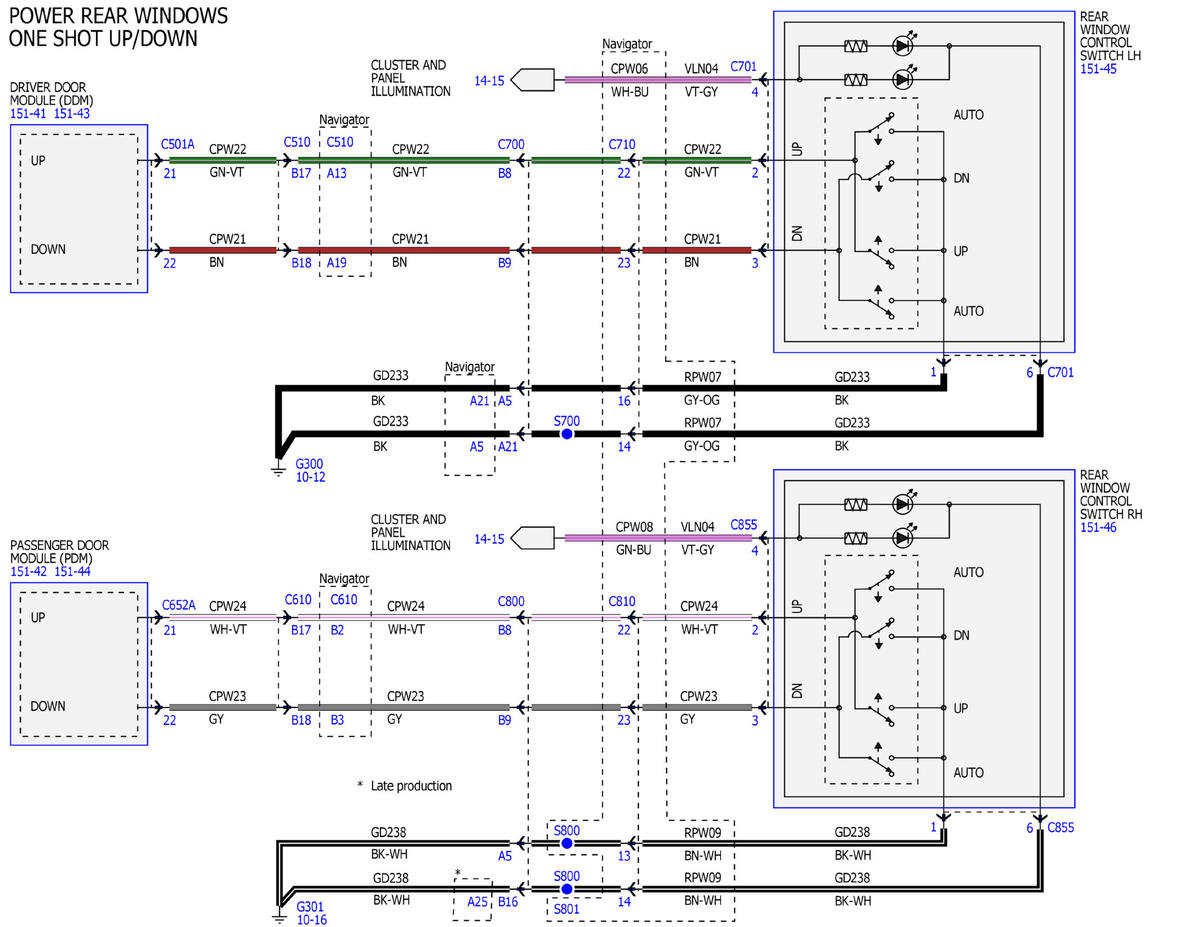

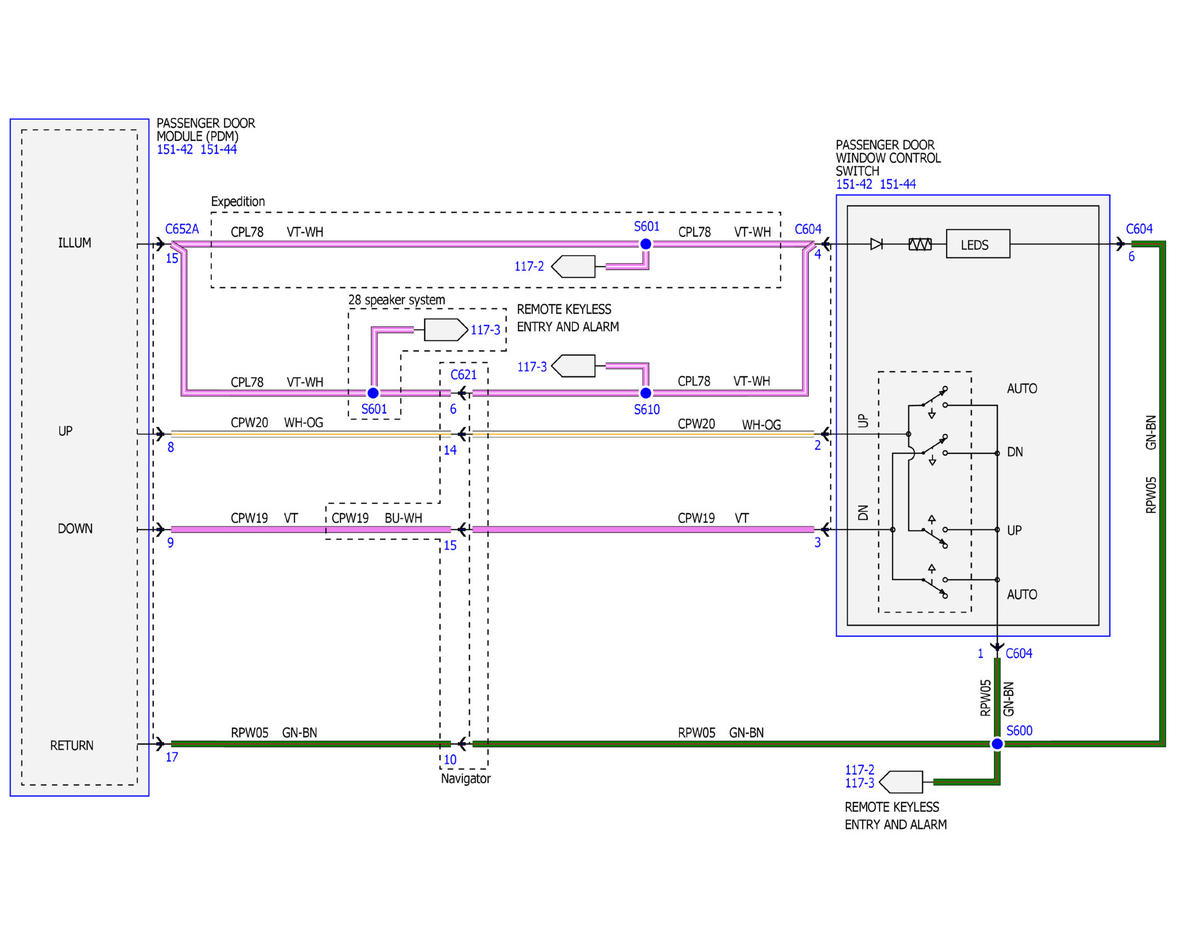

Fig 4: Power Windows Wiring Diagrams (4 Of 9)

GFDWR185125

Courtesy of FORD MOTOR COMPANY

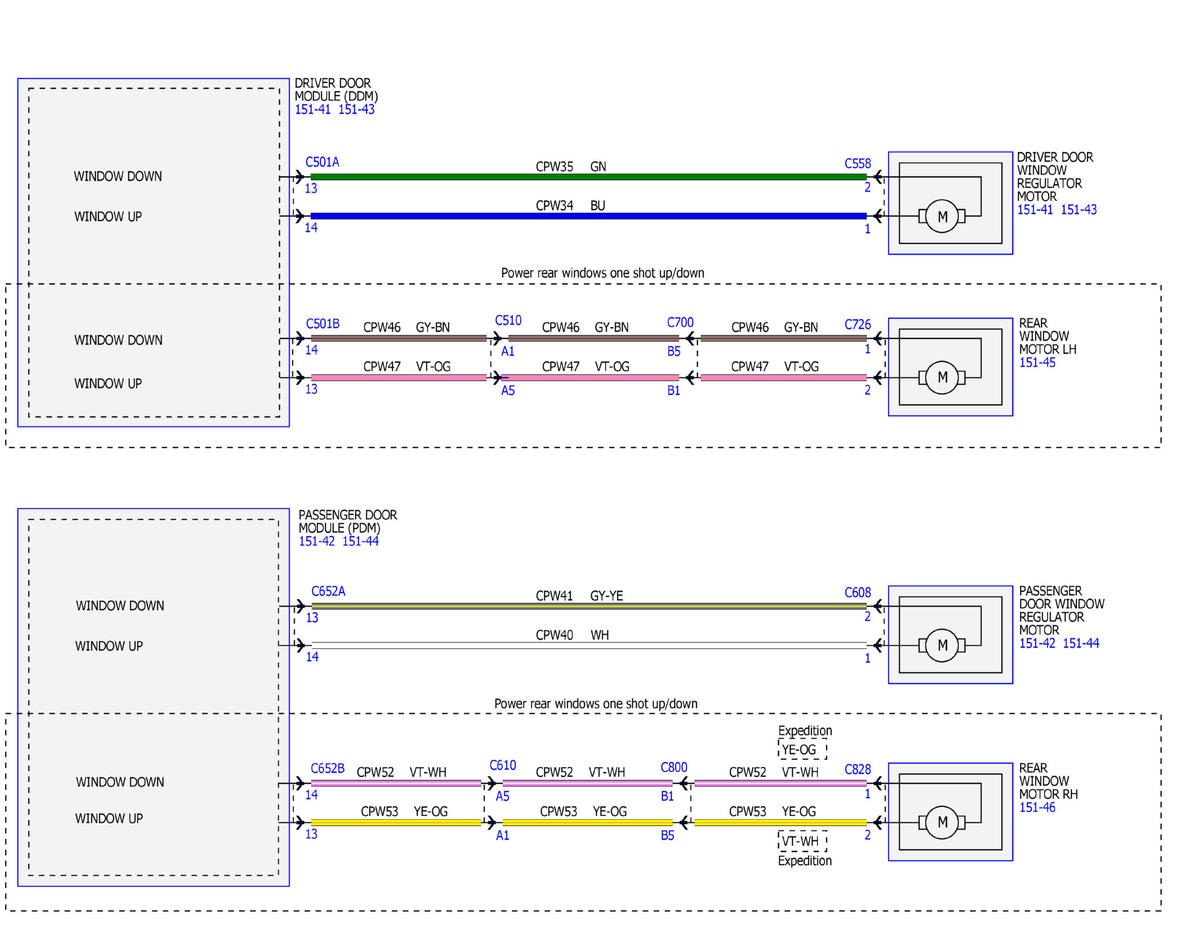

Fig 5: Power Windows Wiring Diagrams (5 Of 9)

GFDWR185126

Courtesy of FORD MOTOR COMPANY

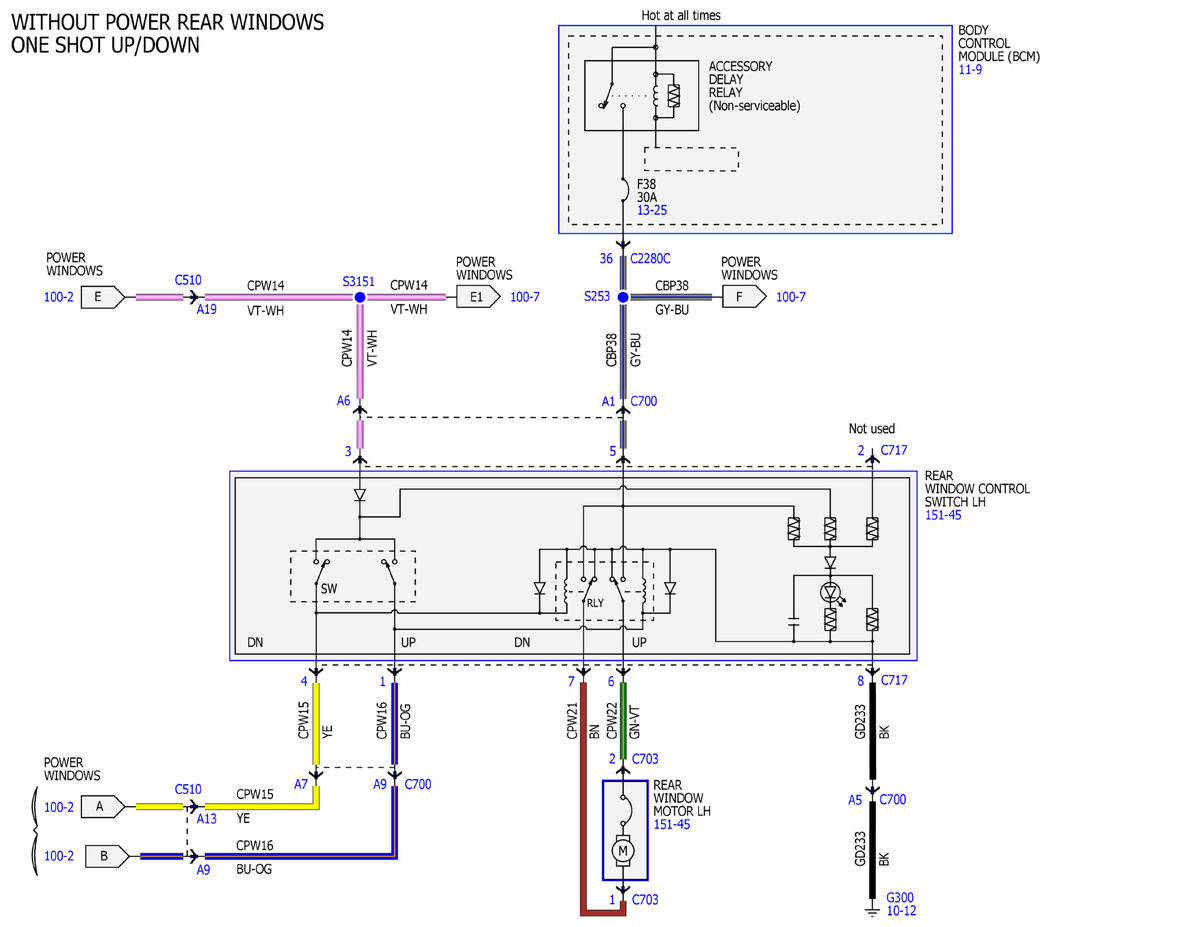

Fig 6: Power Windows Wiring Diagrams (6 Of 9)

GFDWR185127

Courtesy of FORD MOTOR COMPANY

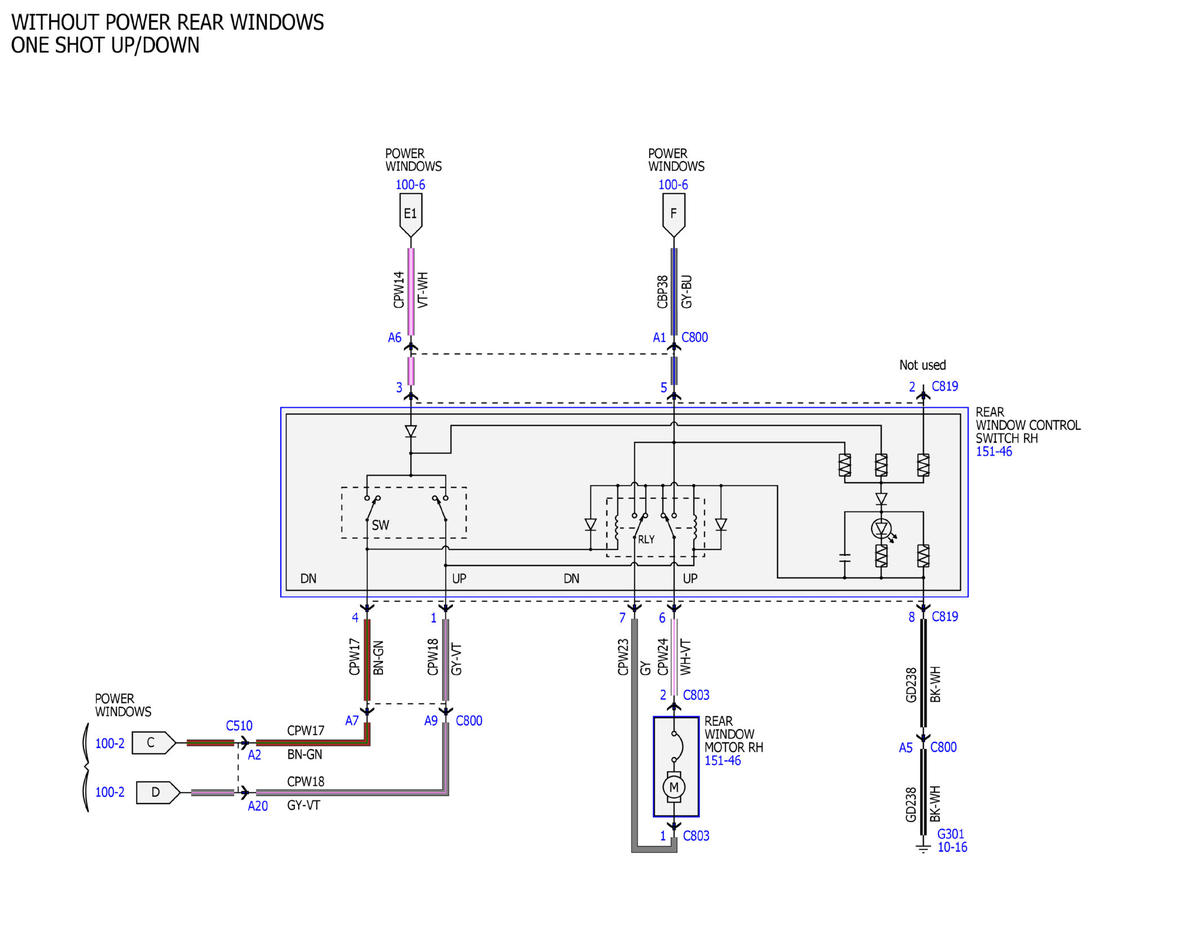

Fig 7: Power Windows Wiring Diagrams (7 Of 9)

GFDWR185128

Courtesy of FORD MOTOR COMPANY

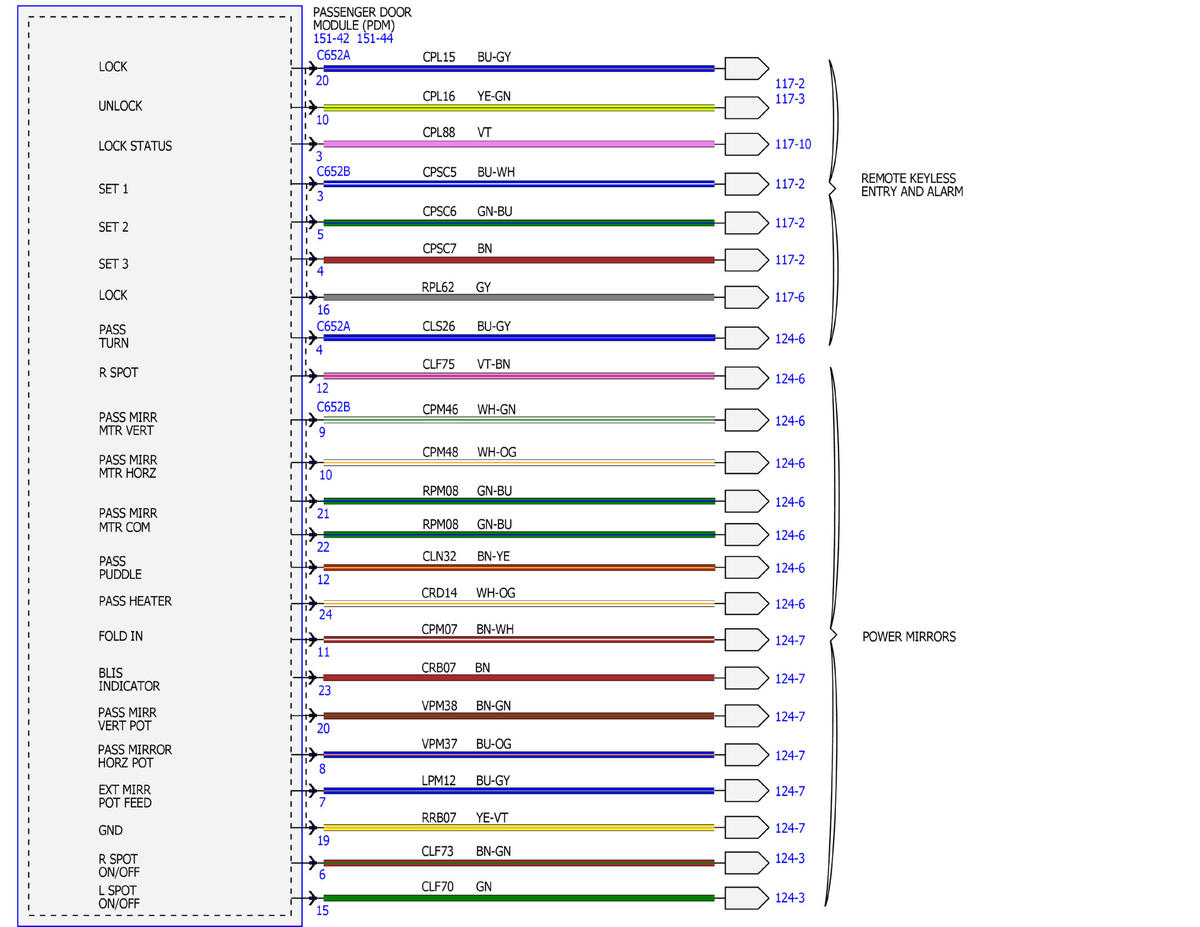

Fig 8: Power Windows Wiring Diagrams (8 Of 9)

GFDWR185129

Courtesy of FORD MOTOR COMPANY

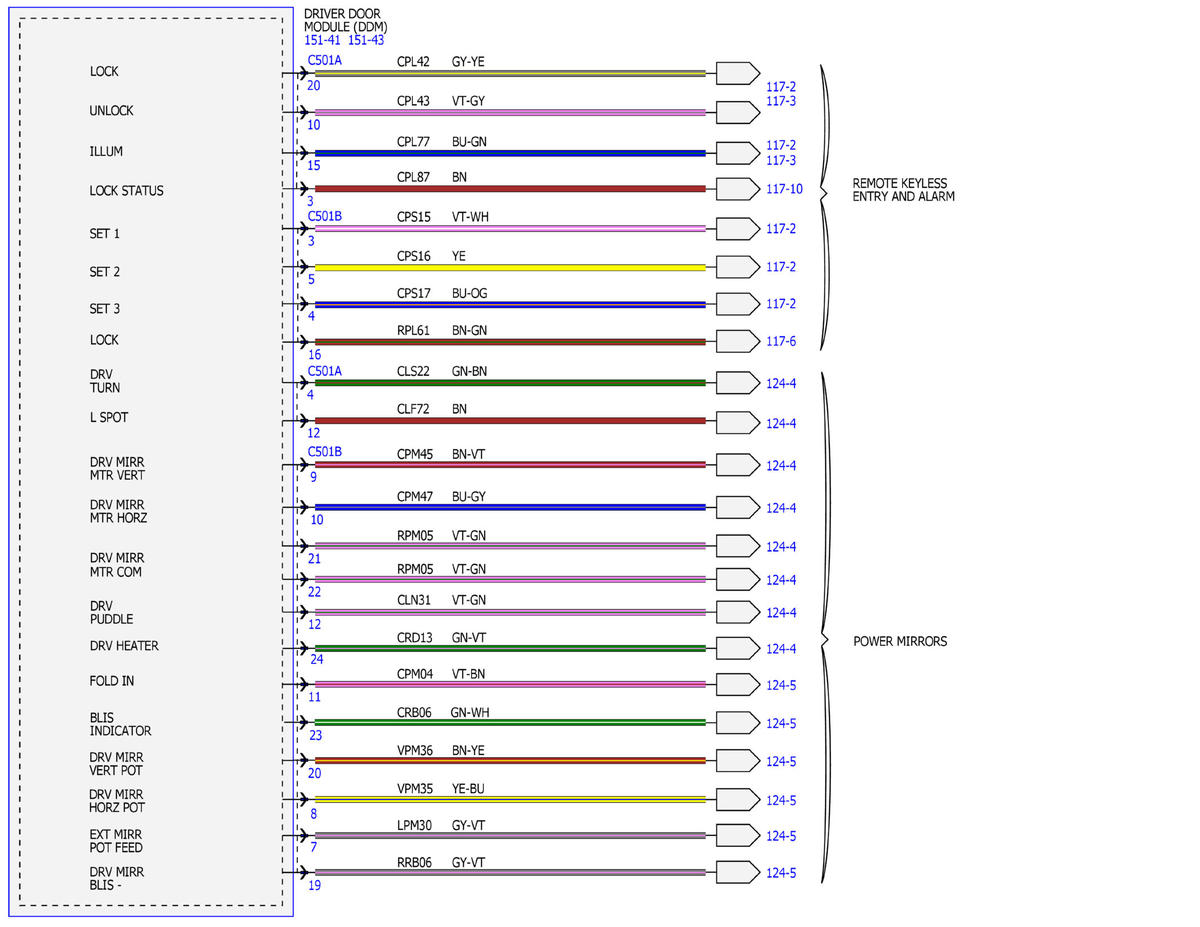

Fig 9: Power Windows Wiring Diagrams (9 Of 9)

GFDWR185130

Courtesy of FORD MOTOR COMPANY
