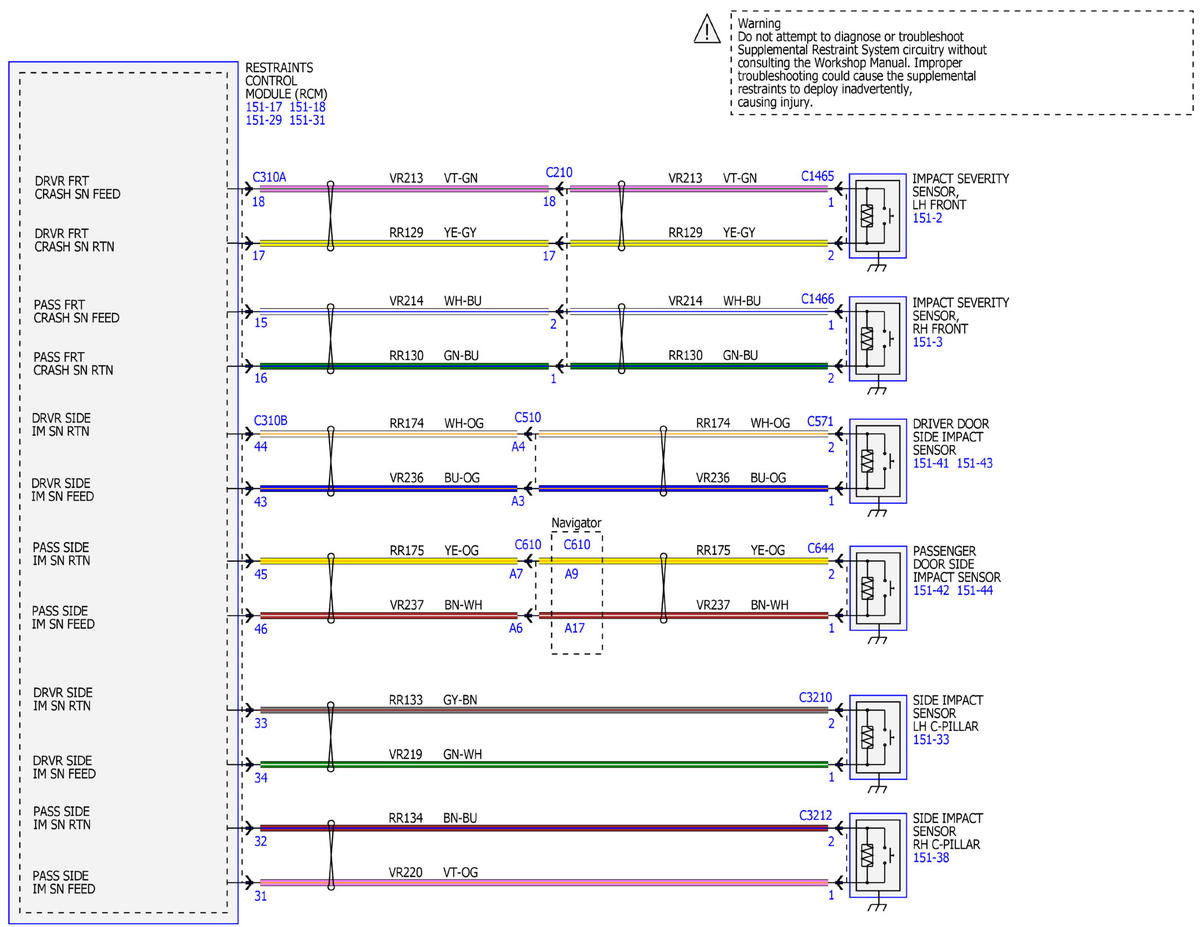

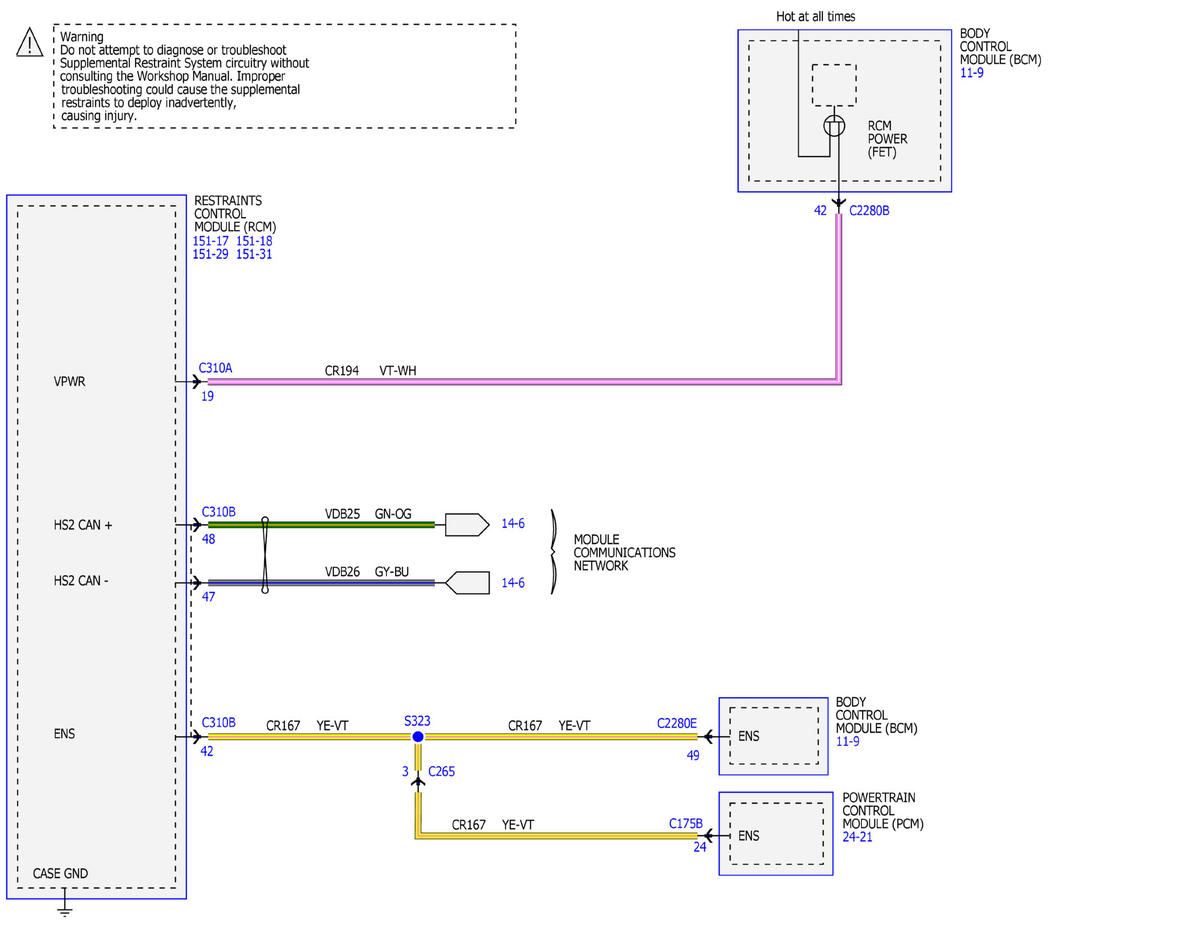

Fig 1: Supplemental Restraint System Wiring Diagrams (1 Of 11)
Courtesy of FORD MOTOR COMPANY

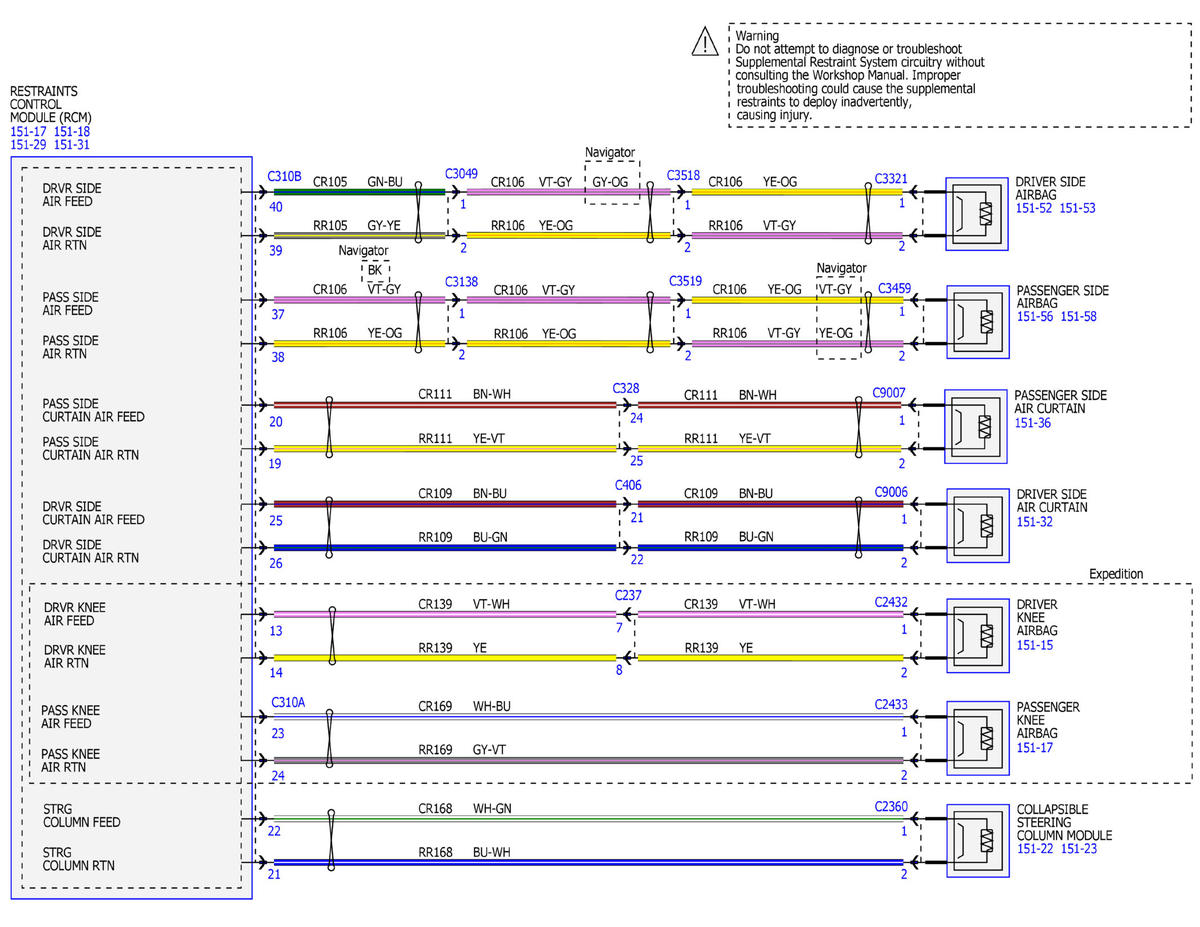

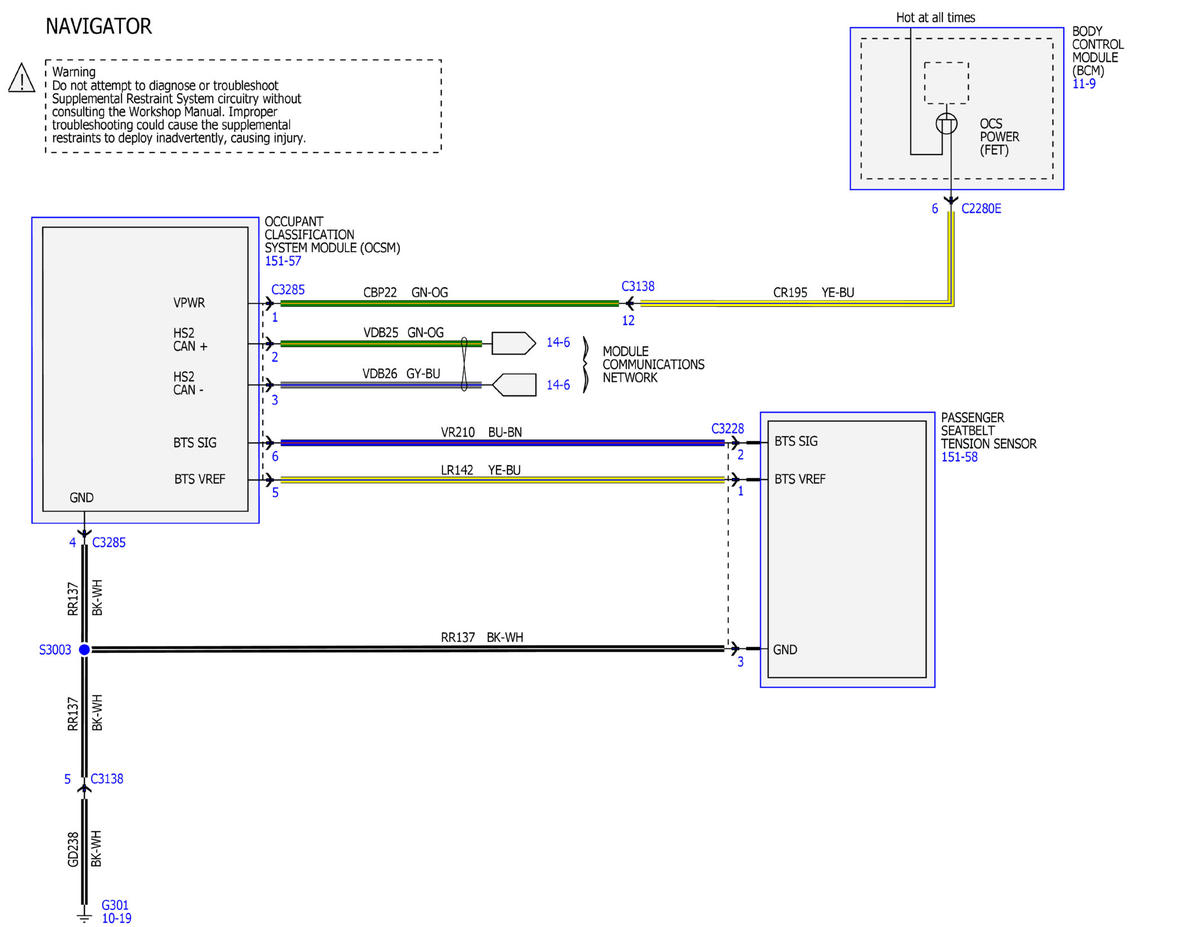

Fig 2: Supplemental Restraint System Wiring Diagrams (2 Of 11)
Courtesy of FORD MOTOR COMPANY

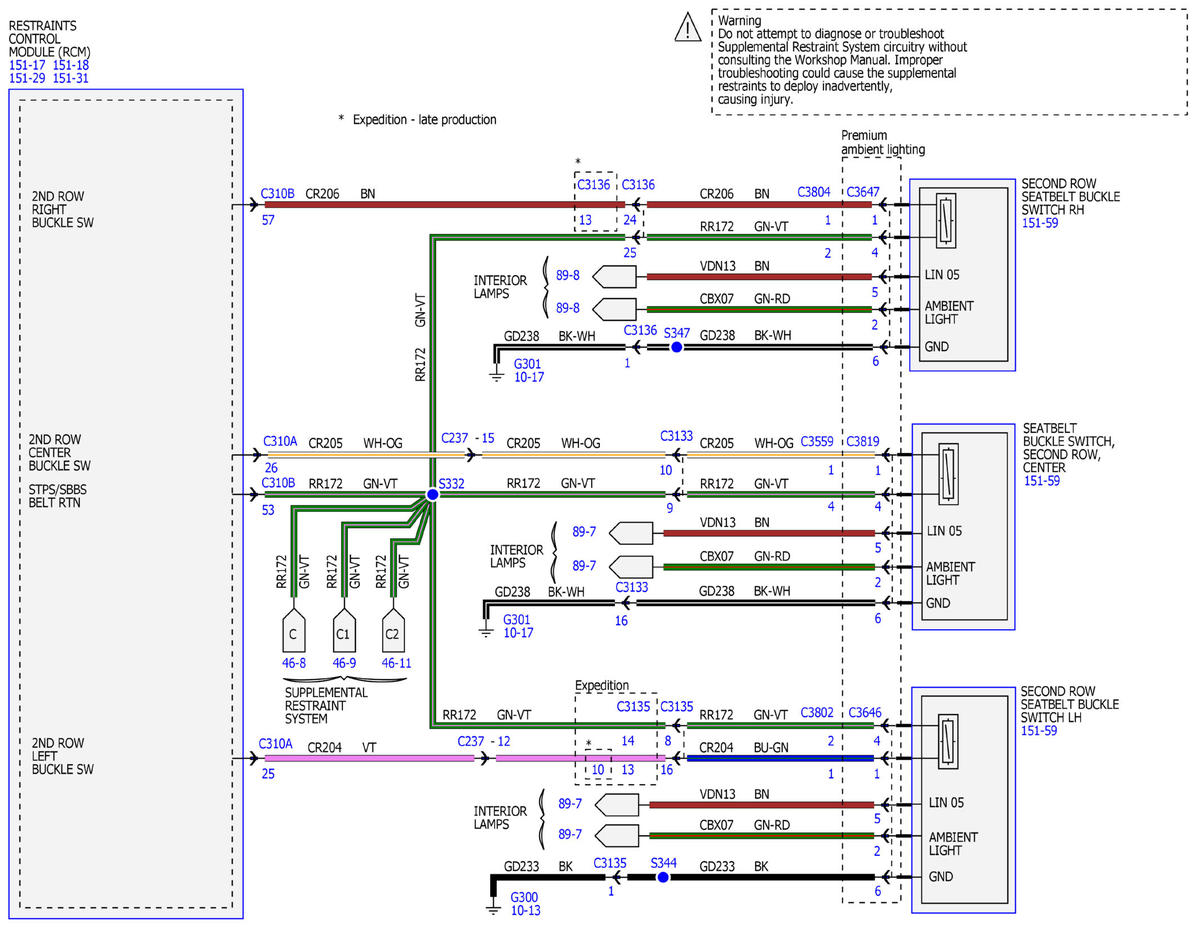

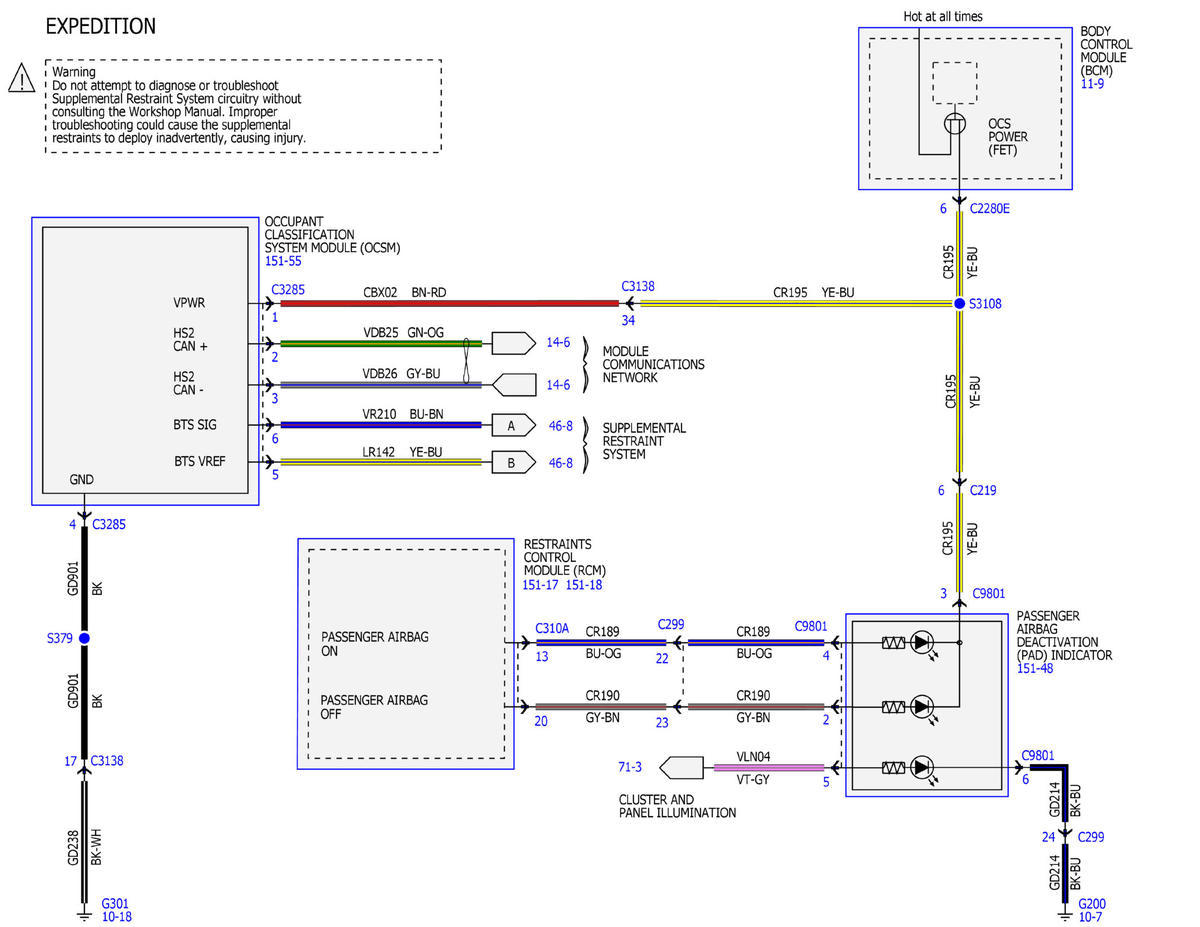

Fig 3: Supplemental Restraint System Wiring Diagrams (3 Of 11)
Courtesy of FORD MOTOR COMPANY

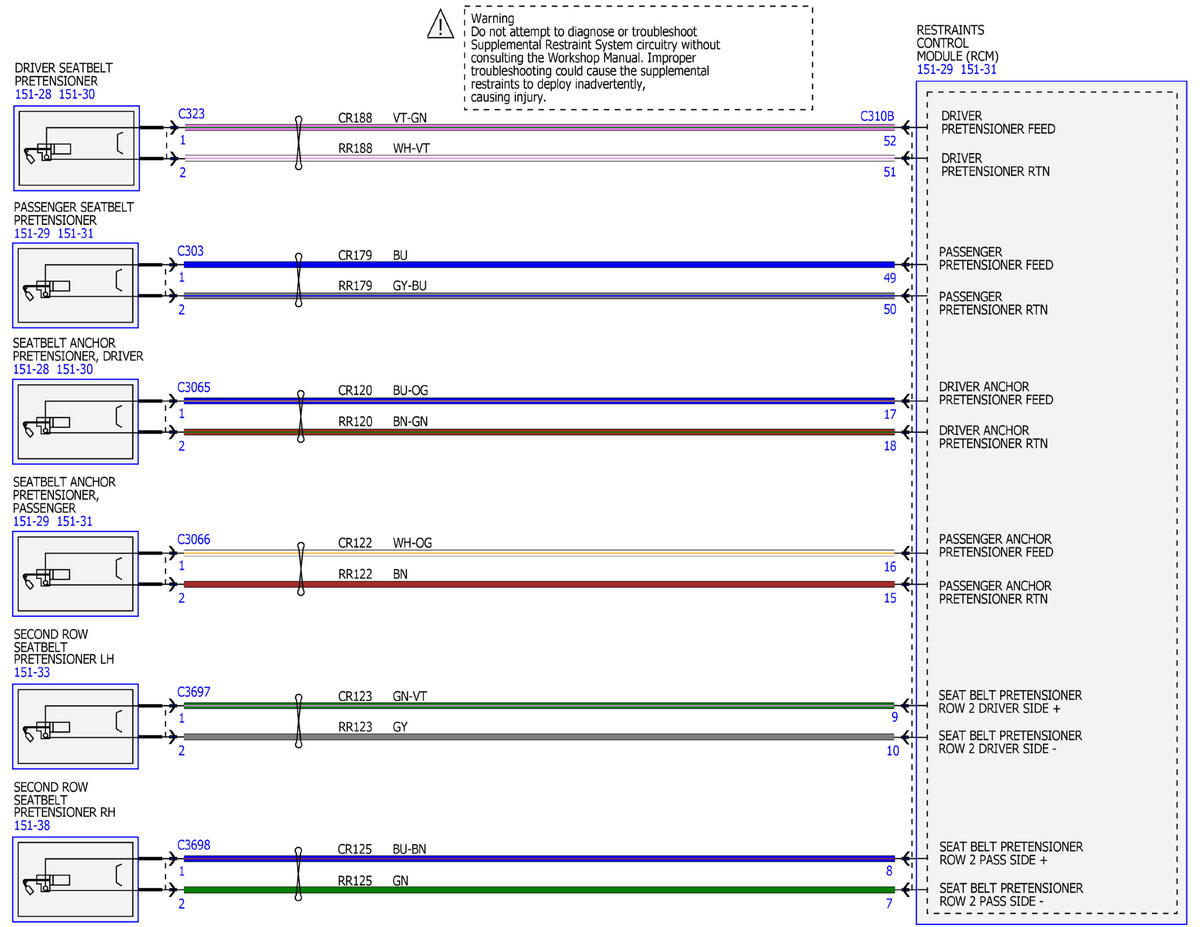

Fig 4: Supplemental Restraint System Wiring Diagrams (4 Of 11)
Courtesy of FORD MOTOR COMPANY

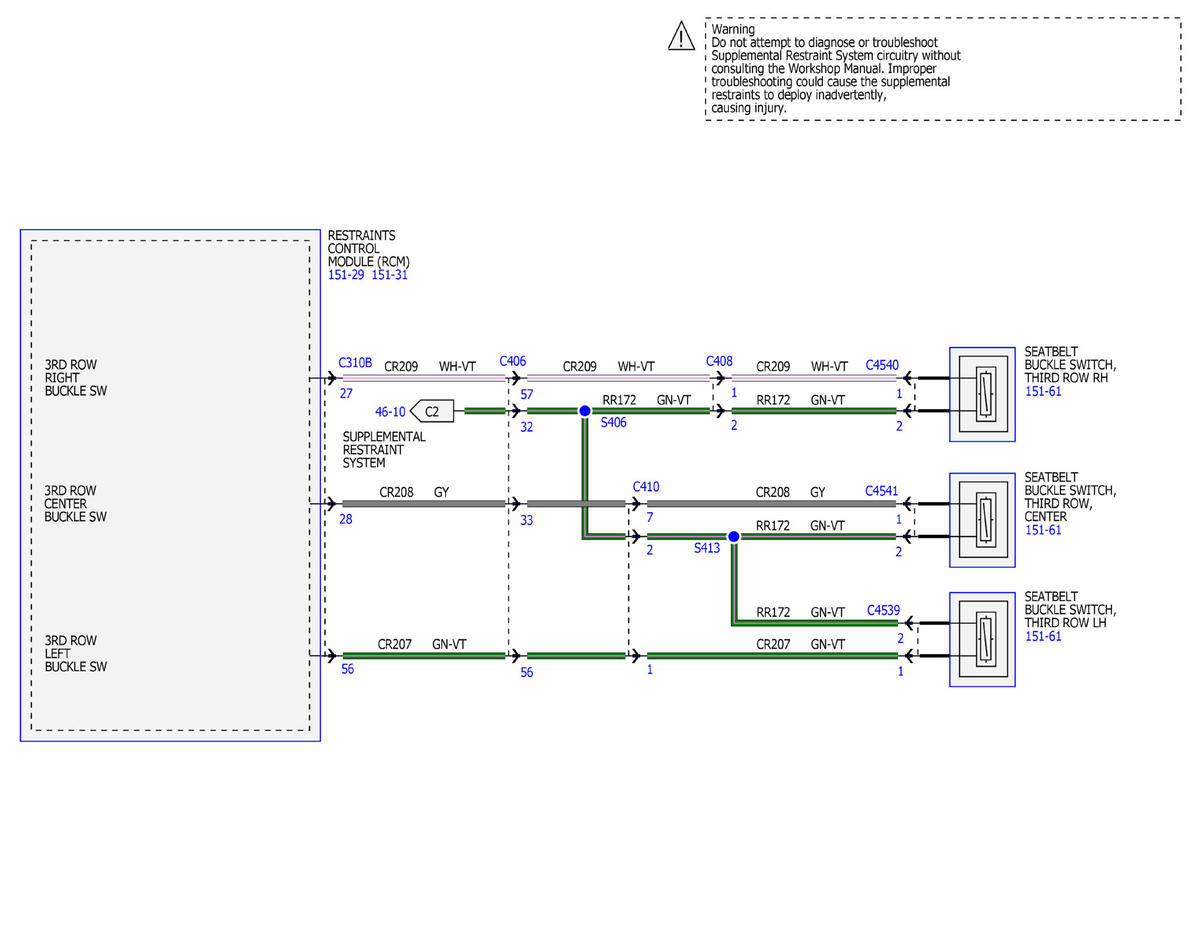

Fig 5: Supplemental Restraint System Wiring Diagrams (5 Of 11)
Courtesy of FORD MOTOR COMPANY

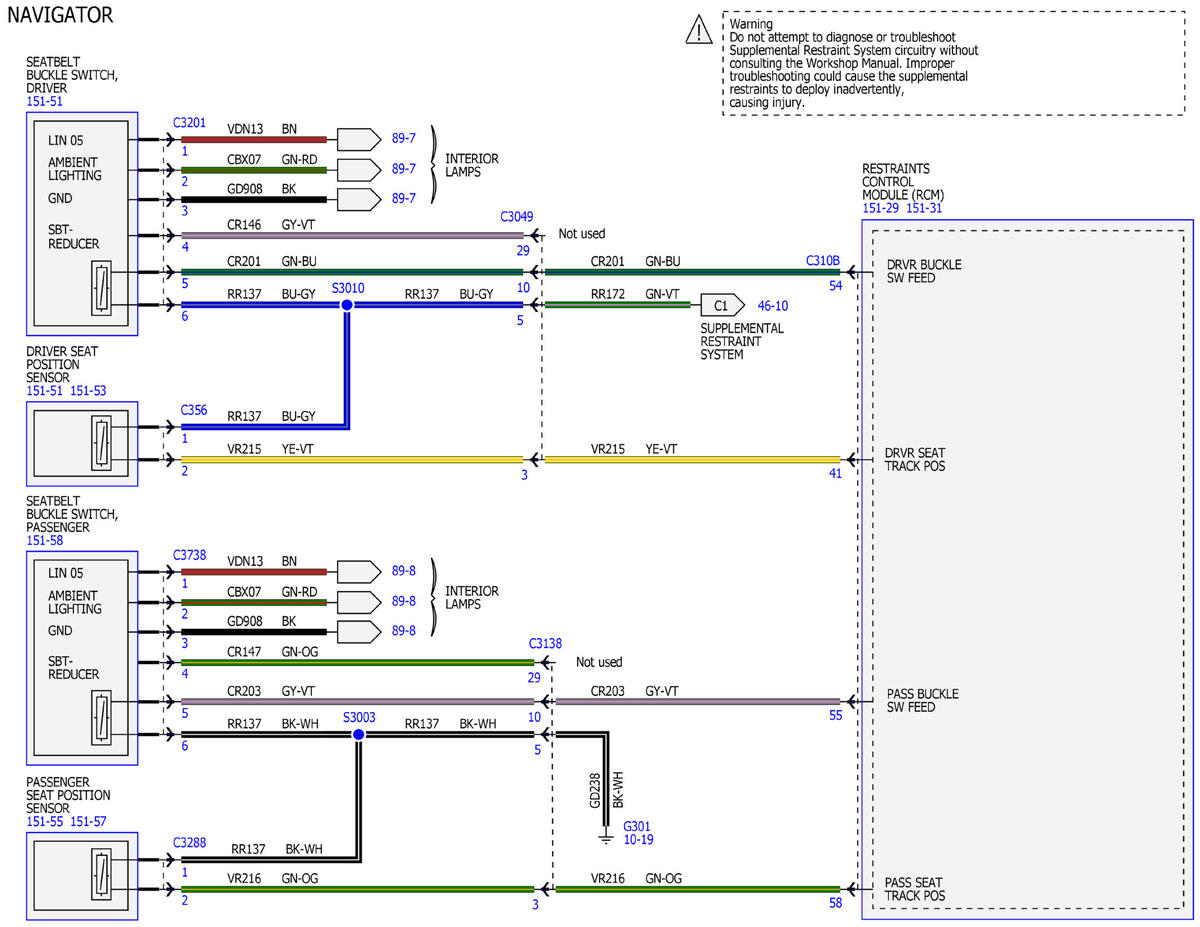

Fig 6: Supplemental Restraint System Wiring Diagrams (6 Of 11)
Courtesy of FORD MOTOR COMPANY

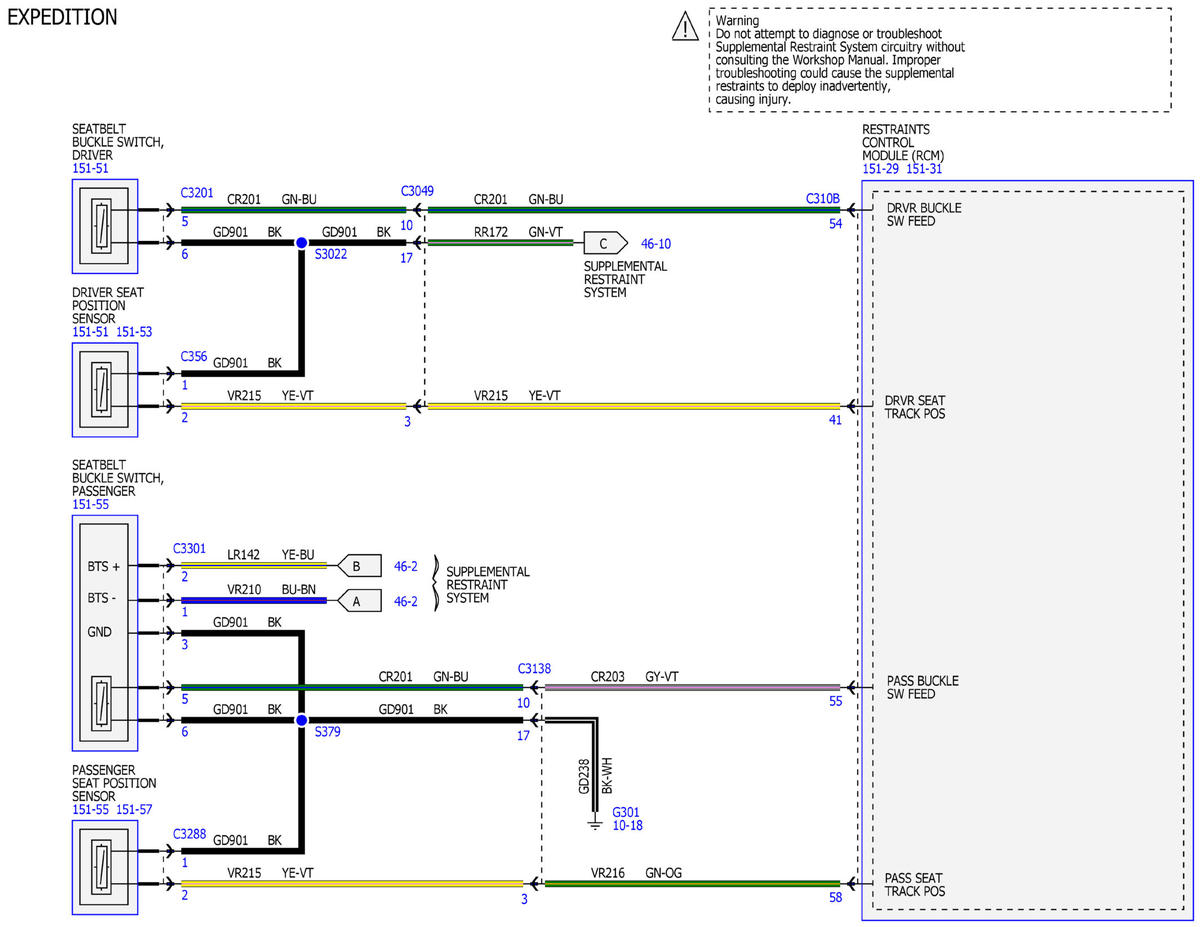

Fig 7: Supplemental Restraint System Wiring Diagrams (7 Of 11)
Courtesy of FORD MOTOR COMPANY

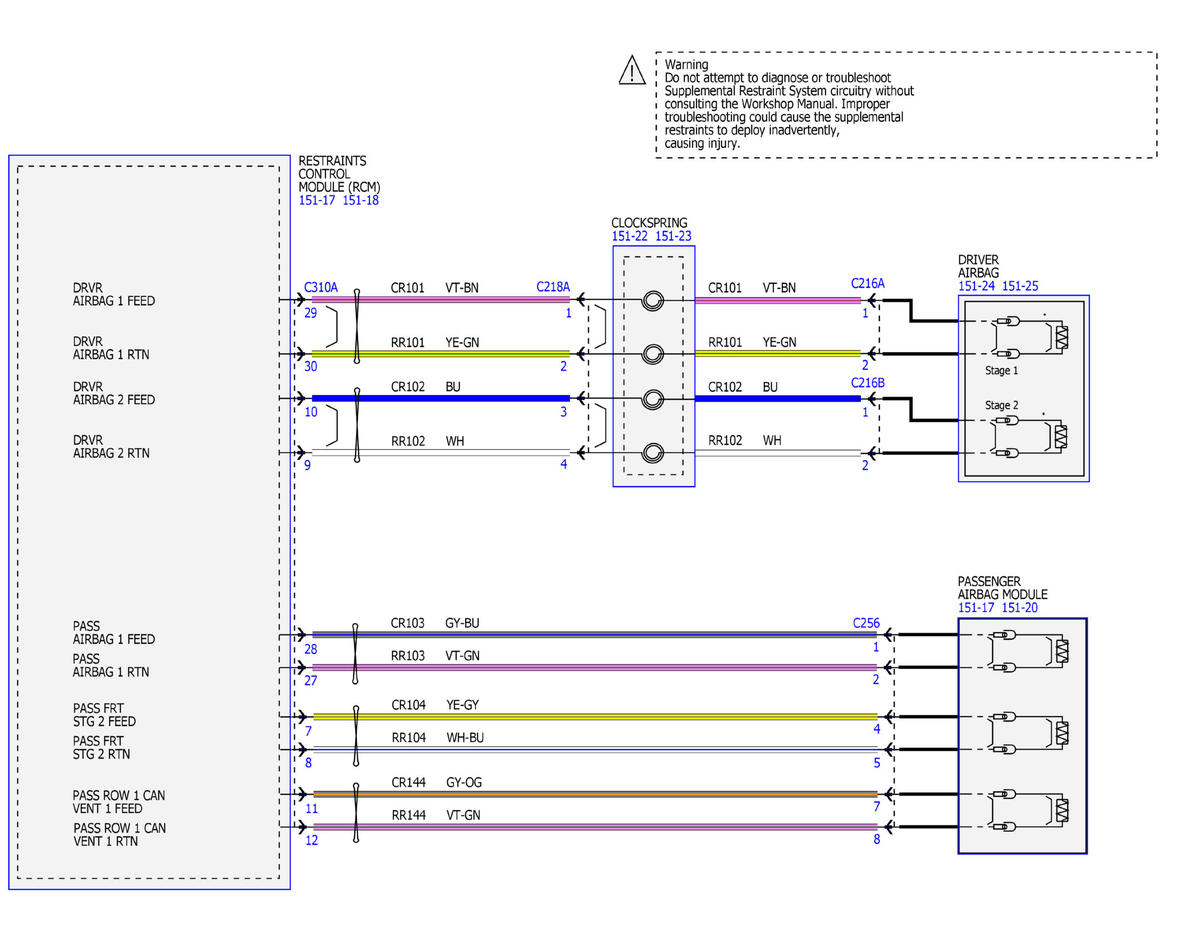

Fig 8: Supplemental Restraint System Wiring Diagrams (8 Of 11)
Courtesy of FORD MOTOR COMPANY
Fig 9: Supplemental Restraint System Wiring Diagrams (9 Of 11)
Courtesy of FORD MOTOR COMPANY
Fig 10: Supplemental Restraint System Wiring Diagrams (10 Of 11)
Courtesy of FORD MOTOR COMPANY
Fig 11: Supplemental Restraint System Wiring Diagrams (11 Of 11)
