WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

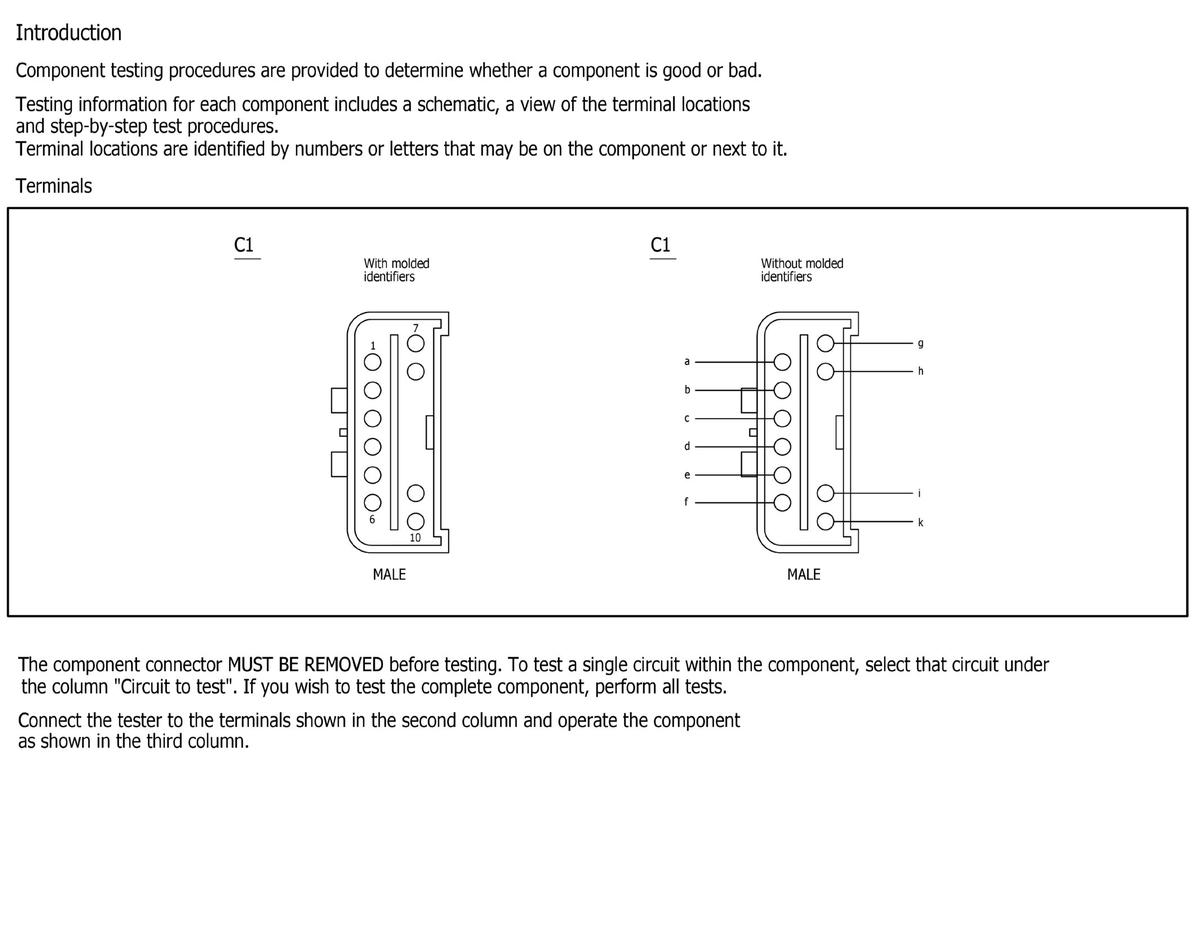

Fig 1: Introduction
Courtesy of FORD MOTOR COMPANY

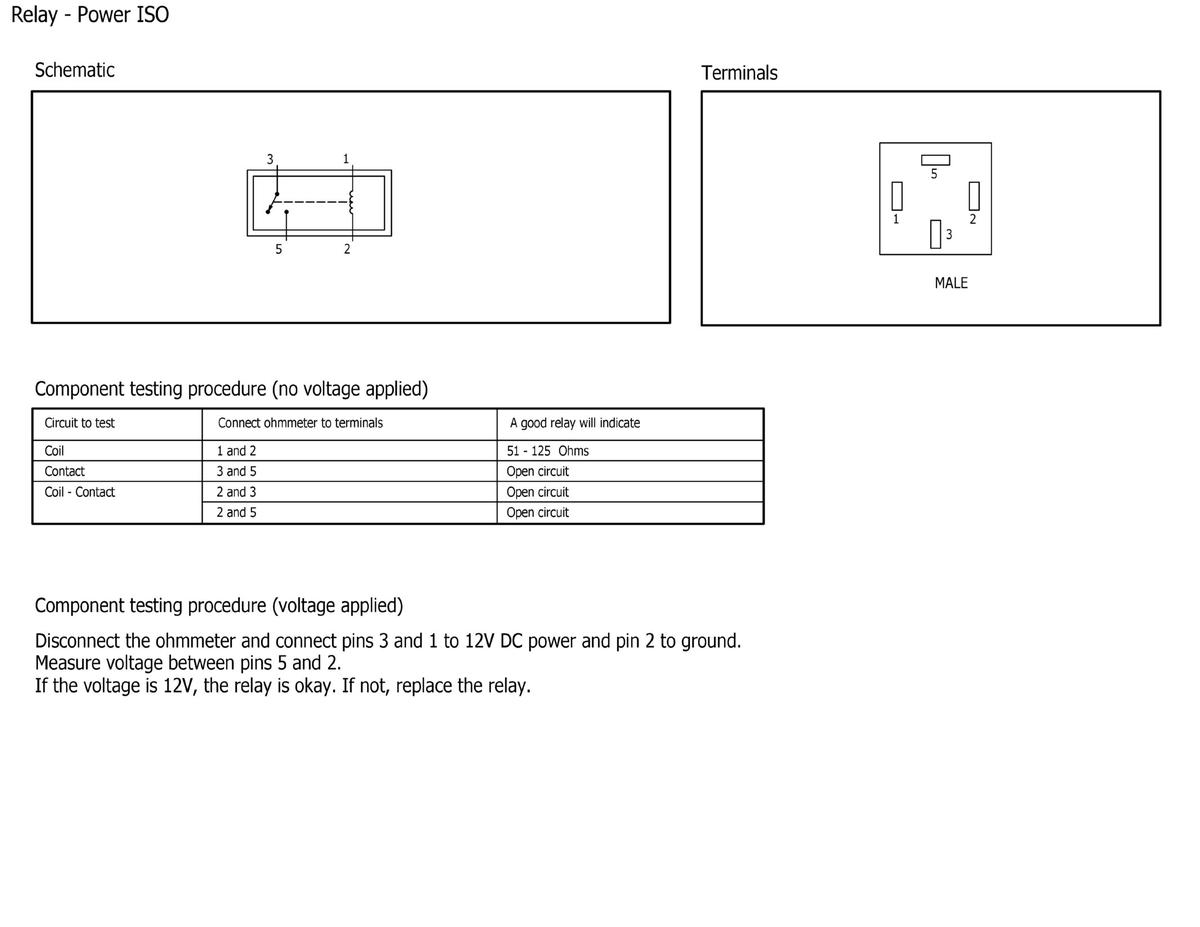

Fig 2: Relay - Power ISO Component Testing
Courtesy of FORD MOTOR COMPANY

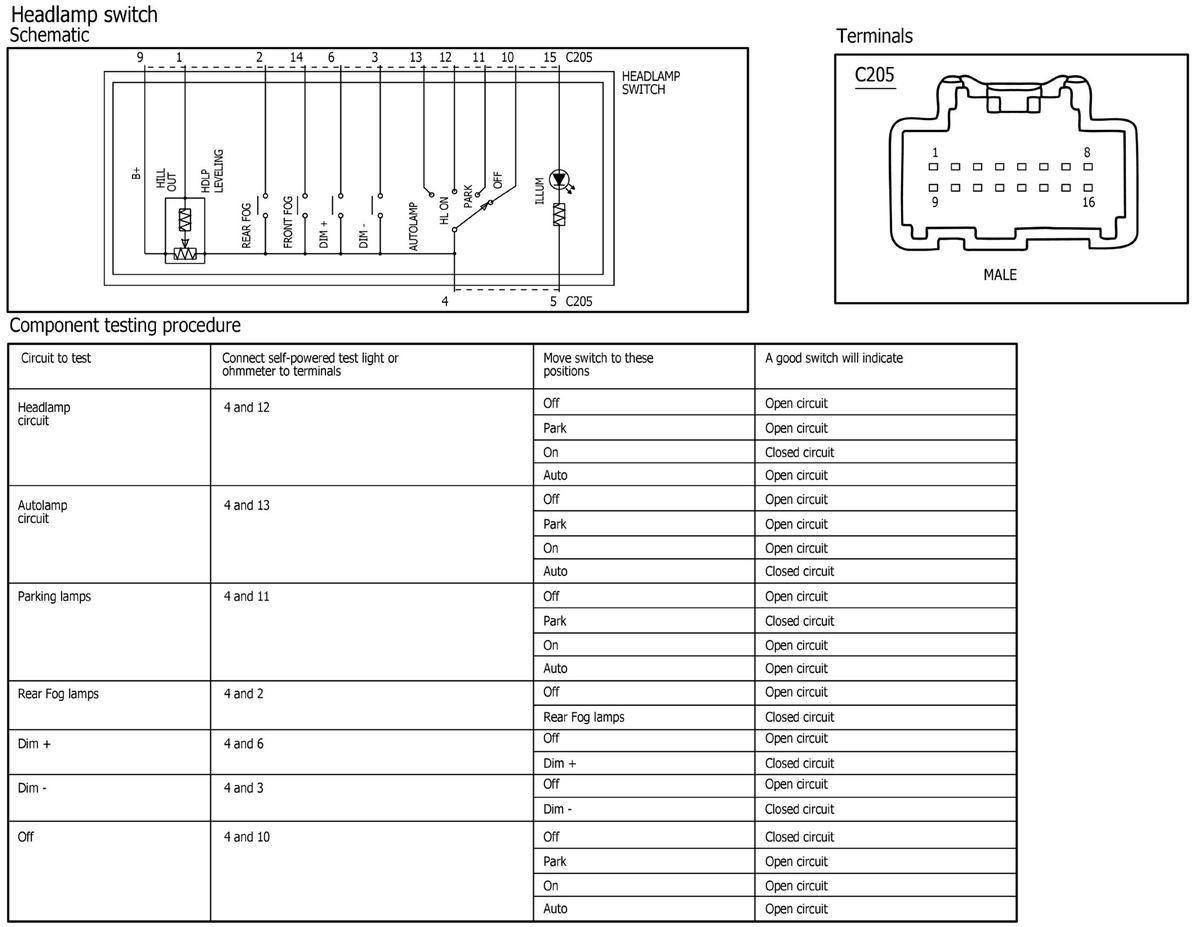

Fig 3: Headlamp Switch Component Testing
Courtesy of FORD MOTOR COMPANY

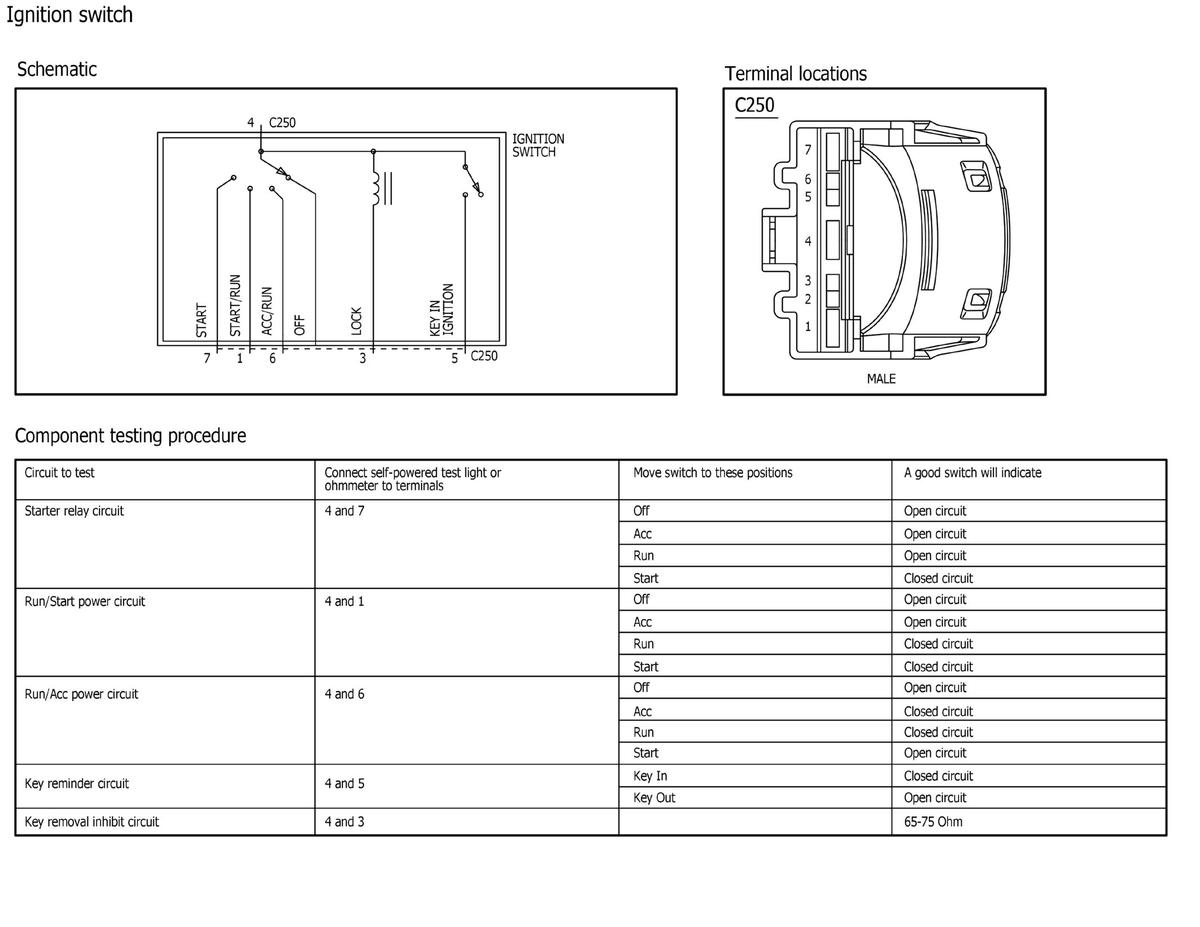

Fig 4: Ignition Switch Component Testing
Courtesy of FORD MOTOR COMPANY

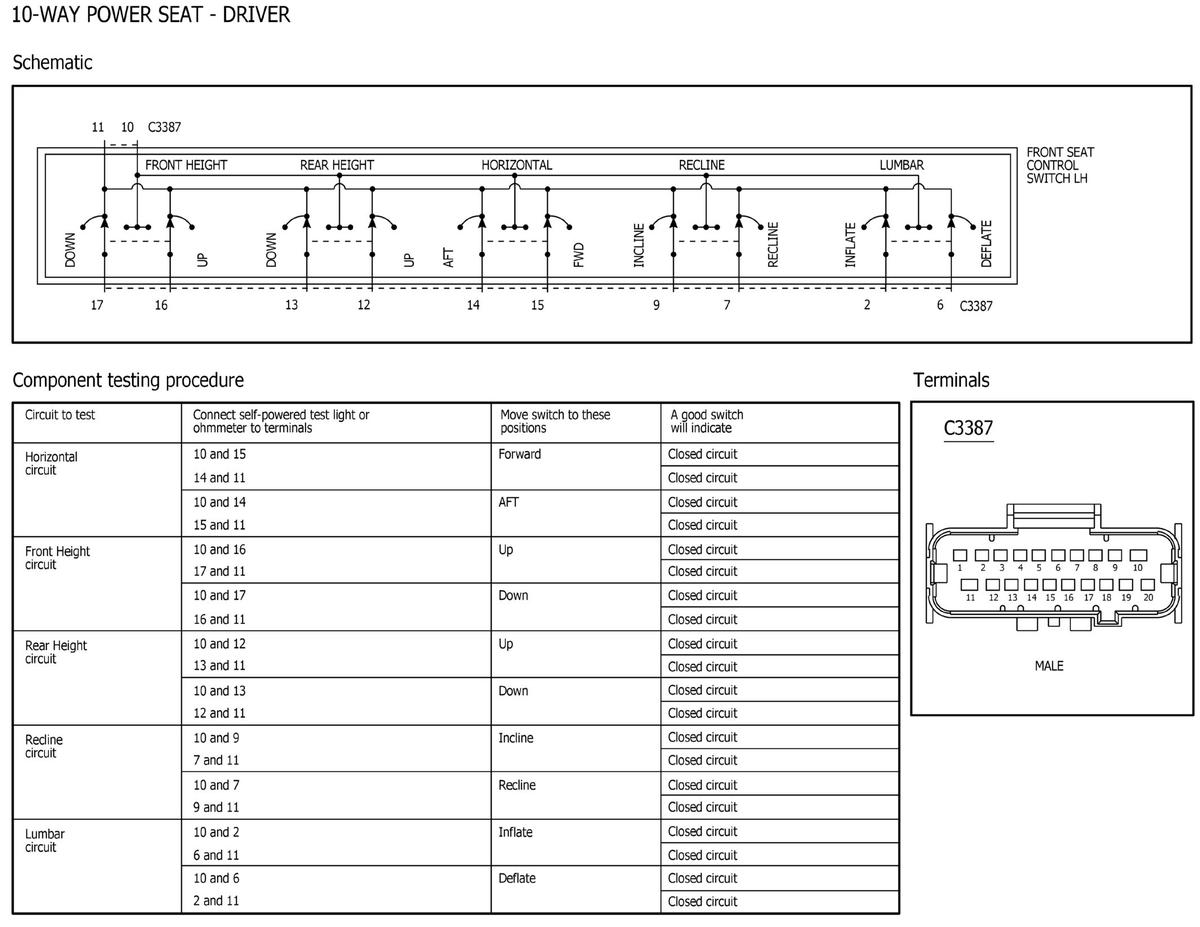

Fig 5: 10-Way Power Seat - Driver Component Testing
Courtesy of FORD MOTOR COMPANY

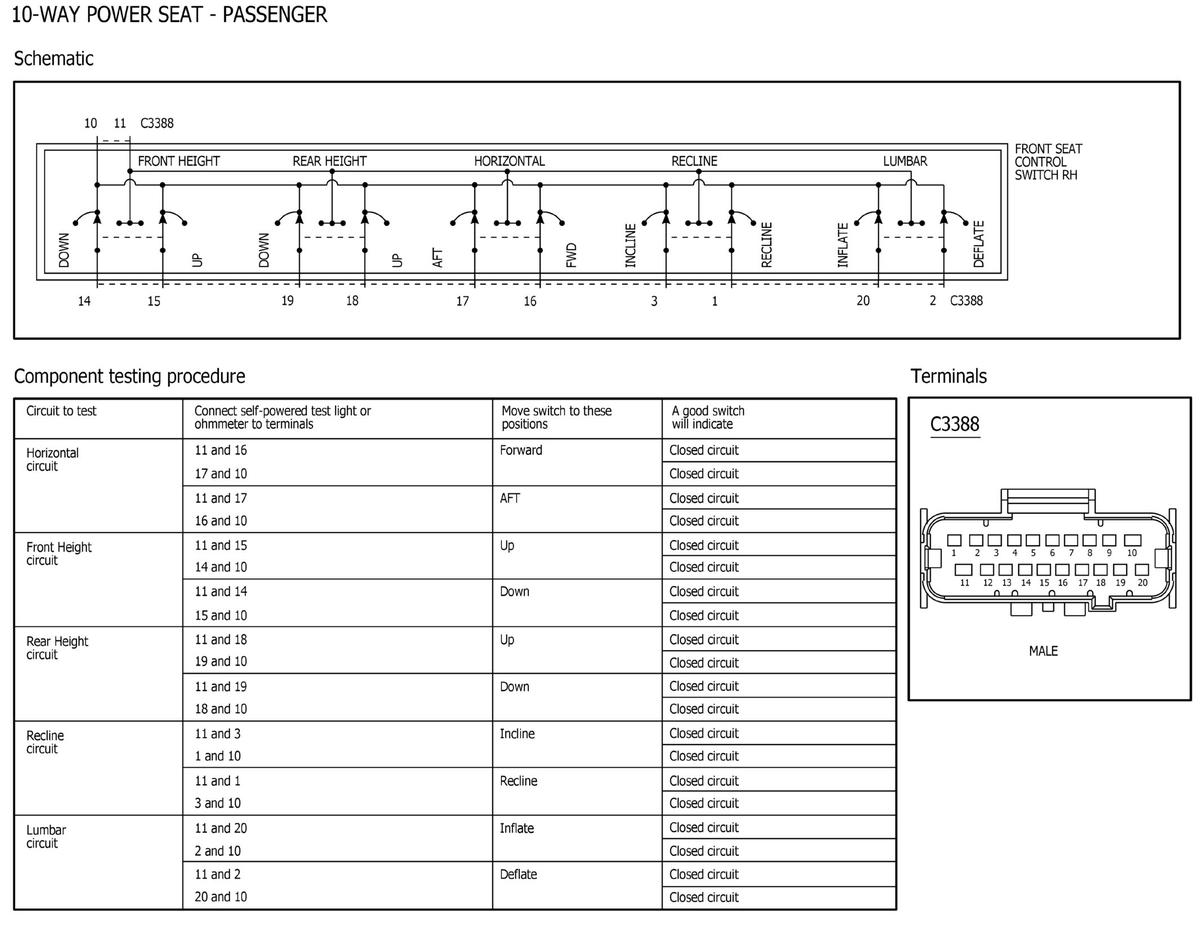

Fig 6: 10-Way Power Seat - Passenger Component Testing
Courtesy of FORD MOTOR COMPANY

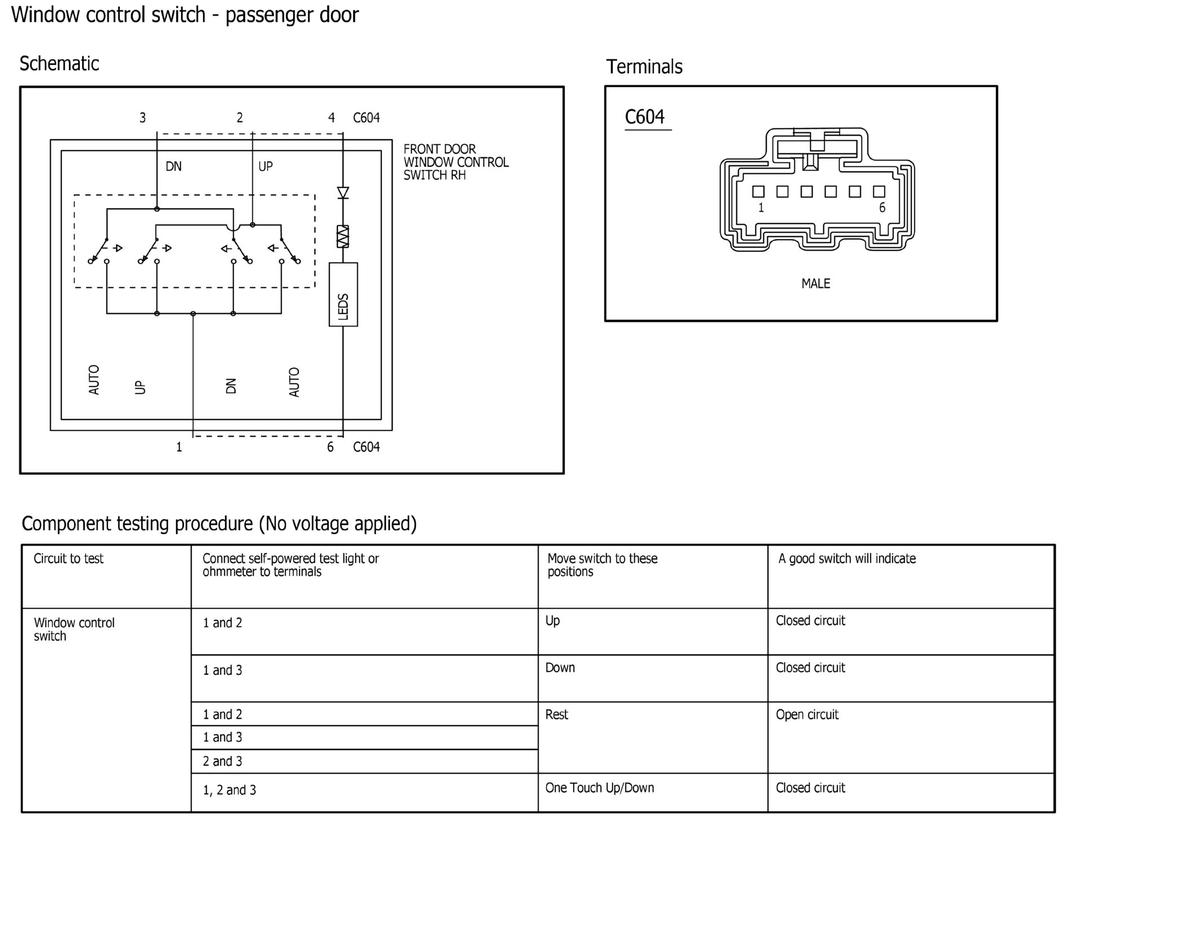

Fig 7: Window Control Switch - Passenger Door Component Testing
