Driveshaft Universal Joint: Assembly
WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Install the U-joint kits as complete assemblies only. Do not mix components from other U-joint kits.
- Lube the U-joint bearing cup bores.
Material: Motorcraft® Premium Long-Life Grease / XG-1-E1 (ESA-M1C75-B)
-
NOTE: The tripod bearing cup needle bearings need to be in the correct position.

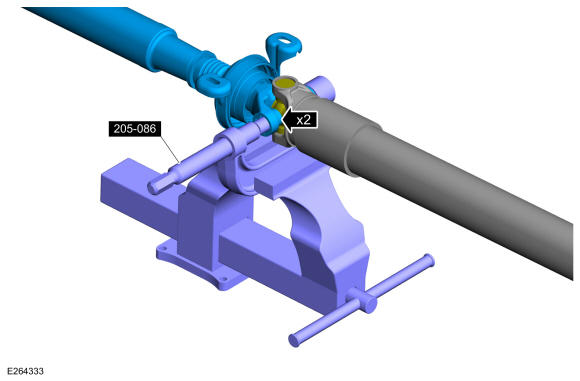

Using the special tool, install the new U-joint spider and bearing cups into the driveshaft yoke. Use Special Service Tool: 205-086 (T74P-4635-C) Installer/Remover, C-Frame and Screw. Use the General Equipment: Vise

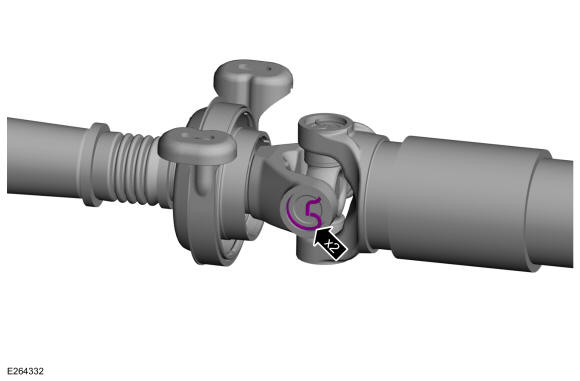

- Install the new bearing cup snap rings into the driveshaft yoke grooves.
-
NOTE: Driveshaft to rear axle flange yoke U-joint shown, others similar.

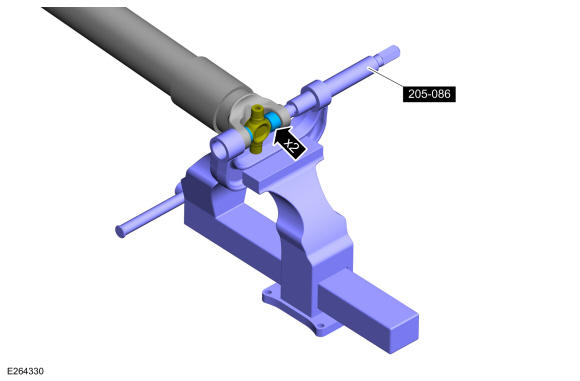

Using the special tool, install the new bearing cups on the opposite side of the driveshaft slip yoke. Use Special Service Tool: 205-086 (T74P-4635-C) Installer/Remover, C-Frame and Screw. Use the General Equipment: Vise
- Install the new bearing cup snap rings into the driveshaft yoke grooves.

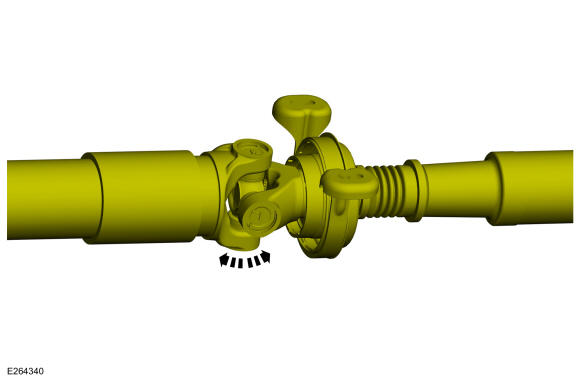

- Rotate the driveshaft yoke to make sure the U-joints are free to rotate easily, without binding, before installing the driveshaft.
- Install the driveshaft. Refer to: Rear Driveshaft .
