Front Driveshaft: Installation
WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
- Clean and inspect the boot. If required replace the boot.
-

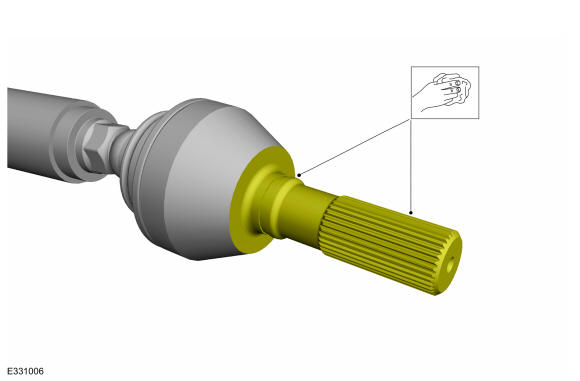

NOTE: Make sure that the mating faces are clean and free of foreign material.
Clean the debris or contamination of the splines.

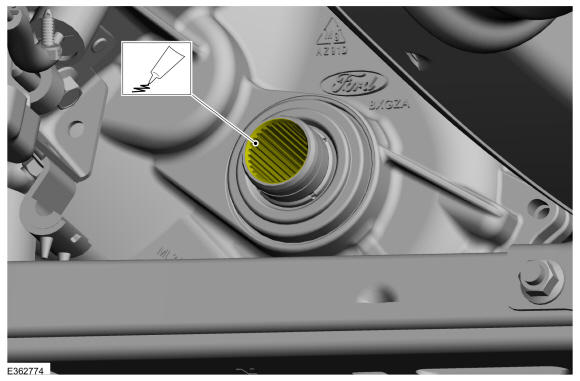

- Lubricate the transfer case plug-on yoke splines with grease.
Material: Motorcraft® Premium Long-Life Grease / XG-1-E1 (ESA-M1C75-B)

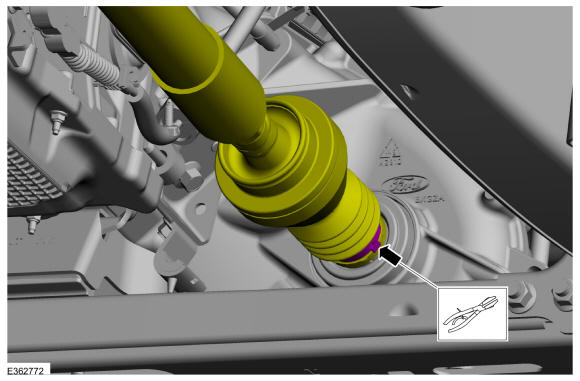

- Insert the front driveshaft into the transfer case plug-on yoke and secure the boot clamp. Use the General Equipment: Crimping Tool
-
NOTE: Make sure that new components are installed.

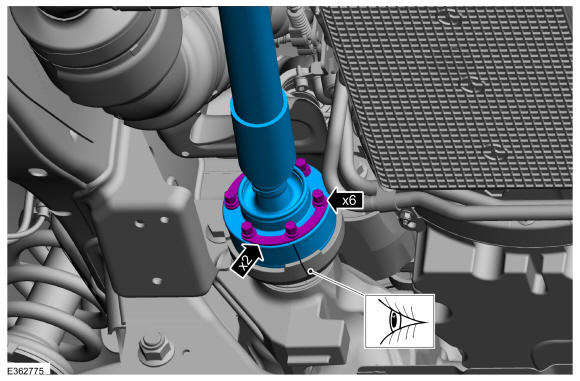

- Align the index-mark on the driveshaft and pinon flange.
- Fit the driveshaft into the drive pinion flange.
- Install the new front driveshaft CV joint-to-pinion flange cup retaining straps and bolts.
Torque: 41 lb.ft (55 Nm)
-
NOTE: Make sure that new nuts are installed.

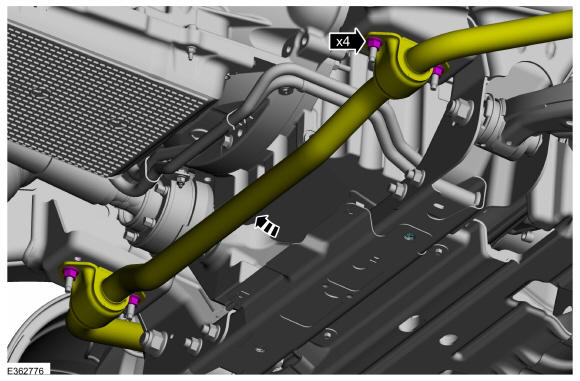

Swing the stabilizer bar upward and install the new stabilizer bar bracket nuts.
Torque: 46 lb.ft (63 Nm)

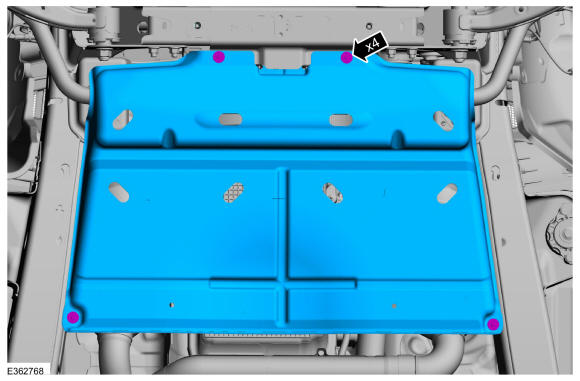

- Install the transmission shield and the bolts.
Torque: 71 lb.in (8 Nm)
