Cruise Control Module (CCM): Removal

WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If installing a new CCM, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new CCM after installation.

Using a diagnostic scan tool, begin the PMI process for the CCM following the on-screen instructions.

Cruise Control Module (CCM)

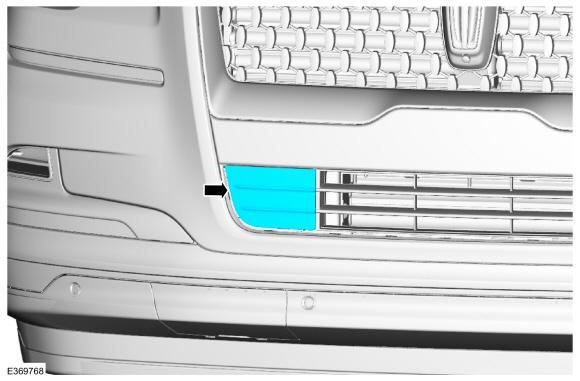

Using a non marring tool, remove the front bumper trim panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

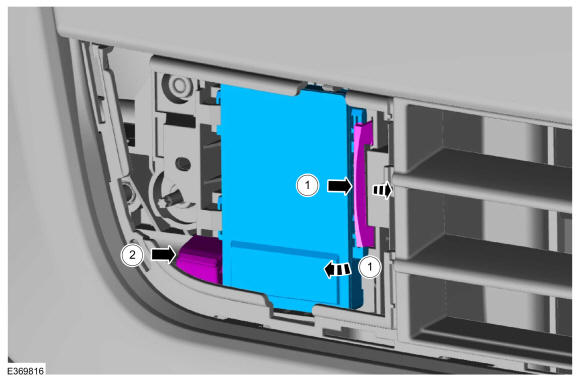

Remove the CCM.
1. Release the clip and remove the CCM from the bracket.
2. Disconnect the electrical connector and remove the CCM.
Courtesy of FORD MOTOR COMPANY

Cruise Control Module (CCM) bracket
Using a non marring tool, remove the front bumper trim panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
Remove the CCM.
1. Release the clip and remove the CCM from the bracket.
2. Disconnect the electrical connector and remove the CCM.
Courtesy of FORD MOTOR COMPANY
Remove the front bumper cover. Refer to: Front Bumper Cover .
NOTE: Typical application shown.

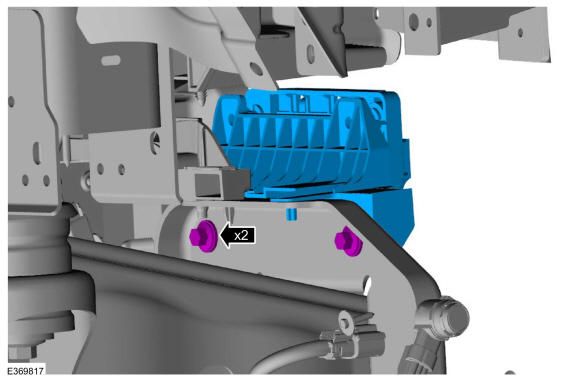

Remove the CCM bracket bolts and remove the CCM bracket assembly.

Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
