Trailer Brake Control Switch: Removal

WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel center finish panel. Refer to: Instrument Panel Center Finish Panel .

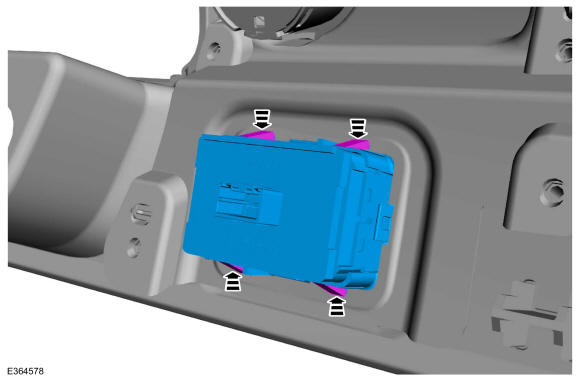

  2. Push the tabs and remove the trailer brake control switch.
GFD705461Courtesy of FORD MOTOR COMPANY
