Wiper Linkage Assembly: Removal

WARNING: This page is about a different car, the 2022 Lincoln Nautilus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Hood removed in this procedure for clarity.

Remove the cowl panel grille. Refer to: COWL PANEL GRILLE
NOTE: This step is only necessary when installing a new component.

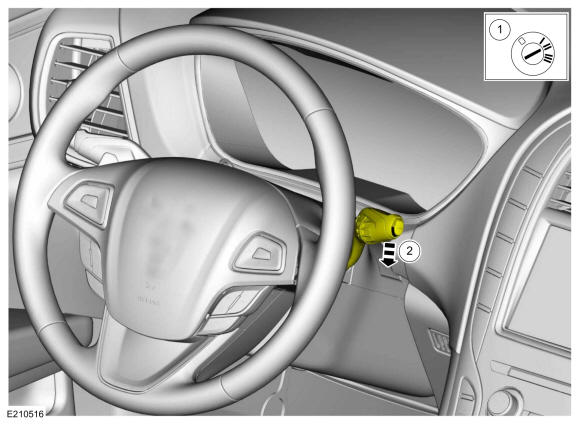

Activate the windshield wipers.
1. Turn the ignition ON.
2. Set the windshield wiper switch to run the wipers continuously.
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

NOTE: To aid in aligning the wiper motor crank between the alignment marks, turn the ignition switch OFF when the wiper motor crank reaches one o'clock position. This ensures the wiper motor crank comes to rest between the five o'clock and the seven o'clock position which is within the alignment marks.

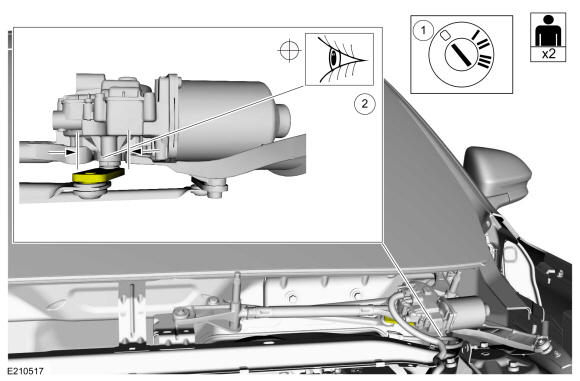

Align the wiper motor crank to access the wiper motor bolts.
1. Turn the ignition OFF when the motor crank reaches the one o'clock position, ensuring the wiper motor crank comes to rest between the five o'clock and seven o'clock position.
2. Visually verify the wiper motor crank is between the five o'clock and the seven o'clock position, which is within the alignment marks.
Courtesy of FORD MOTOR COMPANY

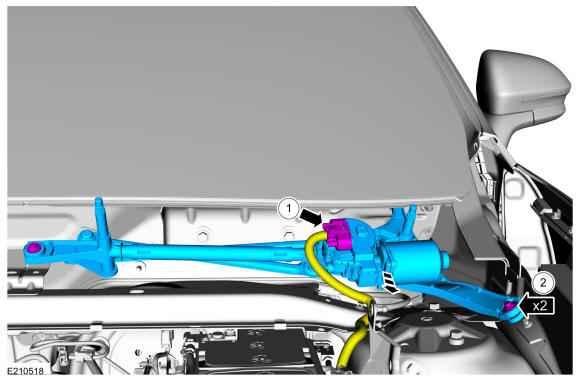

Remove the wiper linkage assembly.
1. Disconnect the electrical connector.
2. Remove the bolts.
  Torque: 62 lb.in (7 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

NOTE: This step is only necessary if the wiper linkage assembly mount grommet remains in the square locator hole after the wiper motor has been removed.

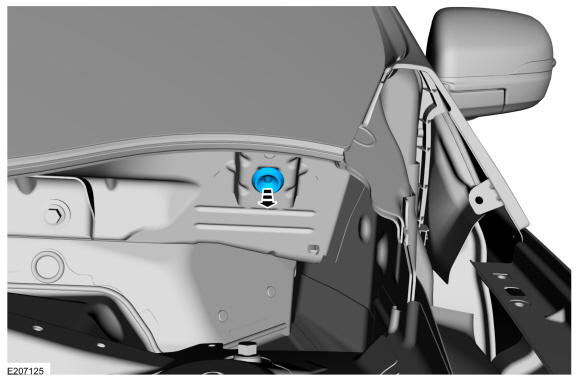

Remove the wiper linkage assembly mount grommet.

Courtesy of FORD MOTOR COMPANY
NOTE: Be careful not to damage the link seals during removal. Failure to follow this instruction may result in poor windshield wiper performance.

NOTE: This step is only necessary when installing a new component.

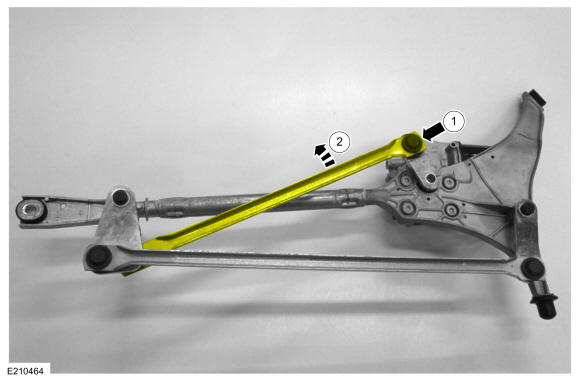

Detach the windshield wiper link from the windshield wiper motor crank.
1. Detach the link.
2. Position the link aside.
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

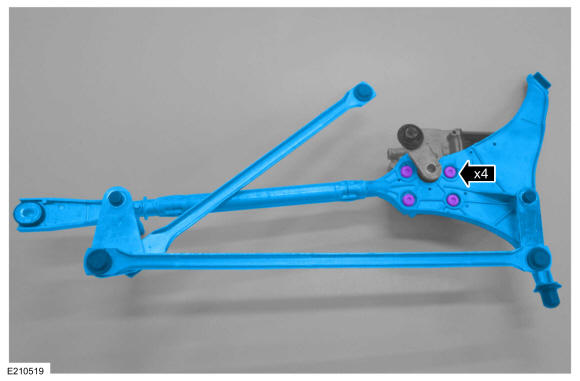

Remove the bolts and the wiper linkage assembly.

Torque: 115 lb.in (13 Nm)

Courtesy of FORD MOTOR COMPANY
