Hands-Free Liftgate Actuation Module: Removal

WARNING: This page is about a different car, the 2023 Lincoln Nautilus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the rear bumper cover. Refer to: Rear Bumper Cover .

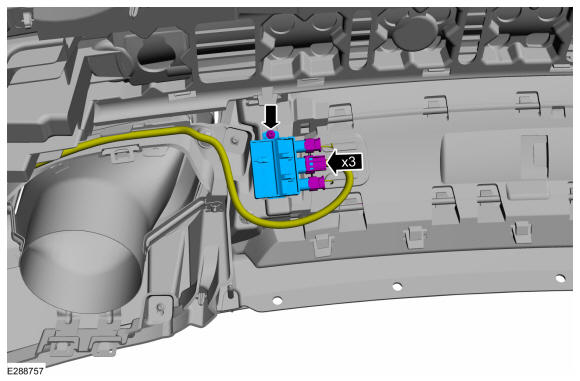

  2. Disconnect the electrical connectors, remove the screws and the hands-free liftgate actuation module.
GFD621854Courtesy of FORD MOTOR COMPANY
