Vehicle Dynamics Control Module (VDM): Removal
WARNING: This page is about a different car, the 2023 Lincoln Nautilus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.
NOTE:
Removal steps in this procedure may contain installation details.
Vehicles equipped with subwoofer
- Remove the subwoofer and amplifier unit. Refer to: Subwoofer and Amplifier Unit
.
Vehicles without subwoofer
- Remove the RH loadspace trim panel. Refer to: Loadspace Trim Panel
.
All vehicles
-
NOTE: The VDM is mounted to the RH side of the luggage compartment behind the loadspace trim panel.

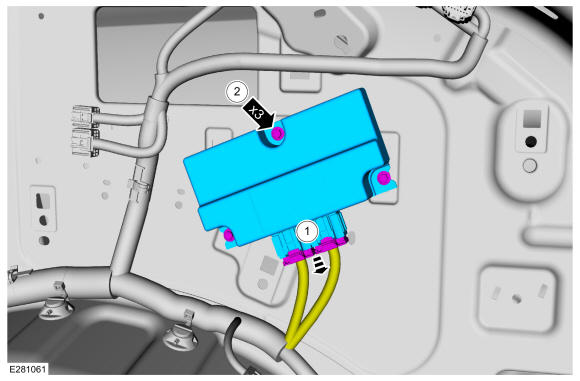

- Disconnect the VDM electrical connectors.
- Remove the VDM retainers and the VDM.
Torque: 13 lb.in (1.5 Nm)
