Overhead Console: Removal

WARNING: This page is about a different car, the 2023 Lincoln Nautilus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

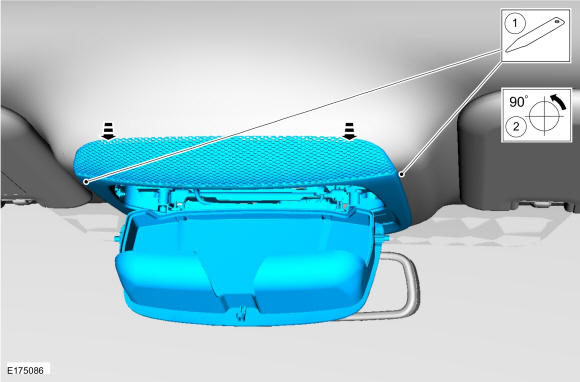

1. Insert trim tool in location(s) shown in illustration.
2. Rotate the tool 90 degrees to release the overhead console rear retainers.
Courtesy of FORD MOTOR COMPANY

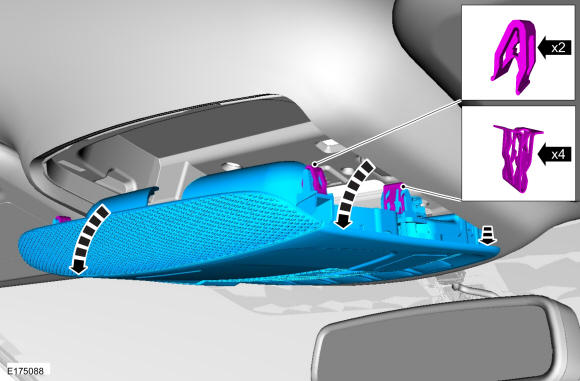

Working from the rear to the front along each side release the overhead console retainers.

Courtesy of FORD MOTOR COMPANY

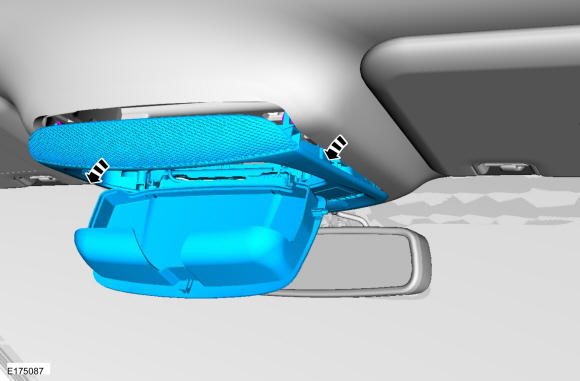

Rotate and remove the overhead console.

Courtesy of FORD MOTOR COMPANY

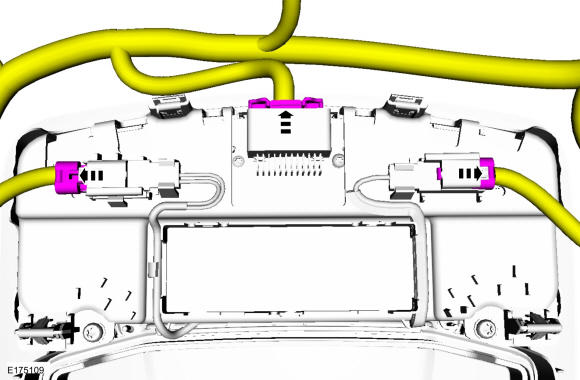

Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY
