Fuse And Relay Information

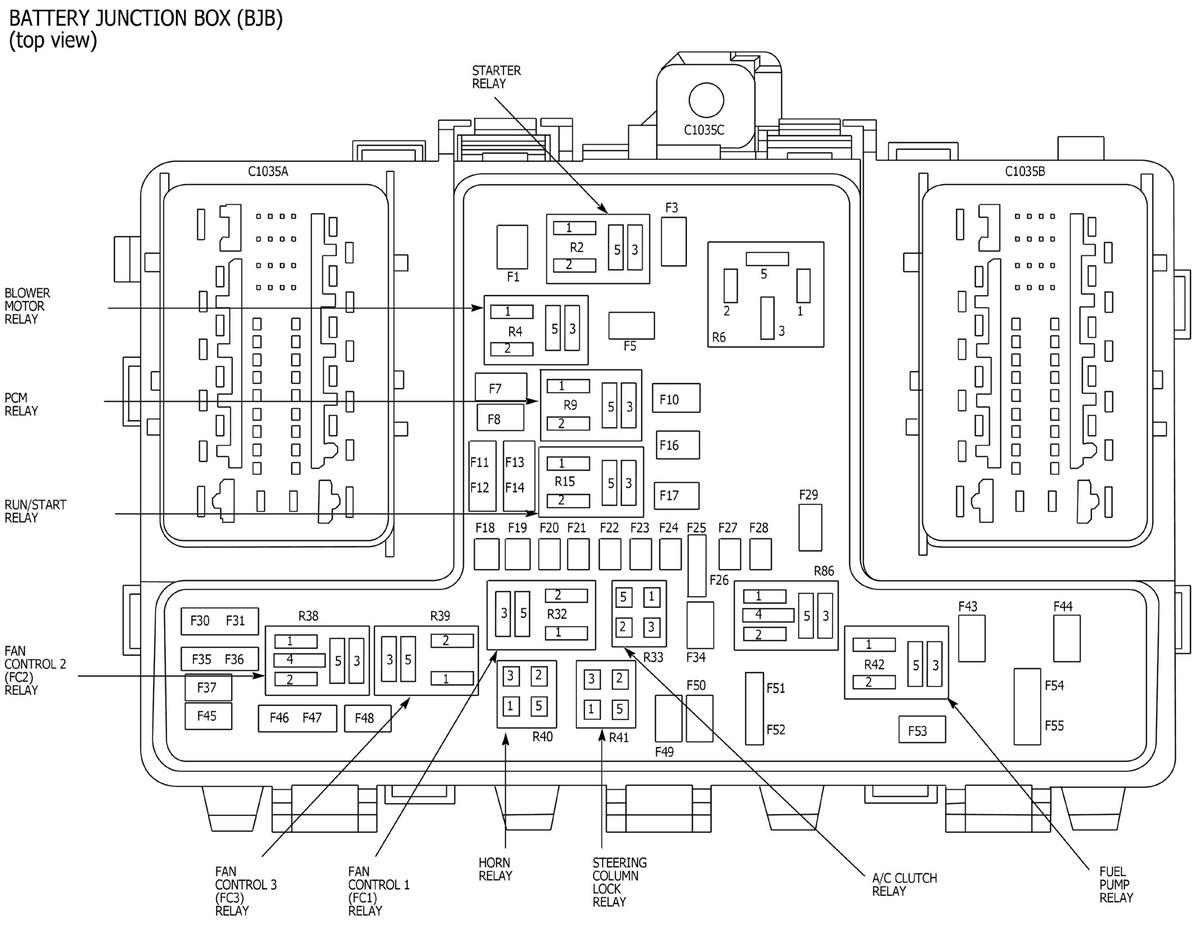

Fig 1: Battery Junction Box (BJB) (Top View) Component Location

Courtesy of FORD MOTOR COMPANY

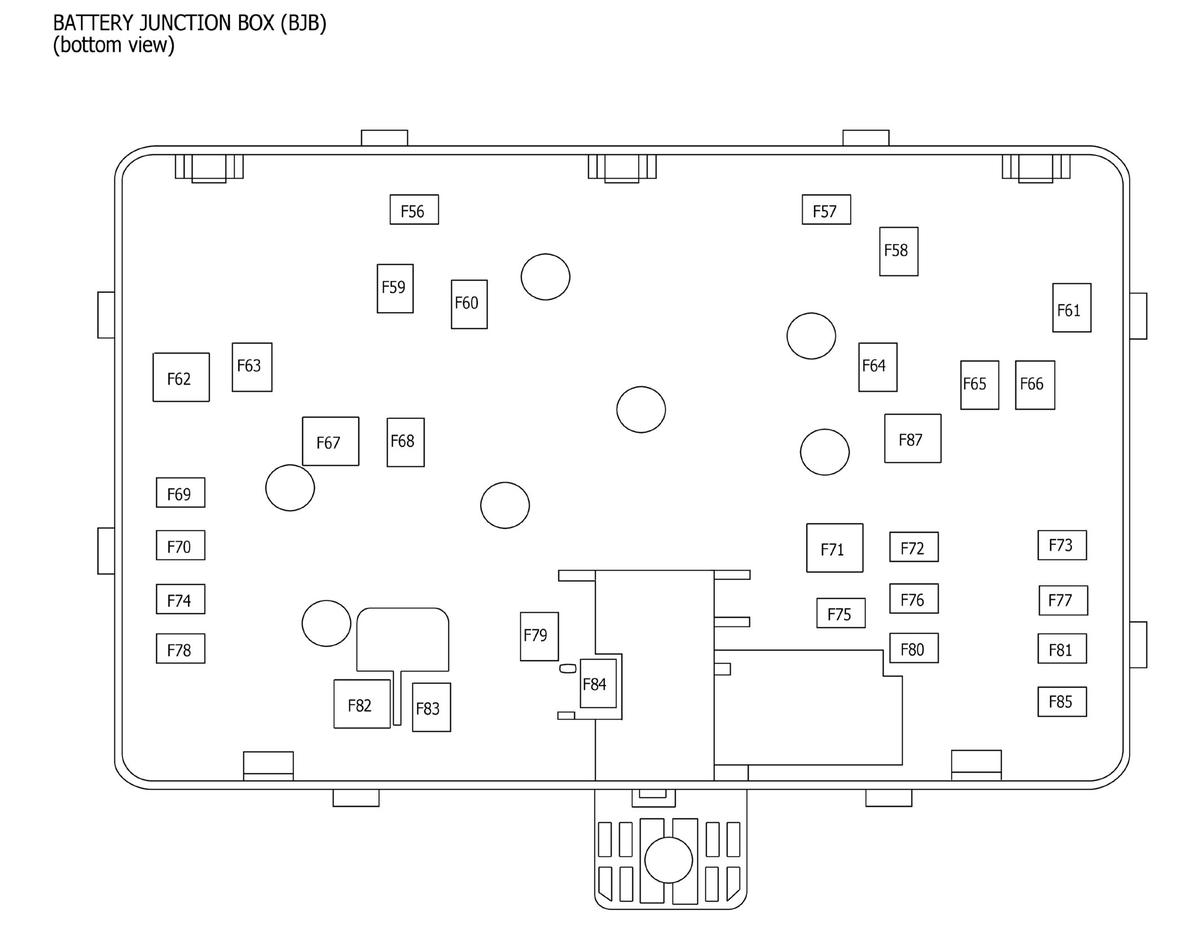

Fig 2: Battery Junction Box (BJB) (Bottom View) Component Location

Courtesy of FORD MOTOR COMPANY

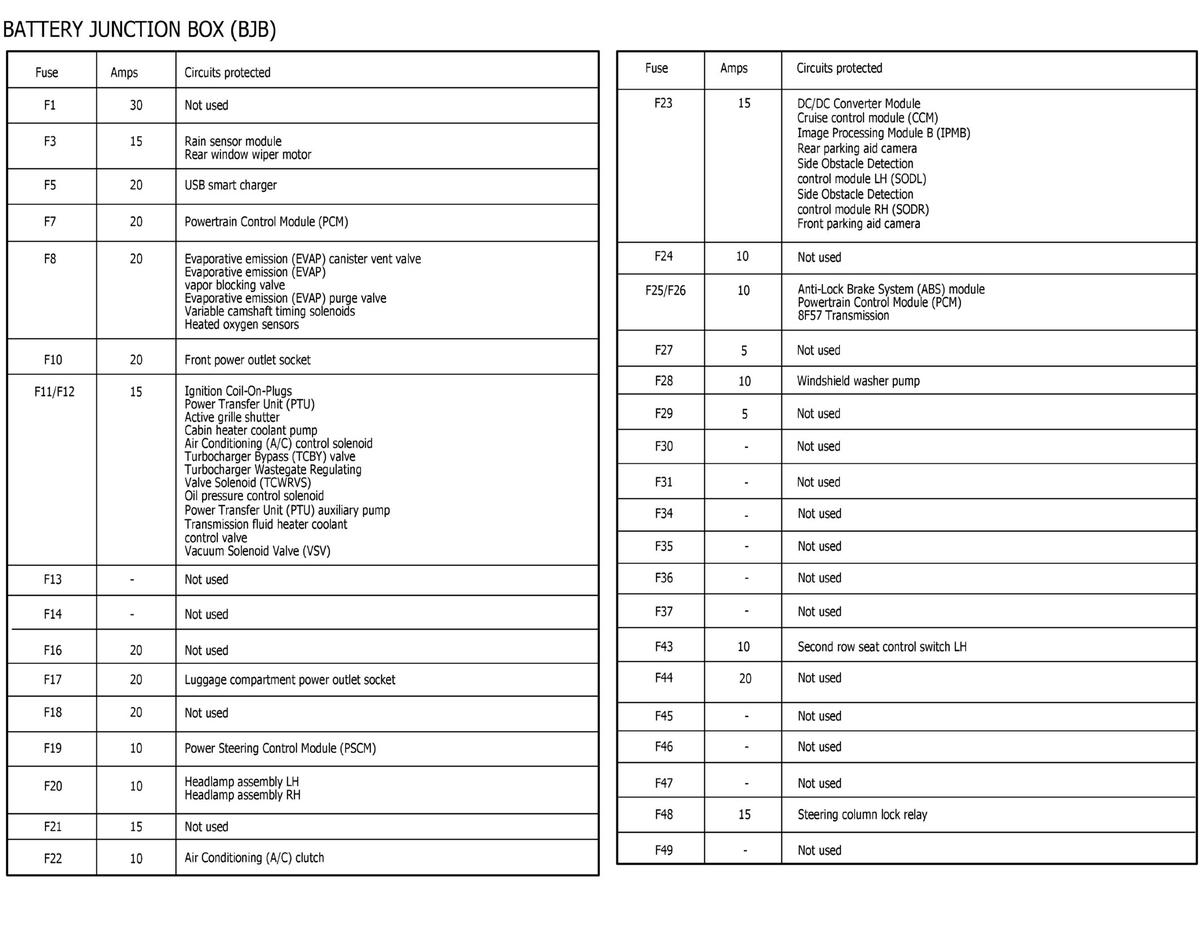

Fig 3: Battery Junction Box (BJB) Component Location Legend F1 - F49 (1 of 2)

Courtesy of FORD MOTOR COMPANY

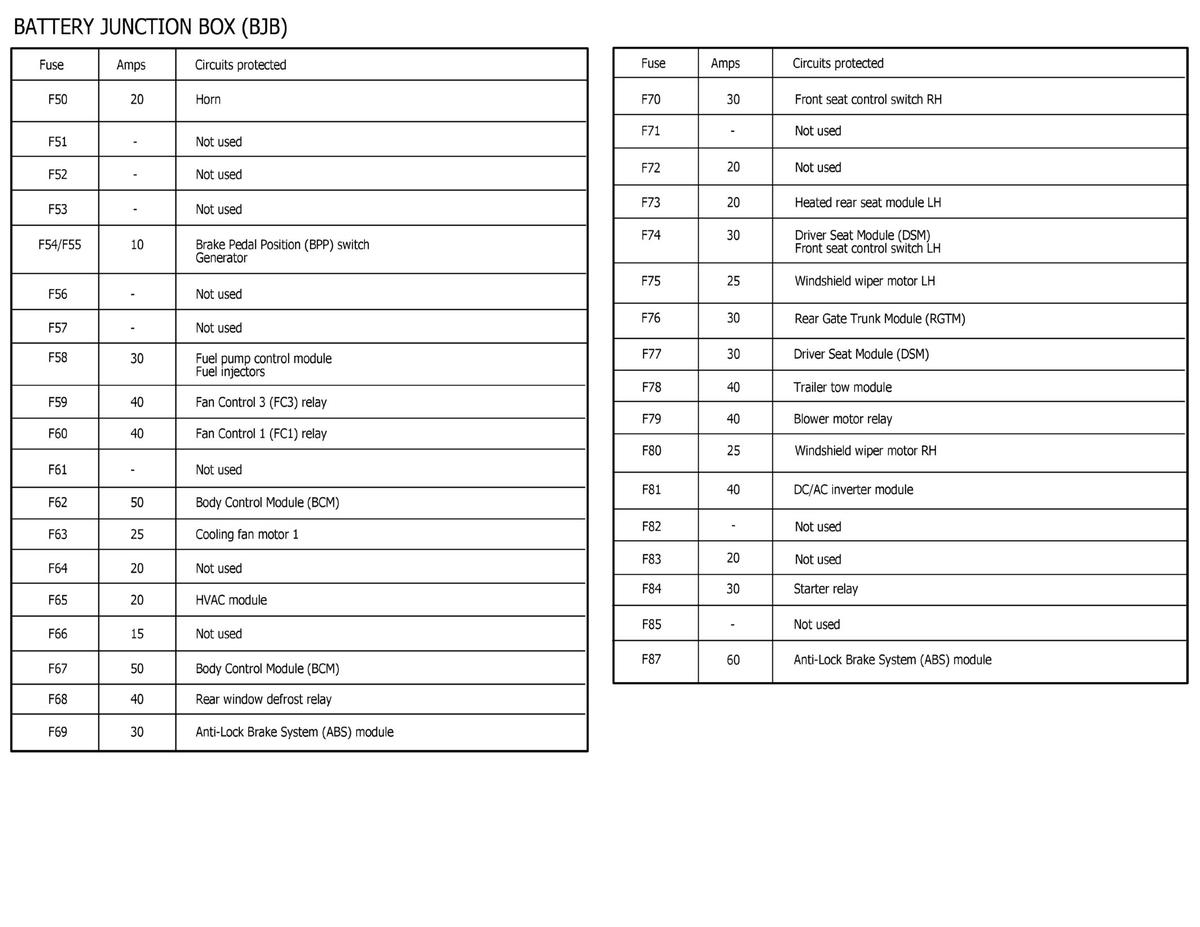

Fig 4: Battery Junction Box (BJB) Component Location Legend F50 - F87 (2 of 2)

Courtesy of FORD MOTOR COMPANY

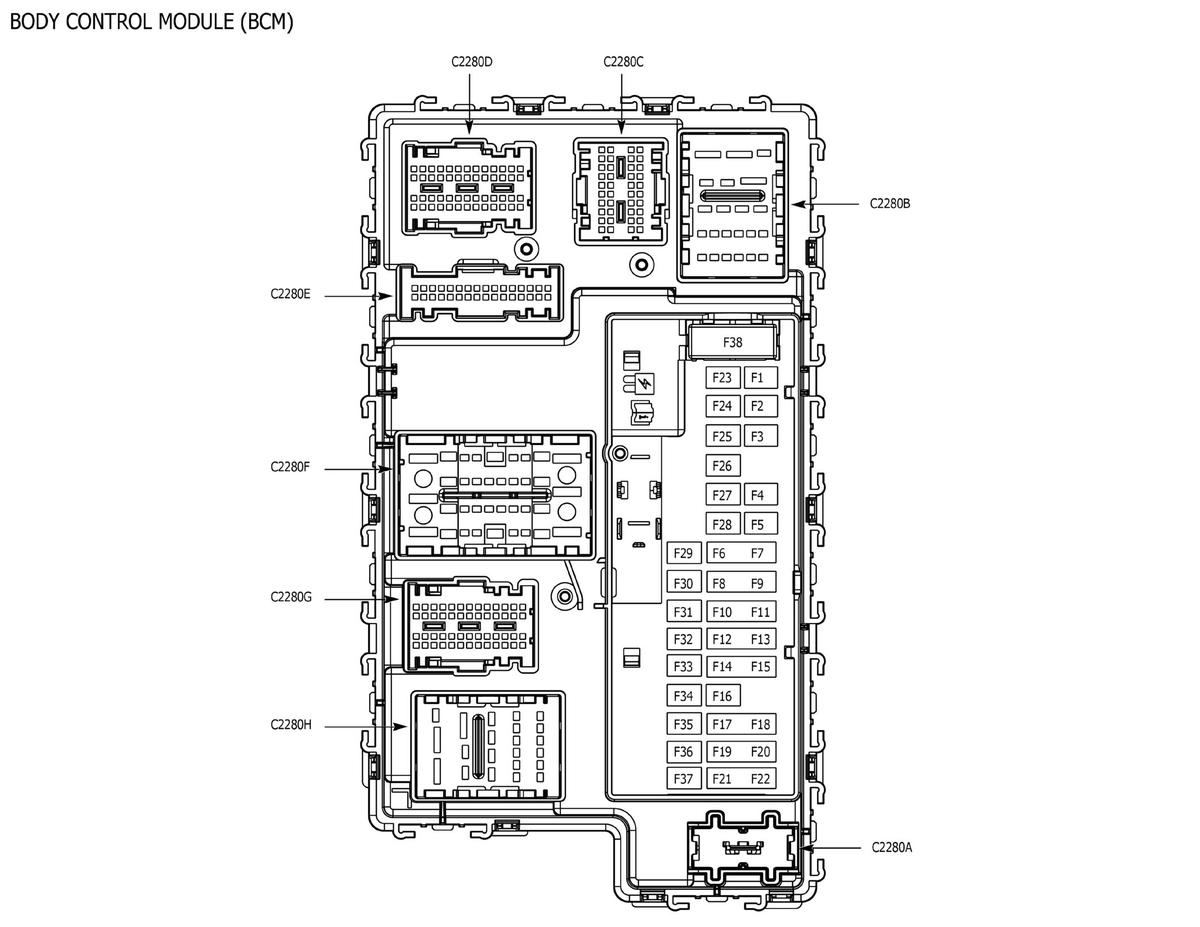

Fig 5: Body Control Module (BCM) Component Location

Courtesy of FORD MOTOR COMPANY

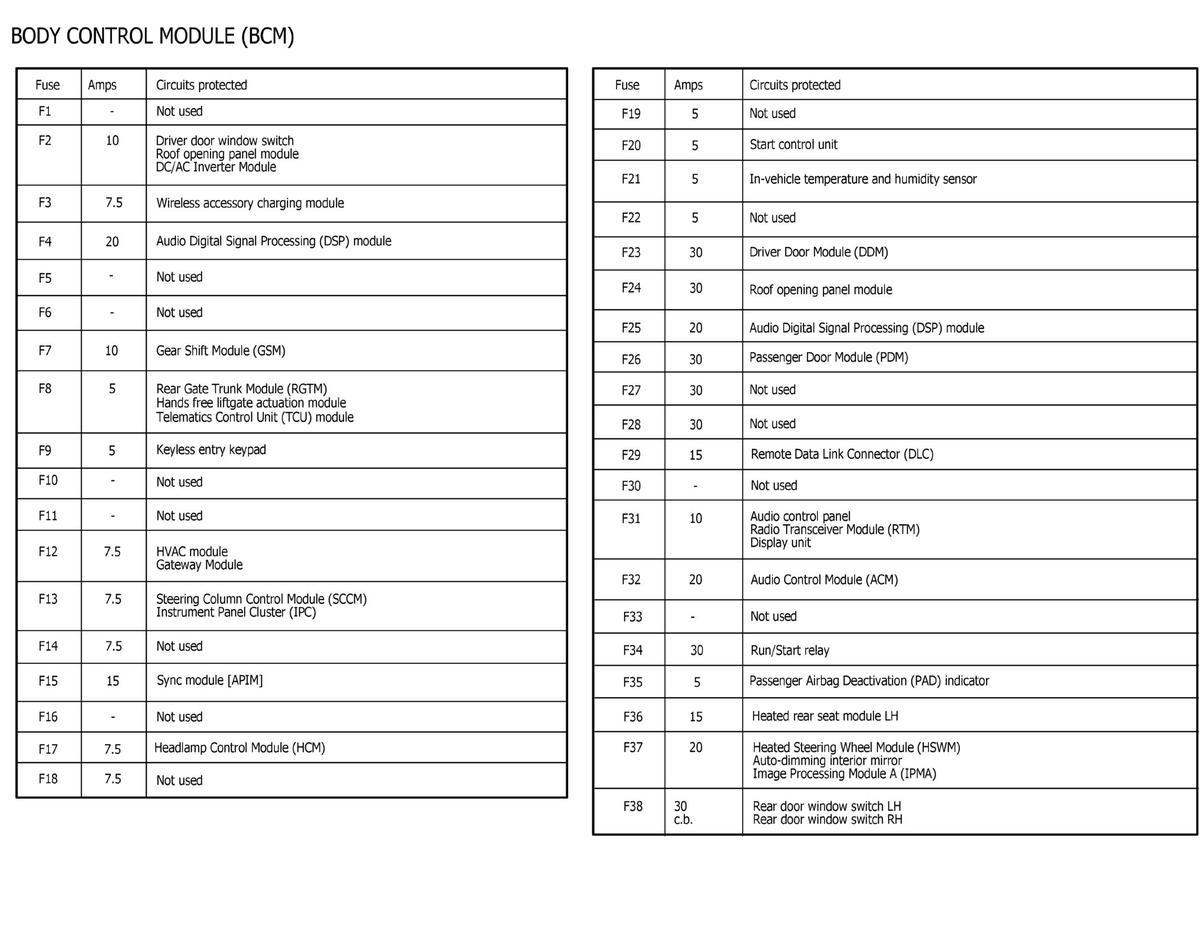

Fig 6: Body Control Module (BCM) Component Location Legend F1 - F38

Courtesy of FORD MOTOR COMPANY

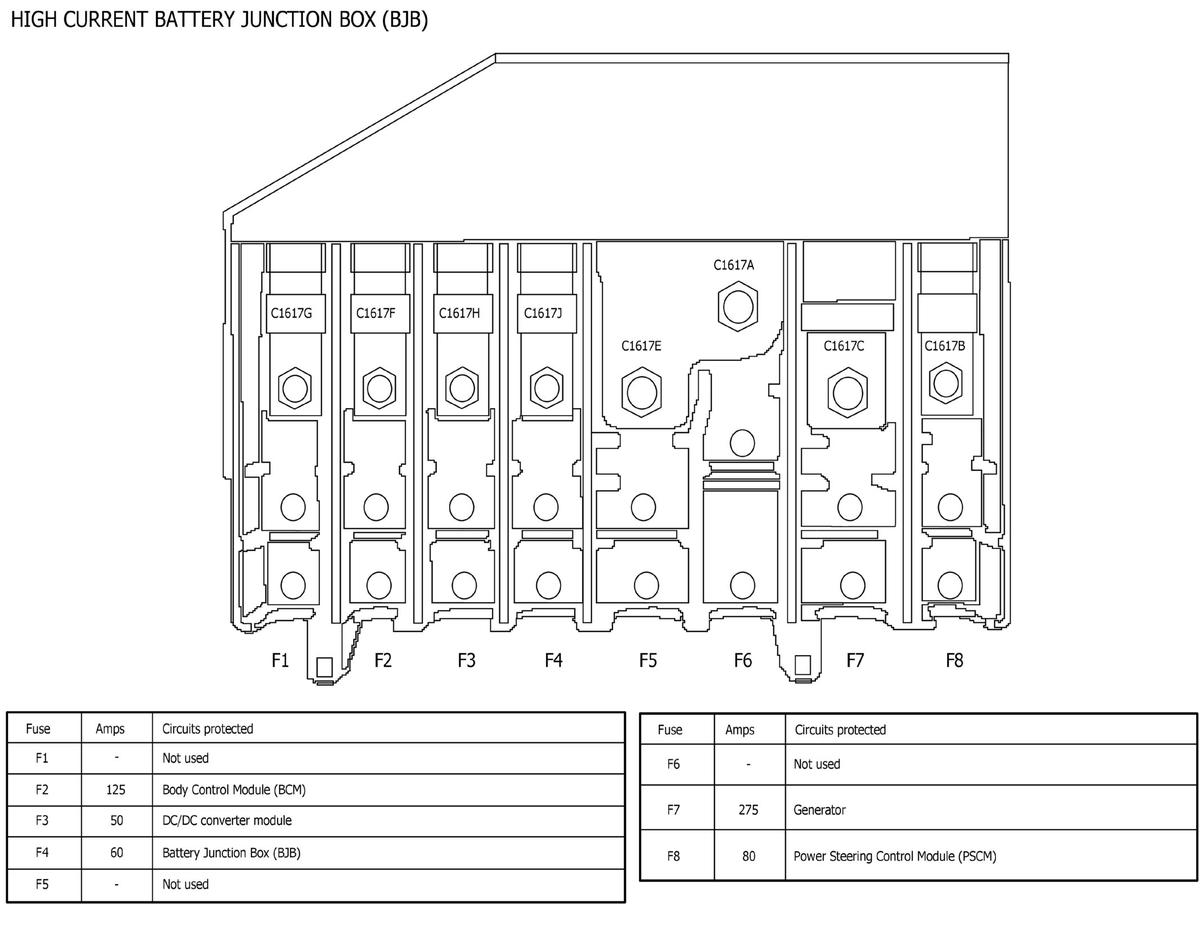

Fig 7: High Current Battery Junction Box (BJB) Component Location & Legend F1 - F8

Courtesy of FORD MOTOR COMPANY
