Image Processing Module A (IPMA): Removal

WARNING: This page is about a different car, the 2022 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

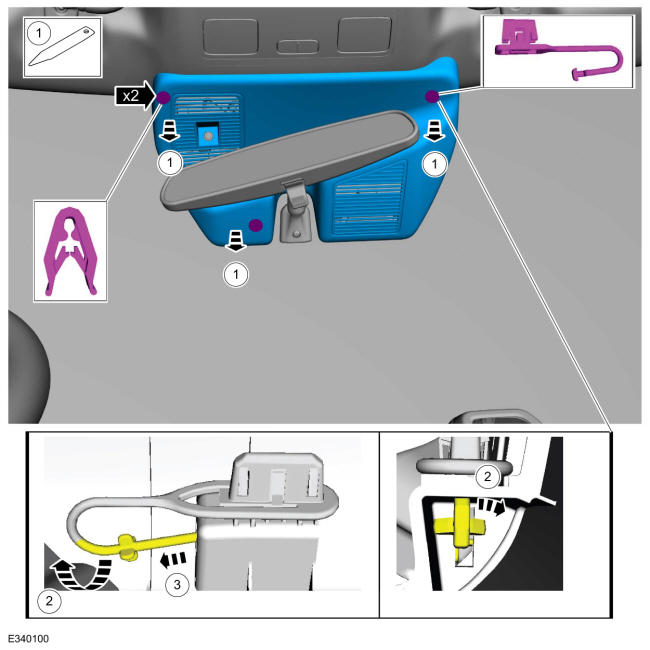

Remove the IPMA cover.
1. Release the IPMA clips and the tether clip from the IPMA cover. Use the General Equipment: Interior Trim Remover
2. Rotate the tether clip line to align the end with the opening in the IPMA cover.
3. Slide the tether clip end out of the IPMA cover.
Courtesy of FORD MOTOR COMPANY

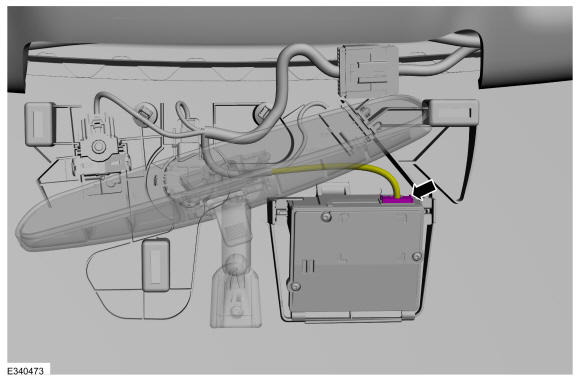

Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

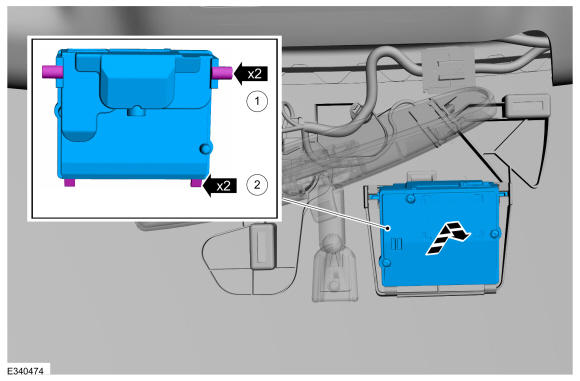

Remove the IPMA.
1. Remove the upper tabs.
2. Remove the lower tabs.

Courtesy of FORD MOTOR COMPANY
