Ethernet Module Communications Network - Component Location

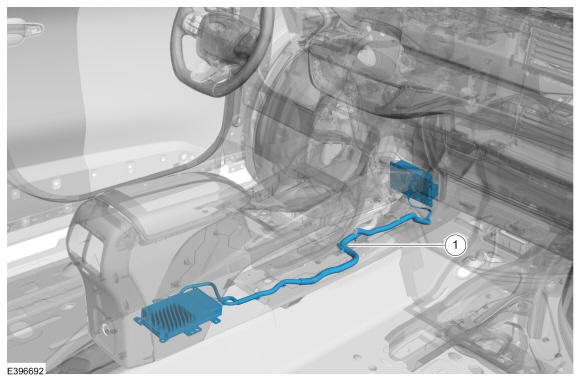

GFD753411Courtesy of FORD MOTOR COMPANY
Item Description
1 TCU Ethernet cable routing

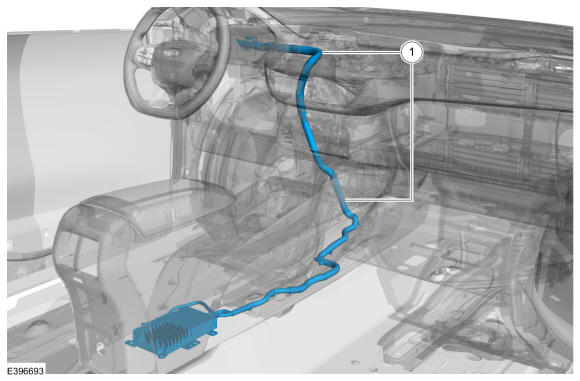

GFD753412Courtesy of FORD MOTOR COMPANY
Item Description
1 IPC Ethernet cable routing

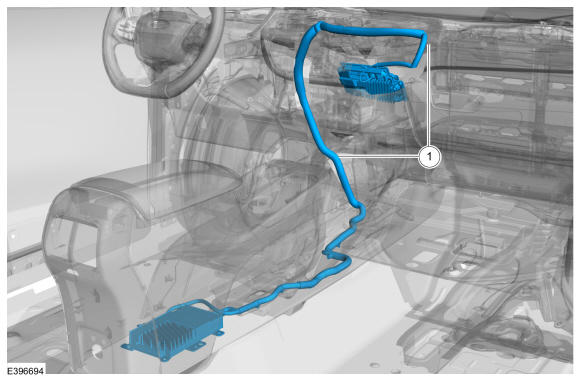

GFD753413Courtesy of FORD MOTOR COMPANY
Item Description
1 APIM Ethernet cable routing

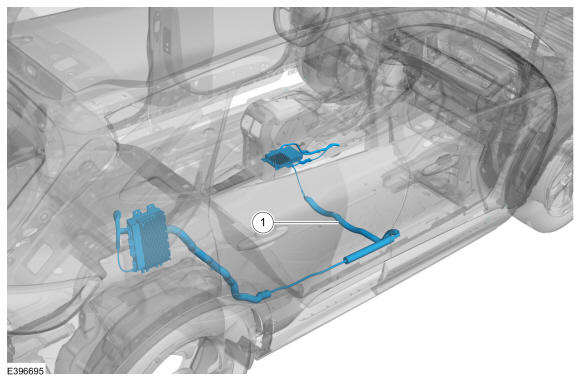

GFD753414Courtesy of FORD MOTOR COMPANY
Item Description
1 IPMA Ethernet cable routing
