Front Subframe: Installation

  1. NOTE: The steering column floor seal mounting surface must be cleaned using solvent before reinstallation.

    Clean and inspect the steering column floor seal mounting surface before reinstallation.

    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

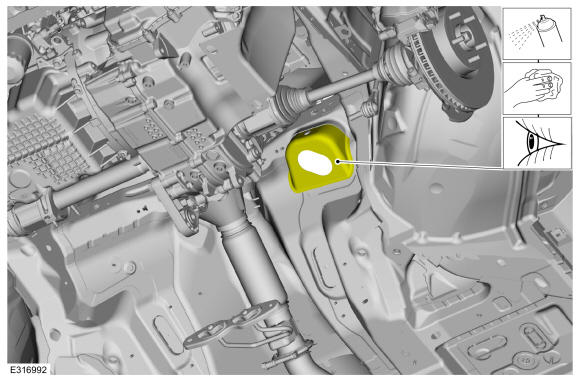

    GFD754887Courtesy of FORD MOTOR COMPANY
  2. NOTE: Make sure that the floor seal lip is fully wrapped around the carrier on the steering gear.

    Install the new steering column floor seal.

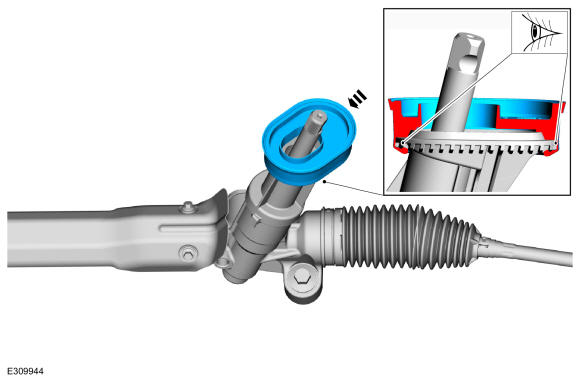

    GFD754888Courtesy of FORD MOTOR COMPANY

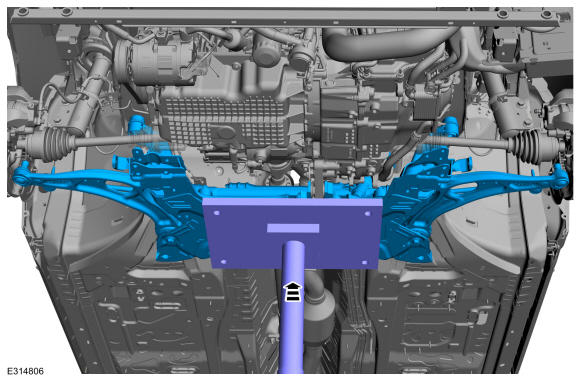

  3. Partially raise the subframe and position it to the vehicle.Use the General Equipment: Transmission Jack
    GFD754889Courtesy of FORD MOTOR COMPANY

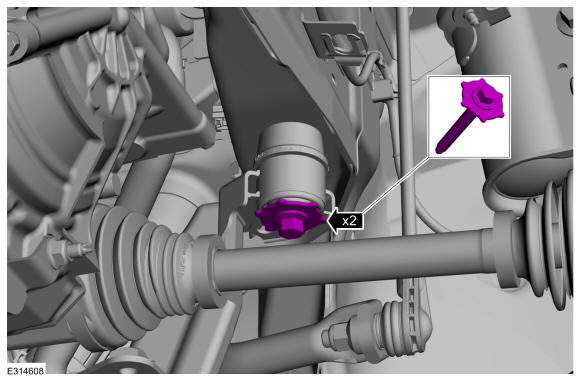

  4. On both sides.Install the new forward subframe bolts finger tight.
    GFD754890Courtesy of FORD MOTOR COMPANY
    1. Install the subframe brackets and the new rearward subframe bolts finger tight.
    2. Install the new subframe bracket bolts finger tight.

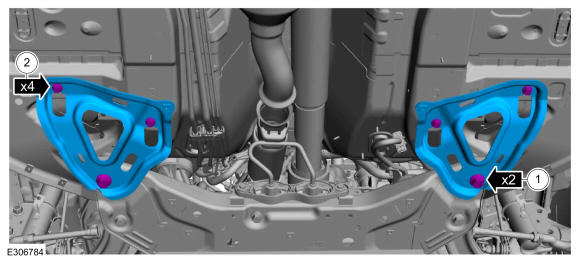

    GFD754891Courtesy of FORD MOTOR COMPANY
  5. NOTE: Rear mounting location shown.

    On both sides.Align index-mark made during removal.

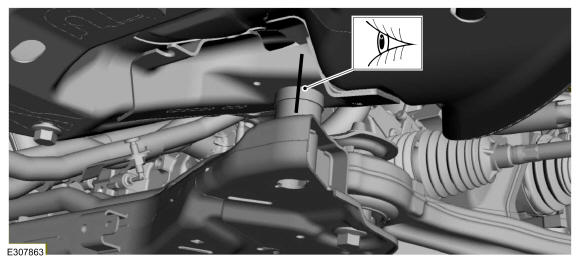

    GFD754892Courtesy of FORD MOTOR COMPANY
  6. NOTE: Front mounting location shown.

    On both sides.Align index-mark made during removal.

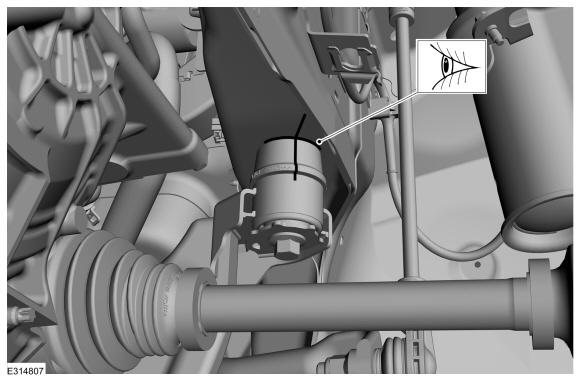

    GFD754893Courtesy of FORD MOTOR COMPANY
  7. On both sides.Tighten the forward subframe bolts.

    Torque: 85 lb.ft (115 Nm)

    GFD754890Courtesy of FORD MOTOR COMPANY

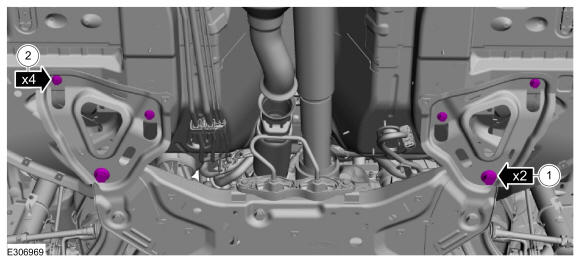

    1. Tighten the bolts.

      Torque:Stage 1: 159 lb.ft (215 Nm)Stage 2: 120deg.

    2. Tighten the bolts.

      Torque: 46 lb.ft (63 Nm)

    GFD754894Courtesy of FORD MOTOR COMPANY
  8. If equipped.Clip the wire harness retainers.
    GFD754879Courtesy of FORD MOTOR COMPANY

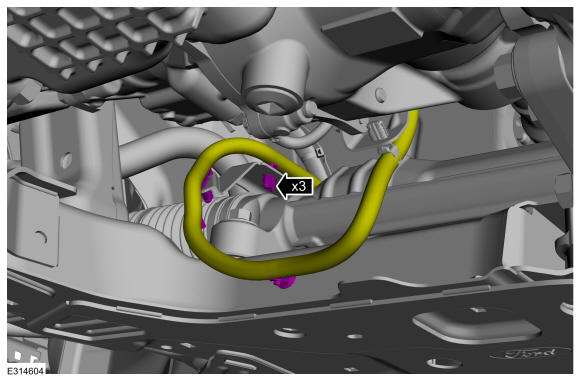

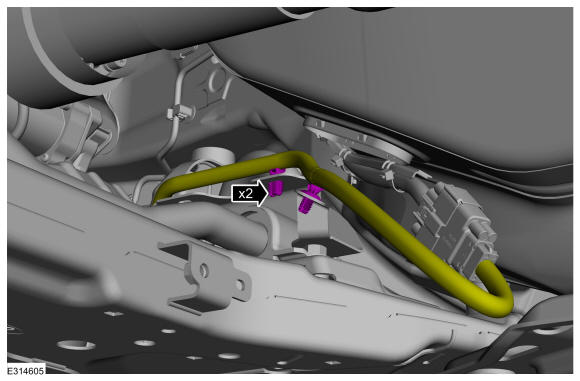

  9. If equipped.Clip the wire harness retainers.
    GFD754878Courtesy of FORD MOTOR COMPANY
  10. NOTE: 2.0L GTDI shown, others similar.

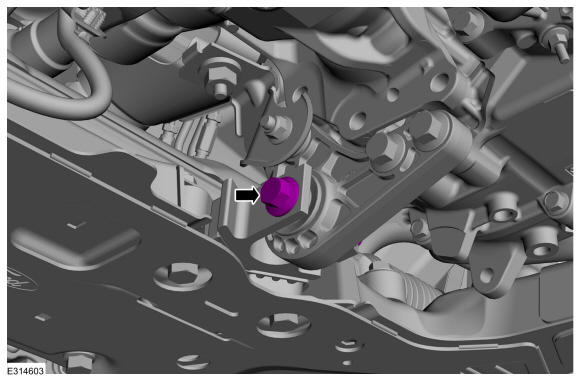

    Install the new roll restrictor bolt.

    Torque: 129 lb.ft (175 Nm)

    GFD754895Courtesy of FORD MOTOR COMPANY
  11. Install the exhaust support bracket bolts.

    Torque: 18 lb.ft (25 Nm)

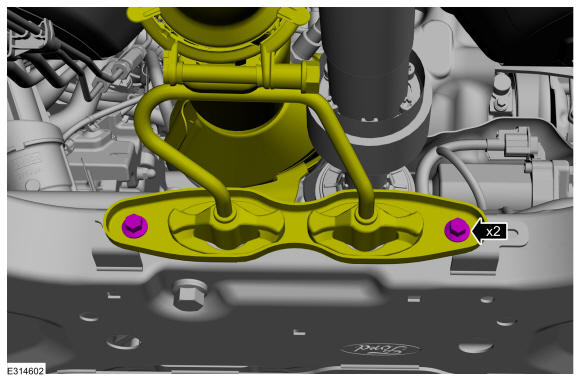

    GFD754876Courtesy of FORD MOTOR COMPANY

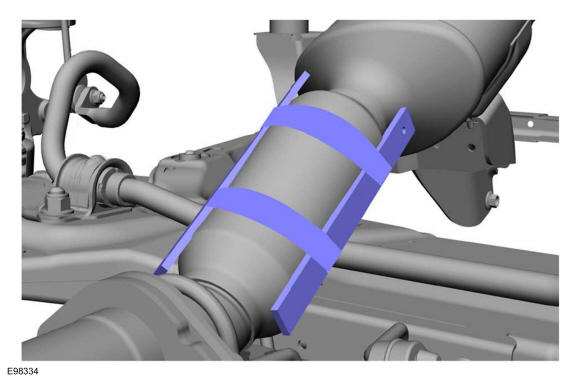

  12. Release the exhaust flexible pipe support.
    GFD754875Courtesy of FORD MOTOR COMPANY

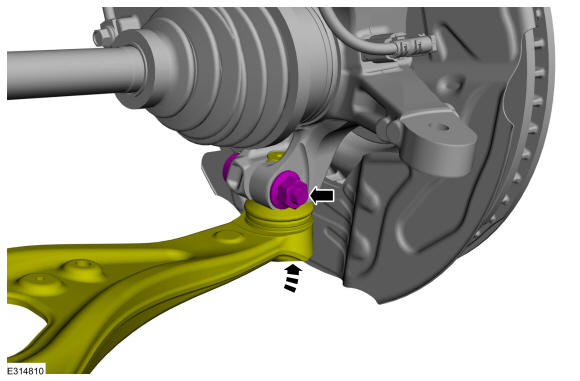

  13. On both sides.Connect the lower ball joint to the wheel knuckle and install the new ball joint pinch bolt and nut.

    Torque: 66 lb.ft (90 Nm)

    GFD754896Courtesy of FORD MOTOR COMPANY
  14. NOTE: Use the hex-holding feature to prevent the component from turning.

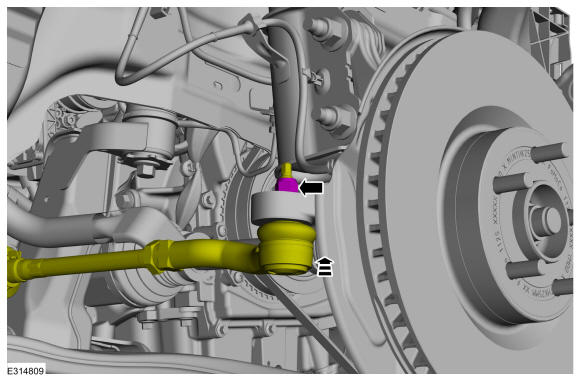

    On both sides.Connect the tie rod end to the wheel knuckle and install the new tie rod end nut.

    Torque: 35 lb.ft (48 Nm)

    GFD754897Courtesy of FORD MOTOR COMPANY
  15. NOTE: Use the hex-holding feature to prevent the component from turning.

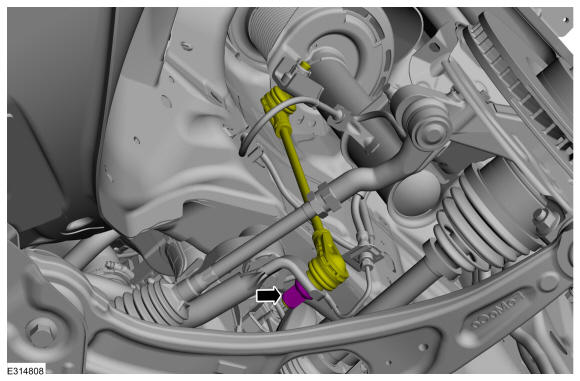

    On both sides.Position the stabilizer bar links and install the new stabilizer bar link lower nut.

    Torque: 66 lb.ft (90 Nm)

    GFD754898Courtesy of FORD MOTOR COMPANY
  16. On both sides.Install the front outer side member with new bolts.

    Torque: 30 lb.ft (40 Nm)

    GFD754899Courtesy of FORD MOTOR COMPANY

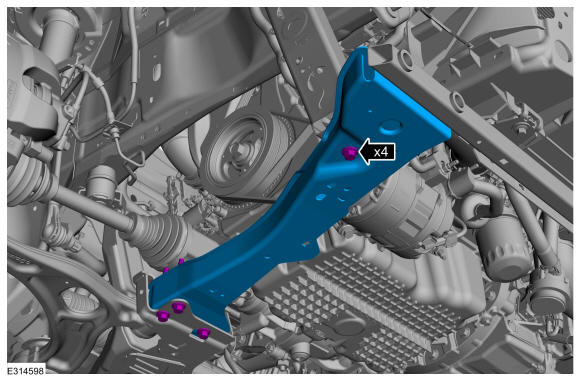

  17. Install the subframe support bracket bolts.

    Torque: 22 lb.ft (30 Nm)

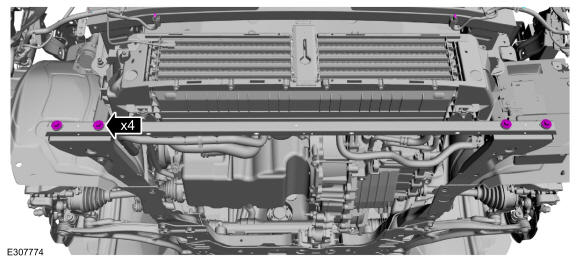

    GFD754870Courtesy of FORD MOTOR COMPANY
  18. Install the front bumper cover. Refer to: Front Bumper Cover .
  19. Install the underbody shield and the retainers.

    Torque: 22 lb.in (2.5 Nm)

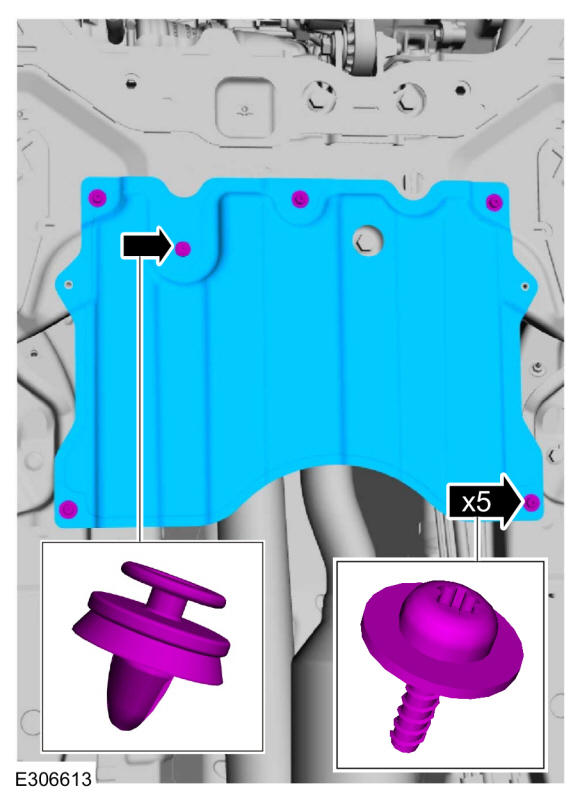

    GFD754869Courtesy of FORD MOTOR COMPANY

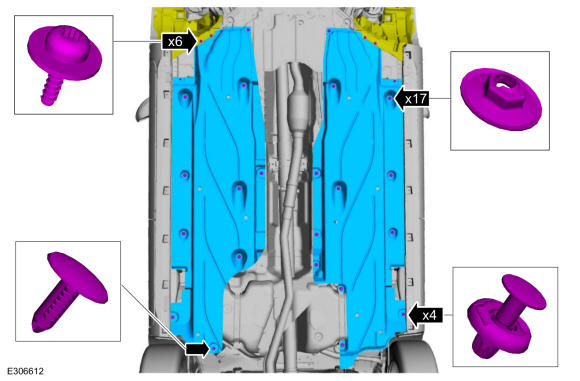

  20. Install the underbody shields and the retainers.

    Torque: 22 lb.in (2.5 Nm)

    GFD754868Courtesy of FORD MOTOR COMPANY

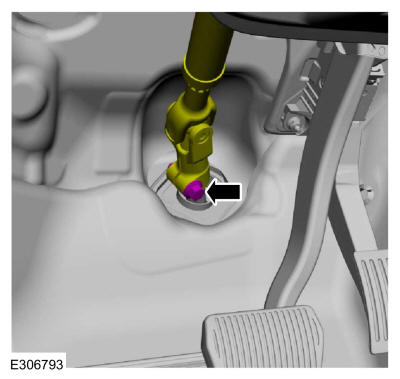

  21. Position the steering shaft coupler and install the new steering shaft coupler bolt.

    Torque: 46 lb.ft (63 Nm)

    GFD754900Courtesy of FORD MOTOR COMPANY

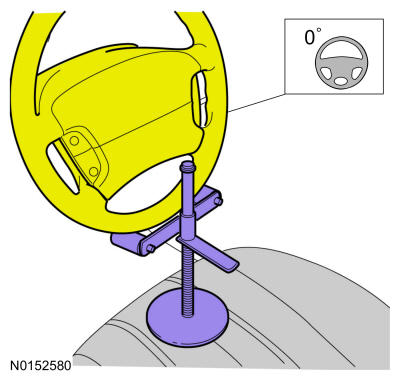

  22. Remove the holding device.
    GFD754901Courtesy of FORD MOTOR COMPANY

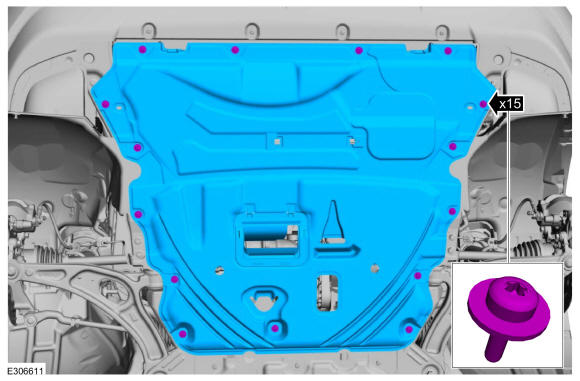

  23. Install the underbody shield and the retainers.

    Torque: 13 lb.in (1.5 Nm)

    GFD754867Courtesy of FORD MOTOR COMPANY
  24. Install the fender splash shield. Refer to: Fender Splash Shield .
  25. Install the wheels and tires. Refer to: Wheel and Tire .
  26. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
  27. Check and if necessary adjust front toe. Refer to: Front Toe Adjustment .
