Passenger Door Window Control Switch: Removal

Remove the passenger door window control switch bezel assembly.

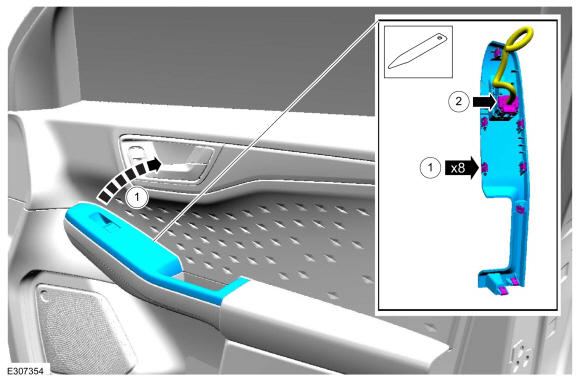

1. Starting from the front, release the locking tabs from the passenger door window control switch bezel assembly.Use the General Equipment: Interior Trim Remover
2. Disconnect the electrical connector and remove the passenger door window control switch bezel assembly.
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

Remove the passenger door window control switch from the bezel assembly.

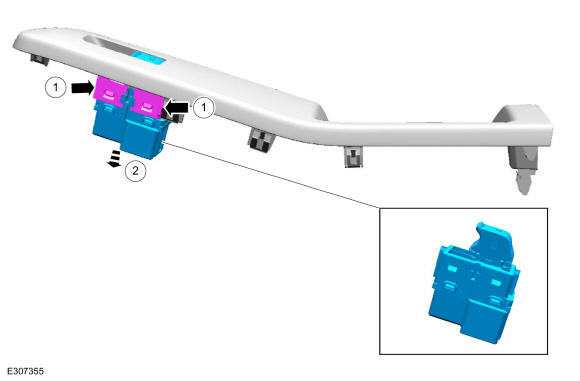

1. Release the locking tabs from the passenger door window control switch.
2. Remove the passenger door window control switch from the bezel assembly.

Courtesy of FORD MOTOR COMPANY
