Floor Console: Removal

NOTE: Removal steps in this procedure may contain installation details.

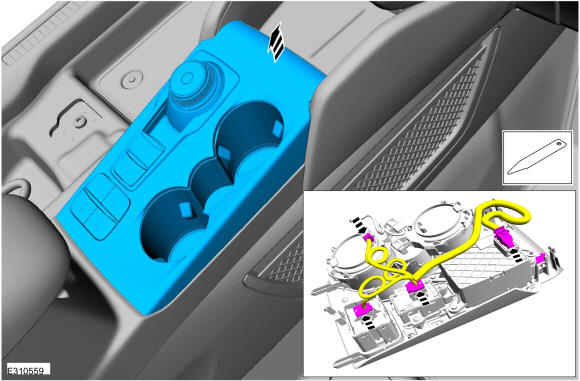

  1. Release the clips and remove the trim panel.

    • Disconnect the electrical connectors.

    GFD753442Courtesy of FORD MOTOR COMPANY

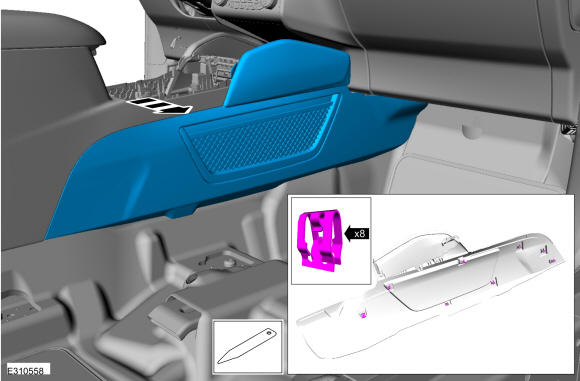

  2. Release the clips and remove the RH floor console side trim panel.Use the General Equipment: Interior Trim Remover
    GFD753444Courtesy of FORD MOTOR COMPANY
  3. NOTE: LH side of floor console.

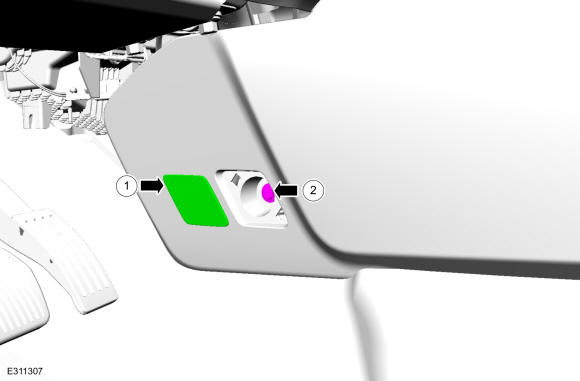

    1. Remove the cover.
    2. Remove the bolt.

    GFD753445Courtesy of FORD MOTOR COMPANY

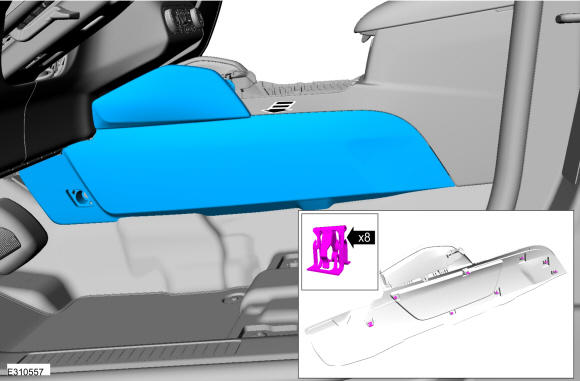

  4. Release the clips and remove the LH floor console side trim panel.
    GFD753446Courtesy of FORD MOTOR COMPANY

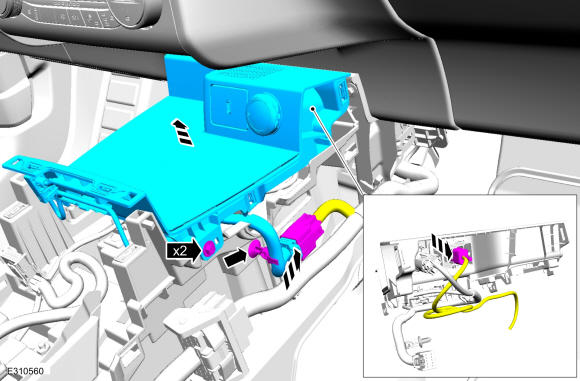

  5. Remove the bolts, release the clips and harness retainers and remove the trim panel.

    • Disconnect the electrical connector.

    GFD753447Courtesy of FORD MOTOR COMPANY

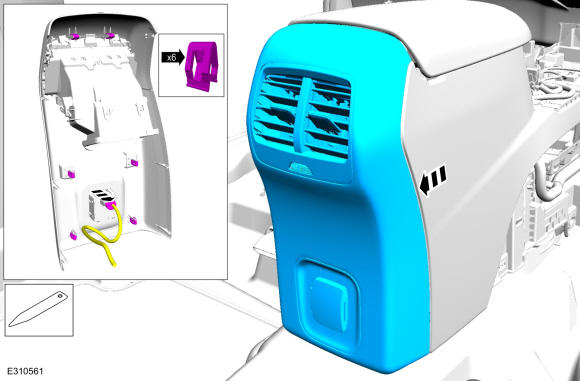

  6. Release the clips and remove the rear floor console trim panel.

    • Disconnect the electrical connector.

    GFD753959Courtesy of FORD MOTOR COMPANY
  7. NOTE: LH side of floor console.

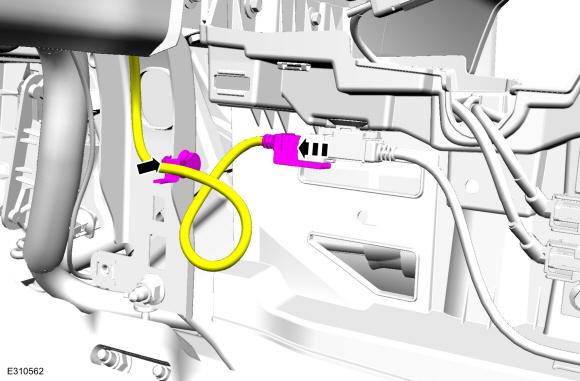

    Disconnect the electrical connector, detach the harness retainer and position aside the harness.

    GFD753960Courtesy of FORD MOTOR COMPANY

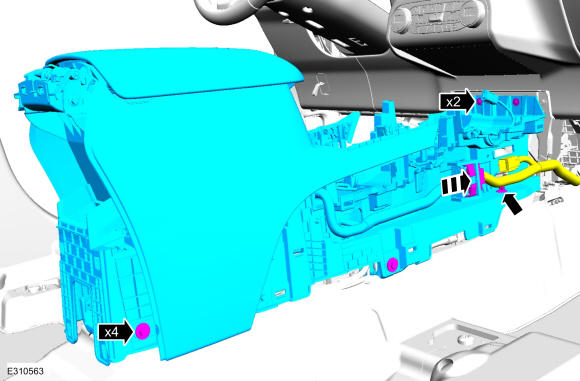

  8. Remove the bolts and remove the floor console.

    • Disconnect the electrical connector, detach the harness retainer and position aside the harness.

GFD753961Courtesy of FORD MOTOR COMPANY
