Fuel Pump Driver Module (FPDM): Installation

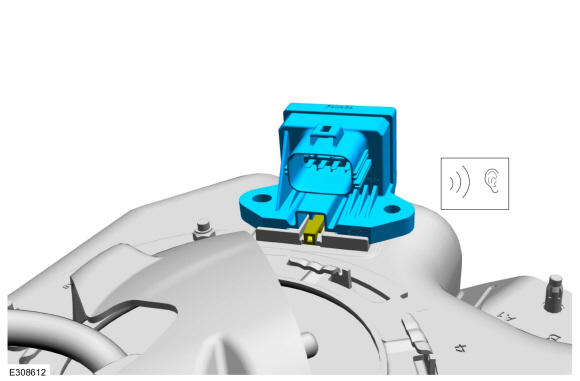

- Install the fuel pump driver module to the bracket until it clicks and locks into position.

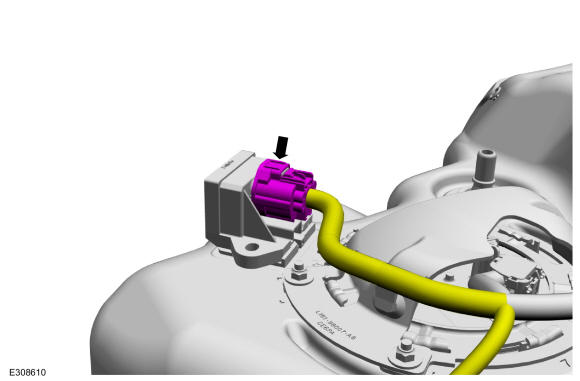

- Connect the fuel pump driver module electrical connector.
- Install the fuel tank. Refer to: Fuel Tank - FWD . Refer to: Fuel Tank - 4WD .
