WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

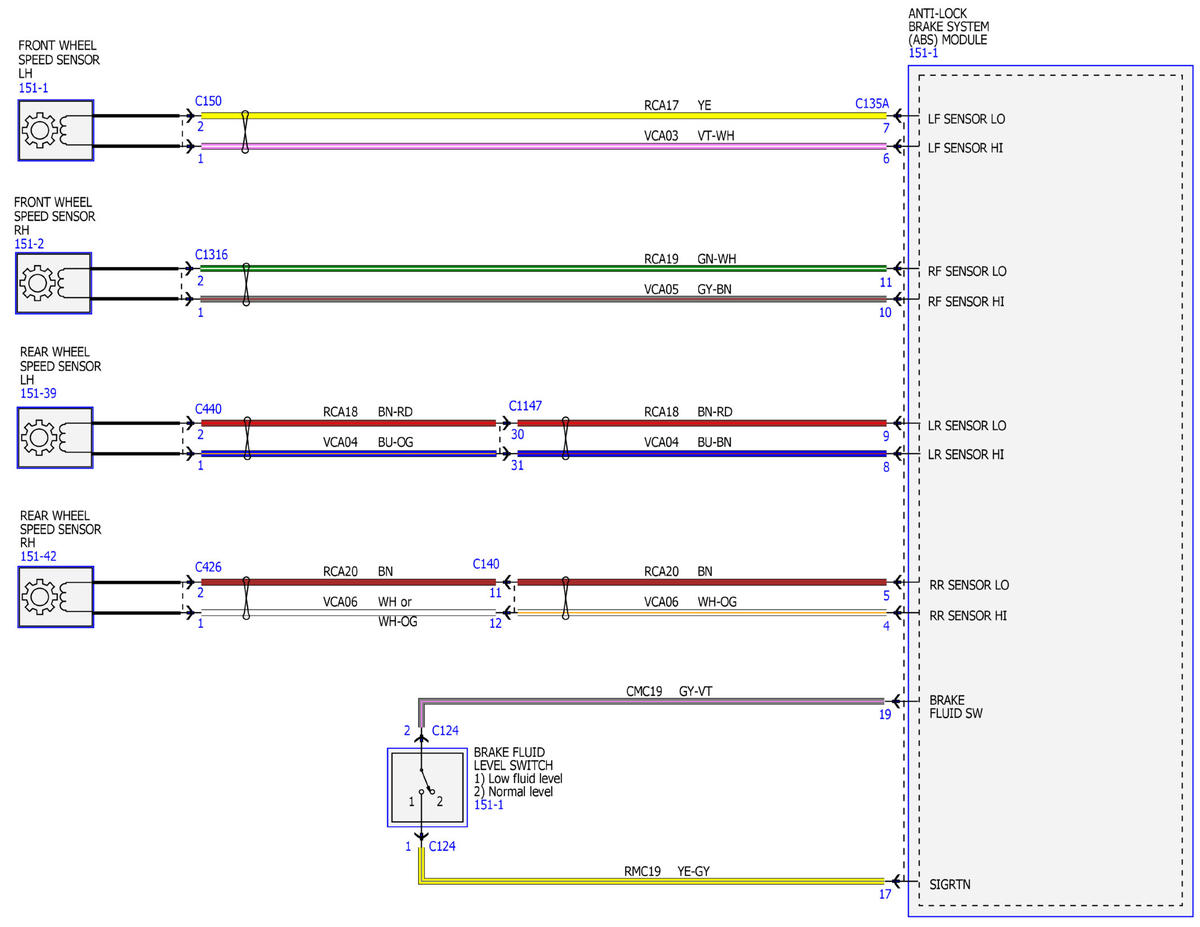

Fig 1: Vehicle Dynamic Systems Wiring Diagram (1 Of 6)
Courtesy of FORD MOTOR COMPANY

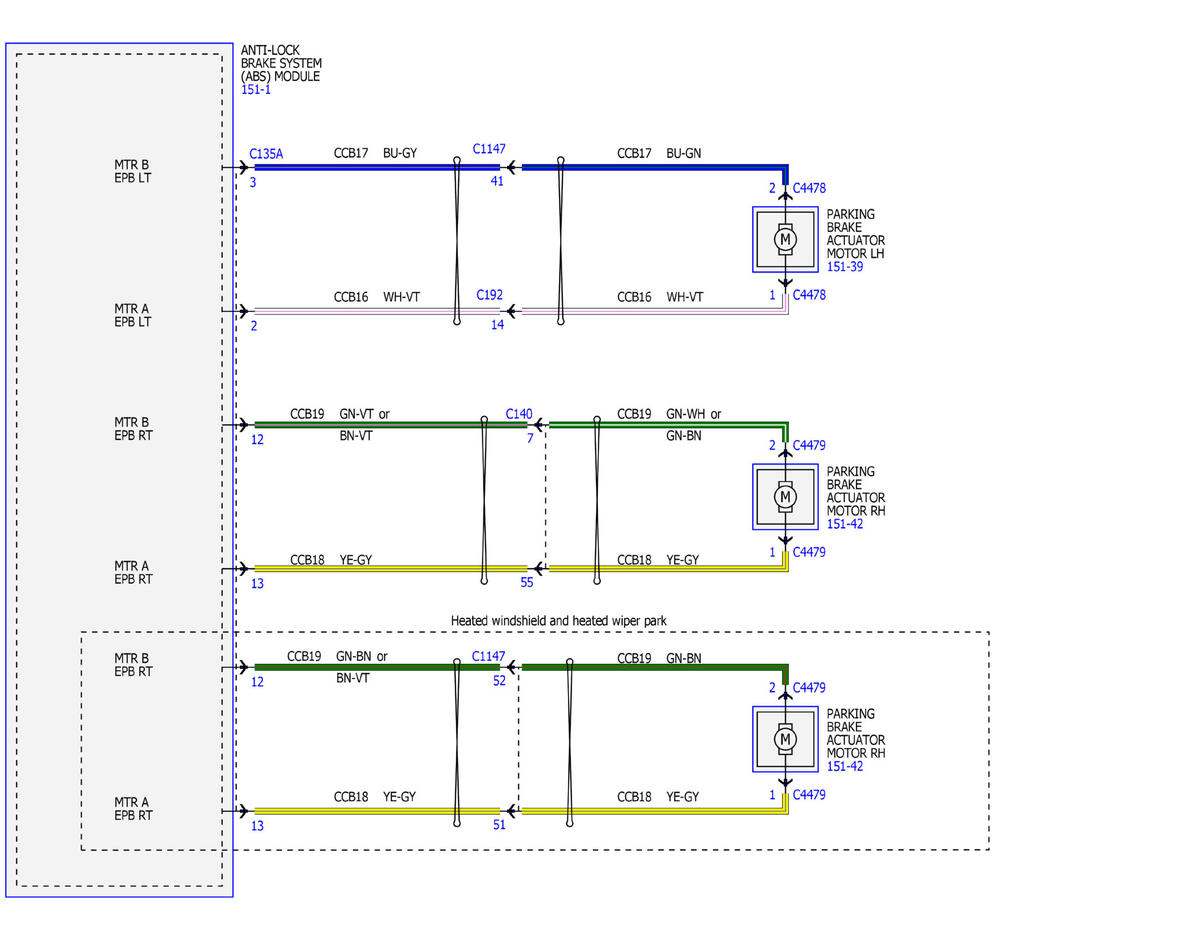

Fig 2: Vehicle Dynamic Systems Wiring Diagram (2 Of 6)
Courtesy of FORD MOTOR COMPANY

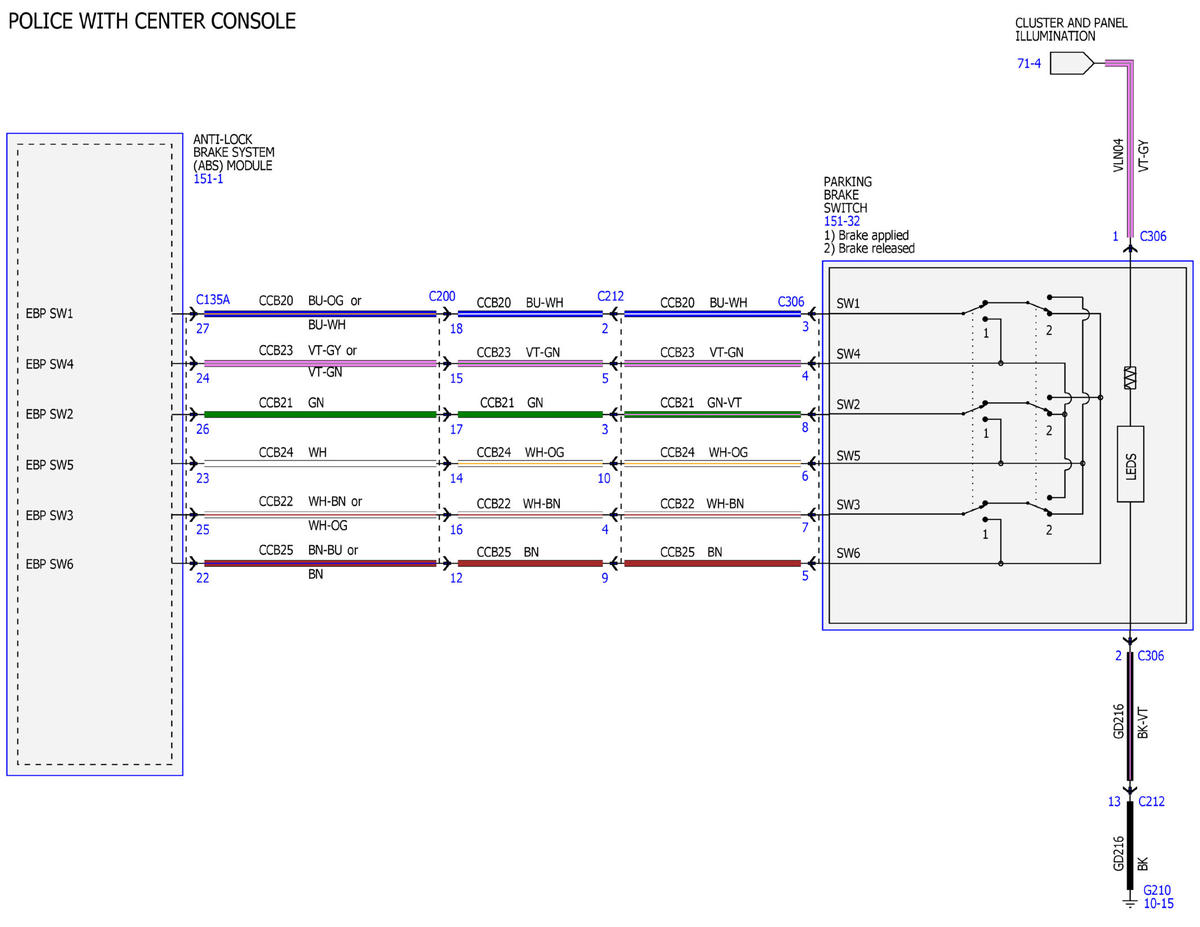

Fig 3: Vehicle Dynamic Systems Wiring Diagram (3 Of 6)
Courtesy of FORD MOTOR COMPANY

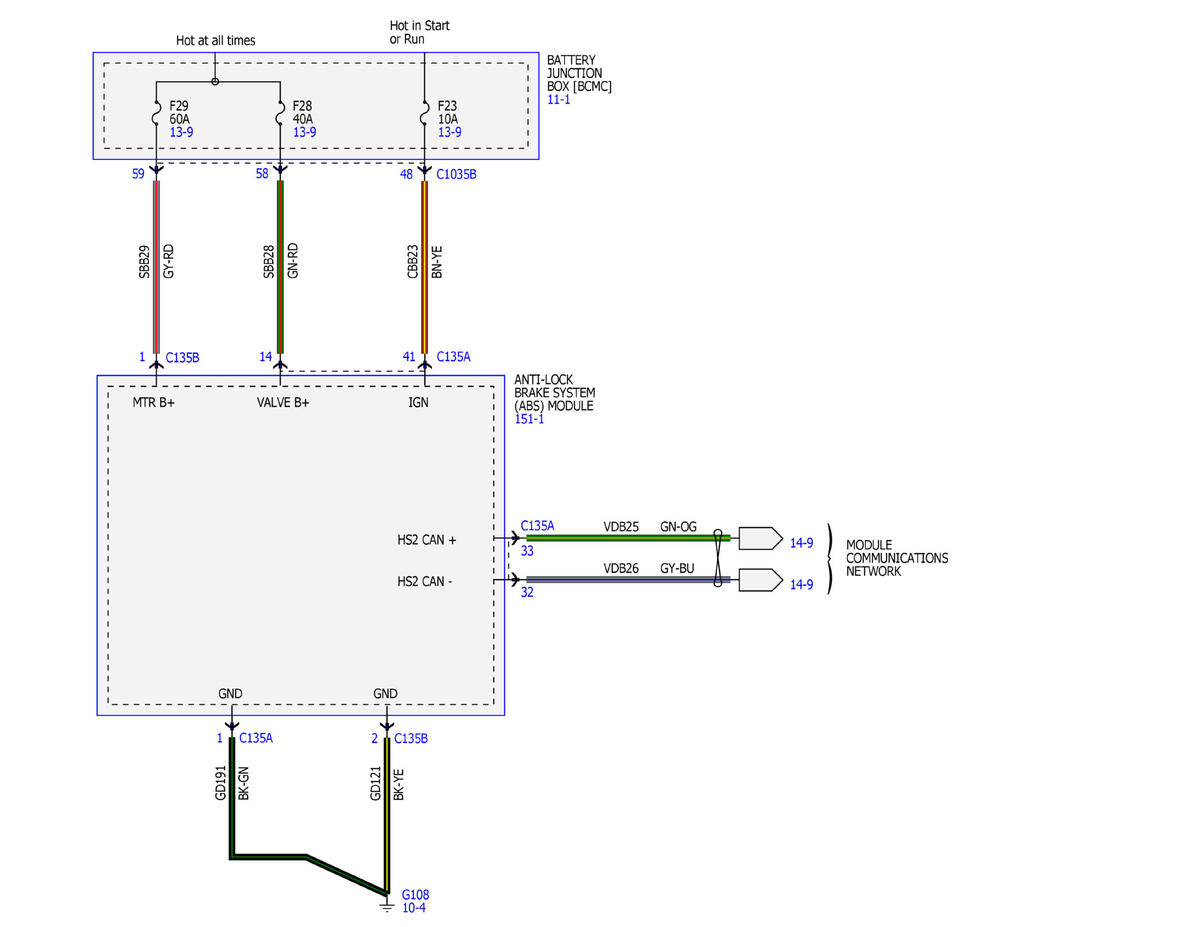

Fig 4: Vehicle Dynamic Systems Wiring Diagram (4 Of 6)
Courtesy of FORD MOTOR COMPANY

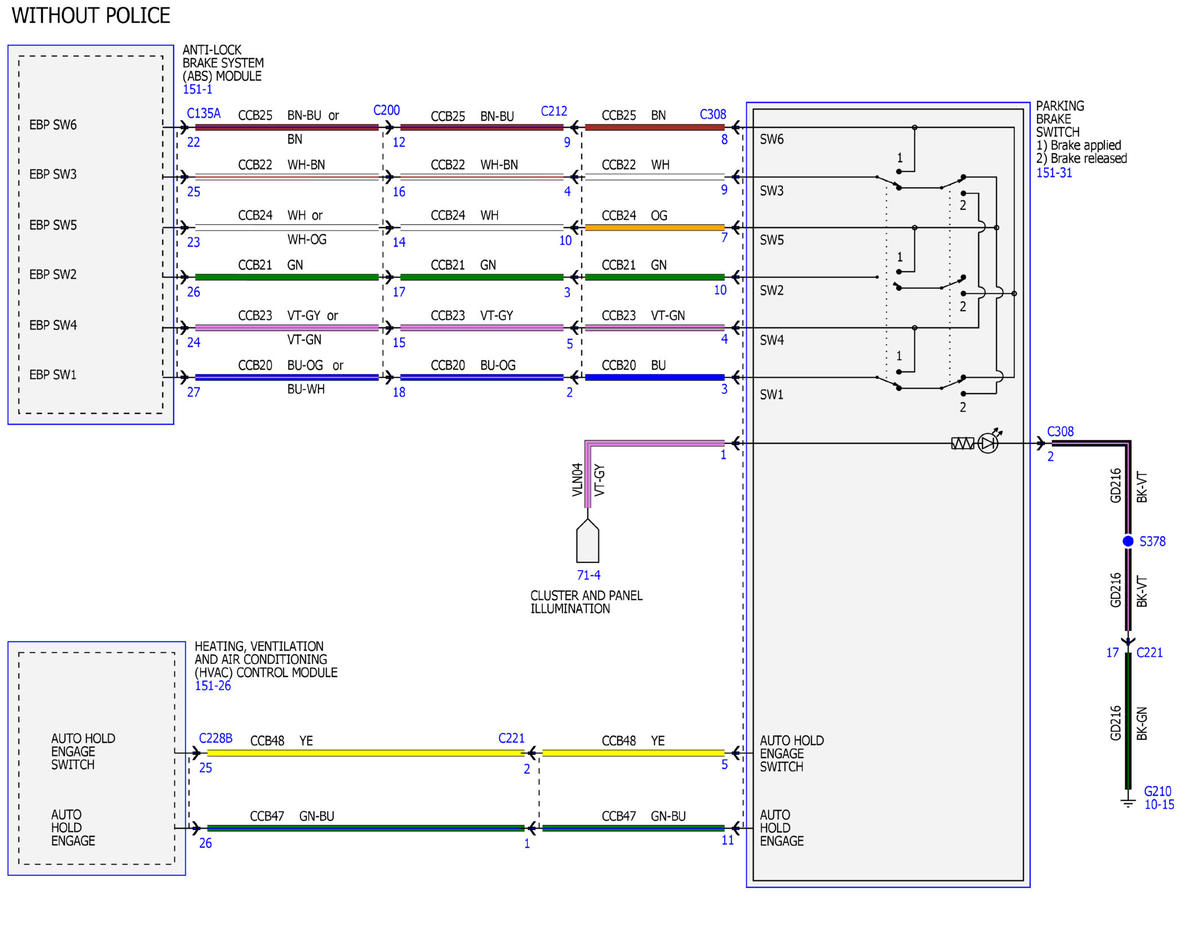

Fig 5: Vehicle Dynamic Systems Wiring Diagram (5 Of 6)
Courtesy of FORD MOTOR COMPANY

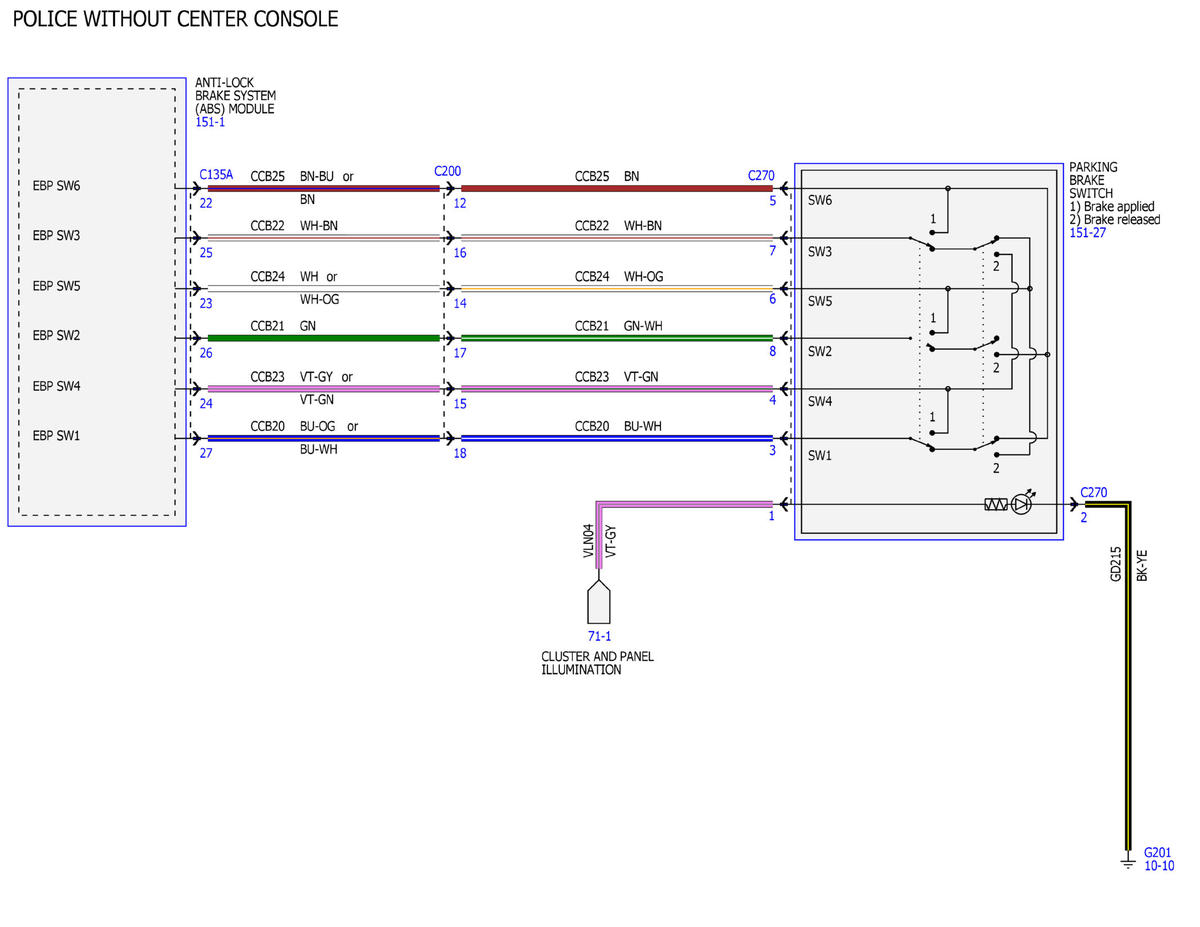

Fig 6: Vehicle Dynamic Systems Wiring Diagram (6 Of 6)
