Lighting And Siren Control Module: Removal
WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
Main lighting and siren module

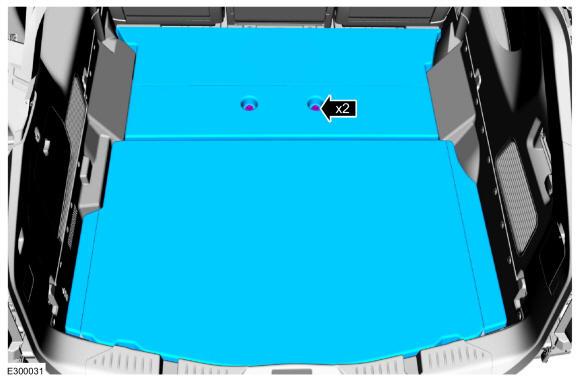

- Remove the bolts and the loadspace floor panel.
Torque: 16 lb.ft (22 Nm)

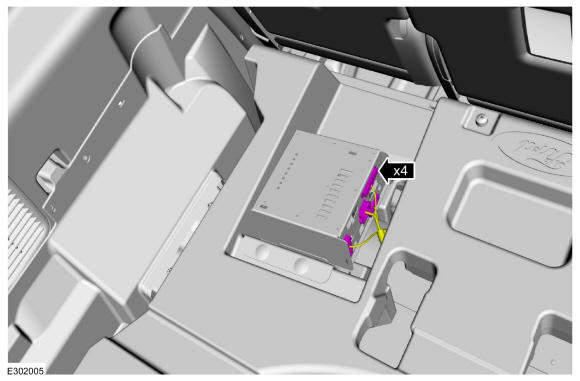

- Disconnect the lighting and siren control module electrical connectors.

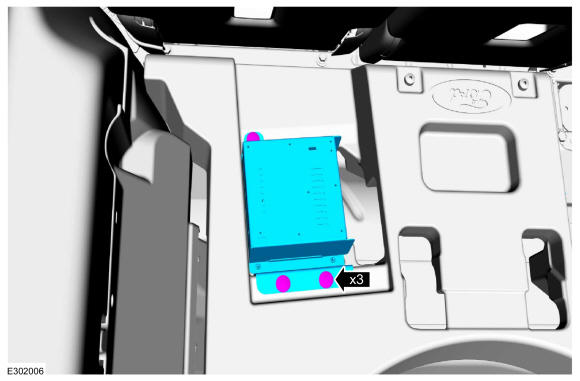

- Remove the push pins and the lighting and siren control module and bracket assembly.

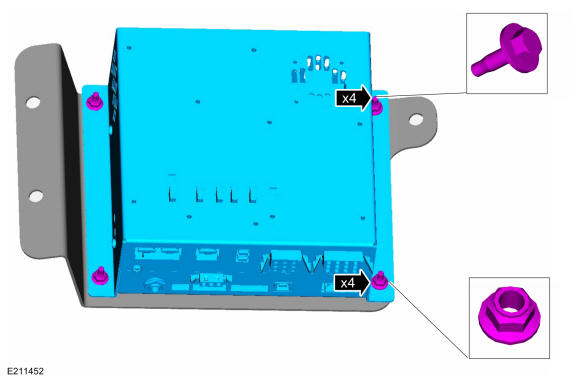

- Remove the nuts and bolts and separate the lighting and siren control module from the bracket.
Torque: 71 lb.in (8 Nm)
Traffic control flashing LED (light emitting diode) control module
- Remove the bolts and the loadspace floor panel.
Torque: 16 lb.ft (22 Nm)
-

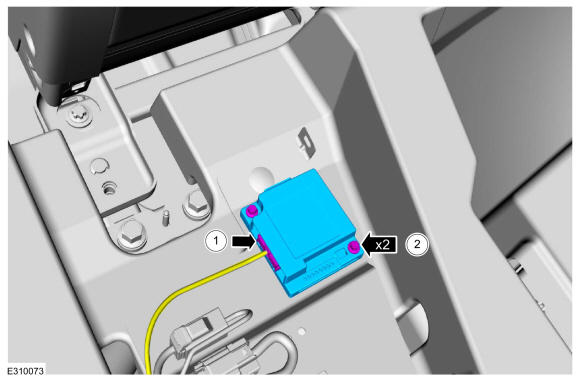

- Disconnect the electrical connector.
- Remove the bolts and the traffic control flashing LED control module
Torque: 44 lb.in (5 Nm)
