Parking Assist Control Module (PAM): Removal
WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: If installing a new PAM, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new PAM after installation.
Using a diagnostic scan tool, begin the PMI process for the PAM following the onscreen instructions.
- Position the carpet for access.

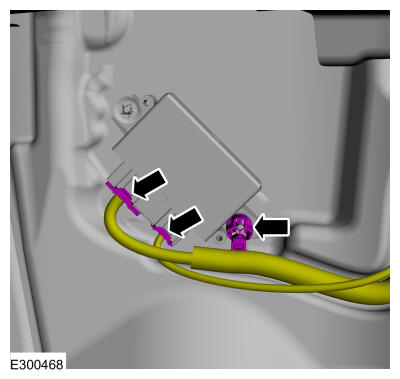

- Disconnect the electrical connectors, separate the wiring guide and position the wiring harness aside.

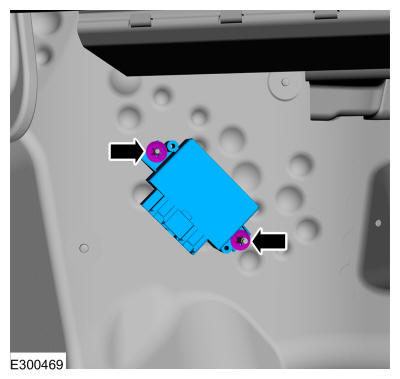

- Remove the fasteners and the PAM.
Torque: 7 lb.in (0.8 Nm)
