Roof Opening Panel Alignment

WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Adjustment

NOTE: Rear Fixed Glass Panel
NOTE: If both glass panels are being aligned, align the rear fixed glass panel before aligning the front sliding glass panel.

The front sliding glass panel initialization procedure must be done when repairs are carried out on the roof opening panel system, including: any time the roof opening panel motor has been removed, the roof opening panel glass (rear fixed or front sliding) has been removed or adjusted, or if the roof opening panel frame has been removed.

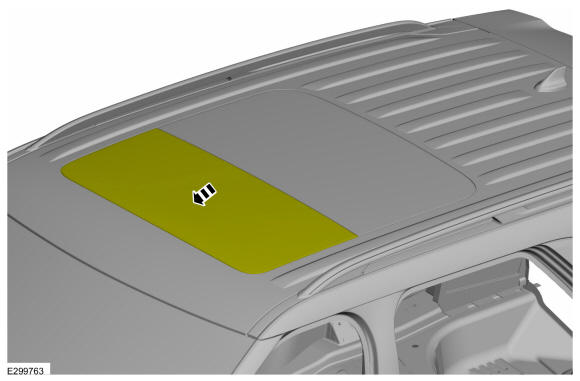

  1. Position the front sliding glass panel to the fully closed position.
    GFD662528Courtesy of FORD MOTOR COMPANY

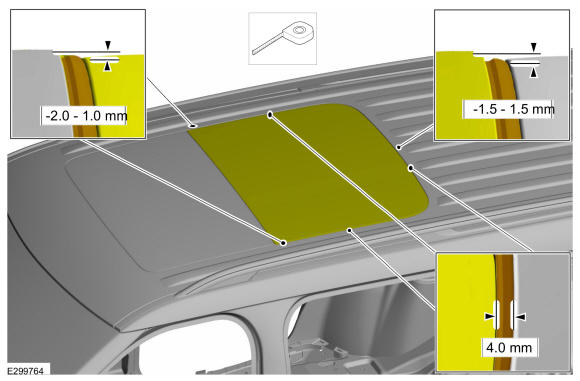

  2. Measure the rear and sides of the rear fixed glass to roof clearances as shown.
    GFD662529Courtesy of FORD MOTOR COMPANY

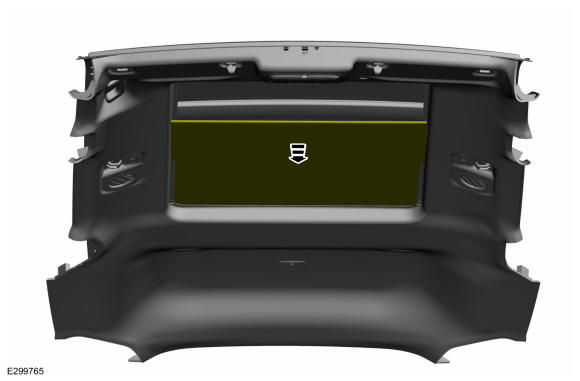

  3. If adjustment is needed, fully open the roof opening panel shield.
    GFD662530Courtesy of FORD MOTOR COMPANY

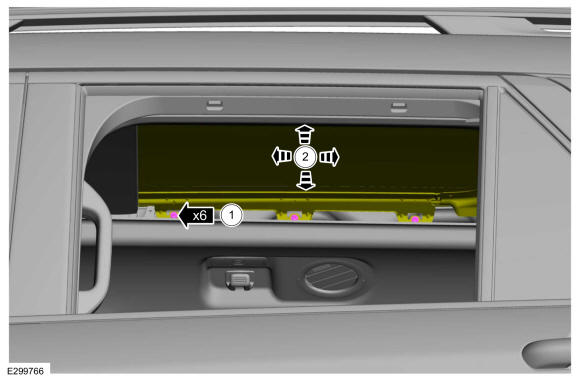

  4. On both sides. Adjust the roof opening panel fixed glass.

    1. Loosen the retainers to adjust the roof opening panel fixed glass.

      Torque: 53 lb.in (6 Nm)

    2. Adjust the roof opening panel fixed glass as necessary.

    GFD662531Courtesy of FORD MOTOR COMPANY
  5. If the rear fixed glass alignment was adjusted and the front sliding glass panel does not  need adjustment, initialize the front sliding glass panel. Refer to: Power Roof Opening Panel Initialization

Adjustment

NOTE: Front Sliding Glass Panel
NOTE: The front sliding glass panel initialization procedure must be done when repairs are carried out on the roof opening panel system, including: any time the roof opening panel motor has been removed, the roof opening panel glass (rear fixed or front sliding) has been removed or adjusted, or if the roof opening panel frame has been removed.
  1. Position the front sliding glass panel to the fully closed position.
    GFD662528Courtesy of FORD MOTOR COMPANY

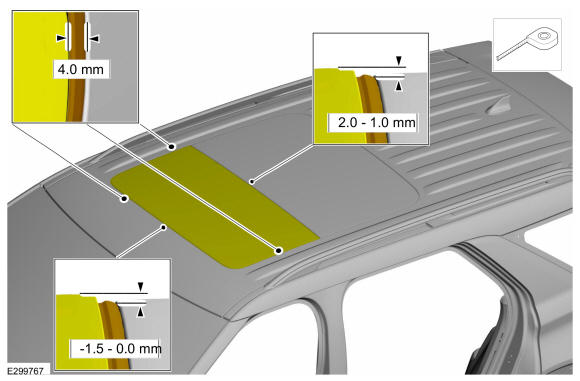

  2. Measure the front, rear and sides of the sliding glass to roof clearances as shown.
    GFD662532Courtesy of FORD MOTOR COMPANY
  3. If adjustment is needed, fully open the roof opening panel shield.
    GFD662530Courtesy of FORD MOTOR COMPANY

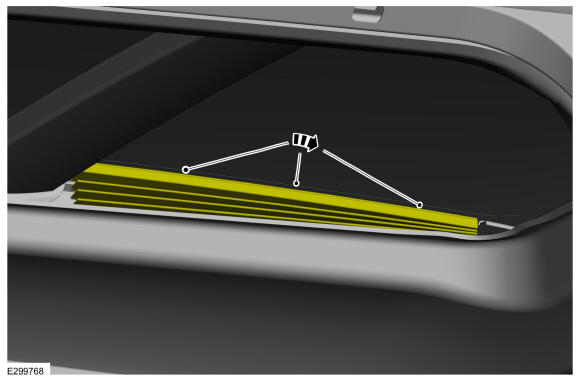

  4. If necessary, on both sides. Detach the top portion of the roof opening panel blind and fold it down to get access to the roof opening panel glass retainers.
    GFD662533Courtesy of FORD MOTOR COMPANY
  5. NOTE: Roof opening panel blind removed for clarity.

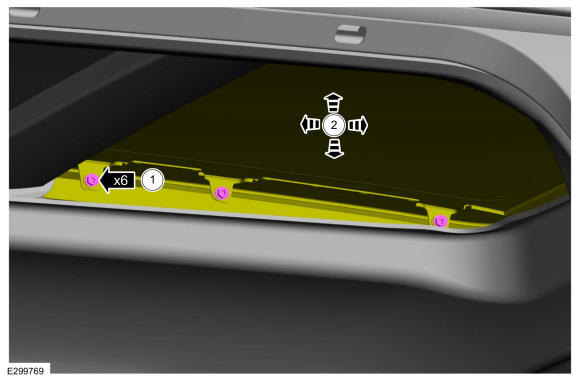

    On both sides. Adjust the roof opening panel sliding glass.

    1. Loosen the retainers to adjust the roof opening panel sliding glass.

      Torque: 53 lb.in (6 Nm)

    2. Adjust the roof opening panel sliding glass as necessary.

    GFD662534Courtesy of FORD MOTOR COMPANY
  6. If any adjustment was made on the front sliding or rear fixed glass panels, initialize the front sliding glass panel. Refer to: Power Roof Opening Panel Initialization
