Section 1180 (OEM Ground Distribution): Grounds

WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

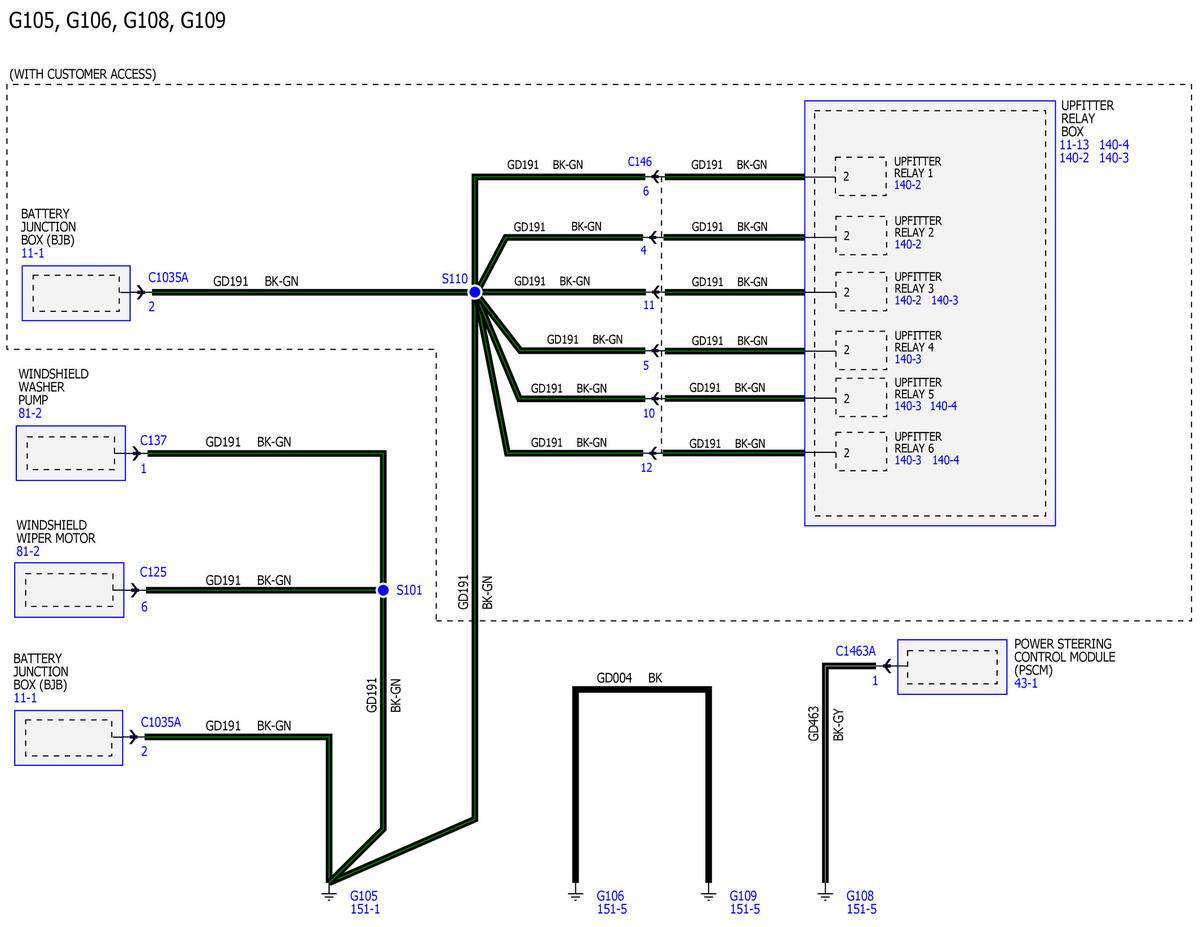

GFDWR173477Courtesy of FORD MOTOR COMPANY

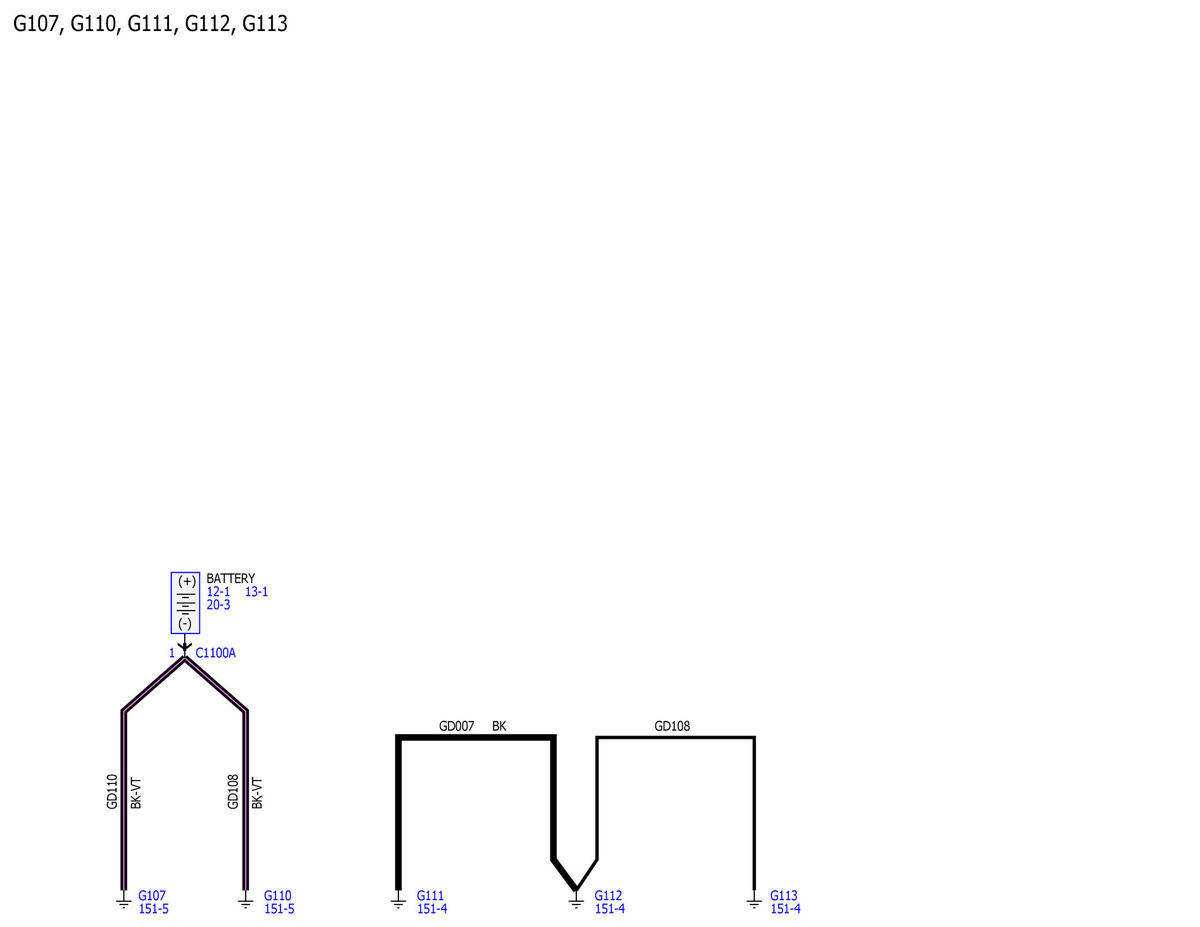

GFDWR173488Courtesy of FORD MOTOR COMPANY

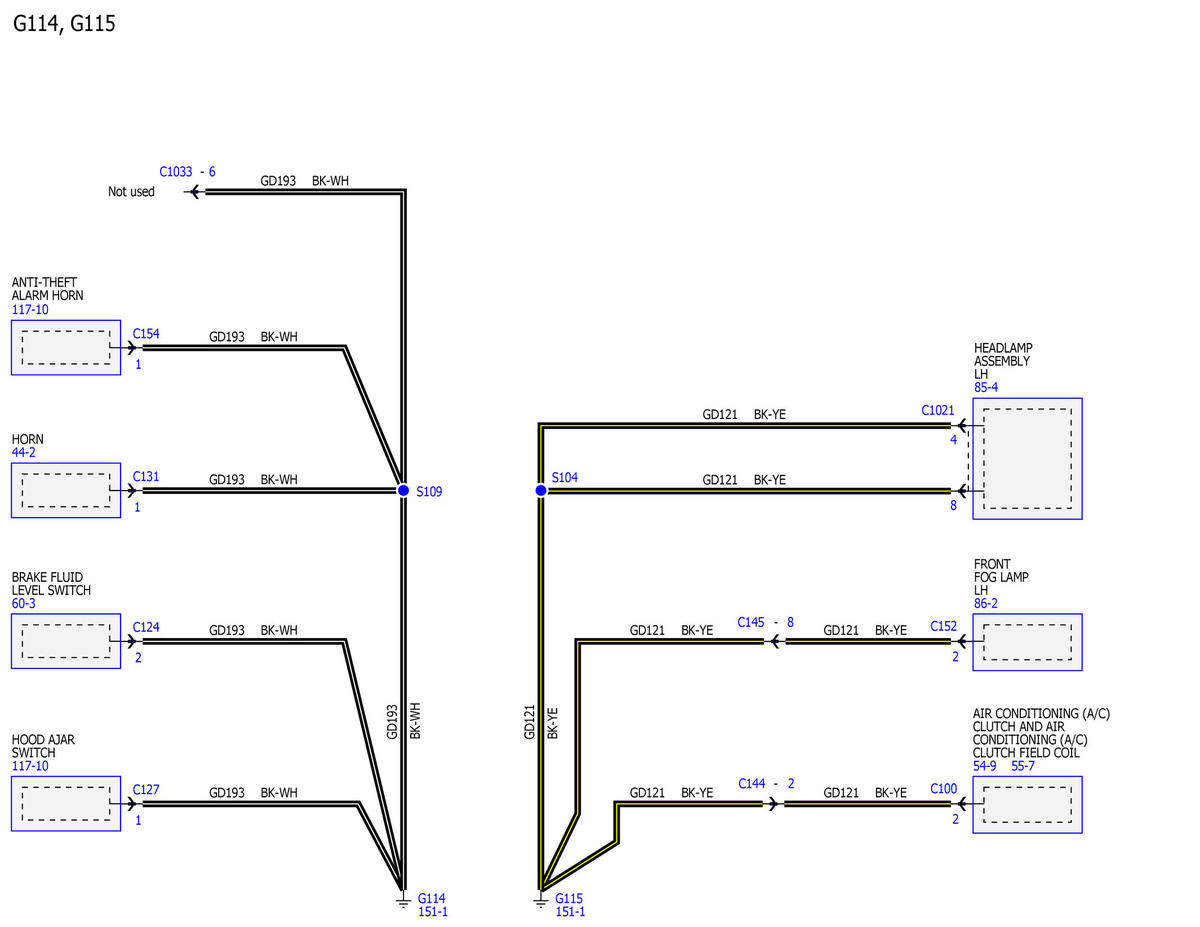

GFDWR173490Courtesy of FORD MOTOR COMPANY

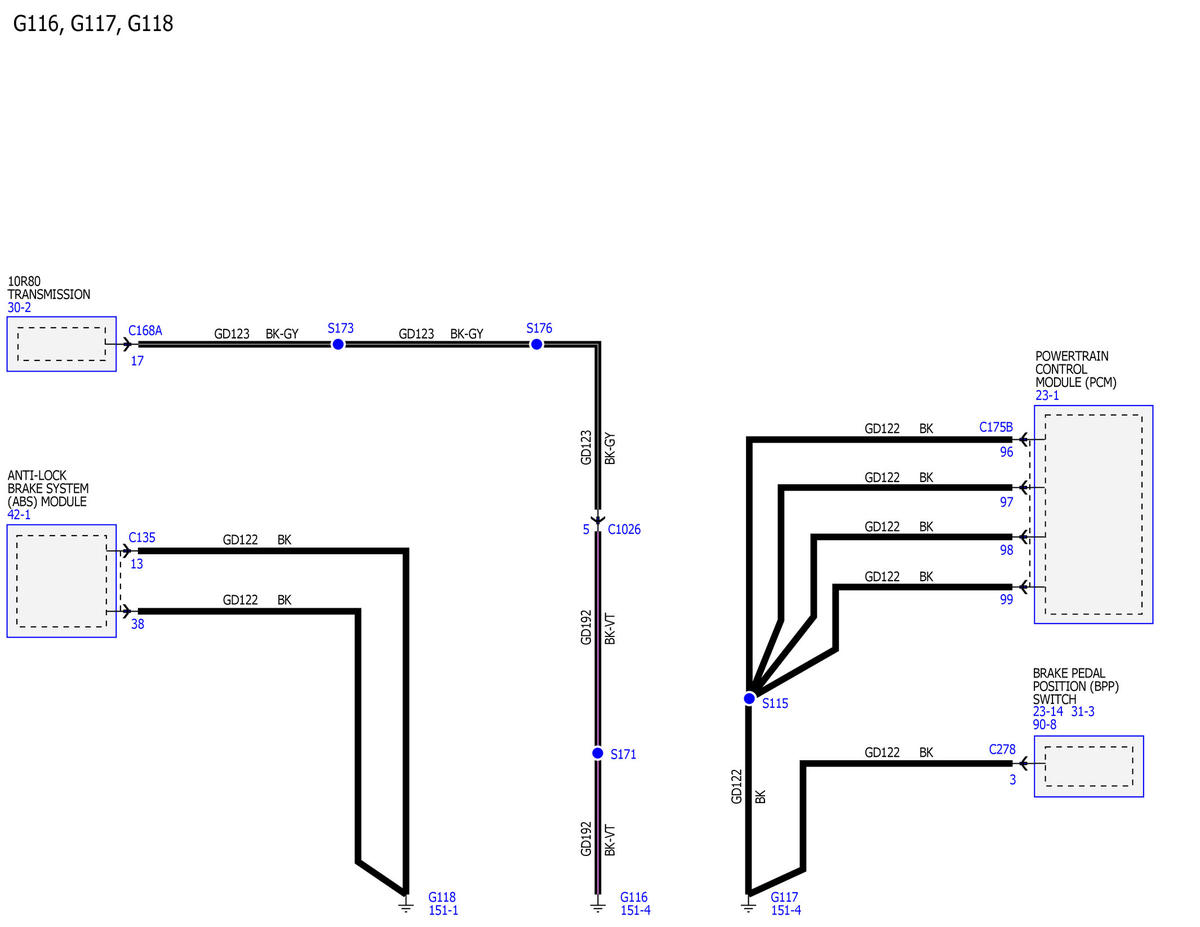

GFDWR173491Courtesy of FORD MOTOR COMPANY

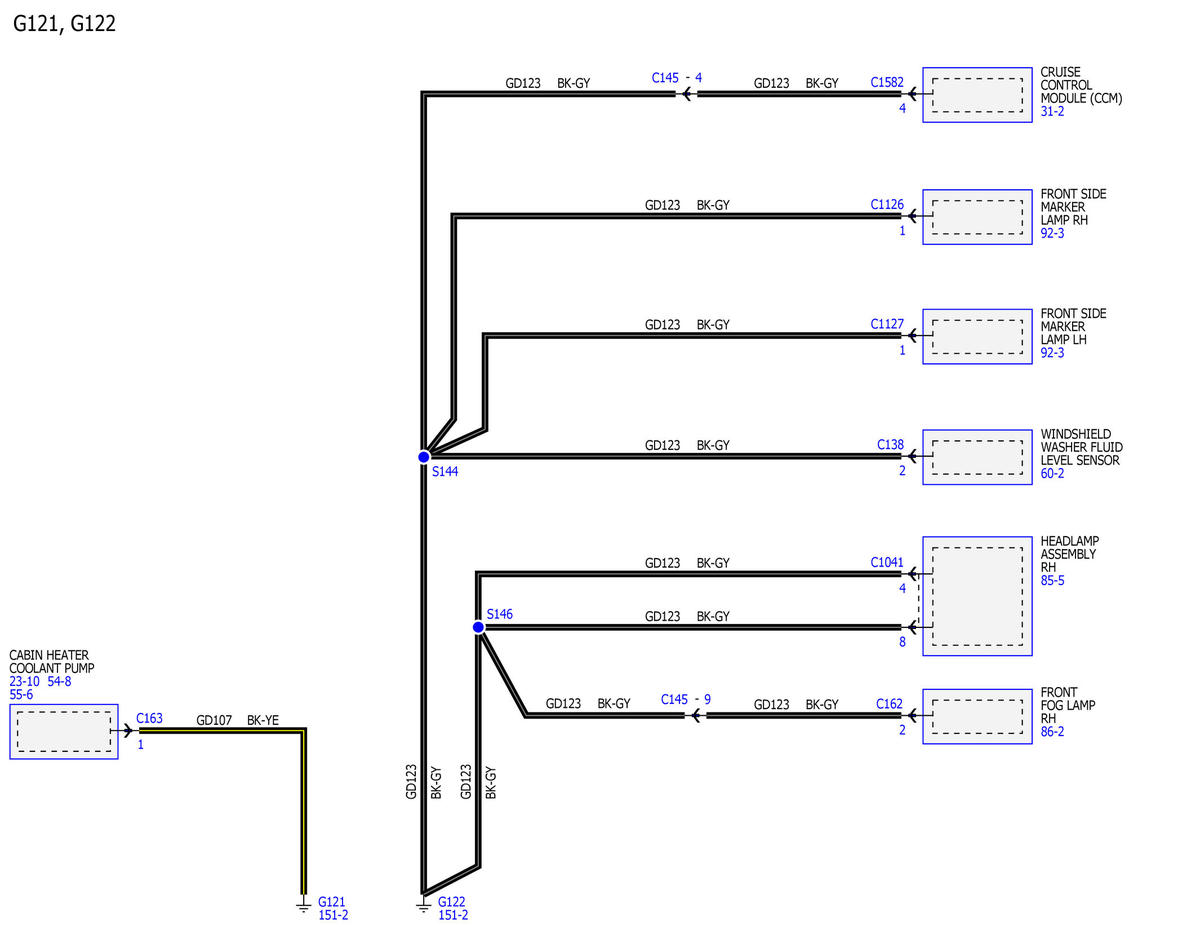

GFDWR173492Courtesy of FORD MOTOR COMPANY

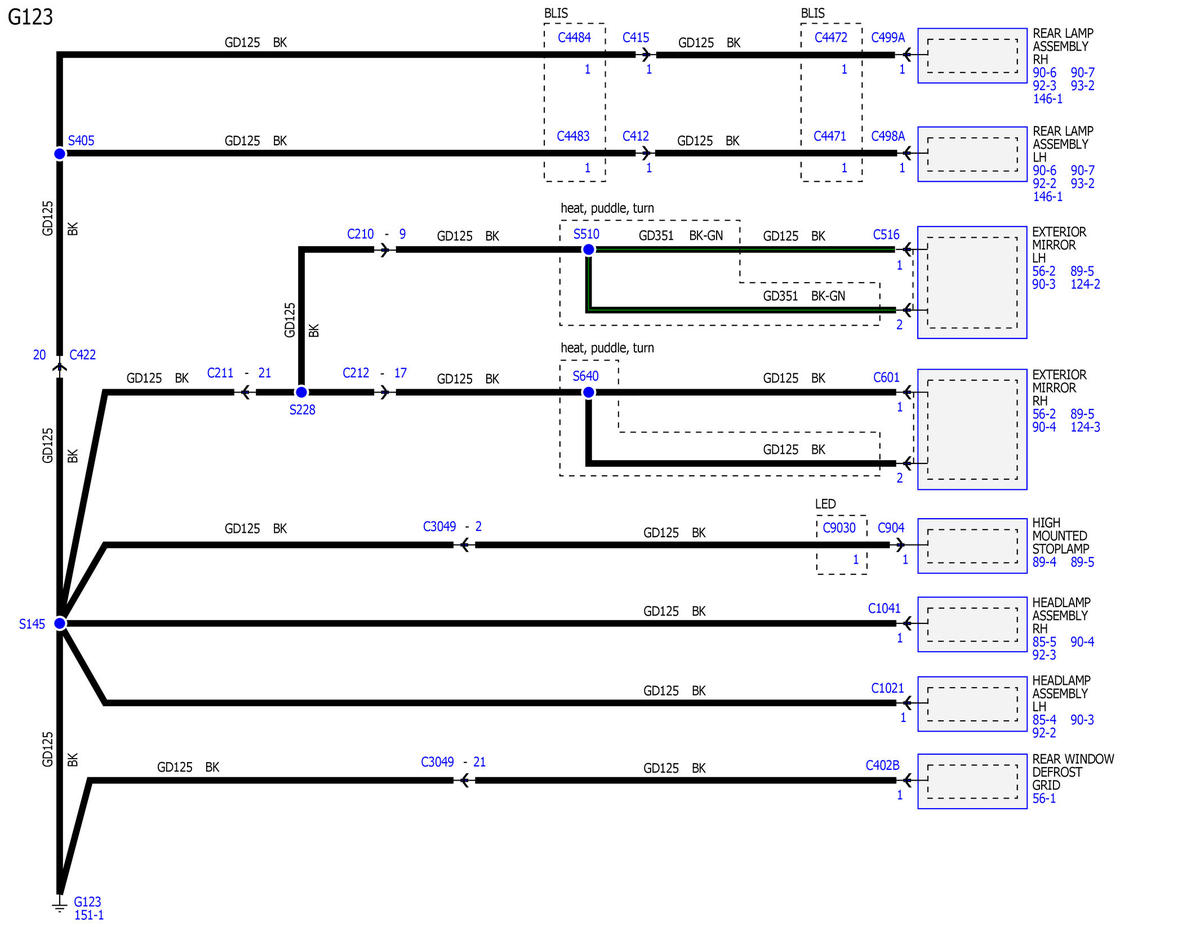

GFDWR173493Courtesy of FORD MOTOR COMPANY

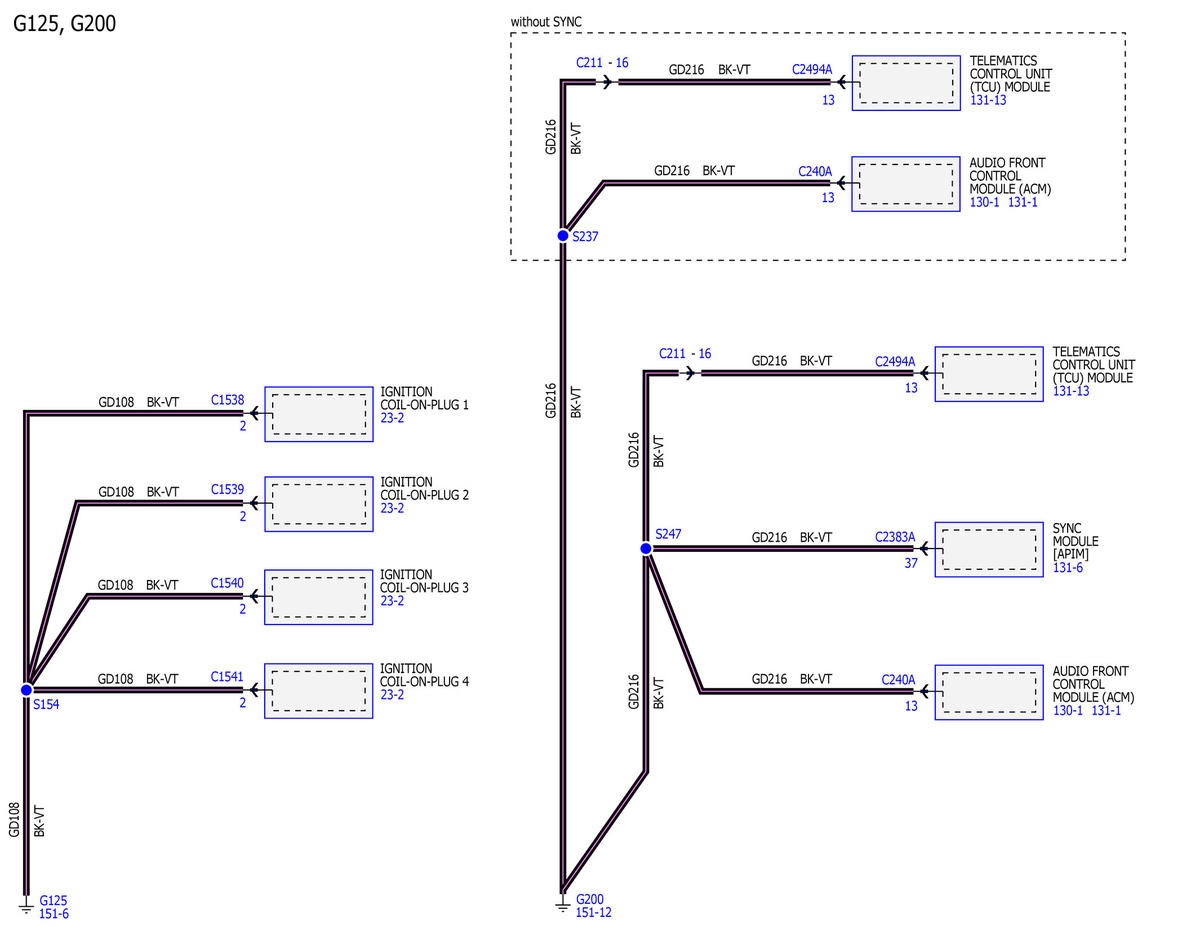

GFDWR173494Courtesy of FORD MOTOR COMPANY

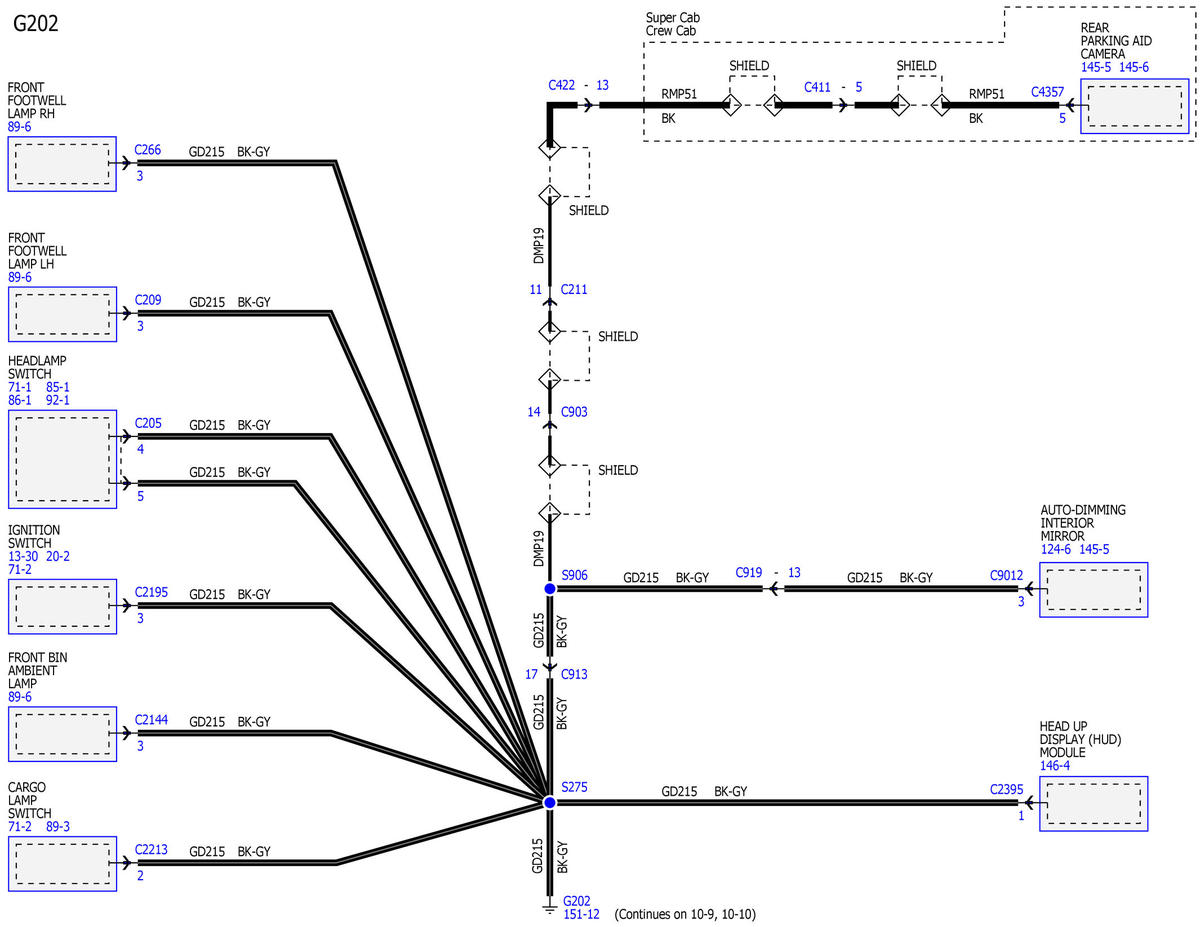

GFDWR173495Courtesy of FORD MOTOR COMPANY

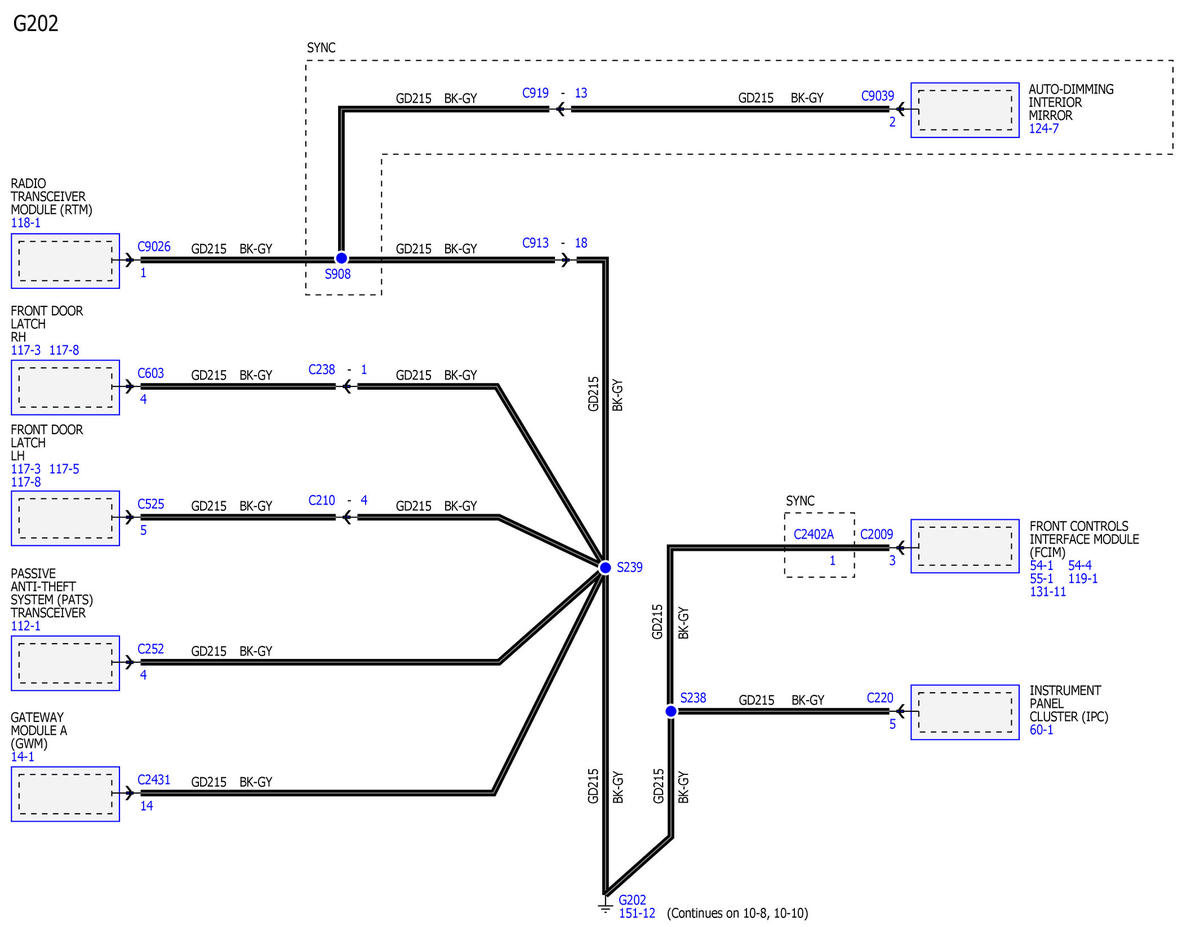

GFDWR173496Courtesy of FORD MOTOR COMPANY

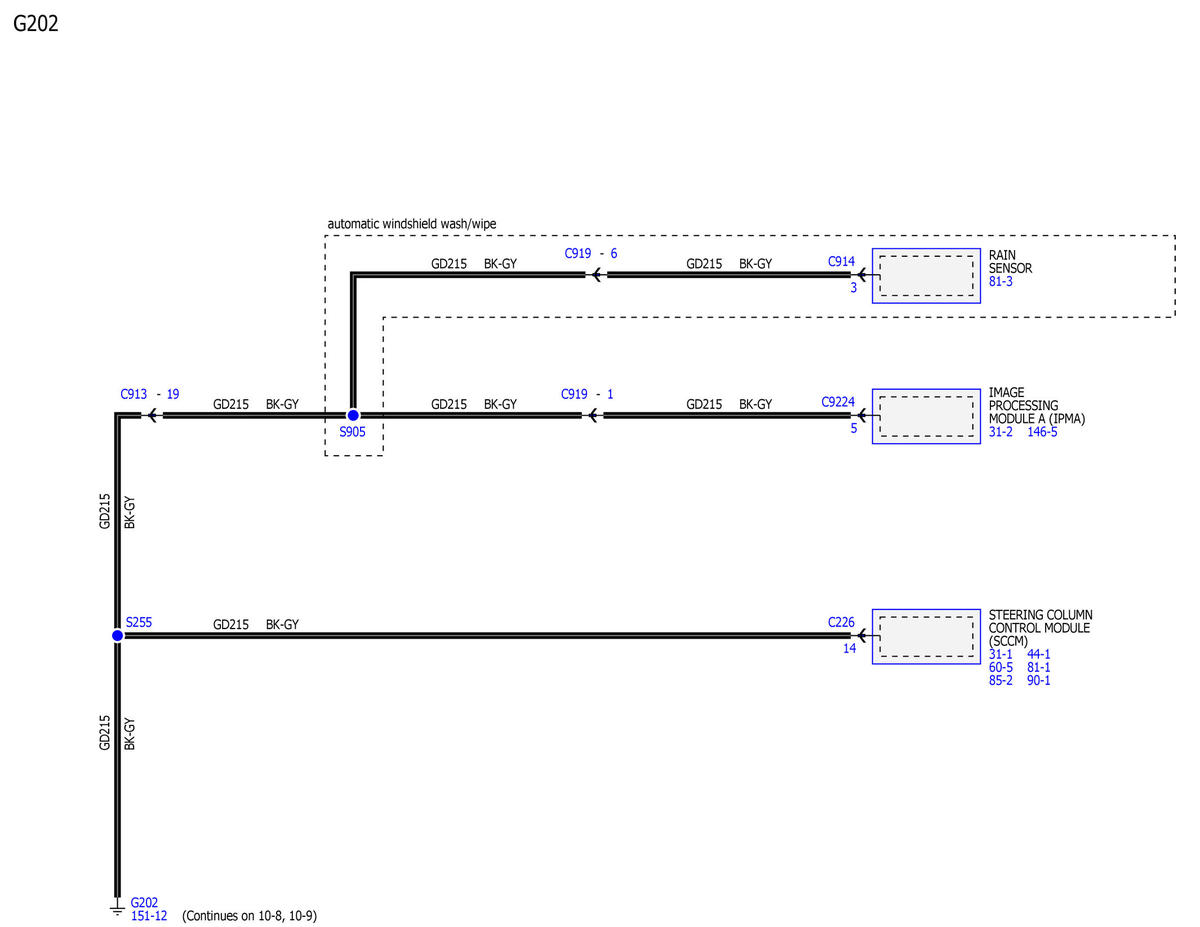

GFDWR173478Courtesy of FORD MOTOR COMPANY

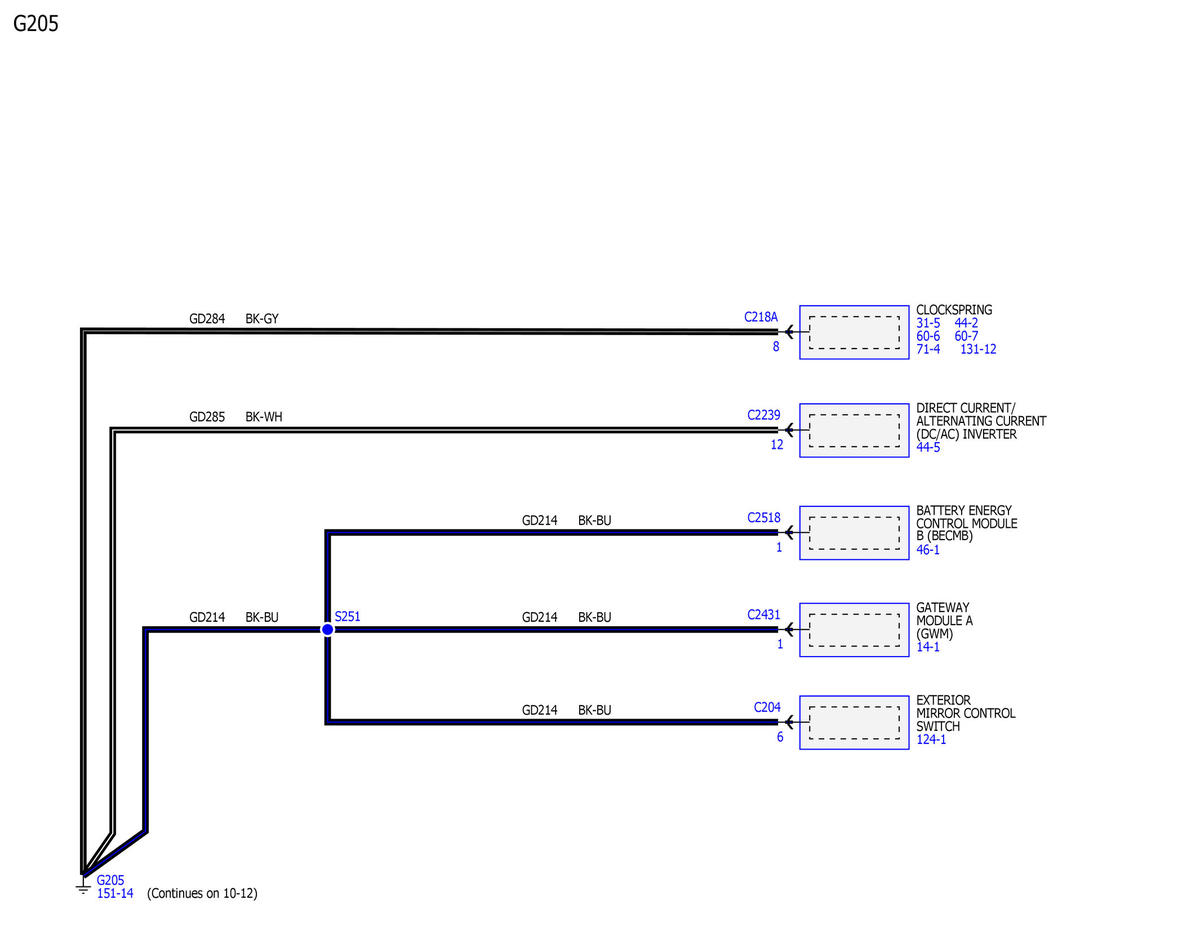

GFDWR173479Courtesy of FORD MOTOR COMPANY

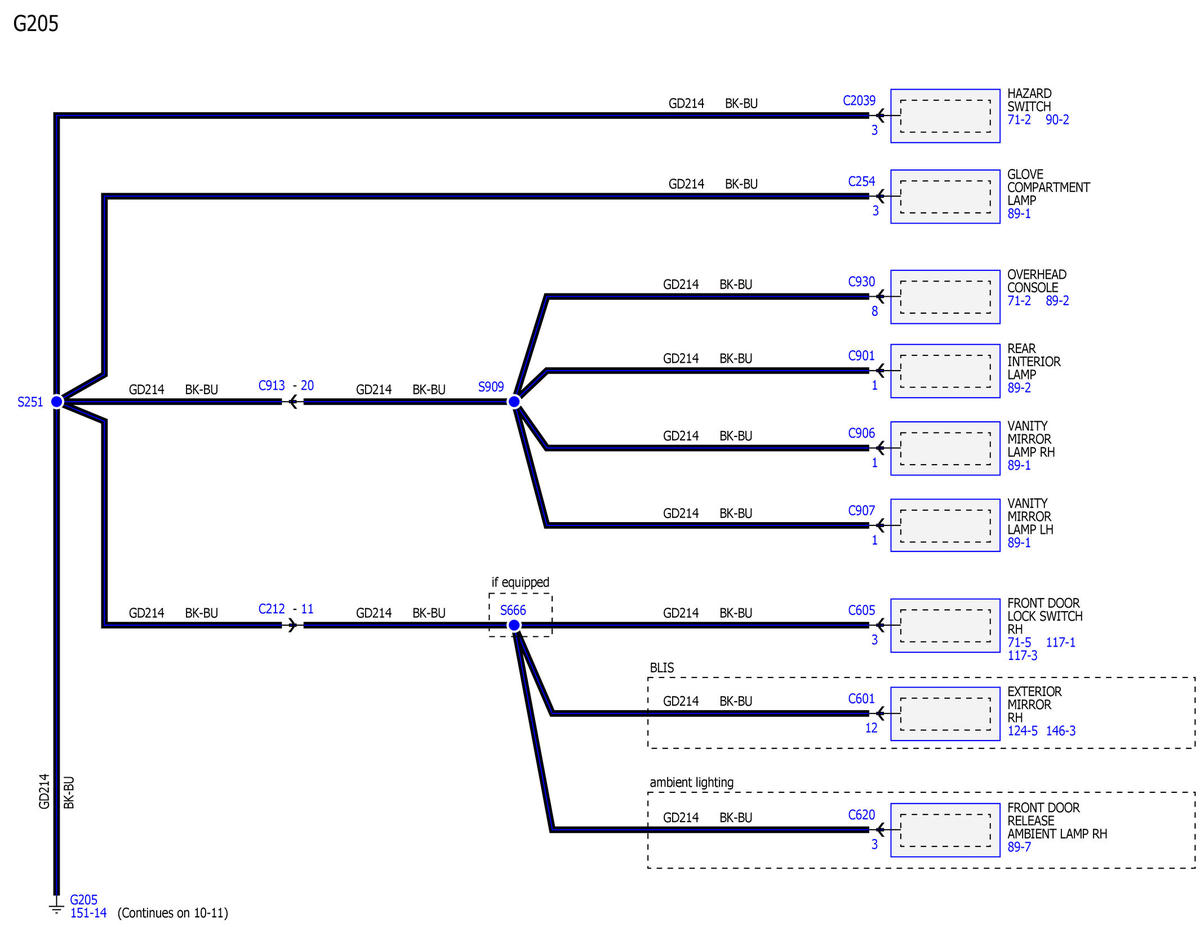

GFDWR173480Courtesy of FORD MOTOR COMPANY

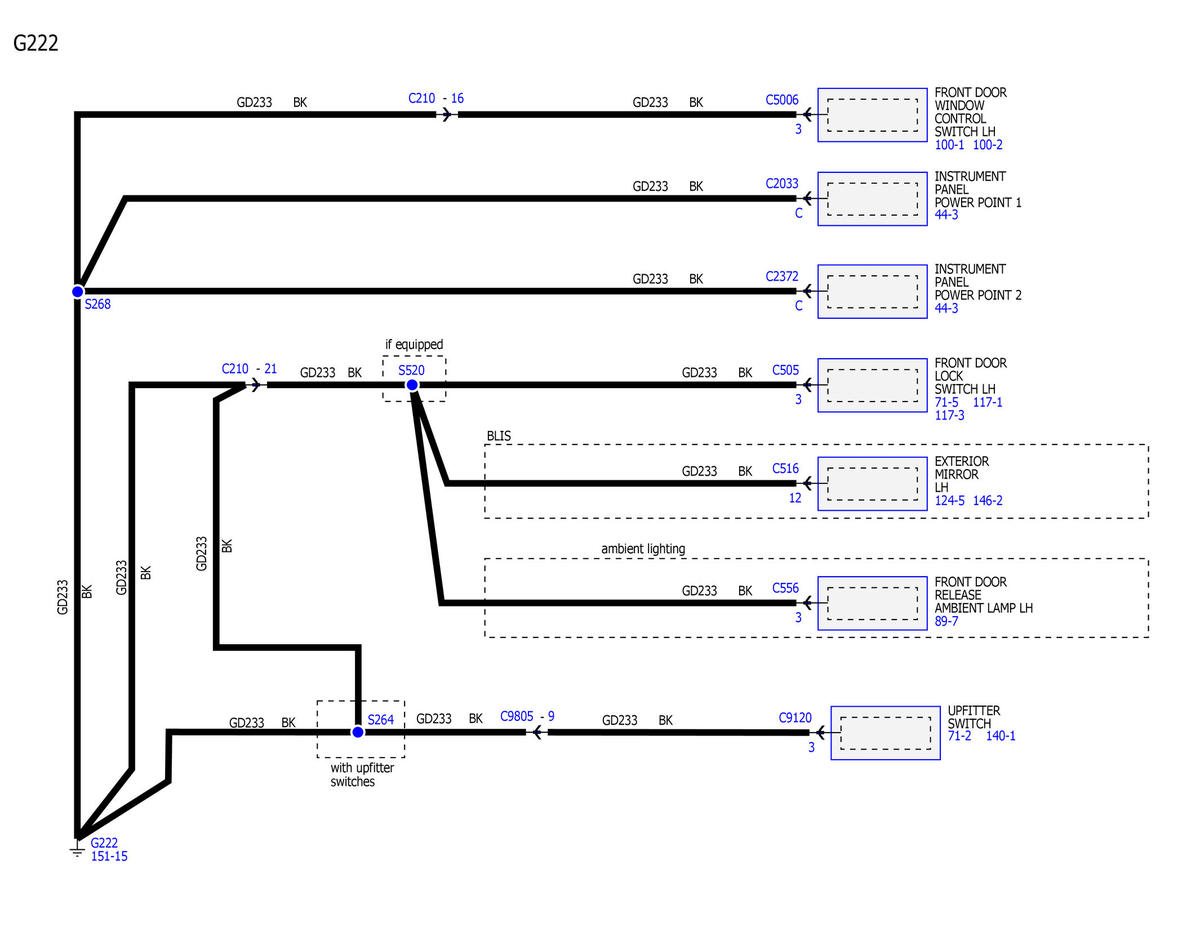

GFDWR173481Courtesy of FORD MOTOR COMPANY

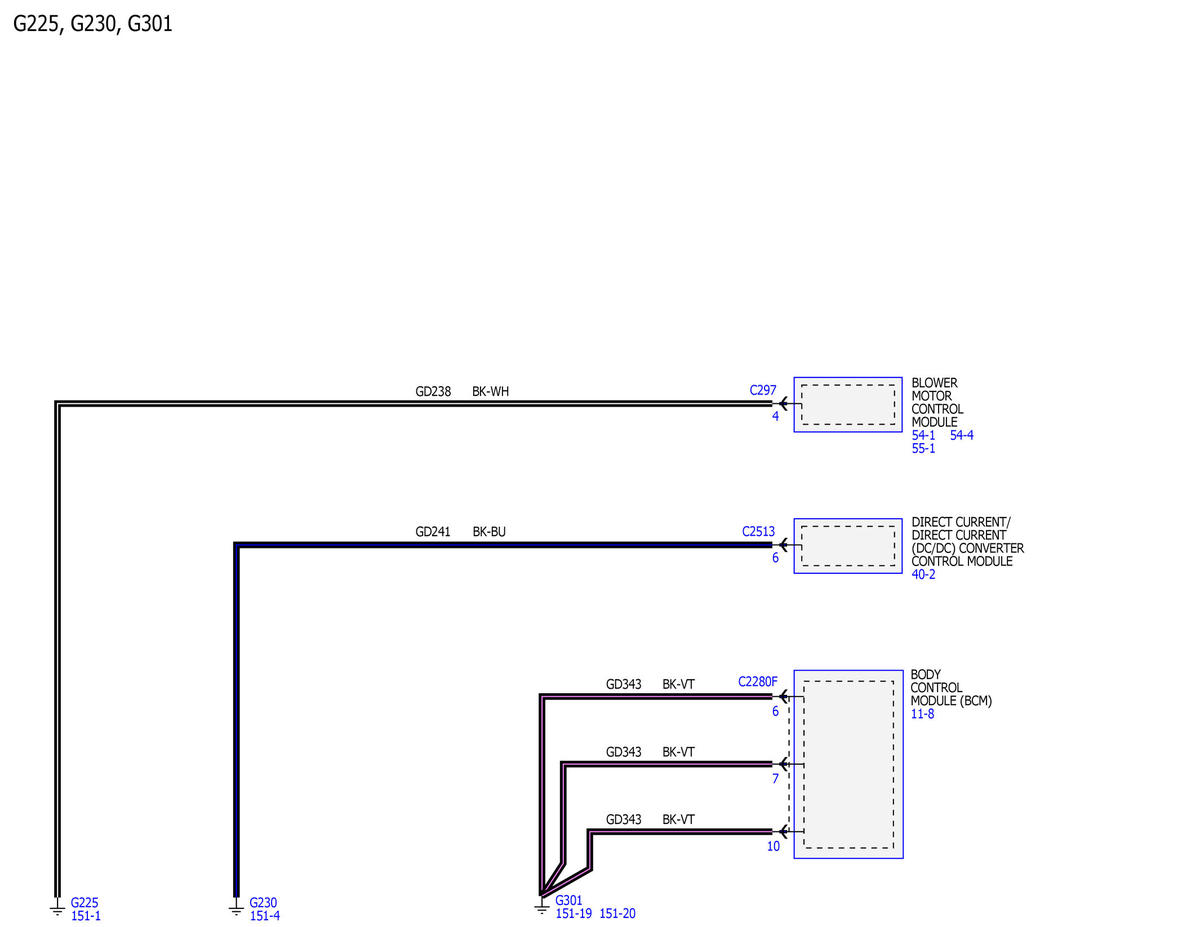

GFDWR173482Courtesy of FORD MOTOR COMPANY

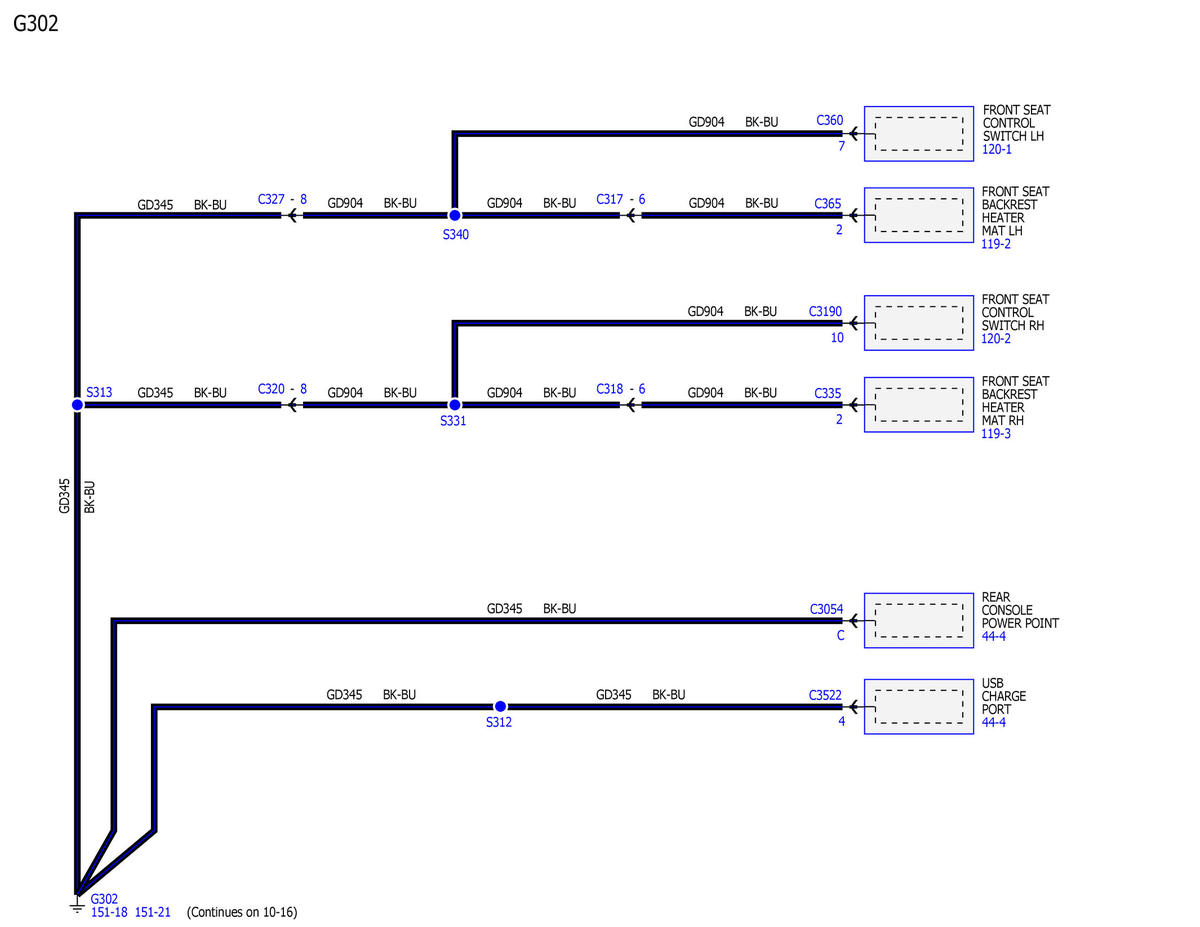

GFDWR173483Courtesy of FORD MOTOR COMPANY

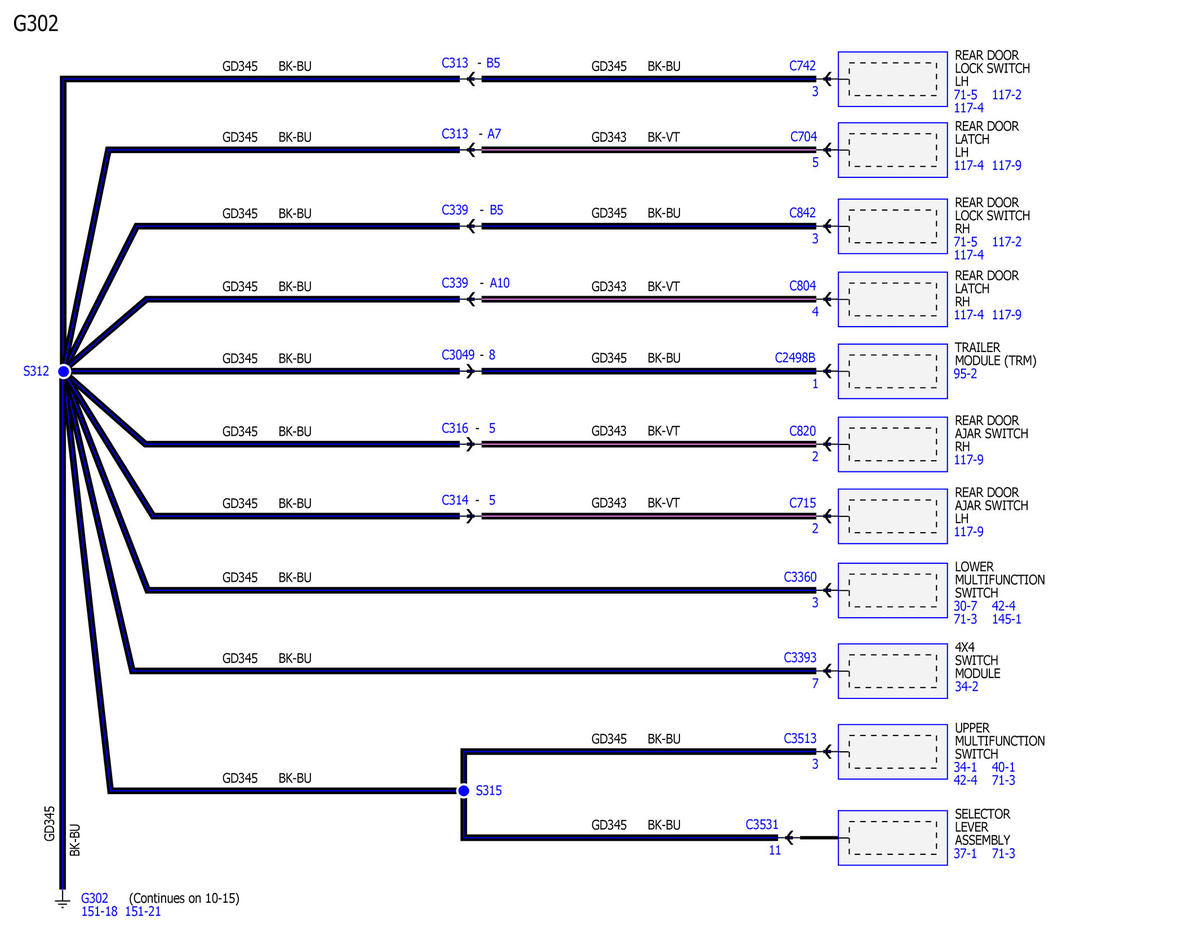

GFDWR173484Courtesy of FORD MOTOR COMPANY

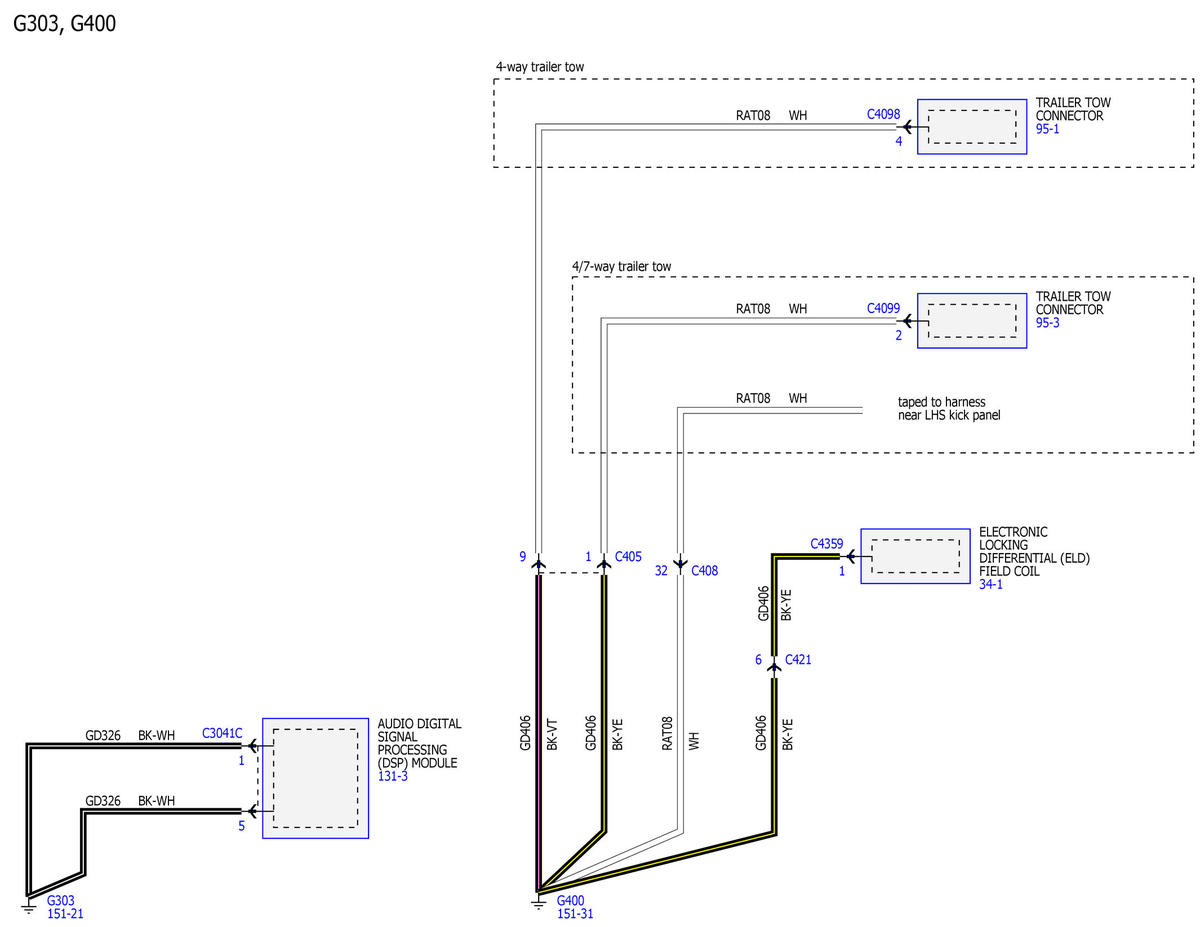

GFDWR173485Courtesy of FORD MOTOR COMPANY

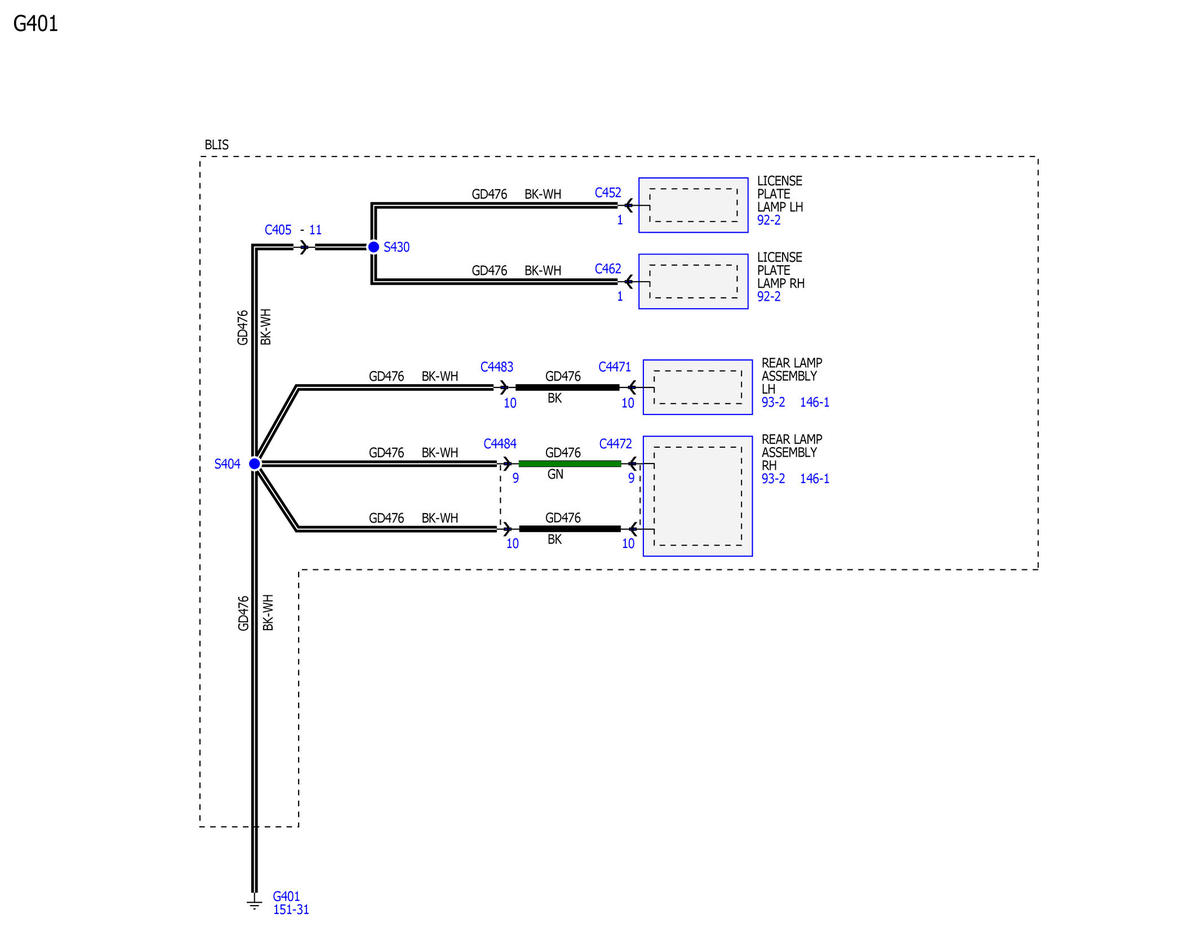

GFDWR173486Courtesy of FORD MOTOR COMPANY

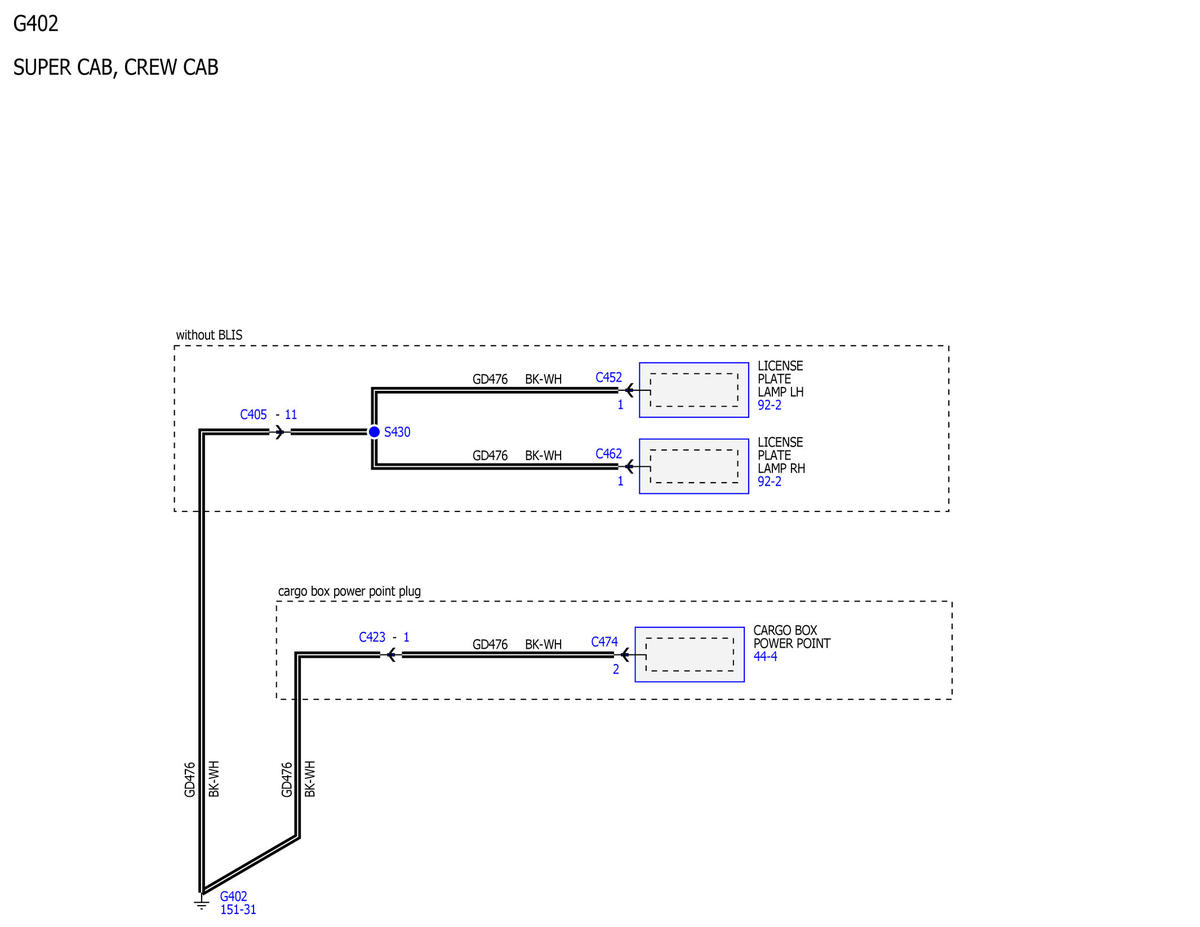

GFDWR173487Courtesy of FORD MOTOR COMPANY

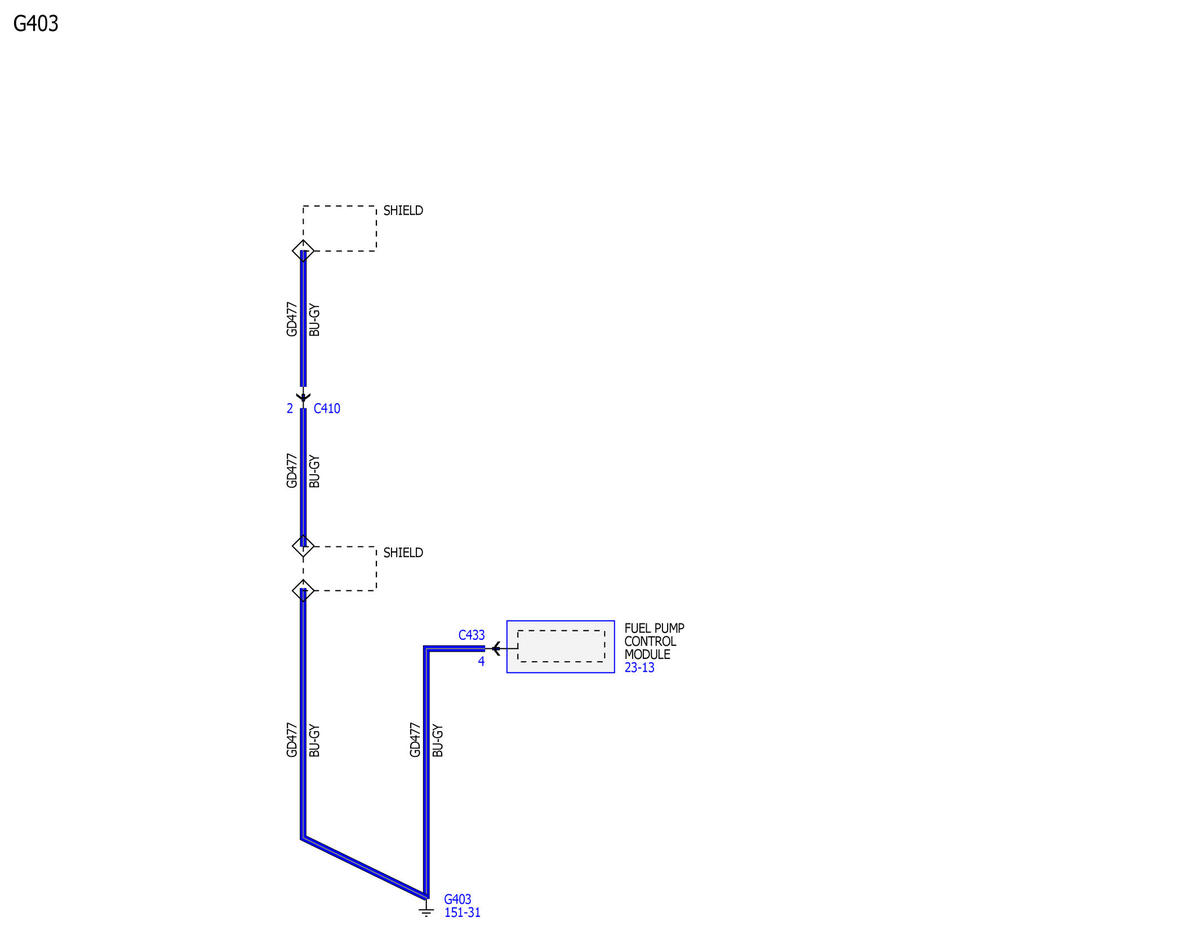

GFDWR173489Courtesy of FORD MOTOR COMPANY
